Introduction

Dispersion at map coordinates

Upon clicking on a point, you will see the Love and Rayleigh group velocity dispersion curves with the following key:

Because the tomography code computes the continental average group velocity at each period, and then solves for deviations this background level, inversion cells with no rays will yield this average velocity by default. This result is not real, since there were no observations in the cell, and thus must not be used. To create a set of dispersion curves for a given map coordinate, the cells which surround the desired point are examined as well as the summation of ray paths through each cell. Currently, a dispersion is provided for the desired point only if the sum of ray paths through these neighboring cells is as least 50 km. If this condition is met, then the dispersion is computed using an interpolation of the values at the adjacent nodes.

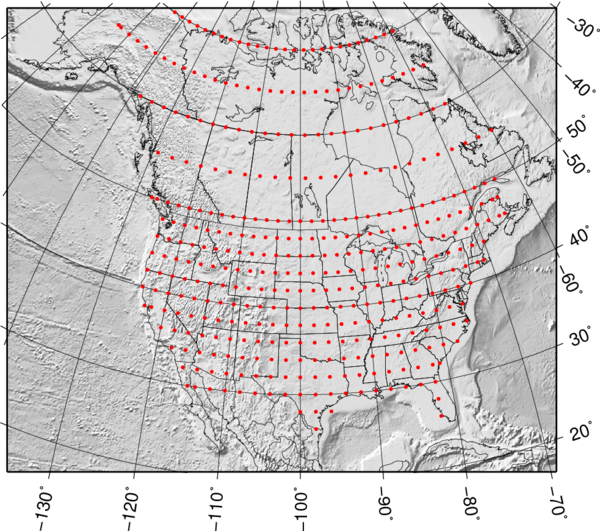

NOTE ON THE MAP: This map gives the dispersion at a given geographic latitude/longitude coordinate.

Group velocity curves

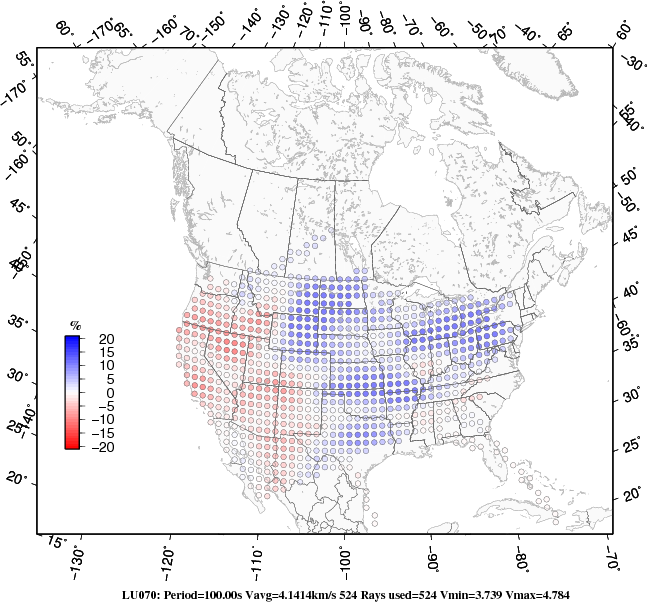

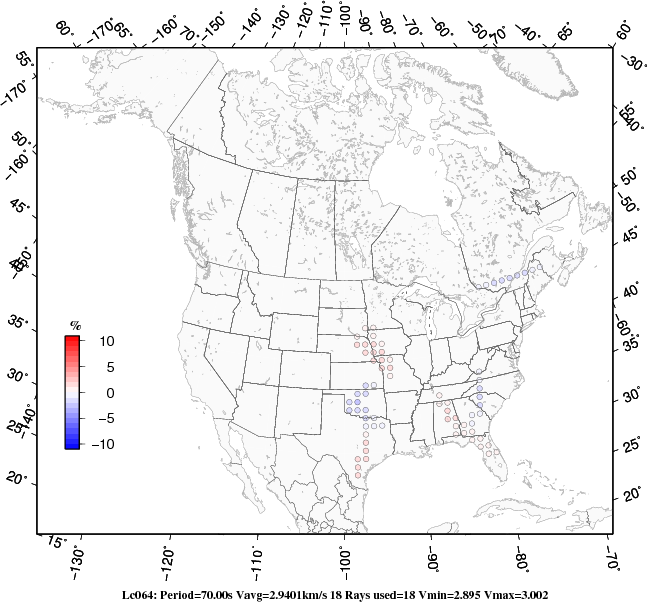

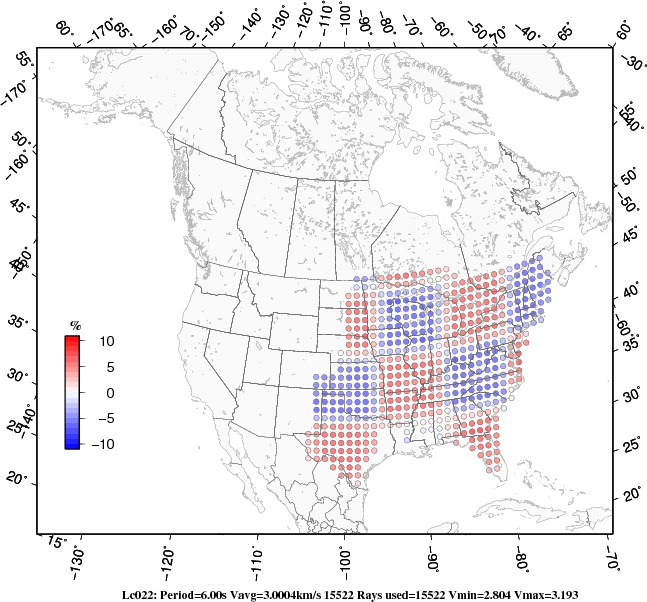

Dispersion Maps

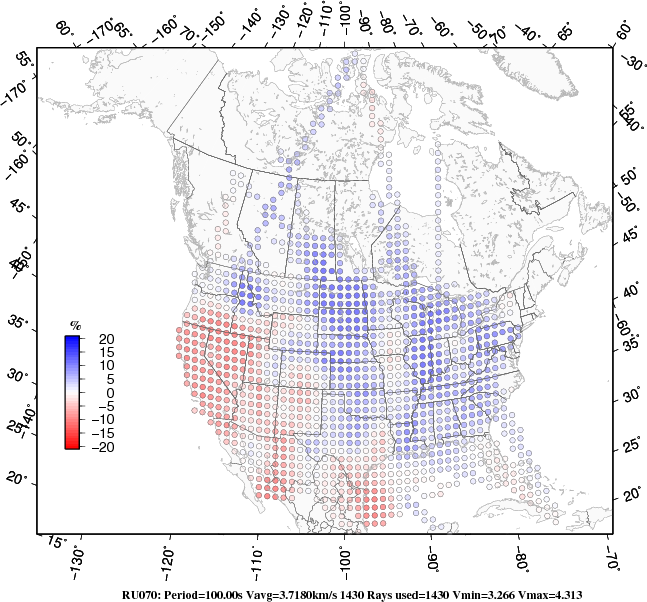

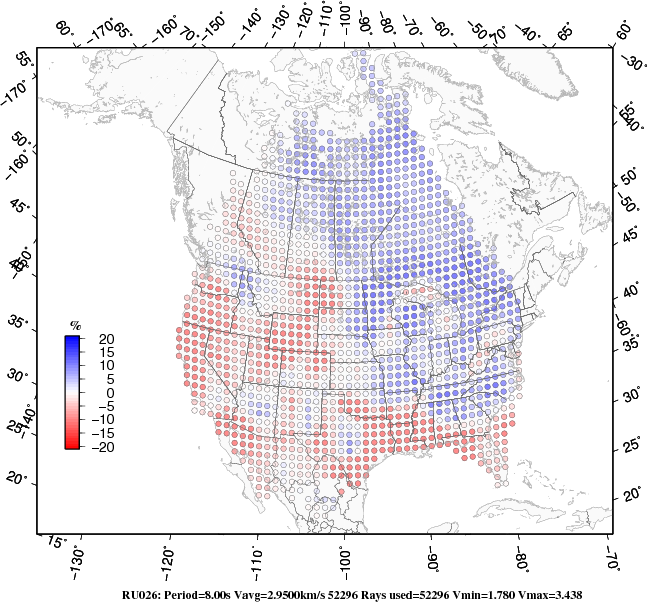

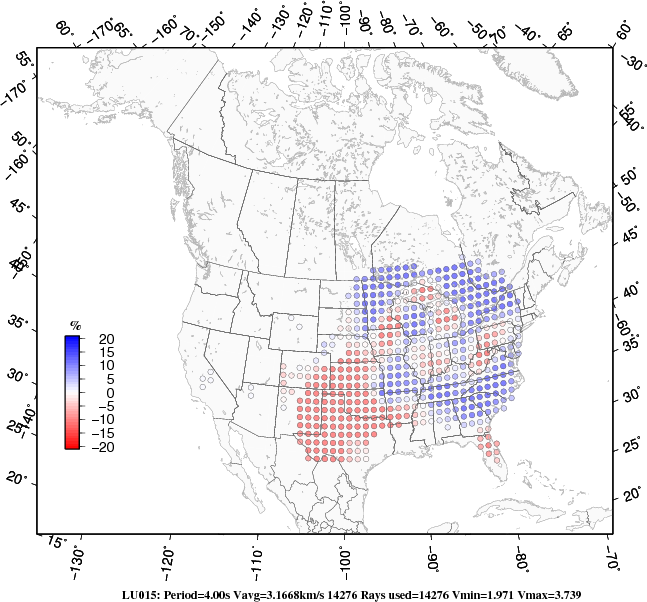

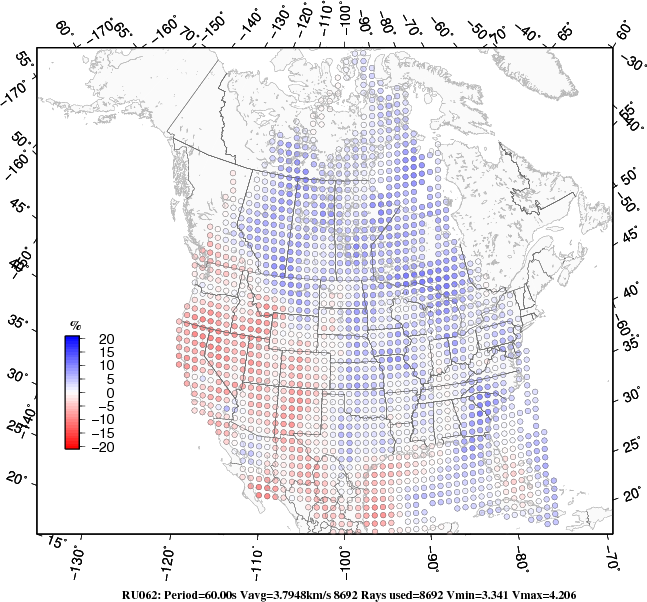

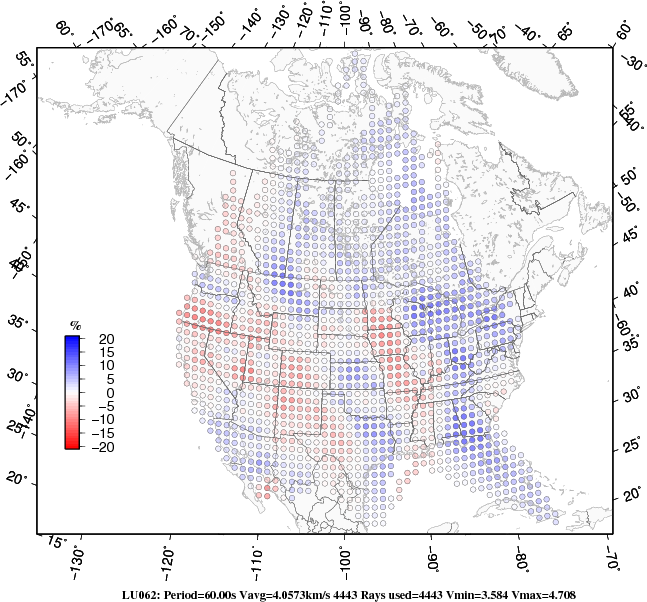

The links below point to the dispersion map. Note these links open a new browser window, not to annoy you, but to permit a side-by-side comparison of the dispersion curve and the resolution map.

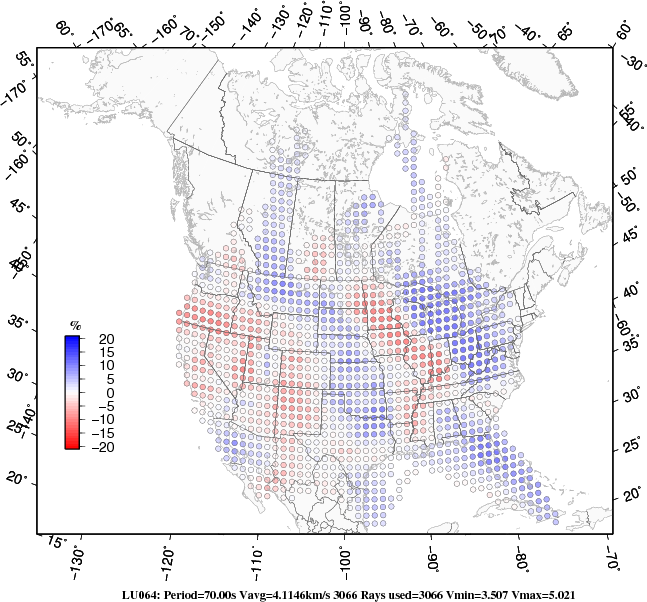

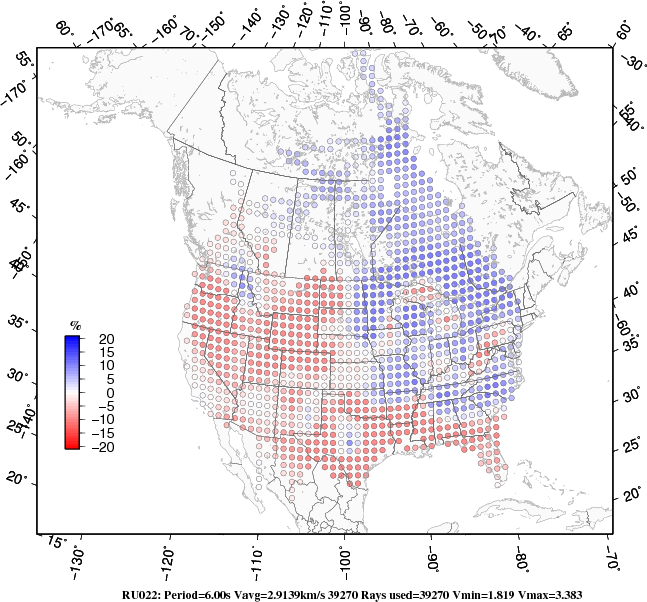

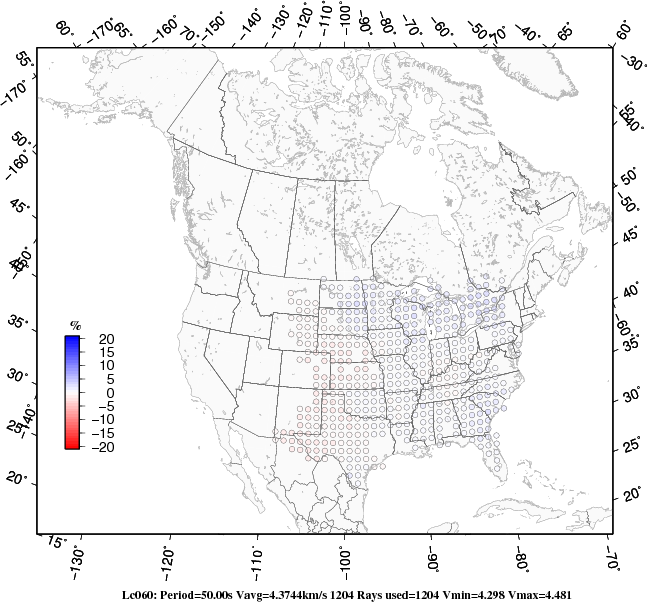

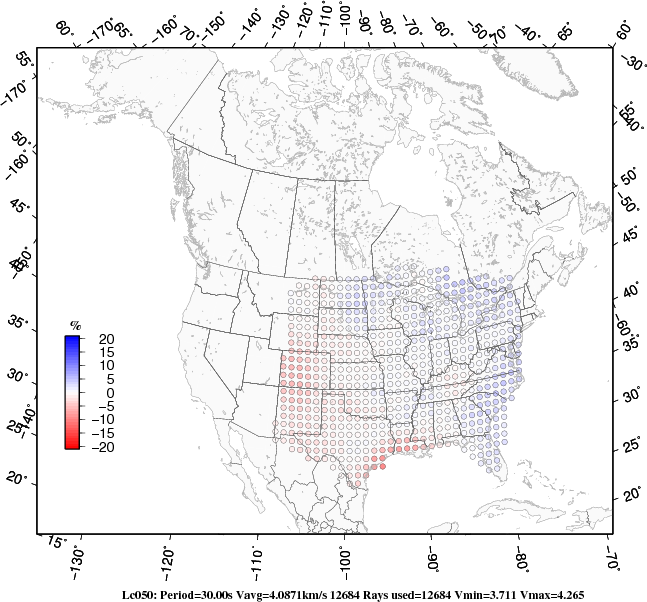

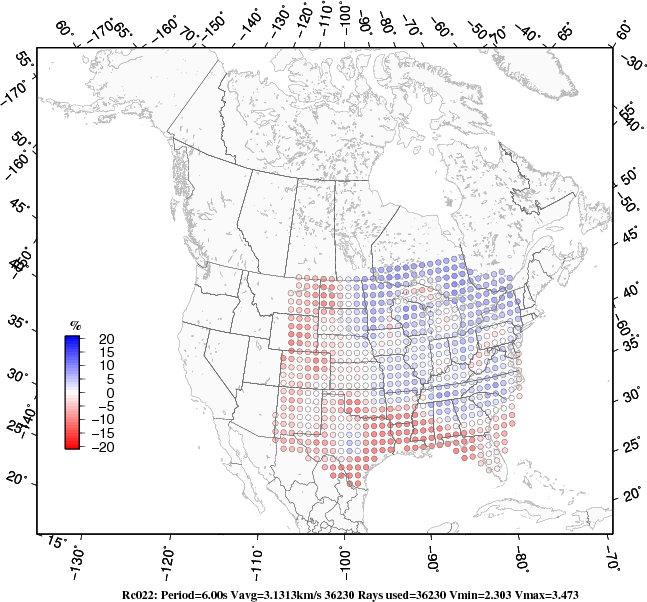

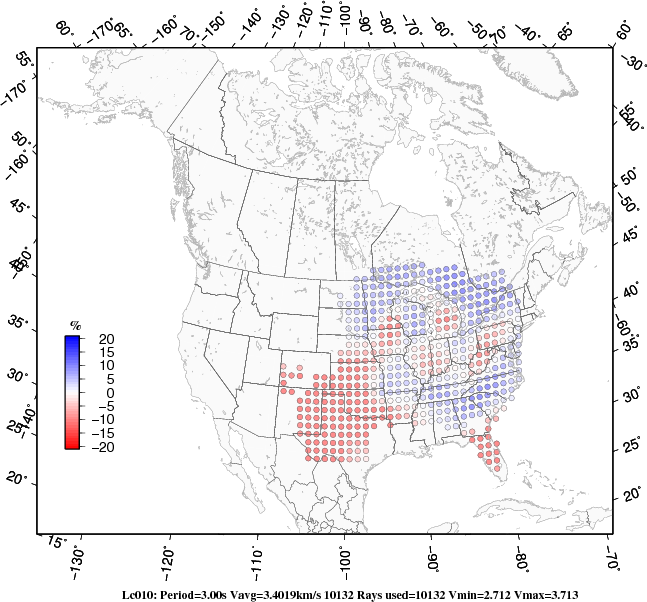

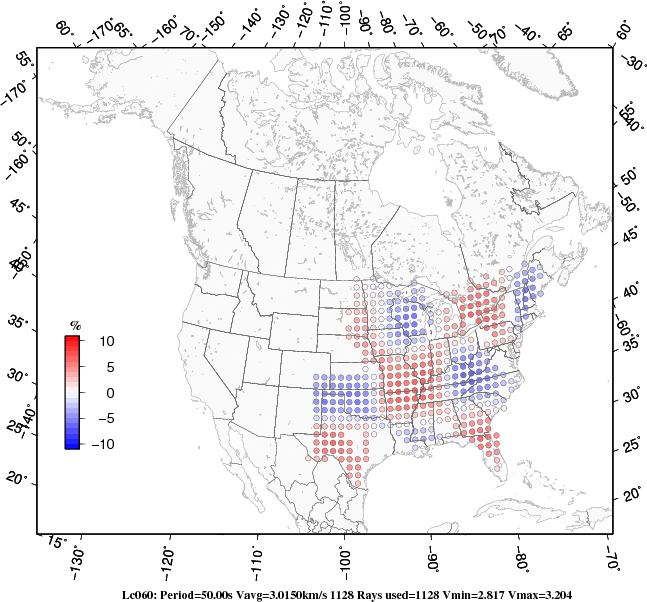

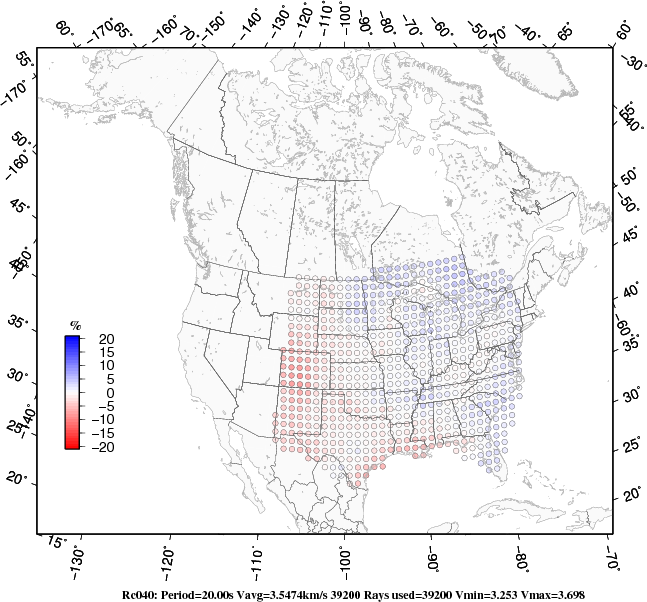

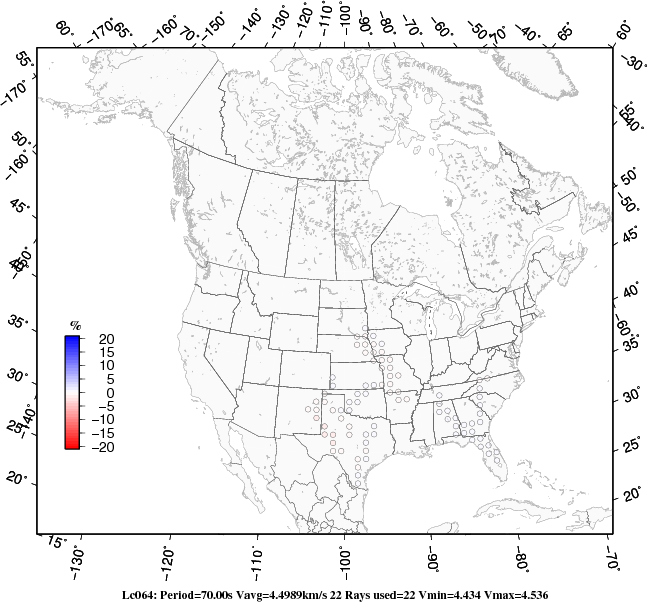

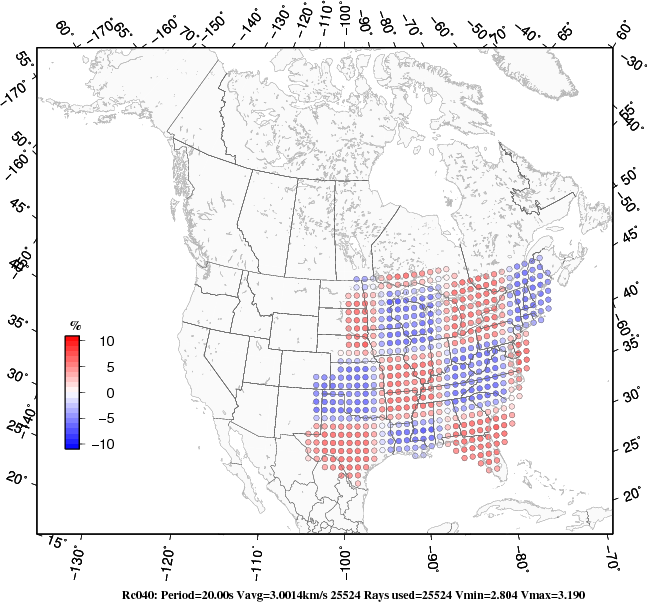

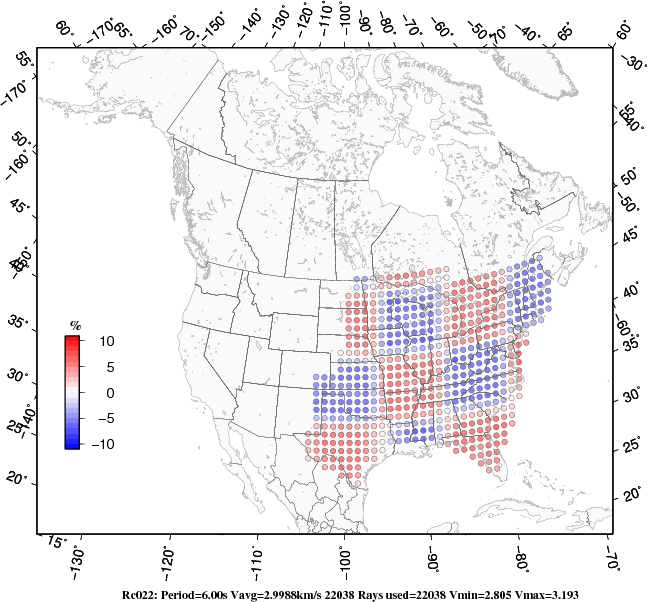

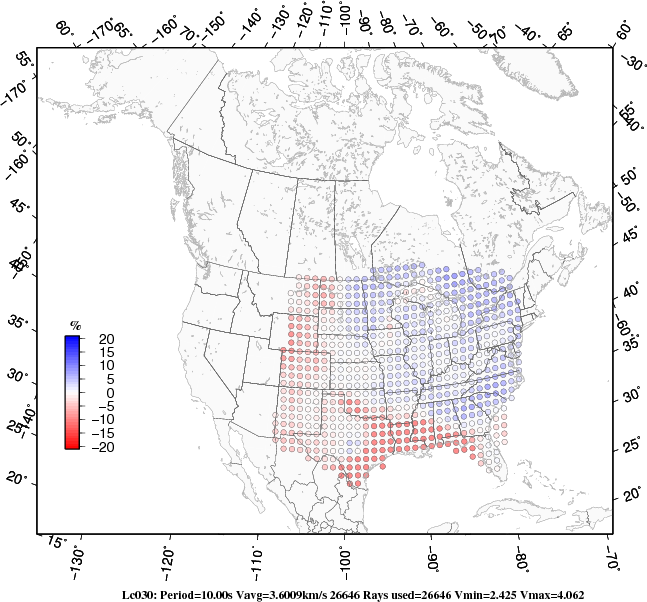

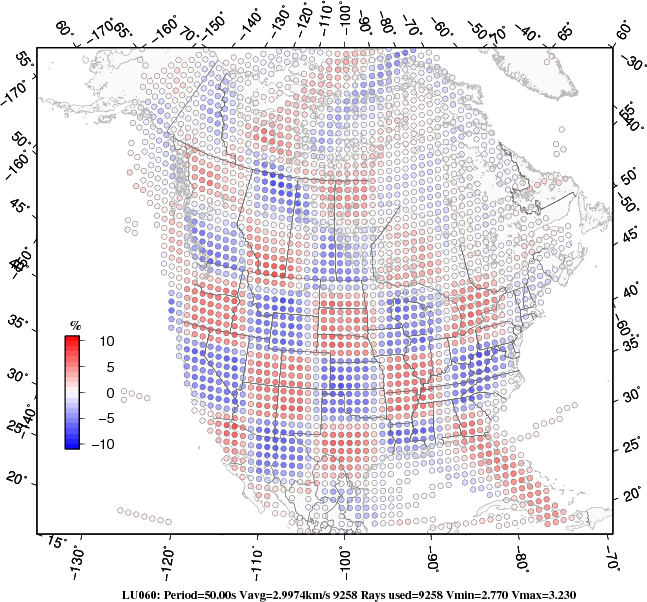

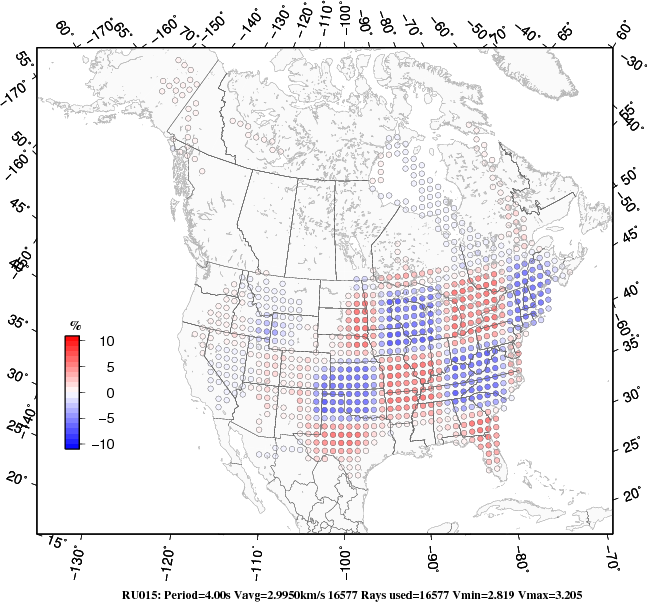

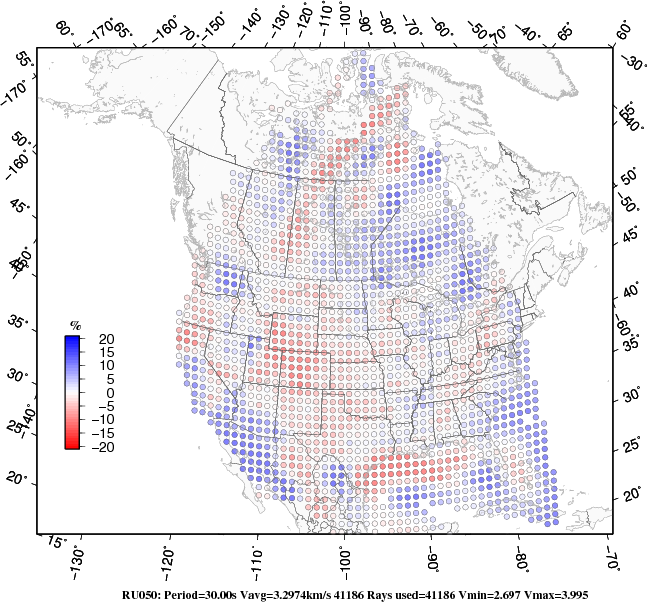

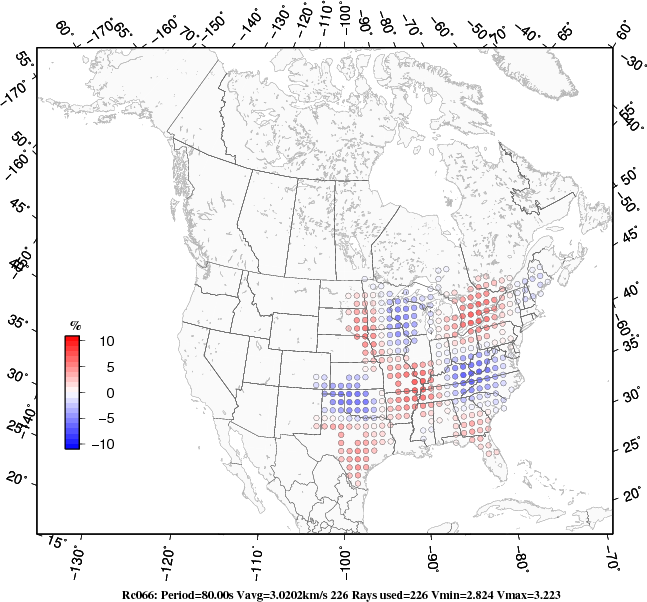

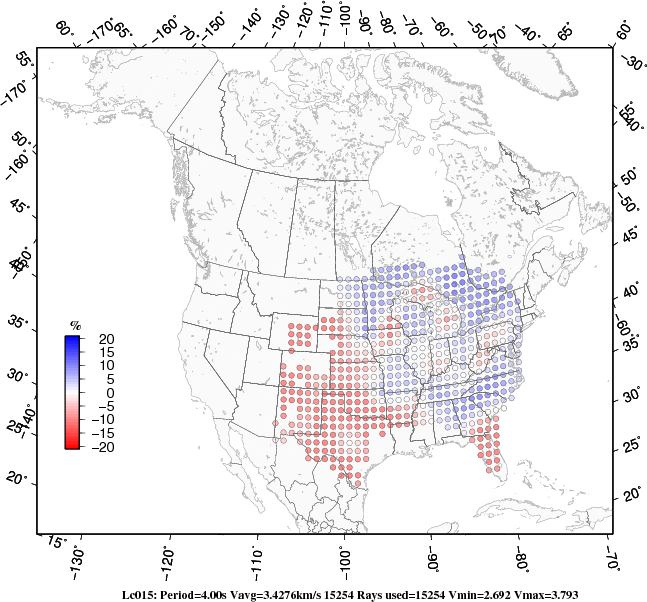

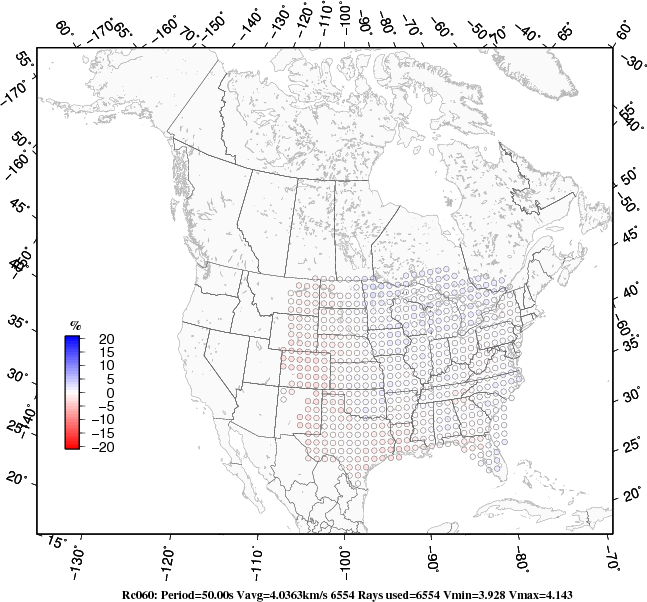

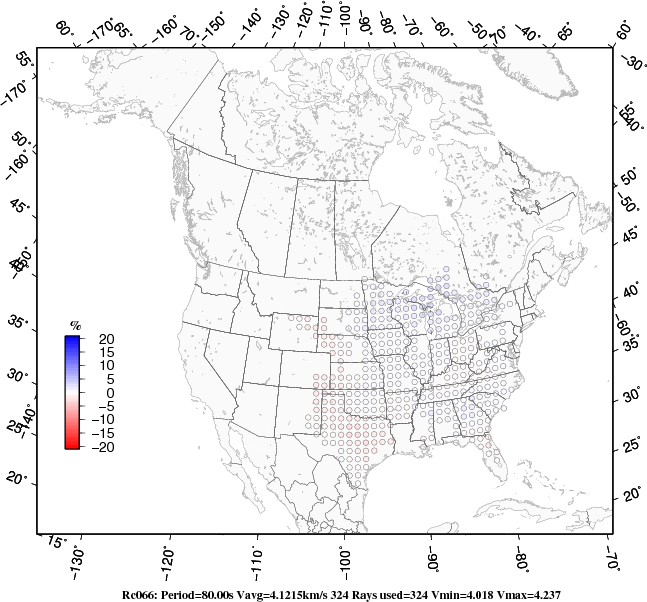

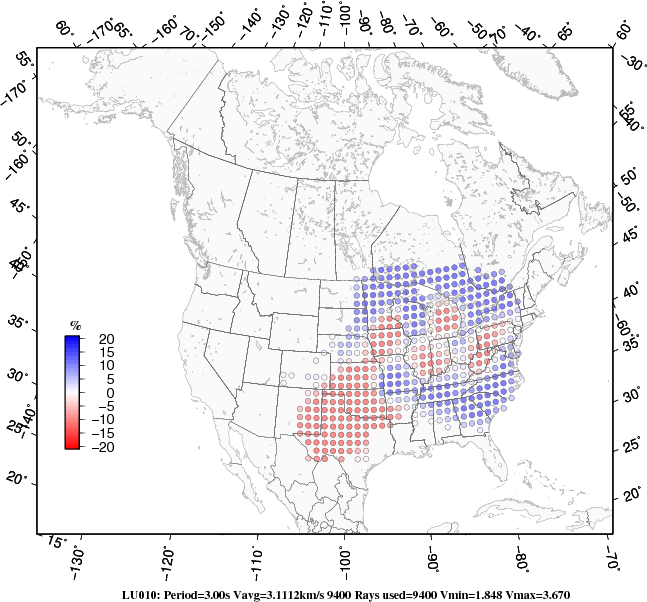

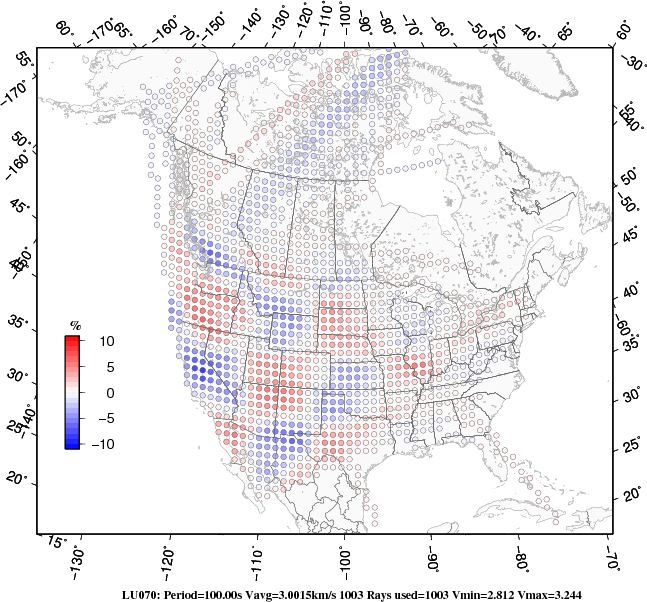

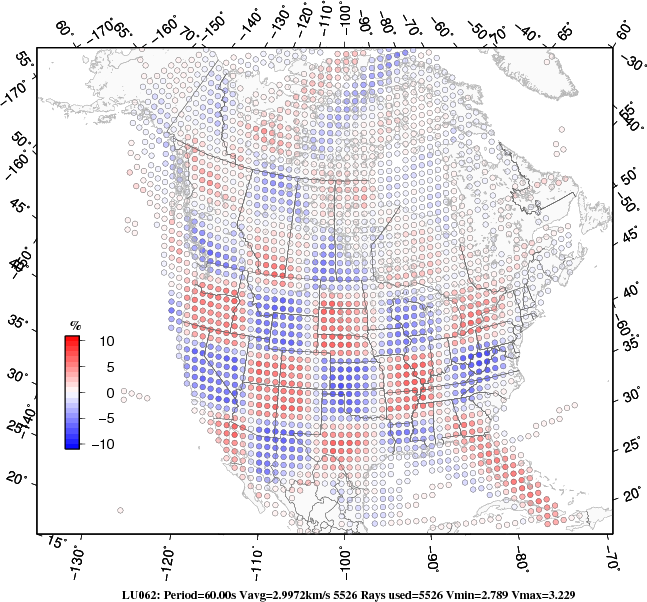

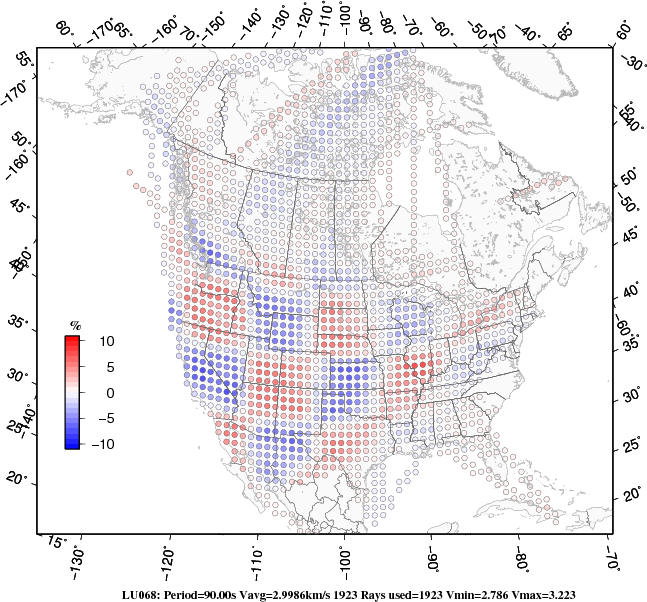

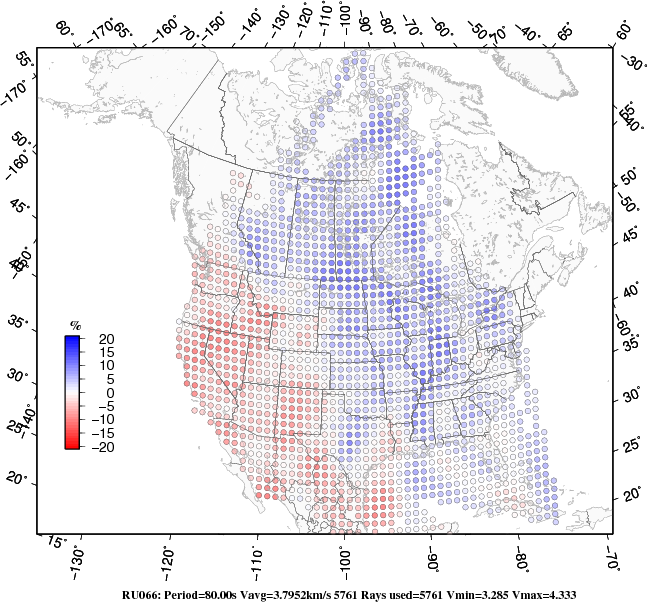

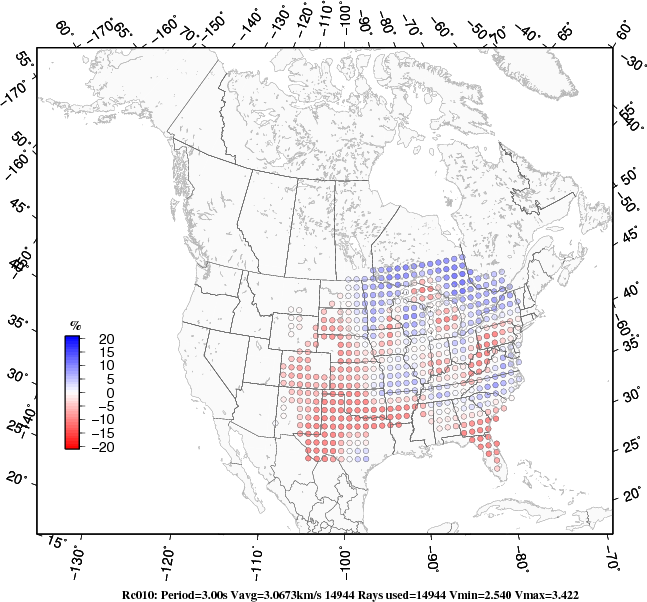

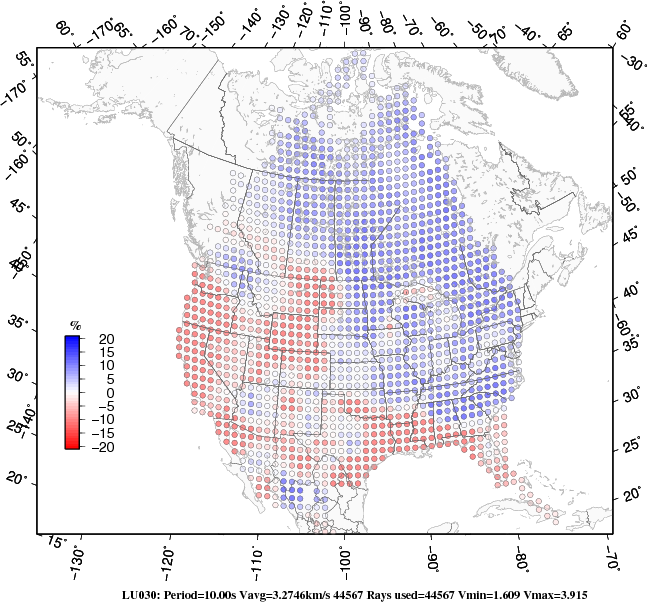

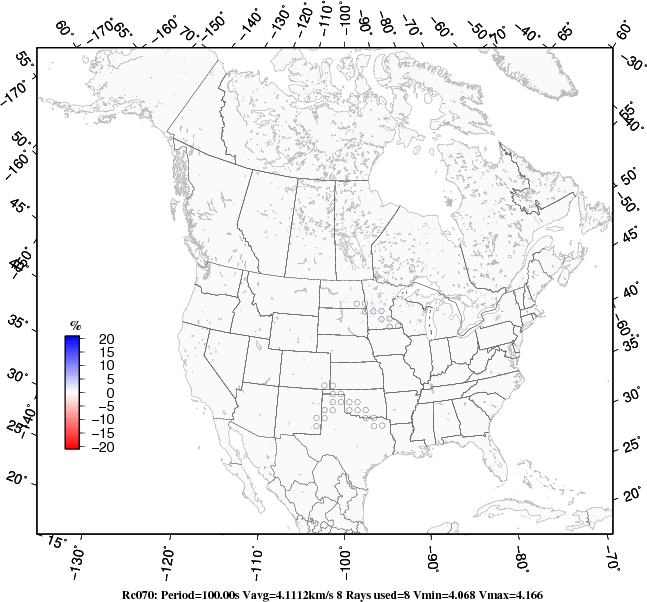

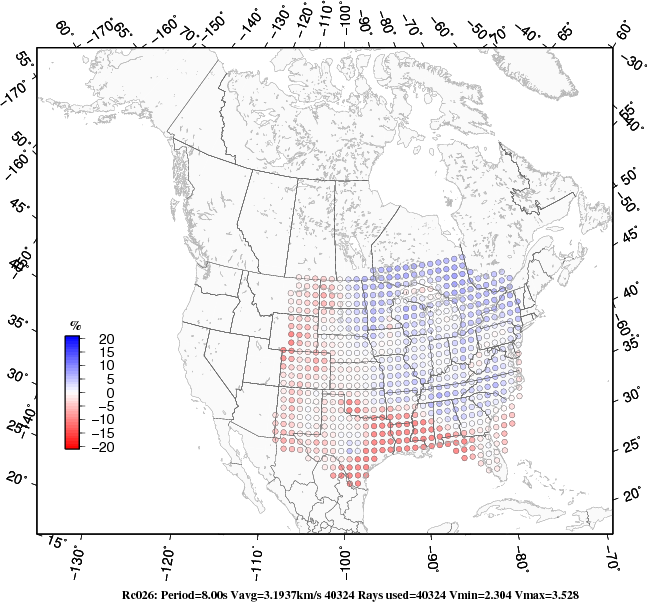

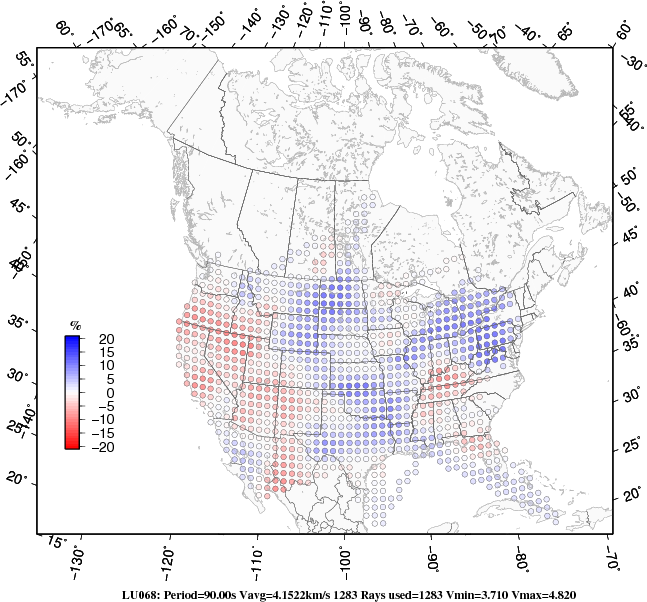

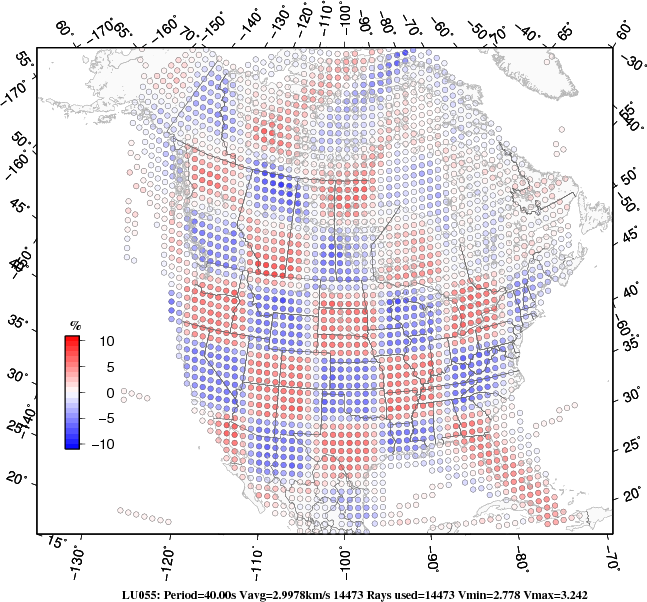

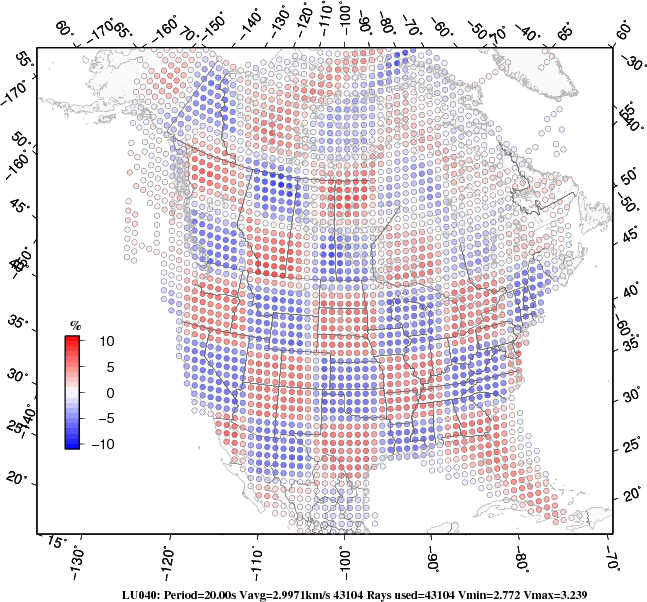

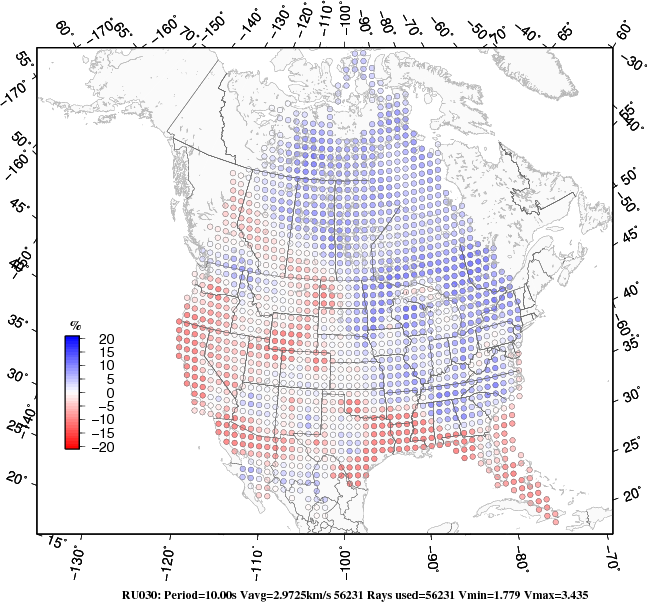

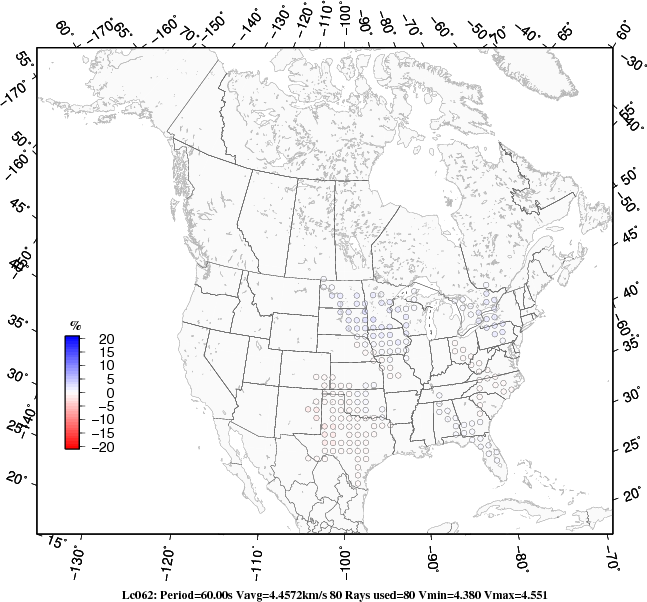

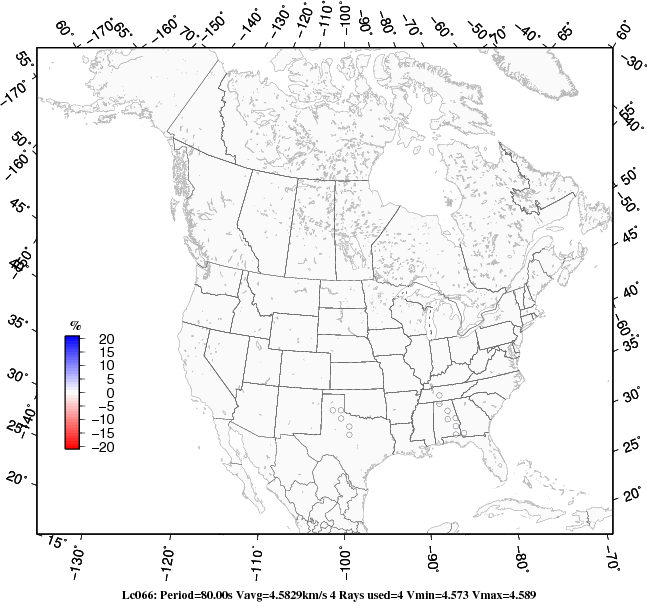

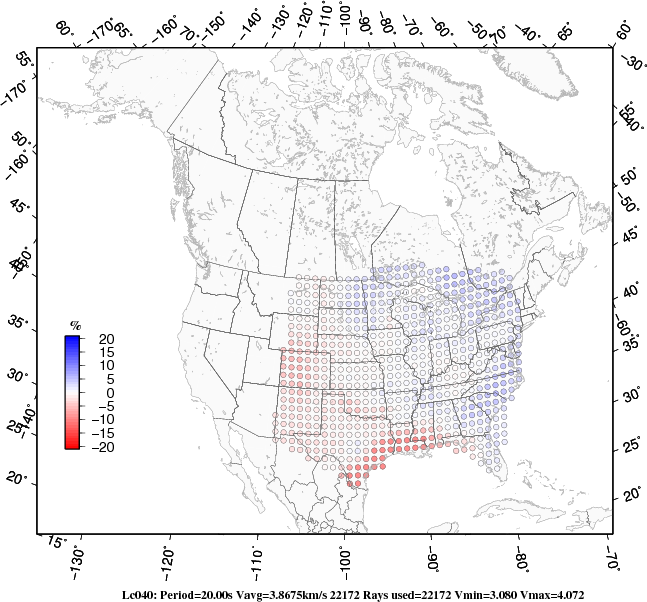

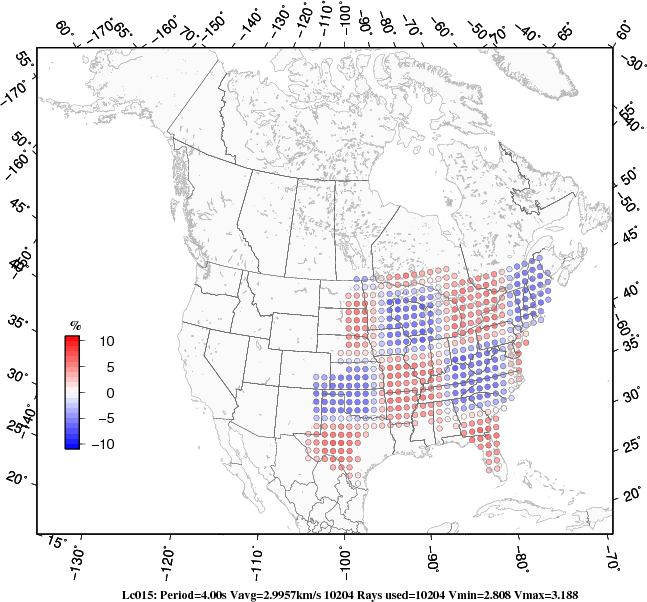

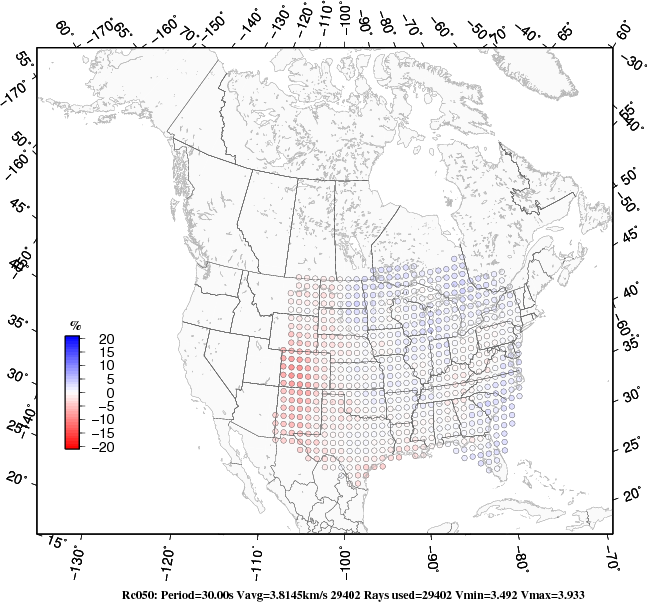

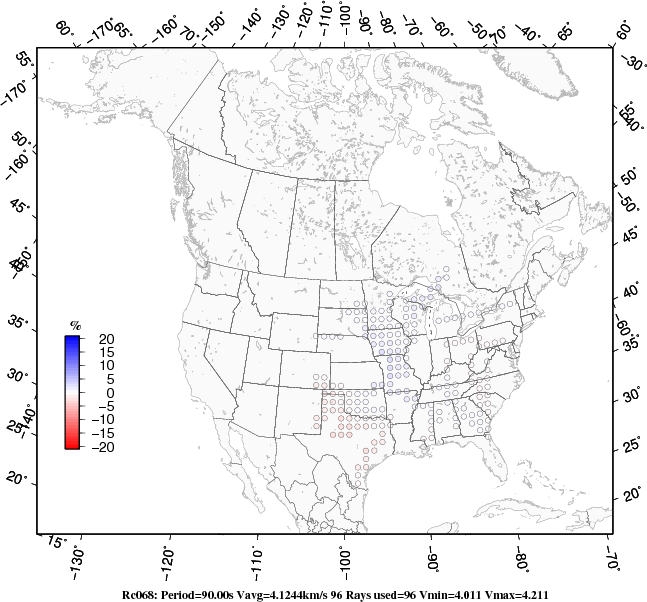

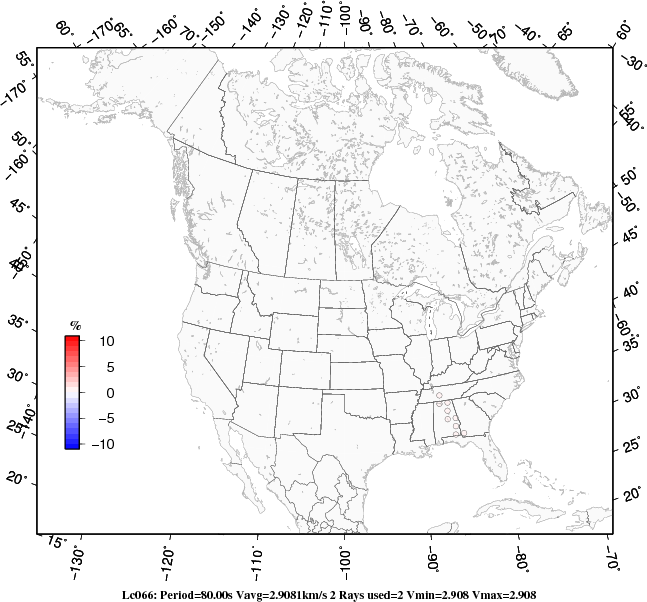

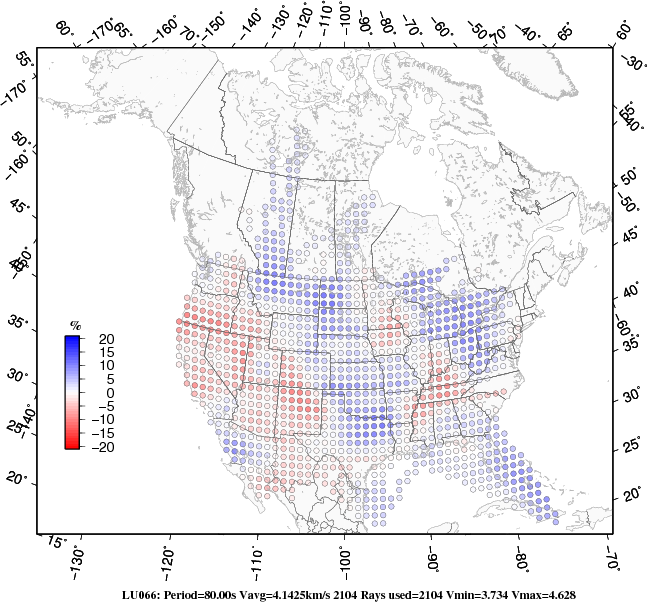

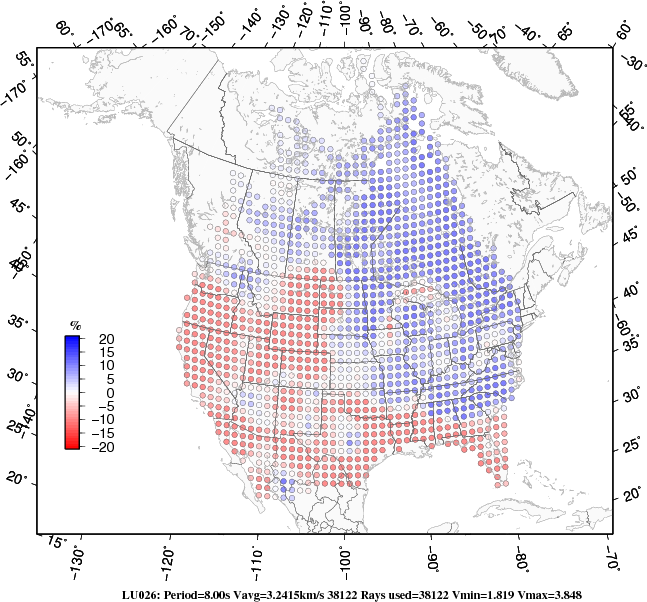

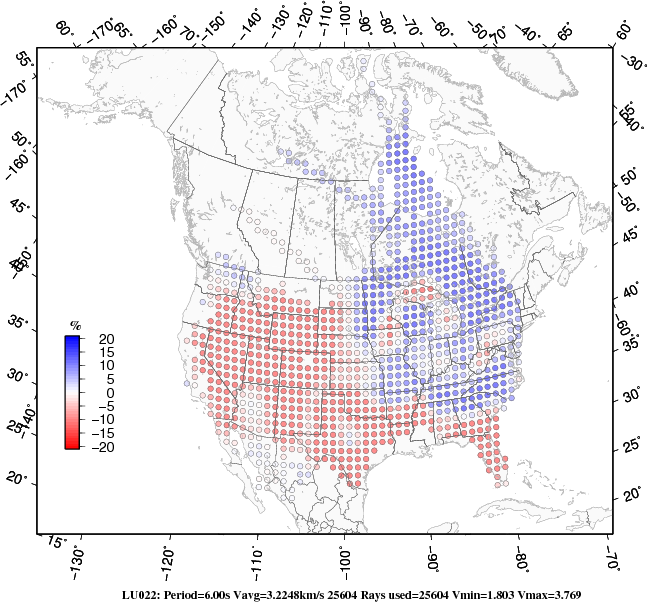

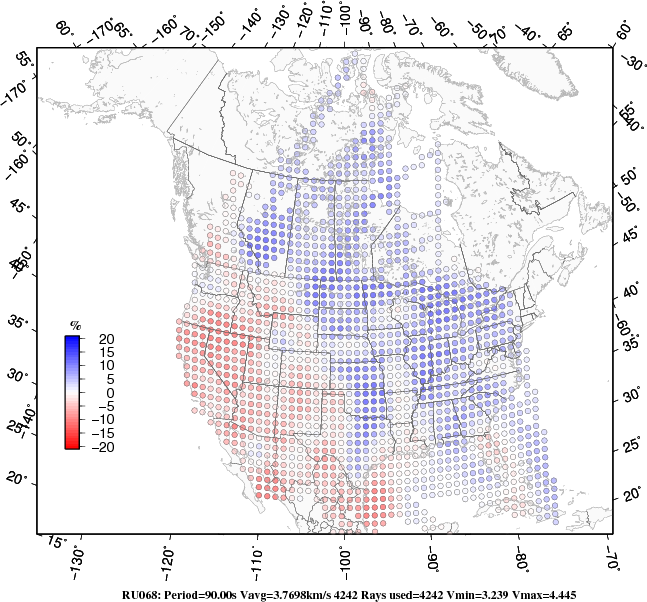

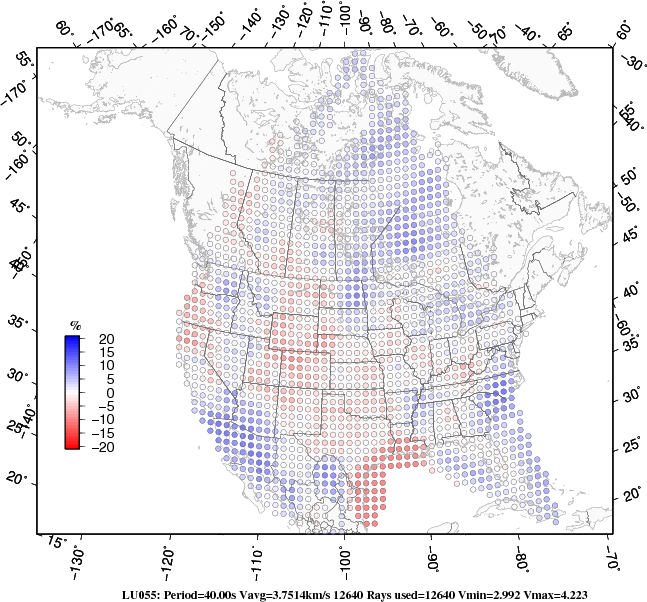

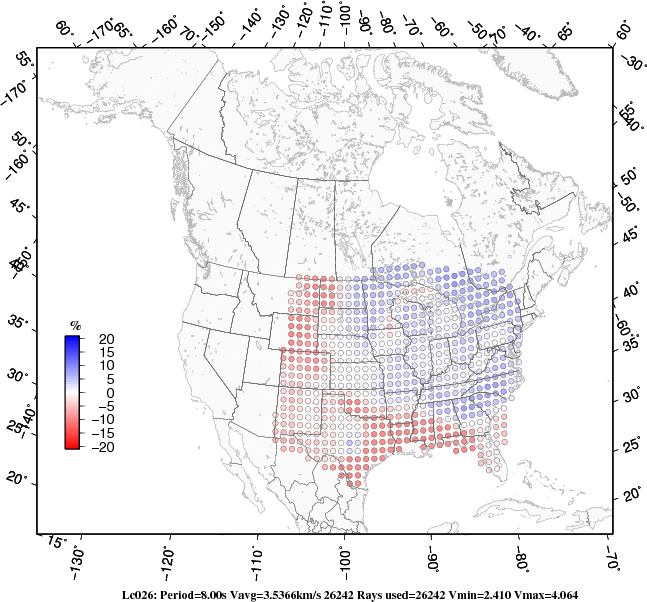

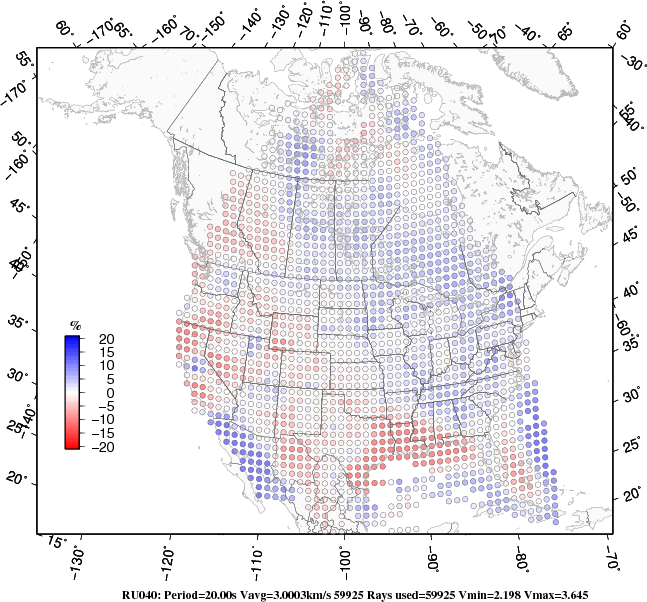

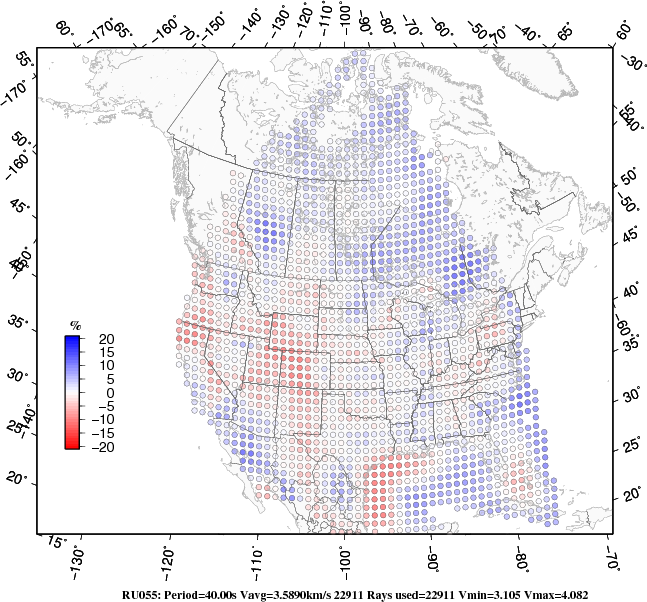

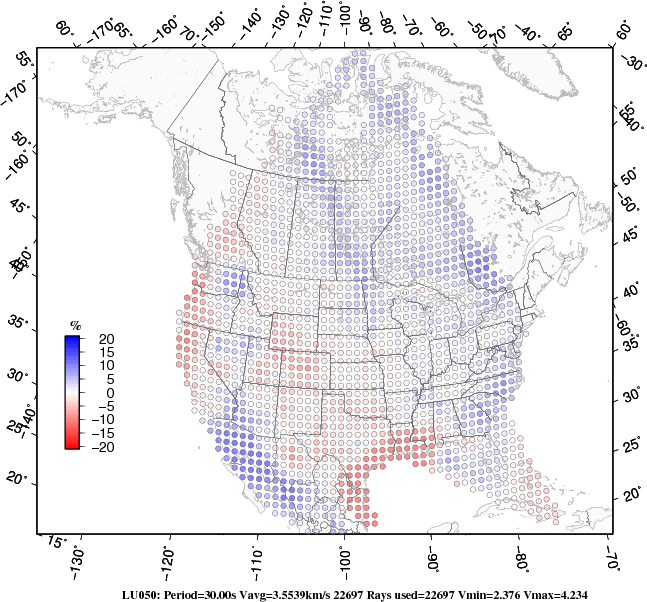

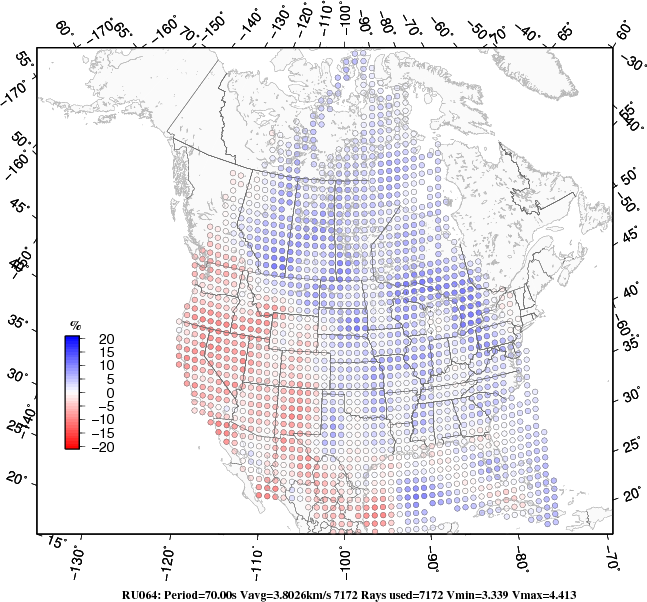

Shaded circles are used to indicate percentage velocity variation from the average of all values in the map. Regions without shaded circles do not have enough rays paxxing through the 25 km x 25 km tomography cell. To be specific, tomography computations save the total number of kilometers of rays passing through a cell. The tomography applies a Gaussian spatial smoother. If there are not rays through a cell, the cell dispersion is set to the mean of all observations at a given period. Thus each cell has a dispersion value. We choose to require at least 10 km of cumulative ray path through a cell to say that the disperion value is defined by data. At short and long periods, only part of the study region is covered by symbols. At intermediate periods, there is good coverage. The reason for this discrepancy is that the dispersion could not be measured at the short and long periods because of the filtering effects of earthquake source depth and the generation of noise for the empirical Green function data sets.

At the bottom of each figure there is a comment line of the form:

Lc000: Period=2.00s Vavg=3.4013km/s 2126 Rays used=2126 Vmin=2.747 Vmax=3.734

Lc000  Love wave, phase velocity. an R is used for Rayleigh wave and an U is used for group velocity, e.g.,
       RU040
Period This is the period of the map
Vavg   Mean dispersionv elocity for the map. The color shading are percentages of this value
Rays   The total number of paths between source/receiver for this period.
Vmin   Lowest dispersion value in a cell on the map
Vmax   Highest dispersion value in a cell on the map

Finally, this map was created by searching for sources and receivers within the bounds of the map. On the western edge, this means that important paths to to the west were excluded, which is one reason for the missing cells there. These cells are on the CUS map.

Love Phase Velocity Love Group Velocity Rayleigh Phase Velocity Rayleigh Group Velocity
3 sec 3 sec 3 sec 3 sec
4 sec 4 sec 4 sec 4 sec
6 sec 6 sec 6 sec 6 sec
8 sec 8 sec 8 sec 8 sec
10 sec 10 sec 10 sec 10 sec
20 sec 20 sec 20 sec 20 sec
30 sec 30 sec 30 sec 30 sec
40 sec 40 sec 40 sec 40 sec
50 sec 50 sec 50 sec 50 sec
60 sec 60 sec 60 sec 60 sec
70 sec 70 sec 70 sec 70 sec
80 sec 80 sec 80 sec 80 sec
90 sec 90 sec 90 sec 90 sec
100 sec 100 sec 100 sec 100 sec

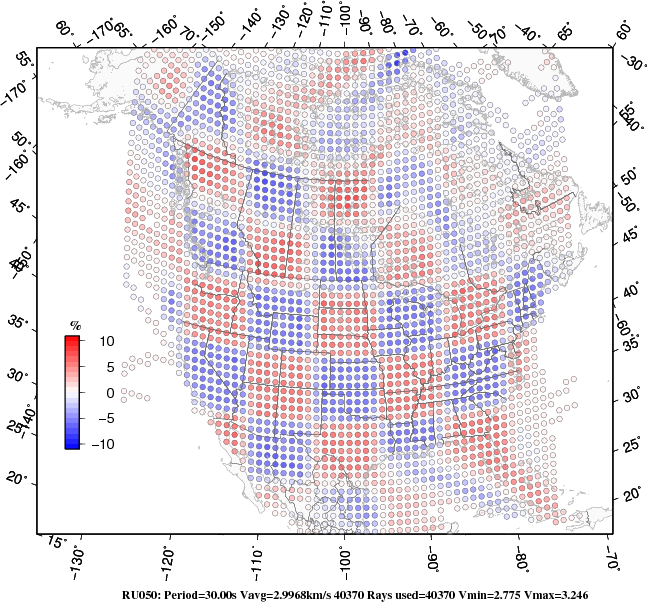

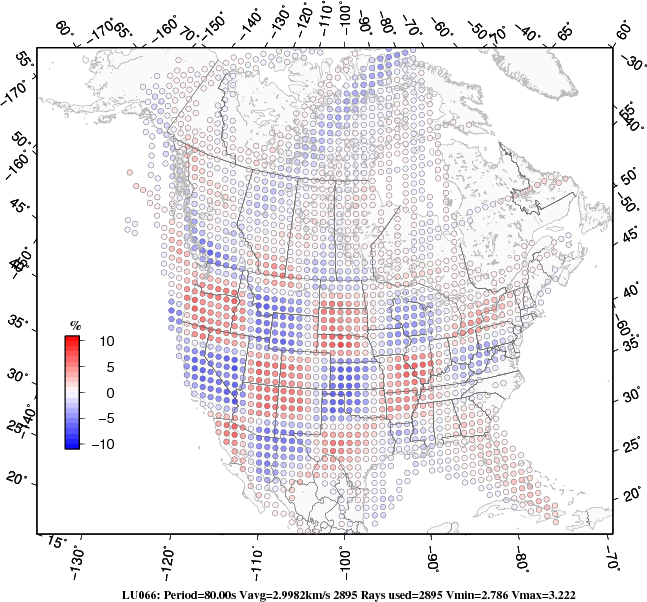

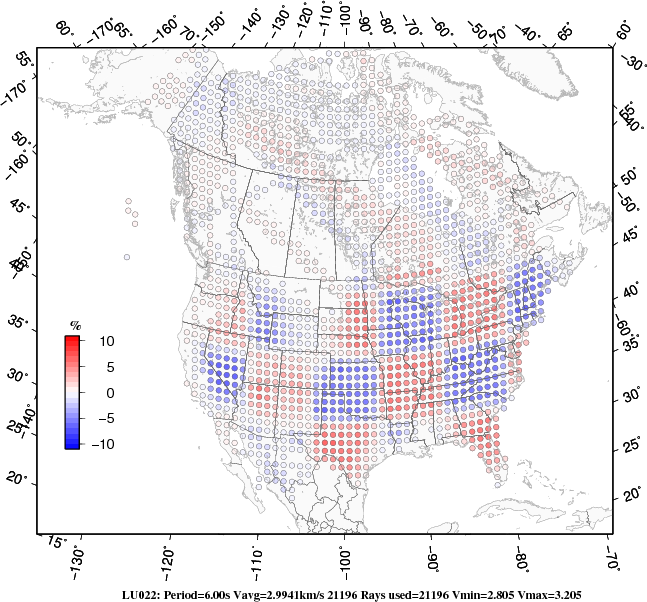

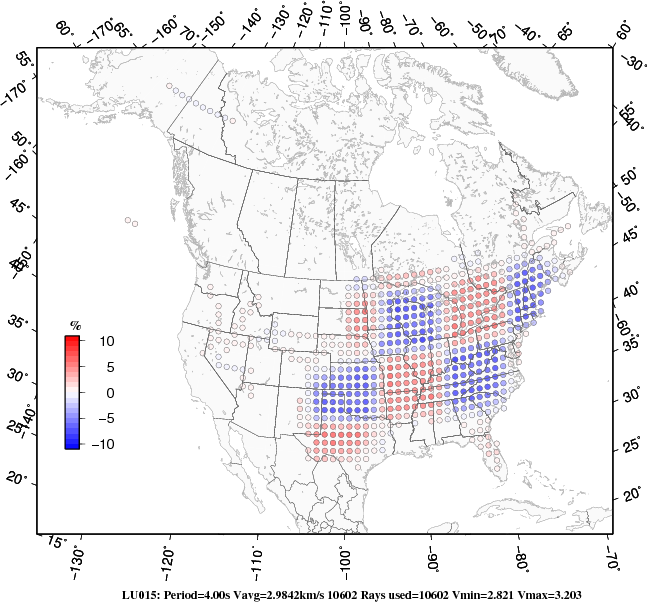

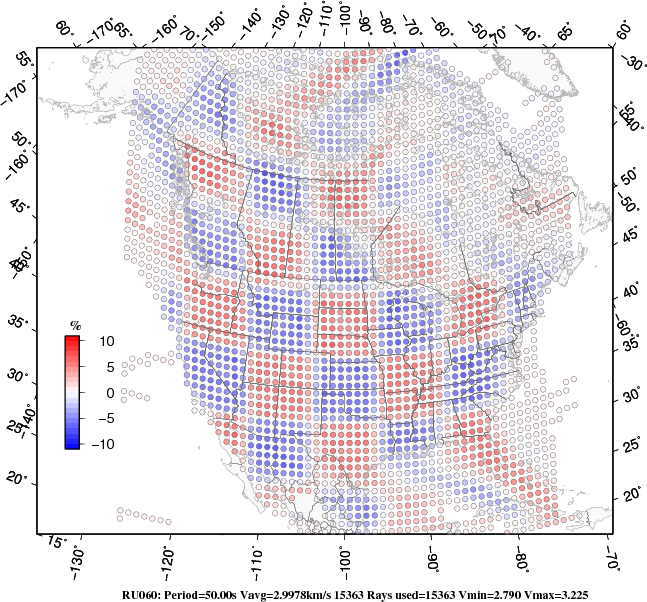

Resolution Tests

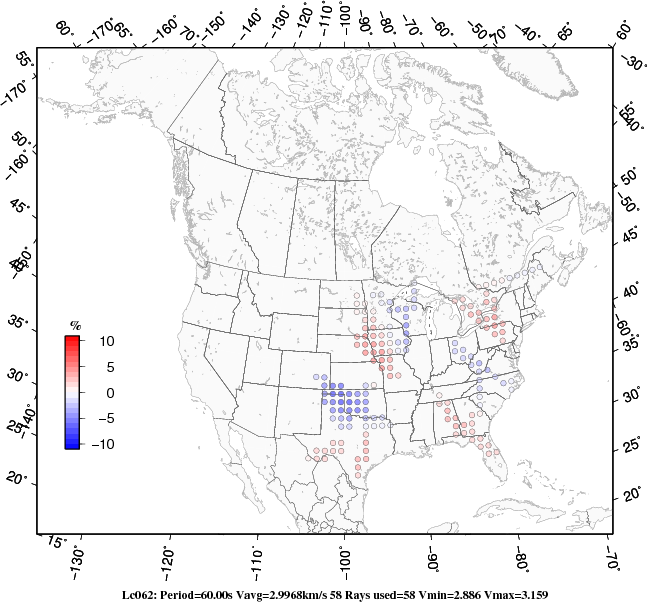

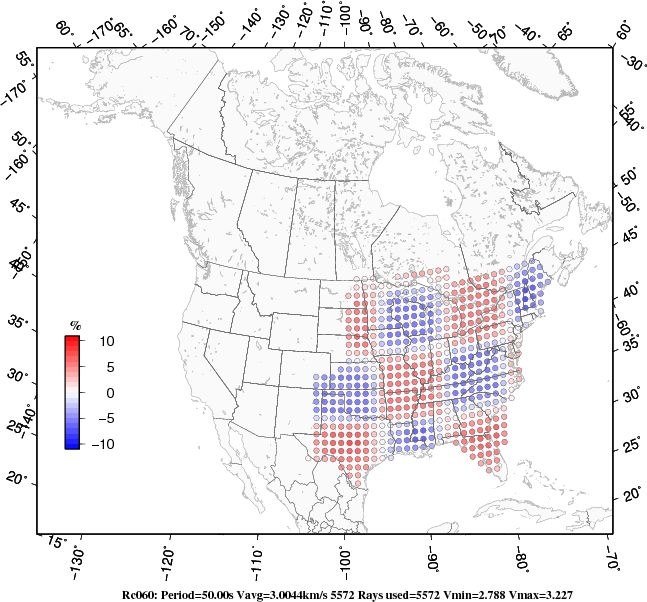

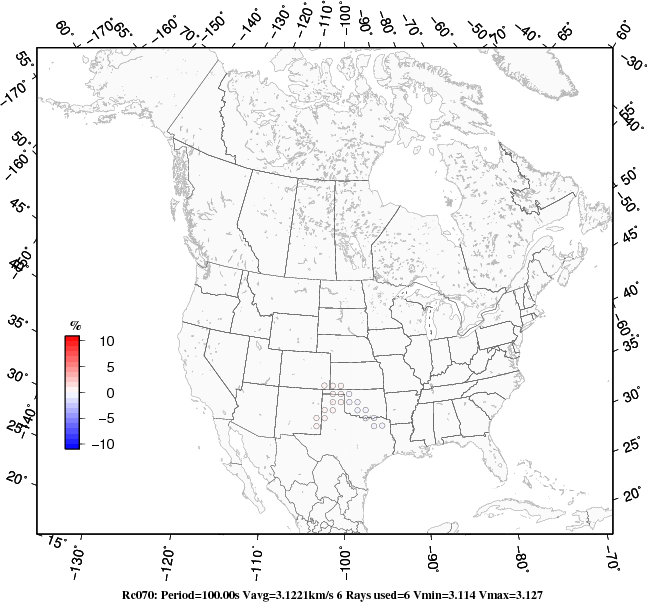

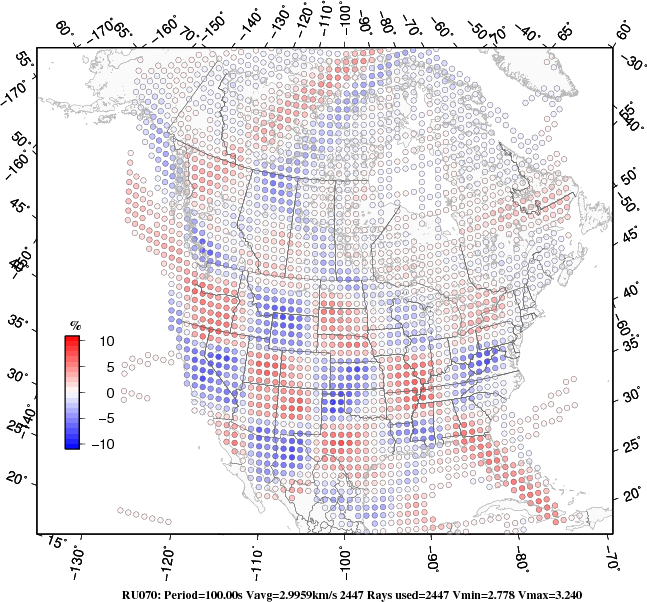

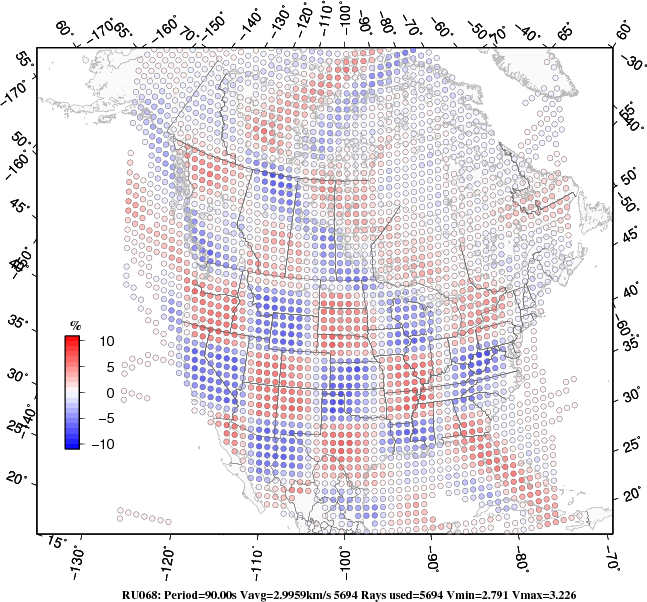

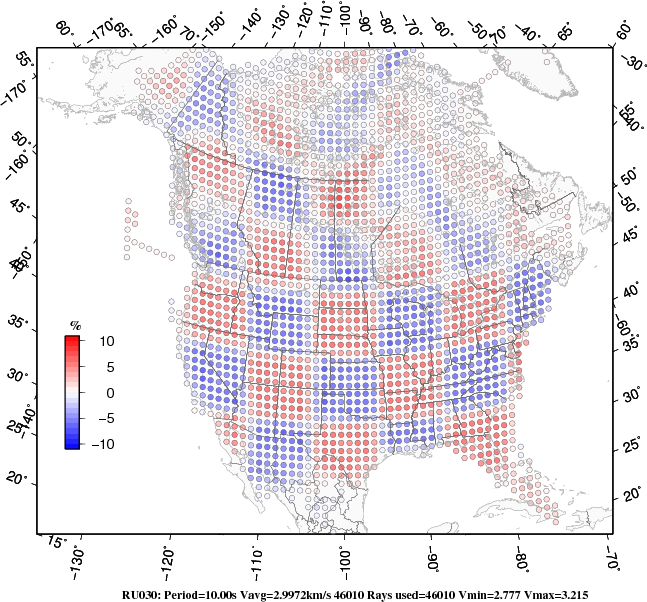

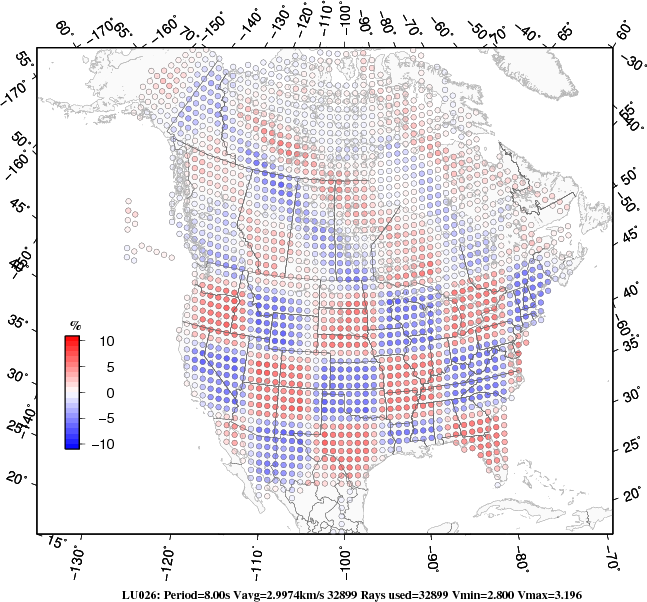

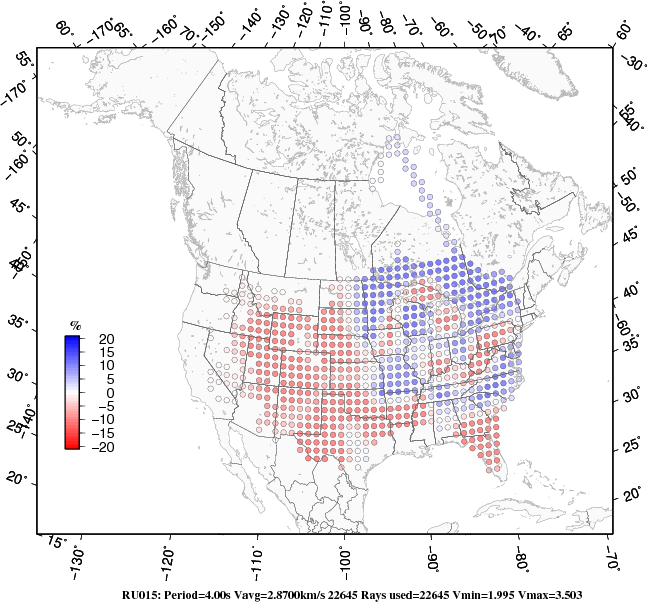

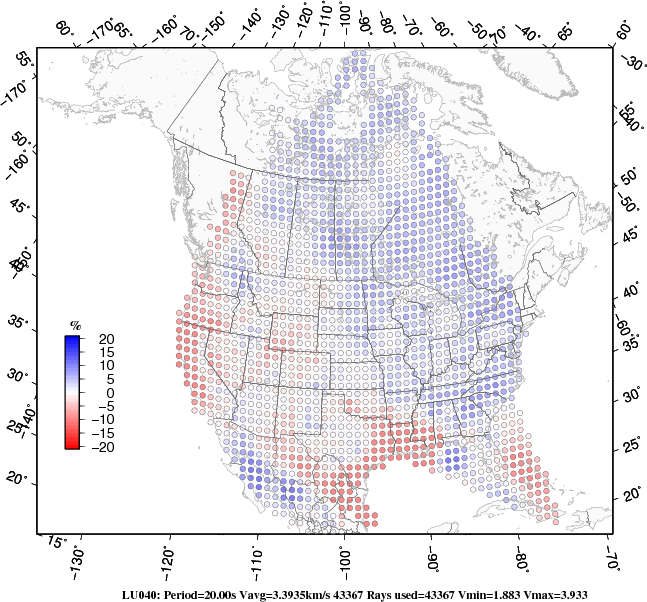

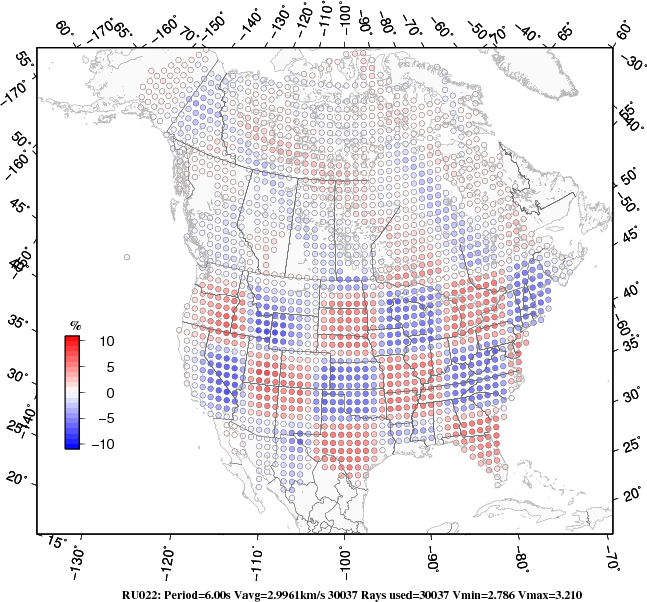

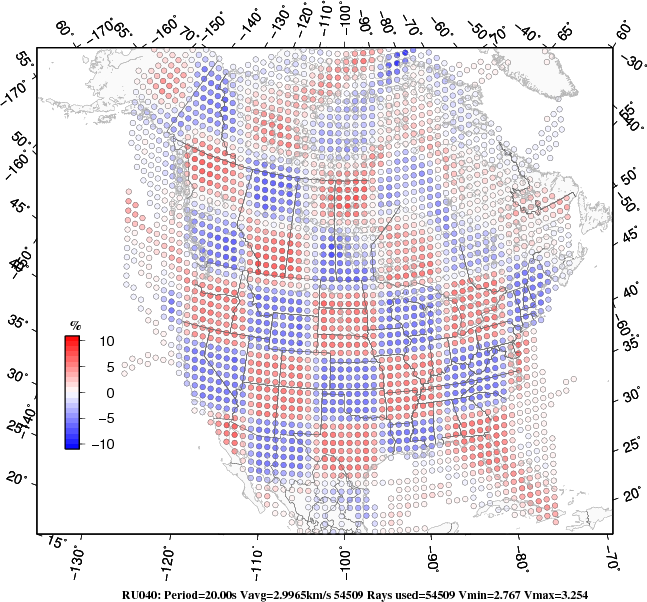

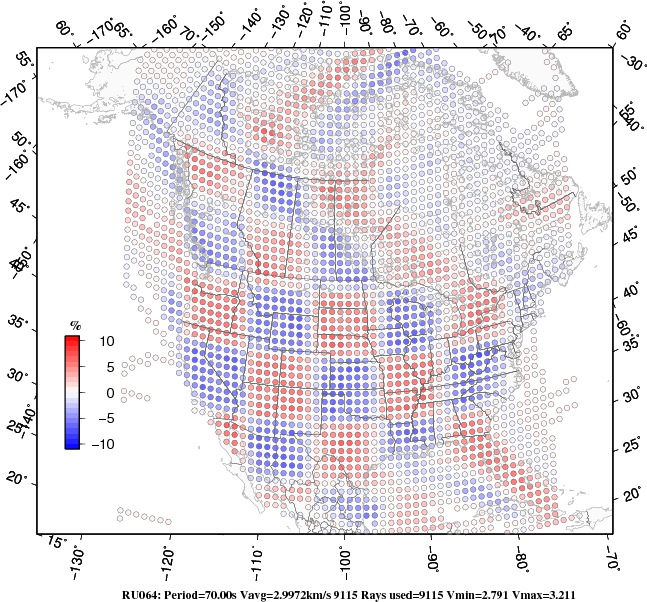

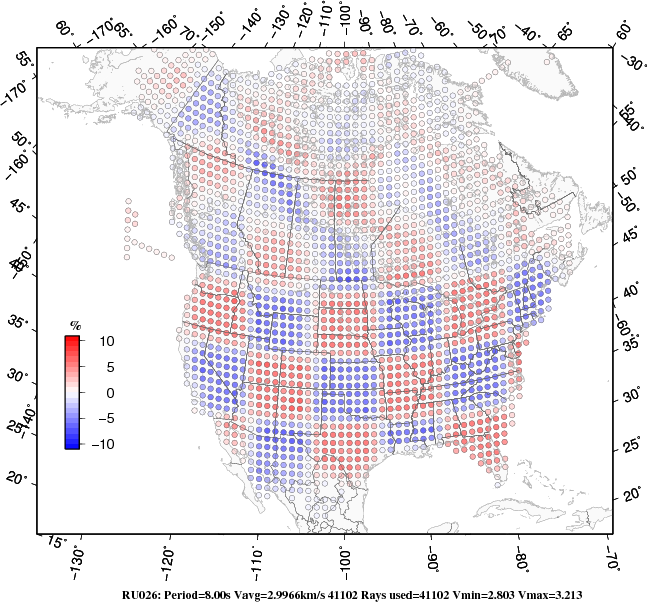

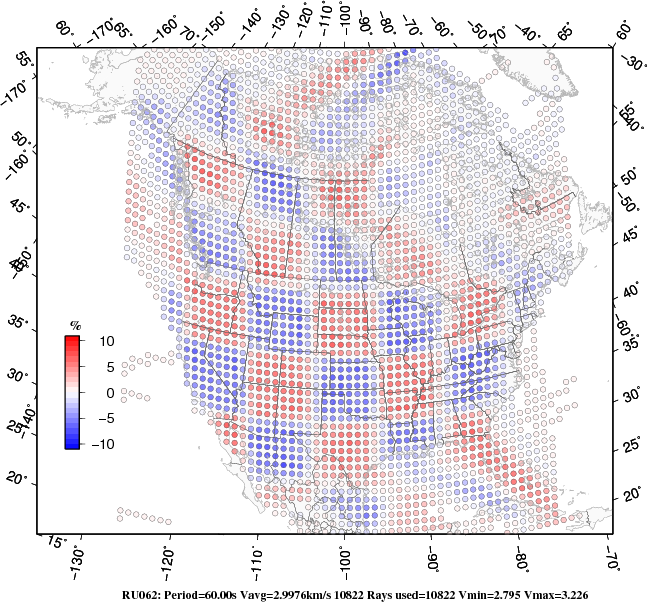

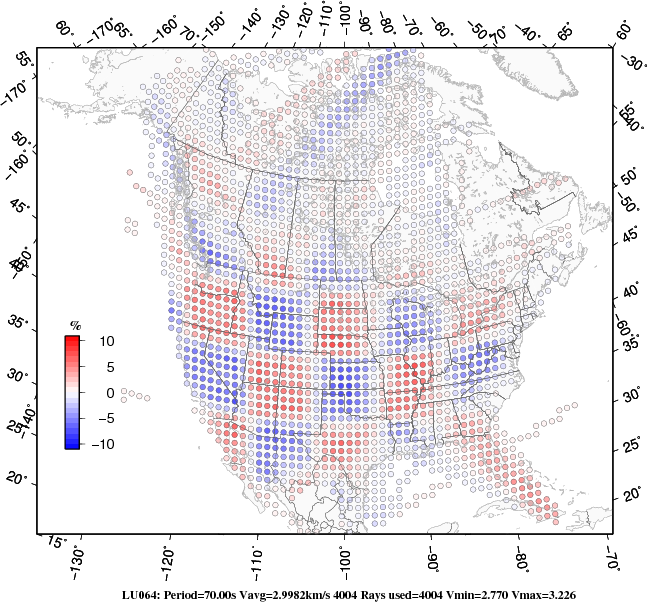

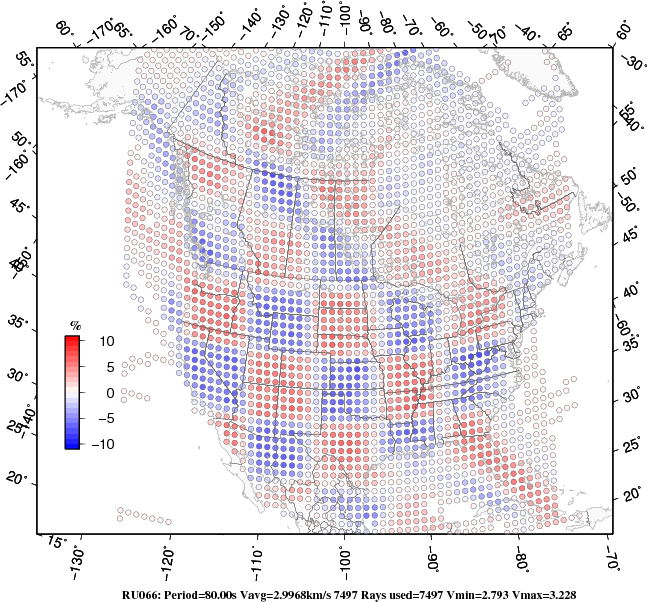

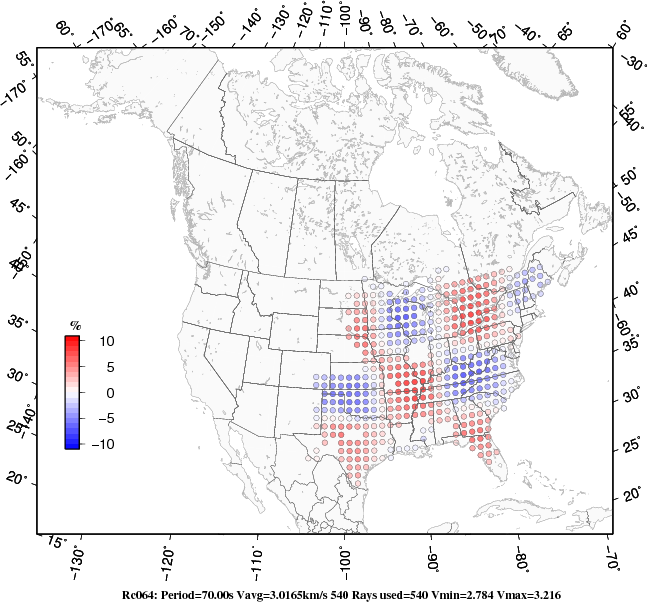

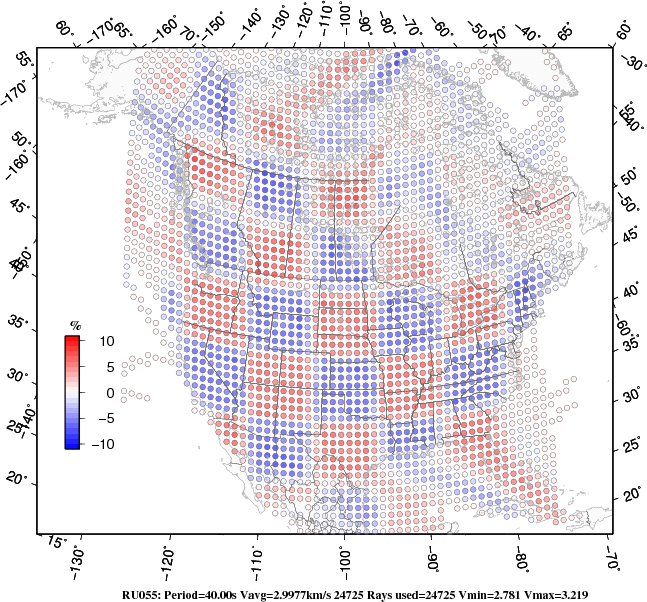

The links below point to the checkerboard resolution results for the current data set. The purpose here is to get an appreciation for the confidence in the dispersion curves at the points given above. Note these links open a new browser window, not to annoy you, but to permit a side-by-side comparison of the dispersion curve and the resolution map.

Love Phase Velocity Love Group Velocity Rayleigh Phase Velocity Rayleigh Group Velocity
4 sec 4 sec 4 sec 4 sec
6 sec 6 sec 6 sec 6 sec
8 sec 8 sec 8 sec 8 sec
10 sec 10 sec 10 sec 10 sec
20 sec 20 sec 20 sec 20 sec
30 sec 30 sec 30 sec 30 sec
40 sec 40 sec 40 sec 40 sec
50 sec 50 sec 50 sec 50 sec
60 sec 60 sec 60 sec 60 sec
70 sec 70 sec 70 sec 70 sec
80 sec 80 sec 80 sec 80 sec
90 sec 90 sec 90 sec 90 sec
100 sec 100 sec 100 sec 100 sec
