Introduction

This is a QC check of the stations of the TX network. The technique used is to compare waveforms for a large teleseism in order to check

Instrument orientations through particla motion
Instrument gains by comparing absolute levels

The stations of the Texas Seismological Network (TX) are listed at ds.iris.edu/mda/TX (last accessed October 31, 2017):

Station Site Latitude Longitude Elevation First start Last end

ALPN Alpine 30.374480 -103.638520 1368 2017/02/02 2026/12/31

APMT Aspermont 33.325120 -100.121550 501 2016/12/16 2017/12/31

BRDY Brady 31.285872 -98.999447 460 2017/02/15 2026/12/31

CRHG Carthage 32.288840 -94.225170 95 2017/09/28 2599/12/31

DKNS Dickens 33.666530 -100.923650 843 2016/12/18 2026/12/31

DRIO Del Rio 29.423110 -100.618880 354 2017/03/17 2026/12/31

DRZT Darrouzett 36.444010 -100.296880 791 2017/08/09 2599/12/31

EF01 Eagle Ford 01 29.128090 -98.380390 173 2017/07/19 2599/12/31

FW01 Dallas Executive Airport 32.684047 -96.878330 203.4 2016/10/20 2017/12/31

FW02 City of Haslet 32.950190 -97.342550 226.5 2016/09/22 2017/12/31

FW03 Perrin-Whitt Elementary School 33.039624 -98.065202 321.7 2016/10/17 2017/12/31

FW04 University of Dallas 32.847630 -96.923250 144.8 2016/09/29 2017/12/31

FW05 UT at Dallas 32.988669 -96.747081 207.3 2016/11/16 2017/12/31

FW06 Azle 32.972559 -97.556930 233 2016/10/20 2017/12/31

FW07 Weatherford 32.702466 -97.786092 310.9 2016/10/19 2017/12/31

FW09 Farmers Branch 32.922820 -96.913922 310.9 2016/09/30 2017/12/31

FW11 UT at Arlington 32.722730 -97.127870 197.5 2016/10/20 2017/12/31

FW12 Venus 32.499076 -97.148597 203.9 2016/09/22 2017/12/31

FW13 Cleburne 32.351720 -97.431120 259 2016/11/14 2017/12/31

FW14 Alvarado 32.399100 -97.192300 219 2016/11/14 2017/12/31

FW15 Texas Christian University 32.704400 -97.369500 192 2017/04/12 2026/12/31

FW16 Waxahatchie 32.481870 -96.897160 215 2016/11/15 2017/12/31

HBVL Hebbronville 27.064992 -98.669634 155 2017/02/15 2026/12/31

HNDO Hondo 29.528800 -99.280810 381 2017/02/15 2026/12/31

HNVL Huntsville, TX 30.756430 -95.466640 87 2017/04/06 2599/12/31

MLDN Muldoon 29.782750 -97.068630 106 2017/08/03 2599/12/31

MNHN Monahans 31.340230 -102.761410 750 2017/08/02 2599/12/31

ODSA Odessa 32.120090 -102.549130 943 2016/12/17 2026/12/31

OZNA Ozona 30.921950 -101.127080 770.8 2017/02/08 2026/12/31

PB01 Permian Basin 1 30.943670 -103.781120 1010 2017/09/13 2599/12/31

PB02 Crockett Middle School 31.408951 -103.510162 792 2017/01/27 2026/12/31

PB08 Permian Basin 08 30.891740 -102.907360 926 2017/05/25 2599/12/31

PECS Pecos 31.370450 -103.866970 914 2017/02/01 2599/12/31

PLPT Palo Pinto 32.812760 -98.315780 336 2017/08/08 2599/12/31

POST Post 33.066200 -101.501050 795 2016/12/16 2026/12/31

RTBA Rita Blanca 36.437950 -102.737430 1284 2017/08/10 2599/12/31

SAND Sanderson 29.954710 -102.123310 688.8 2017/02/08 2026/12/31

SGCY Sterling City 31.914360 -101.126390 776 2017/02/08 2026/12/31

SMWD Samnorwood 35.104550 -100.242480 704 2017/08/08 2599/12/31

SN01 Snyder 1 32.861470 -100.889860 717 2017/03/10 2026/12/31

SN02 Snyder 2 32.864520 -100.911060 748 2017/03/10 2026/12/31

SN03 Snyder 3 32.924290 -100.941180 744 2017/03/08 2026/12/31

SN04 Snyder 4 32.898780 -100.869520 716 2017/03/09 2026/12/31

SN05 Snyder 5 32.878380 -100.884310 724 2017/03/08 2026/12/31

SN06 Snyder 6 32.877670 -100.933110 769 2017/03/08 2026/12/31

SN07 Snyder 07 33.090920 -100.891720 620 2017/09/12 2599/12/31

SNAG San Augustine 31.518180 -94.178770 84 2017/08/04 2599/12/31

TREL Terrell 32.730390 -96.089330 174 2017/08/06 2599/12/31

VHRN Van Horn 30.786600 -104.985150 1342 2017/02/01 2026/12/31

WTFS Witchita Falls 33.766220 -98.464550 277 2016/12/16 2026/12/31

Station	Site	Latitude	Longitude	Elevation	First start	Last end
ALPN	Alpine	30.374480	-103.638520	1368	2017/02/02	2026/12/31
APMT	Aspermont	33.325120	-100.121550	501	2016/12/16	2017/12/31
BRDY	Brady	31.285872	-98.999447	460	2017/02/15	2026/12/31
CRHG	Carthage	32.288840	-94.225170	95	2017/09/28	2599/12/31
DKNS	Dickens	33.666530	-100.923650	843	2016/12/18	2026/12/31
DRIO	Del Rio	29.423110	-100.618880	354	2017/03/17	2026/12/31
DRZT	Darrouzett	36.444010	-100.296880	791	2017/08/09	2599/12/31
EF01	Eagle Ford 01	29.128090	-98.380390	173	2017/07/19	2599/12/31
FW01	Dallas Executive Airport	32.684047	-96.878330	203.4	2016/10/20	2017/12/31
FW02	City of Haslet	32.950190	-97.342550	226.5	2016/09/22	2017/12/31
FW03	Perrin-Whitt Elementary School	33.039624	-98.065202	321.7	2016/10/17	2017/12/31
FW04	University of Dallas	32.847630	-96.923250	144.8	2016/09/29	2017/12/31
FW05	UT at Dallas	32.988669	-96.747081	207.3	2016/11/16	2017/12/31
FW06	Azle	32.972559	-97.556930	233	2016/10/20	2017/12/31
FW07	Weatherford	32.702466	-97.786092	310.9	2016/10/19	2017/12/31
FW09	Farmers Branch	32.922820	-96.913922	310.9	2016/09/30	2017/12/31
FW11	UT at Arlington	32.722730	-97.127870	197.5	2016/10/20	2017/12/31
FW12	Venus	32.499076	-97.148597	203.9	2016/09/22	2017/12/31
FW13	Cleburne	32.351720	-97.431120	259	2016/11/14	2017/12/31
FW14	Alvarado	32.399100	-97.192300	219	2016/11/14	2017/12/31
FW15	Texas Christian University	32.704400	-97.369500	192	2017/04/12	2026/12/31
FW16	Waxahatchie	32.481870	-96.897160	215	2016/11/15	2017/12/31
HBVL	Hebbronville	27.064992	-98.669634	155	2017/02/15	2026/12/31
HNDO	Hondo	29.528800	-99.280810	381	2017/02/15	2026/12/31
HNVL	Huntsville, TX	30.756430	-95.466640	87	2017/04/06	2599/12/31
MLDN	Muldoon	29.782750	-97.068630	106	2017/08/03	2599/12/31
MNHN	Monahans	31.340230	-102.761410	750	2017/08/02	2599/12/31
ODSA	Odessa	32.120090	-102.549130	943	2016/12/17	2026/12/31
OZNA	Ozona	30.921950	-101.127080	770.8	2017/02/08	2026/12/31
PB01	Permian Basin 1	30.943670	-103.781120	1010	2017/09/13	2599/12/31
PB02	Crockett Middle School	31.408951	-103.510162	792	2017/01/27	2026/12/31
PB08	Permian Basin 08	30.891740	-102.907360	926	2017/05/25	2599/12/31
PECS	Pecos	31.370450	-103.866970	914	2017/02/01	2599/12/31
PLPT	Palo Pinto	32.812760	-98.315780	336	2017/08/08	2599/12/31
POST	Post	33.066200	-101.501050	795	2016/12/16	2026/12/31
RTBA	Rita Blanca	36.437950	-102.737430	1284	2017/08/10	2599/12/31
SAND	Sanderson	29.954710	-102.123310	688.8	2017/02/08	2026/12/31
SGCY	Sterling City	31.914360	-101.126390	776	2017/02/08	2026/12/31
SMWD	Samnorwood	35.104550	-100.242480	704	2017/08/08	2599/12/31
SN01	Snyder 1	32.861470	-100.889860	717	2017/03/10	2026/12/31
SN02	Snyder 2	32.864520	-100.911060	748	2017/03/10	2026/12/31
SN03	Snyder 3	32.924290	-100.941180	744	2017/03/08	2026/12/31
SN04	Snyder 4	32.898780	-100.869520	716	2017/03/09	2026/12/31
SN05	Snyder 5	32.878380	-100.884310	724	2017/03/08	2026/12/31
SN06	Snyder 6	32.877670	-100.933110	769	2017/03/08	2026/12/31
SN07	Snyder 07	33.090920	-100.891720	620	2017/09/12	2599/12/31
SNAG	San Augustine	31.518180	-94.178770	84	2017/08/04	2599/12/31
TREL	Terrell	32.730390	-96.089330	174	2017/08/06	2599/12/31
VHRN	Van Horn	30.786600	-104.985150	1342	2017/02/01	2026/12/31
WTFS	Witchita Falls	33.766220	-98.464550	277	2016/12/16	2026/12/31

Procedure

For each teleseism, use the IRIS FetchData to obtain all TX and US stations within 6 degrees of 30N, 97W.
Remove the instrument response using evalresp
Rotate three component data to the great circle Z, R and T directions
Compare waveforms for P-wave particle motion, e.g., no P on the transverse
Compare the waveforms for Rayleigh-wave particle motion

Evaluations

Event of 20170919181438

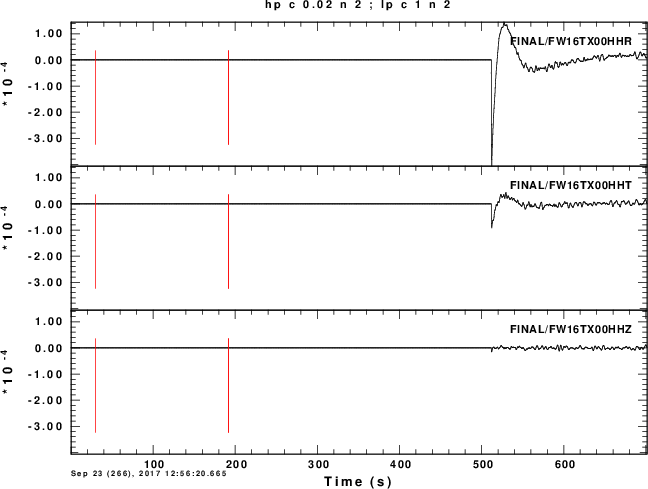

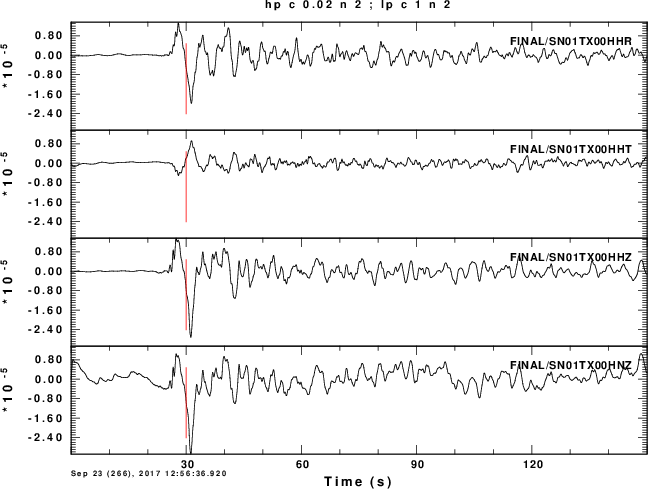

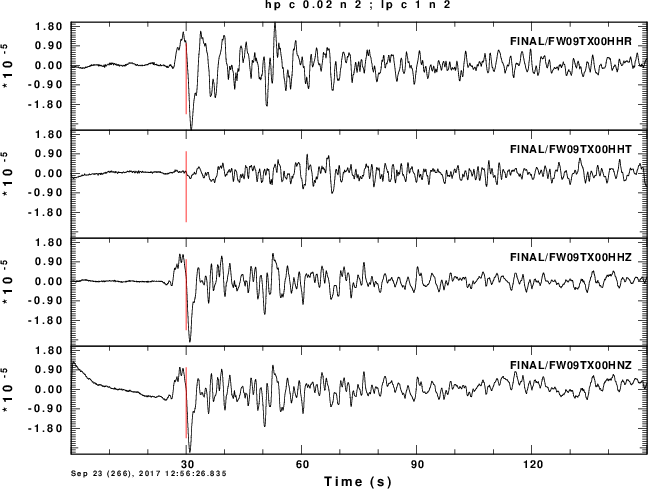

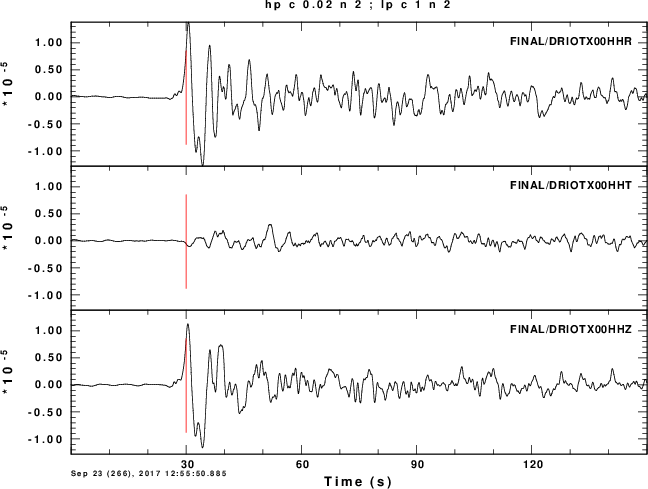

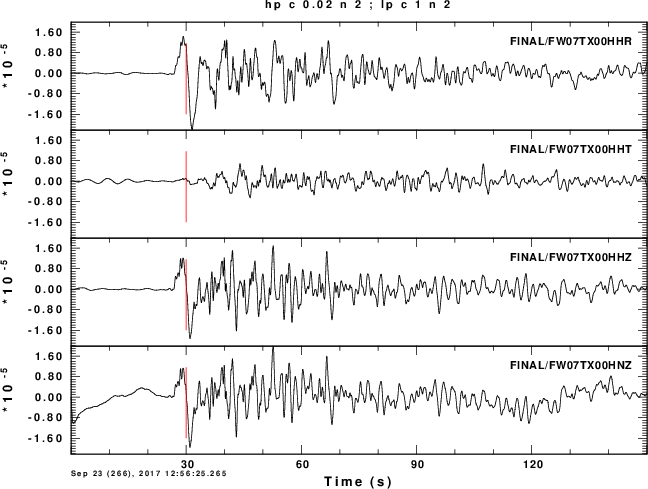

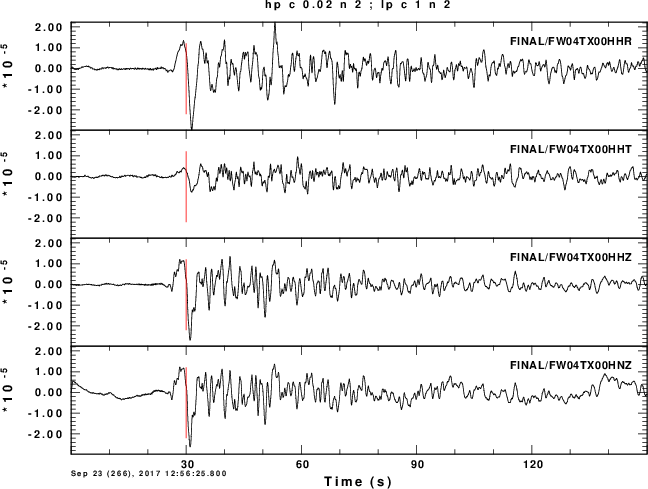

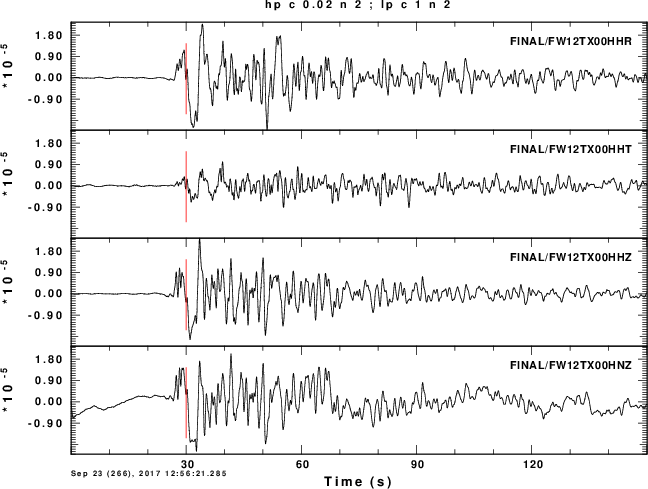

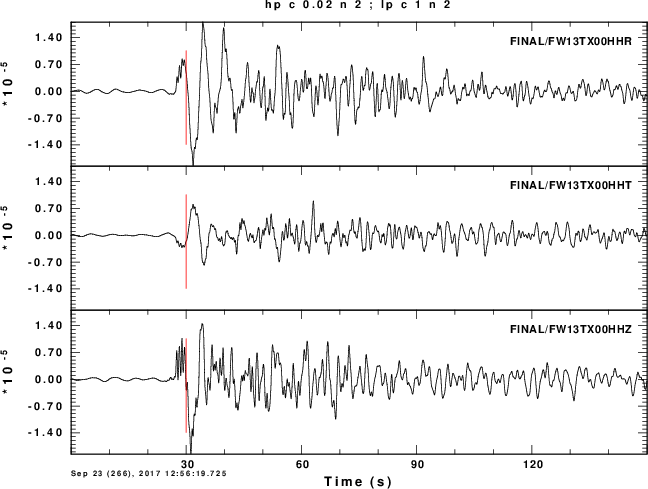

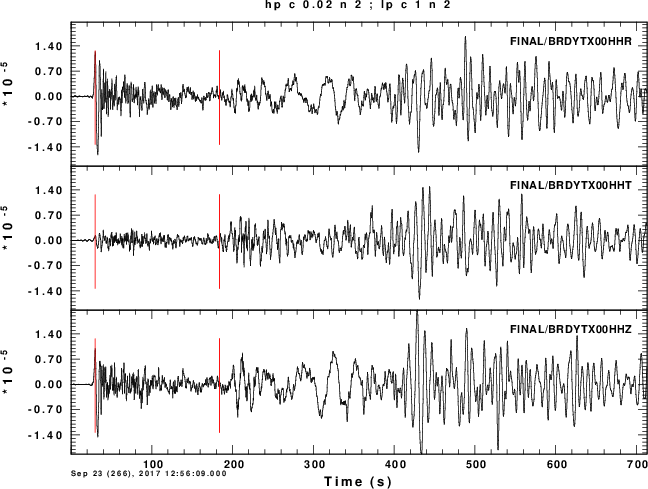

Event of 20170923125302

Last changed October 31, 2017

Station	Evaluation	P-wave signal	Entire record

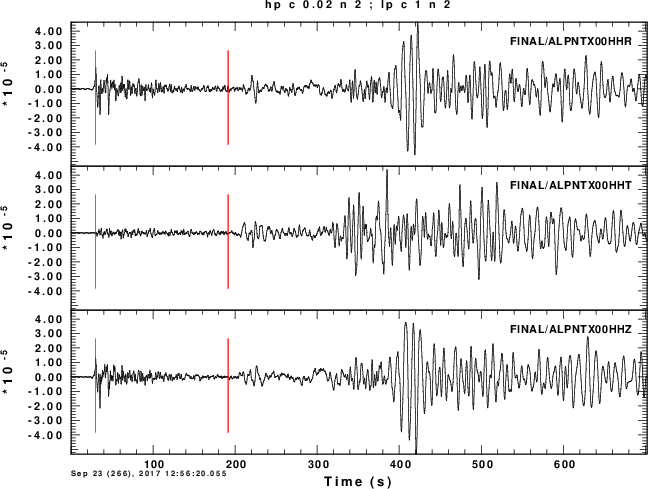

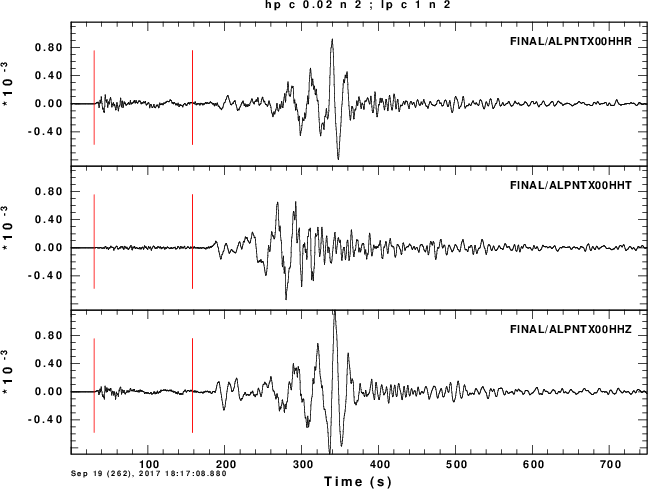

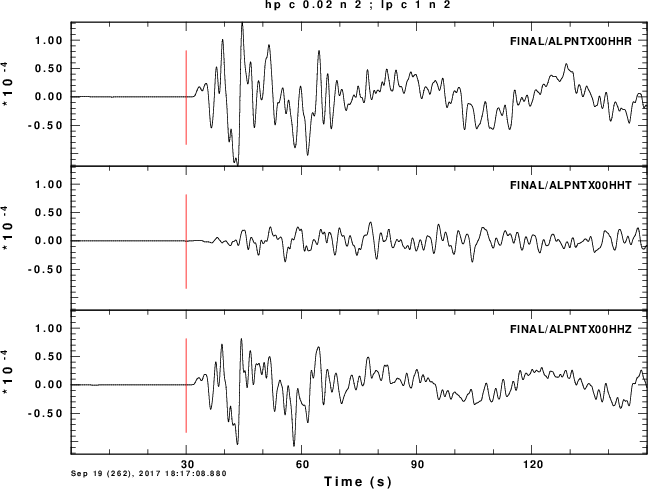

ALPN		20170919181438/IMGCMPa/ALPN.png	20170919181438/IMGCMPa/ALPN.png

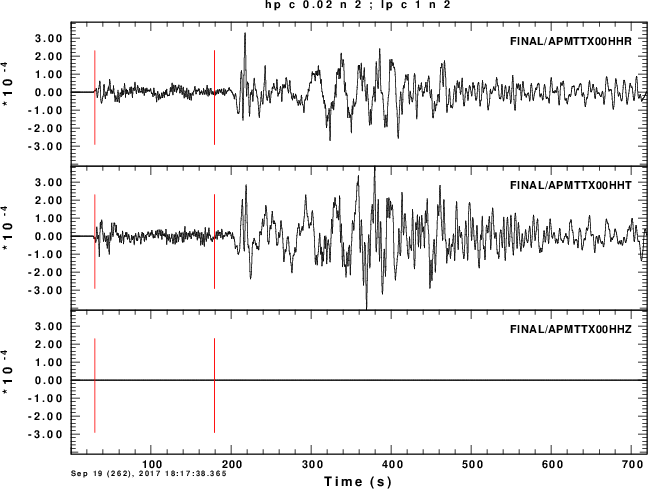

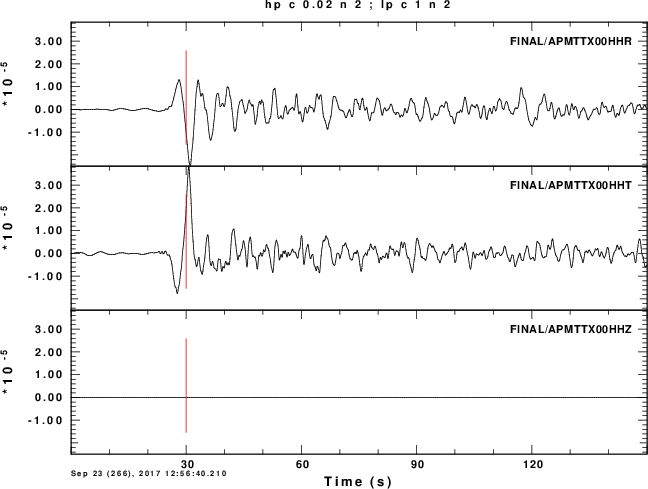

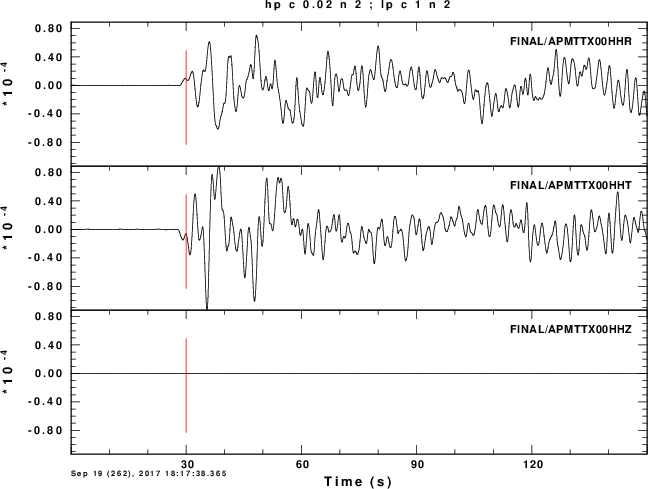

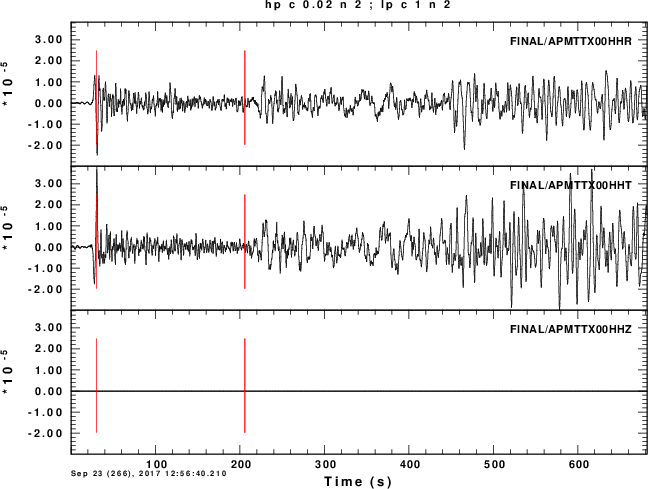

APMT	CMPINC for HHZ is90 and not 0	20170919181438/IMGCMPa/APMT.png	20170919181438/IMGCMPa/APMT.png

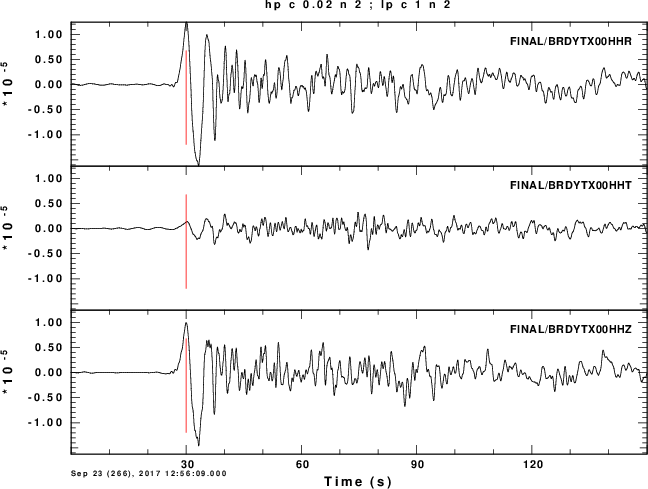

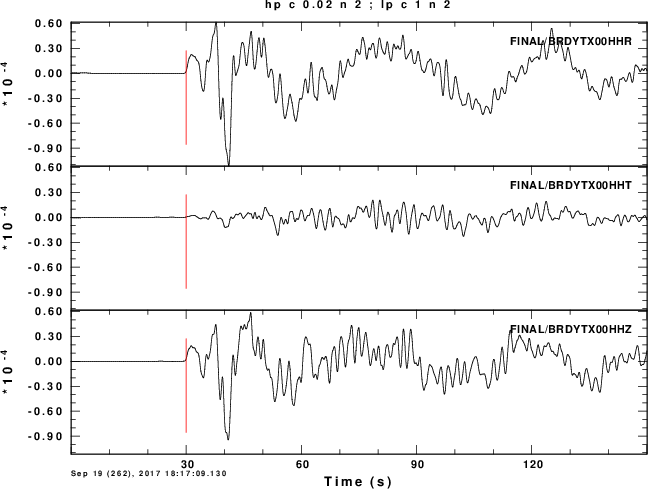

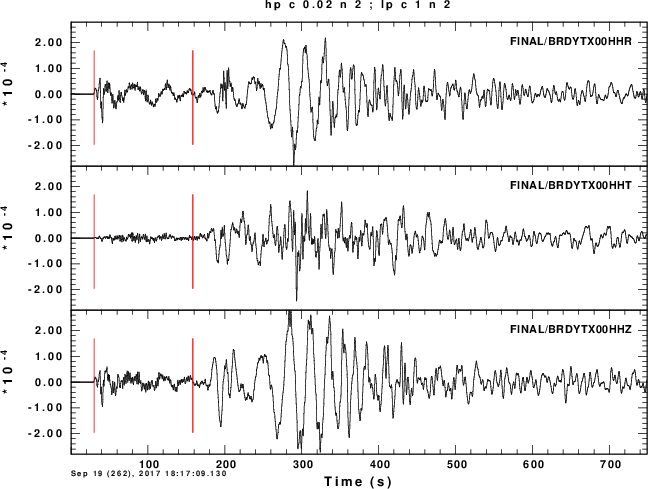

BRDY		20170919181438/IMGCMPa/BRDY.png	20170919181438/IMGCMPa/BRDY.png

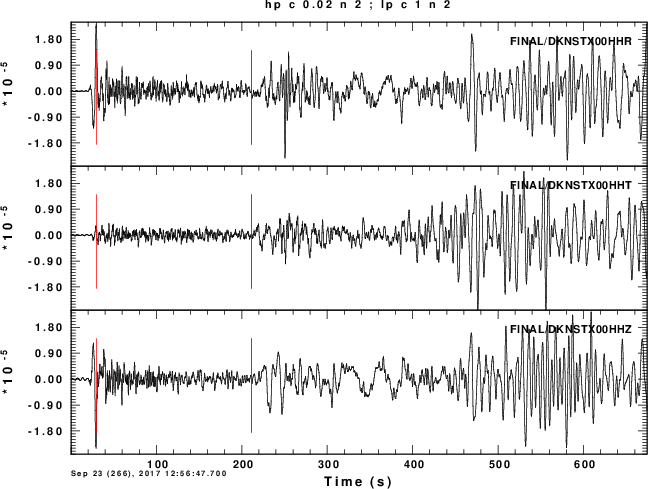

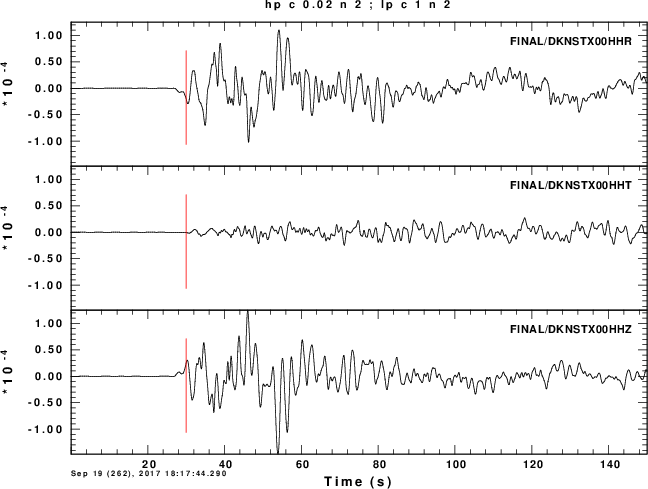

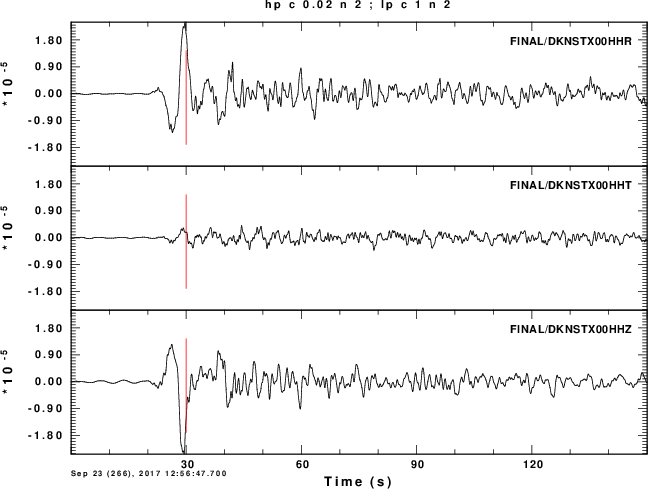

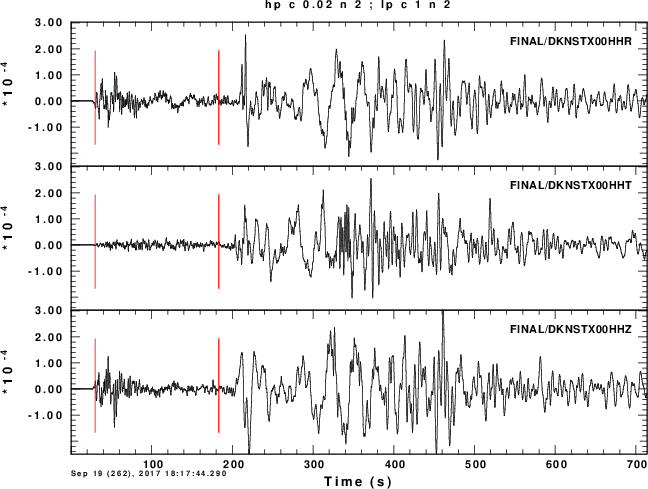

DKNS	P on R is reversed	20170919181438/IMGCMPa/DKNS.png	20170919181438/IMGCMPa/DKNS.png

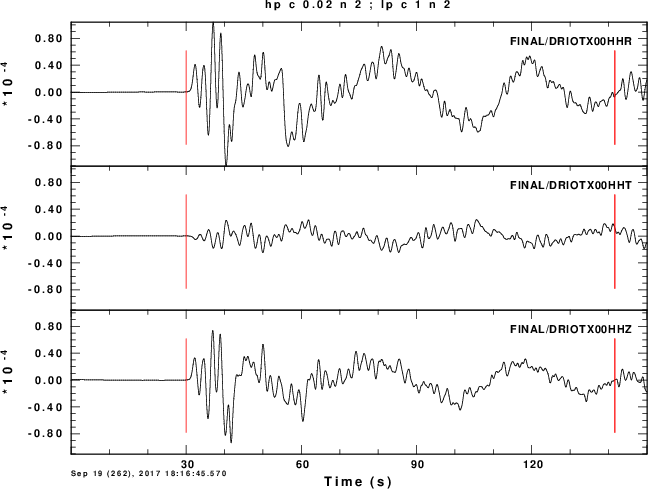

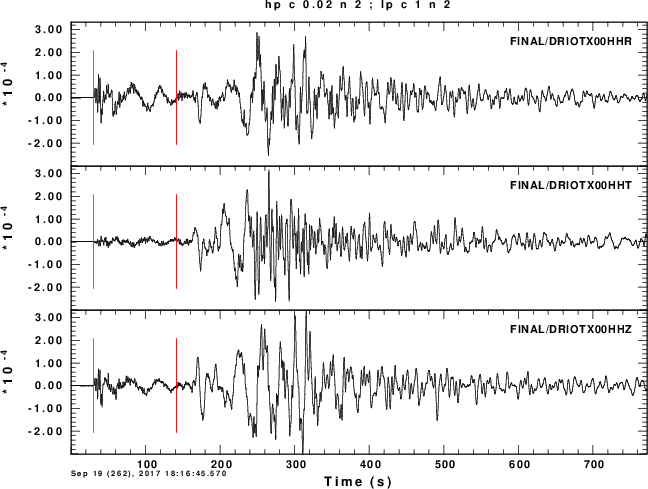

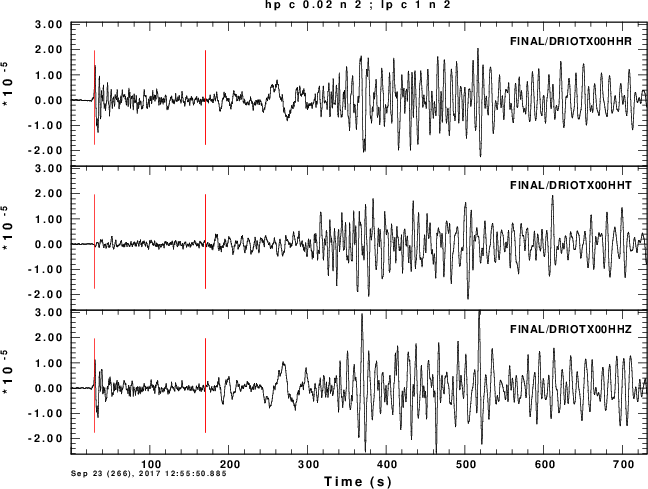

DRIO		20170919181438/IMGCMPa/DRIO.png	20170919181438/IMGCMPa/DRIO.png

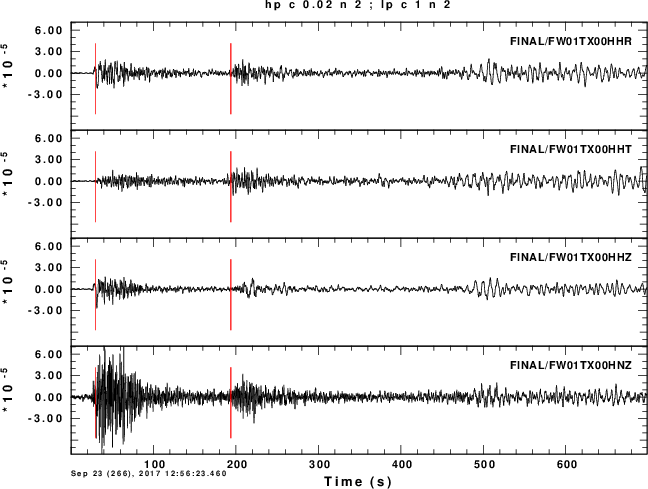

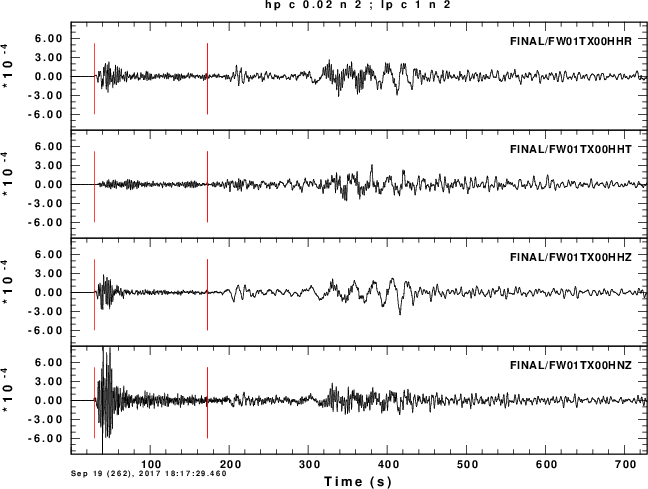

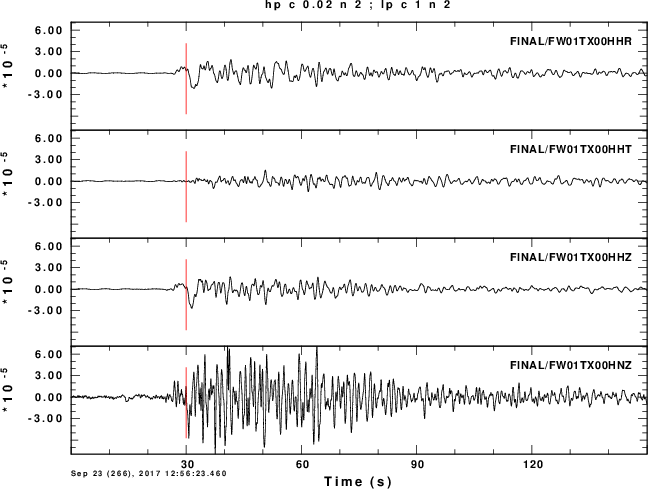

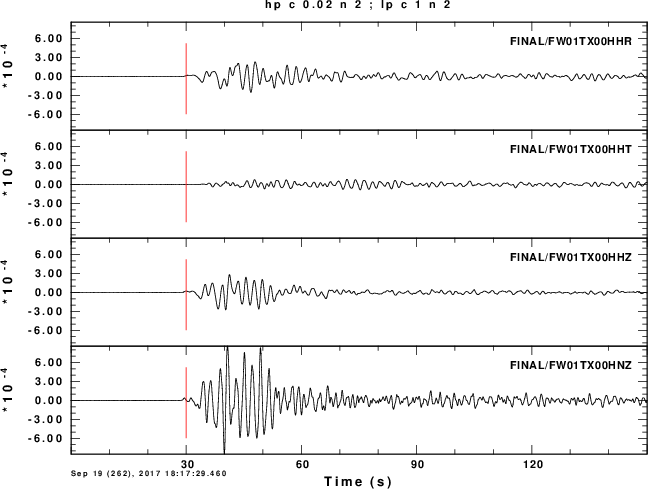

FW01	Why is HNZ > HHZ for P?	20170919181438/IMGCMPa/FW01.png	20170919181438/IMGCMPa/FW01.png

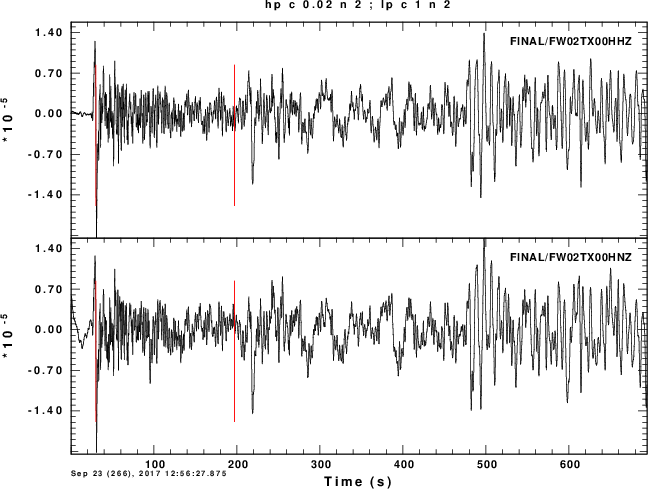

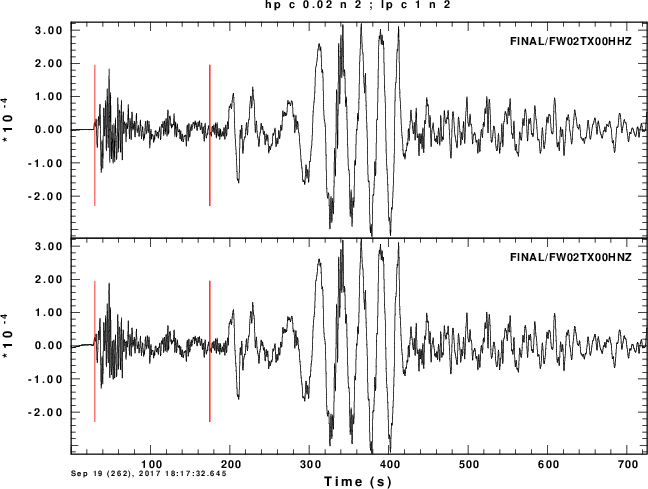

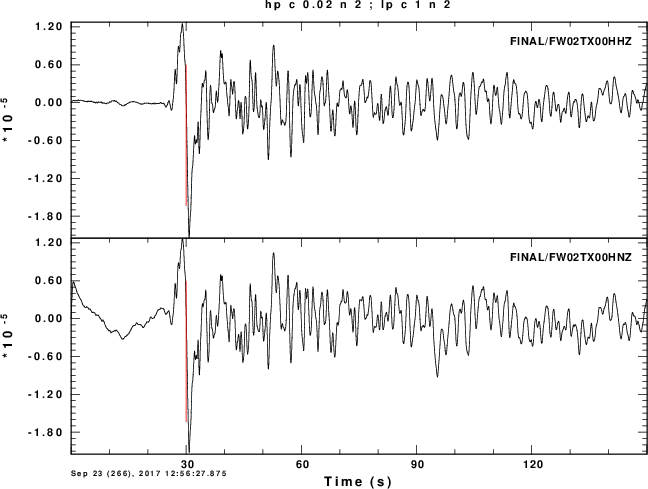

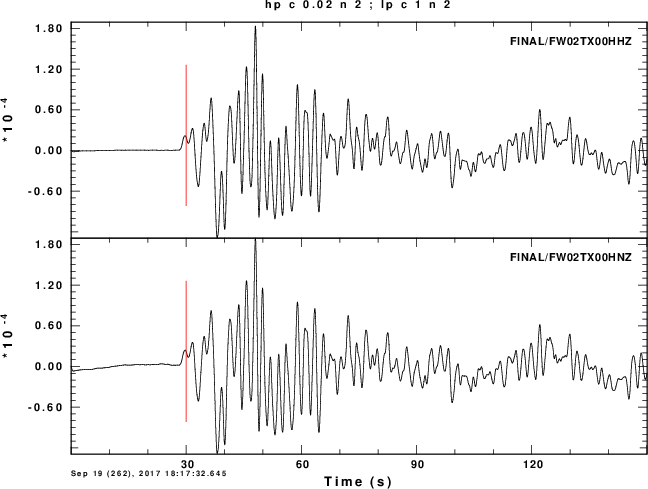

FW02	CMPINC for HHZ HHN are 90 ant not 0	20170919181438/IMGCMPa/FW02.png	20170919181438/IMGCMPa/FW02.png

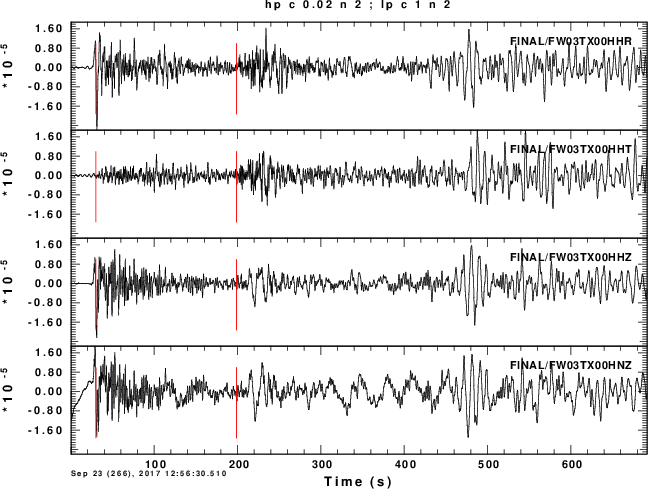

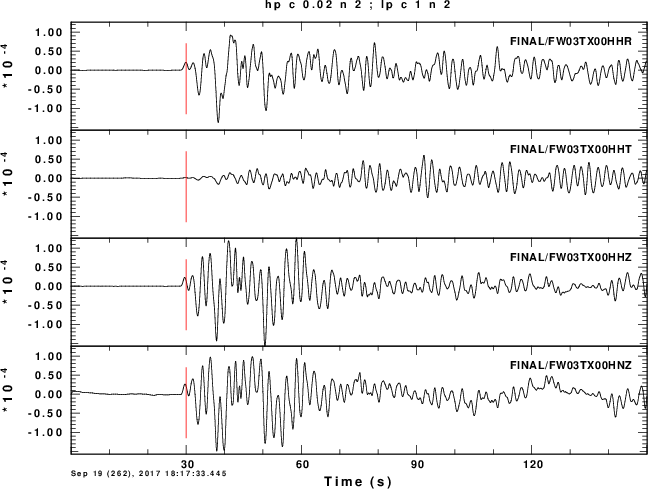

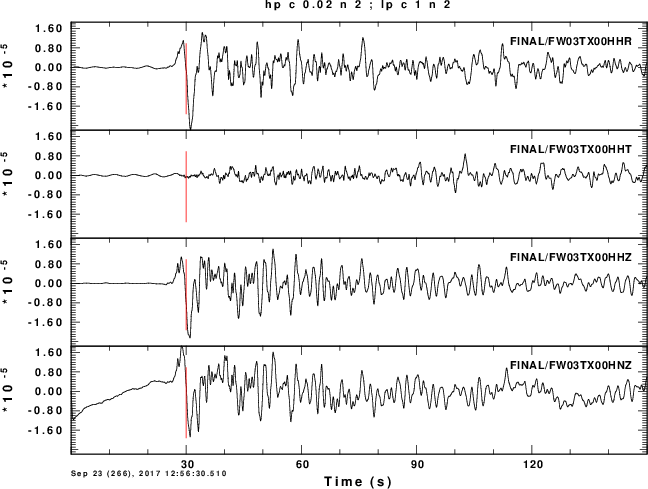

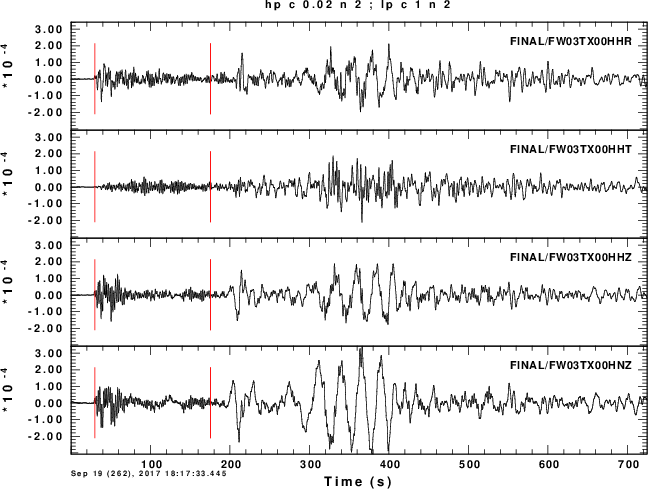

FW03		20170919181438/IMGCMPa/FW03.png	20170919181438/IMGCMPa/FW03.png

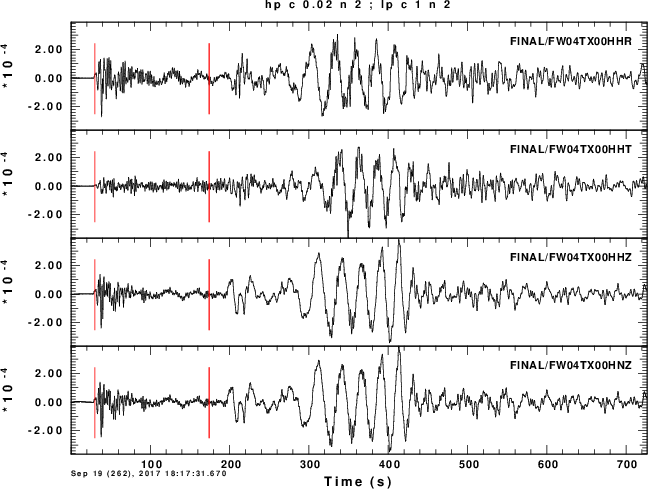

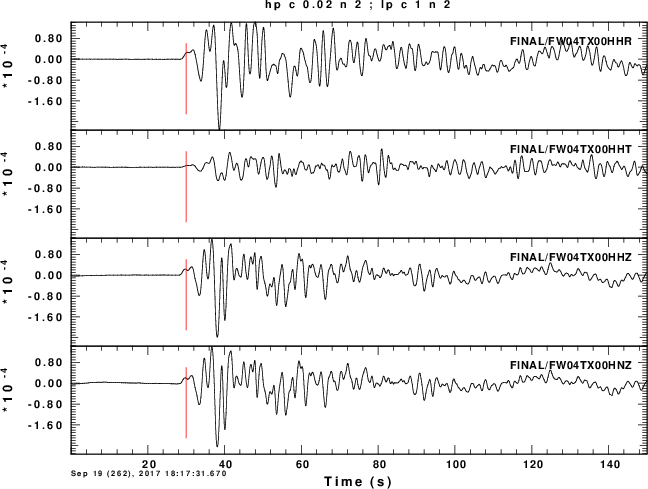

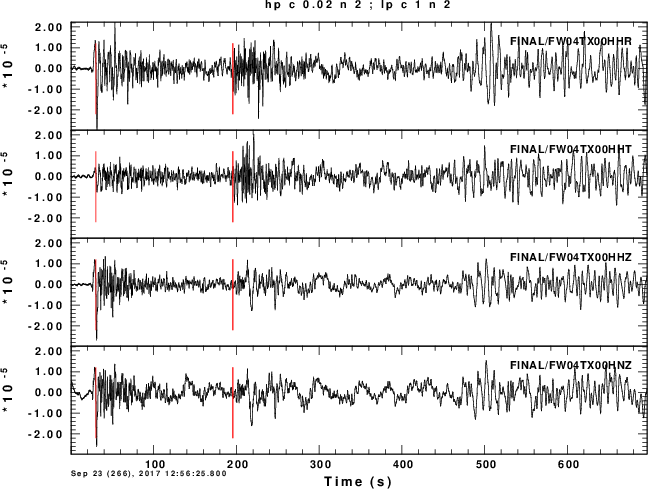

FW04		20170919181438/IMGCMPa/FW04.png	20170919181438/IMGCMPa/FW04.png

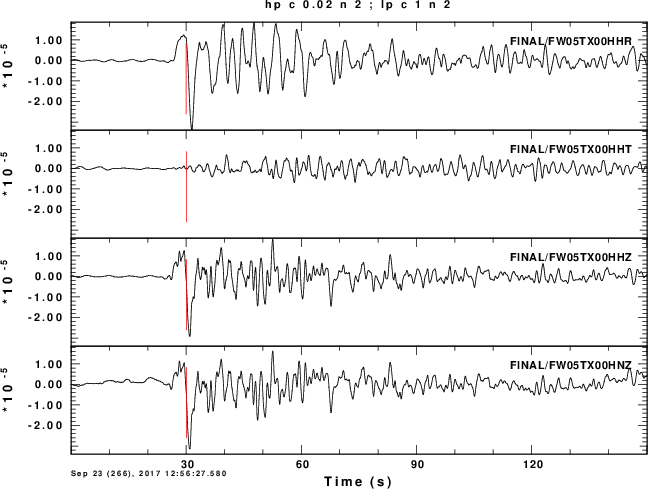

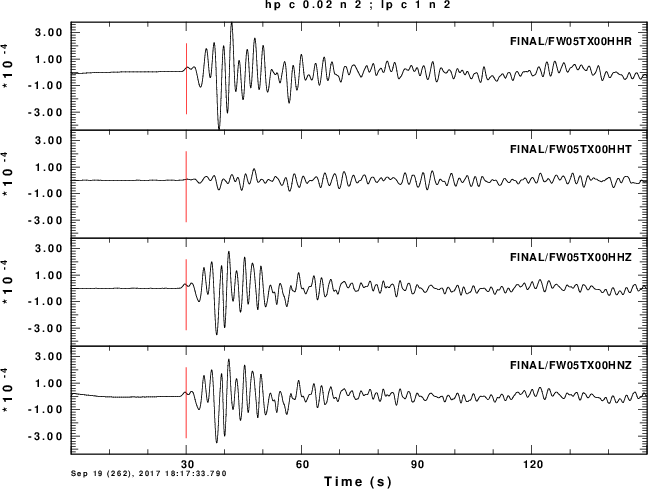

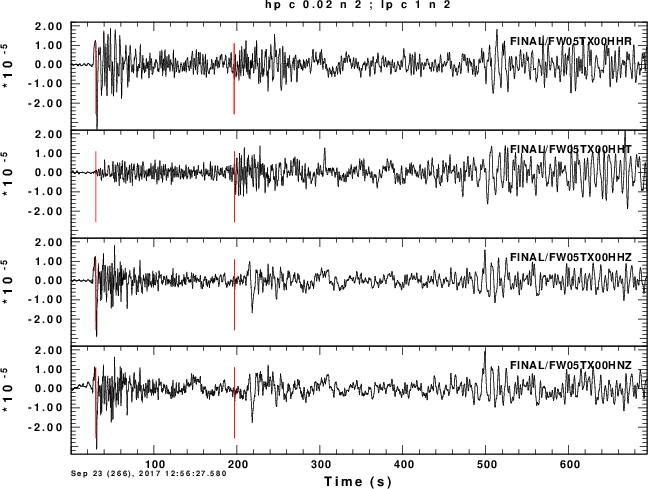

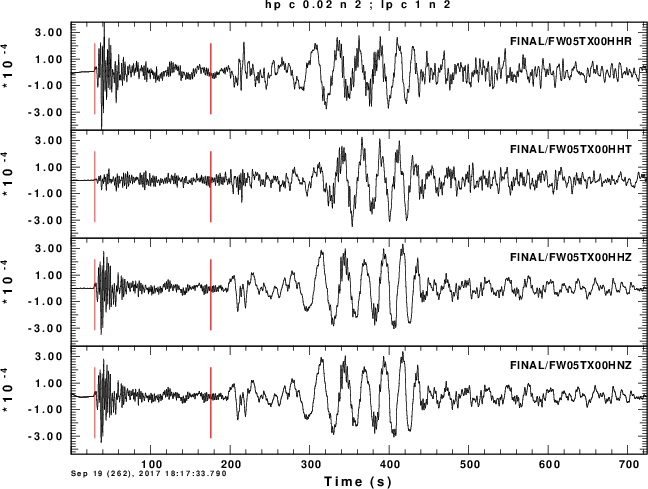

FW05		20170919181438/IMGCMPa/FW05.png	20170919181438/IMGCMPa/FW05.png

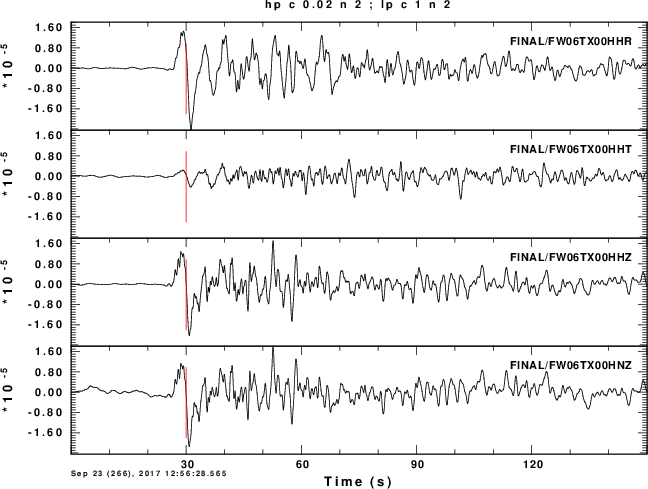

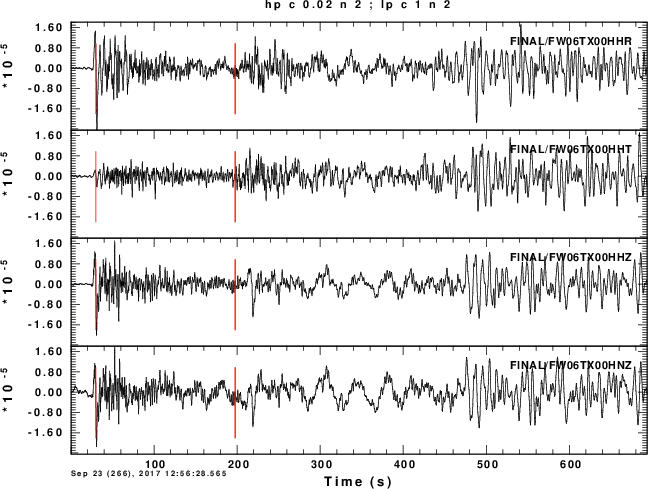

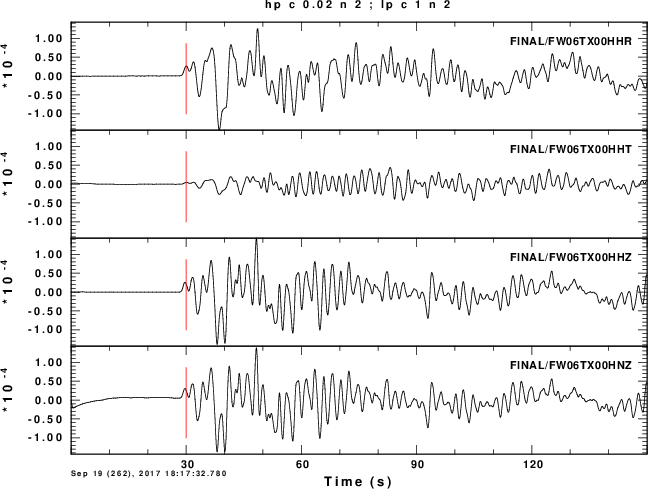

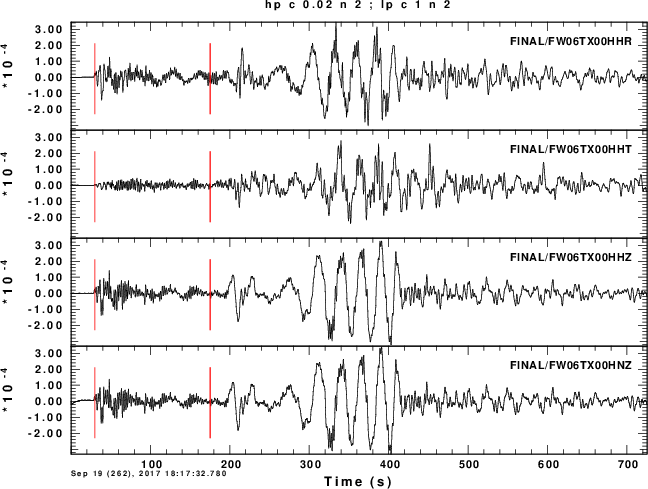

FW06		20170919181438/IMGCMPa/FW06.png	20170919181438/IMGCMPa/FW06.png

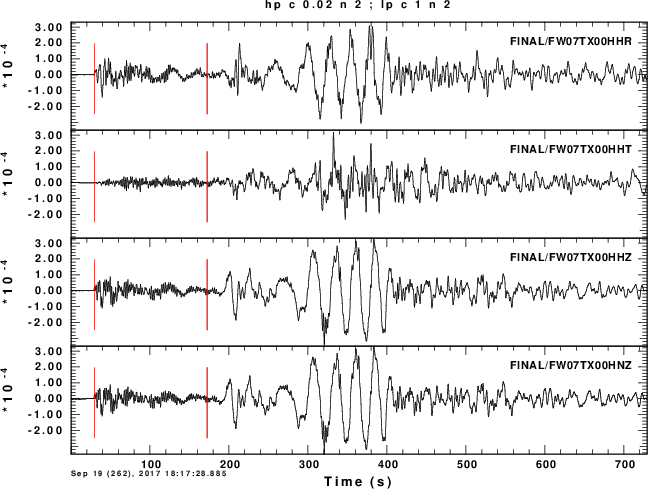

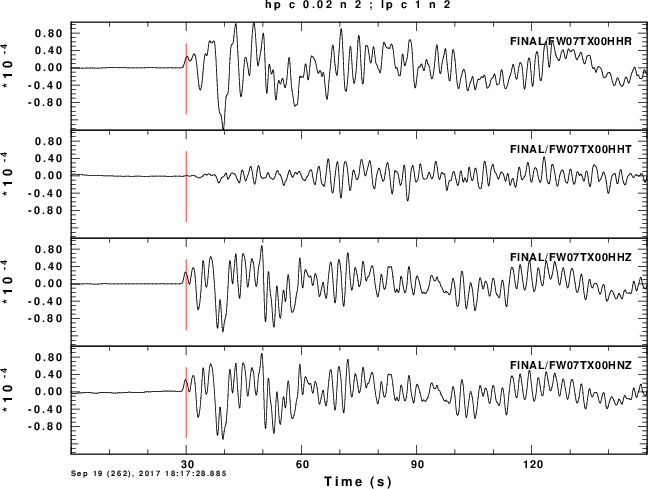

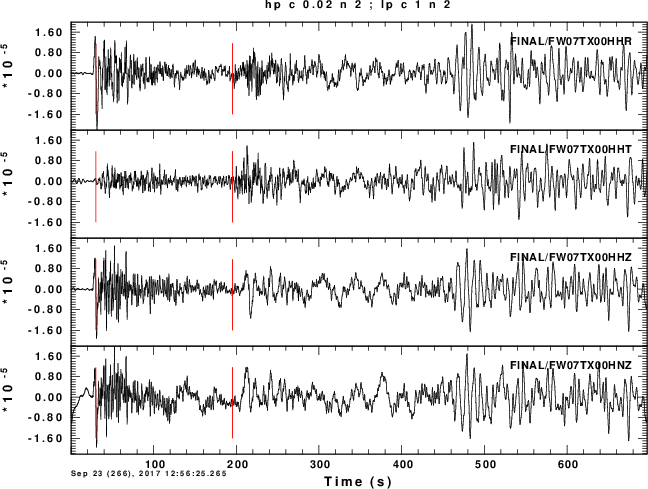

FW07		20170919181438/IMGCMPa/FW07.png	20170919181438/IMGCMPa/FW07.png

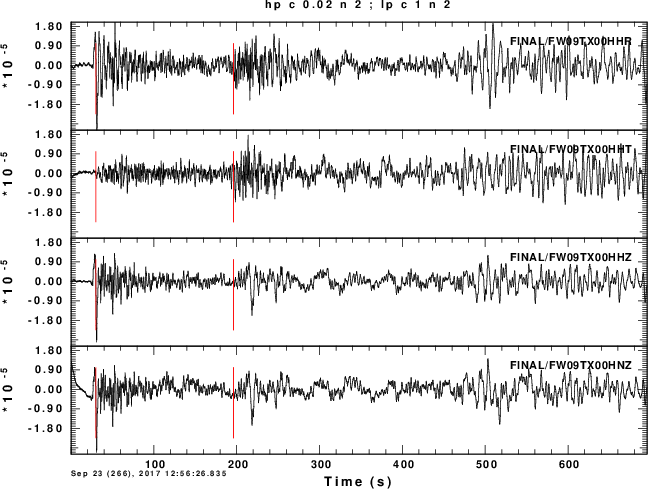

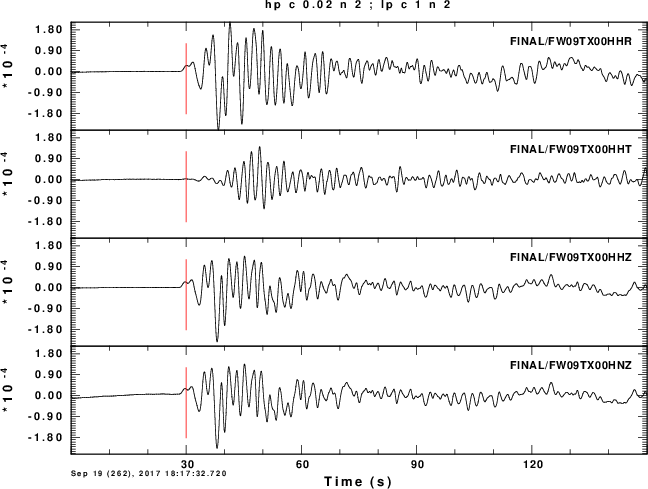

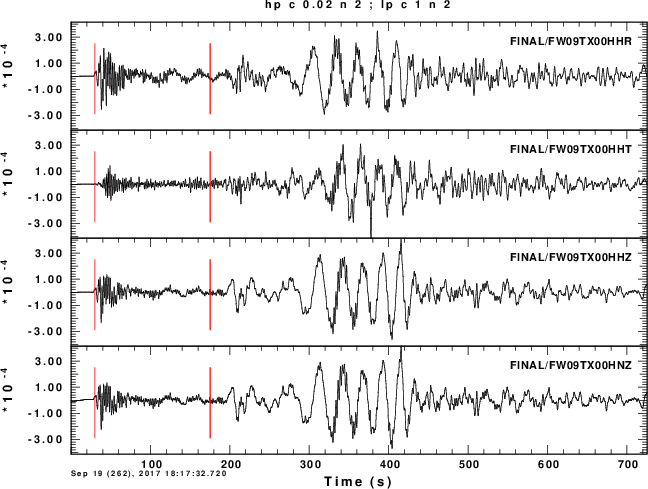

FW09		20170919181438/IMGCMPa/FW09.png	20170919181438/IMGCMPa/FW09.png

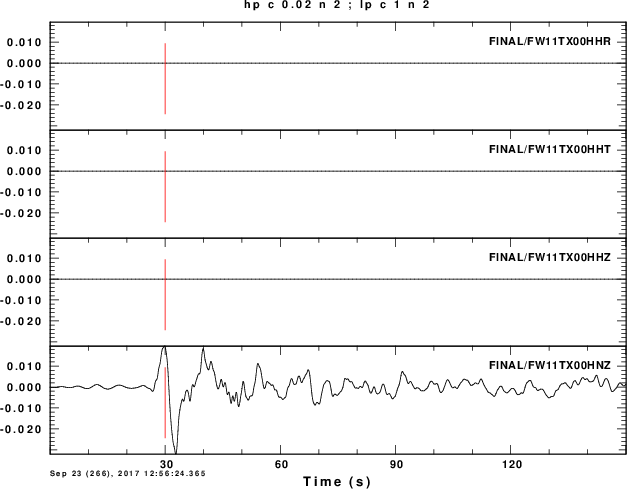

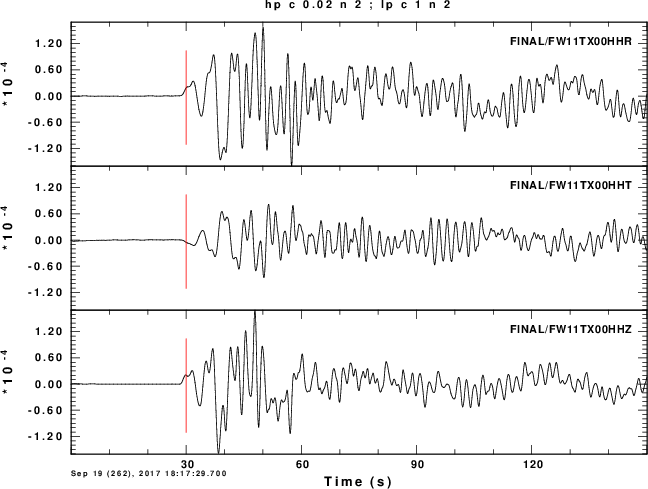

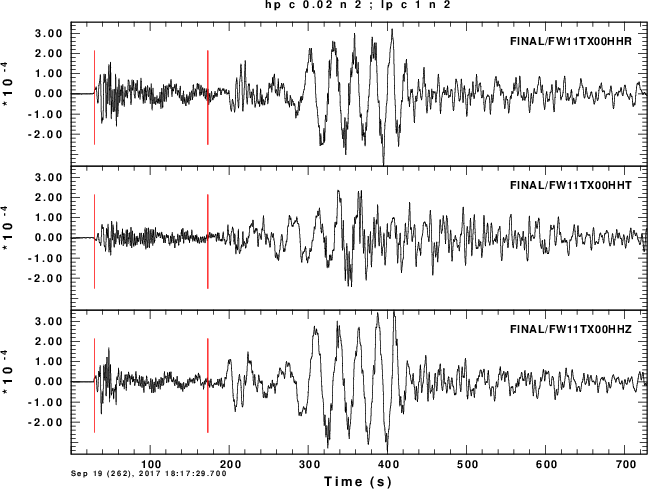

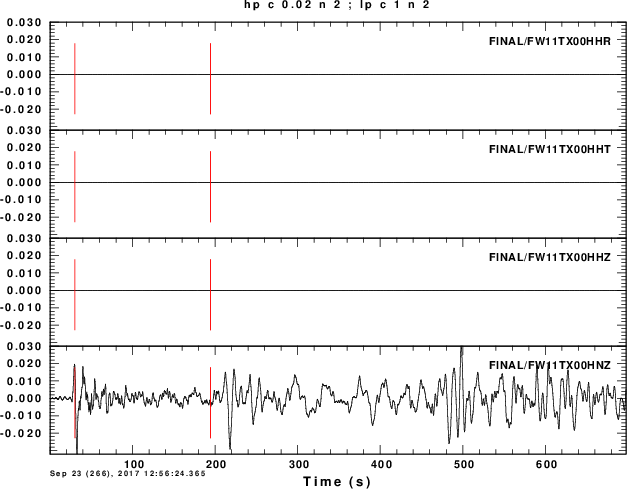

FW11		20170919181438/IMGCMPa/FW11.png	20170919181438/IMGCMPa/FW11.png

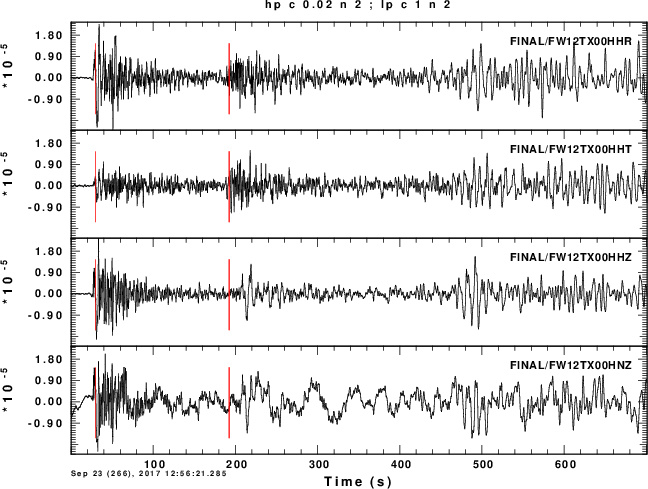

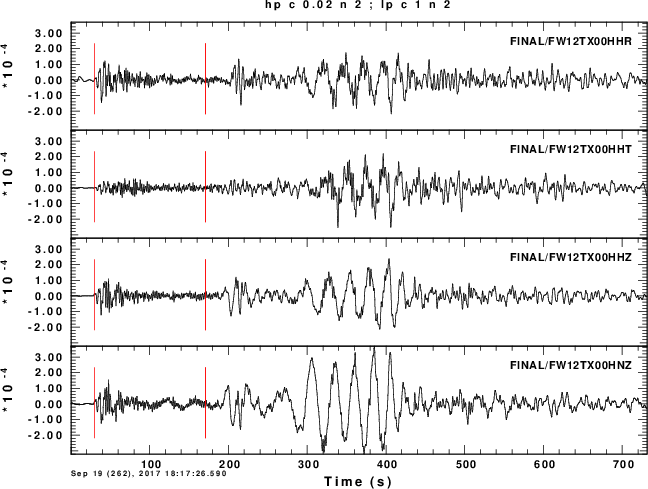

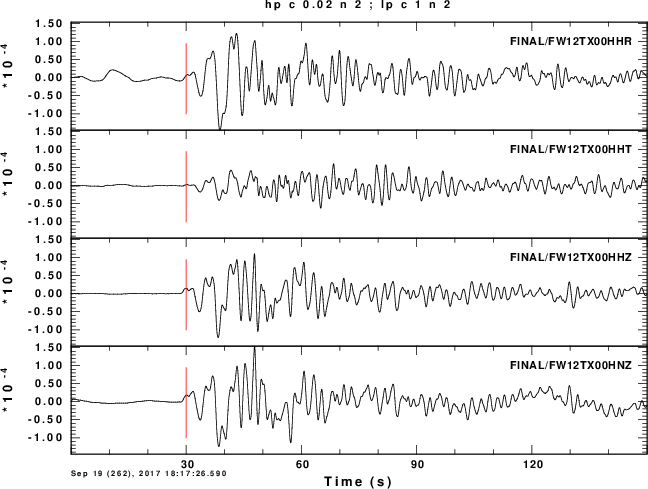

FW12		20170919181438/IMGCMPa/FW12.png	20170919181438/IMGCMPa/FW12.png

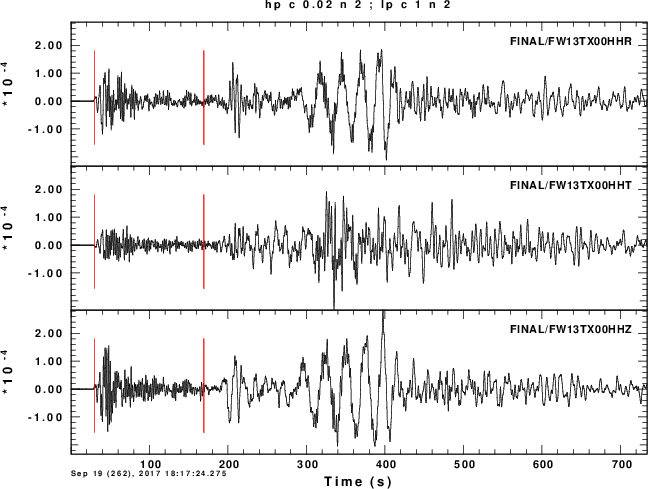

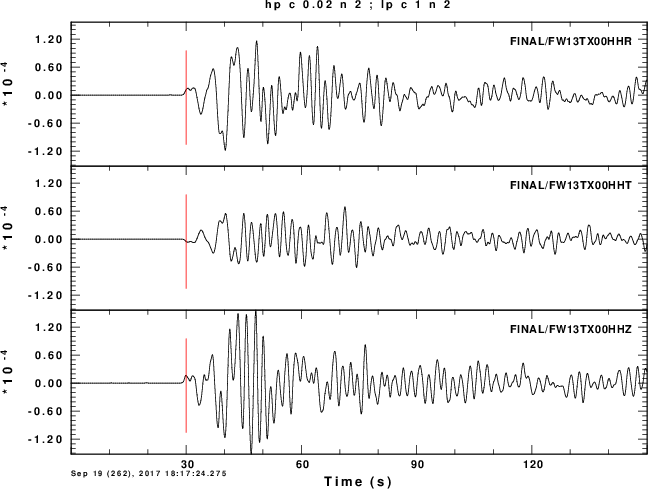

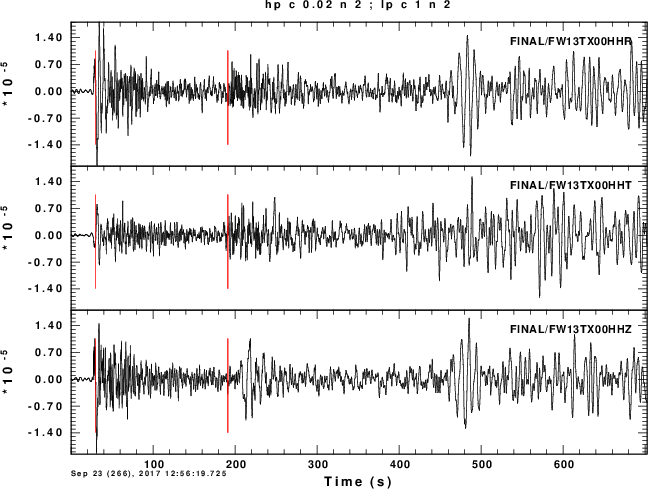

FW13		20170919181438/IMGCMPa/FW13.png	20170919181438/IMGCMPa/FW13.png

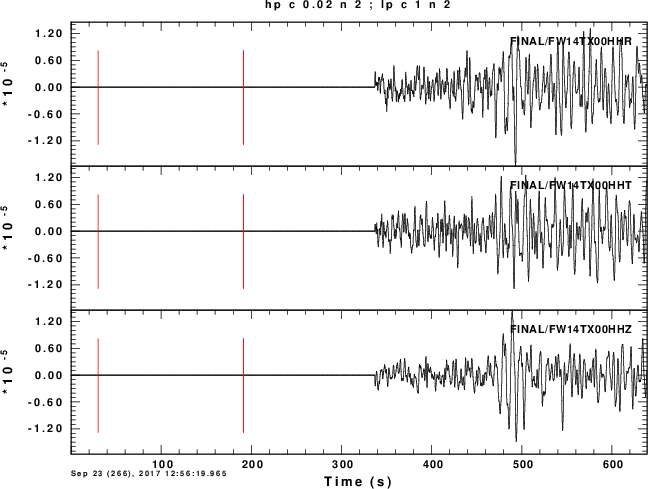

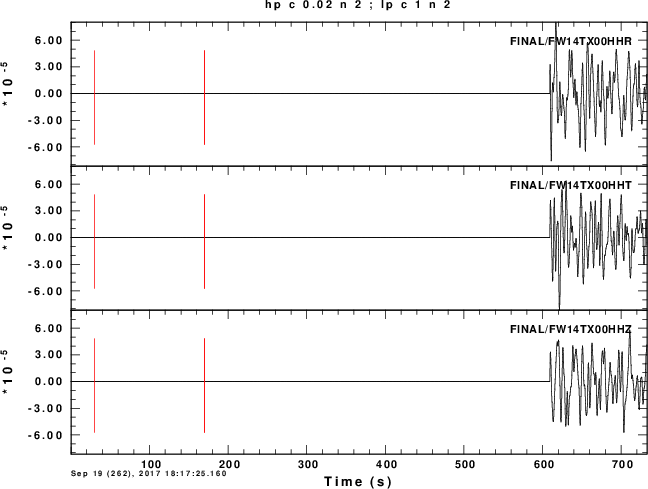

FW14		20170919181438/IMGCMPa/FW14.png	20170919181438/IMGCMPa/FW14.png

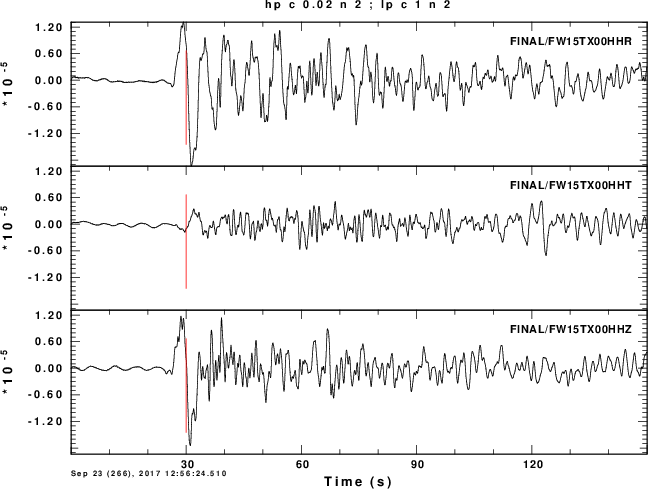

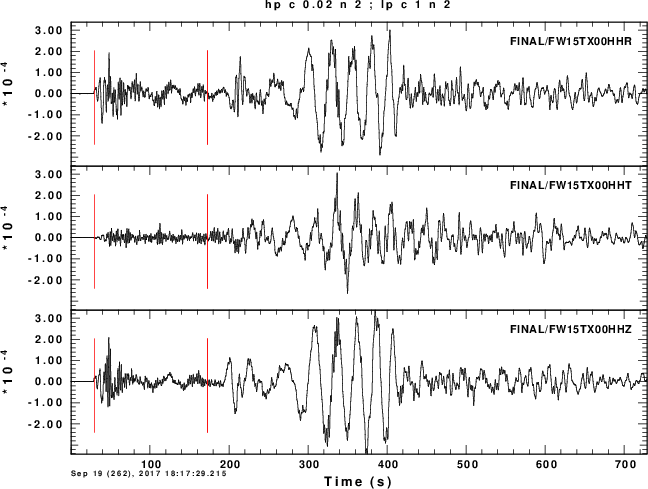

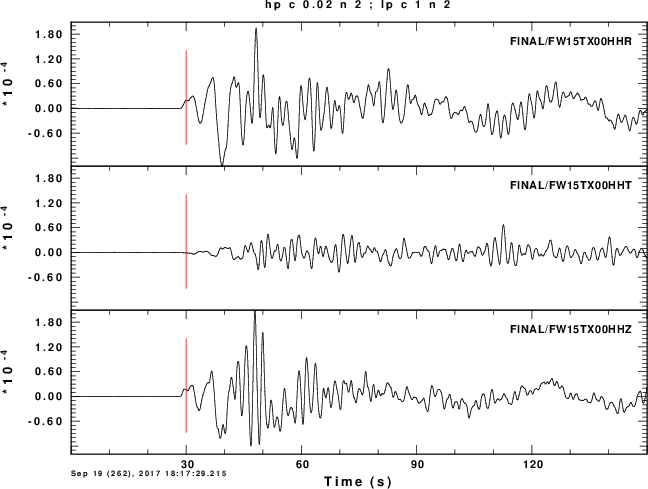

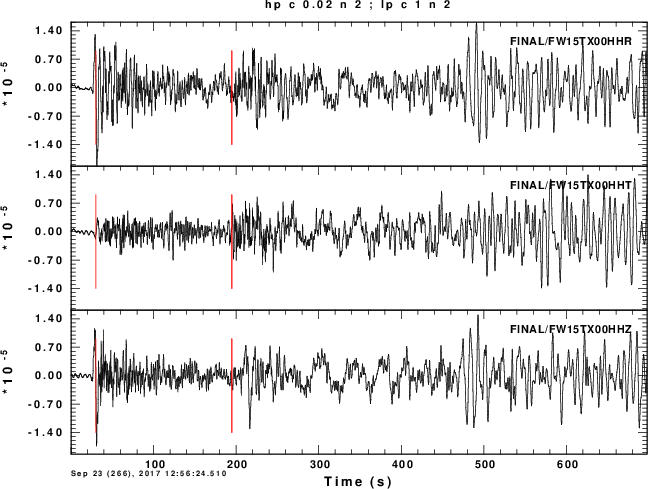

FW15		20170919181438/IMGCMPa/FW15.png	20170919181438/IMGCMPa/FW15.png

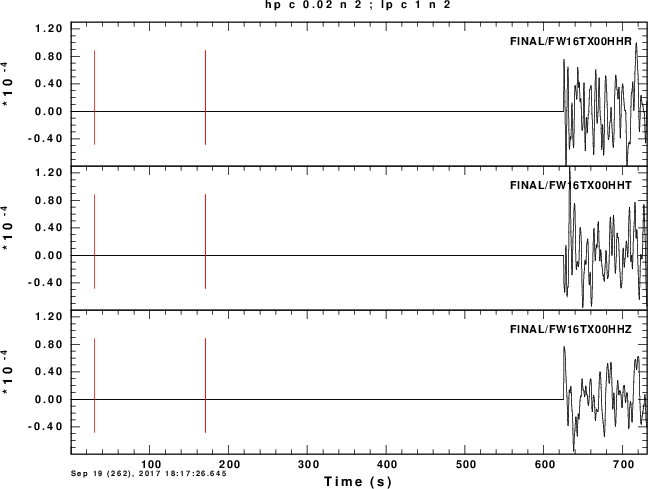

FW16		20170919181438/IMGCMPa/FW16.png	20170919181438/IMGCMPa/FW16.png

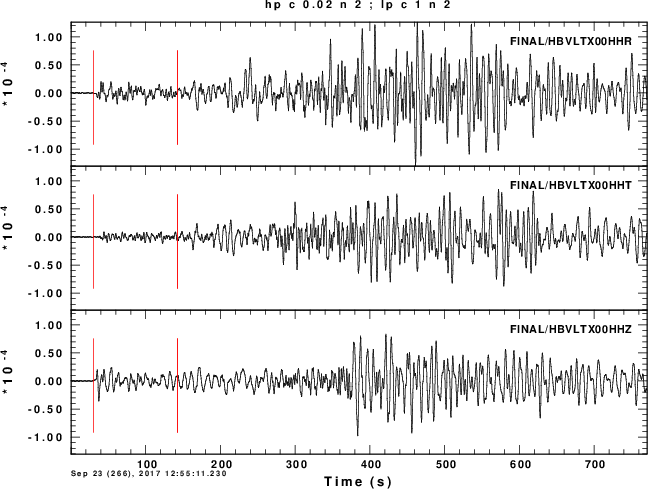

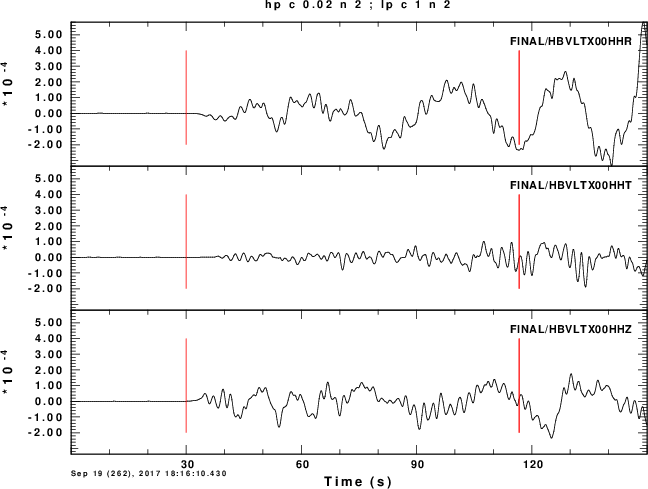

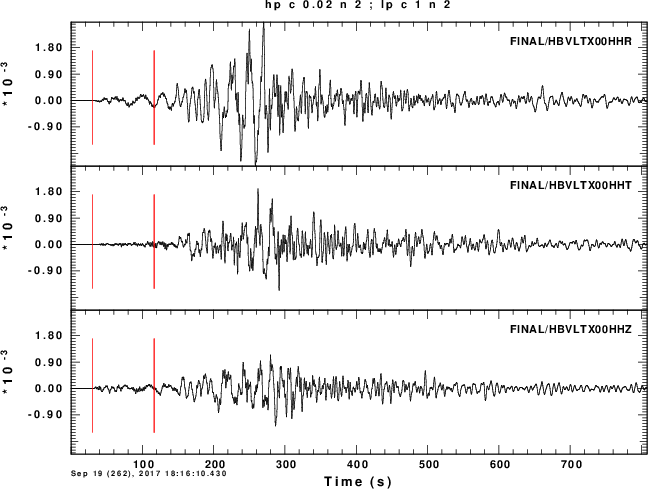

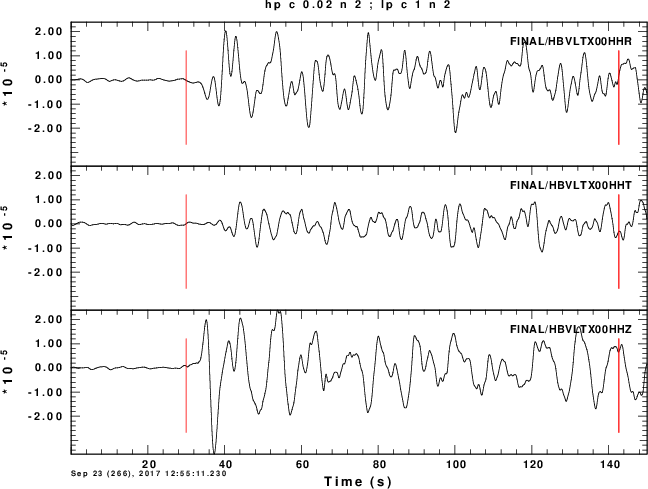

HBVL		20170919181438/IMGCMPa/HBVL.png	20170919181438/IMGCMPa/HBVL.png

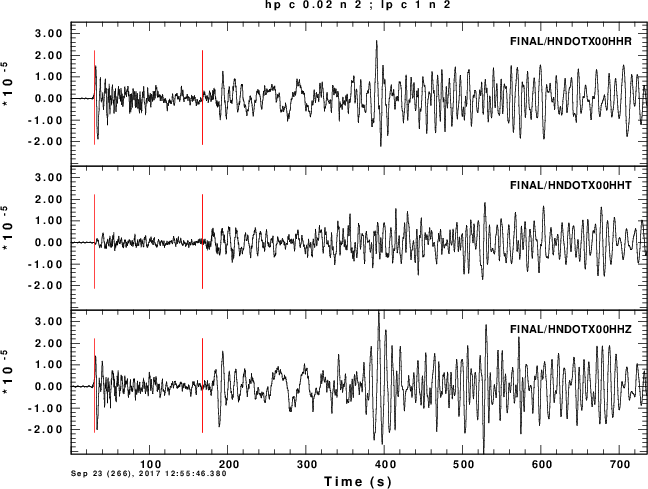

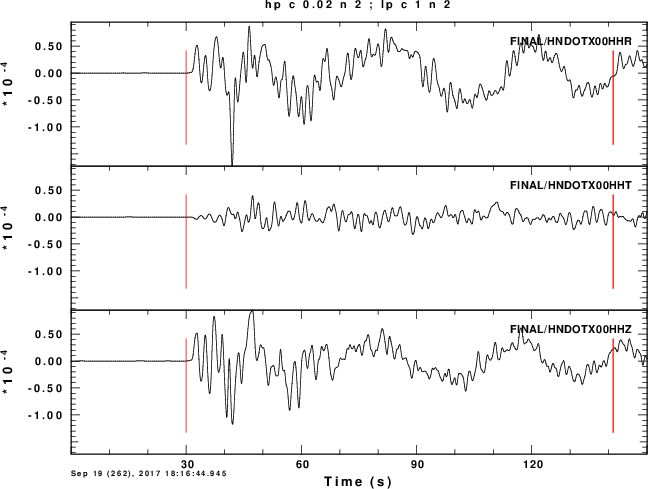

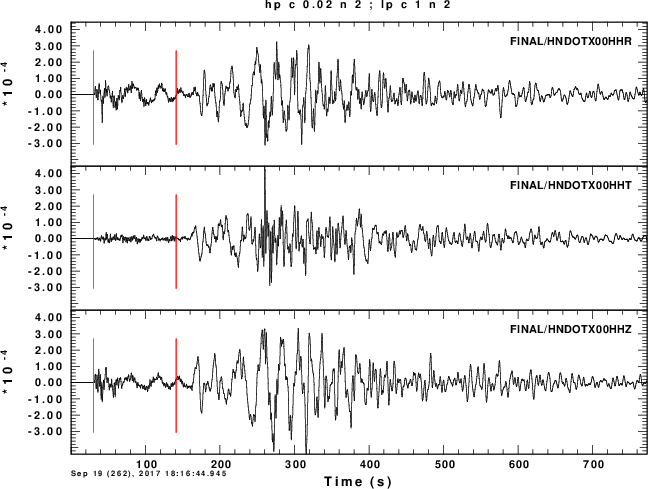

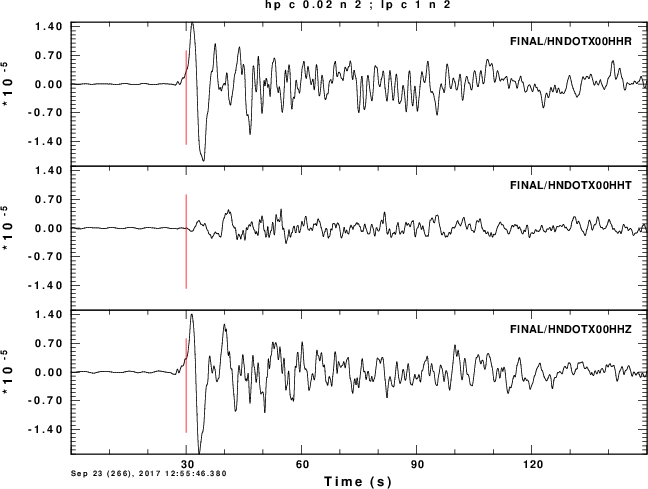

HNDO		20170919181438/IMGCMPa/HNDO.png	20170919181438/IMGCMPa/HNDO.png

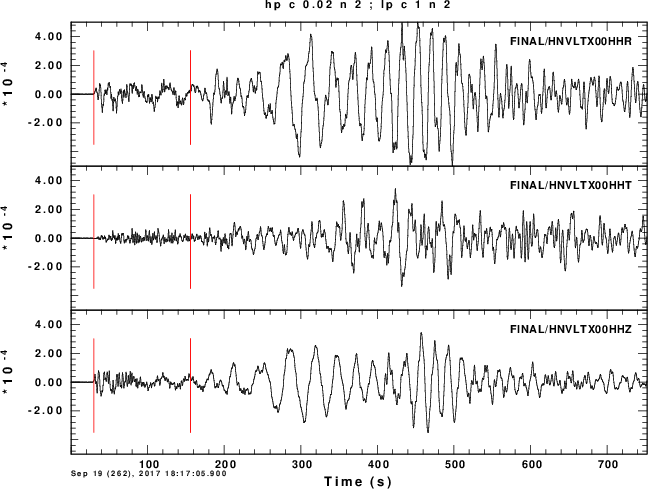

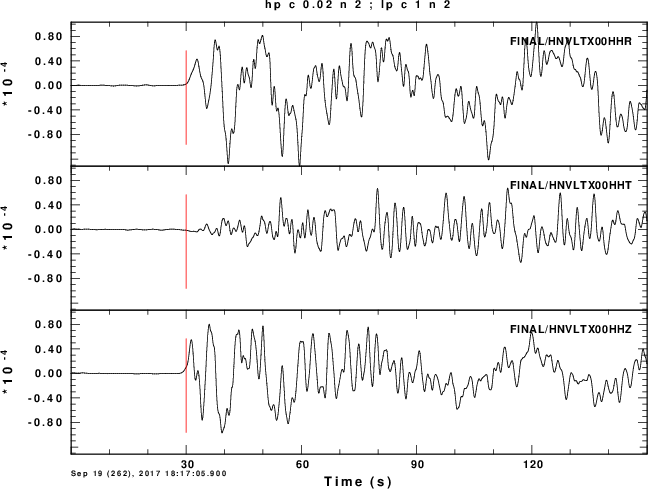

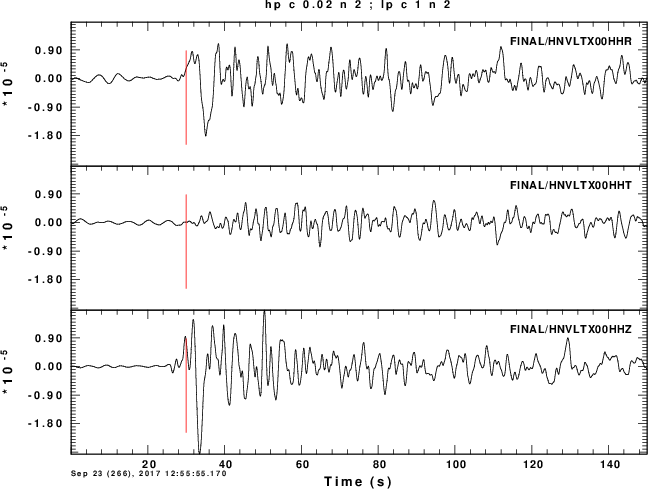

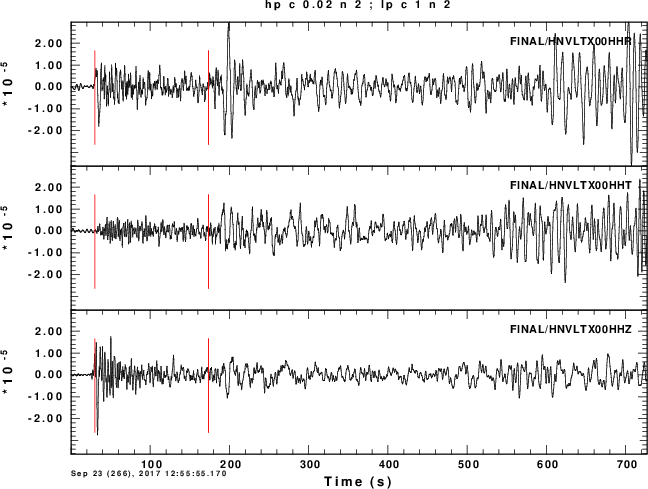

HNVL		20170919181438/IMGCMPa/HNVL.png	20170919181438/IMGCMPa/HNVL.png

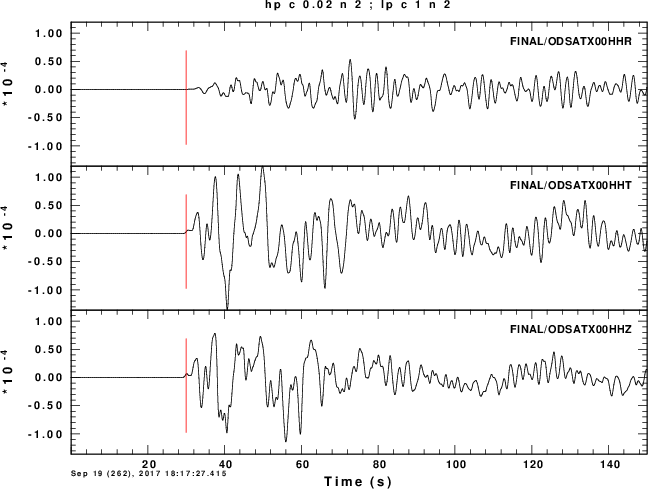

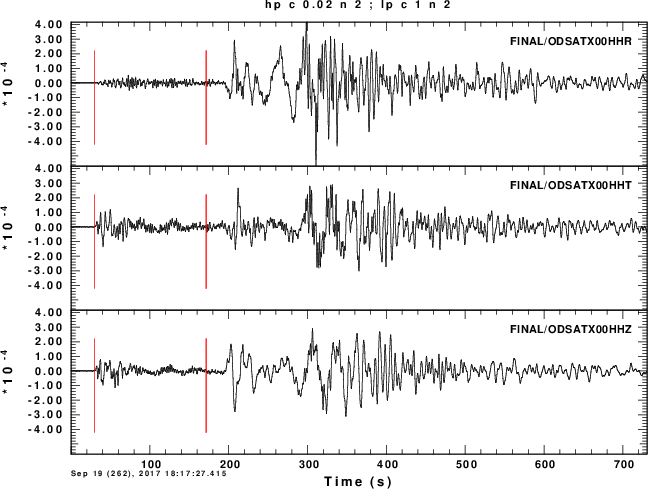

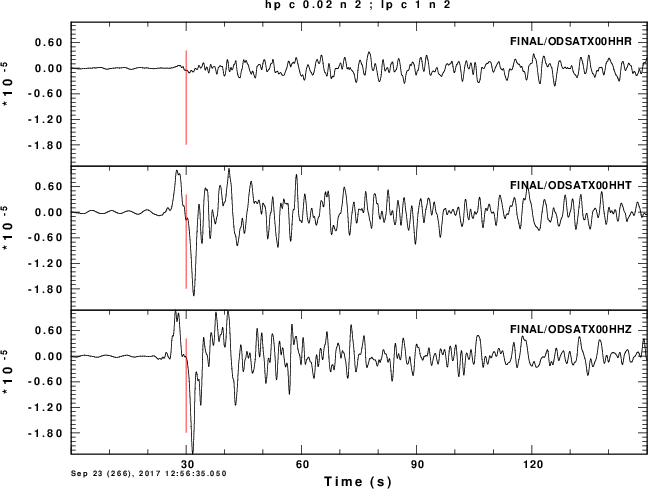

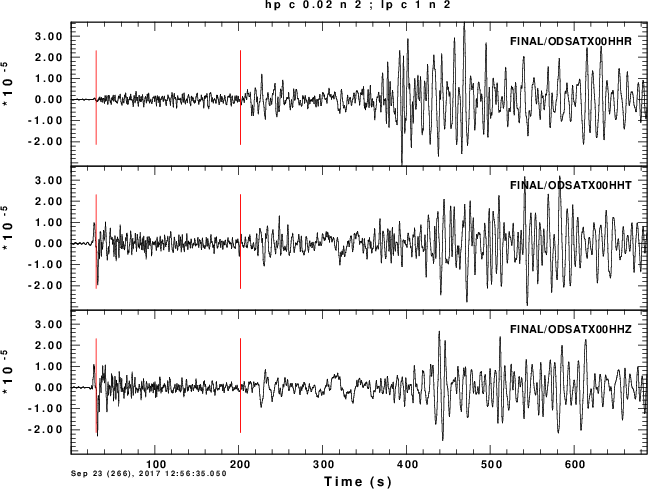

ODSA	P on T	20170919181438/IMGCMPa/ODSA.png	20170919181438/IMGCMPa/ODSA.png

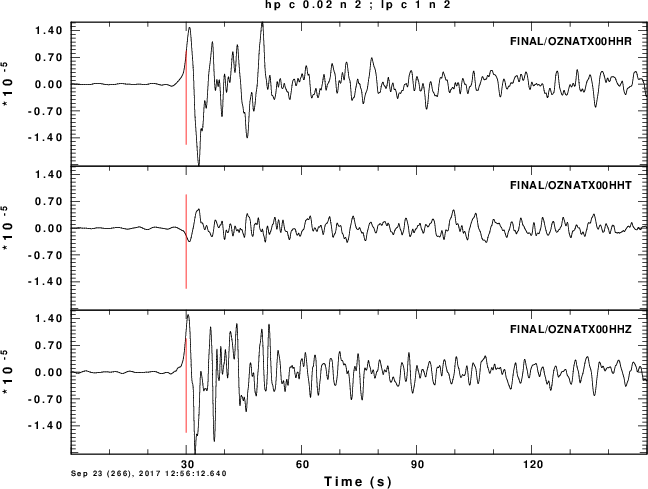

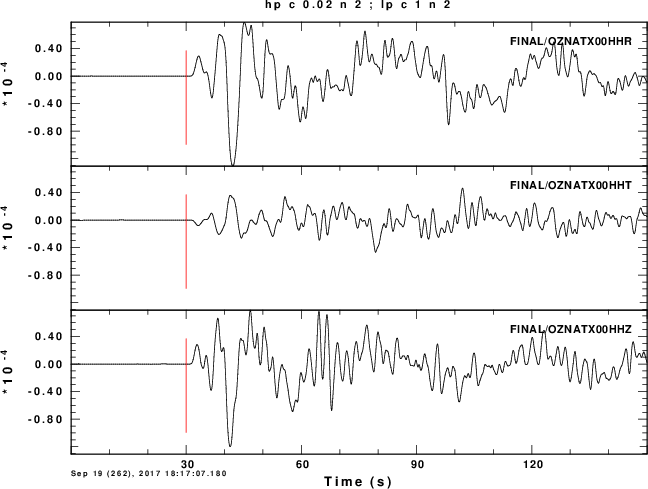

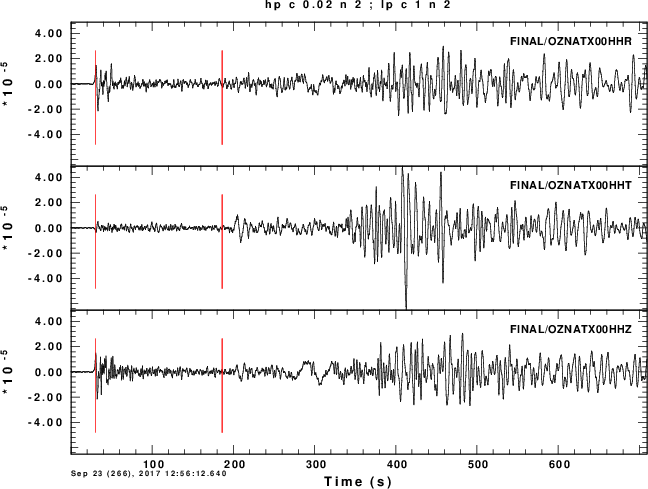

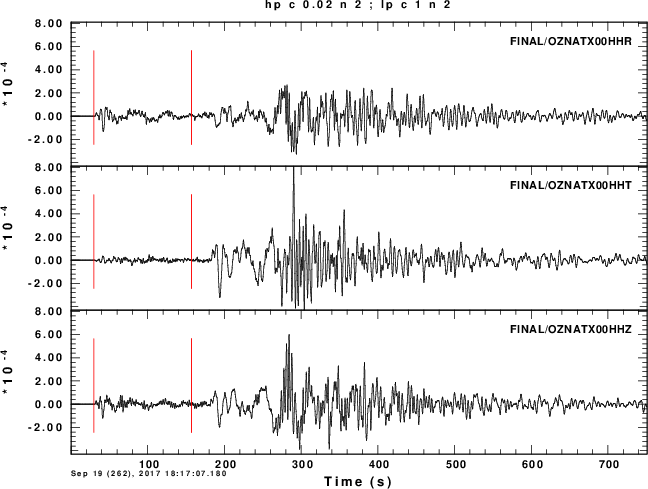

OZNA		20170919181438/IMGCMPa/OZNA.png	20170919181438/IMGCMPa/OZNA.png

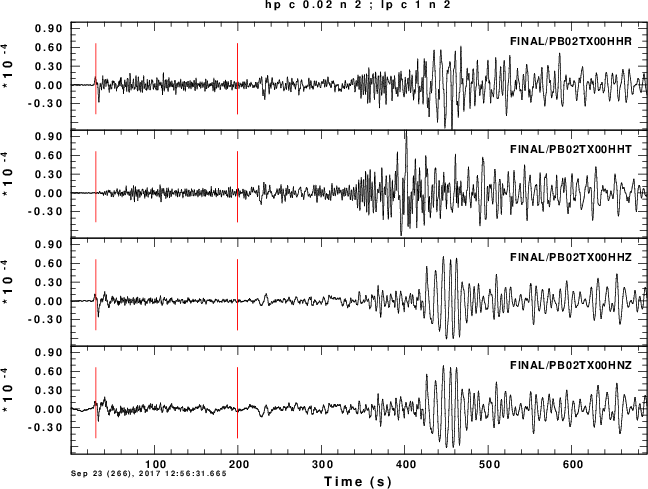

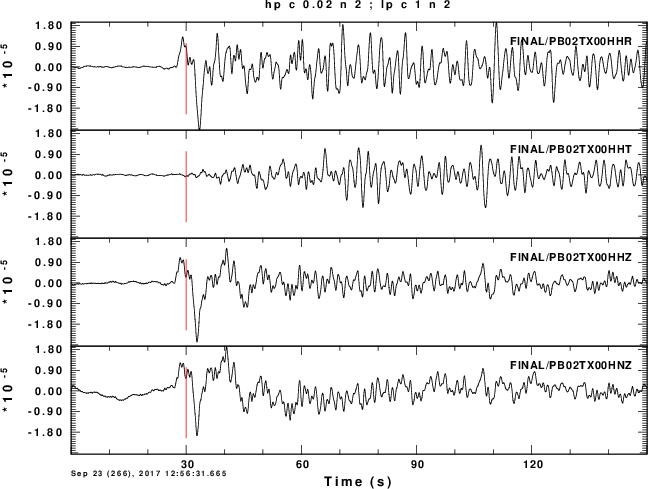

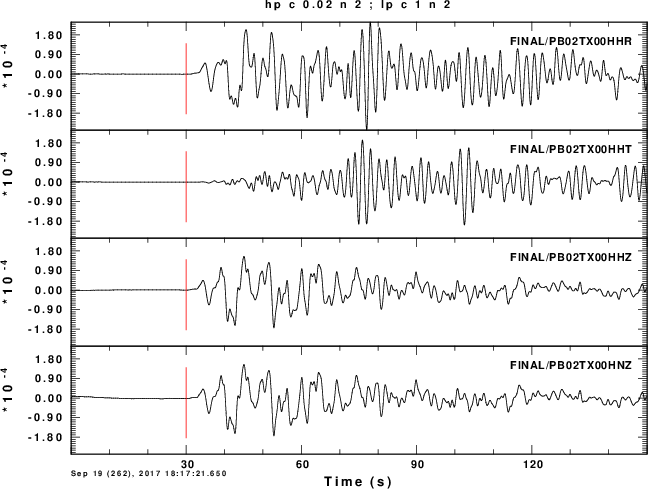

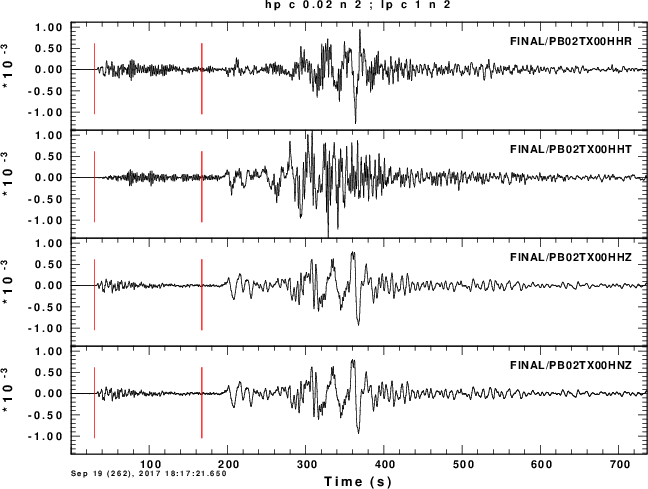

PB02		20170919181438/IMGCMPa/PB02.png	20170919181438/IMGCMPa/PB02.png

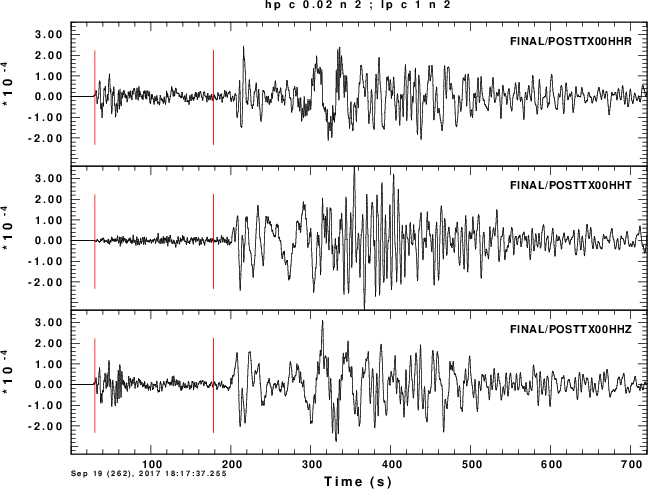

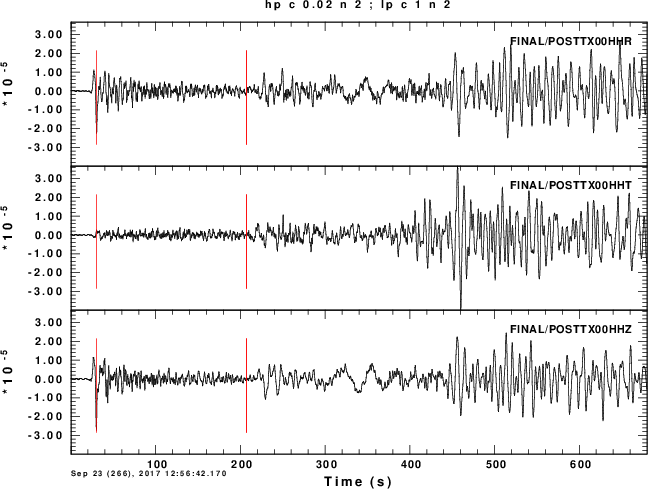

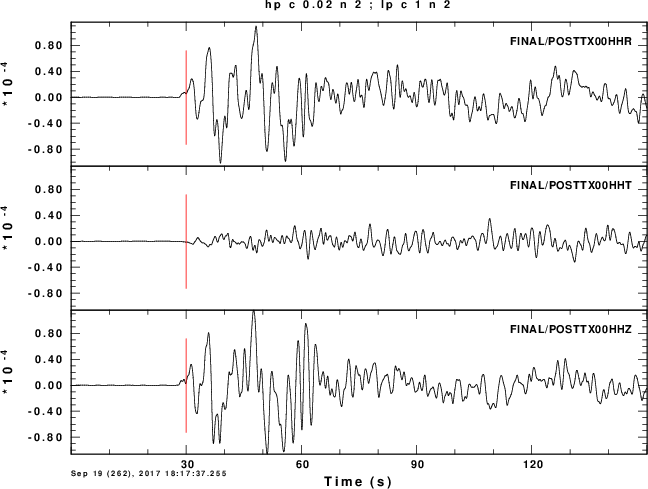

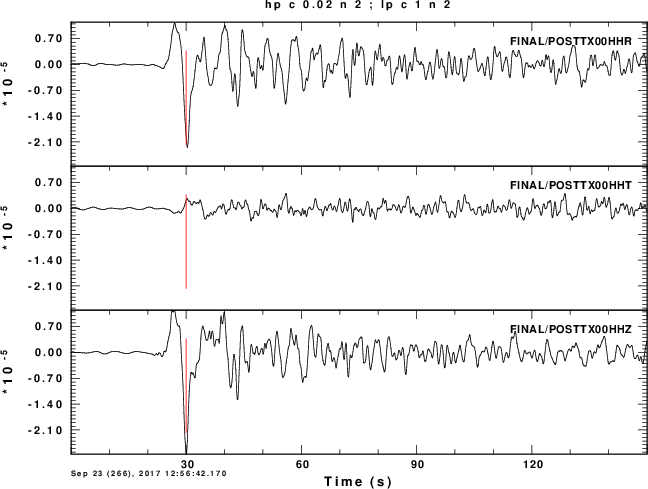

POST		20170919181438/IMGCMPa/POST.png	20170919181438/IMGCMPa/POST.png

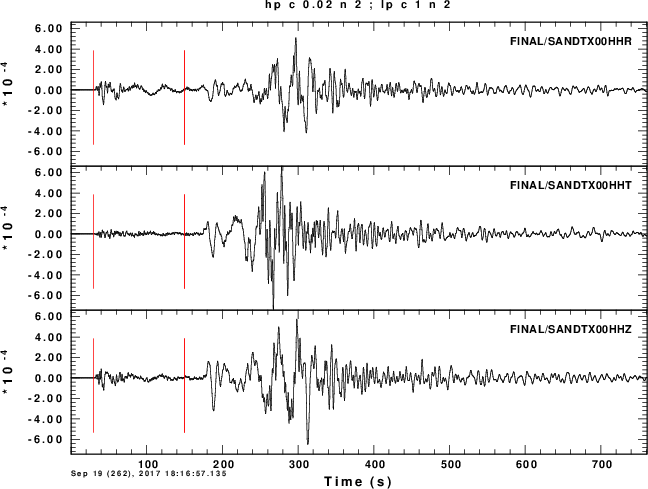

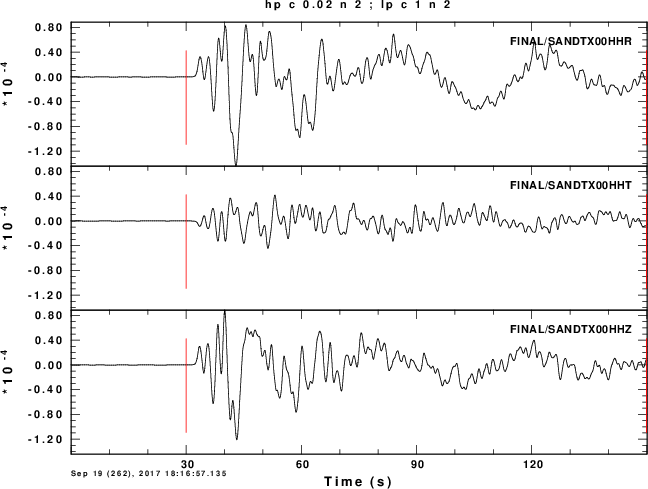

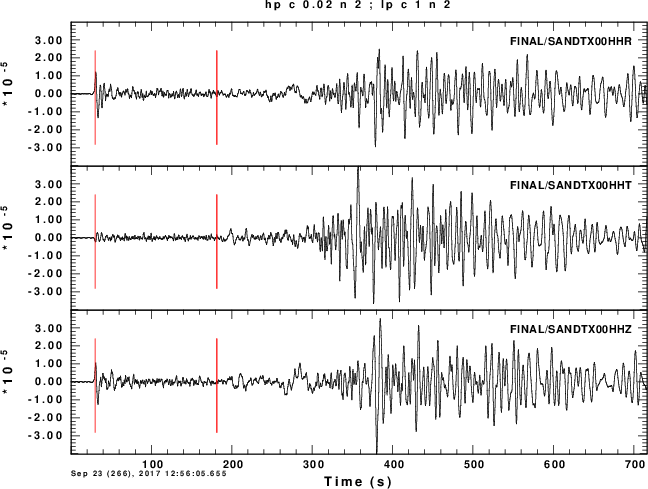

SAND		20170919181438/IMGCMPa/SAND.png	20170919181438/IMGCMPa/SAND.png

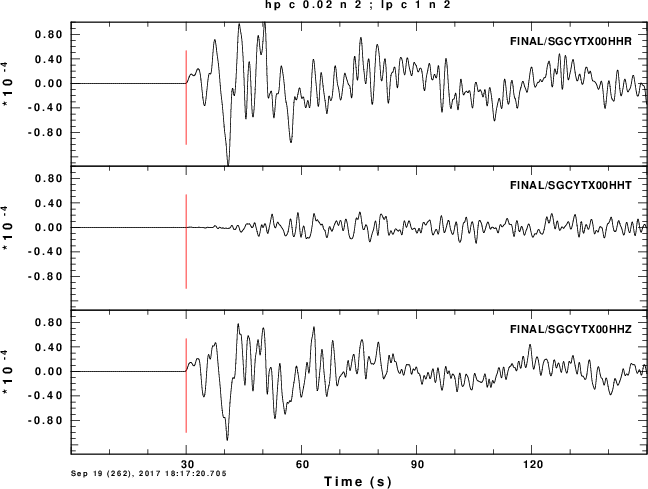

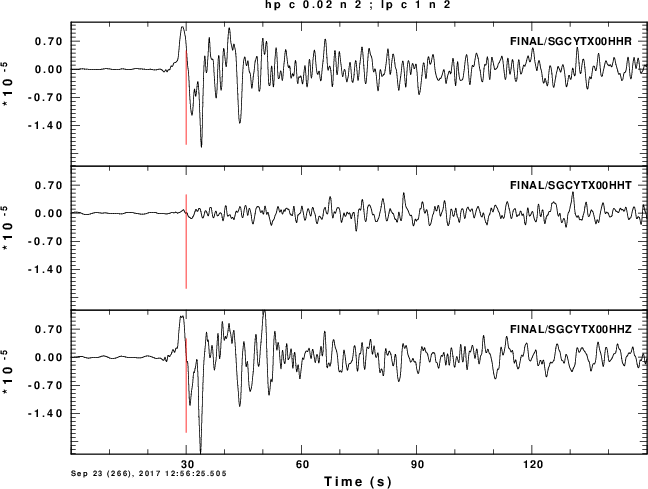

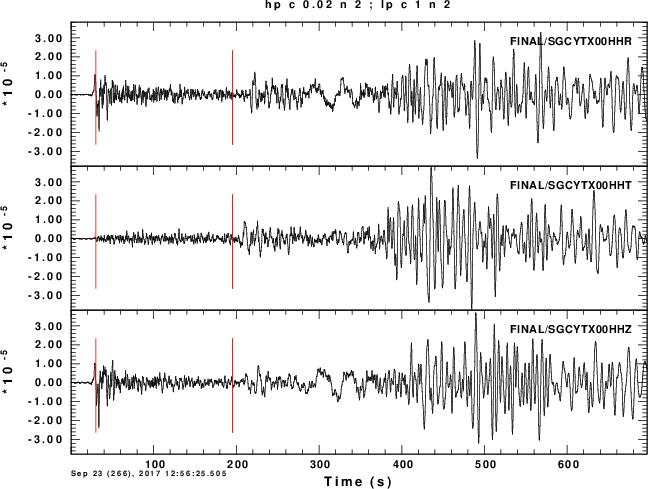

SGCY		20170919181438/IMGCMPa/SGCY.png	20170919181438/IMGCMPa/SGCY.png

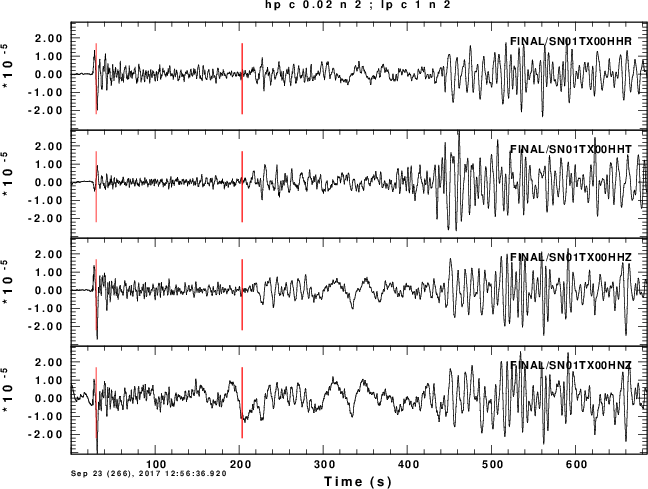

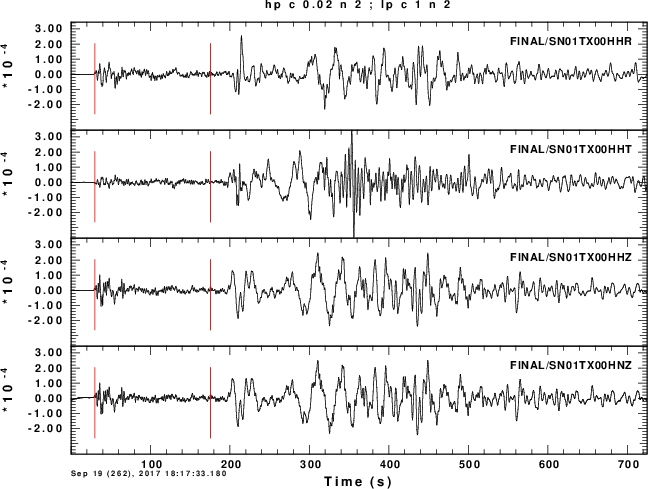

SN01		20170919181438/IMGCMPa/SN01.png	20170919181438/IMGCMPa/SN01.png

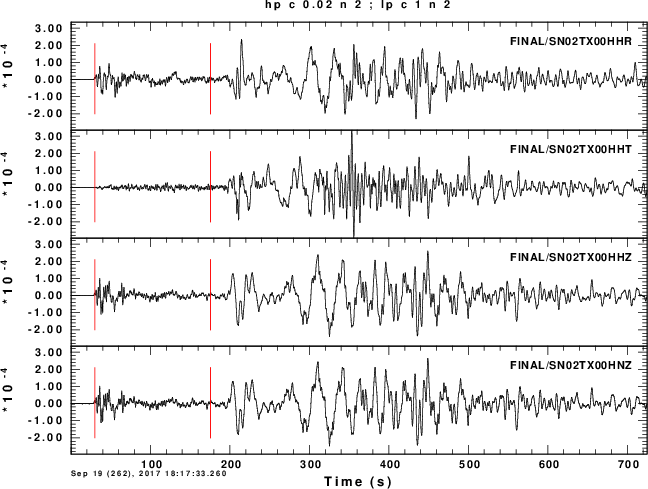

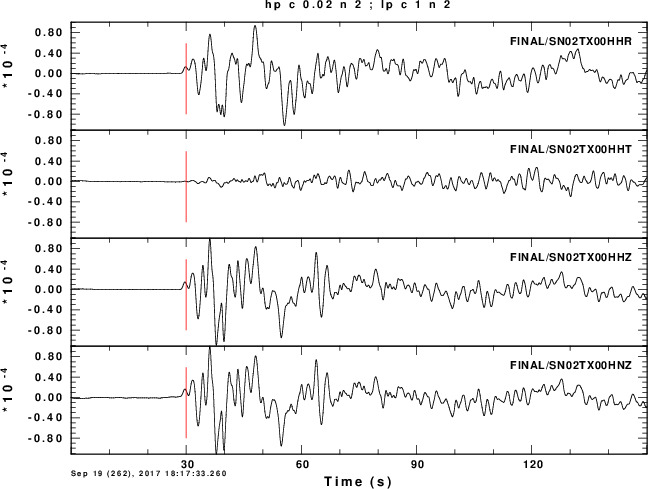

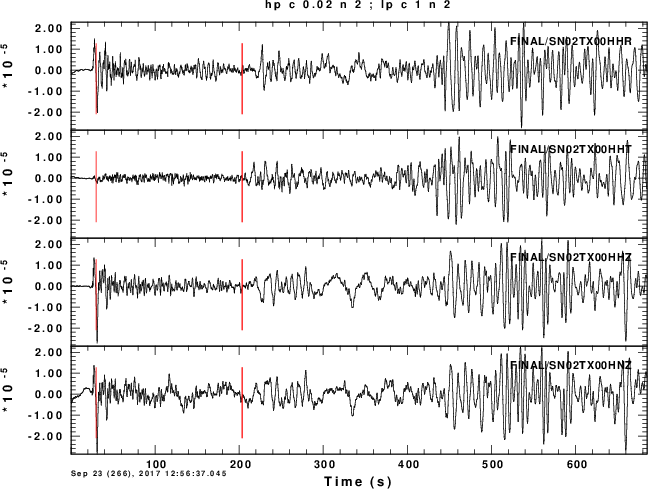

SN02		20170919181438/IMGCMPa/SN02.png	20170919181438/IMGCMPa/SN02.png

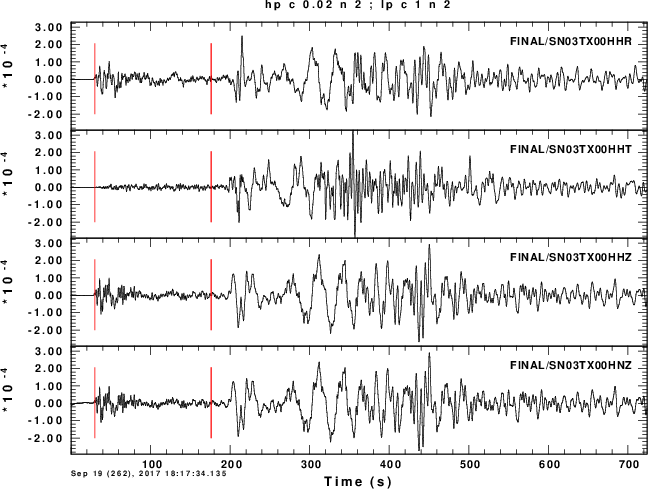

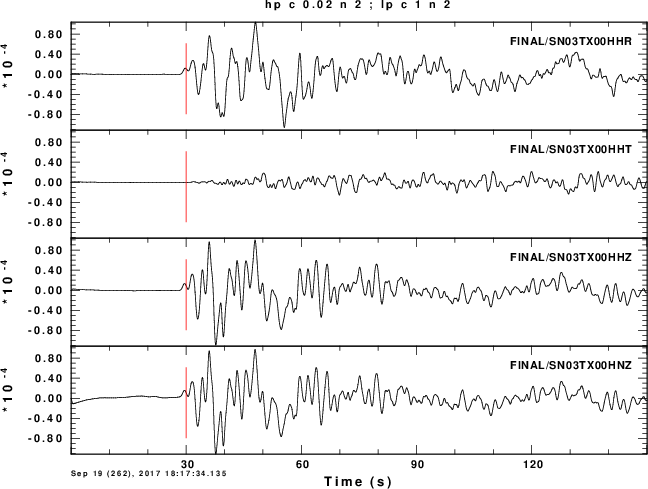

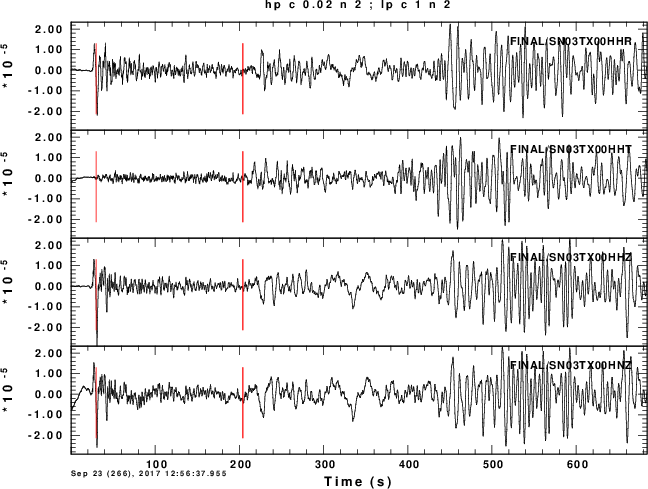

SN03		20170919181438/IMGCMPa/SN03.png	20170919181438/IMGCMPa/SN03.png

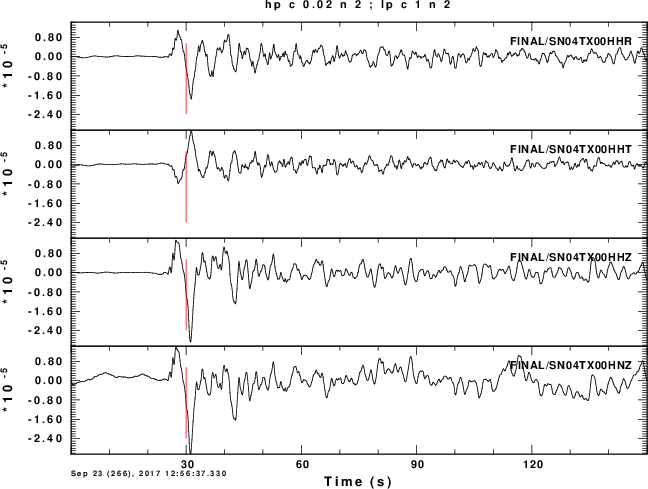

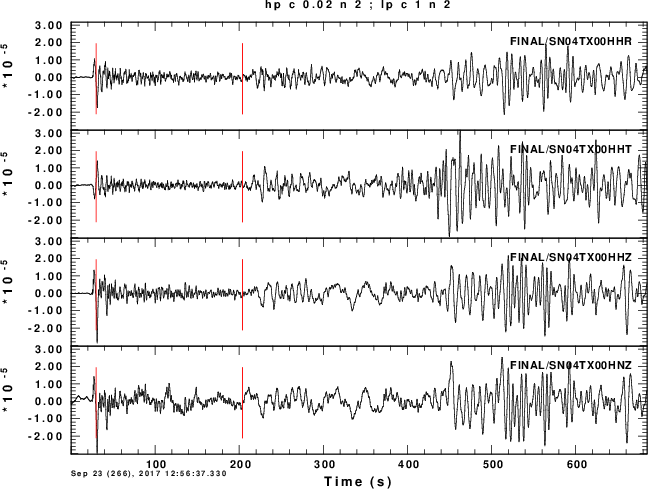

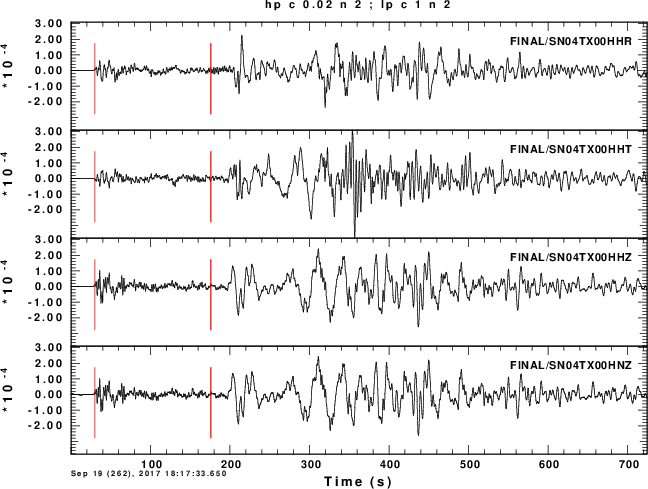

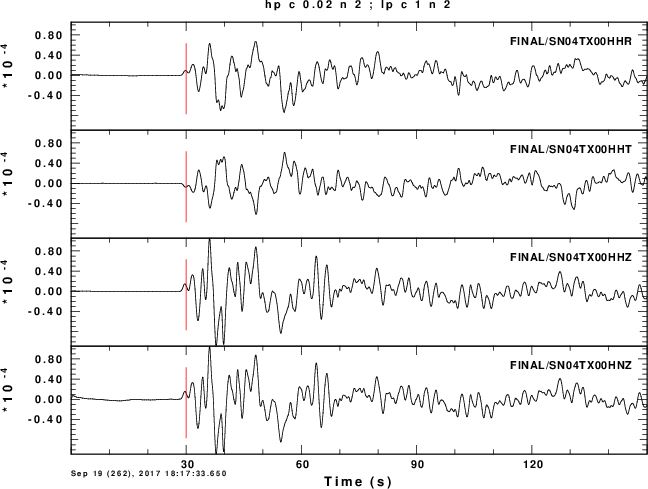

SN04		20170919181438/IMGCMPa/SN04.png	20170919181438/IMGCMPa/SN04.png

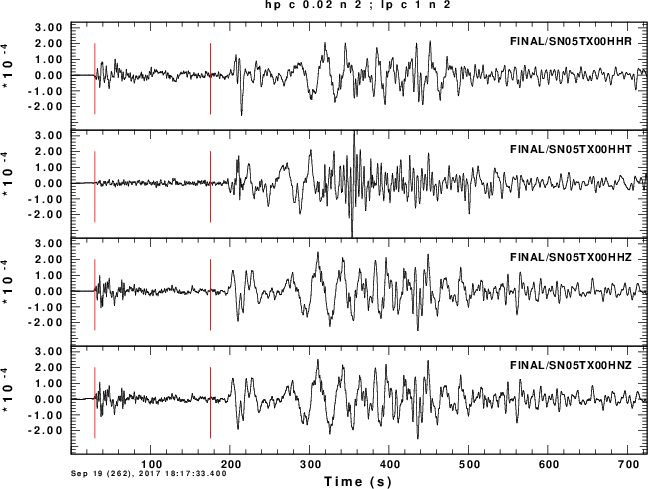

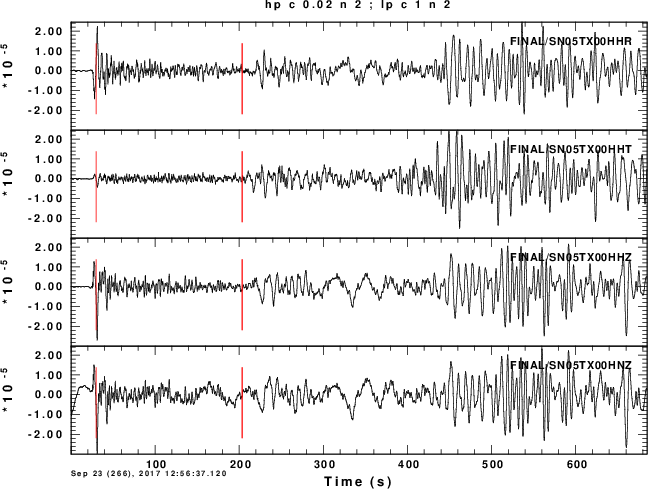

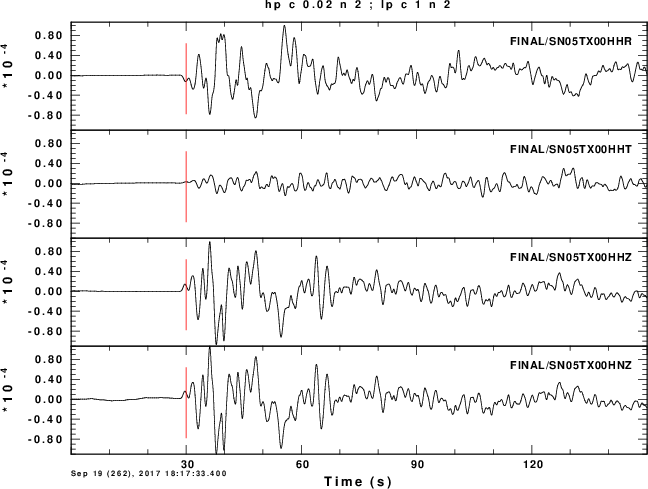

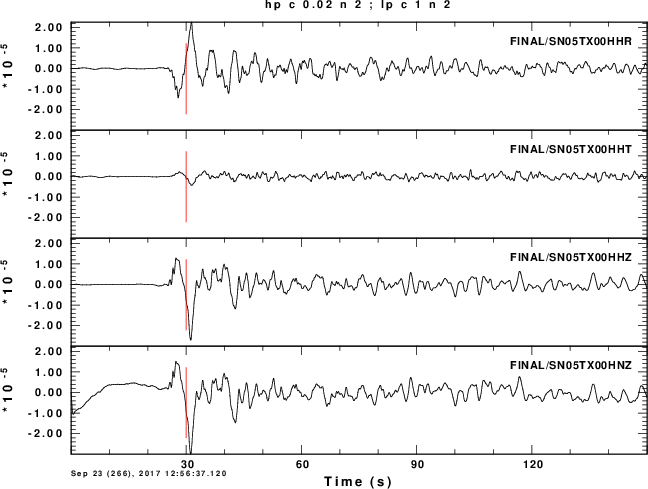

SN05		20170919181438/IMGCMPa/SN05.png	20170919181438/IMGCMPa/SN05.png

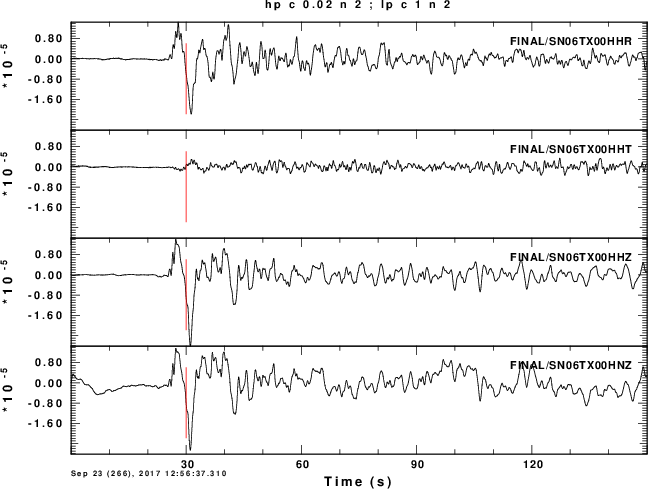

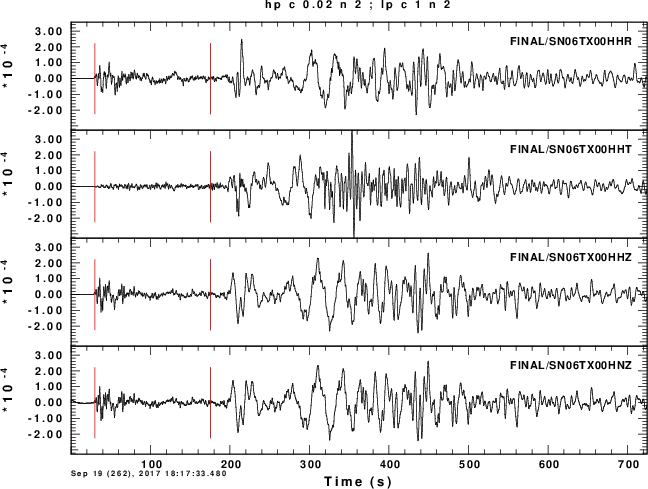

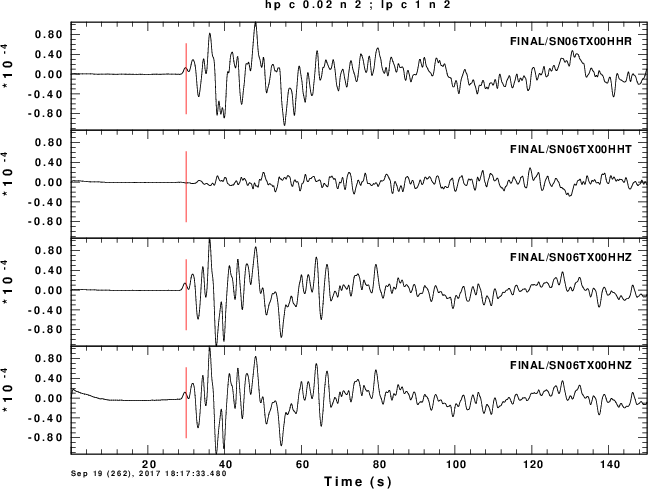

SN06		20170919181438/IMGCMPa/SN06.png	20170919181438/IMGCMPa/SN06.png

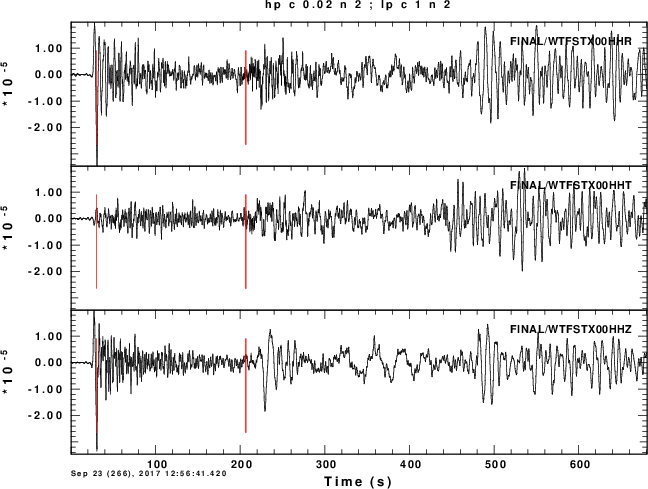

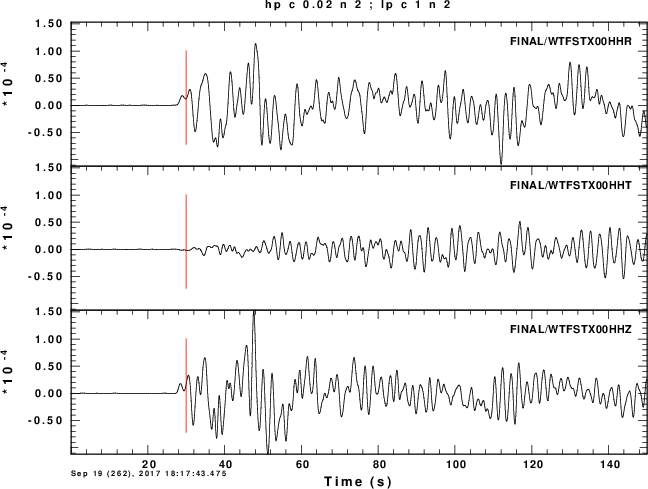

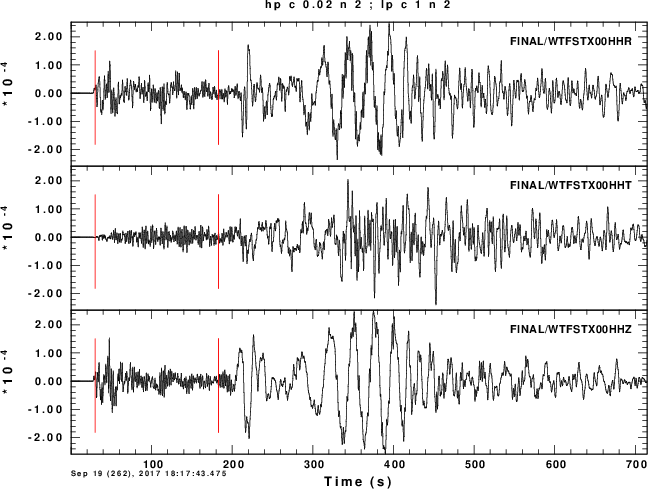

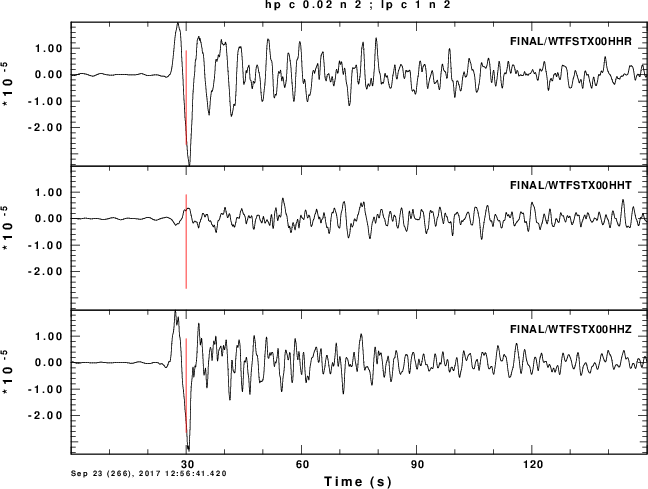

WTFS		20170919181438/IMGCMPa/WTFS.png	20170919181438/IMGCMPa/WTFS.png
