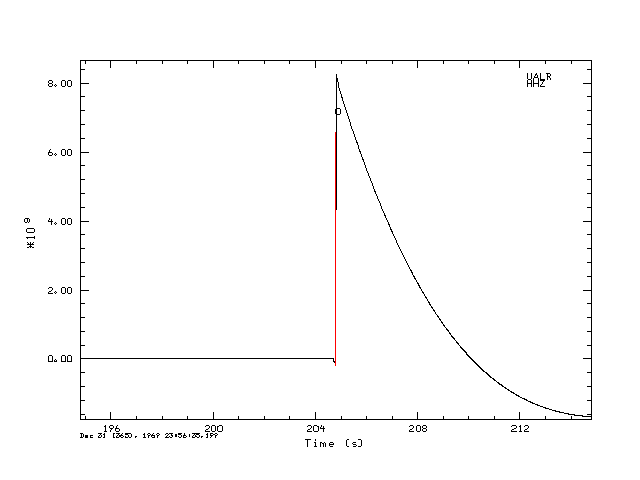

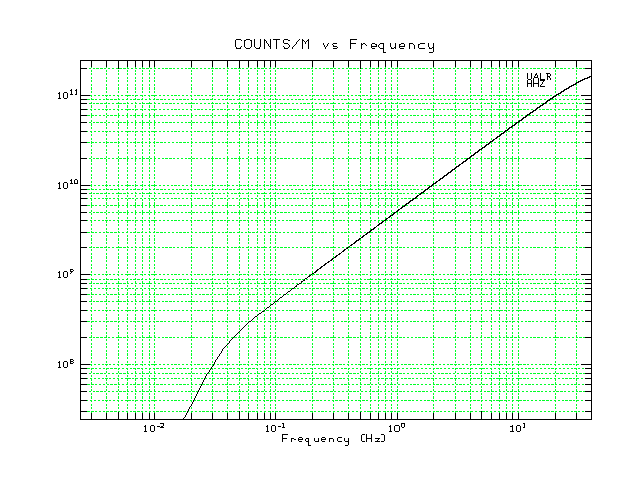

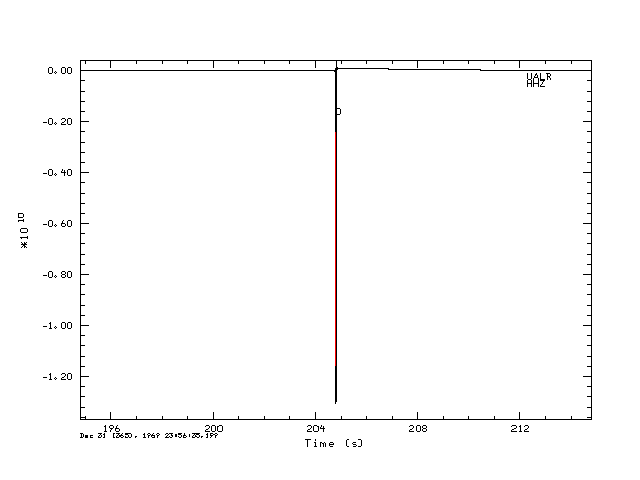

Comp Loc Amp Response (RESP) Impulse Response (RESP) Amp Response (PoleZero) Impulse Response (PoleZero)

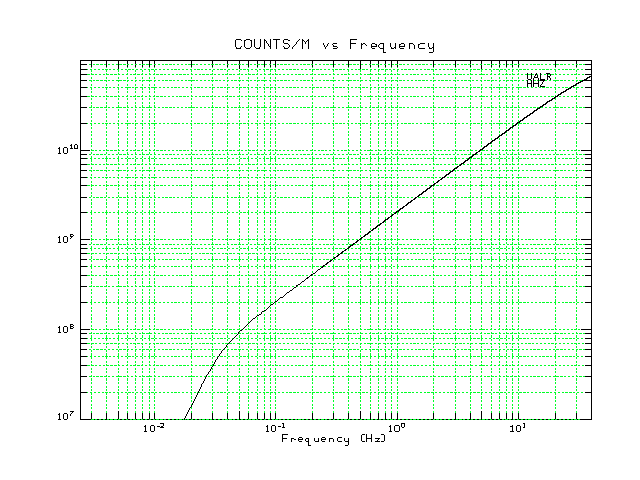

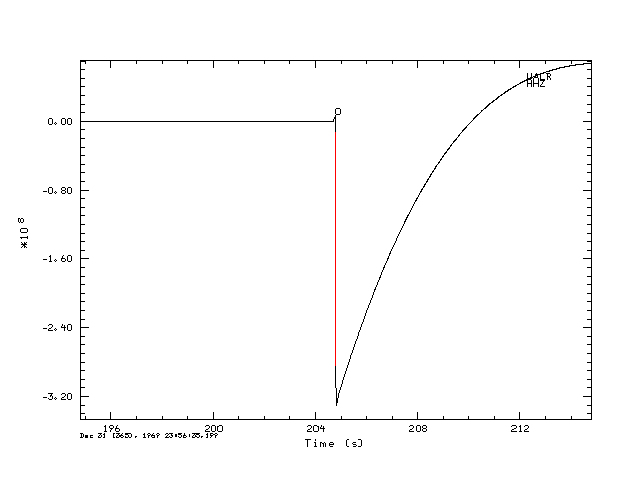

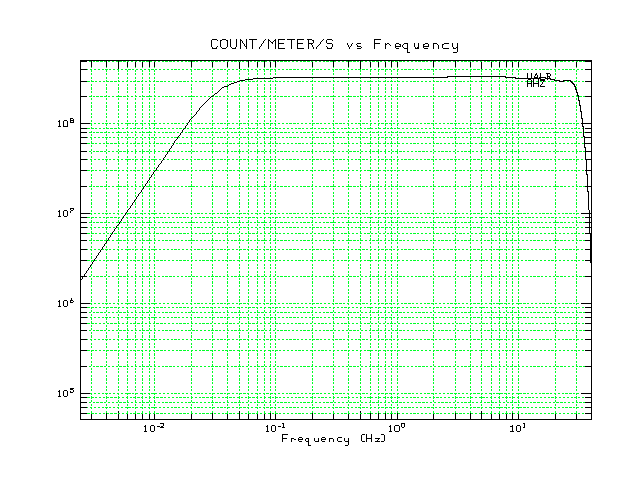

1999,173,18:23:37.0000 to 2000,171,18:30:00.0000 Peak Sensitivity 3.4007e+08 Counts/METER/S at 5.35 Hz

HHZ

2000,171,18:30:00.0000 to 2001,225,20:00:00.0000 Peak Sensitivity 3.3922e+08 Counts/METER/S at 5.35 Hz

HHZ

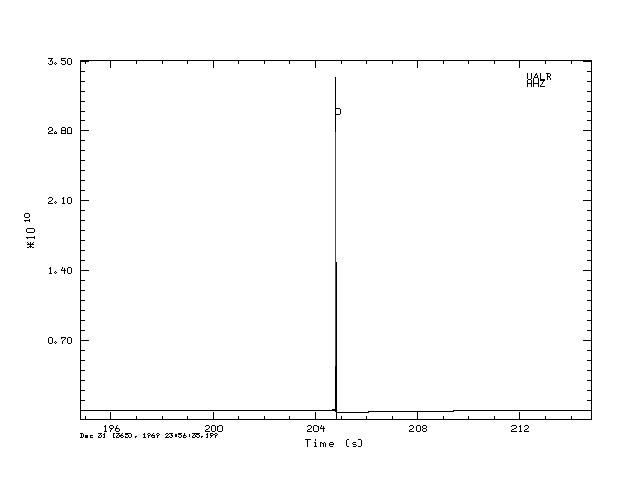

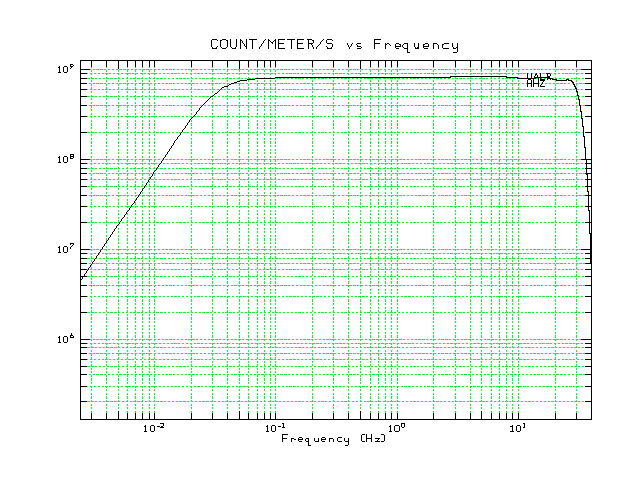

2001,225,20:00:00.0000 to 2008,105,19:53:13.2150 Peak Sensitivity 8.4607e+08 Counts/METER/S at 5.44 Hz

HHZ

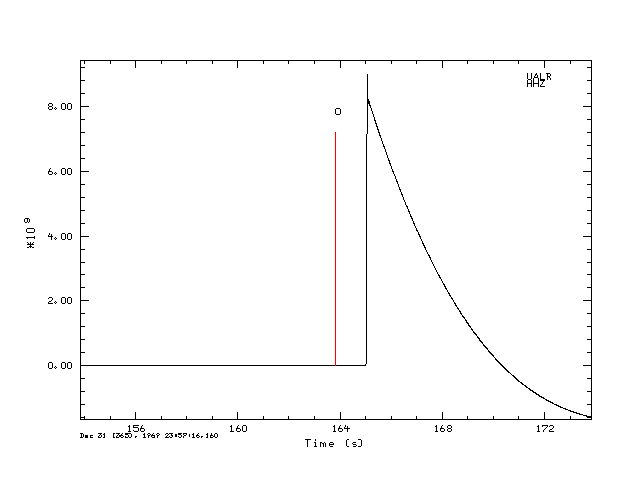

2008,105,19:53:13.2150 to 2014,217,19:01:45.0000 Peak Sensitivity 8.4434e+08 Counts/METER/S at 6.81 Hz

HHZ

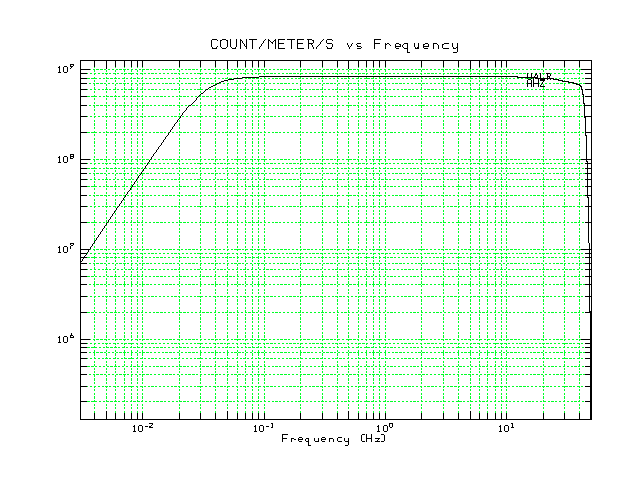

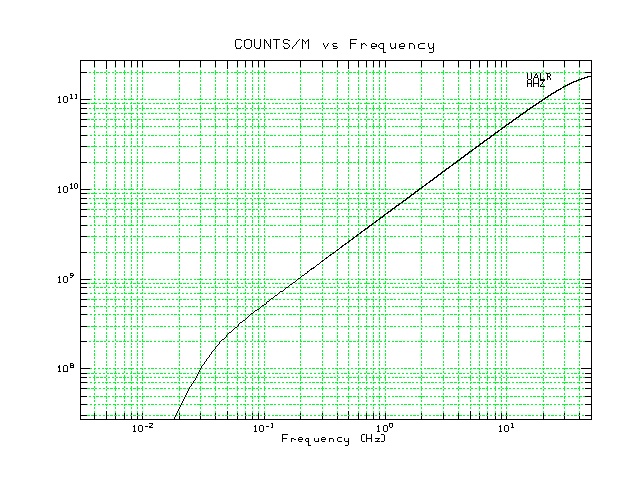

2014,217,19:01:45.0000 to 2599,365,23:59:59 Peak Sensitivity 8.4452e+08 Counts/METER/S at 6.79 Hz

HHZ
