Comp Loc Amp Response (RESP) Impulse Response (RESP) Amp Response (PoleZero) Impulse Response (PoleZero)

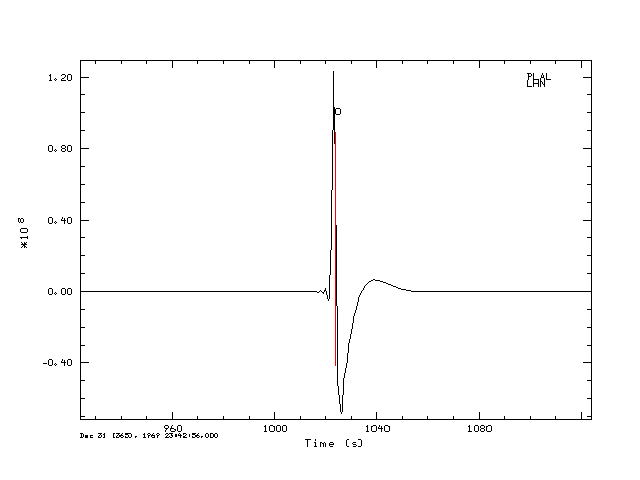

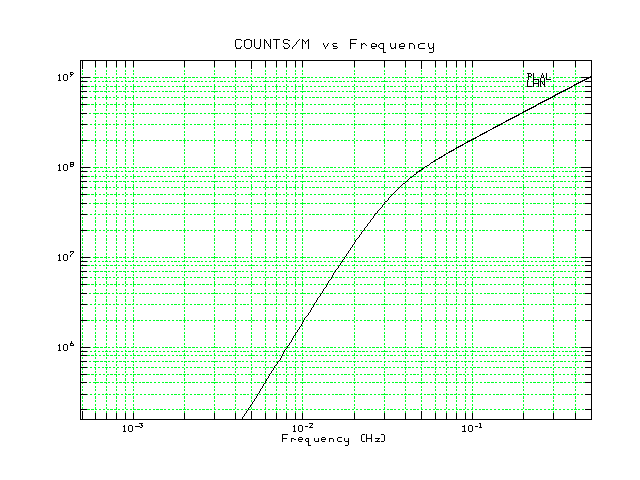

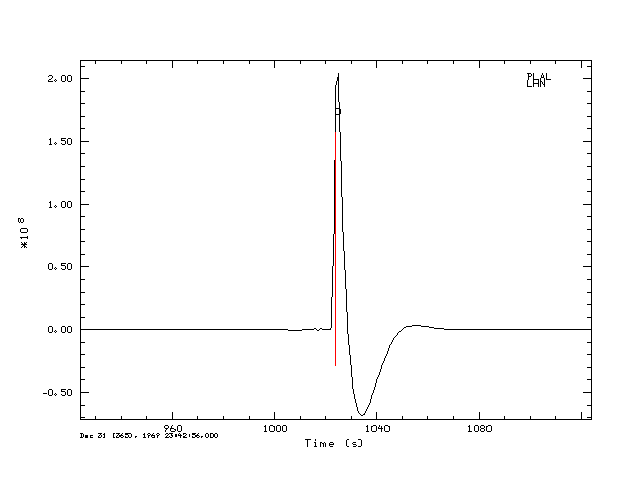

1998,162,23:53:00.0000 to 1999,013,16:39:59.9990 Peak Sensitivity 3.3269e+08 Counts/METER/S at 0.14 Hz

LHN

1999,013,16:40:00.0000 to 1999,273,13:30:00.0000 Peak Sensitivity 8.3354e+08 Counts/METER/S at 0.14 Hz

LHN

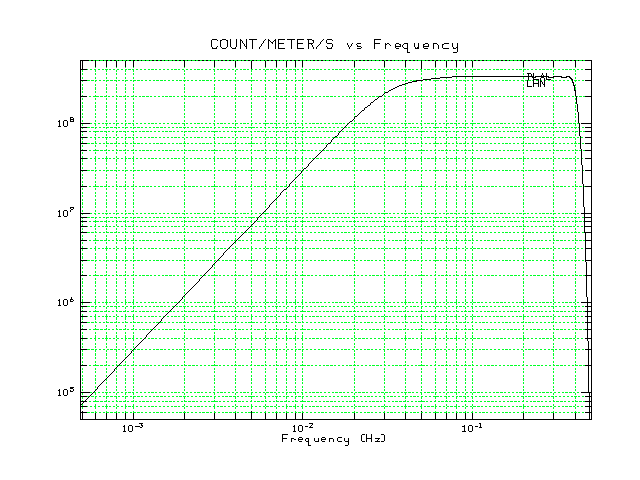

1999,273,13:30:30.0000 to 2000,168,14:23:00.0000 Peak Sensitivity 3.3352e+08 Counts/METER/S at 0.14 Hz

LHN

2000,168,14:23:00.0000 to 2001,123,15:00:00.0000 Peak Sensitivity 8.3504e+08 Counts/METER/S at 0.14 Hz

LHN

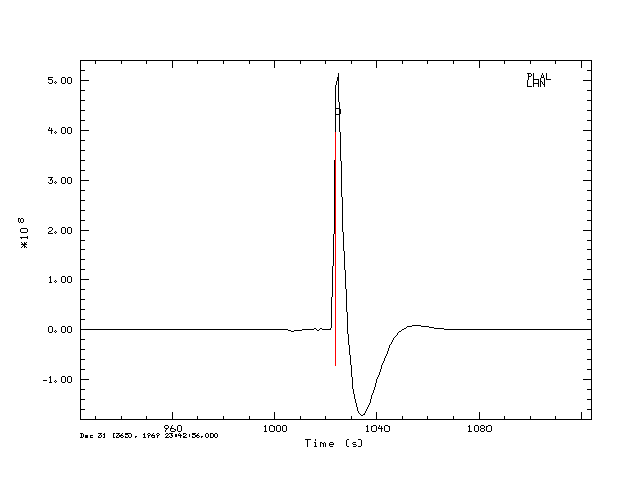

2001,123,15:00:00.0000 to 2001,228,14:00:00.0000 Peak Sensitivity 8.3753e+08 Counts/METER/S at 0.14 Hz

LHN

2001,228,14:00:00.0000 to 2005,074,18:48:00.0000 Peak Sensitivity 8.2928e+08 Counts/METER/S at 0.14 Hz

LHN

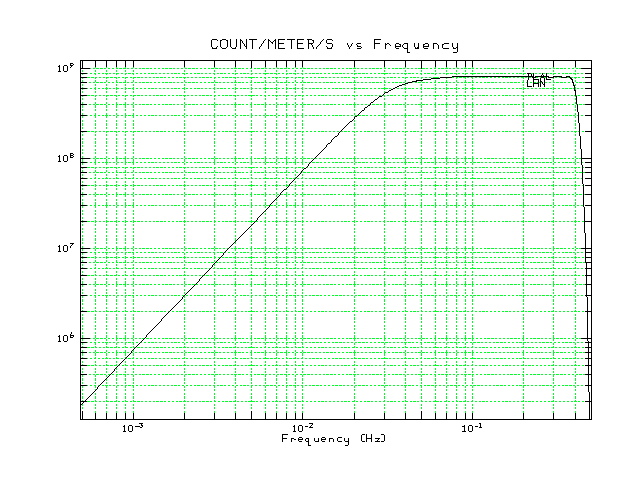

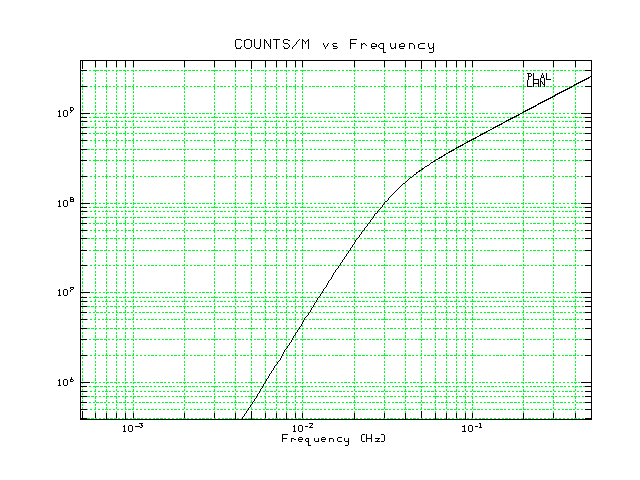

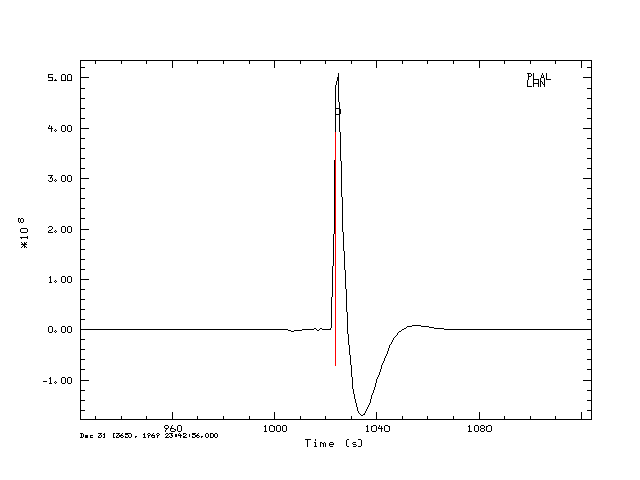

2005,074,18:48:00.0000 to 2011,082,00:00:00.0000 Peak Sensitivity 8.2928e+08 Counts/METER/S at 0.14 Hz

LHN
