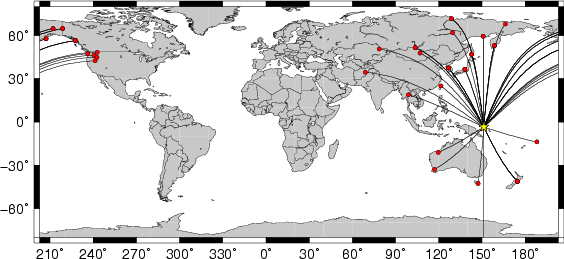

Location of the earthquake (yellow star) and great circle path from the epicenter to each station (red) [created using GMT (Wessel, P., and W. H. F. Smith, New version of Generic Mapping Tools released, EOS Trans. AGU, 76 329, 1995.)]
2007/04/21 07:12:48 -3.54 151.28 410
The following compares this source inversion to the USGS Rapid Moment Tensor Solution and to the Harvard CMT solutions, if they are available.
SLU Moment Tensor Solution
2007/04/21 07:12:48
Best Fitting Double Couple
Mo = 1.02e+25 dyne-cm
Mw = 5.94
Z = 5 km
Plane Strike Dip Rake
NP1 290 67 -136
NP2 180 50 -30
Principal Axes:
Axis Value Plunge Azimuth
T 1.02e+25 11 51
N 0.00e+00 42 312
P -1.02e+25 46 153
Moment Tensor: (dyne-cm)
Component Value
Mxx 3.30e+17
Mxy 6.79e+24
Mxz 5.70e+24
Myy 5.04e+24
Myz -8.88e+23
Mzz -5.04e+24
-----#########
-------###############
---------###################
--------####################
---------##################### T #
----------##################### ##
----------############################
###########--------#####################
##########--------------################
###########------------------#############
###########---------------------##########
###########------------------------#######
###########--------------------------#####
##########----------------------------##
###########----------------------------#
##########------------- ------------
##########------------ P -----------
#########------------ ----------
########----------------------
#########-------------------
#######---------------
#####---------
Harvard Convention
Moment Tensor:
R T F
-5.04e+24 5.70e+24 8.88e+23
5.70e+24 3.30e+17 -6.79e+24
8.88e+23 -6.79e+24 5.04e+24
|
07/04/21 07:12:48.25
NEW IRELAND REGION, P.N.G.
Epicenter: -3.546 151.284
MW 6.1
USGS MOMENT TENSOR SOLUTION
Depth 399 No. of sta: 43
Moment Tensor; Scale 10**18 Nm
Mrr= 1.08 Mtt=-1.42
Mpp= 0.35 Mrt= 0.80
Mrp=-0.66 Mtp=-1.02
Principal axes:
T Val= 1.92 Plg=50 Azm= 57
N 0.05 39 256
P -1.96 9 159
Best Double Couple:Mo=1.9*10**18
NP1:Strike=212 Dip=49 Slip= 34
NP2: 98 65 134
-------
-----------------
--------------#######
-------------############
------------#################
-----------####################
----------########## ########
----------########### T #########
---------############ #########
###-----#########################
######-##########################
#######----###################---
#####--------------------------
#####--------------------------
####-------------------------
###----------------------
#-------------- ---
------------- P -
-------
|
April 21, 2007, NEW IRELAND REGION, P.N.G., MW=6.1
Goran Ekstrom
Meredith Nettles
CENTROID-MOMENT-TENSOR SOLUTION
GCMT EVENT: C200704210712A
DATA: II IU CU IC
L.P.BODY WAVES: 84S, 202C, T= 40
MANTLE WAVES: 76S, 110C, T=125
TIMESTAMP: Q-20070421161102
CENTROID LOCATION:
ORIGIN TIME: 07:12:49.9 0.1
LAT: 3.45S 0.01;LON:151.46E 0.01
DEP:403.7 0.6;TRIANG HDUR: 2.8
MOMENT TENSOR: SCALE 10**25 D-CM
RR= 0.796 0.012; TT=-1.240 0.016
PP= 0.442 0.019; RT= 0.936 0.015
RP=-0.738 0.015; TP=-0.876 0.016
PRINCIPAL AXES:
1.(T) VAL= 1.899;PLG=46;AZM= 57
2.(N) -0.135; 41; 266
3.(P) -1.766; 15; 163
BEST DBLE.COUPLE:M0= 1.83*10**25
NP1: STRIKE=212;DIP=47;SLIP= 26
NP2: STRIKE=103;DIP=71;SLIP= 133
-----------
---------------####
------------###########
-----------################
----------###################
---------############ #######
--------############# T #######
##------############## ########
####---##########################
#################################
######------#####################
#####--------------##########--
#####--------------------------
####-------------------------
###------------------------
##------------ ------
#----------- P ----
--------
|
USGS research CMT: maintained and developed by Jascha Polet at UC Santa Barbara.
This is a research system and solutions are *not* official USGS earthquake magnitudes.
AUTOMATIC solution, not reviewed by a seismologist
--------------------------------------------------
General region : 2007bkal NEW IRELAND REGION, P.N.G
surface waves (3.0,3.5,7,7.5 mHz)
Stations used : INCN KIP MA2 MAJO PET TAU TLY YAK YSS
Origin time: 2007 111 7 12 48
Original location (lat,lon,depth) : -3.50000 151.300 410
Moment tensor (x1.e26 dyncm) :
Mrr : 0.074404 Mtt : -0.143412
Mff : 0.069007 Mrt : 0.091595
Mrf : -0.112359 Mtf : -0.073499
T-axis: moment= 0.222 plunge= 43.676 azimuth= 65.029
N-axis: moment= -0.040 plunge= 42.118 azimuth= 275.341
P-axis: moment= -0.182 plunge= 15.710 azimuth= 170.608
best double couple: Mo= 0.202(x1.e26 dyncm) Mw=6.1 tau= 3.2
nodal planes (strike/dip/slip): 111.66/ 72.73/134.61 218.41/ 47.17/ 23.87
Centroid location : -3.225 151.303 437.807
Centroid time : -3.141
Variance reduction (%) : 36
***********
**** ---****
*** ---oooooo***
** -ooooo--------**
** ooo--------------**
* ooo------------------*
* ooo---------------------*
**oo oo ----------------------**
* ooo ooo ---------------T--------*
** oooo -----------------------**
** ooooo ----+-----------------**
** oo oooo---------------------**
* o oooooo----------------*
** oo oooooooo--------**
* o ooooooooo*
* o *
**oo **
**o **
*** P ***
**** ****
***********
0- 30- 60- 90- 120- 150- 180- 210- 240- 270- 300- 330-
z-comp: 0 0 0 1 0 1 4 0 0 0 0 1
r-comp: 0 0 0 0 0 1 5 0 0 0 0 1
t-comp: 0 0 0 1 0 1 3 0 0 0 0 1
Total number of traces used = 20
number of runs = 10
starttime = Sat Apr 21 01:37:52 MDT 2007
endtime = Sat Apr 21 01:59:17 MDT 2007
inversion time = Sat Apr 21 01:59:11 MDT 2007 - Sat Apr 21 01:59:17 MDT 2007
Solution produced by inversion of channels with var red > 2%
|
The following broadband stations passed the QC and were used for the source inversion. AFI BILL BMO CHTO COLA EGAK HAWA INCN KBL KDAK KURK MA2 MAJO MBWA NEW NLWA NWAO PET QSPA SNZO TATO TAU TIXI TLY ULN WRAK WVOR YAK YSS
All observed and Greens function waveforms are corrected to instrument response to ground velocity in meters/sec for the passband of 0.004 - 5 Hz. The traces were then lowpass filtered at 0.25 Hz and interpolated to a sample rate of 1 second.
For the deviatoric moment tensor inversion, the observed traces and Green's functions are read in an cut using the following commands
#####
# Driver script for the teleseismic waveform inversion
#
# The depth HS must be of the form 0010 for a depth of 1.0 km
# of 6700 for a depth of 670.0 km
#
# The Filter_Band is an integer with the following meansing
#
# FILTER_BAND 1/FH 1/FL
# 1 60 12 for Mw < 6.4
# 2 100 20 6.4 =< Mw < 6.8
# 3 120 40 6.8 =< Mw < 7.2
# 4 143 80 7.2 =< Mw < 9.3
#####
# Source duration - halfwidth of triangular function
# this filters only the Green functions
#
# halfwidth = 1.05 * 10-8 * M0^1/3 (M0 is dyne-cm)
#
# MW half-width (sec)
# 5.0 0.75
# 6.0 2.45
# 7.0 7.7
# 8.0 24.5
# 9.0 74.3
# 0.5*(MW - 9)
# or half-width=74.3*10
# or echo 5.65 | awk '{print 74.3*exp(0.5*log(10.0)*(0200 - 9.0)) }'
#####
# Processing window for P (use SAC variable A for P arrival
# Start A - 30
# End A + 2*HALFWIDTH + 0.03*HS + 30 + 1/FH
# Processing window for SH (use SAC variable T0 for SH arrival
# Start T0 - 60
# End T0 + 2*HALFWIDTH + 0.06*HS + 30 + 1/FH
# Processing window for SV (use SAC variable T1 for SV arrival
# Start T1 - 60
# End T1 + 2*HALFWIDTH + 0.06*HS + 30 + 1/FH
#
# The term involving HS serves to include the depth phases and
# to exclude the PP or SS at most distanace
#####
The cut windows attempt to include the P, pP, sP, pS, S and sS arrivals. However, oen must be very careful about the fact that PP may be included in some distance ranges.
The waveforms are then bandpass filtered by the application of the following high- and low-pass stages (an optional microseism filter):
hp c 0.0167 2 lp c 0.0833 2 int br c 0.12 0.25 n 4 p 2The traces were next integrated to ground displacment in meters. Finally the observed data are interpolated to ahve the same sampling at the Green's functions.
The source inversion is a multipass operation since a lower frequency filter band is used for larger earthquakes and since a search is made over depth. Up to three passed of the outer loop are made, after which the moment magnitude is determined and filter settings readjusted. The inner loop over depth samples all depths from 0 to 800 km with 5 km increments in depth to 50 km, followed by 10 km depth sampling for the remaining range.
The following filter ranges are used according to the moment magnitude Mw:
FILTER_BAND 1/FH(s) 1/FL(s)
1 60 12 Mw < 6.4
2 100 20 6.4 < Mw <= 6.9
3 120 40 Mw > 6.9
The map displays the distribution of stations used for this source inversion.
|

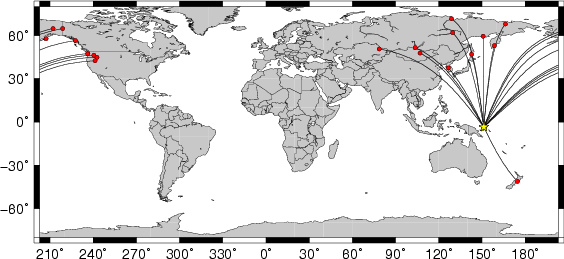

Location of the earthquake (yellow star) and great circle path from the epicenter to each station (red) [created using GMT (Wessel, P., and W. H. F. Smith, New version of Generic Mapping Tools released, EOS Trans. AGU, 76 329, 1995.)] |
For this data set the favored solution is
WVFMTD96 20.0 296. 78. -13. 5.66 0.309 0.600E-06 0.312 0.556 0.266E-06 10.3
The following figures show the sensitivity of the goodness of fit parameter so source depth, the waveform comparison as a function of epicentral distance in degrees and the source to station azimuth
|

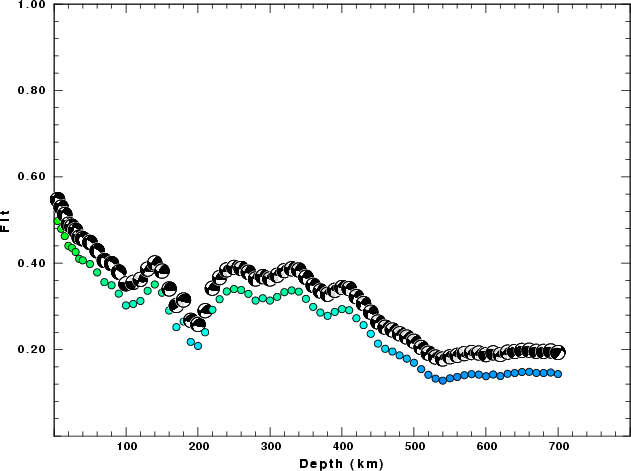

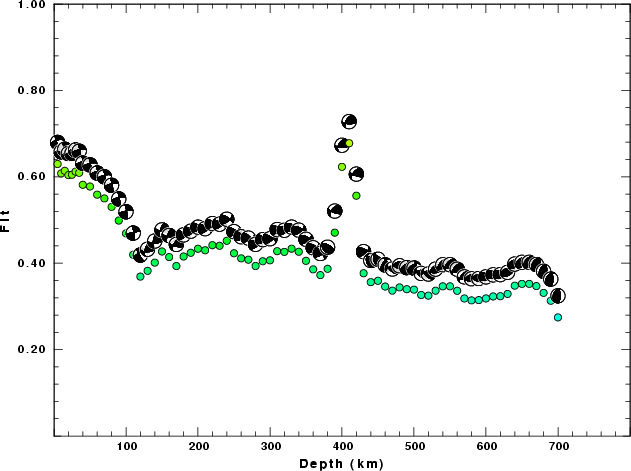

| Goodness of fit as a function of source depth. The measure is 1 - SUM (o -p)2 / SUM o2. A value of 1.0 is the best fit. The best double couple mechanism for the solution depth is plotted above goodness of fit value to indicate how the mefhanism may change with depth. |
| P-wave Z component |
|

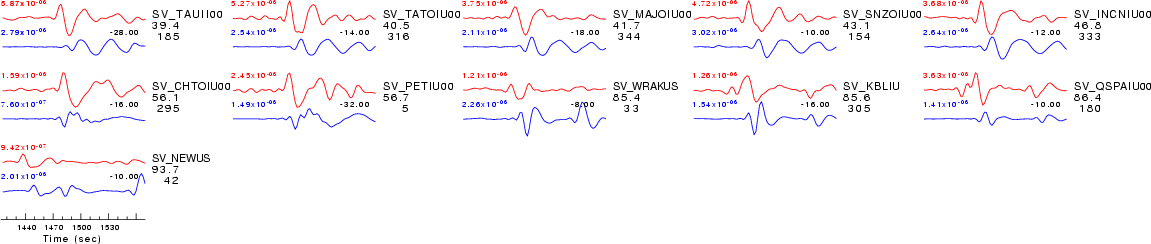

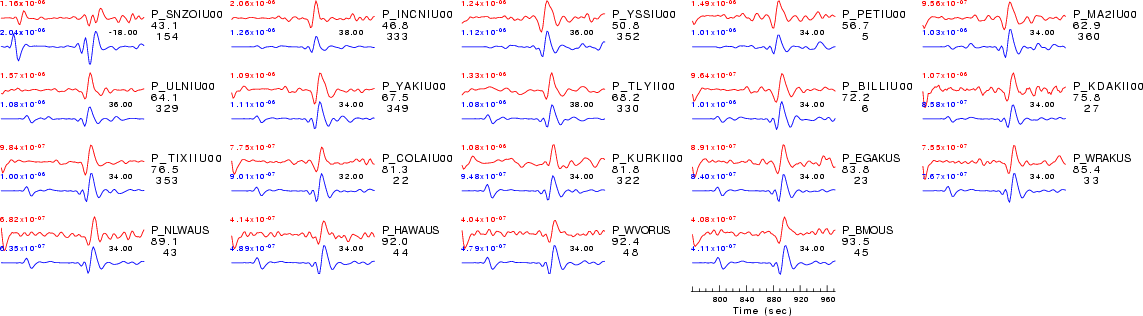

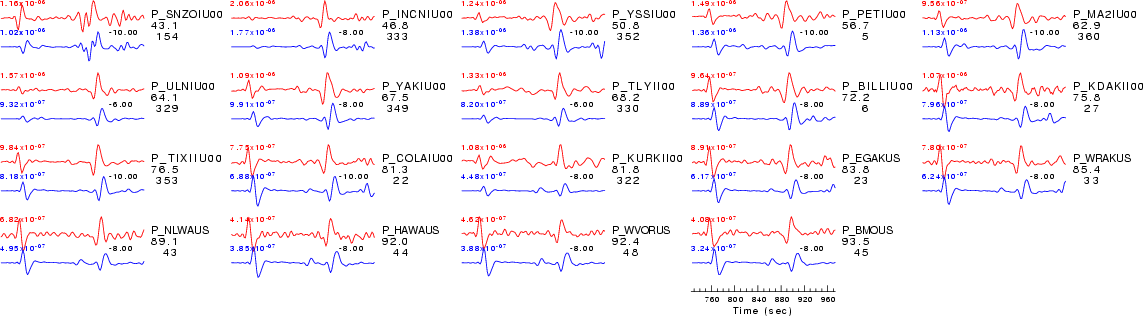

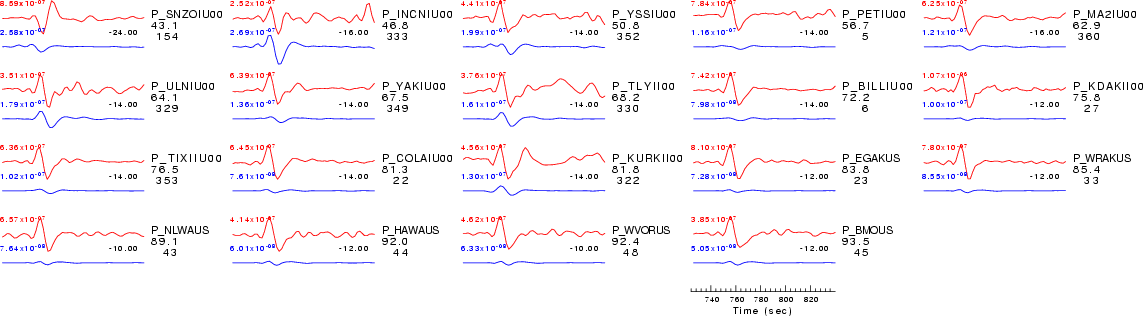

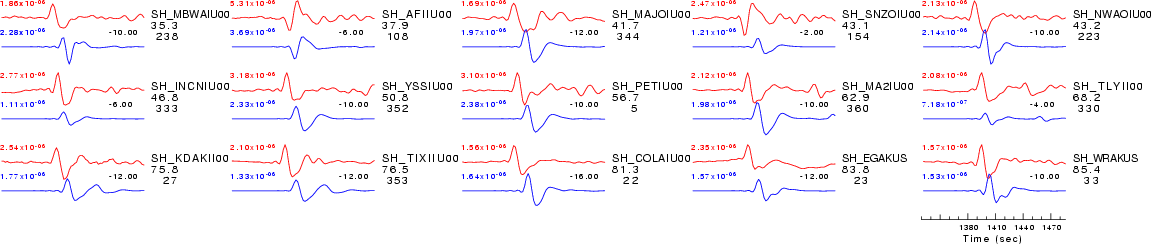

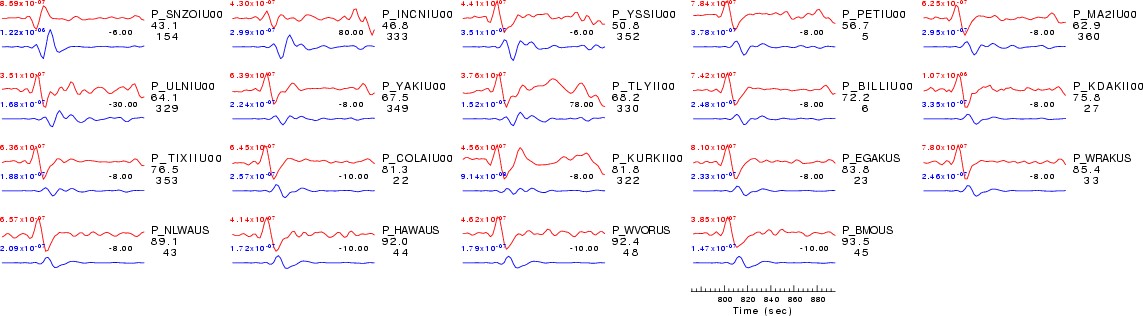

| Comparison of the observed traces (red) and solution predicted traces (blue) ordered in terms of increasing epicentral distance. Each pair of traces is annotated with the station name, epicentral distance in degrees, source to station azimuth in degrees. Each pair of traces is plotted with the same scale and the peak amplitudes are indicated at the lect of each trace. Finally the time shift between the P-wave first arrival picked and the the theoretical P-wave first arrival in the predicted trace is indicated, with a positive sign indicating that the predicted trace has been shifted to the right by the given number of seconds. as a function of source to station azimuth in degrees (D). The purpose of this display is to highlight the azimuthal dependence on the first motion. The traces are annotated with the station name at the top. |
| SH-wave T component |
|

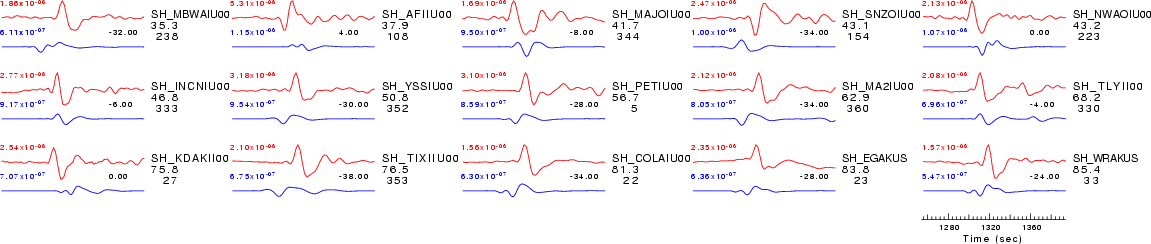

| Comparison of the observed traces (red) and solution predicted traces (blue) ordered in terms of increasing epicentral distance. Each pair of traces is annotated with the station name, epicentral distance in degrees, source to station azimuth in degrees. Each pair of traces is plotted with the same scale and the peak amplitudes are indicated at the lect of each trace. Finally the time shift between the P-wave first arrival picked and the the theoretical P-wave first arrival in the predicted trace is indicated, with a positive sign indicating that the predicted trace has been shifted to the right by the given number of seconds. as a function of source to station azimuth in degrees (D). The purpose of this display is to highlight the azimuthal dependence on the first motion. The traces are annotated with the station name at the top. |
| SV-wave R component |
|

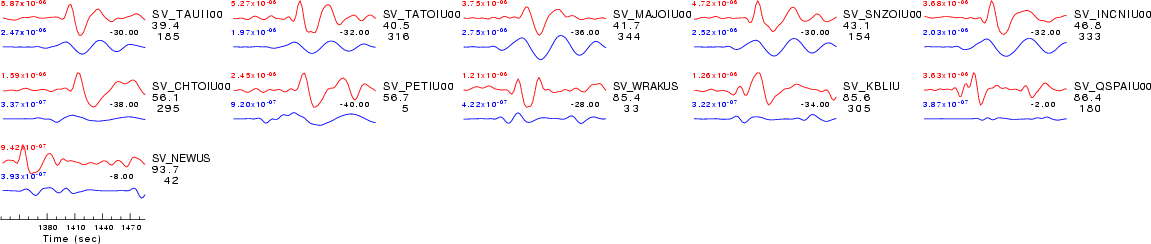

| Comparison of the observed traces (red) and solution predicted traces (blue) ordered in terms of increasing epicentral distance. Each pair of traces is annotated with the station name, epicentral distance in degrees, source to station azimuth in degrees. Each pair of traces is plotted with the same scale and the peak amplitudes are indicated at the lect of each trace. Finally the time shift between the P-wave first arrival picked and the the theoretical P-wave first arrival in the predicted trace is indicated, with a positive sign indicating that the predicted trace has been shifted to the right by the given number of seconds. as a function of source to station azimuth in degrees (D). The purpose of this display is to highlight the azimuthal dependence on the first motion. The traces are annotated with the station name at the top. |
All observed and Greens function waveforms are corrected to instrument response to ground velocity in meters/sec for the passband of 0.004 - 5 Hz. The traces were then lowpass filtered at 0.25 Hz and interpolated to a sample rate of 1 second.
For the deviatoric moment tensor inversion, the observed traces and Green's functions are read in an cut using the following commands
#####
# Driver script for the teleseismic waveform inversion
#
# The depth HS must be of the form 0010 for a depth of 1.0 km
# of 6700 for a depth of 670.0 km
#
# The Filter_Band is an integer with the following meansing
#
# FILTER_BAND 1/FH 1/FL
# 1 60 12 for Mw < 6.4
# 2 100 20 6.4 =< Mw < 6.8
# 3 120 40 6.8 =< Mw < 7.2
# 4 143 80 7.2 =< Mw < 9.3
#####
# Source duration - halfwidth of triangular function
# this filters only the Green functions
#
# halfwidth = 1.05 * 10-8 * M0^1/3 (M0 is dyne-cm)
#
# MW half-width (sec)
# 5.0 0.75
# 6.0 2.45
# 7.0 7.7
# 8.0 24.5
# 9.0 74.3
# 0.5*(MW - 9)
# or half-width=74.3*10
# or echo 6.21 | awk '{print 74.3*exp(0.5*log(10.0)*(4100 - 9.0)) }'
#####
# Processing window for P (use SAC variable A for P arrival
# Start A - 30
# End A + 2*HALFWIDTH + 0.03*HS + 30 + 1/FH
# Processing window for SH (use SAC variable T0 for SH arrival
# Start T0 - 60
# End T0 + 2*HALFWIDTH + 0.06*HS + 30 + 1/FH
# Processing window for SV (use SAC variable T1 for SV arrival
# Start T1 - 60
# End T1 + 2*HALFWIDTH + 0.06*HS + 30 + 1/FH
#
# The term involving HS serves to include the depth phases and
# to exclude the PP or SS at most distanace
#####
The cut windows attempt to include the P, pP, sP, pS, S and sS arrivals. However, oen must be very careful about the fact that PP may be included in some distance ranges.
The waveforms are then bandpass filtered by the application of the following high- and low-pass stages (an optional microseism filter):
hp c 0.0167 2 lp c 0.0833 2 int br c 0.12 0.25 n 4 p 2The traces were next integrated to ground displacment in meters. Finally the observed data are interpolated to ahve the same sampling at the Green's functions.
The source inversion is a multipass operation since a lower frequency filter band is used for larger earthquakes and since a search is made over depth. Up to three passed of the outer loop are made, after which the moment magnitude is determined and filter settings readjusted. The inner loop over depth samples all depths from 0 to 800 km with 5 km increments in depth to 50 km, followed by 10 km depth sampling for the remaining range.
The following filter ranges are used according to the moment magnitude Mw:
FILTER_BAND 1/FH(s) 1/FL(s)
1 60 12 Mw < 6.4
2 100 20 6.4 < Mw <= 6.9
3 120 40 Mw > 6.9
The map displays the distribution of stations used for this source inversion.
Location of the earthquake (yellow star) and great circle path from the epicenter to each station (red) [created using GMT (Wessel, P., and W. H. F. Smith, New version of Generic Mapping Tools released, EOS Trans. AGU, 76 329, 1995.)] |
For this data set the favored solution is
WVFMTD96 410.0 305. 57. 68. 6.21 0.254 0.217E-06 0.470 0.590 0.176E-06 19.2
The following figures show the sensitivity of the goodness of fit parameter so source depth, the waveform comparison as a function of epicentral distance in degrees and the source to station azimuth
|
|

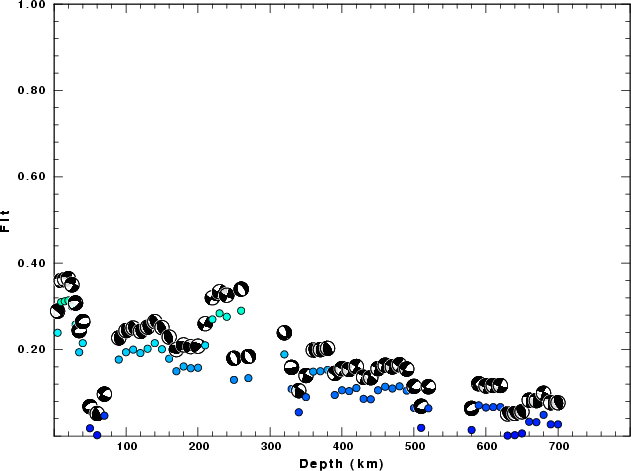

| Goodness of fit as a function of source depth. The measure is 1 - SUM (o -p)2 / SUM o2. A value of 1.0 is the best fit. The best double couple mechanism for the solution depth is plotted above goodness of fit value to indicate how the mefhanism may change with depth. |
| P-wave Z component |
|
| Comparison of the observed traces (red) and solution predicted traces (blue) ordered in terms of increasing epicentral distance. Each pair of traces is annotated with the station name, epicentral distance in degrees, source to station azimuth in degrees. Each pair of traces is plotted with the same scale and the peak amplitudes are indicated at the lect of each trace. Finally the time shift between the P-wave first arrival picked and the the theoretical P-wave first arrival in the predicted trace is indicated, with a positive sign indicating that the predicted trace has been shifted to the right by the given number of seconds. as a function of source to station azimuth in degrees (D). The purpose of this display is to highlight the azimuthal dependence on the first motion. The traces are annotated with the station name at the top. |
All observed and Greens function waveforms are corrected to instrument response to ground velocity in meters/sec for the passband of 0.004 - 5 Hz. The traces were then lowpass filtered at 0.25 Hz and interpolated to a sample rate of 1 second.
For the grid search, the observed traces and Green's functions are read in an cut using the following commands
#####
# Driver script for the teleseismic waveform inversion
#
# The depth HS must be of the form 0010 for a depth of 1.0 km
# of 6700 for a depth of 670.0 km
#
# The Filter_Band is an integer with the following meansing
#
# FILTER_BAND 1/FH 1/FL
# 1 60 12 for Mw < 6.4
# 2 100 20 6.4 =< Mw < 6.8
# 3 120 40 6.8 =< Mw < 7.2
# 4 143 80 7.2 =< Mw < 9.3
#####
# Source duration - halfwidth of triangular function
# this filters only the Green functions
#
# halfwidth = 1.05 * 10-8 * M0^1/3 (M0 is dyne-cm)
#
# MW half-width (sec)
# 5.0 0.75
# 6.0 2.45
# 7.0 7.7
# 8.0 24.5
# 9.0 74.3
# 0.5*(MW - 9)
# or half-width=74.3*10
# or echo 5.95 | awk '{print 74.3*exp(0.5*log(10.0)*(0050 - 9.0)) }'
#####
# Processing window for P (use SAC variable A for P arrival
# Start A - 30
# End A + 2*HALFWIDTH + 0.03*HS + 30 + 1/FH
# Processing window for SH (use SAC variable T0 for SH arrival
# Start T0 - 60
# End T0 + 2*HALFWIDTH + 0.06*HS + 30 + 1/FH
# Processing window for SV (use SAC variable T1 for SV arrival
# Start T1 - 60
# End T1 + 2*HALFWIDTH + 0.06*HS + 30 + 1/FH
#
# The term involving HS serves to include the depth phases and
# to exclude the PP or SS at most distanace
#####
The cut windows attempt to include the P, pP, sP, pS, S and sS arrivals. However, oen must be very careful about the fact that PP may be included in some distance ranges.
The waveforms are then bandpass filtered by the application of the following high- and low-pass stages (an optional microseism filter):
hp c 0.0167 2 lp c 0.0833 2 int br c 0.12 0.25 n 4 p 2The traces were next integrated to ground displacment in meters. Finally the observed data are interpolated to ahve the same sampling at the Green's functions.
The source inversion is a multipass operation since a lower frequency filter band is used for larger earthquakes and since a search is made over depth. Up to three passed of the outer loop are made, after which the moment magnitude is determined and filter settings readjusted. The inner loop over depth samples all depths from 0 to 800 km with 5 km increments in depth to 50 km, followed by 10 km depth sampling for the remaining range.
The following filter ranges are used according to the moment magnitude Mw:
FILTER_BAND 1/FH(s) 1/FL(s)
1 60 12 Mw < 6.4
2 100 20 6.4 < Mw <= 6.9
3 120 40 Mw > 6.9
The map displays the distribution of stations used for this source inversion.
Location of the earthquake (yellow star) and great circle path from the epicenter to each station (red) [created using GMT (Wessel, P., and W. H. F. Smith, New version of Generic Mapping Tools released, EOS Trans. AGU, 76 329, 1995.)] |
For this data set the favored solution is
WVFGRD96 5.0 180 50 -30 5.94 0.4966
The following figures show the sensitivity of the goodness of fit parameter so source depth, the waveform comparison as a function of epicentral distance in degrees and the source to station azimuth
|
| Goodness of fit as a function of source depth. The measure is 1 - SUM (o -p)2 / SUM o2. A value of 1.0 is the best fit. The best double couple mechanism for the solution depth is plotted above goodness of fit value to indicate how the mefhanism may change with depth. |
| P-wave Z component |
|
| Comparison of the observed traces (red) and solution predicted traces (blue) ordered in terms of increasing epicentral distance. Each pair of traces is annotated with the station name, epicentral distance in degrees, source to station azimuth in degrees. Each pair of traces is plotted with the same scale and the peak amplitudes are indicated at the lect of each trace. Finally the time shift between the P-wave first arrival picked and the the theoretical P-wave first arrival in the predicted trace is indicated, with a positive sign indicating that the predicted trace has been shifted to the right by the given number of seconds. as a function of source to station azimuth in degrees (D). The purpose of this display is to highlight the azimuthal dependence on the first motion. The traces are annotated with the station name at the top. |
| SH-wave T component |
|
| Comparison of the observed traces (red) and solution predicted traces (blue) ordered in terms of increasing epicentral distance. Each pair of traces is annotated with the station name, epicentral distance in degrees, source to station azimuth in degrees. Each pair of traces is plotted with the same scale and the peak amplitudes are indicated at the lect of each trace. Finally the time shift between the P-wave first arrival picked and the the theoretical P-wave first arrival in the predicted trace is indicated, with a positive sign indicating that the predicted trace has been shifted to the right by the given number of seconds. as a function of source to station azimuth in degrees (D). The purpose of this display is to highlight the azimuthal dependence on the first motion. The traces are annotated with the station name at the top. |
| SV-wave R component |
|
| Comparison of the observed traces (red) and solution predicted traces (blue) ordered in terms of increasing epicentral distance. Each pair of traces is annotated with the station name, epicentral distance in degrees, source to station azimuth in degrees. Each pair of traces is plotted with the same scale and the peak amplitudes are indicated at the lect of each trace. Finally the time shift between the P-wave first arrival picked and the the theoretical P-wave first arrival in the predicted trace is indicated, with a positive sign indicating that the predicted trace has been shifted to the right by the given number of seconds. as a function of source to station azimuth in degrees (D). The purpose of this display is to highlight the azimuthal dependence on the first motion. The traces are annotated with the station name at the top. |
All observed and Greens function waveforms are corrected to instrument response to ground velocity in meters/sec for the passband of 0.004 - 5 Hz. The traces were then lowpass filtered at 0.25 Hz and interpolated to a sample rate of 1 second.
For the grid search, the observed traces and Green's functions are read in an cut using the following commands
#####
# Driver script for the teleseismic waveform inversion
#
# The depth HS must be of the form 0010 for a depth of 1.0 km
# of 6700 for a depth of 670.0 km
#
# The Filter_Band is an integer with the following meansing
#
# FILTER_BAND 1/FH 1/FL
# 1 60 12 for Mw < 6.4
# 2 100 20 6.4 =< Mw < 6.8
# 3 120 40 6.8 =< Mw < 7.2
# 4 143 80 7.2 =< Mw < 9.3
#####
# Source duration - halfwidth of triangular function
# this filters only the Green functions
#
# halfwidth = 1.05 * 10-8 * M0^1/3 (M0 is dyne-cm)
#
# MW half-width (sec)
# 5.0 0.75
# 6.0 2.45
# 7.0 7.7
# 8.0 24.5
# 9.0 74.3
# 0.5*(MW - 9)
# or half-width=74.3*10
# or echo 6.14 | awk '{print 74.3*exp(0.5*log(10.0)*(4100 - 9.0)) }'
#####
# Processing window for P (use SAC variable A for P arrival
# Start A - 30
# End A + 2*HALFWIDTH + 0.03*HS + 30 + 1/FH
# Processing window for SH (use SAC variable T0 for SH arrival
# Start T0 - 60
# End T0 + 2*HALFWIDTH + 0.06*HS + 30 + 1/FH
# Processing window for SV (use SAC variable T1 for SV arrival
# Start T1 - 60
# End T1 + 2*HALFWIDTH + 0.06*HS + 30 + 1/FH
#
# The term involving HS serves to include the depth phases and
# to exclude the PP or SS at most distanace
#####
The cut windows attempt to include the P, pP, sP, pS, S and sS arrivals. However, oen must be very careful about the fact that PP may be included in some distance ranges.
The waveforms are then bandpass filtered by the application of the following high- and low-pass stages (an optional microseism filter):
hp c 0.0167 2 lp c 0.0833 2 int br c 0.12 0.25 n 4 p 2The traces were next integrated to ground displacment in meters. Finally the observed data are interpolated to ahve the same sampling at the Green's functions.
The source inversion is a multipass operation since a lower frequency filter band is used for larger earthquakes and since a search is made over depth. Up to three passed of the outer loop are made, after which the moment magnitude is determined and filter settings readjusted. The inner loop over depth samples all depths from 0 to 800 km with 5 km increments in depth to 50 km, followed by 10 km depth sampling for the remaining range.
The following filter ranges are used according to the moment magnitude Mw:
FILTER_BAND 1/FH(s) 1/FL(s)
1 60 12 Mw < 6.4
2 100 20 6.4 < Mw <= 6.9
3 120 40 Mw > 6.9
The map displays the distribution of stations used for this source inversion.
Location of the earthquake (yellow star) and great circle path from the epicenter to each station (red) [created using GMT (Wessel, P., and W. H. F. Smith, New version of Generic Mapping Tools released, EOS Trans. AGU, 76 329, 1995.)] |
For this data set the favored solution is
WVFGRD96 410.0 210 50 40 6.14 0.6777
The following figures show the sensitivity of the goodness of fit parameter so source depth, the waveform comparison as a function of epicentral distance in degrees and the source to station azimuth
|
| Goodness of fit as a function of source depth. The measure is 1 - SUM (o -p)2 / SUM o2. A value of 1.0 is the best fit. The best double couple mechanism for the solution depth is plotted above goodness of fit value to indicate how the mefhanism may change with depth. |
| P-wave Z component |
|
| Comparison of the observed traces (red) and solution predicted traces (blue) ordered in terms of increasing epicentral distance. Each pair of traces is annotated with the station name, epicentral distance in degrees, source to station azimuth in degrees. Each pair of traces is plotted with the same scale and the peak amplitudes are indicated at the lect of each trace. Finally the time shift between the P-wave first arrival picked and the the theoretical P-wave first arrival in the predicted trace is indicated, with a positive sign indicating that the predicted trace has been shifted to the right by the given number of seconds. as a function of source to station azimuth in degrees (D). The purpose of this display is to highlight the azimuthal dependence on the first motion. The traces are annotated with the station name at the top. |
Starting Processing : Sat Apr 21 12:32:28 UTC 2007 Starting query to get files : Sat Apr 21 12:32:28 UTC 2007 Starting stareq for response: Sat Apr 21 12:37:51 UTC 2007 Starting deconvolution : Sat Apr 21 12:40:16 UTC 2007 Starting trace rotation : Sat Apr 21 12:41:32 UTC 2007 Starting distance selection : Sat Apr 21 12:41:53 UTC 2007 Starting trace QC : Sat Apr 21 12:41:57 UTC 2007 Starting MTD : Sat Apr 21 12:45:06 UTC 2007 Starting Grid Search : Sat Apr 21 12:49:09 UTC 2007 Starting documentation : Sat Apr 21 12:55:39 UTC 2007 Processing Completion : Sat Apr 21 12:55:39 UTC 2007
