Location

2007/08/20 22:42:28 8.30 -39.24 10

Moment Tensor Comparison

The following compares this source inversion to the USGS Rapid Moment Tensor Solution and to the Harvard CMT solutions, if they are available.

Data set

The following broadband stations passed the QC and were used for the source inversion. AAM ABPO ACSO AFI AGMN AGPR AHID AKUT AMKA ANMO ANTO AOPR AQU ARMA ARU ASAJ ASCN ATTUB BAR BBOO BBSR BCIP BFO BFZ BGU BINY BJT BKZ BLA BLO BMN BMO BMR BNI BORG BOSA BOZ BRAL BRNJ BRVK BRYW BW06 CAN CART CAST CASY CBIJ CBKS CCUT CEL CHTO CHUM CMLA CNNC COCO COLA COLD COR COWI CPNY CRAG CSS CTU CUC DAV DAWY DBIC DCID1 DGMT DIV DIVS DLBC DLMT DPC DSB DUG DWPF DZM ECH ECSD EDM EFI EGAK EGMT EIDS ELK ENH ESK EYAK EYMN FCC FDF FFC FFD FIB FITZ FLWY FRNY FUNA FUORN FURI FVM GLA GLAT GLMI GNAR GNI GNW GOGA GRFO GSC GUMO HALT HARP HAWA HBAR HEBO HIA HKT HLID HNH HNR HOPE HRV HUMO HUMP HVU HWUT IDI IL31 IMW INCN IPM ISA ISCO ISP JCT JFWS JHJ2 JLU JOW KAPI KBL KBO KBS KCPB KDAK KEB KEV KHC KHU KIEV KIP KIV KKAR KMBO KONO KRMB KSU1 KTH KURK KVTX KWP LAO LBNH LCO LDF LDM LKWY LOHW LON LONY LPAZ LSA LSZ LTH LTL LVC LVZ MAJO MALT MBWA MCCM MCK MCWV MDJ MEM MIAR MIDW MKAR MNTX MOOW MORC MPH MPU MSEY MSO MTE MVCO MVL MVU MWC NACB NATX NCB NEW NHSC NLU NLWA NNA NOQ NV31 NV32 NV33 OBN ODZ OGNE OHAK OJC OLIL OTAV OUZ OXF PAB PAF PAH PAL PARMO PD31 PESTR PFO PGC PHWY PKME PLAL PLCA PMG PMR PMSA POHA PPLA PSZ PTCN PVAQ PVMO QIZ QRZ QUA2 RAG RAO RAR RC01 REDW RER RES RGN RLMT RPN RPZ RRI2 RSSD RTC RUE RWWY SANT SAO SBM SCIA SDCO SDMD SDPT SDV SENIN SFJD SFS SHEL SIT SIUC SKAG SLM SMCO SNAA SNCC SNOW SPB SPIA SPU SRU SSB STCH STU SUMG SUR SUW SWD TAM TAOE TAU TCU TEIG TGUH TIP TIR TIRR TKL TMU TPAW TPH TPNV TRF TRIS TRQA TSUM TUC TUE TWGB TX31 TX32 TZTN UALR UCH UGM URVA URZ USIN USP UTMT VBMS VLC VNDA WALA WB0 WB1 WB2 WB3 WB4 WB5 WB6 WB7 WB8 WB9 WC1 WC2 WC3 WC4 WCI WCN WES WLF WMOK WPVZ WR0 WR1 WR2 WR3 WR4 WR5 WR7 WR8 WR9 WRAB WRAK WUAZ WVOR XPFO YFT YMR YOJ ZAA0B

Forward Synthetic

All observed and Greens function waveforms are corrected to instrument response to ground velocity in meters/sec for the passband of 0.004 - 5 Hz. The traces were then lowpass filtered at 0.25 Hz and interpolated to a sample rate of 1 second.

The moment tensor solution used has the parameters:

HS=12.4
STK=272
DIP=83
RAKE=-178
MW=6.5

The Green's function closest to the desired depth was
DEP=0100 , where (DEP/10) is the computed depth.

The waveforms are then bandpass filtered by the application of the following high- and low-pass stages (an optional microseism filter):

hp c 0.0100 2
lp c 0.0500 2
int
br c 0.12 0.25 n 4 p 2

The following filter ranges are used according to the moment magnitude Mw:

   FILTER_BAND   1/FH(s)  1/FL(s)
       1           60     12      Mw < 6.4
       2          100     20      6.4 < Mw <= 6.9
       3          120     40      Mw > 6.9

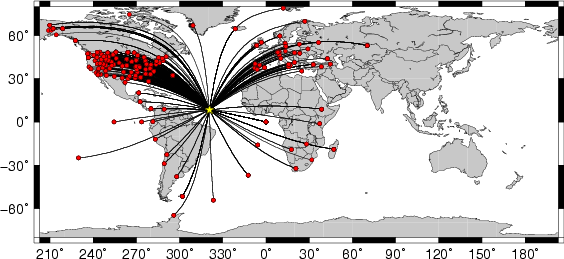

The map displays the distribution of stations used for this source inversion.

Location of the earthquake (yellow star) and great circle path from the epicenter to each station (red) [created using GMT (Wessel, P., and W. H. F. Smith, New version of Generic Mapping Tools released, EOS Trans. AGU, 76 329, 1995.)]

Detailed Waveform Comparison

P-wave Z component

Observed (red) and predicted seismograms (blue) ordered by increasing epicentral distance. Each pair of traces is annotated with the wave type and a station identifier (station, network, and channel id's), epicentral distance in degrees, source-to-station azimuth in degrees. Each seismogram pair is plotted with the same scale and the peak amplitudes in meters are shown above to the left of each trace. The optimal time shift between the observed first arrival and the predicted first arrival (in seconds) is shown above the prediction on the right. Red circles flag seismograms with amplitude misfits of a factor of 2 or more.

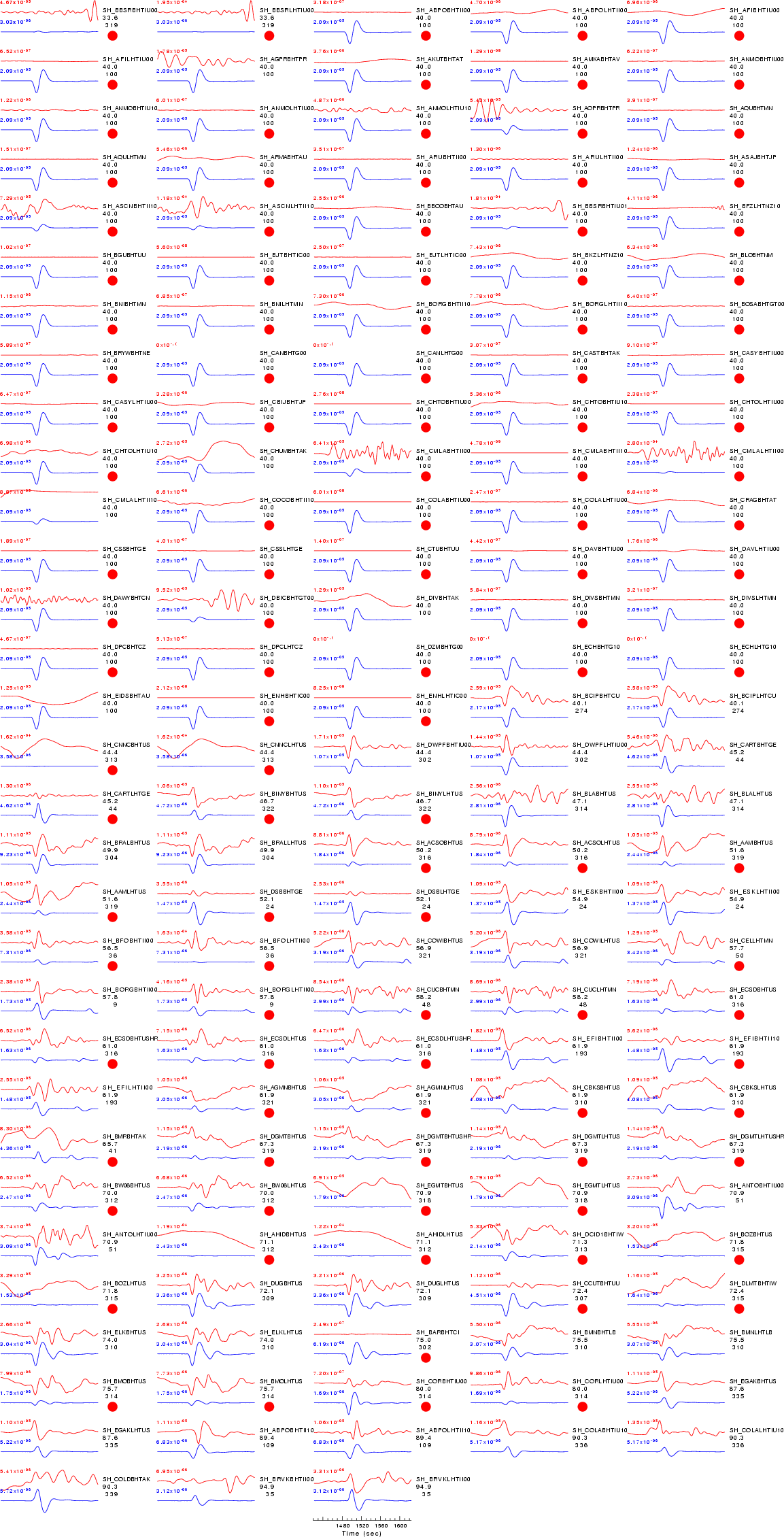

SH-wave T component

Observed (red) and predicted seismograms (blue) ordered by increasing epicentral distance. Each pair of traces is annotated with the wave type and a station identifier (station, network, and channel id's), epicentral distance in degrees, source-to-station azimuth in degrees. Each seismogram pair is plotted with the same scale and the peak amplitudes in meters are shown above to the left of each trace. The optimal time shift between the observed first arrival and the predicted first arrival (in seconds) is shown above the prediction on the right. Red circles flag seismograms with amplitude misfits of a factor of 2 or more.

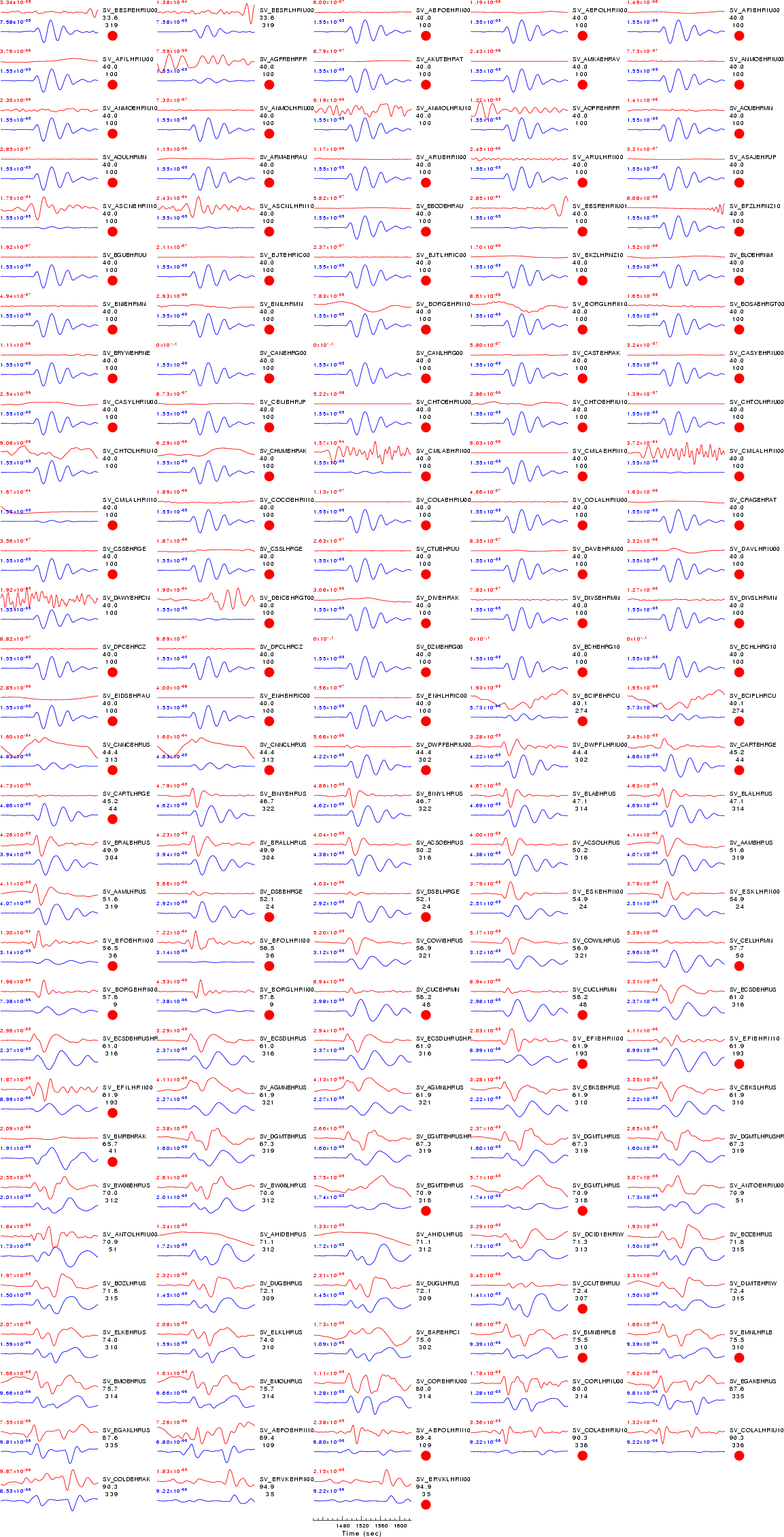

SV-wave R component

Observed (red) and predicted seismograms (blue) ordered by increasing epicentral distance. Each pair of traces is annotated with the wave type and a station identifier (station, network, and channel id's), epicentral distance in degrees, source-to-station azimuth in degrees. Each seismogram pair is plotted with the same scale and the peak amplitudes in meters are shown above to the left of each trace. The optimal time shift between the observed first arrival and the predicted first arrival (in seconds) is shown above the prediction on the right. Red circles flag seismograms with amplitude misfits of a factor of 2 or more.

Waveforms used

AAMUSBHR AAMUSBHT AAMUSBHZ AAMUSLHR AAMUSLHT AAMUSLHZ ABPOII00BHR ABPOII00BHT ABPOII00BHZ ABPOII00LHR ABPOII00LHT ABPOII00LHZ ABPOII10BHR ABPOII10BHT ABPOII10BHZ ABPOII10LHR ABPOII10LHT ABPOII10LHZ ACSOUSBHR ACSOUSBHT ACSOUSBHZ ACSOUSLHR ACSOUSLHT ACSOUSLHZ AFIIU00BHR AFIIU00BHT AFIIU00BHZ AFIIU00LHR AFIIU00LHT AFIIU00LHZ AGMNUSBHR AGMNUSBHT AGMNUSBHZ AGMNUSLHR AGMNUSLHT AGMNUSLHZ AGPRPRBHR AGPRPRBHT AGPRPRBHZ AHIDUSBHR AHIDUSBHT AHIDUSBHZ AHIDUSLHR AHIDUSLHT AHIDUSLHZ AKUTATBHR AKUTATBHT AKUTATBHZ AMKAAVBHR AMKAAVBHT AMKAAVBHZ ANMOIU00BHR ANMOIU00BHT ANMOIU00BHZ ANMOIU00LHR ANMOIU00LHT ANMOIU00LHZ ANMOIU10BHR ANMOIU10BHT ANMOIU10BHZ ANMOIU10LHR ANMOIU10LHT ANMOIU10LHZ ANTOIU00BHR ANTOIU00BHT ANTOIU00BHZ ANTOIU00LHR ANTOIU00LHT ANTOIU00LHZ AOPRPRBHR AOPRPRBHT AOPRPRBHZ AQUMNBHR AQUMNBHT AQUMNBHZ AQUMNLHR AQUMNLHT AQUMNLHZ ARMAAUBHR ARMAAUBHT ARMAAUBHZ ARUII00BHR ARUII00BHT ARUII00BHZ ARUII00LHR ARUII00LHT ARUII00LHZ ASAJJPBHR ASAJJPBHT ASAJJPBHZ ASCNII10BHR ASCNII10BHT ASCNII10BHZ ASCNII10LHR ASCNII10LHT ASCNII10LHZ ATTUBIMBHZ BARCIBHR BARCIBHT BARCIBHZ BBOOAUBHR BBOOAUBHT BBOOAUBHZ BBSRIU00BHR BBSRIU00BHT BBSRIU00BHZ BBSRIU00LHR BBSRIU00LHT BBSRIU00LHZ BBSRIU01BHR BBSRIU01BHT BBSRIU01BHZ BCIPCUBHR BCIPCUBHT BCIPCUBHZ BCIPCULHR BCIPCULHT BCIPCULHZ BFOII00BHR BFOII00BHT BFOII00BHZ BFOII00LHR BFOII00LHT BFOII00LHZ BFZNZ10LHR BFZNZ10LHT BFZNZ10LHZ BGUUUBHR BGUUUBHT BGUUUBHZ BINYUSBHR BINYUSBHT BINYUSBHZ BINYUSLHR BINYUSLHT BINYUSLHZ BJTIC00BHR BJTIC00BHT BJTIC00BHZ BJTIC00LHR BJTIC00LHT BJTIC00LHZ BKZNZ10LHR BKZNZ10LHT BKZNZ10LHZ BLAUSBHR BLAUSBHT BLAUSBHZ BLAUSLHR BLAUSLHT BLAUSLHZ BLONMBHR BLONMBHT BLONMBHZ BMNLBBHR BMNLBBHT BMNLBBHZ BMNLBLHR BMNLBLHT BMNLBLHZ BMOUSBHR BMOUSBHT BMOUSBHZ BMOUSLHR BMOUSLHT BMOUSLHZ BMRAKBHR BMRAKBHT BMRAKBHZ BNIMNBHR BNIMNBHT BNIMNBHZ BNIMNLHR BNIMNLHT BNIMNLHZ BORGII00BHR BORGII00BHT BORGII00BHZ BORGII00LHR BORGII00LHT BORGII00LHZ BORGII10BHR BORGII10BHT BORGII10BHZ BORGII10LHR BORGII10LHT BORGII10LHZ BOSAGT00BHR BOSAGT00BHT BOSAGT00BHZ BOZUSBHR BOZUSBHT BOZUSBHZ BOZUSLHR BOZUSLHT BOZUSLHZ BRALUSBHR BRALUSBHT BRALUSBHZ BRALUSLHR BRALUSLHT BRALUSLHZ BRNJLDBHZ BRVKII00BHR BRVKII00BHT BRVKII00BHZ BRVKII00LHR BRVKII00LHT BRVKII00LHZ BRYWNEBHR BRYWNEBHT BRYWNEBHZ BW06USBHR BW06USBHT BW06USBHZ BW06USLHR BW06USLHT BW06USLHZ CANG00BHR CANG00BHT CANG00BHZ CANG00LHR CANG00LHT CANG00LHZ CARTGEBHR CARTGEBHT CARTGEBHZ CARTGELHR CARTGELHT CARTGELHZ CASTAKBHR CASTAKBHT CASTAKBHZ CASYIU00BHR CASYIU00BHT CASYIU00BHZ CASYIU00LHR CASYIU00LHT CASYIU00LHZ CBIJJPBHR CBIJJPBHT CBIJJPBHZ CBKSUSBHR CBKSUSBHT CBKSUSBHZ CBKSUSLHR CBKSUSLHT CBKSUSLHZ CCUTUUBHR CCUTUUBHT CCUTUUBHZ CELMNLHR CELMNLHT CELMNLHZ CHTOIU00BHR CHTOIU00BHT CHTOIU00BHZ CHTOIU00LHR CHTOIU00LHT CHTOIU00LHZ CHTOIU10BHR CHTOIU10BHT CHTOIU10BHZ CHTOIU10LHR CHTOIU10LHT CHTOIU10LHZ CHUMAKBHR CHUMAKBHT CHUMAKBHZ CMLAII00BHR CMLAII00BHT CMLAII00BHZ CMLAII00LHR CMLAII00LHT CMLAII00LHZ CMLAII10BHR CMLAII10BHT CMLAII10BHZ CMLAII10LHR CMLAII10LHT CMLAII10LHZ CNNCUSBHR CNNCUSBHT CNNCUSBHZ CNNCUSLHR CNNCUSLHT CNNCUSLHZ COCOII10BHR COCOII10BHT COCOII10BHZ COLAIU00BHR COLAIU00BHT COLAIU00BHZ COLAIU00LHR COLAIU00LHT COLAIU00LHZ COLAIU10BHR COLAIU10BHT COLAIU10BHZ COLAIU10LHR COLAIU10LHT COLAIU10LHZ COLDAKBHR COLDAKBHT COLDAKBHZ CORIU00BHR CORIU00BHT CORIU00BHZ CORIU00LHR CORIU00LHT CORIU00LHZ COWIUSBHR COWIUSBHT COWIUSBHZ COWIUSLHR COWIUSLHT COWIUSLHZ CPNYLDBHZ CRAGATBHR CRAGATBHT CRAGATBHZ CSSGEBHR CSSGEBHT CSSGEBHZ CSSGELHR CSSGELHT CSSGELHZ CTUUUBHR CTUUUBHT CTUUUBHZ CUCMNBHR CUCMNBHT CUCMNBHZ CUCMNLHR CUCMNLHT CUCMNLHZ DAVIU00BHR DAVIU00BHT DAVIU00BHZ DAVIU00LHR DAVIU00LHT DAVIU00LHZ DAWYCNBHR DAWYCNBHT DAWYCNBHZ DBICGT00BHR DBICGT00BHT DBICGT00BHZ DCID1IWBHR DCID1IWBHT DCID1IWBHZ DGMTUSBHR DGMTUSBHT DGMTUSBHZ DGMTUSHRBHR DGMTUSHRBHT DGMTUSHRBHZ DGMTUSHRLHR DGMTUSHRLHT DGMTUSHRLHZ DGMTUSLHR DGMTUSLHT DGMTUSLHZ DIVAKBHR DIVAKBHT DIVAKBHZ DIVSMNBHR DIVSMNBHT DIVSMNBHZ DIVSMNLHR DIVSMNLHT DIVSMNLHZ DLBCCNBHZ DLMTIWBHR DLMTIWBHT DLMTIWBHZ DPCCZBHR DPCCZBHT DPCCZBHZ DPCCZLHR DPCCZLHT DPCCZLHZ DSBGEBHR DSBGEBHT DSBGEBHZ DSBGELHR DSBGELHT DSBGELHZ DUGUSBHR DUGUSBHT DUGUSBHZ DUGUSLHR DUGUSLHT DUGUSLHZ DWPFIU00BHR DWPFIU00BHT DWPFIU00BHZ DWPFIU00LHR DWPFIU00LHT DWPFIU00LHZ DZMG00BHR DZMG00BHT DZMG00BHZ ECHG10BHR ECHG10BHT ECHG10BHZ ECHG10LHR ECHG10LHT ECHG10LHZ ECSDUSBHR ECSDUSBHT ECSDUSBHZ ECSDUSHRBHR ECSDUSHRBHT ECSDUSHRBHZ ECSDUSHRLHR ECSDUSHRLHT ECSDUSHRLHZ ECSDUSLHR ECSDUSLHT ECSDUSLHZ EDMCNBHZ EFIII00BHR EFIII00BHT EFIII00BHZ EFIII00LHR EFIII00LHT EFIII00LHZ EFIII10BHR EFIII10BHT EFIII10BHZ EGAKUSBHR EGAKUSBHT EGAKUSBHZ EGAKUSLHR EGAKUSLHT EGAKUSLHZ EGMTUSBHR EGMTUSBHT EGMTUSBHZ EGMTUSLHR EGMTUSLHT EGMTUSLHZ EIDSAUBHR EIDSAUBHT EIDSAUBHZ ELKUSBHR ELKUSBHT ELKUSBHZ ELKUSLHR ELKUSLHT ELKUSLHZ ENHIC00BHR ENHIC00BHT ENHIC00BHZ ENHIC00LHR ENHIC00LHT ENHIC00LHZ ESKII00BHR ESKII00BHT ESKII00BHZ ESKII00LHR ESKII00LHT ESKII00LHZ EYAKAKBHR EYAKAKBHT EYAKAKBHZ EYMNUSBHR EYMNUSBHT EYMNUSBHZ EYMNUSHRBHR EYMNUSHRBHT EYMNUSHRBHZ EYMNUSHRLHR EYMNUSHRLHT EYMNUSHRLHZ EYMNUSLHR EYMNUSLHT EYMNUSLHZ FCCCNBHZ FDFG00BHR FDFG00BHT FDFG00BHZ FDFG00LHR FDFG00LHT FDFG00LHZ FFCII00BHR FFCII00BHT FFCII00BHZ FFCII00LHR FFCII00LHT FFCII00LHZ FFDNEBHR FFDNEBHT FFDNEBHZ FIBAKBHR FIBAKBHT FIBAKBHZ FITZAUBHR FITZAUBHT FITZAUBHZ FLWYIWBHR FLWYIWBHT FLWYIWBHZ FRNYLDBHR FRNYLDBHT FRNYLDBHZ FUNAIU00BHZ FUNAIU00LHZ FUORNCHBHR FUORNCHBHT FUORNCHBHZ FURIIU00BHR FURIIU00BHT FURIIU00BHZ FURIIU00LHR FURIIU00LHT FURIIU00LHZ FURIIU10BHR FURIIU10BHT FURIIU10BHZ FURIIU10LHR FURIIU10LHT FURIIU10LHZ FVMNMBHR FVMNMBHT FVMNMBHZ GLACIBHR GLACIBHT GLACIBHZ GLATNMBHR GLATNMBHT GLATNMBHZ GLMIUSBHR GLMIUSBHT GLMIUSBHZ GLMIUSLHR GLMIUSLHT GLMIUSLHZ GNARNMBHR GNARNMBHT GNARNMBHZ GNIIU00BHR GNIIU00BHT GNIIU00BHZ GNIIU00LHR GNIIU00LHT GNIIU00LHZ GNWUWBHZ GOGAUSBHR GOGAUSBHT GOGAUSBHZ GOGAUSHRBHR GOGAUSHRBHT GOGAUSHRBHZ GOGAUSHRLHR GOGAUSHRLHT GOGAUSHRLHZ GOGAUSLHR GOGAUSLHT GOGAUSLHZ GRFOIUBHR GRFOIUBHT GRFOIUBHZ GRFOIULHR GRFOIULHT GRFOIULHZ GSCCIBHR GSCCIBHT GSCCIBHZ GUMOIU00BHR GUMOIU00BHT GUMOIU00BHZ GUMOIU00LHR GUMOIU00LHT GUMOIU00LHZ GUMOIU10BHR GUMOIU10BHT GUMOIU10BHZ GUMOIU10LHR GUMOIU10LHT GUMOIU10LHZ HALTNMBHR HALTNMBHT HALTNMBHZ HARPAKBHR HARPAKBHT HARPAKBHZ HAWAUSBHR HAWAUSBHT HAWAUSBHZ HAWAUSLHR HAWAUSLHT HAWAUSLHZ HBARNMBHR HBARNMBHT HBARNMBHZ HEBOUWBHZ HIAIC00BHR HIAIC00BHT HIAIC00BHZ HIAIC00LHR HIAIC00LHT HIAIC00LHZ HKTIU00BHR HKTIU00BHT HKTIU00BHZ HKTIU00LHR HKTIU00LHT HKTIU00LHZ HLIDUSBHR HLIDUSBHT HLIDUSBHZ HLIDUSLHR HLIDUSLHT HLIDUSLHZ HNHNEBHR HNHNEBHT HNHNEBHZ HNRIU00BHR HNRIU00BHT HNRIU00BHZ HNRIU00LHR HNRIU00LHT HNRIU00LHZ HOPEII00BHR HOPEII00BHT HOPEII00BHZ HOPEII00LHR HOPEII00LHT HOPEII00LHZ HOPEII10BHR HOPEII10BHT HOPEII10BHZ HRVIUBHR HRVIUBHT HRVIUBHZ HRVIULHR HRVIULHT HRVIULHZ HUMOBKBHR HUMOBKBHT HUMOBKBHZ HUMOBKLHR HUMOBKLHT HUMOBKLHZ HUMPPRBHR HUMPPRBHT HUMPPRBHZ HVUUUBHR HVUUUBHT HVUUUBHZ HWUTUSBHR HWUTUSBHT HWUTUSBHZ HWUTUSLHR HWUTUSLHT HWUTUSLHZ IDIMNBHR IDIMNBHT IDIMNBHZ IDIMNLHR IDIMNLHT IDIMNLHZ IL31IMBHR IL31IMBHT IL31IMBHZ IMWIWBHR IMWIWBHT IMWIWBHZ INCNIU00BHR INCNIU00BHT INCNIU00BHZ INCNIU00LHR INCNIU00LHT INCNIU00LHZ IPMMYBHR IPMMYBHT IPMMYBHZ IPMMYLHR IPMMYLHT IPMMYLHZ ISACIBHR ISACIBHT ISACIBHZ ISCOUSBHR ISCOUSBHT ISCOUSBHZ ISCOUSLHR ISCOUSLHT ISCOUSLHZ ISPGEBHR ISPGEBHT ISPGEBHZ ISPGELHR ISPGELHT ISPGELHZ JCTUSBHR JCTUSBHT JCTUSBHZ JCTUSLHR JCTUSLHT JCTUSLHZ JFWSUSBHR JFWSUSBHT JFWSUSBHZ JFWSUSHRBHR JFWSUSHRBHT JFWSUSHRBHZ JFWSUSHRLHR JFWSUSHRLHT JFWSUSHRLHZ JFWSUSLHR JFWSUSLHT JFWSUSLHZ JHJ2JPBHR JHJ2JPBHT JHJ2JPBHZ JLUUUBHR JLUUUBHT JLUUUBHZ JOWJPBHR JOWJPBHT JOWJPBHZ KAPIII00BHZ KAPIII00LHZ KAPIII10BHR KAPIII10BHT KAPIII10BHZ KBLIUBHR KBLIUBHT KBLIUBHZ KBONCBHR KBONCBHT KBONCBHZ KBSIU00BHR KBSIU00BHT KBSIU00BHZ KBSIU00LHR KBSIU00LHT KBSIU00LHZ KBSIU10BHR KBSIU10BHT KBSIU10BHZ KBSIU10LHR KBSIU10LHT KBSIU10LHZ KCPBNCBHR KCPBNCBHT KCPBNCBHZ KDAKII00BHR KDAKII00BHT KDAKII00BHZ KDAKII00LHR KDAKII00LHT KDAKII00LHZ KDAKII10BHR KDAKII10BHT KDAKII10BHZ KDAKII10LHR KDAKII10LHT KDAKII10LHZ KEBNCBHR KEBNCBHT KEBNCBHZ KEVIU00BHR KEVIU00BHT KEVIU00BHZ KEVIU00LHR KEVIU00LHT KEVIU00LHZ KEVIU10BHR KEVIU10BHT KEVIU10BHZ KEVIU10LHR KEVIU10LHT KEVIU10LHZ KHCCZBHR KHCCZBHT KHCCZBHZ KHUHVBHZ KIEVIU00BHR KIEVIU00BHT KIEVIU00BHZ KIEVIU00LHR KIEVIU00LHT KIEVIU00LHZ KIPIU00BHR KIPIU00BHT KIPIU00BHZ KIPIU00LHR KIPIU00LHT KIPIU00LHZ KIVII00BHR KIVII00BHT KIVII00BHZ KIVII00LHR KIVII00LHT KIVII00LHZ KKARKZBHR KKARKZBHT KKARKZBHZ KMBOIU00LHR KMBOIU00LHT KMBOIU00LHZ KMBOIU10BHR KMBOIU10BHT KMBOIU10BHZ KMBOIU10LHR KMBOIU10LHT KMBOIU10LHZ KONOIU00BHR KONOIU00BHT KONOIU00BHZ KONOIU00LHR KONOIU00LHT KONOIU00LHZ KONOIU10BHR KONOIU10BHT KONOIU10BHZ KONOIU10LHR KONOIU10LHT KONOIU10LHZ KRMBNCBHR KRMBNCBHT KRMBNCBHZ KSU1USBHR KSU1USBHT KSU1USBHZ KSU1USHRBHR KSU1USHRBHT KSU1USHRBHZ KSU1USHRLHR KSU1USHRLHT KSU1USHRLHZ KSU1USLHR KSU1USLHT KSU1USLHZ KTHAKBHR KTHAKBHT KTHAKBHZ KURKII00BHR KURKII00BHT KURKII00BHZ KURKII00LHR KURKII00LHT KURKII00LHZ KVTXUSBHR KVTXUSBHT KVTXUSBHZ KVTXUSLHR KVTXUSLHT KVTXUSLHZ KWPGEBHR KWPGEBHT KWPGEBHZ KWPGELHR KWPGELHT KWPGELHZ LAOUSBHR LAOUSBHT LAOUSBHZ LAOUSLHR LAOUSLHT LAOUSLHZ LBNHUSBHR LBNHUSBHT LBNHUSBHZ LBNHUSLHR LBNHUSLHT LBNHUSLHZ LCOIUBHR LCOIUBHT LCOIUBHZ LCOIULHR LCOIULHT LCOIULHZ LDFCIBHR LDFCIBHT LDFCIBHZ LDMMYBHR LDMMYBHT LDMMYBHZ LDMMYLHR LDMMYLHT LDMMYLHZ LKWYUSBHR LKWYUSBHT LKWYUSBHZ LKWYUSLHR LKWYUSLHT LKWYUSLHZ LOHWIWBHR LOHWIWBHT LOHWIWBHZ LONUWBHZ LONYUSBHR LONYUSBHT LONYUSBHZ LONYUSLHR LONYUSLHT LONYUSLHZ LPAZGT00BHR LPAZGT00BHT LPAZGT00BHZ LSAIC00BHR LSAIC00BHT LSAIC00BHZ LSAIC00LHR LSAIC00LHT LSAIC00LHZ LSZIU00BHR LSZIU00BHT LSZIU00BHZ LSZIU00LHR LSZIU00LHT LSZIU00LHZ LSZIU10BHR LSZIU10BHT LSZIU10BHZ LSZIU10LHR LSZIU10LHT LSZIU10LHZ LTHLIBHZ LTHLILHR LTHLILHT LTHLILHZ LTLLIBHR LTLLIBHT LTLLIBHZ LTLLILHR LTLLILHT LTLLILHZ LVCIU00BHR LVCIU00BHT LVCIU00BHZ LVCIU00LHR LVCIU00LHT LVCIU00LHZ LVCIU10BHR LVCIU10BHT LVCIU10BHZ LVCIU10LHR LVCIU10LHT LVCIU10LHZ LVZII00LHR LVZII00LHT LVZII00LHZ MAJOIU00BHR MAJOIU00BHT MAJOIU00BHZ MAJOIU00LHR MAJOIU00LHT MAJOIU00LHZ MALTGEBHR MALTGEBHT MALTGEBHZ MALTGELHR MALTGELHT MALTGELHZ MBWAIU00BHR MBWAIU00BHT MBWAIU00BHZ MBWAIU00LHR MBWAIU00LHT MBWAIU00LHZ MBWAIU10BHR MBWAIU10BHT MBWAIU10BHZ MBWAIU10LHR MBWAIU10LHT MBWAIU10LHZ MCCMBKBHR MCCMBKBHT MCCMBKBHZ MCCMBKLHR MCCMBKLHT MCCMBKLHZ MCKAKBHR MCKAKBHT MCKAKBHZ MCWVUSBHR MCWVUSBHT MCWVUSBHZ MCWVUSLHR MCWVUSLHT MCWVUSLHZ MDJIC00BHR MDJIC00BHT MDJIC00BHZ MDJIC00LHR MDJIC00LHT MDJIC00LHZ MEMBELHR MEMBELHT MEMBELHZ MIARUSBHR MIARUSBHT MIARUSBHZ MIARUSLHR MIARUSLHT MIARUSLHZ MIDWIU00BHR MIDWIU00BHT MIDWIU00BHZ MIDWIU00LHR MIDWIU00LHT MIDWIU00LHZ MKARKZBHR MKARKZBHT MKARKZBHZ MNTXUSBHR MNTXUSBHT MNTXUSBHZ MNTXUSLHR MNTXUSLHT MNTXUSLHZ MOOWIWBHR MOOWIWBHT MOOWIWBHZ MORCGEBHR MORCGEBHT MORCGEBHZ MORCGELHR MORCGELHT MORCGELHZ MPHNMBHR MPHNMBHT MPHNMBHZ MPUUUBHR MPUUUBHT MPUUUBHZ MSEYII00BHR MSEYII00BHT MSEYII00BHZ MSEYII00LHR MSEYII00LHT MSEYII00LHZ MSEYII10BHR MSEYII10BHT MSEYII10BHZ MSOUSBHR MSOUSBHT MSOUSBHZ MSOUSLHR MSOUSLHT MSOUSLHZ MTEGEBHR MTEGEBHT MTEGEBHZ MTEGELHR MTEGELHT MTEGELHZ MVCOUSBHR MVCOUSBHT MVCOUSBHZ MVCOUSLHR MVCOUSLHT MVCOUSLHZ MVLLDBHZ MVULBBHR MVULBBHT MVULBBHZ MVULBLHR MVULBLHT MVULBLHZ MWCCIBHR MWCCIBHT MWCCIBHZ NACBTWBHR NACBTWBHT NACBTWBHZ NACBTWLHR NACBTWLHT NACBTWLHZ NATXUSBHR NATXUSBHT NATXUSBHZ NATXUSLHR NATXUSLHT NATXUSLHZ NCBUSBHR NCBUSBHT NCBUSBHZ NCBUSLHR NCBUSLHT NCBUSLHZ NEWUSBHR NEWUSBHT NEWUSBHZ NEWUSHRBHR NEWUSHRBHT NEWUSHRBHZ NEWUSHRLHR NEWUSHRLHT NEWUSHRLHZ NEWUSLHR NEWUSLHT NEWUSLHZ NHSCUSBHR NHSCUSBHT NHSCUSBHZ NHSCUSLHR NHSCUSLHT NHSCUSLHZ NLUUUBHR NLUUUBHT NLUUUBHZ NLWAUSBHR NLWAUSBHT NLWAUSBHZ NLWAUSLHR NLWAUSLHT NLWAUSLHZ NNAII00BHR NNAII00BHT NNAII00BHZ NNAII00LHR NNAII00LHT NNAII00LHZ NNAII10BHZ NNAII10LHR NNAII10LHT NNAII10LHZ NOQUUBHR NOQUUBHT NOQUUBHZ NV31IMBHR NV31IMBHT NV31IMBHZ NV32IMBHR NV32IMBHT NV32IMBHZ NV33IMBHR NV33IMBHT NV33IMBHZ OBNII00BHR OBNII00BHT OBNII00BHZ OBNII00LHR OBNII00LHT OBNII00LHZ ODZNZ10LHR ODZNZ10LHT ODZNZ10LHZ OGNEUSBHR OGNEUSBHT OGNEUSBHZ OGNEUSLHR OGNEUSLHT OGNEUSLHZ OHAKATBHR OHAKATBHT OHAKATBHZ OJCPLBHR OJCPLBHT OJCPLBHZ OLILNMBHR OLILNMBHT OLILNMBHZ OTAVIU00BHR OTAVIU00BHT OTAVIU00BHZ OTAVIU00LHR OTAVIU00LHT OTAVIU00LHZ OTAVIU10BHR OTAVIU10BHT OTAVIU10BHZ OTAVIU10LHR OTAVIU10LHT OTAVIU10LHZ OUZNZ10LHR OUZNZ10LHT OUZNZ10LHZ OXFUSBHR OXFUSBHT OXFUSBHZ OXFUSLHR OXFUSLHT OXFUSLHZ PABIU00BHR PABIU00BHT PABIU00BHZ PABIU00LHR PABIU00LHT PABIU00LHZ PAFG10BHR PAFG10BHT PAFG10BHZ PAFG10LHR PAFG10LHT PAFG10LHZ PAHNNBHR PAHNNBHT PAHNNBHZ PALLDBHR PALLDBHT PALLDBHZ PARMONMBHR PARMONMBHT PARMONMBHZ PD31IMBHR PD31IMBHT PD31IMBHZ PESTRPMBHR PESTRPMBHT PESTRPMBHZ PESTRPMLHR PESTRPMLHT PESTRPMLHZ PFOII00BHR PFOII00BHT PFOII00BHZ PFOII00LHR PFOII00LHT PFOII00LHZ PFOII10BHR PFOII10BHT PFOII10BHZ PFOII10LHR PFOII10LHT PFOII10LHZ PGCCNBHZ PHWYIWBHR PHWYIWBHT PHWYIWBHZ PKMEUSBHR PKMEUSBHT PKMEUSBHZ PKMEUSLHR PKMEUSLHT PKMEUSLHZ PLALNMBHR PLALNMBHT PLALNMBHZ PLALNMLHR PLALNMLHT PLALNMLHZ PLCAGT00BHR PLCAGT00BHT PLCAGT00BHZ PMGIU00LHR PMGIU00LHT PMGIU00LHZ PMRATBHR PMRATBHT PMRATBHZ PMSAIU00BHR PMSAIU00BHT PMSAIU00BHZ PMSAIU00LHR PMSAIU00LHT PMSAIU00LHZ POHAIU00BHR POHAIU00BHT POHAIU00BHZ POHAIU00LHR POHAIU00LHT POHAIU00LHZ PPLAAKBHR PPLAAKBHT PPLAAKBHZ PSZGEBHR PSZGEBHT PSZGEBHZ PSZGELHR PSZGELHT PSZGELHZ PTCNIU00BHR PTCNIU00BHT PTCNIU00BHZ PTCNIU00LHR PTCNIU00LHT PTCNIU00LHZ PTCNIU01BHR PTCNIU01BHT PTCNIU01BHZ PVAQPMBHR PVAQPMBHT PVAQPMBHZ PVAQPMLHR PVAQPMLHT PVAQPMLHZ PVMONMBHR PVMONMBHT PVMONMBHZ QIZIC01BHR QIZIC01BHT QIZIC01BHZ QRZNZ10LHR QRZNZ10LHT QRZNZ10LHZ QUA2NEBHR QUA2NEBHT QUA2NEBHZ RAGAKBHR RAGAKBHT RAGAKBHZ RAOIU00BHZ RAOIU00LHZ RAOIU10BHR RAOIU10BHT RAOIU10BHZ RAOIU10LHR RAOIU10LHT RAOIU10LHZ RARIU00BHR RARIU00BHT RARIU00BHZ RARIU00LHR RARIU00LHT RARIU00LHZ RARIU10BHR RARIU10BHT RARIU10BHZ RARIU10LHR RARIU10LHT RARIU10LHZ RC01AKBHR RC01AKBHT RC01AKBHZ REDWIWBHR REDWIWBHT REDWIWBHZ RERG00BHR RERG00BHT RERG00BHZ RERG00LHR RERG00LHT RERG00LHZ RESCNBHZ RGNGEBHR RGNGEBHT RGNGEBHZ RGNGELHR RGNGELHT RGNGELHZ RLMTUSBHR RLMTUSBHT RLMTUSBHZ RLMTUSLHR RLMTUSLHT RLMTUSLHZ RPNII00BHR RPNII00BHT RPNII00BHZ RPNII00LHR RPNII00LHT RPNII00LHZ RPNII10BHR RPNII10BHT RPNII10BHZ RPNII10LHR RPNII10LHT RPNII10LHZ RPZNZ10LHR RPZNZ10LHT RPZNZ10LHZ RRI2IWBHR RRI2IWBHT RRI2IWBHZ RSSDIU00BHR RSSDIU00BHT RSSDIU00BHZ RSSDIU00LHR RSSDIU00LHT RSSDIU00LHZ RSSDIU10BHR RSSDIU10BHT RSSDIU10BHZ RSSDIU10LHR RSSDIU10LHT RSSDIU10LHZ RTCMNBHR RTCMNBHT RTCMNBHZ RTCMNLHR RTCMNLHT RTCMNLHZ RUEGEBHR RUEGEBHT RUEGEBHZ RUEGELHR RUEGELHT RUEGELHZ RWWYIWBHR RWWYIWBHT RWWYIWBHZ SANTGEBHR SANTGEBHT SANTGEBHZ SANTGELHR SANTGELHT SANTGELHZ SAOBKBHR SAOBKBHT SAOBKBHZ SAOBKLHR SAOBKLHT SAOBKLHZ SBMMYBHR SBMMYBHT SBMMYBHZ SBMMYLHR SBMMYLHT SBMMYLHZ SCIAUSBHR SCIAUSBHT SCIAUSBHZ SCIAUSLHR SCIAUSLHT SCIAUSLHZ SDCOUSBHR SDCOUSBHT SDCOUSBHZ SDCOUSLHR SDCOUSLHT SDCOUSLHZ SDMDLDBHR SDMDLDBHT SDMDLDBHZ SDPTATBHR SDPTATBHT SDPTATBHZ SDVIU00BHR SDVIU00BHT SDVIU00BHZ SDVIU00LHR SDVIU00LHT SDVIU00LHZ SDVIU10BHR SDVIU10BHT SDVIU10BHZ SDVIU10LHR SDVIU10LHT SDVIU10LHZ SENINCHBHR SENINCHBHT SENINCHBHZ SFJDIU00BHR SFJDIU00BHT SFJDIU00BHZ SFJDIU00LHR SFJDIU00LHT SFJDIU00LHZ SFJDIU10BHR SFJDIU10BHT SFJDIU10BHZ SFJDIU10LHR SFJDIU10LHT SFJDIU10LHZ SFSGEBHR SFSGEBHT SFSGEBHZ SFSGELHR SFSGELHT SFSGELHZ SHELII00BHR SHELII00BHT SHELII00BHZ SHELII00LHR SHELII00LHT SHELII00LHZ SHELII10BHR SHELII10BHT SHELII10BHZ SITATBHR SITATBHT SITATBHZ SIUCNMBHR SIUCNMBHT SIUCNMBHZ SKAGATBHR SKAGATBHT SKAGATBHZ SLMNMBHR SLMNMBHT SLMNMBHZ SMCOIWBHR SMCOIWBHT SMCOIWBHZ SNAAGEBHR SNAAGEBHT SNAAGEBHZ SNAAGELHR SNAAGELHT SNAAGELHZ SNCCCIBHR SNCCCIBHT SNCCCIBHZ SNOWIWBHR SNOWIWBHT SNOWIWBHZ SPBG00BHR SPBG00BHT SPBG00BHZ SPBG00LHR SPBG00LHT SPBG00LHZ SPIAAKBHR SPIAAKBHT SPIAAKBHZ SPUUUBHR SPUUUBHT SPUUUBHZ SRUUUBHR SRUUUBHT SRUUUBHZ SSBG00BHR SSBG00BHT SSBG00BHZ SSBG00LHR SSBG00LHT SSBG00LHZ STCHHVBHZ STUGEBHR STUGEBHT STUGEBHZ STUGELHR STUGELHT STUGELHZ SUMGGEBHR SUMGGEBHT SUMGGEBHZ SUMGGELHR SUMGGELHT SUMGGELHZ SURII00BHR SURII00BHT SURII00BHZ SURII00LHR SURII00LHT SURII00LHZ SURII10BHR SURII10BHT SURII10BHZ SUWGEBHR SUWGEBHT SUWGEBHZ SUWGELHR SUWGELHT SUWGELHZ SWDAKBHR SWDAKBHT SWDAKBHZ TAMG00BHZ TAMG00LHR TAMG00LHT TAMG00LHZ TAOEG00BHR TAOEG00BHT TAOEG00BHZ TAUII10BHZ TCUUUBHR TCUUUBHT TCUUUBHZ TEIGIU00BHR TEIGIU00BHT TEIGIU00BHZ TEIGIU00LHR TEIGIU00LHT TEIGIU00LHZ TEIGIU10BHR TEIGIU10BHT TEIGIU10BHZ TEIGIU10LHR TEIGIU10LHT TEIGIU10LHZ TGUHCUBHR TGUHCUBHT TGUHCUBHZ TGUHCULHR TGUHCULHT TGUHCULHZ TIPMNBHR TIPMNBHT TIPMNBHZ TIPMNLHR TIPMNLHT TIPMNLHZ TIRMNBHR TIRMNBHT TIRMNBHZ TIRMNLHR TIRMNLHT TIRMNLHZ TIRRGEBHR TIRRGEBHT TIRRGEBHZ TIRRGELHR TIRRGELHT TIRRGELHZ TKLIMBHR TKLIMBHT TKLIMBHZ TMUUUBHR TMUUUBHT TMUUUBHZ TPAWIWBHR TPAWIWBHT TPAWIWBHZ TPHLBBHR TPHLBBHT TPHLBBHZ TPHLBLHR TPHLBLHT TPHLBLHZ TPNVUSBHR TPNVUSBHT TPNVUSBHZ TPNVUSLHR TPNVUSLHT TPNVUSLHZ TRFAKBHR TRFAKBHT TRFAKBHZ TRISIU00BHZ TRISIU00LHZ TRISIU10BHR TRISIU10BHT TRISIU10BHZ TRISIU10LHR TRISIU10LHT TRISIU10LHZ TRQAIU00BHR TRQAIU00BHT TRQAIU00BHZ TRQAIU00LHR TRQAIU00LHT TRQAIU00LHZ TRQAIU10BHR TRQAIU10BHT TRQAIU10BHZ TRQAIU10LHR TRQAIU10LHT TRQAIU10LHZ TSUMIU00BHR TSUMIU00BHT TSUMIU00BHZ TSUMIU00LHR TSUMIU00LHT TSUMIU00LHZ TSUMIU10BHR TSUMIU10BHT TSUMIU10BHZ TSUMIU10LHR TSUMIU10LHT TSUMIU10LHZ TUCIU00BHR TUCIU00BHT TUCIU00BHZ TUCIU00LHR TUCIU00LHT TUCIU00LHZ TUEMNBHR TUEMNBHT TUEMNBHZ TUEMNLHR TUEMNLHT TUEMNLHZ TWGBTWBHR TWGBTWBHT TWGBTWBHZ TWGBTWLHR TWGBTWLHT TWGBTWLHZ TX31IMBHR TX31IMBHT TX31IMBHZ TX32IMBHR TX32IMBHT TX32IMBHZ TZTNUSBHR TZTNUSBHT TZTNUSBHZ UALRNMBHR UALRNMBHT UALRNMBHZ UCHKNBHZ UCHKNLHR UCHKNLHT UCHKNLHZ UGMGEBHR UGMGEBHT UGMGEBHZ UGMGELHR UGMGELHT UGMGELHZ URVASEBHR URVASEBHT URVASEBHZ URZNZ10LHR URZNZ10LHT URZNZ10LHZ USINNMBHR USINNMBHT USINNMBHZ USPKNBHR USPKNBHT USPKNBHZ USPKNLHR USPKNLHT USPKNLHZ UTMTNMBHR UTMTNMBHT UTMTNMBHZ VBMSUSBHR VBMSUSBHT VBMSUSBHZ VBMSUSLHR VBMSUSLHT VBMSUSLHZ VLCMNBHR VLCMNBHT VLCMNBHZ VLCMNLHR VLCMNLHT VLCMNLHZ VNDAGT00BHR VNDAGT00BHT VNDAGT00BHZ WALACNBHZ WB0IMBHZ WB1IMBHZ WB2IMBHR WB2IMBHT WB2IMBHZ WB3IMBHZ WB4IMBHZ WB5IMBHZ WB6IMBHZ WB7IMBHZ WB8IMBHZ WB9IMBHZ WC1IMBHZ WC2IMBHZ WC3IMBHZ WC4IMBHZ WCIIU00BHR WCIIU00BHT WCIIU00BHZ WCIIU00LHR WCIIU00LHT WCIIU00LHZ WCNNNBHR WCNNNBHT WCNNNBHZ WCNNNLHR WCNNNLHT WCNNNLHZ WESNEBHR WESNEBHT WESNEBHZ WLFGEBHR WLFGEBHT WLFGEBHZ WLFGELHR WLFGELHT WLFGELHZ WMOKUSBHR WMOKUSBHT WMOKUSBHZ WMOKUSHRBHR WMOKUSHRBHT WMOKUSHRBHZ WMOKUSHRLHR WMOKUSHRLHT WMOKUSHRLHZ WMOKUSLHR WMOKUSLHT WMOKUSLHZ WPVZNZ10LHR WPVZNZ10LHT WPVZNZ10LHZ WR0IMBHZ WR1IMBHZ WR2IMBHZ WR3IMBHZ WR4IMBHZ WR5IMBHZ WR7IMBHZ WR8IMBHZ WR9IMBHZ WRABII10BHR WRABII10BHT WRABII10BHZ WRABII10LHR WRABII10LHT WRABII10LHZ WRAKUSBHR WRAKUSBHT WRAKUSBHZ WRAKUSHRBHR WRAKUSHRBHT WRAKUSHRBHZ WRAKUSHRLHR WRAKUSHRLHT WRAKUSHRLHZ WRAKUSLHR WRAKUSLHT WRAKUSLHZ WUAZUSBHR WUAZUSBHT WUAZUSBHZ WUAZUSLHR WUAZUSLHT WUAZUSLHZ WVORUSBHR WVORUSBHT WVORUSBHZ WVORUSLHR WVORUSLHT WVORUSLHZ XPFOII00BHR XPFOII00BHT XPFOII00BHZ XPFOII00LHR XPFOII00LHT XPFOII00LHZ XPFOII10BHR XPFOII10BHT XPFOII10BHZ XPFOII10LHR XPFOII10LHT XPFOII10LHZ YFTWYBHR YFTWYBHT YFTWYBHZ YMRWYBHR YMRWYBHT YMRWYBHZ YOJJPBHR YOJJPBHT YOJJPBHZ ZAA0BIMBHR ZAA0BIMBHT ZAA0BIMBHZ

Processing times

Starting Processing         : Thu Nov 15 15:56:00 UTC 2007
Starting deconvolution      : Thu Nov 15 16:03:43 UTC 2007
Starting trace rotation     : Thu Nov 15 16:07:42 UTC 2007
Starting distance selection : Thu Nov 15 16:09:11 UTC 2007
Starting trace QC           : Thu Nov 15 16:09:56 UTC 2007
Starting synthetic          : Thu Nov 15 16:09:57 UTC 2007
Starting documentation      : Thu Nov 15 16:13:48 UTC 2007
