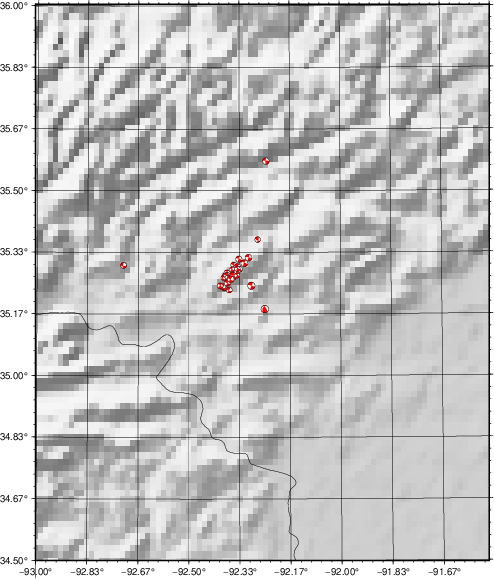

Moment tensors. The colored quadrant indicates compressional motion. the current year is indicated by the color red.

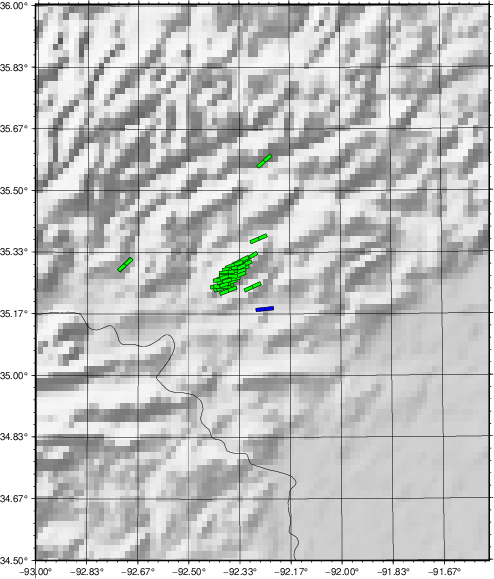

Orientation of maximum horizontal compressive stress following the convention of Zoback (1992). Red indicates normal faulting, blue thrust faulting and green strike-slip faulting. A combination of colors indicates oblique faulting.

The classification of the type of faulting is based on the plunge of the P (pressure), T(tension) and B (null axes) as
    P/S1-axis    B/S2-axis          T/S3-axis    Regime    SH-azimuth
      pl > 52                        pl < 35       NF      azim. of B-axis
 40 < pl < 52                        pl < 20       NS      azim. of T-axis +90
      pl < 40     pl > 45            pl < 20       SS      azim. of T-axis +90
      pl < 20     pl > 45            pl < 40       SS      azim. of P-axis
      pl < 20                   40 < pl < 52       TS      azim. of P-axis
      pl < 35                        pl > 52       TF      azim. of P-axis
