The ANSS event ID is aka2026ihurqf and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/aka2026ihurqf/executive.
2026/04/28 13:26:09 61.442 -140.225 5.0 3.8 Yukon, Canada
USGS/SLU Moment Tensor Solution
ENS 2026/04/28 13:26:09.0 61.44 -140.23 5.0 3.8 Yukon, Canada
Stations used:
AK.BAGL AK.BAL AK.CCB AK.CRQ AK.CYK AK.DHY AK.DOT AK.EYAK
AK.GRIN AK.GRNC AK.I27K AK.ISLE AK.J25K AK.J26L AK.K24K
AK.KIAG AK.LOGN AK.M26K AK.MCAR AK.MESA AK.PAX AK.PNL
AK.PPD AK.PTPK AK.RKAV AK.TGL AK.VRDI AK.WRH AV.WACK
AV.WAZA EO.KLRS IU.COLA NY.MAYO PQ.OGILY
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 8.91e+21 dyne-cm
Mw = 3.90
Z = 10 km
Plane Strike Dip Rake
NP1 337 56 97
NP2 145 35 80
Principal Axes:
Axis Value Plunge Azimuth
T 8.91e+21 78 272
N 0.00e+00 6 153
P -8.91e+21 10 62
Moment Tensor: (dyne-cm)
Component Value
Mxx -1.88e+21
Mxy -3.57e+21
Mxz -6.83e+20
Myy -6.37e+21
Myz -3.19e+21
Mzz 8.25e+21
--------------
#######---------------
-############---------------
-###############--------------
---#################--------------
---###################-----------
----####################---------- P -
-----######################-------- --
-----######################-------------
------########## ##########-------------
------########## T ###########------------
-------######### ###########------------
-------########################-----------
-------#######################----------
--------#######################---------
--------######################--------
---------####################-------
----------#################-------
----------###############-----
------------############----
----------------######
--------------
Global CMT Convention Moment Tensor:
R T P
8.25e+21 -6.83e+20 3.19e+21
-6.83e+20 -1.88e+21 3.57e+21
3.19e+21 3.57e+21 -6.37e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20260428132609/index.html
|
STK = 145
DIP = 35
RAKE = 80
MW = 3.90
HS = 10.0
The NDK file is 20260428132609.ndk The waveform inversion is preferred.

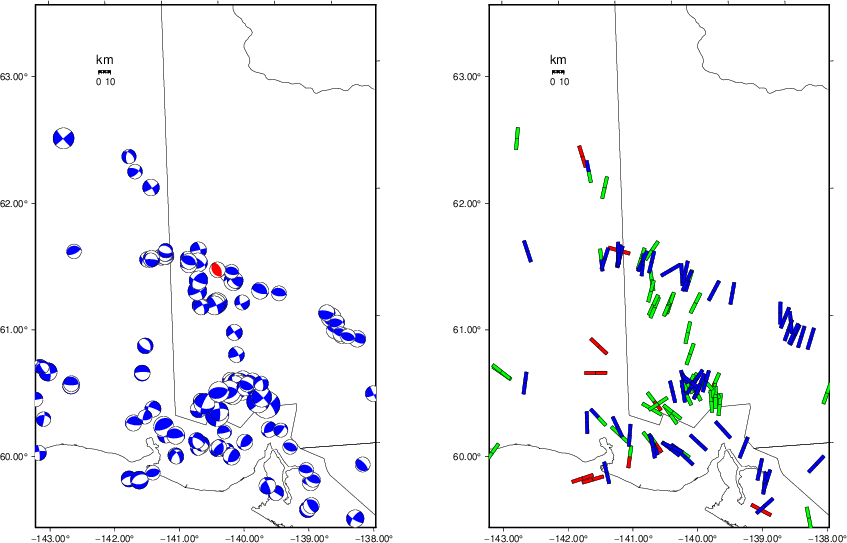

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

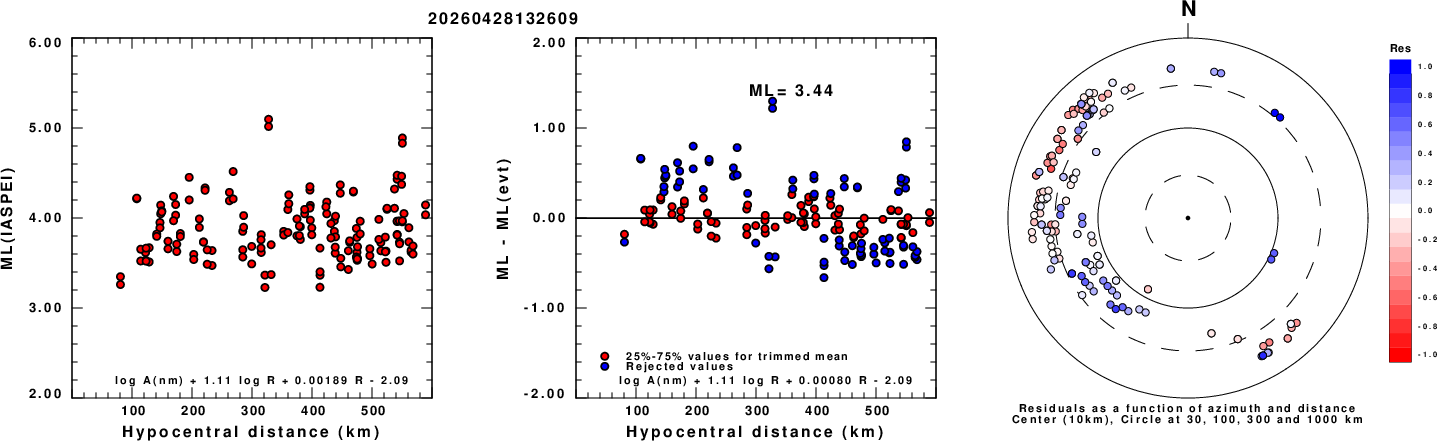

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

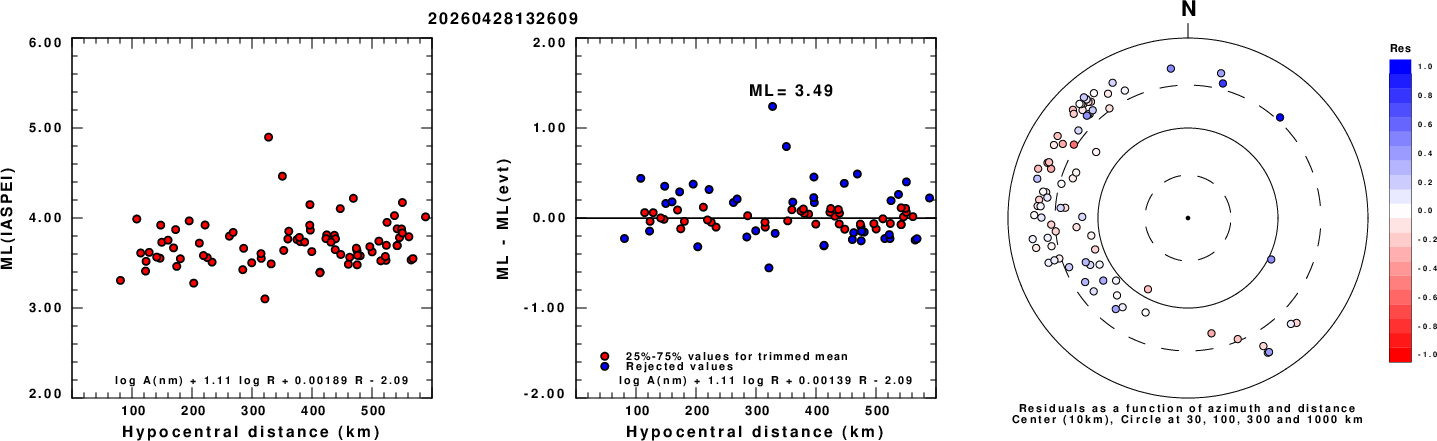

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

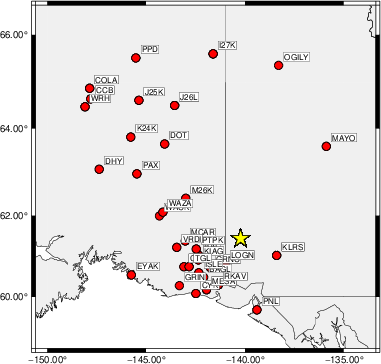

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 175 85 -50 3.85 0.4457
WVFGRD96 2.0 170 85 -55 3.86 0.4431
WVFGRD96 3.0 -5 90 55 3.83 0.4626
WVFGRD96 4.0 -5 90 60 3.80 0.4906
WVFGRD96 5.0 340 80 70 3.77 0.5219
WVFGRD96 6.0 345 70 75 3.80 0.5598
WVFGRD96 7.0 345 65 80 3.82 0.5955
WVFGRD96 8.0 145 35 80 3.87 0.6300
WVFGRD96 9.0 145 35 80 3.87 0.6490
WVFGRD96 10.0 145 35 80 3.90 0.6532
WVFGRD96 11.0 145 35 80 3.90 0.6512
WVFGRD96 12.0 145 35 80 3.90 0.6393
WVFGRD96 13.0 145 35 80 3.89 0.6211
WVFGRD96 14.0 335 55 95 3.89 0.5990
WVFGRD96 15.0 330 60 80 3.88 0.5739
WVFGRD96 16.0 330 65 70 3.88 0.5487
WVFGRD96 17.0 335 65 70 3.89 0.5237
WVFGRD96 18.0 335 65 70 3.89 0.4979
WVFGRD96 19.0 335 70 60 3.90 0.4733
WVFGRD96 20.0 330 75 65 3.92 0.4498
WVFGRD96 21.0 335 75 60 3.93 0.4262
WVFGRD96 22.0 330 80 60 3.93 0.4033
WVFGRD96 23.0 135 60 70 3.94 0.3809
WVFGRD96 24.0 135 60 70 3.94 0.3642
WVFGRD96 25.0 135 65 65 3.95 0.3497
WVFGRD96 26.0 135 65 65 3.95 0.3361
WVFGRD96 27.0 140 65 70 3.95 0.3232
WVFGRD96 28.0 135 65 70 3.96 0.3107
WVFGRD96 29.0 130 65 65 3.97 0.2993
The best solution is
WVFGRD96 10.0 145 35 80 3.90 0.6532
The mechanism corresponding to the best fit is
|
|
|

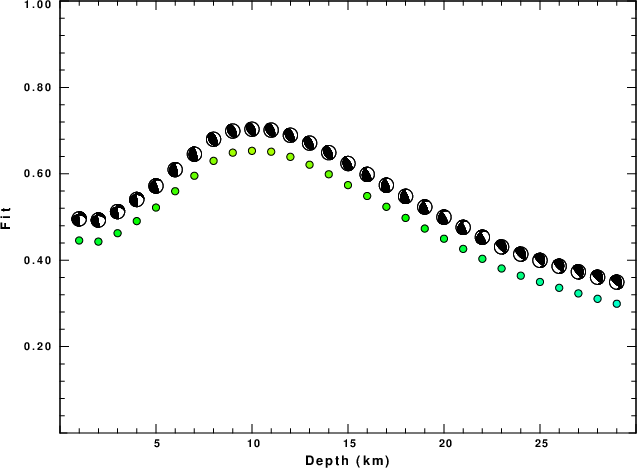

The best fit as a function of depth is given in the following figure:
|
|
|

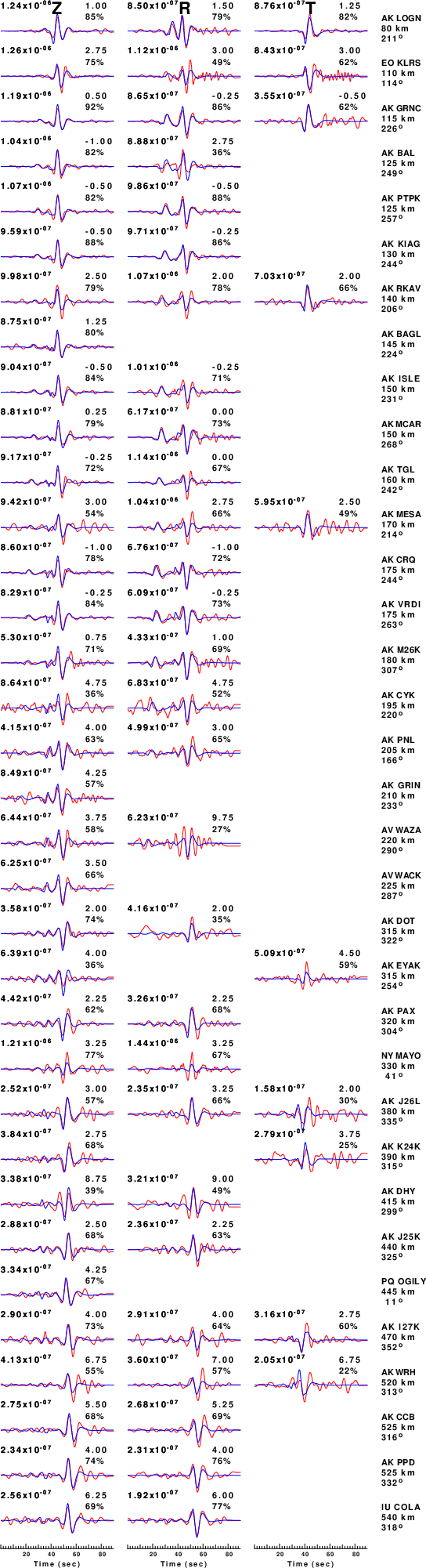

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

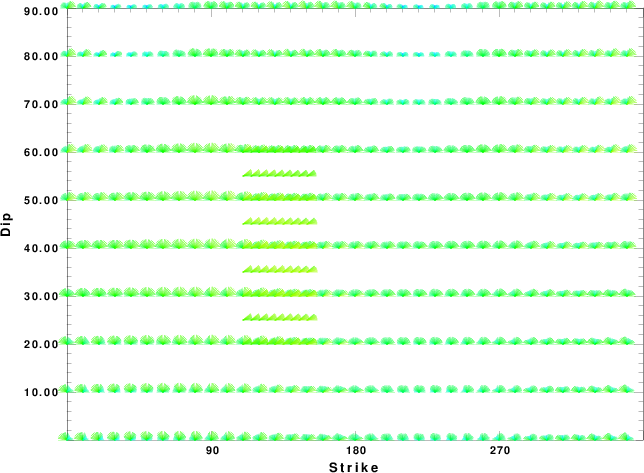

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |

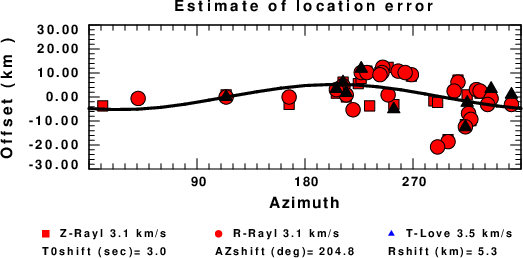

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth
The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 CUS Model with Q from simple gamma values ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.0000 5.0000 2.8900 2.5000 0.172E-02 0.387E-02 0.00 0.00 1.00 1.00 9.0000 6.1000 3.5200 2.7300 0.160E-02 0.363E-02 0.00 0.00 1.00 1.00 10.0000 6.4000 3.7000 2.8200 0.149E-02 0.336E-02 0.00 0.00 1.00 1.00 20.0000 6.7000 3.8700 2.9020 0.000E-04 0.000E-04 0.00 0.00 1.00 1.00 0.0000 8.1500 4.7000 3.3640 0.194E-02 0.431E-02 0.00 0.00 1.00 1.00
