The ANSS event ID is nn00914068 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00914068/executive.

2026/04/14 01:29:11 39.330 -119.015 10.0 5.7 Nevada

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2026/04/14 01:29:11.0 39.33 -119.01 10.0 5.7 Nevada Stations used: BK.AONC BK.BIGV BK.BONV BK.BUCR BK.EAGL BK.GCKB BK.GTSB BK.GUMB BK.HALS BK.HULI BK.LCOW BK.MHC BK.MMI BK.MNLT BK.MZTA BK.PATT BK.PETY BK.PKD BK.RAVE BK.SBAR BK.SWNM BK.WELL BK.YUBA CI.FUR CI.ISA CI.LRL CI.MPM CI.RPK CI.SLA CI.VES IM.NV31 NC.AFD NC.JCD NC.KHMB NC.LDH NC.LTC NC.MED NC.PMPB UO.ADEL UO.HAMAK UO.JAZZ UO.RANT UO.SLPT UO.WOOD US.ELK US.WVOR UW.TREE Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.025 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 4.17e+24 dyne-cm Mw = 5.68 Z = 8 km Plane Strike Dip Rake NP1 240 90 -20 NP2 330 70 -180 Principal Axes: Axis Value Plunge Azimuth T 4.17e+24 14 287 N 0.00e+00 70 60 P -4.17e+24 14 193 Moment Tensor: (dyne-cm) Component Value Mxx -3.39e+24 Mxy -1.96e+24 Mxz 1.23e+24 Myy 3.39e+24 Myz -7.13e+23 Mzz 1.25e+17 -------------- #--------------------- #######--------------------- ###########------------------- ##############-------------------- #################------------------- ####################-------------##### # ##################---------######### # T ###################-----############ ## ####################-################ #######################---################ ###################--------############### ################------------############## ############----------------############ #########--------------------########### #####-----------------------########## ----------------------------######## ---------------------------####### -------------------------##### -------- -------------#### ----- P -------------# - ---------- Global CMT Convention Moment Tensor: R T P 1.25e+17 1.23e+24 7.13e+23 1.23e+24 -3.39e+24 1.96e+24 7.13e+23 1.96e+24 3.39e+24 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20260414012911/index.html

Preferred Solution

      STK = 240
      DIP = 90
     RAKE = -20
       MW = 5.68
       HS = 8.0

The NDK file is 20260414012911.ndk The waveform inversion is preferred.

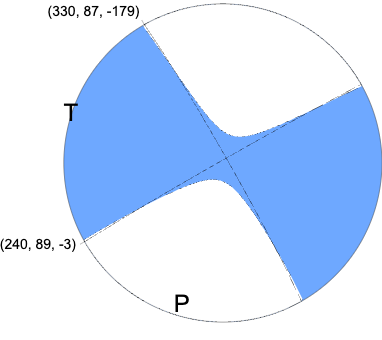

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

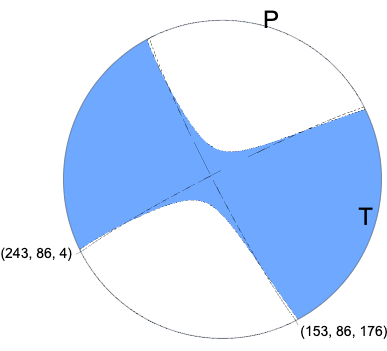

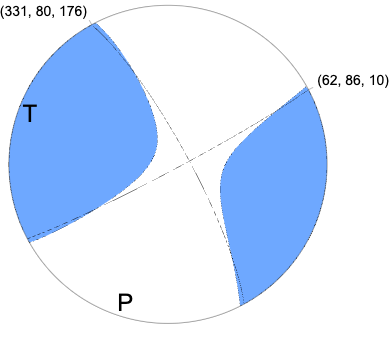

SLU	USGSMT	USGSMWR	USGSW	UNR
USGS/SLU Moment Tensor Solution ENS 2026/04/14 01:29:11.0 39.33 -119.01 10.0 5.7 Nevada Stations used: BK.AONC BK.BIGV BK.BONV BK.BUCR BK.EAGL BK.GCKB BK.GTSB BK.GUMB BK.HALS BK.HULI BK.LCOW BK.MHC BK.MMI BK.MNLT BK.MZTA BK.PATT BK.PETY BK.PKD BK.RAVE BK.SBAR BK.SWNM BK.WELL BK.YUBA CI.FUR CI.ISA CI.LRL CI.MPM CI.RPK CI.SLA CI.VES IM.NV31 NC.AFD NC.JCD NC.KHMB NC.LDH NC.LTC NC.MED NC.PMPB UO.ADEL UO.HAMAK UO.JAZZ UO.RANT UO.SLPT UO.WOOD US.ELK US.WVOR UW.TREE Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.025 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 4.17e+24 dyne-cm Mw = 5.68 Z = 8 km Plane Strike Dip Rake NP1 240 90 -20 NP2 330 70 -180 Principal Axes: Axis Value Plunge Azimuth T 4.17e+24 14 287 N 0.00e+00 70 60 P -4.17e+24 14 193 Moment Tensor: (dyne-cm) Component Value Mxx -3.39e+24 Mxy -1.96e+24 Mxz 1.23e+24 Myy 3.39e+24 Myz -7.13e+23 Mzz 1.25e+17 -------------- #--------------------- #######--------------------- ###########------------------- ##############-------------------- #################------------------- ####################-------------##### # ##################---------######### # T ###################-----############ ## ####################-################ #######################---################ ###################--------############### ################------------############## ############----------------############ #########--------------------########### #####-----------------------########## ----------------------------######## ---------------------------####### -------------------------##### -------- -------------#### ----- P -------------# - ---------- Global CMT Convention Moment Tensor: R T P 1.25e+17 1.23e+24 7.13e+23 1.23e+24 -3.39e+24 1.96e+24 7.13e+23 1.96e+24 3.39e+24 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20260414012911/index.html	Body-wave Moment Tensor (Mwb) Moment 3.631e+17 N-m Magnitude 5.64 Mwb Depth 12.0 km Percent DC 91% Half Duration - Catalog US Data Source US Contributor US Nodal Planes Plane Strike Dip Rake NP1 330 87 -179 NP2 240 89 -3 Principal Axes Axis Value Plunge Azimuth T 3.546e+17 1 285 N 0.164e+17 87 35 P -3.711e+17 3 195	egional Moment Tensor (Mwr) Moment 4.235e+17 N-m Magnitude 5.68 Mwr Depth 7.0 km Percent DC 79% Half Duration - Catalog US Data Source US Contributor US Nodal Planes Plane Strike Dip Rake NP1 331 80 176 NP2 62 86 10 Principal Axes Axis Value Plunge Azimuth T 4.449e+17 10 287 N -0.467e+17 79 81 P -3.982e+17 5 196	W-phase Moment Tensor (Mww) Moment 4.144e+17 N-m Magnitude 5.68 Mww Depth 11.5 km Percent DC 88% Half Duration 1.50 s Catalog US Data Source US Contributor US Nodal Planes Plane Strike Dip Rake NP1 243 86 4 NP2 153 86 176 Principal Axes Axis Value Plunge Azimuth T 4.008e+17 6 108 N 0.260e+17 84 287 P -4.268e+17 0 18	Moment Tensor Moment 4.108e+17 N-m Magnitude 5.68 Depth 5.0 km Percent DC 96% Half Duration - Catalog NN Data Source NN Contributor NN Nodal Planes Plane Strike Dip Rake NP1 330 85 170 NP2 61 80 5 Principal Axes Axis Value Plunge Azimuth T 4.144e+17 10 285 N -0.073e+17 79 123 P -4.071e+17 3 16

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

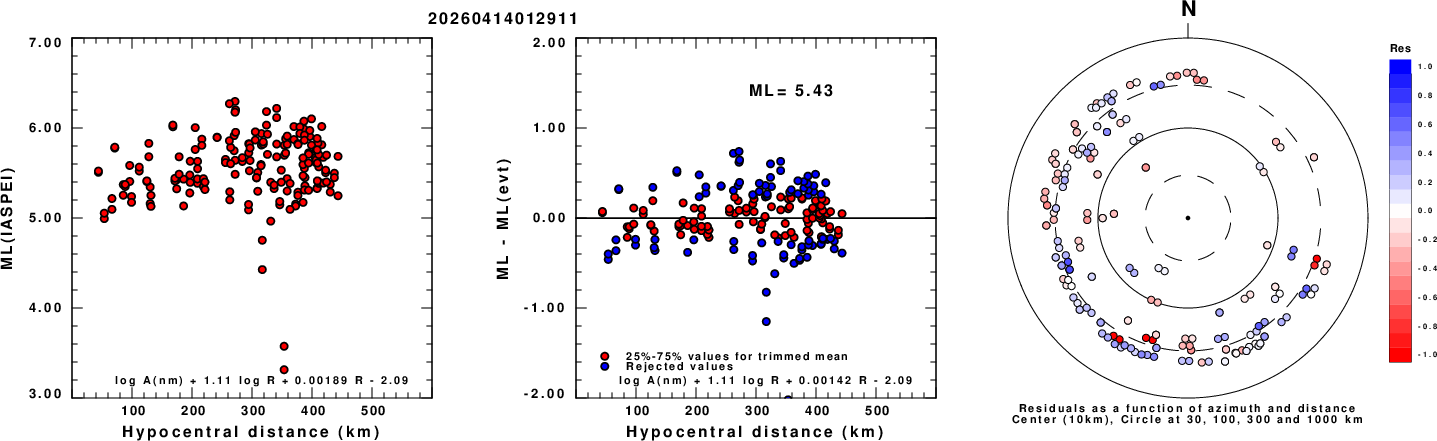

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

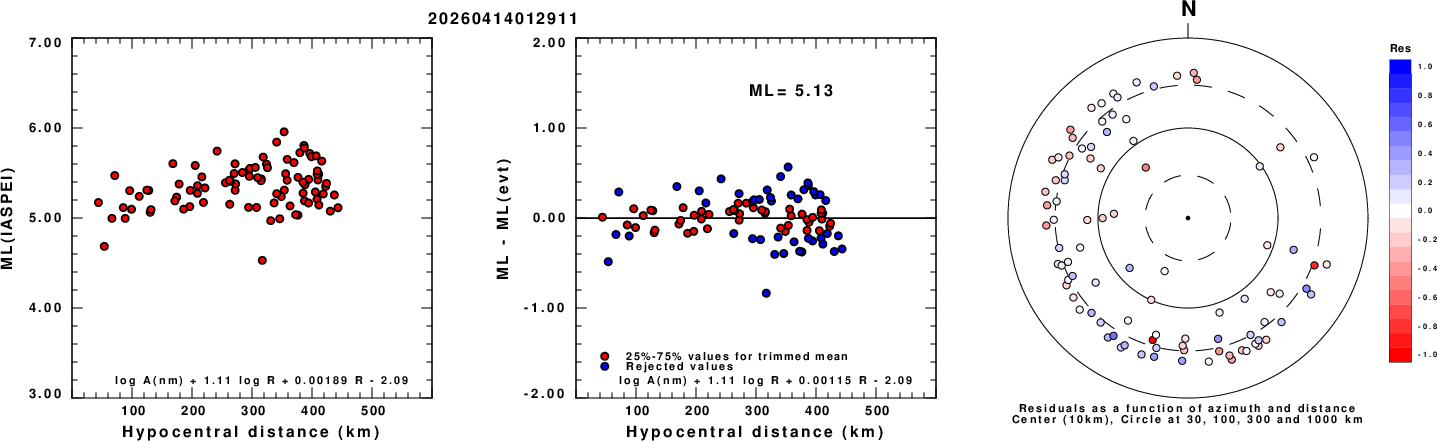

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

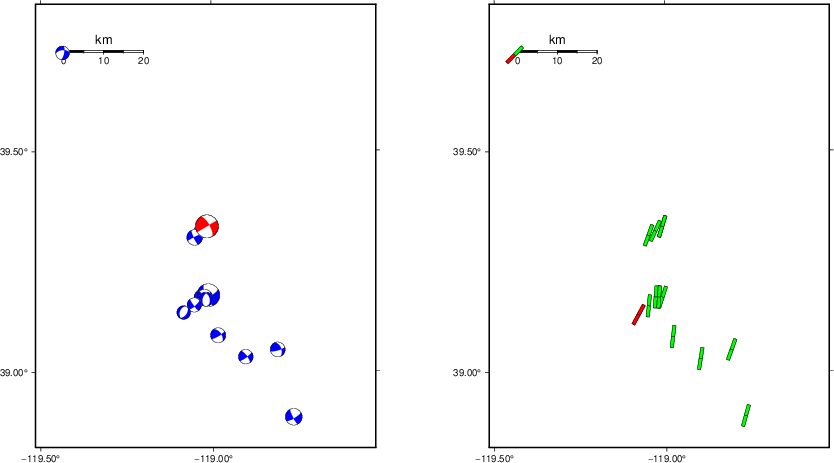

Context

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

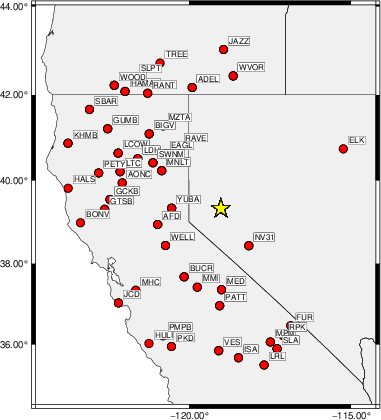

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.025 n 3
lp c 0.06 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   240    90     0   5.42 0.5335
WVFGRD96    2.0    60    80   -10   5.51 0.6413
WVFGRD96    3.0    60    80   -10   5.55 0.6931
WVFGRD96    4.0    60    85    -5   5.58 0.7207
WVFGRD96    5.0   240    90   -10   5.60 0.7354
WVFGRD96    6.0    60    85    15   5.63 0.7449
WVFGRD96    7.0    60    85    15   5.65 0.7546
WVFGRD96    8.0   240    90   -20   5.68 0.7625
WVFGRD96    9.0   240    90   -20   5.70 0.7621
WVFGRD96   10.0    60    85    20   5.71 0.7620
WVFGRD96   11.0    60    85    20   5.72 0.7596
WVFGRD96   12.0   240    90   -20   5.73 0.7548
WVFGRD96   13.0    60    85    20   5.74 0.7493
WVFGRD96   14.0   240    90   -20   5.75 0.7401
WVFGRD96   15.0    60    85    15   5.76 0.7334
WVFGRD96   16.0    60    85    15   5.77 0.7234
WVFGRD96   17.0    60    85    15   5.78 0.7118
WVFGRD96   18.0    60    85    15   5.78 0.7004
WVFGRD96   19.0    60    85    15   5.79 0.6878
WVFGRD96   20.0    60    85    15   5.80 0.6738
WVFGRD96   21.0    60    85    15   5.80 0.6594
WVFGRD96   22.0    60    85    15   5.81 0.6442
WVFGRD96   23.0    60    85    15   5.82 0.6283
WVFGRD96   24.0    60    85    15   5.82 0.6119
WVFGRD96   25.0    60    85    15   5.83 0.5956
WVFGRD96   26.0   240    85   -10   5.83 0.5783
WVFGRD96   27.0   240    85   -10   5.84 0.5617
WVFGRD96   28.0   240    85   -10   5.84 0.5454
WVFGRD96   29.0   240    85   -10   5.85 0.5289

The best solution is

WVFGRD96    8.0   240    90   -20   5.68 0.7625

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

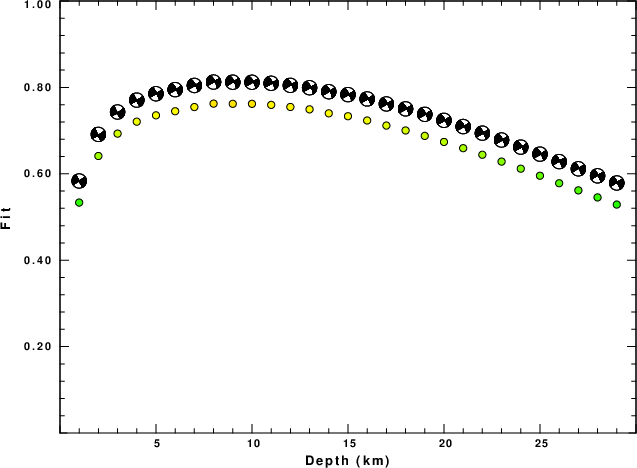

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

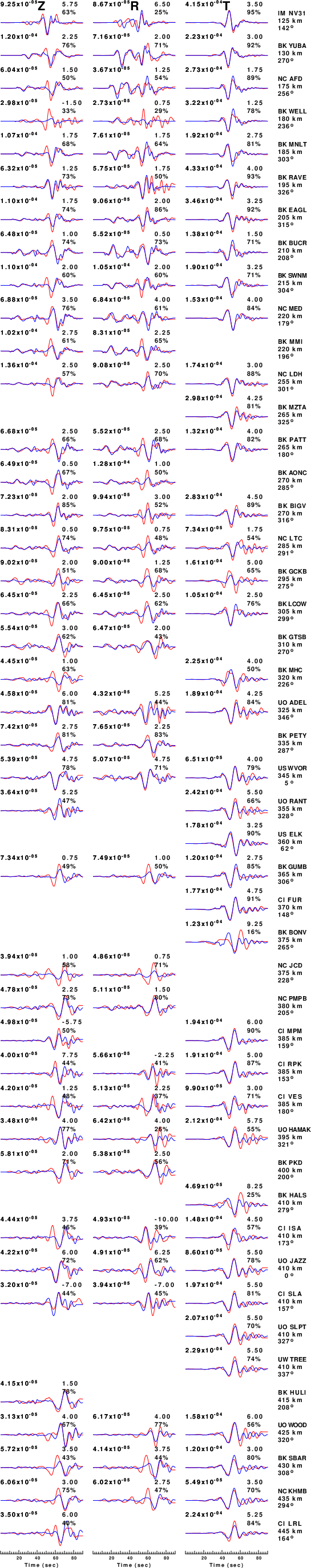

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.025 n 3
lp c 0.06 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

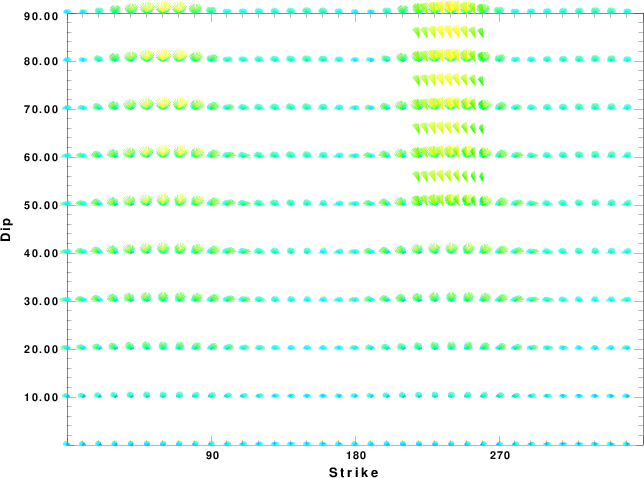

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

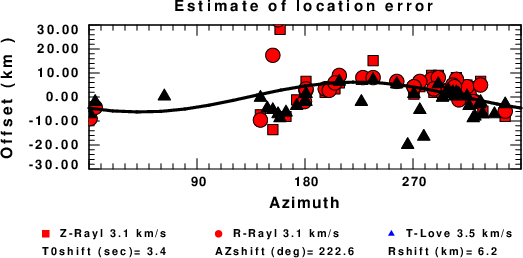

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
