Location

Location ANSS

The ANSS event ID is tx2026grfivz and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/tx2026grfivz/executive.

2026/04/05 08:35:29 31.642 -104.442 6.1 3.6 Texas

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2026/04/05 08:35:29.0 31.64 -104.44 6.1 3.6 Texas Stations used: 4O.CT01 4O.CT02 4O.CV01 4O.SA01 4O.SA02 4O.SA04 4O.WB02 4O.WB04 4O.WB06 4O.WB08 4O.WB09 4O.WW01 4T.NM02 TX.PB09 TX.PB10 TX.PB11 TX.PB12 TX.PB23 TX.PB24 TX.PB26 TX.PB31 TX.PB33 TX.PB34 TX.PB39 TX.PB40 TX.PECS Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +30 rtr taper w 0.1 hp c 0.05 n 3 lp c 0.15 n 3 Best Fitting Double Couple Mo = 1.08e+21 dyne-cm Mw = 3.29 Z = 7 km Plane Strike Dip Rake NP1 230 60 65 NP2 93 38 126 Principal Axes: Axis Value Plunge Azimuth T 1.08e+21 65 94 N 0.00e+00 21 243 P -1.08e+21 12 338 Moment Tensor: (dyne-cm) Component Value Mxx -8.90e+20 Mxy 3.50e+20 Mxz -2.29e+20 Myy 3.92e+19 Myz 4.91e+20 Mzz 8.51e+20 ------------ --- P ---------------- ------ ------------------- ------------------------------ -----------------------########### -------------------################# -----------------##################### ----------------######################## --------------########################## -------------############################# -----------############### ############# #---------################ T ############# ##-------################# ############- ##-----################################- ####--###############################--- ####-#############################---- ##-----#######################------ #----------#############---------- ------------------------------ ---------------------------- ---------------------- -------------- Global CMT Convention Moment Tensor: R T P 8.51e+20 -2.29e+20 -4.91e+20 -2.29e+20 -8.90e+20 -3.50e+20 -4.91e+20 -3.50e+20 3.92e+19 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20260405083529/index.html

Preferred Solution

      STK = 230
      DIP = 60
     RAKE = 65
       MW = 3.29
       HS = 7.0

The NDK file is 20260405083529.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

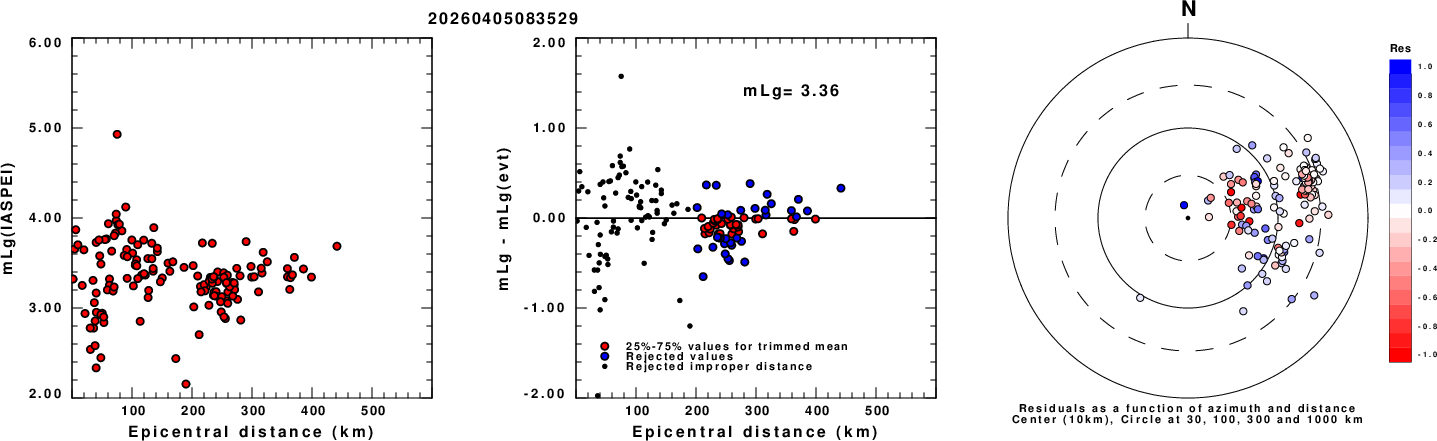

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

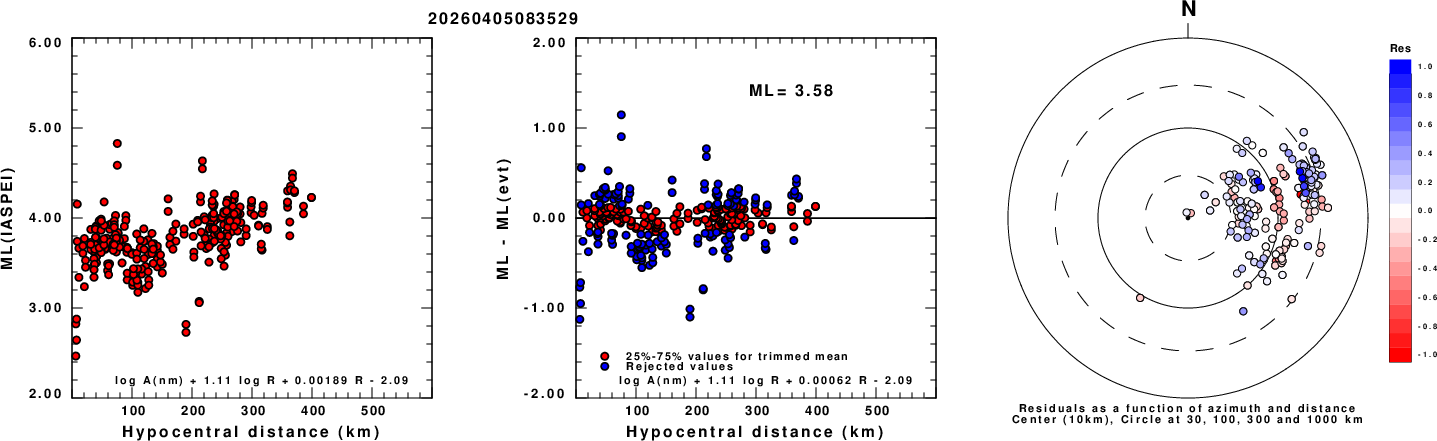

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

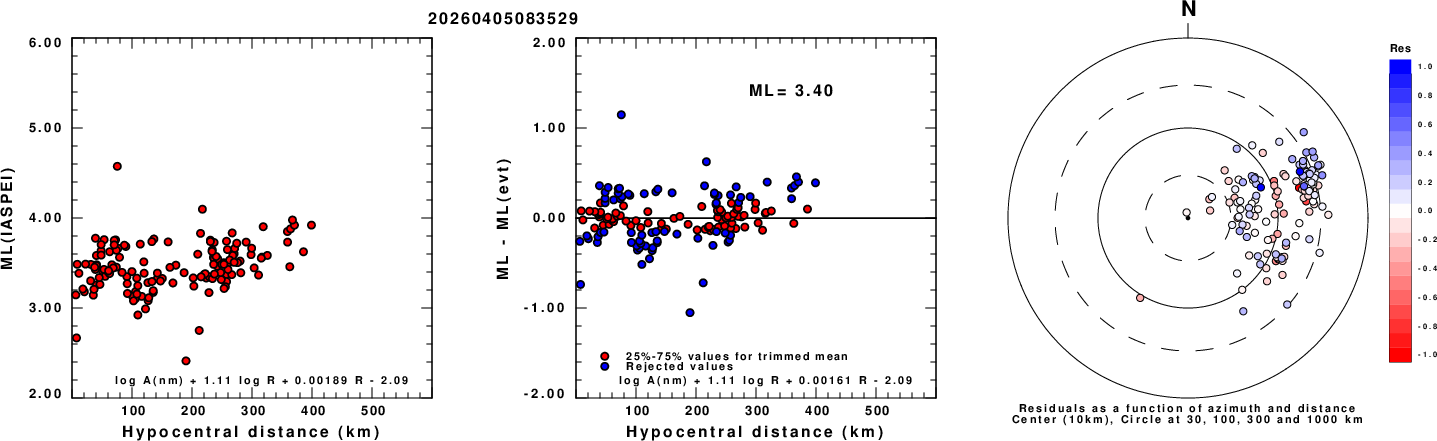

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

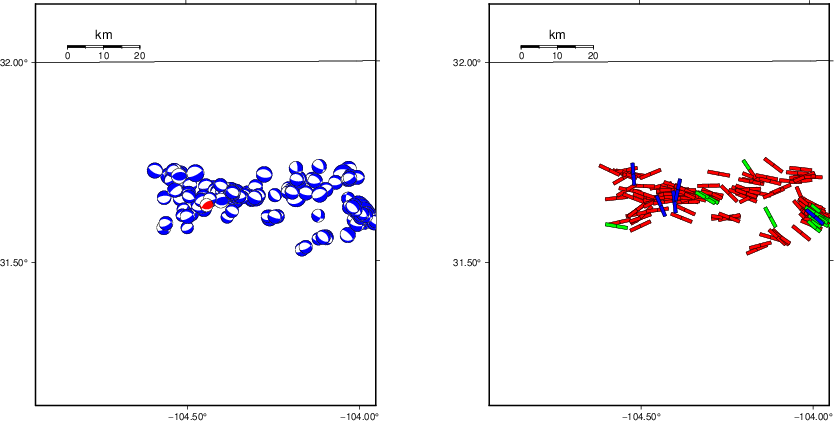

Context

Waveform Inversion using wvfgrd96

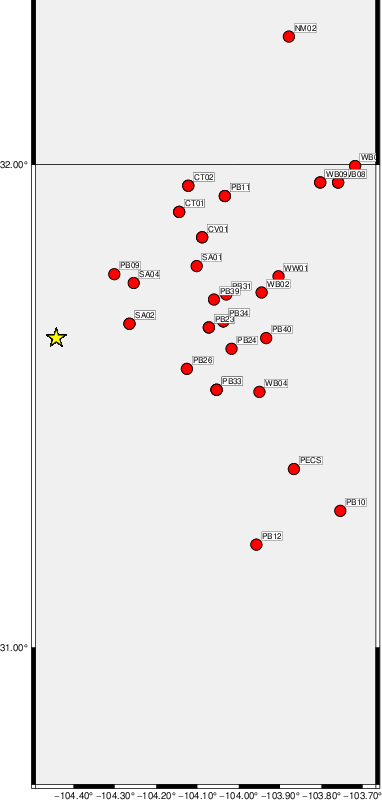

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +30
rtr
taper w 0.1
hp c 0.05 n 3
lp c 0.15 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   200    70   -30   2.75 0.1958
WVFGRD96    2.0   190    60   -50   2.98 0.2579
WVFGRD96    3.0   215    70    55   3.08 0.2887
WVFGRD96    4.0   240    30    15   3.10 0.3605
WVFGRD96    5.0   220    65    60   3.21 0.4122
WVFGRD96    6.0   225    60    60   3.25 0.4432
WVFGRD96    7.0   230    60    65   3.29 0.4586
WVFGRD96    8.0   225    65    70   3.38 0.4528
WVFGRD96    9.0   230    60    70   3.41 0.4476
WVFGRD96   10.0   230    60    70   3.44 0.4340
WVFGRD96   11.0   240    60    80   3.49 0.4187
WVFGRD96   12.0   240    60    80   3.51 0.3999
WVFGRD96   13.0   245    55    75   3.52 0.3818
WVFGRD96   14.0   240    55    70   3.53 0.3681
WVFGRD96   15.0   240    55    70   3.55 0.3528
WVFGRD96   16.0   240    55    65   3.55 0.3347
WVFGRD96   17.0   240    55    65   3.56 0.3194
WVFGRD96   18.0   240    55    65   3.57 0.3053
WVFGRD96   19.0   245    70    75   3.62 0.2996
WVFGRD96   20.0   245    70    70   3.63 0.3045
WVFGRD96   21.0    55    45    45   3.48 0.3096
WVFGRD96   22.0    55    45    50   3.51 0.3196
WVFGRD96   23.0    60    40    50   3.52 0.3291
WVFGRD96   24.0    60    40    50   3.53 0.3378
WVFGRD96   25.0    60    40    50   3.53 0.3434
WVFGRD96   26.0   335    85    55   3.53 0.3499
WVFGRD96   27.0   335    85    55   3.55 0.3589
WVFGRD96   28.0   335    85    55   3.56 0.3664
WVFGRD96   29.0   335    85    55   3.57 0.3710

The best solution is

WVFGRD96    7.0   230    60    65   3.29 0.4586

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

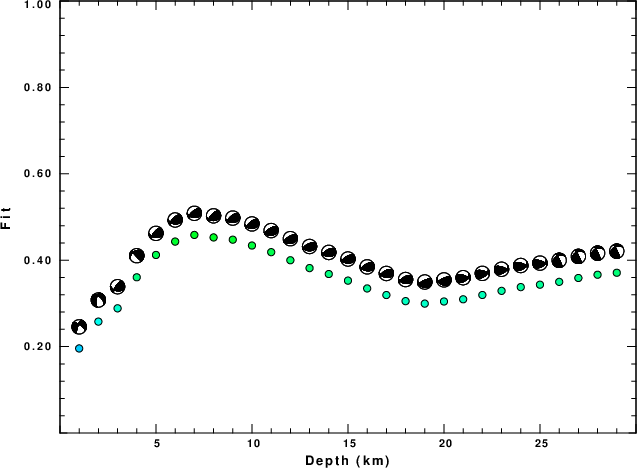

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +30
rtr
taper w 0.1
hp c 0.05 n 3
lp c 0.15 n 3

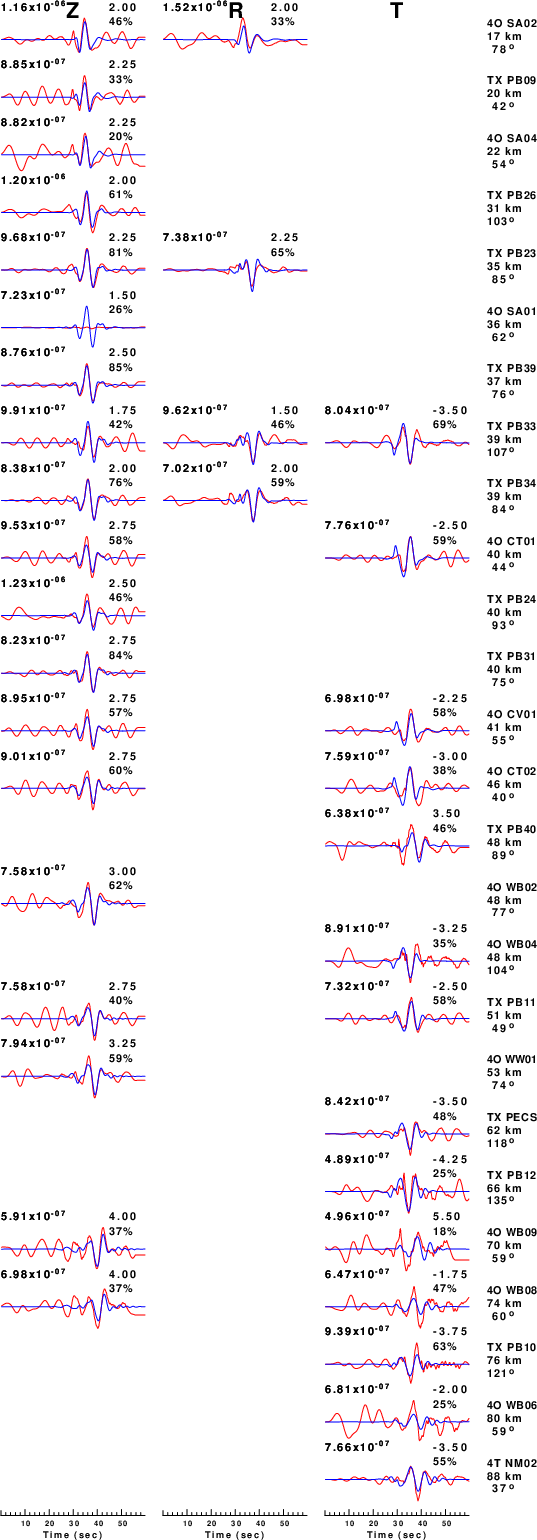

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

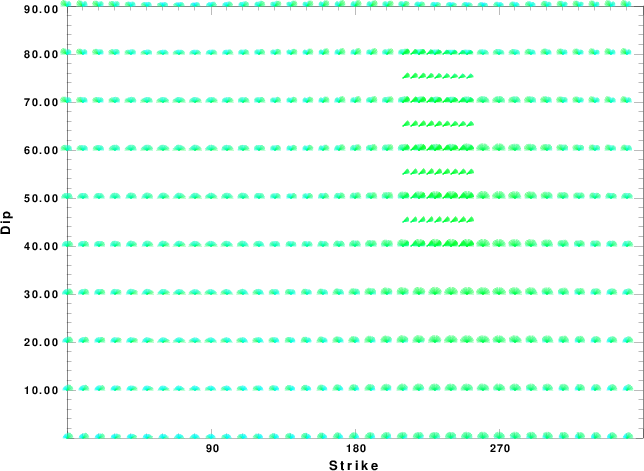

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

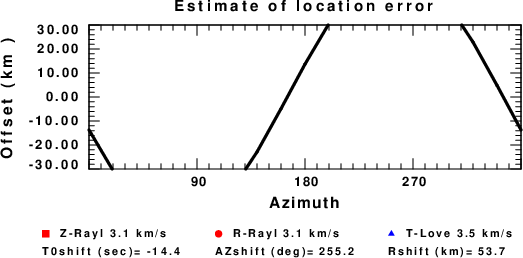

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
