The ANSS event ID is aka2026dnabxq and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/aka2026dnabxq/executive.
2026/02/19 13:49:29 60.713 -143.155 0.4 3.6 Alaska

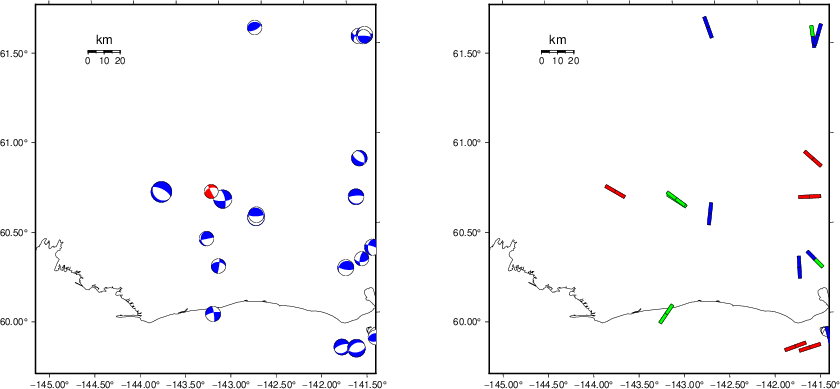

USGS/SLU Moment Tensor Solution
ENS 2026/02/19 13:49:29.0 60.71 -143.15 0.4 3.6 Alaska
Stations used:
AK.BERG AK.BMR AK.DIV AK.EYAK AK.FID AK.GLB AK.GLI AK.GRNC
AK.HIN AK.ISLE AK.KNK AK.L26K AK.LOGN AK.MCAR AK.PAX AK.RAG
AK.RIDG AK.TGL AK.VRDI AV.WAZA
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
br c 0.12 0.25 n 4 p 2
Best Fitting Double Couple
Mo = 2.02e+21 dyne-cm
Mw = 3.47
Z = 15 km
Plane Strike Dip Rake
NP1 155 85 -45
NP2 250 45 -173
Principal Axes:
Axis Value Plunge Azimuth
T 2.02e+21 26 211
N 0.00e+00 45 330
P -2.02e+21 34 102
Moment Tensor: (dyne-cm)
Component Value
Mxx 1.13e+21
Mxy 1.01e+21
Mxz -4.81e+20
Myy -8.86e+20
Myz -1.33e+21
Mzz -2.48e+20
##############
---###################
------######################
--------######################
----------##########-----#########
------------#--------------------###
-----------###-----------------------#
---------#######------------------------
-------##########-----------------------
------############------------------------
-----##############-----------------------
---#################------------- ------
---##################------------ P ------
-####################----------- -----
-#####################------------------
######################----------------
######################--------------
####### ############------------
##### T #############---------
#### ##############-------
###################---
##############
Global CMT Convention Moment Tensor:
R T P
-2.48e+20 -4.81e+20 1.33e+21
-4.81e+20 1.13e+21 -1.01e+21
1.33e+21 -1.01e+21 -8.86e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20260219134929/index.html
|
STK = 155
DIP = 85
RAKE = -45
MW = 3.47
HS = 15.0
The NDK file is 20260219134929.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

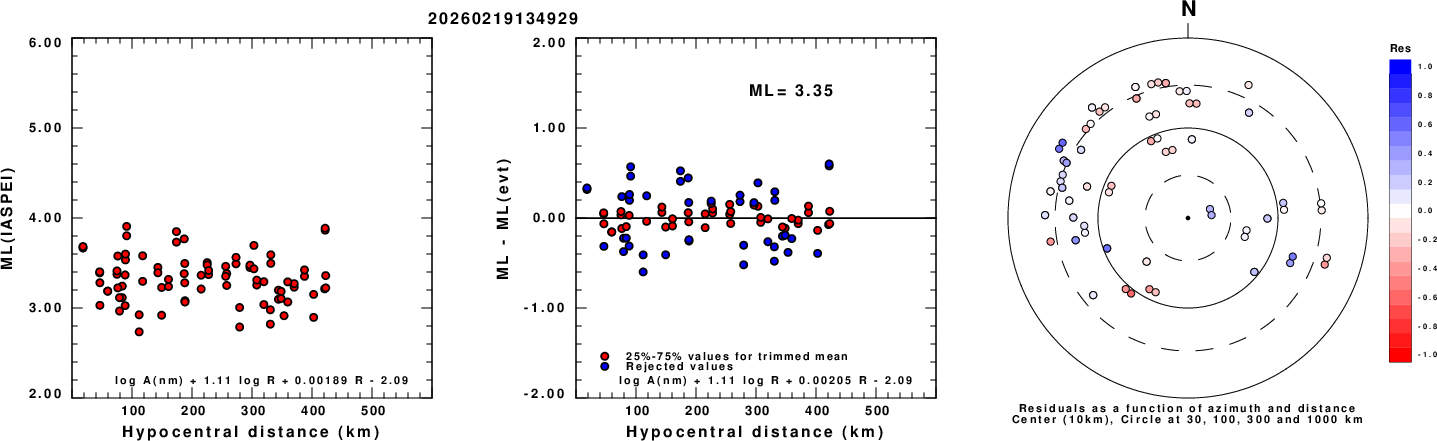

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

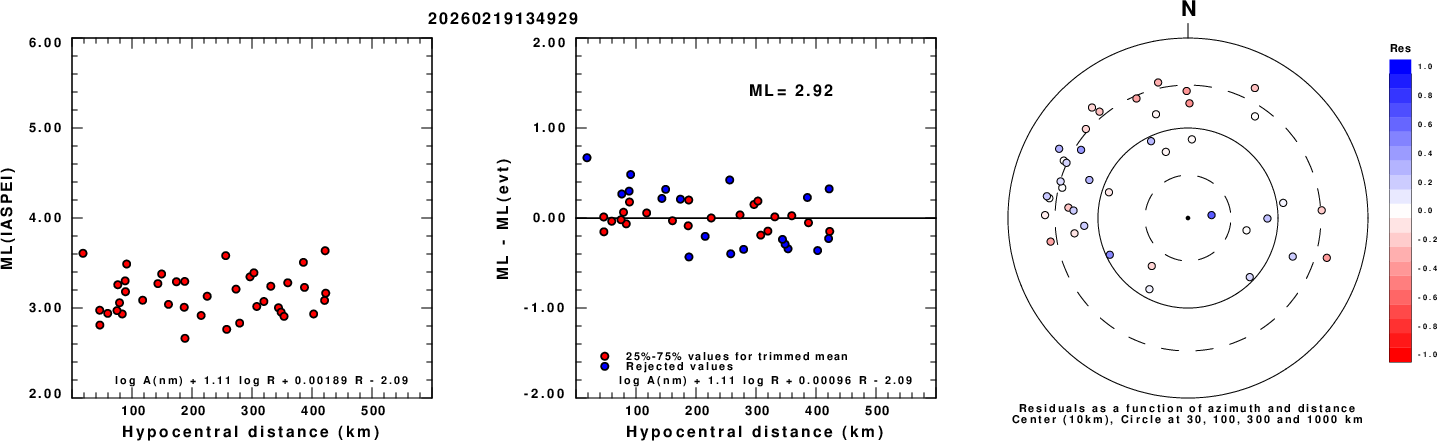

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

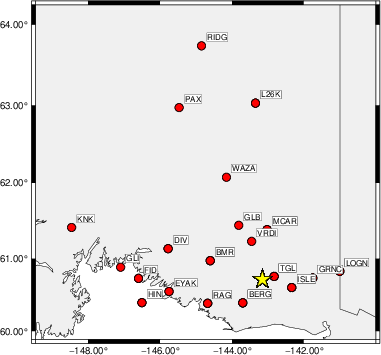

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.08 n 3 br c 0.12 0.25 n 4 p 2The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 330 45 -85 3.14 0.3895
WVFGRD96 2.0 140 45 -90 3.29 0.5626
WVFGRD96 3.0 335 45 -70 3.33 0.5249
WVFGRD96 4.0 155 85 -60 3.38 0.5535
WVFGRD96 5.0 150 80 -60 3.39 0.6297
WVFGRD96 6.0 150 80 -55 3.39 0.6715
WVFGRD96 7.0 145 80 -55 3.40 0.6930
WVFGRD96 8.0 145 80 -60 3.46 0.7067
WVFGRD96 9.0 150 80 -55 3.44 0.7156
WVFGRD96 10.0 155 85 -50 3.43 0.7210
WVFGRD96 11.0 155 85 -50 3.44 0.7260
WVFGRD96 12.0 155 85 -50 3.44 0.7287
WVFGRD96 13.0 155 85 -45 3.45 0.7309
WVFGRD96 14.0 155 85 -45 3.46 0.7322
WVFGRD96 15.0 155 85 -45 3.47 0.7322
WVFGRD96 16.0 340 90 45 3.47 0.7303
WVFGRD96 17.0 160 90 -45 3.48 0.7286
WVFGRD96 18.0 160 90 -45 3.49 0.7256
WVFGRD96 19.0 340 90 45 3.49 0.7222
WVFGRD96 20.0 160 90 -45 3.50 0.7175
WVFGRD96 21.0 160 90 -45 3.52 0.7118
WVFGRD96 22.0 160 90 -45 3.53 0.7052
WVFGRD96 23.0 160 90 -45 3.53 0.6975
WVFGRD96 24.0 340 85 45 3.54 0.6895
WVFGRD96 25.0 340 85 45 3.55 0.6809
WVFGRD96 26.0 160 90 -50 3.56 0.6699
WVFGRD96 27.0 160 90 -50 3.56 0.6595
WVFGRD96 28.0 160 90 -50 3.57 0.6482
WVFGRD96 29.0 340 85 50 3.57 0.6376
The best solution is
WVFGRD96 15.0 155 85 -45 3.47 0.7322
The mechanism corresponding to the best fit is
|
|
|

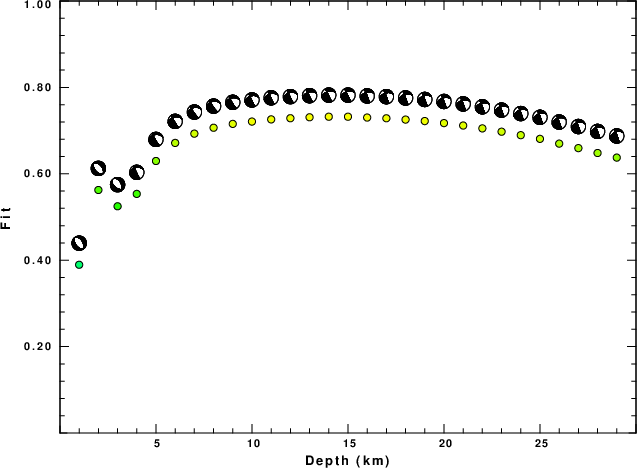

The best fit as a function of depth is given in the following figure:
|
|
|

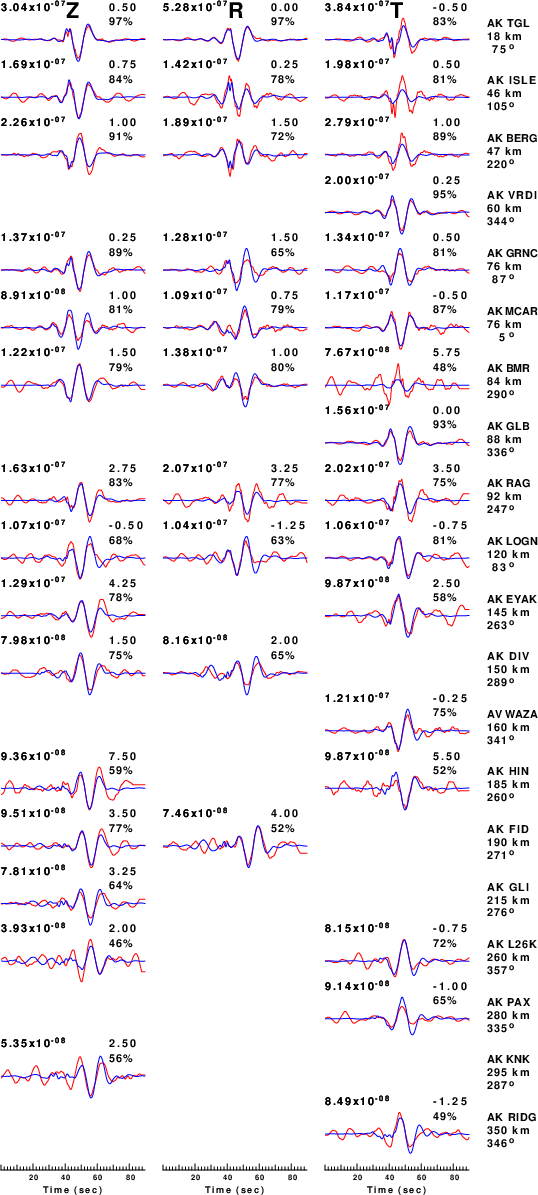

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.08 n 3 br c 0.12 0.25 n 4 p 2
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

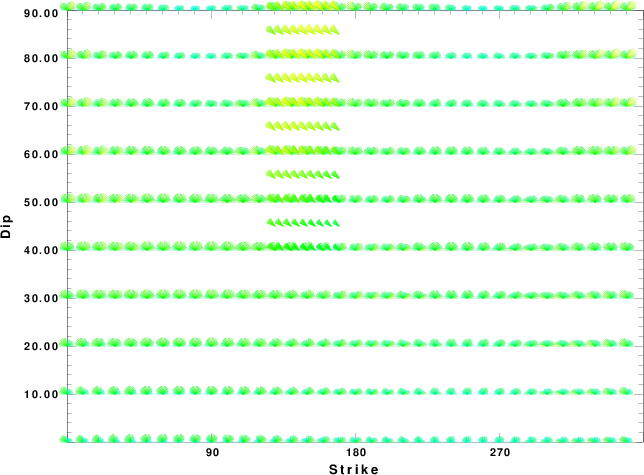

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

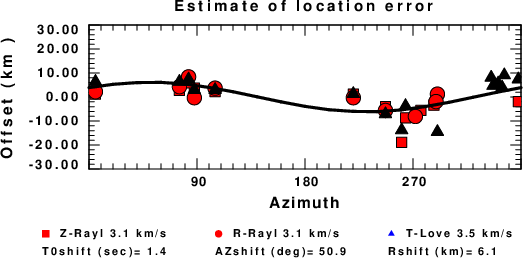

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
