The ANSS event ID is us6000reed and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us6000reed/executive.
2025/10/03 03:19:01 44.564 -112.248 5.0 3.9 Idaho-Montana

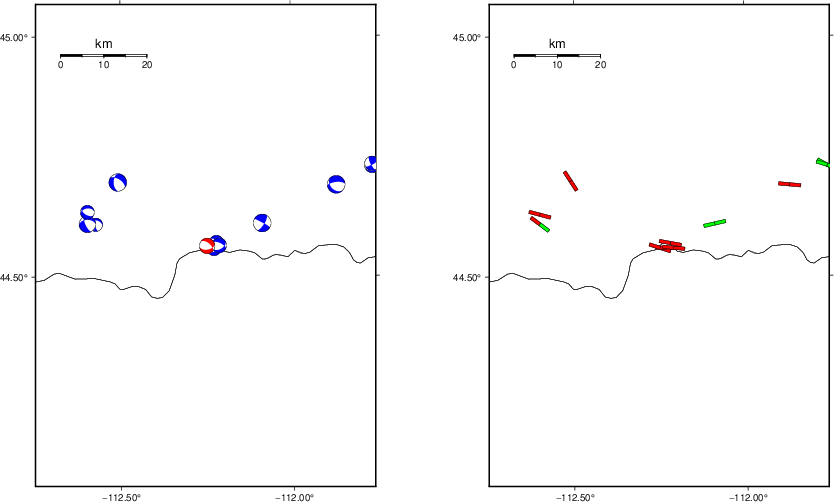

USGS/SLU Moment Tensor Solution
ENS 2025/10/03 03:19:01.0 44.56 -112.25 5.0 3.9 Idaho-Montana
Stations used:
IE.BCYI IE.NPRI IM.PD31 IW.DLMT IW.FXWY IW.IMW IW.LOHW
IW.MFID IW.MOOW IW.PLID IW.SNOW IW.TPAW MB.BCMT MB.BDMT
MB.BNMT MB.CPMT MB.ECMT MB.GBMT MB.LIMT MB.LRM MB.SMMT
MB.SXMT MB.WCMT US.BMO US.BOZ US.HLID US.LKWY US.MSO
US.RLMT WW.BILL WW.CTNW WW.IRMR WW.TYLR WY.YFT WY.YHB
WY.YHL WY.YMP WY.YMR WY.YNE WY.YPP
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 7.24e+21 dyne-cm
Mw = 3.84
Z = 8 km
Plane Strike Dip Rake
NP1 310 55 -55
NP2 79 48 -129
Principal Axes:
Axis Value Plunge Azimuth
T 7.24e+21 4 16
N 0.00e+00 28 108
P -7.24e+21 62 279
Moment Tensor: (dyne-cm)
Component Value
Mxx 6.62e+21
Mxy 2.15e+21
Mxz 2.28e+19
Myy -1.05e+21
Myz 3.13e+21
Mzz -5.58e+21
########### T
############### ####
############################
##############################
--------------####################
-------------------#################
-----------------------###############
--------------------------##############
----------------------------############
------------- ---------------##########-
------------- P ----------------########--
------------- -----------------######---
----------------------------------###-----
----------------------------------------
##------------------------------###-----
####------------------------#######---
########-------------#############--
#################################-
##############################
############################
######################
##############
Global CMT Convention Moment Tensor:
R T P
-5.58e+21 2.28e+19 -3.13e+21
2.28e+19 6.62e+21 -2.15e+21
-3.13e+21 -2.15e+21 -1.05e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20251003031901/index.html
|
STK = 310
DIP = 55
RAKE = -55
MW = 3.84
HS = 8.0
The NDK file is 20251003031901.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.
Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

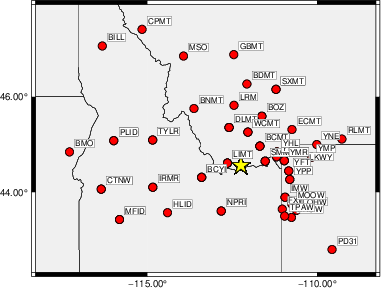

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 145 75 5 3.37 0.3194
WVFGRD96 2.0 140 60 -10 3.54 0.4027
WVFGRD96 3.0 320 75 -55 3.65 0.4583
WVFGRD96 4.0 305 60 -60 3.72 0.5390
WVFGRD96 5.0 305 55 -60 3.74 0.5948
WVFGRD96 6.0 310 55 -55 3.75 0.6169
WVFGRD96 7.0 315 55 -50 3.77 0.6192
WVFGRD96 8.0 310 55 -55 3.84 0.6294
WVFGRD96 9.0 310 55 -50 3.84 0.6078
WVFGRD96 10.0 320 65 -35 3.83 0.5840
WVFGRD96 11.0 325 75 -30 3.83 0.5613
WVFGRD96 12.0 325 75 -25 3.84 0.5381
WVFGRD96 13.0 325 80 -25 3.85 0.5146
WVFGRD96 14.0 325 80 -25 3.86 0.4913
WVFGRD96 15.0 325 85 -25 3.87 0.4680
WVFGRD96 16.0 150 85 25 3.87 0.4458
WVFGRD96 17.0 150 85 25 3.88 0.4244
WVFGRD96 18.0 150 80 25 3.89 0.4035
WVFGRD96 19.0 150 80 25 3.89 0.3836
WVFGRD96 20.0 150 80 20 3.90 0.3647
WVFGRD96 21.0 150 75 25 3.91 0.3470
WVFGRD96 22.0 150 75 25 3.91 0.3317
WVFGRD96 23.0 150 75 20 3.91 0.3180
WVFGRD96 24.0 150 75 25 3.92 0.3060
WVFGRD96 25.0 150 75 25 3.92 0.2966
WVFGRD96 26.0 150 75 25 3.93 0.2891
WVFGRD96 27.0 150 70 25 3.93 0.2826
WVFGRD96 28.0 50 65 -30 3.94 0.2767
WVFGRD96 29.0 50 60 -25 3.95 0.2782
The best solution is
WVFGRD96 8.0 310 55 -55 3.84 0.6294
The mechanism corresponding to the best fit is
|
|
|

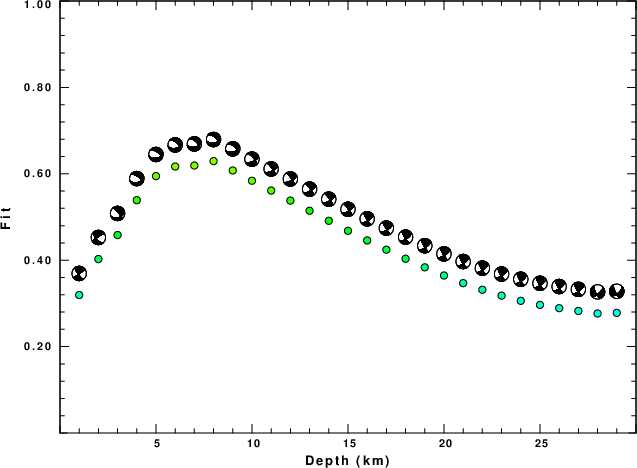

The best fit as a function of depth is given in the following figure:
|
|
|

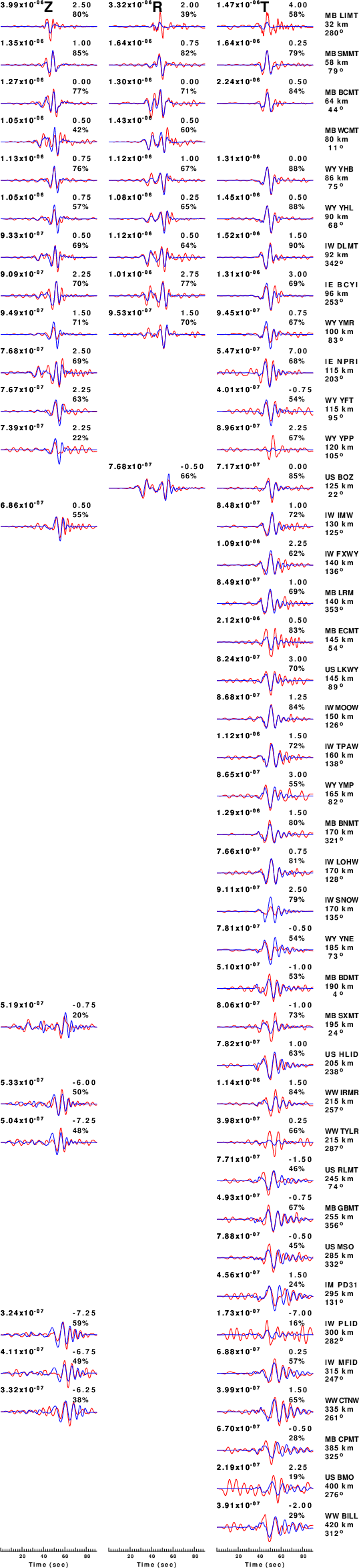

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|
| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

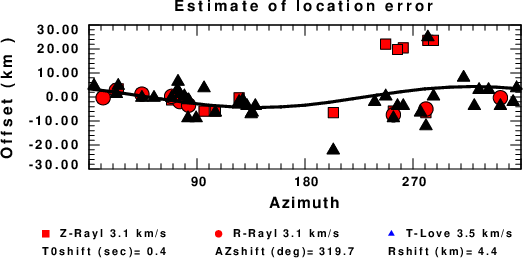

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
