Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.
The ANSS event ID is tx2025runsnd and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/tx2025runsnd/executive.
2025/09/09 23:21:24 31.635 -104.015 6.1 3.7 Texas
USGS/SLU Moment Tensor Solution
ENS 2025/09/09 23:21:24.0 31.64 -104.01 6.1 3.7 Texas
Stations used:
4O.BB01 4O.BP01 4O.CT01 4O.CT02 4O.CV01 4O.DB03 4O.LWM1
4O.MBBB2 4O.MID01 4O.MID02 4O.SA01 4O.SA02 4O.VW01 4O.WW01
4T.NM01 4T.NM02 4T.NM03 TX.ALPN TX.MB08 TX.MB15 TX.MB18
TX.MB25 TX.MNHN TX.ODSA TX.PB01 TX.PB03 TX.PB06 TX.PB07
TX.PB08 TX.PB09 TX.PB10 TX.PB11 TX.PB12 TX.PB13 TX.PB16
TX.PB18 TX.PB21 TX.PB26 TX.PB28 TX.PB29 TX.PB30 TX.PB31
TX.PB33 TX.PB35 TX.PB36 TX.PB38 TX.PB39 TX.PB43 TX.PB44
TX.PB46 TX.PB47 TX.PB54 TX.PCOS TX.PECS
Filtering commands used:
cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.04 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 2.48e+21 dyne-cm
Mw = 3.53
Z = 8 km
Plane Strike Dip Rake
NP1 311 60 -87
NP2 125 30 -95
Principal Axes:
Axis Value Plunge Azimuth
T 2.48e+21 15 39
N 0.00e+00 2 129
P -2.48e+21 75 228
Moment Tensor: (dyne-cm)
Component Value
Mxx 1.34e+21
Mxy 1.04e+21
Mxz 9.06e+20
Myy 8.06e+20
Myz 8.63e+20
Mzz -2.14e+21
##############
######################
######################## #
######################### T ##
------------############### ####
-----------------###################
#--------------------#################
##----------------------################
##------------------------##############
###--------------------------#############
####---------------------------###########
####------------ -------------##########
#####----------- P --------------#########
#####---------- ---------------#######
######----------------------------######
######----------------------------####
#######--------------------------###
#########------------------------#
##########-------------------#
##############---------#####
######################
##############
Global CMT Convention Moment Tensor:
R T P
-2.14e+21 9.06e+20 -8.63e+20
9.06e+20 1.34e+21 -1.04e+21
-8.63e+20 -1.04e+21 8.06e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250909232124/index.html
|
STK = 125
DIP = 30
RAKE = -95
MW = 3.53
HS = 8.0
The NDK file is 20250909232124.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.
Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated.
Right: residuals as a function of distance and azimuth.
Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

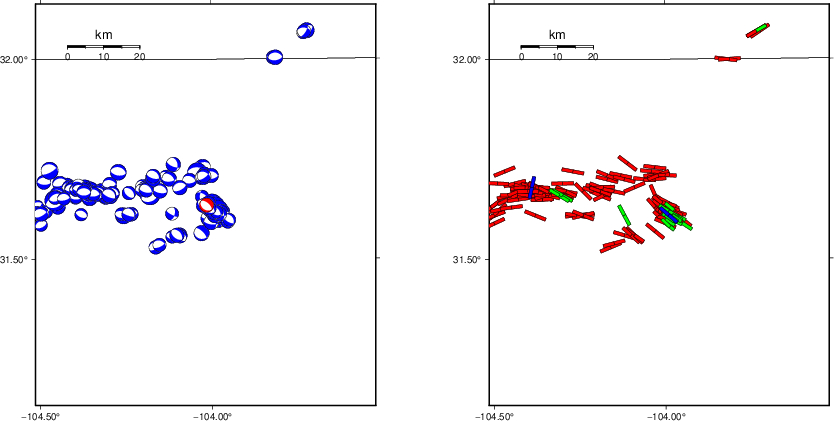

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.04 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 180 45 -30 3.06 0.1518
WVFGRD96 2.0 310 55 -85 3.28 0.2176
WVFGRD96 3.0 140 20 -80 3.37 0.2654
WVFGRD96 4.0 310 70 -90 3.40 0.3220
WVFGRD96 5.0 310 65 -90 3.41 0.3599
WVFGRD96 6.0 310 60 -90 3.44 0.3791
WVFGRD96 7.0 125 30 -95 3.45 0.3808
WVFGRD96 8.0 125 30 -95 3.53 0.3815
WVFGRD96 9.0 125 30 -95 3.53 0.3644
WVFGRD96 10.0 125 30 -95 3.54 0.3405
WVFGRD96 11.0 125 30 -95 3.53 0.3142
WVFGRD96 12.0 125 30 -95 3.53 0.2885
WVFGRD96 13.0 185 60 35 3.51 0.2741
WVFGRD96 14.0 180 60 35 3.53 0.2641
WVFGRD96 15.0 180 65 35 3.54 0.2548
WVFGRD96 16.0 180 65 35 3.55 0.2454
WVFGRD96 17.0 180 65 35 3.56 0.2367
WVFGRD96 18.0 180 65 35 3.57 0.2284
WVFGRD96 19.0 180 65 35 3.58 0.2206
WVFGRD96 20.0 135 50 -85 3.59 0.2150
WVFGRD96 21.0 135 50 -85 3.60 0.2124
WVFGRD96 22.0 135 50 -85 3.61 0.2086
WVFGRD96 23.0 135 50 -85 3.61 0.2044
WVFGRD96 24.0 310 40 -95 3.62 0.1998
WVFGRD96 25.0 130 50 -90 3.62 0.1944
WVFGRD96 26.0 330 40 -65 3.64 0.1909
WVFGRD96 27.0 330 40 -65 3.64 0.1874
WVFGRD96 28.0 330 45 -65 3.64 0.1841
WVFGRD96 29.0 330 45 -65 3.65 0.1830
The best solution is
WVFGRD96 8.0 125 30 -95 3.53 0.3815
The mechanism corresponding to the best fit is
|
|
|
The best fit as a function of depth is given in the following figure:
|
|
|
The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.04 n 3 lp c 0.10 n 3
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|
| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth
The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
