2025/06/23 23:28:09 63.257 -151.820 11.8 4.0 Alaska
Focal Mechanism
USGS/SLU Moment Tensor Solution
ENS 2025/06/23 23:28:09.0 63.26 -151.82 11.8 4.0 Alaska
Stations used:
AK.BPAW AK.CAST AK.CCB AK.DHY AK.DIV AK.DOT AK.FID AK.GCSA
AK.GHO AK.H17K AK.H22K AK.H23K AK.H24K AK.HARP AK.HDA
AK.HIN AK.I21K AK.J17K AK.J19K AK.J20K AK.J25K AK.K24K
AK.KLU AK.KNK AK.L17K AK.L19K AK.L22K AK.L26K AK.M19K
AK.M20K AK.MCK AK.MLY AK.N18K AK.NEA2 AK.O18K AK.O19K
AK.P23K AK.PAX AK.PPD AK.PPLA AK.PWL AK.RC01 AK.RIDG AK.RND
AK.SAW AK.SCM AK.SKN AK.SLK AK.SWD AK.WAT6 AK.WRH AT.PMR
AT.TTA AV.RED AV.SPCL AV.STLK AV.WAZA IM.IL31 IU.COLA
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.40e+22 dyne-cm
Mw = 4.03
Z = 16 km
Plane Strike Dip Rake
NP1 220 60 90
NP2 40 30 90
Principal Axes:
Axis Value Plunge Azimuth
T 1.40e+22 75 130
N 0.00e+00 -0 220
P -1.40e+22 15 310
Moment Tensor: (dyne-cm)
Component Value
Mxx -5.00e+21
Mxy 5.95e+21
Mxz -4.49e+21
Myy -7.10e+21
Myz 5.35e+21
Mzz 1.21e+22
--------------
----------------------
-------------------------##-
-----------------##########
-- P --------------#############--
--- ------------################--
----------------###################---
----------------#####################---
--------------#######################---
--------------#######################-----
------------#########################-----
-----------############ ###########-----
----------############# T ##########------
--------############## #########------
--------#########################-------
------#########################-------
-----########################-------
----######################--------
-####################---------
-################-----------
----------------------
--------------
Global CMT Convention Moment Tensor:
R T P
1.21e+22 -4.49e+21 -5.35e+21
-4.49e+21 -5.00e+21 -5.95e+21
-5.35e+21 -5.95e+21 -7.10e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250623232809/index.html
|
Preferred Solution
The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is
STK = 220
DIP = 60
RAKE = 90
MW = 4.03
HS = 16.0
The NDK file is 20250623232809.ndk
The waveform inversion is preferred.
Moment Tensor Comparison
The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
| SLU |
USGSMWR |
USGS/SLU Moment Tensor Solution
ENS 2025/06/23 23:28:09.0 63.26 -151.82 11.8 4.0 Alaska
Stations used:
AK.BPAW AK.CAST AK.CCB AK.DHY AK.DIV AK.DOT AK.FID AK.GCSA
AK.GHO AK.H17K AK.H22K AK.H23K AK.H24K AK.HARP AK.HDA
AK.HIN AK.I21K AK.J17K AK.J19K AK.J20K AK.J25K AK.K24K
AK.KLU AK.KNK AK.L17K AK.L19K AK.L22K AK.L26K AK.M19K
AK.M20K AK.MCK AK.MLY AK.N18K AK.NEA2 AK.O18K AK.O19K
AK.P23K AK.PAX AK.PPD AK.PPLA AK.PWL AK.RC01 AK.RIDG AK.RND
AK.SAW AK.SCM AK.SKN AK.SLK AK.SWD AK.WAT6 AK.WRH AT.PMR
AT.TTA AV.RED AV.SPCL AV.STLK AV.WAZA IM.IL31 IU.COLA
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.40e+22 dyne-cm
Mw = 4.03
Z = 16 km
Plane Strike Dip Rake
NP1 220 60 90
NP2 40 30 90
Principal Axes:
Axis Value Plunge Azimuth
T 1.40e+22 75 130
N 0.00e+00 -0 220
P -1.40e+22 15 310
Moment Tensor: (dyne-cm)
Component Value
Mxx -5.00e+21
Mxy 5.95e+21
Mxz -4.49e+21
Myy -7.10e+21
Myz 5.35e+21
Mzz 1.21e+22
--------------
----------------------
-------------------------##-
-----------------##########
-- P --------------#############--
--- ------------################--
----------------###################---
----------------#####################---
--------------#######################---
--------------#######################-----
------------#########################-----
-----------############ ###########-----
----------############# T ##########------
--------############## #########------
--------#########################-------
------#########################-------
-----########################-------
----######################--------
-####################---------
-################-----------
----------------------
--------------
Global CMT Convention Moment Tensor:
R T P
1.21e+22 -4.49e+21 -5.35e+21
-4.49e+21 -5.00e+21 -5.95e+21
-5.35e+21 -5.95e+21 -7.10e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250623232809/index.html
|
Regional Moment Tensor (Mwr)
Moment
1.605e+15 N-m
Magnitude
4.07 Mwr
Depth
17.0 km
Percent DC
94%
Half Duration
-
Catalog
US
Data Source
US
Contributor
US
Nodal Planes
Plane Strike Dip Rake
NP1 221 54 95
NP2 32 36 83
Principal Axes
Axis Value Plunge Azimuth
T 1.628e+15 80 153
N -0.048e+15 4 38
P -1.581e+15 9 307
|
Magnitudes
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula
for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.
ML Magnitude

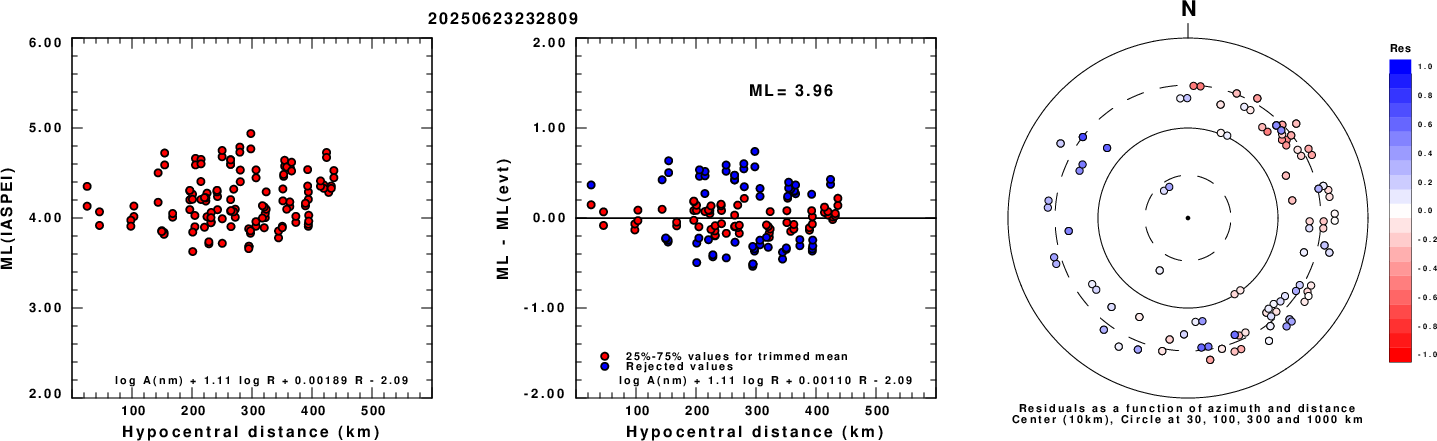

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

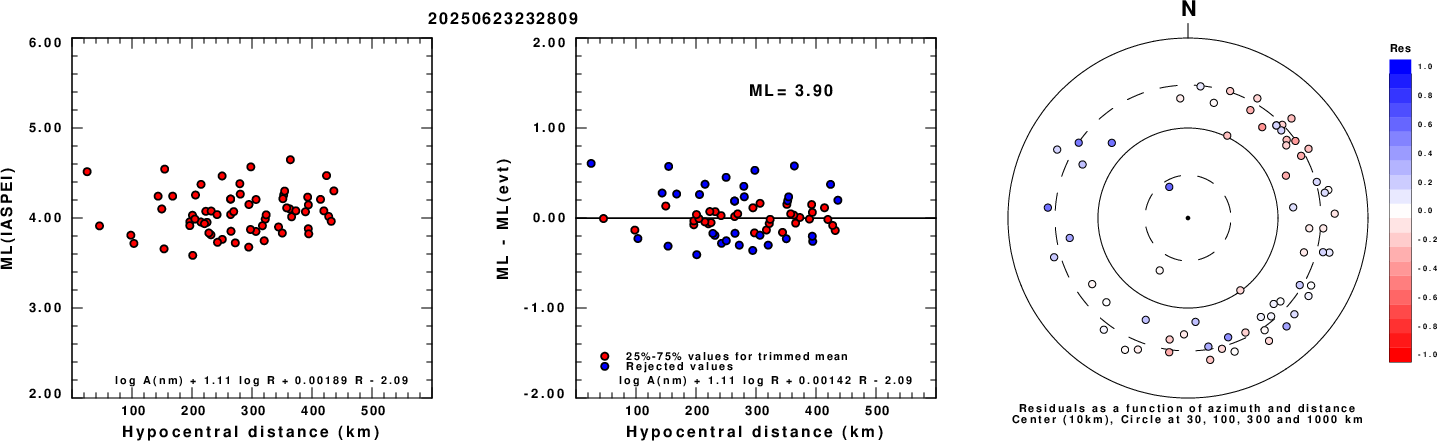

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
Context

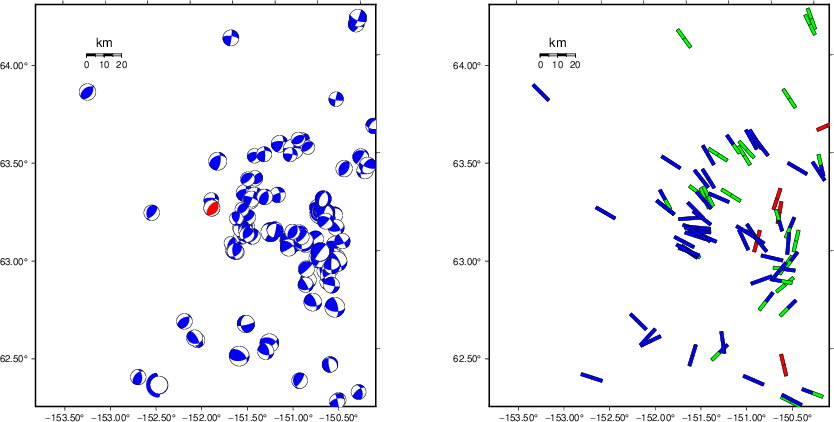

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.
Waveform Inversion using wvfgrd96
The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the
stations used for (red) the waveform inversion are shown in the next figure.
|
|

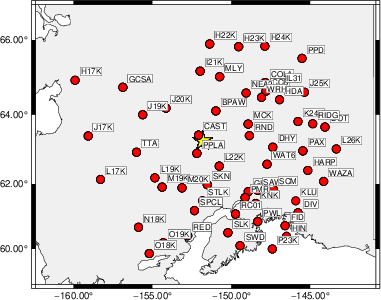

Location of broadband stations used for waveform inversion
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 40 45 90 3.58 0.2789
WVFGRD96 2.0 40 45 90 3.73 0.3666
WVFGRD96 3.0 185 60 30 3.67 0.2722
WVFGRD96 4.0 345 20 20 3.72 0.2693
WVFGRD96 5.0 345 15 25 3.74 0.3346
WVFGRD96 6.0 350 20 30 3.76 0.3931
WVFGRD96 7.0 5 20 45 3.77 0.4425
WVFGRD96 8.0 5 20 45 3.87 0.4783
WVFGRD96 9.0 20 20 65 3.89 0.5279
WVFGRD96 10.0 25 25 70 3.92 0.5709
WVFGRD96 11.0 35 25 85 3.95 0.6120
WVFGRD96 12.0 35 25 85 3.96 0.6451
WVFGRD96 13.0 35 30 85 3.99 0.6710
WVFGRD96 14.0 220 60 90 4.00 0.6909
WVFGRD96 15.0 40 30 90 4.02 0.7029
WVFGRD96 16.0 220 60 90 4.03 0.7084
WVFGRD96 17.0 220 60 90 4.04 0.7067
WVFGRD96 18.0 40 30 90 4.05 0.6983
WVFGRD96 19.0 40 30 90 4.05 0.6851
WVFGRD96 20.0 35 35 80 4.07 0.6677
WVFGRD96 21.0 35 35 80 4.08 0.6476
WVFGRD96 22.0 225 60 95 4.08 0.6243
WVFGRD96 23.0 30 35 75 4.09 0.6007
WVFGRD96 24.0 30 35 70 4.09 0.5758
WVFGRD96 25.0 25 35 65 4.09 0.5515
WVFGRD96 26.0 25 35 65 4.09 0.5265
WVFGRD96 27.0 40 80 -80 4.11 0.5053
WVFGRD96 28.0 40 80 -85 4.12 0.4894
WVFGRD96 29.0 40 80 -85 4.13 0.4720
The best solution is
WVFGRD96 16.0 220 60 90 4.03 0.7084
The mechanism corresponding to the best fit is
|
|
Figure 1. Waveform inversion focal mechanism
|
The best fit as a function of depth is given in the following figure:
|
|

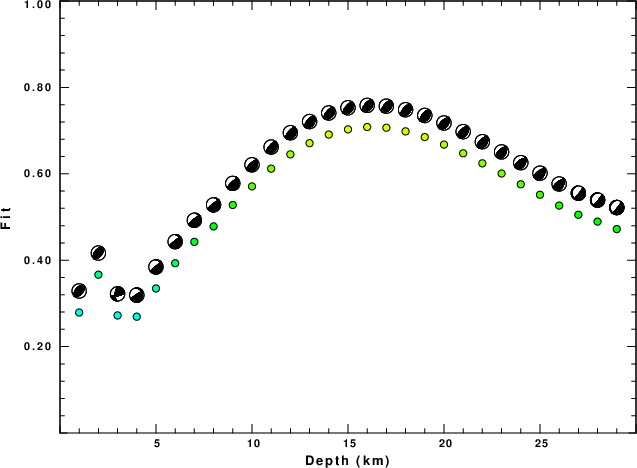

Figure 2. Depth sensitivity for waveform mechanism
|
The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted.
Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off.
A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
|
|

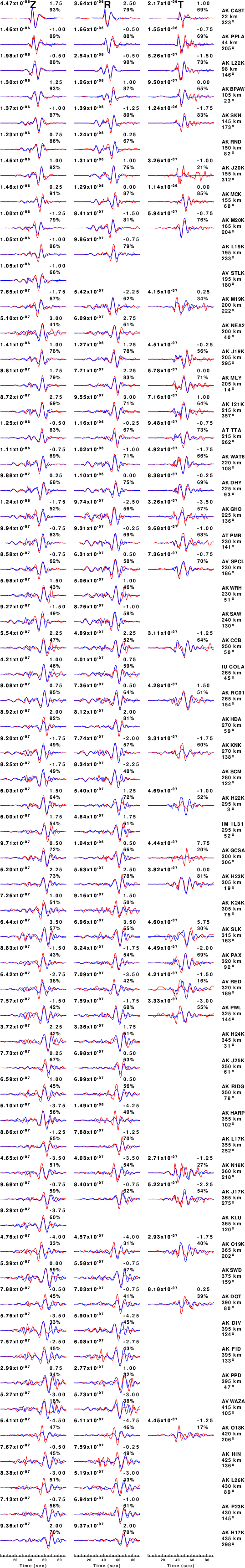

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.
|
|
|

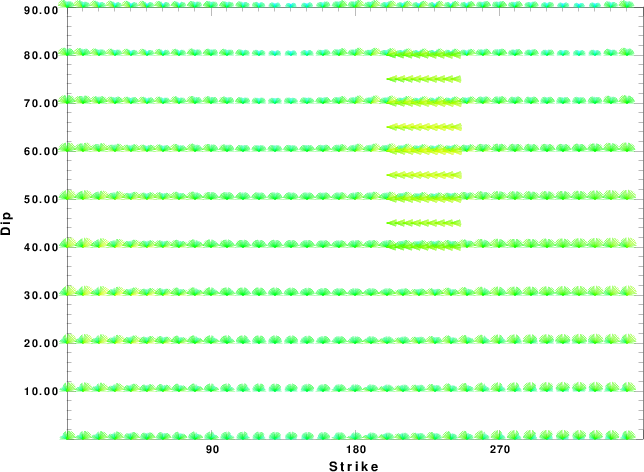

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms.
Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.
|
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
- The origin time and epicentral distance are incorrect
- The velocity model used for the inversion is incorrect
- The velocity model used to define the P-arrival time is not the
same as the velocity model used for the waveform inversion
(assuming that the initial trace alignment is based on the
P arrival time)
Assuming only a mislocation, the time shifts are fit to a functional form:
Time_shift = A + B cos Azimuth + C Sin Azimuth
The time shifts for this inversion lead to the next figure:

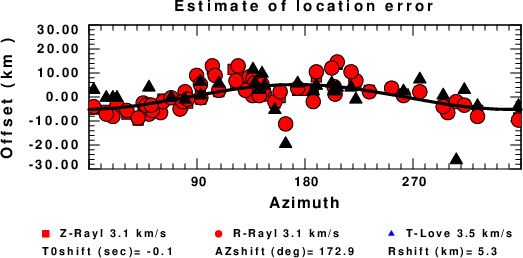

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Velocity Model
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows
(The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
Last Changed Mon Jun 23 19:54:39 CDT 2025
