2025/05/14 22:30:33 61.483 -151.283 78.2 3.6 Alaska

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2025/05/14 22:30:33.0 61.48 -151.28 78.2 3.6 Alaska Stations used: AK.GHO AK.KNK AK.RC01 AK.SAW AK.SCM AK.SKN AK.SLK AK.SSN AT.PMR AV.SPCL AV.STLK Filtering commands used: cut o DIST/3.5 -40 o DIST/3.5 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 8.61e+21 dyne-cm Mw = 3.89 Z = 80 km Plane Strike Dip Rake NP1 335 73 121 NP2 90 35 30 Principal Axes: Axis Value Plunge Azimuth T 8.61e+21 51 281 N 0.00e+00 30 145 P -8.61e+21 22 41 Moment Tensor: (dyne-cm) Component Value Mxx -4.05e+21 Mxy -4.28e+21 Mxz -1.47e+21 Myy -3.74e+14 Myz -6.11e+21 Mzz 4.05e+21 -------------- ####------------------ #########------------------- ###########------------- --- ###############----------- P ----- #################---------- ------ ###################------------------- #####################------------------- ######################------------------ ########## ###########------------------ ########## T ############----------------- -######### #############---------------# -##########################--------------# --########################------------## ---########################----------### ----#######################-------#### ------####################----###### --------#################-######## ------------------------###### -----------------------##### --------------------## -------------- Global CMT Convention Moment Tensor: R T P 4.05e+21 -1.47e+21 6.11e+21 -1.47e+21 -4.05e+21 4.28e+21 6.11e+21 4.28e+21 -3.74e+14 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250514223033/index.html

Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 90
      DIP = 35
     RAKE = 30
       MW = 3.89
       HS = 80.0

The NDK file is 20250514223033.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

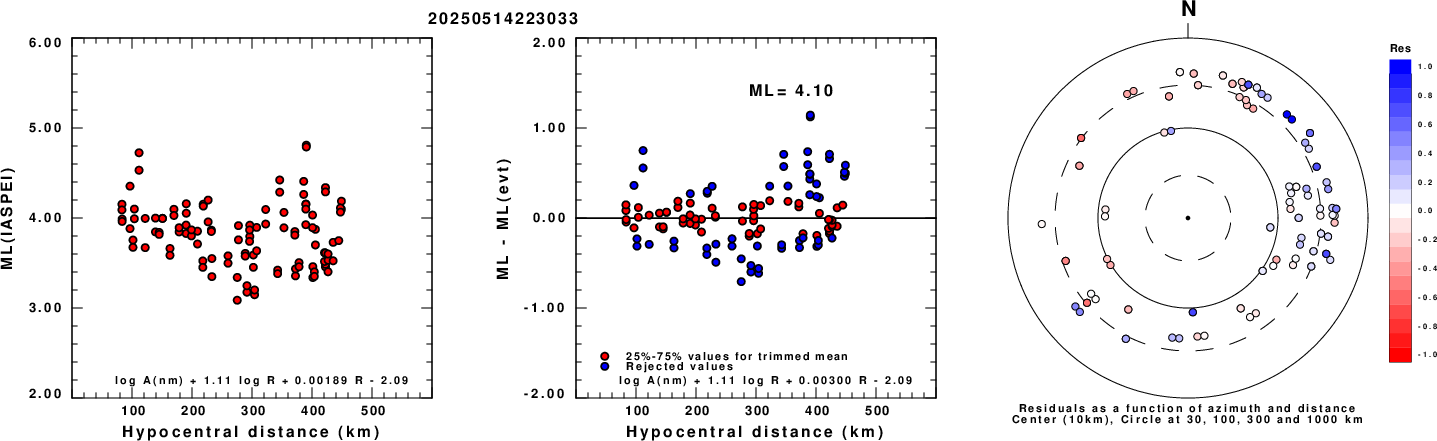

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

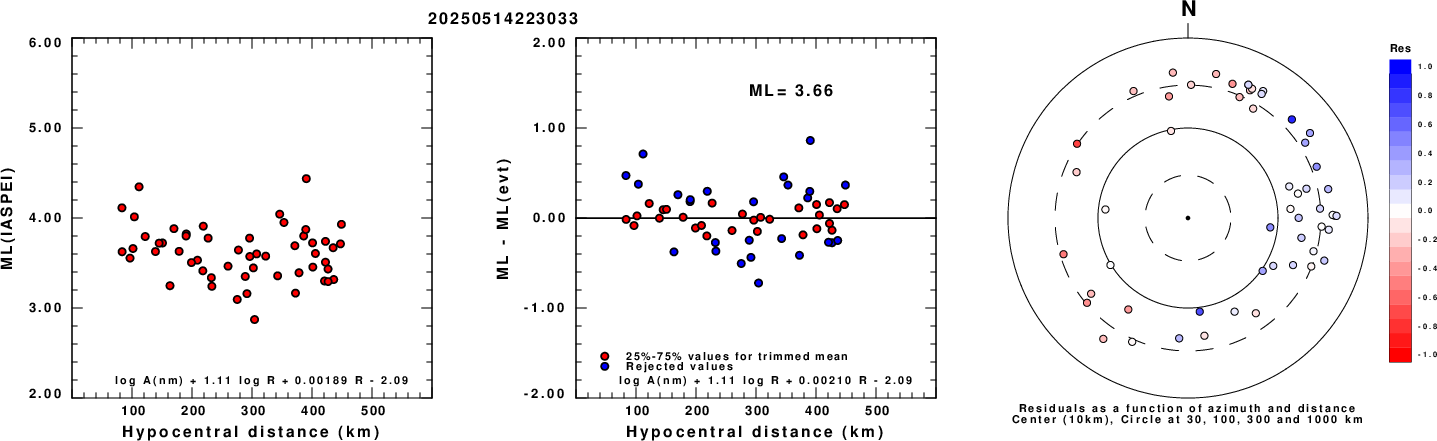

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

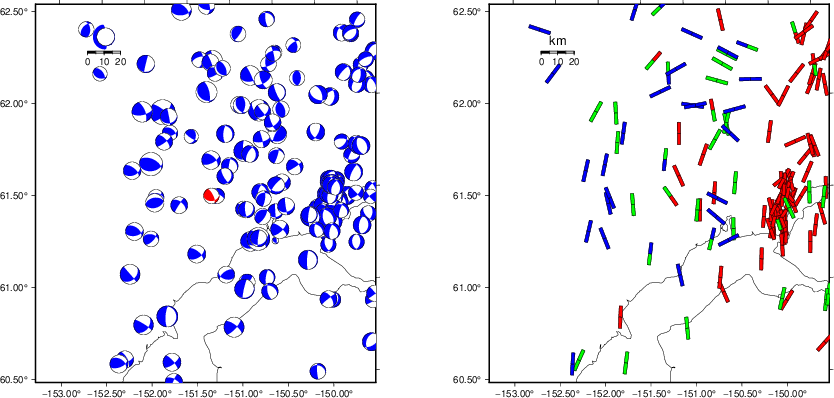

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

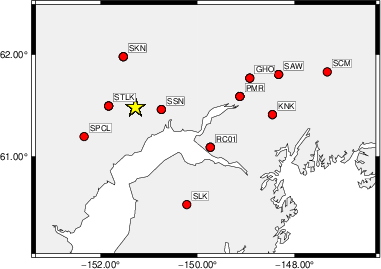

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0    20    60   -85   3.04 0.2200
WVFGRD96    4.0   260    25   -20   3.06 0.2510
WVFGRD96    6.0   270    30   -10   3.08 0.2932
WVFGRD96    8.0   195    80    60   3.18 0.3159
WVFGRD96   10.0   255    60    55   3.29 0.3450
WVFGRD96   12.0   260    60    60   3.33 0.3638
WVFGRD96   14.0   265    55    60   3.36 0.3712
WVFGRD96   16.0   265    55    60   3.38 0.3692
WVFGRD96   18.0   280    50    50   3.37 0.3640
WVFGRD96   20.0   280    50    50   3.39 0.3598
WVFGRD96   22.0   280    50    50   3.42 0.3520
WVFGRD96   24.0   275    45    20   3.39 0.3452
WVFGRD96   26.0   275    45    20   3.41 0.3458
WVFGRD96   28.0   275    45    15   3.43 0.3392
WVFGRD96   30.0    50    75   -25   3.49 0.3472
WVFGRD96   32.0    50    70   -15   3.51 0.3622
WVFGRD96   34.0    50    70   -10   3.54 0.3710
WVFGRD96   36.0    50    65   -15   3.55 0.3822
WVFGRD96   38.0    55    70    -5   3.58 0.3924
WVFGRD96   40.0    85    40    50   3.69 0.4122
WVFGRD96   42.0    85    40    50   3.72 0.4380
WVFGRD96   44.0    85    40    50   3.75 0.4611
WVFGRD96   46.0    85    40    50   3.76 0.4817
WVFGRD96   48.0    85    40    50   3.78 0.4981
WVFGRD96   50.0    85    40    45   3.79 0.5179
WVFGRD96   52.0    85    45    45   3.81 0.5398
WVFGRD96   54.0    85    45    45   3.82 0.5618
WVFGRD96   56.0    85    45    45   3.83 0.5787
WVFGRD96   58.0    85    45    45   3.84 0.5935
WVFGRD96   60.0    85    45    45   3.84 0.6026
WVFGRD96   62.0    85    45    45   3.85 0.6090
WVFGRD96   64.0    80    45    30   3.86 0.6193
WVFGRD96   66.0    80    45    30   3.86 0.6277
WVFGRD96   68.0    80    45    30   3.87 0.6349
WVFGRD96   70.0    85    35    25   3.87 0.6430
WVFGRD96   72.0    85    35    25   3.88 0.6515
WVFGRD96   74.0    90    35    30   3.88 0.6564
WVFGRD96   76.0    90    35    30   3.88 0.6609
WVFGRD96   78.0    90    35    30   3.88 0.6627
WVFGRD96   80.0    90    35    30   3.89 0.6653
WVFGRD96   82.0    90    35    30   3.89 0.6634
WVFGRD96   84.0    90    35    30   3.89 0.6624
WVFGRD96   86.0    90    35    30   3.90 0.6584
WVFGRD96   88.0    90    35    30   3.90 0.6558
WVFGRD96   90.0    90    35    30   3.90 0.6512
WVFGRD96   92.0    95    35    35   3.90 0.6451
WVFGRD96   94.0    95    35    35   3.90 0.6413
WVFGRD96   96.0    95    35    35   3.91 0.6346
WVFGRD96   98.0    95    35    35   3.91 0.6281

The best solution is

WVFGRD96   80.0    90    35    30   3.89 0.6653

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

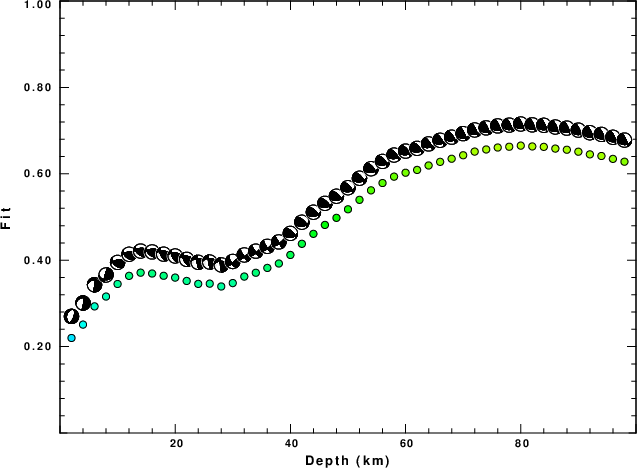

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

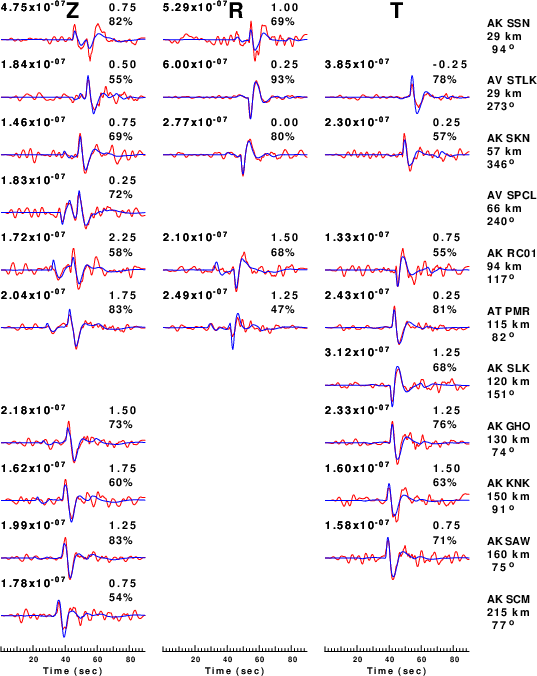

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

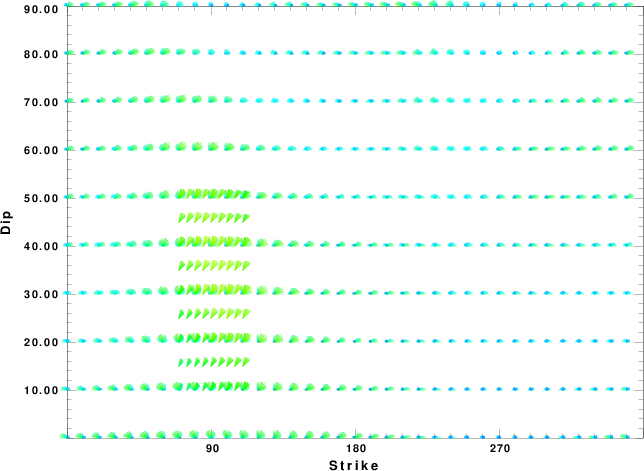

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

The origin time and epicentral distance are incorrect
The velocity model used for the inversion is incorrect
The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
