The ANSS event ID is tx2025intt and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/tx2025intt/executive.

2025/05/02 08:58:50 32.437 -102.127 5.8 3.6 Texas

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2025/05/02 08:58:50:0  32.44 -102.13   5.8 3.6 Texas

 Stations used:
   4O.EE02 4O.EE04 4O.GV04 4O.MBBB2 4O.MG01 4O.OE01 4O.SD01
   4O.SE01 4O.SM03 4O.SM05 4T.NM01 TX.MB04 TX.MB05 TX.MB06
   TX.MB08 TX.MB09 TX.MB10 TX.MB11 TX.MB12 TX.MB13 TX.MB16
   TX.MB18 TX.MB19 TX.MB21 TX.MB22 TX.MB23 TX.MB25 TX.MNHN
   TX.ODSA TX.SN02

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.05 n 3
   lp c 0.15 n 3

 Best Fitting Double Couple
  Mo = 1.53e+21 dyne-cm
  Mw = 3.39
  Z  = 5 km
  Plane   Strike  Dip  Rake
   NP1       70    50   -70
   NP2      220    44   -112
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.53e+21      3     146
    N   0.00e+00     15     237
    P  -1.53e+21     74      45

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     9.93e+20
       Mxy    -7.63e+20
       Mxz    -3.50e+20
       Myy     4.24e+20
       Myz    -2.31e+20
       Mzz    -1.42e+21




                     ##############
                 ######################
              ##################----------
             ##############----------------
           #############---------------------
          ############------------------------
         ###########---------------------------
        ##########-----------------------------#
        #########------------   ---------------#
       #########------------- P --------------###
       ########--------------   -------------####
       #######------------------------------#####
       #######----------------------------#######
        #####---------------------------########
        #####------------------------###########
         -###---------------------#############
          ---#---------------#################
           --################################
             -#############################
              #######################   ##
                 #################### T
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.42e+21  -3.50e+20   2.31e+20
 -3.50e+20   9.93e+20   7.63e+20
  2.31e+20   7.63e+20   4.24e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250502085850/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 70
      DIP = 50
     RAKE = -70
       MW = 3.39
       HS = 5.0

The NDK file is 20250502085850.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

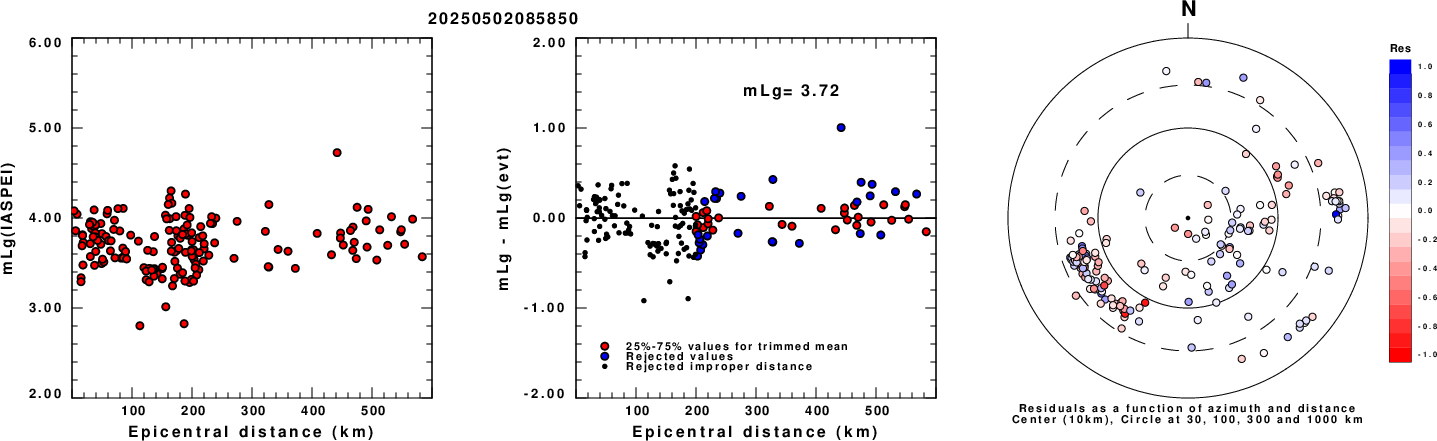

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

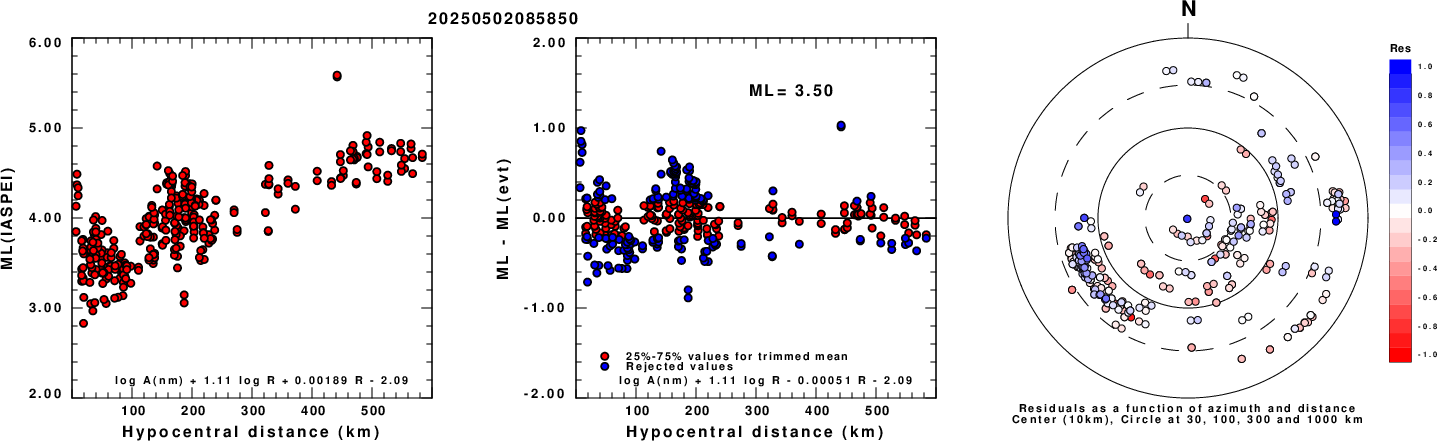

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

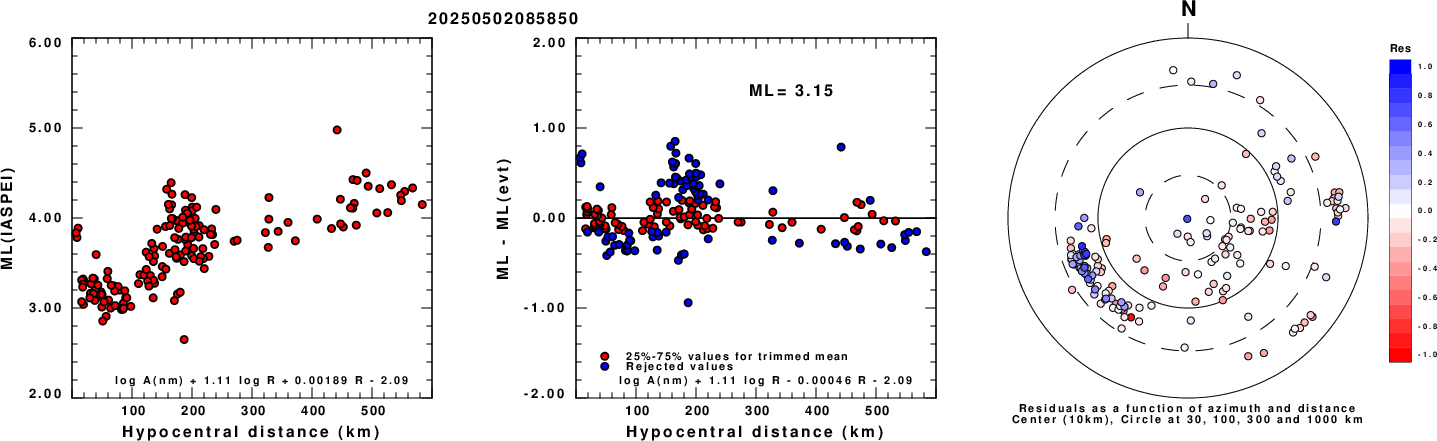

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

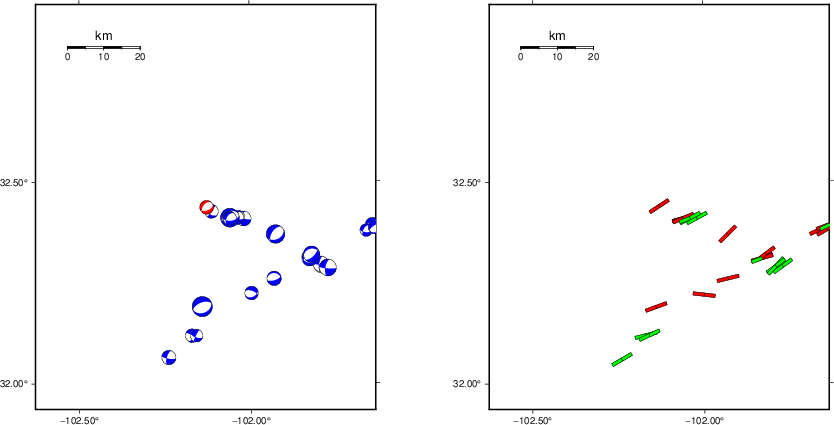

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

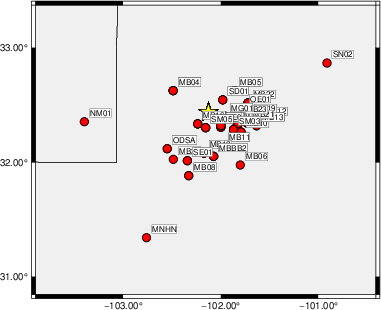

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.05 n 3
lp c 0.15 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   110    30    -5   3.04 0.2981
WVFGRD96    2.0   275    20   -30   3.30 0.4111
WVFGRD96    3.0    55    70   -95   3.36 0.5501
WVFGRD96    4.0    60    55   -85   3.38 0.6089
WVFGRD96    5.0    70    50   -70   3.39 0.6089
WVFGRD96    6.0    70    50   -70   3.40 0.5762
WVFGRD96    7.0    75    50   -65   3.42 0.5284
WVFGRD96    8.0    75    50   -70   3.50 0.5012
WVFGRD96    9.0    70    45   -75   3.51 0.4460
WVFGRD96   10.0    75    45   -70   3.51 0.3976
WVFGRD96   11.0    95    55   -40   3.50 0.3571
WVFGRD96   12.0    95    55   -40   3.51 0.3261
WVFGRD96   13.0   100    60   -30   3.51 0.3033
WVFGRD96   14.0   105    60   -25   3.52 0.2856
WVFGRD96   15.0    60    45    90   3.57 0.2730
WVFGRD96   16.0    55    45    85   3.58 0.2759
WVFGRD96   17.0    50    45    80   3.59 0.2857
WVFGRD96   18.0    45    50    75   3.60 0.2978
WVFGRD96   19.0    45    50    75   3.62 0.3107
WVFGRD96   20.0    45    50    75   3.63 0.3241
WVFGRD96   21.0    45    45    75   3.65 0.3398
WVFGRD96   22.0    45    45    75   3.65 0.3506
WVFGRD96   23.0    45    45    75   3.66 0.3600
WVFGRD96   24.0    45    45    80   3.67 0.3664
WVFGRD96   25.0    50    40    85   3.68 0.3715
WVFGRD96   26.0    50    40    85   3.69 0.3795
WVFGRD96   27.0    50    40    85   3.69 0.3885
WVFGRD96   28.0    55    40    90   3.70 0.3969
WVFGRD96   29.0   235    50    90   3.71 0.4002

The best solution is

WVFGRD96    5.0    70    50   -70   3.39 0.6089

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

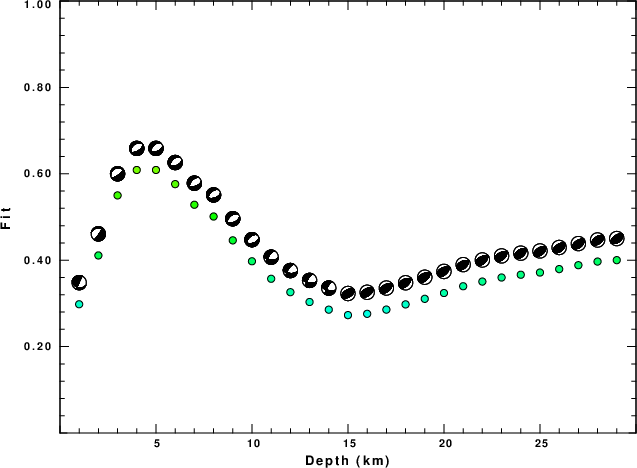

Figure 2. Depth sensitivity for waveform mechanism

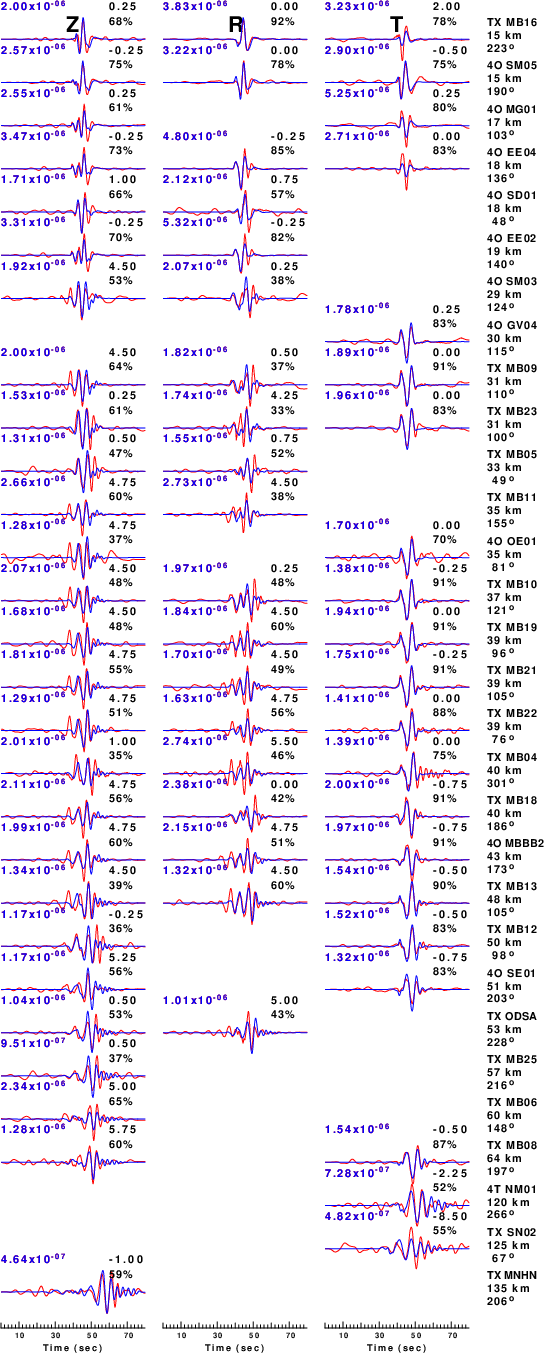

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.05 n 3
lp c 0.15 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

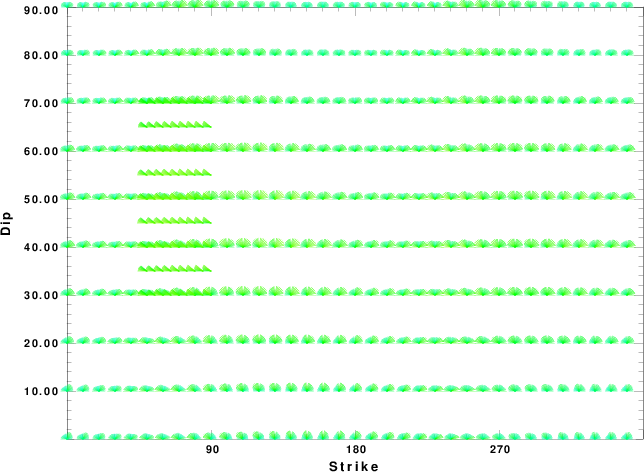

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

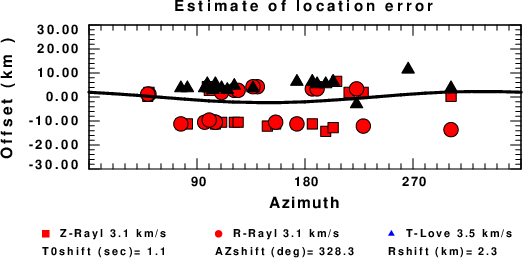

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
