Location

Location ANSS

The ANSS event ID is ak02550duu6u and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak02550duu6u/executive.

2025/04/19 07:18:55 61.169 -151.468 83.3 4.3 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2025/04/19 07:18:55:0  61.17 -151.47  83.3 4.3 Alaska

 Stations used:
   AK.BAE AK.BRLK AK.CAPN AK.FIRE AK.GHO AK.HOM AK.KNK AK.L19K
   AK.N18K AK.N19K AK.O18K AK.O19K AK.PWL AK.RC01 AK.SAW
   AK.SCM AK.SKN AK.SLK AK.SSN AK.SWD AT.PMR AV.RED AV.SPCL
   AV.STLK

 Filtering commands used:
   cut o DIST/3.5 -40 o DIST/3.5 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 6.61e+22 dyne-cm
  Mw = 4.48
  Z  = 80 km
  Plane   Strike  Dip  Rake
   NP1      312    66   141
   NP2       60    55    30
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   6.61e+22     44     272
    N   0.00e+00     45     105
    P  -6.61e+22      7       8

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -6.39e+22
       Mxy    -9.99e+21
       Mxz    -6.62e+21
       Myy     3.28e+22
       Myz    -3.41e+22
       Mzz     3.10e+22




                     -------- P ---
                 ------------   -------
              ----------------------------
             ------------------------------
           ##########------------------------
          ##############----------------------
         ##################-------------------#
        ######################---------------###
        ########################------------####
       ########   ################---------######
       ######## T ##################------#######
       ########   ###################----########
       ##########################################
        #############################---########
        ##########################-------#######
         ######################-----------#####
          #################----------------###
           --------------------------------##
             ------------------------------
              ----------------------------
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  3.10e+22  -6.62e+21   3.41e+22
 -6.62e+21  -6.39e+22   9.99e+21
  3.41e+22   9.99e+21   3.28e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250419071855/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 60
      DIP = 55
     RAKE = 30
       MW = 4.48
       HS = 80.0

The NDK file is 20250419071855.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

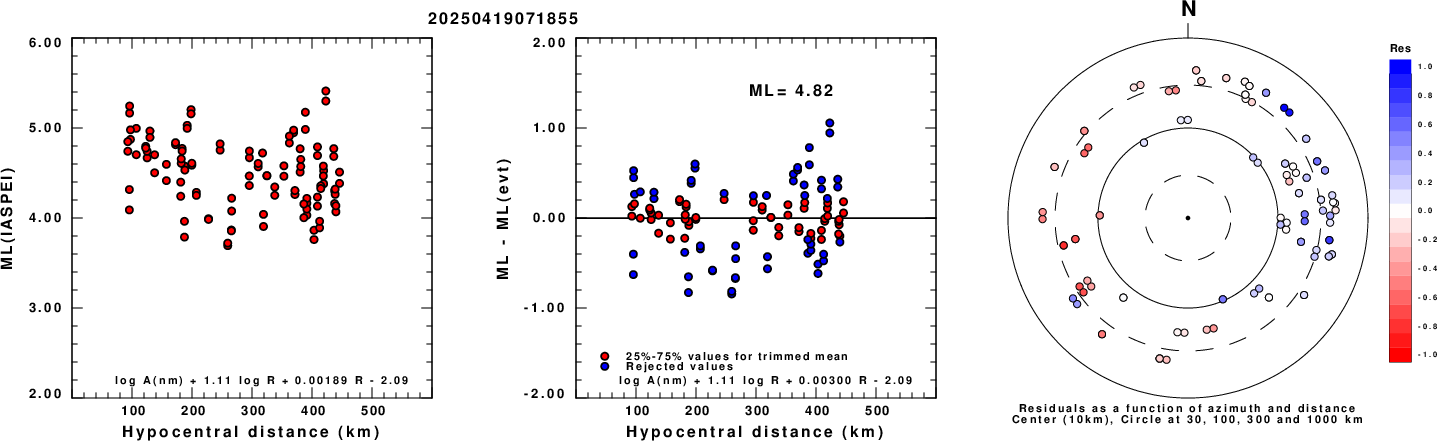

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

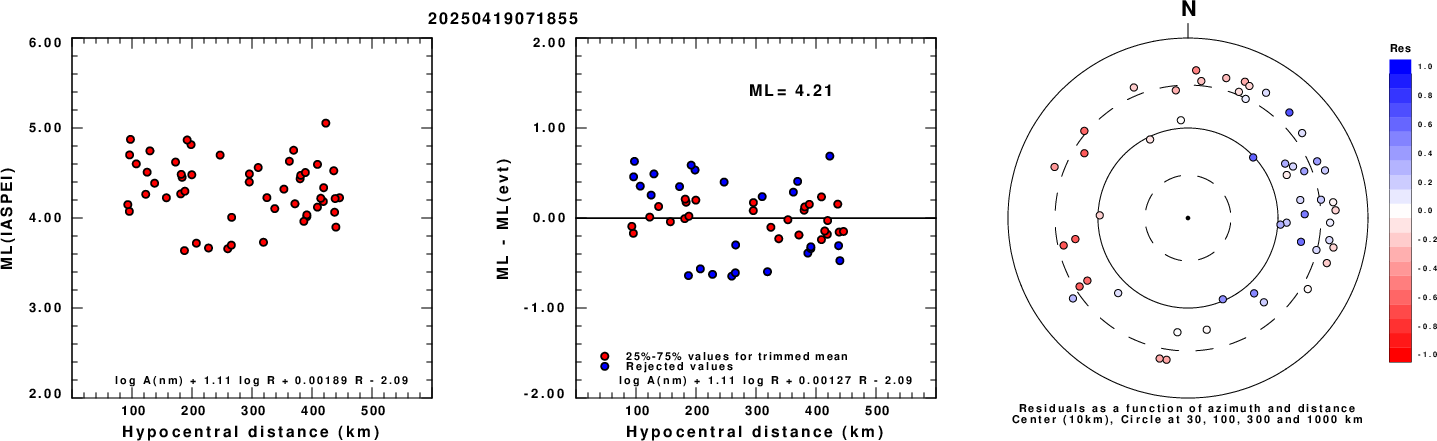

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

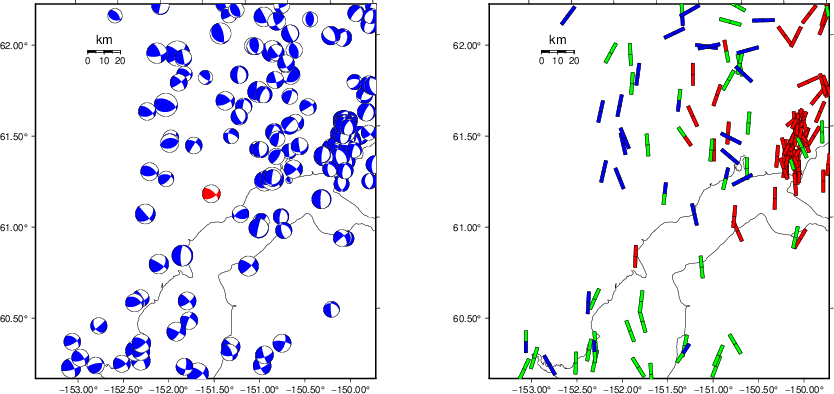

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

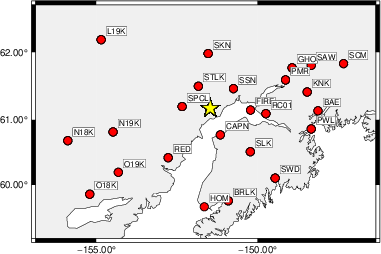

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0    95    45   -95   3.70 0.1855
WVFGRD96    4.0   315    55   -25   3.69 0.1830
WVFGRD96    6.0   140    75    25   3.73 0.1911
WVFGRD96    8.0   135    45   -30   3.81 0.2030
WVFGRD96   10.0   145    65    25   3.83 0.2050
WVFGRD96   12.0   145    65    25   3.86 0.2073
WVFGRD96   14.0   130    80    20   3.90 0.2065
WVFGRD96   16.0    40    60    10   3.91 0.2058
WVFGRD96   18.0    40    65     5   3.94 0.2112
WVFGRD96   20.0    40    65     5   3.96 0.2164
WVFGRD96   22.0    40    65     5   3.98 0.2222
WVFGRD96   24.0    45    65    10   4.00 0.2287
WVFGRD96   26.0    45    65    10   4.02 0.2358
WVFGRD96   28.0    45    65    10   4.04 0.2443
WVFGRD96   30.0    45    65    10   4.06 0.2535
WVFGRD96   32.0    45    65    10   4.09 0.2641
WVFGRD96   34.0    45    65    10   4.11 0.2762
WVFGRD96   36.0    45    65     0   4.14 0.2923
WVFGRD96   38.0    45    65     0   4.17 0.3163
WVFGRD96   40.0    45    55     5   4.26 0.3466
WVFGRD96   42.0    65    65    35   4.27 0.3637
WVFGRD96   44.0    60    65    30   4.29 0.3865
WVFGRD96   46.0    60    65    30   4.31 0.4067
WVFGRD96   48.0    60    60    25   4.33 0.4238
WVFGRD96   50.0    60    60    30   4.35 0.4354
WVFGRD96   52.0    60    60    30   4.36 0.4469
WVFGRD96   54.0    60    60    25   4.37 0.4578
WVFGRD96   56.0    60    60    25   4.39 0.4682
WVFGRD96   58.0    60    60    25   4.40 0.4773
WVFGRD96   60.0    65    55    30   4.41 0.4866
WVFGRD96   62.0    65    55    30   4.42 0.4943
WVFGRD96   64.0    65    55    30   4.42 0.5011
WVFGRD96   66.0    65    55    30   4.43 0.5080
WVFGRD96   68.0    60    55    30   4.44 0.5140
WVFGRD96   70.0    60    55    30   4.45 0.5189
WVFGRD96   72.0    60    55    30   4.45 0.5229
WVFGRD96   74.0    60    55    30   4.46 0.5264
WVFGRD96   76.0    60    55    30   4.47 0.5280
WVFGRD96   78.0    60    55    30   4.47 0.5295
WVFGRD96   80.0    60    55    30   4.48 0.5304
WVFGRD96   82.0    60    55    30   4.48 0.5293
WVFGRD96   84.0    60    55    30   4.48 0.5287
WVFGRD96   86.0    60    55    30   4.49 0.5269
WVFGRD96   88.0    60    55    30   4.49 0.5243
WVFGRD96   90.0    60    55    30   4.49 0.5218
WVFGRD96   92.0    60    55    30   4.50 0.5175
WVFGRD96   94.0    60    55    30   4.50 0.5143
WVFGRD96   96.0    60    55    30   4.50 0.5095
WVFGRD96   98.0    60    55    30   4.50 0.5059
WVFGRD96  100.0    60    55    30   4.51 0.5005
WVFGRD96  102.0    60    55    30   4.51 0.4964
WVFGRD96  104.0    60    55    30   4.51 0.4904
WVFGRD96  106.0    60    55    30   4.51 0.4861
WVFGRD96  108.0    60    55    30   4.51 0.4808
WVFGRD96  110.0    60    55    30   4.52 0.4765
WVFGRD96  112.0    55    55    25   4.52 0.4717
WVFGRD96  114.0    55    55    25   4.52 0.4682
WVFGRD96  116.0    55    55    25   4.53 0.4644
WVFGRD96  118.0    55    55    25   4.53 0.4607
WVFGRD96  120.0    55    55    25   4.53 0.4579
WVFGRD96  122.0    55    55    25   4.53 0.4541
WVFGRD96  124.0    55    55    25   4.53 0.4515
WVFGRD96  126.0    55    55    25   4.54 0.4480
WVFGRD96  128.0    55    55    25   4.54 0.4454
WVFGRD96  130.0    55    55    25   4.54 0.4413
WVFGRD96  132.0    55    55    25   4.54 0.4361
WVFGRD96  134.0    55    55    25   4.54 0.4339
WVFGRD96  136.0    55    55    25   4.55 0.4298
WVFGRD96  138.0    55    55    25   4.55 0.4271
WVFGRD96  140.0    55    55    25   4.55 0.4235
WVFGRD96  142.0    55    55    25   4.55 0.4168
WVFGRD96  144.0    55    55    25   4.55 0.4086
WVFGRD96  146.0    55    55    25   4.55 0.3934
WVFGRD96  148.0    55    55    25   4.54 0.3716

The best solution is

WVFGRD96   80.0    60    55    30   4.48 0.5304

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

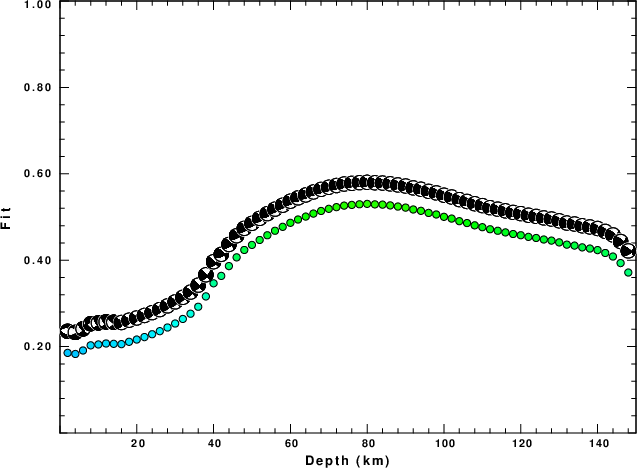

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

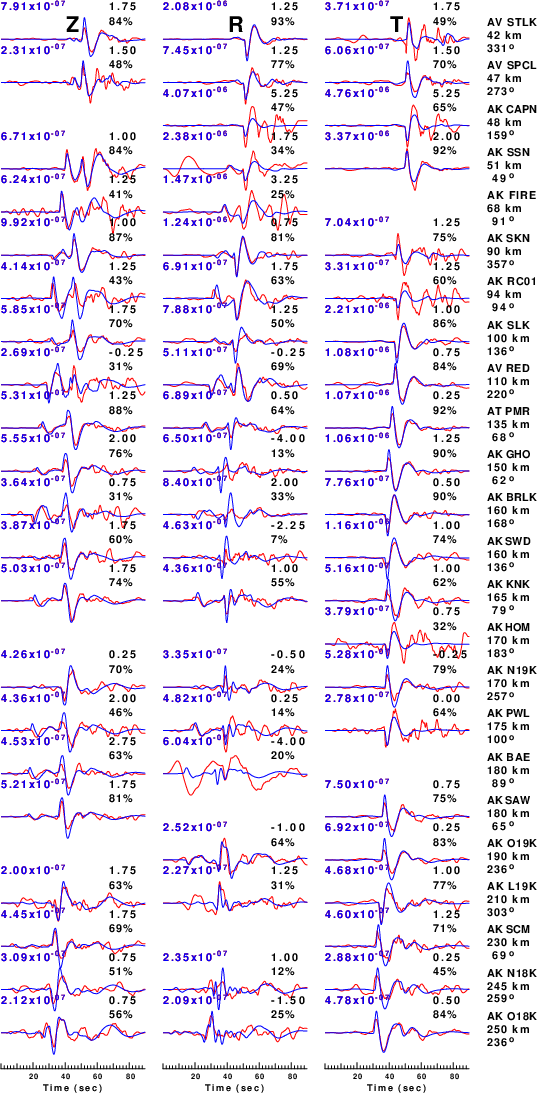

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

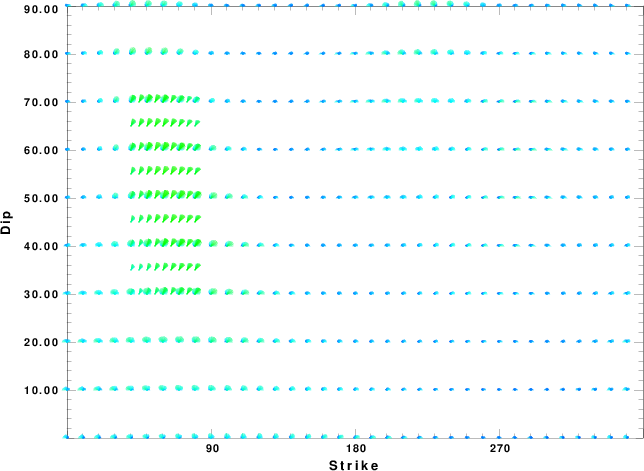

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

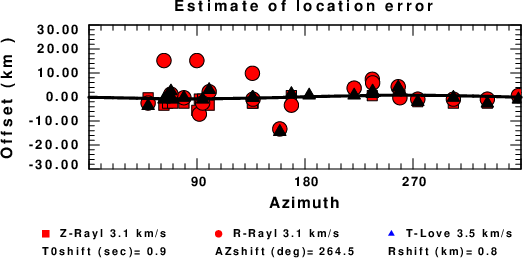

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sat Apr 19 08:00:08 EDT 2025
