The ANSS event ID is ak0253v83n8h and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0253v83n8h/executive.

2025/03/25 18:40:54 61.594 -146.385 16.2 3.7 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2025/03/25 18:40:54:0  61.59 -146.38  16.2 3.7 Alaska

 Stations used:
   AK.BAE AK.DIV AK.GHO AK.GLB AK.HIN AK.KLU AK.KNK AK.L22K
   AK.M26K AK.MCK AK.PWL AK.RIDG AK.RND AK.SAW AK.SCM AK.SLK
   AT.PMR AV.WAZA

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 4.62e+21 dyne-cm
  Mw = 3.71
  Z  = 42 km
  Plane   Strike  Dip  Rake
   NP1       35    50   -85
   NP2      207    40   -96
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.62e+21      5     121
    N   0.00e+00      4     212
    P  -4.62e+21     84     340

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.20e+21
       Mxy    -2.03e+21
       Mxz    -6.71e+20
       Myy     3.33e+21
       Myz     5.07e+20
       Mzz    -4.54e+21




                     ##############
                 #############---------
              ############--------------##
             ###########-----------------##
           ###########-------------------####
          ##########---------------------#####
         ##########----------------------######
        #########------------------------#######
        #########------------------------#######
       #########----------   -----------#########
       ########----------- P -----------#########
       ########-----------   ----------##########
       #######------------------------###########
        ######-----------------------###########
        ######----------------------############
         #####--------------------#########   #
          #####-----------------########### T
           ####---------------#############
             ###------------###############
              ###-------##################
                 -#####################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -4.54e+21  -6.71e+20  -5.07e+20
 -6.71e+20   1.20e+21   2.03e+21
 -5.07e+20   2.03e+21   3.33e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250325184054/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 35
      DIP = 50
     RAKE = -85
       MW = 3.71
       HS = 42.0

The NDK file is 20250325184054.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

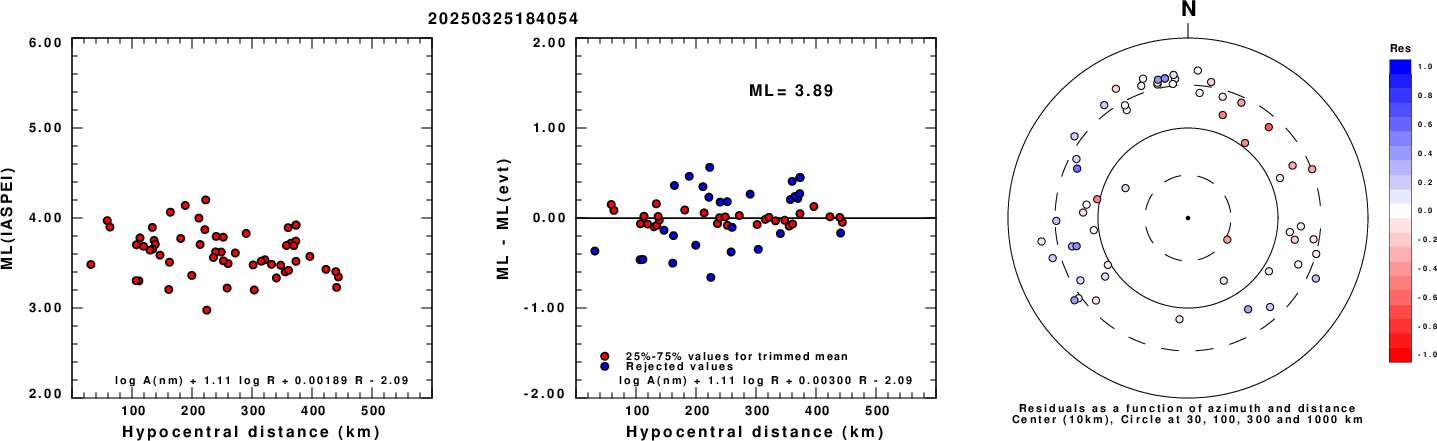

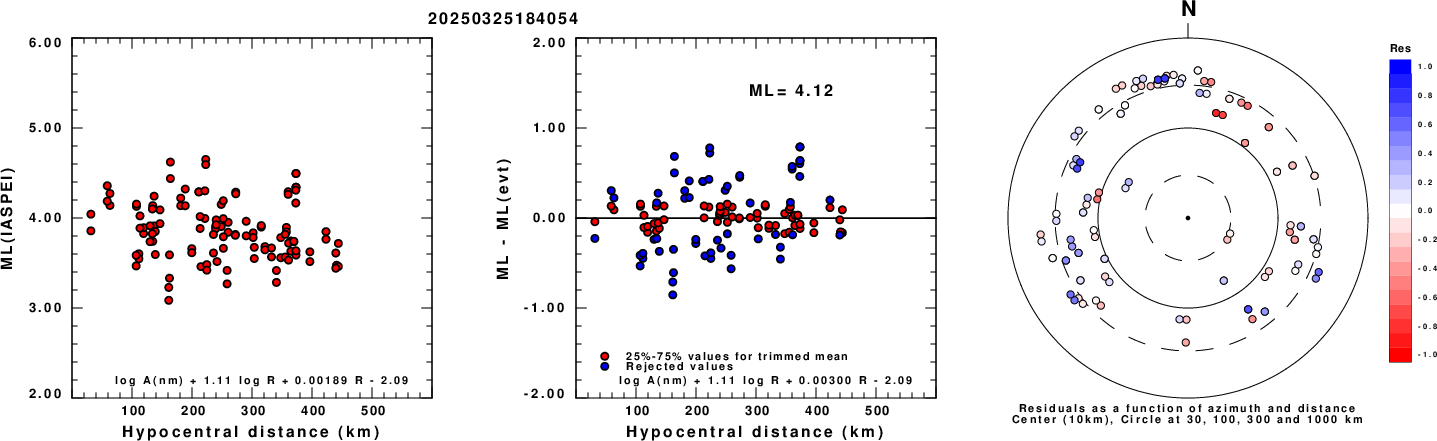

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

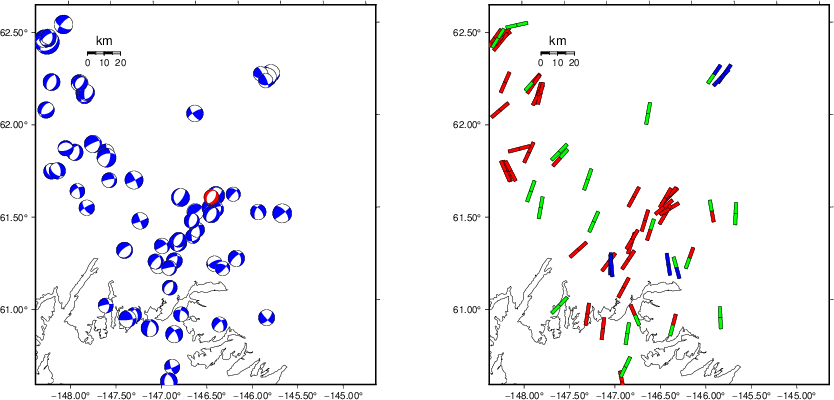

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

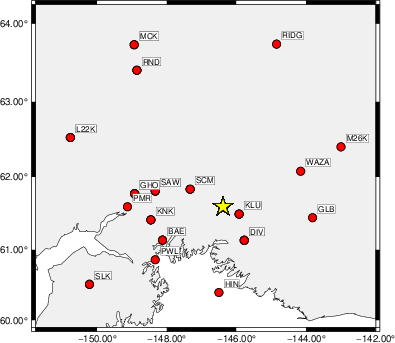

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   195    50    70   3.06 0.3811
WVFGRD96    2.0   205    45    80   3.17 0.4831
WVFGRD96    3.0    35    45    95   3.22 0.4771
WVFGRD96    4.0    15    50    70   3.26 0.4587
WVFGRD96    5.0   225    40   -65   3.29 0.4482
WVFGRD96    6.0   230    80    65   3.32 0.4765
WVFGRD96    7.0   240    80    65   3.31 0.4917
WVFGRD96    8.0   240    80    70   3.37 0.5004
WVFGRD96    9.0   240    80    65   3.36 0.5083
WVFGRD96   10.0   240    80    65   3.35 0.5144
WVFGRD96   11.0   240    80    60   3.35 0.5204
WVFGRD96   12.0   240    80    60   3.35 0.5273
WVFGRD96   13.0   240    80    60   3.35 0.5327
WVFGRD96   14.0   240    85    60   3.35 0.5387
WVFGRD96   15.0   245    85    60   3.37 0.5442
WVFGRD96   16.0   250    85    60   3.38 0.5496
WVFGRD96   17.0   250    85    60   3.39 0.5541
WVFGRD96   18.0    60    85   -60   3.38 0.5582
WVFGRD96   19.0    65    85   -60   3.40 0.5630
WVFGRD96   20.0    60    80   -60   3.40 0.5682
WVFGRD96   21.0    60    80   -60   3.41 0.5725
WVFGRD96   22.0    60    80   -60   3.42 0.5768
WVFGRD96   23.0    60    80   -60   3.43 0.5801
WVFGRD96   24.0    60    75   -60   3.44 0.5848
WVFGRD96   25.0    60    75   -60   3.45 0.5889
WVFGRD96   26.0    60    75   -60   3.45 0.5926
WVFGRD96   27.0    60    70   -60   3.47 0.5979
WVFGRD96   28.0    55    65   -60   3.47 0.6046
WVFGRD96   29.0    55    65   -60   3.48 0.6140
WVFGRD96   30.0    55    60   -60   3.50 0.6268
WVFGRD96   31.0    55    60   -60   3.51 0.6412
WVFGRD96   32.0    50    55   -60   3.52 0.6558
WVFGRD96   33.0    50    55   -65   3.53 0.6701
WVFGRD96   34.0    50    55   -60   3.55 0.6834
WVFGRD96   35.0    50    55   -60   3.56 0.6933
WVFGRD96   36.0    55    55   -60   3.58 0.7007
WVFGRD96   37.0    55    55   -60   3.59 0.7051
WVFGRD96   38.0    55    55   -60   3.60 0.7081
WVFGRD96   39.0    55    55   -60   3.62 0.7080
WVFGRD96   40.0    40    50   -75   3.69 0.7149
WVFGRD96   41.0    35    50   -80   3.70 0.7170
WVFGRD96   42.0    35    50   -85   3.71 0.7174
WVFGRD96   43.0   200    40  -105   3.72 0.7169
WVFGRD96   44.0    30    50   -90   3.72 0.7142
WVFGRD96   45.0   215    40   -80   3.73 0.7110
WVFGRD96   46.0    25    50   -95   3.74 0.7075
WVFGRD96   47.0   220    40   -75   3.74 0.7039
WVFGRD96   48.0   220    40   -75   3.75 0.6990
WVFGRD96   49.0   225    40   -65   3.76 0.6944
WVFGRD96   50.0   225    40   -65   3.76 0.6883
WVFGRD96   51.0   225    40   -65   3.77 0.6824
WVFGRD96   52.0   225    40   -65   3.77 0.6754
WVFGRD96   53.0   235    45   -50   3.78 0.6694
WVFGRD96   54.0   235    45   -50   3.78 0.6639
WVFGRD96   55.0   235    45   -50   3.79 0.6578
WVFGRD96   56.0   235    45   -50   3.79 0.6510
WVFGRD96   57.0   235    45   -45   3.80 0.6439
WVFGRD96   58.0   235    45   -45   3.80 0.6374
WVFGRD96   59.0   235    45   -45   3.81 0.6297

The best solution is

WVFGRD96   42.0    35    50   -85   3.71 0.7174

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

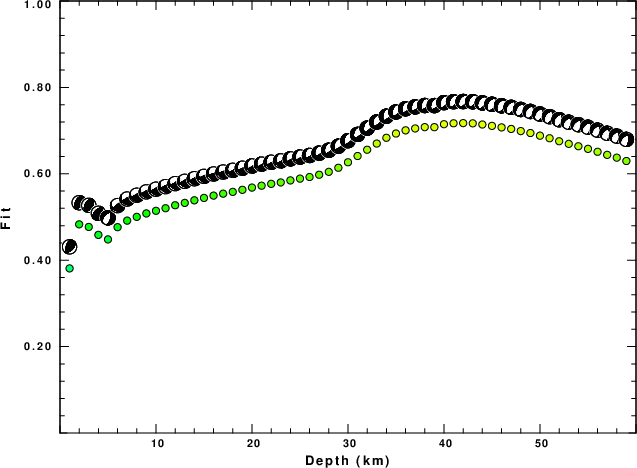

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

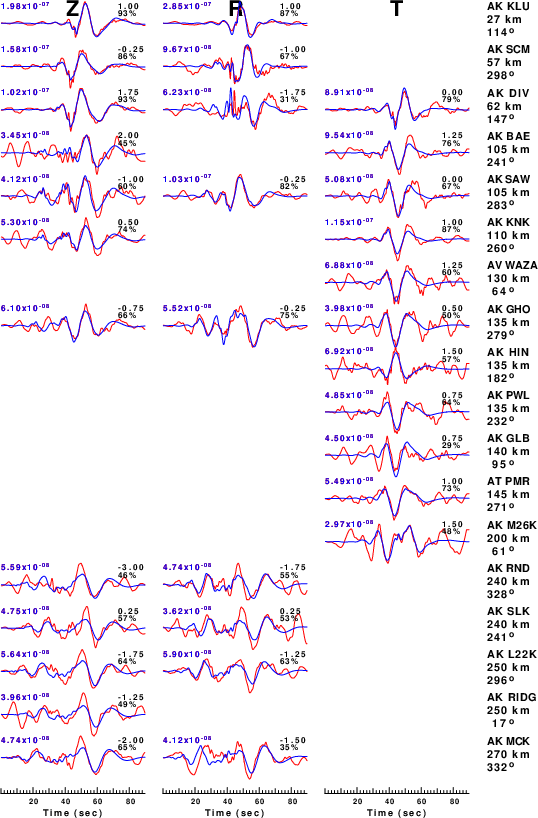

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

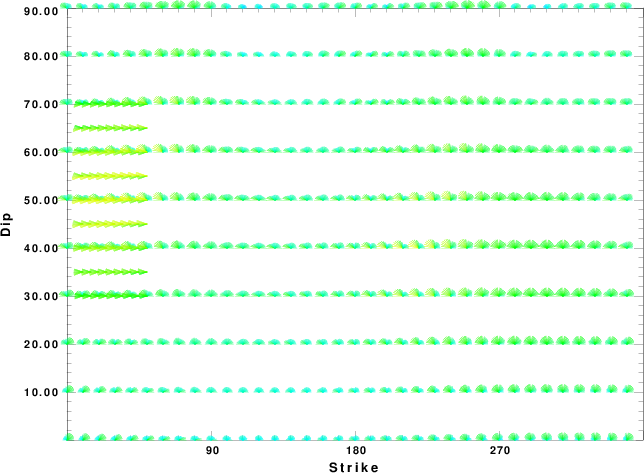

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

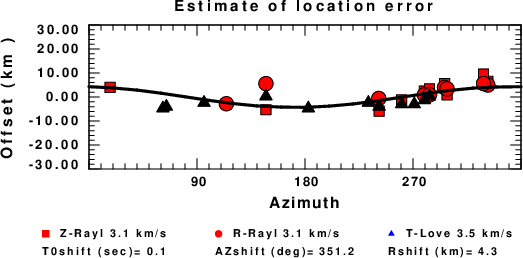

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Tue Mar 25 14:20:01 CDT 2025
