Location

Location ANSS

The ANSS event ID is uw62079456 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/uw62079456/executive.

2025/03/06 00:18:24 47.924 -123.141 42.4 3.9 Washington

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2025/03/06 00:18:24:0  47.92 -123.14  42.4 3.9 Washington

 Stations used:
   CN.CLRS CN.PGC US.NLWA UW.BHW UW.EQUIL UW.GNW UW.HILL
   UW.KALA UW.LON UW.LRIV UW.WATCH

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 9.23e+21 dyne-cm
  Mw = 3.91
  Z  = 51 km
  Plane   Strike  Dip  Rake
   NP1      170    80    55
   NP2       66    36   163
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   9.23e+21     44      46
    N   0.00e+00     34     177
    P  -9.23e+21     27     287

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.70e+21
       Mxy     4.45e+21
       Mxz     2.14e+21
       Myy    -4.29e+21
       Myz     6.83e+21
       Mzz     2.58e+21




                     ---###########
                 -------###############
              ----------##################
             -----------###################
           -------------#####################
          --------------###########   ########
         ---------------########### T #########
        ----   ---------###########   #########-
        ---- P ----------######################-
       -----   ----------#####################---
       ------------------#####################---
       -------------------###################----
       -------------------##################-----
        ------------------#################-----
        -------------------##############-------
         ------------------############--------
          #-----------------#########---------
           ###--------------######-----------
             ######---------#--------------
              ###############-------------
                 #############---------
                     ##########----



 Global CMT Convention Moment Tensor:
      R          T          P
  2.58e+21   2.14e+21  -6.83e+21
  2.14e+21   1.70e+21  -4.45e+21
 -6.83e+21  -4.45e+21  -4.29e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250306001824/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 170
      DIP = 80
     RAKE = 55
       MW = 3.91
       HS = 51.0

The NDK file is 20250306001824.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

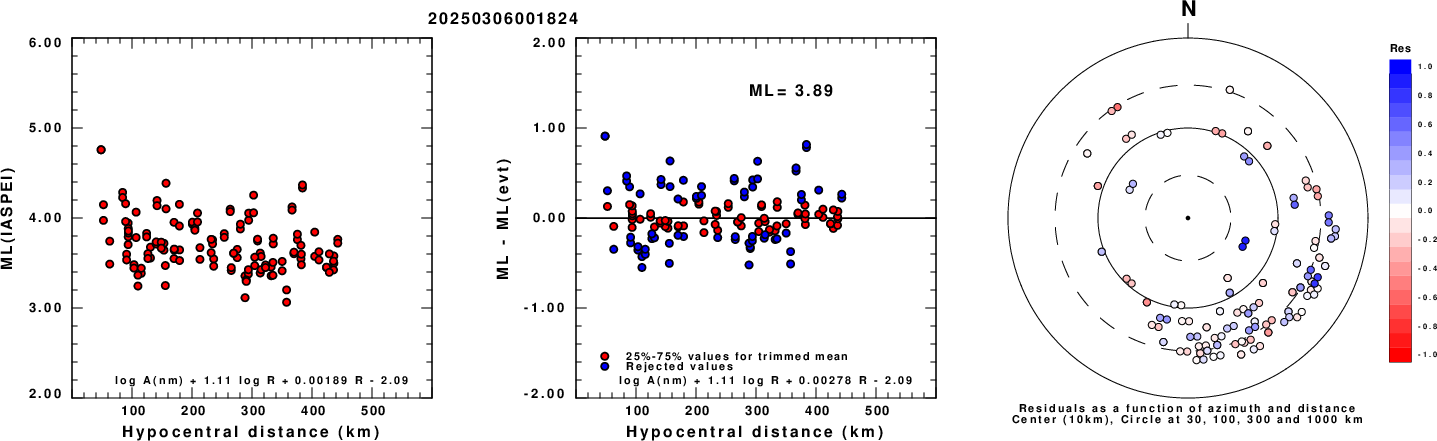

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

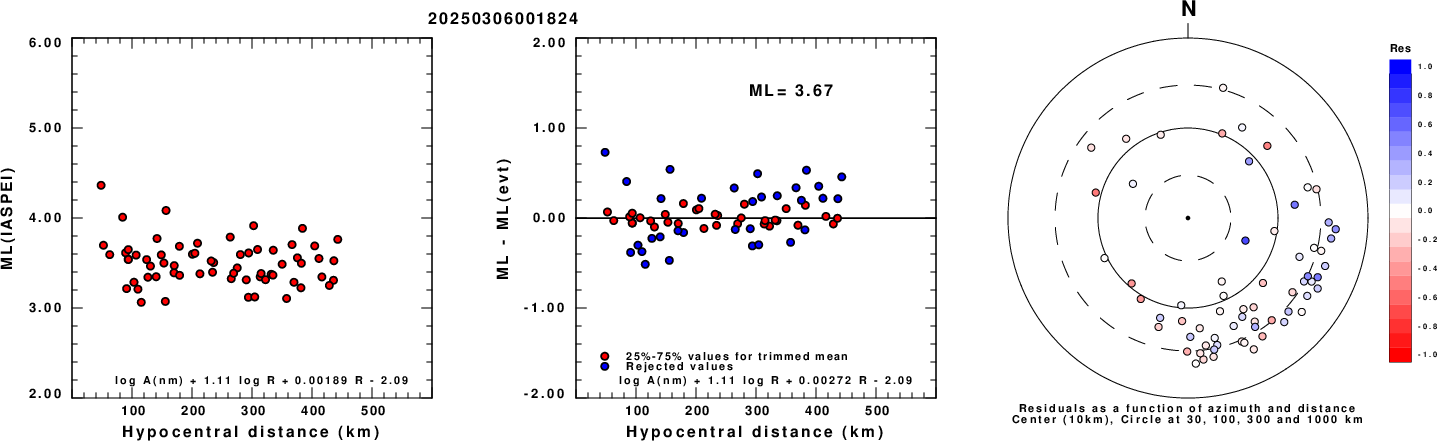

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

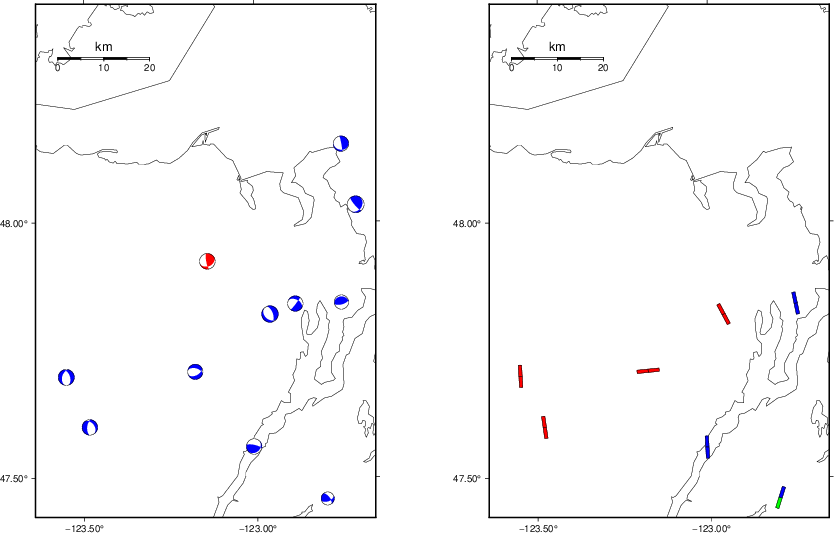

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

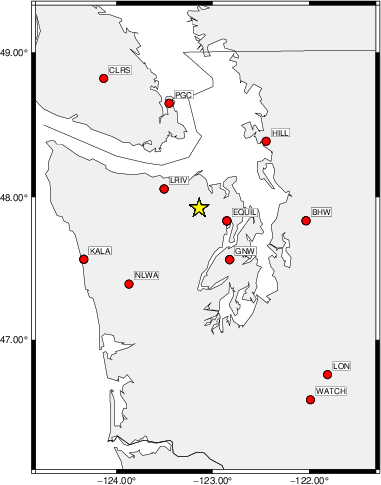

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   160    55    50   3.02 0.1838
WVFGRD96    2.0    25    50   -65   3.25 0.3213
WVFGRD96    3.0   160    65    40   3.26 0.3363
WVFGRD96    4.0   160    70    45   3.31 0.3543
WVFGRD96    5.0   330    85   -50   3.35 0.3739
WVFGRD96    6.0   320    75   -65   3.43 0.4152
WVFGRD96    7.0   315    70   -65   3.44 0.4436
WVFGRD96    8.0   315    70   -70   3.52 0.4586
WVFGRD96    9.0   315    70   -70   3.52 0.4756
WVFGRD96   10.0   315    65   -70   3.53 0.4865
WVFGRD96   11.0   305    55   -70   3.55 0.4985
WVFGRD96   12.0   305    55   -70   3.55 0.5079
WVFGRD96   13.0   300    55   -70   3.56 0.5143
WVFGRD96   14.0   295    50   -75   3.58 0.5203
WVFGRD96   15.0   295    50   -75   3.59 0.5253
WVFGRD96   16.0   295    50   -75   3.60 0.5279
WVFGRD96   17.0   300    55   -75   3.60 0.5294
WVFGRD96   18.0   295    55   -75   3.62 0.5307
WVFGRD96   19.0   300    55   -75   3.62 0.5306
WVFGRD96   20.0   300    55   -75   3.63 0.5285
WVFGRD96   21.0   160    80    60   3.58 0.5291
WVFGRD96   22.0   160    80    60   3.59 0.5337
WVFGRD96   23.0   160    80    60   3.60 0.5366
WVFGRD96   24.0   165    75    60   3.61 0.5394
WVFGRD96   25.0   165    75    60   3.62 0.5409
WVFGRD96   26.0   165    80    55   3.63 0.5419
WVFGRD96   27.0   165    80    55   3.64 0.5422
WVFGRD96   28.0   165    80    55   3.65 0.5410
WVFGRD96   29.0   170    70    60   3.66 0.5396
WVFGRD96   30.0   170    70    60   3.67 0.5409
WVFGRD96   31.0   170    70    55   3.67 0.5410
WVFGRD96   32.0   170    70    55   3.68 0.5390
WVFGRD96   33.0   170    80    50   3.69 0.5415
WVFGRD96   34.0   170    80    50   3.70 0.5441
WVFGRD96   35.0   170    80    50   3.70 0.5468
WVFGRD96   36.0   170    80    50   3.71 0.5483
WVFGRD96   37.0   170    80    50   3.72 0.5515
WVFGRD96   38.0   170    80    45   3.73 0.5545
WVFGRD96   39.0   170    80    45   3.74 0.5583
WVFGRD96   40.0   170    80    60   3.83 0.5662
WVFGRD96   41.0   170    80    55   3.84 0.5726
WVFGRD96   42.0   170    80    55   3.85 0.5786
WVFGRD96   43.0   170    80    55   3.86 0.5839
WVFGRD96   44.0   170    80    55   3.86 0.5895
WVFGRD96   45.0   170    80    55   3.87 0.5919
WVFGRD96   46.0   170    80    55   3.88 0.5963
WVFGRD96   47.0   170    80    55   3.89 0.5992
WVFGRD96   48.0   170    80    55   3.89 0.6006
WVFGRD96   49.0   170    80    55   3.90 0.6018
WVFGRD96   50.0   170    80    55   3.91 0.6019
WVFGRD96   51.0   170    80    55   3.91 0.6026
WVFGRD96   52.0   170    80    55   3.92 0.6013
WVFGRD96   53.0   170    80    55   3.92 0.6005
WVFGRD96   54.0   170    80    55   3.93 0.5967
WVFGRD96   55.0   170    80    55   3.93 0.5958
WVFGRD96   56.0   170    80    55   3.94 0.5928
WVFGRD96   57.0   170    80    50   3.94 0.5902
WVFGRD96   58.0   170    80    50   3.95 0.5871
WVFGRD96   59.0   170    80    50   3.95 0.5830

The best solution is

WVFGRD96   51.0   170    80    55   3.91 0.6026

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

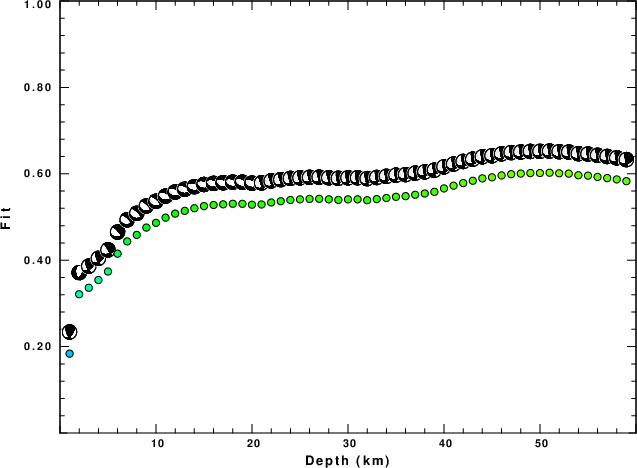

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

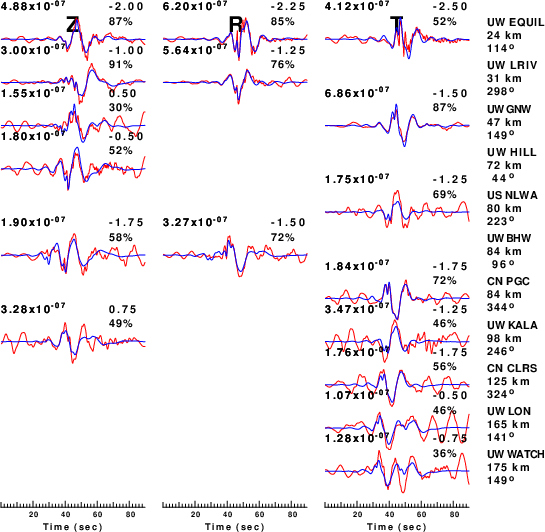

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

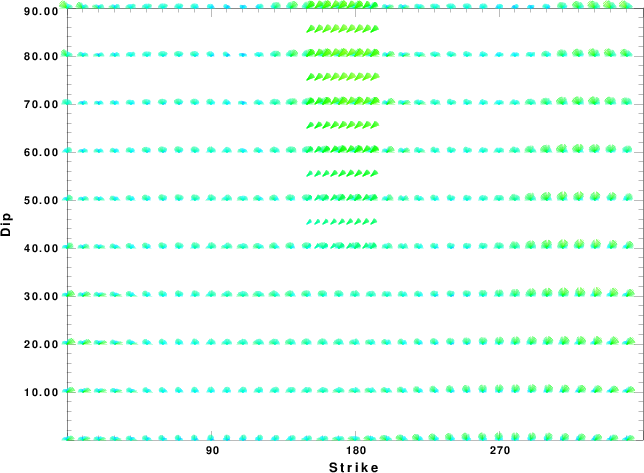

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

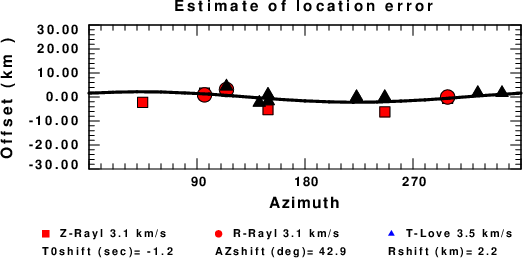

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Fri Apr 11 13:25:25 CDT 2025
