The ANSS event ID is tx2025edml and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/tx2025edml/executive.

2025/02/28 19:33:24 32.370 -101.926 6.8 4.8 Texas

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2025/02/28 19:33:24:0 32.37 -101.93 6.8 4.8 Texas Stations used: 4O.AT01 4O.BB01 4O.BP01 4O.BW01 4O.CT01 4O.CT02 4O.CV01 4O.CW01 4O.DB02 4O.DB03 4O.DB04 4O.EE03 4O.GV01 4O.GV02 4O.GV03 4O.HP02 4O.MBBB2 4O.MID01 4O.MID02 4O.MID03 4O.MO01 4O.NGL01 4O.NGL02 4O.OE01 4O.PL01 4O.SA02 4O.SA04 4O.SA07 4O.SD01 4O.SE01 4O.SM01 4O.SM02 4O.SM03 4O.SM04 4O.SM05 4O.VW01 4O.WB02 4O.WB03 4O.WB05 4O.WB06 4O.WB08 4O.WB09 4O.WB10 4O.WB12 4O.WW01 4T.NM01 4T.NM02 4T.NM03 TX.435B TX.APMT TX.BRDY TX.DKNS TX.FW01 TX.FW02 TX.FW04 TX.FW06 TX.FW07 TX.FW09 TX.FW11 TX.FW12 TX.FW13 TX.FW14 TX.FW15 TX.INDO TX.MB01 TX.MB02 TX.MB03 TX.MB05 TX.MB06 TX.MB08 TX.MB10 TX.MB11 TX.MB12 TX.MB13 TX.MB15 TX.MB16 TX.MB18 TX.MB19 TX.MB21 TX.MB22 TX.MB25 TX.MNHN TX.ODSA TX.OZNA TX.PB04 TX.PB05 TX.PB06 TX.PB07 TX.PB08 TX.PB09 TX.PB11 TX.PB13 TX.PB14 TX.PB16 TX.PB17 TX.PB18 TX.PB21 TX.PB22 TX.PB23 TX.PB24 TX.PB26 TX.PB30 TX.PB31 TX.PB34 TX.PB36 TX.PB38 TX.PB39 TX.PB43 TX.PB44 TX.PB46 TX.PB47 TX.PB51 TX.PB54 TX.PECS TX.PH03 TX.PLPT TX.POST TX.SAND TX.SGCY TX.SMWD TX.SN02 TX.SN03 TX.SN07 TX.SN09 TX.VHRN TX.WTFS Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3 Best Fitting Double Couple Mo = 8.71e+22 dyne-cm Mw = 4.56 Z = 8 km Plane Strike Dip Rake NP1 214 54 -110 NP2 65 40 -65 Principal Axes: Axis Value Plunge Azimuth T 8.71e+22 7 317 N 0.00e+00 16 225 P -8.71e+22 72 72 Moment Tensor: (dyne-cm) Component Value Mxx 4.57e+22 Mxy -4.50e+22 Mxz 5.06e+20 Myy 3.20e+22 Myz -3.13e+22 Mzz -7.77e+22 ############## ###################### #################--------- T #############-------------- ## ###########------------------ ###############--------------------- ##############------------------------ ##############-------------------------# ############--------------------------## ############----------- -------------### ###########------------ P ------------#### ##########------------- -----------##### ##########--------------------------###### ########--------------------------###### ########------------------------######## ######-----------------------######### -####--------------------########### ---#----------------############## ---########################### --########################## ###################### ############## Global CMT Convention Moment Tensor: R T P -7.77e+22 5.06e+20 3.13e+22 5.06e+20 4.57e+22 4.50e+22 3.13e+22 4.50e+22 3.20e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250228193324/index.html

Preferred Solution

      STK = 65
      DIP = 40
     RAKE = -65
       MW = 4.56
       HS = 8.0

The NDK file is 20250228193324.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU	USGSMWR	USGSW	TX
USGS/SLU Moment Tensor Solution ENS 2025/02/28 19:33:24:0 32.37 -101.93 6.8 4.8 Texas Stations used: 4O.AT01 4O.BB01 4O.BP01 4O.BW01 4O.CT01 4O.CT02 4O.CV01 4O.CW01 4O.DB02 4O.DB03 4O.DB04 4O.EE03 4O.GV01 4O.GV02 4O.GV03 4O.HP02 4O.MBBB2 4O.MID01 4O.MID02 4O.MID03 4O.MO01 4O.NGL01 4O.NGL02 4O.OE01 4O.PL01 4O.SA02 4O.SA04 4O.SA07 4O.SD01 4O.SE01 4O.SM01 4O.SM02 4O.SM03 4O.SM04 4O.SM05 4O.VW01 4O.WB02 4O.WB03 4O.WB05 4O.WB06 4O.WB08 4O.WB09 4O.WB10 4O.WB12 4O.WW01 4T.NM01 4T.NM02 4T.NM03 TX.435B TX.APMT TX.BRDY TX.DKNS TX.FW01 TX.FW02 TX.FW04 TX.FW06 TX.FW07 TX.FW09 TX.FW11 TX.FW12 TX.FW13 TX.FW14 TX.FW15 TX.INDO TX.MB01 TX.MB02 TX.MB03 TX.MB05 TX.MB06 TX.MB08 TX.MB10 TX.MB11 TX.MB12 TX.MB13 TX.MB15 TX.MB16 TX.MB18 TX.MB19 TX.MB21 TX.MB22 TX.MB25 TX.MNHN TX.ODSA TX.OZNA TX.PB04 TX.PB05 TX.PB06 TX.PB07 TX.PB08 TX.PB09 TX.PB11 TX.PB13 TX.PB14 TX.PB16 TX.PB17 TX.PB18 TX.PB21 TX.PB22 TX.PB23 TX.PB24 TX.PB26 TX.PB30 TX.PB31 TX.PB34 TX.PB36 TX.PB38 TX.PB39 TX.PB43 TX.PB44 TX.PB46 TX.PB47 TX.PB51 TX.PB54 TX.PECS TX.PH03 TX.PLPT TX.POST TX.SAND TX.SGCY TX.SMWD TX.SN02 TX.SN03 TX.SN07 TX.SN09 TX.VHRN TX.WTFS Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3 Best Fitting Double Couple Mo = 8.71e+22 dyne-cm Mw = 4.56 Z = 8 km Plane Strike Dip Rake NP1 214 54 -110 NP2 65 40 -65 Principal Axes: Axis Value Plunge Azimuth T 8.71e+22 7 317 N 0.00e+00 16 225 P -8.71e+22 72 72 Moment Tensor: (dyne-cm) Component Value Mxx 4.57e+22 Mxy -4.50e+22 Mxz 5.06e+20 Myy 3.20e+22 Myz -3.13e+22 Mzz -7.77e+22 ############## ###################### #################--------- T #############-------------- ## ###########------------------ ###############--------------------- ##############------------------------ ##############-------------------------# ############--------------------------## ############----------- -------------### ###########------------ P ------------#### ##########------------- -----------##### ##########--------------------------###### ########--------------------------###### ########------------------------######## ######-----------------------######### -####--------------------########### ---#----------------############## ---########################### --########################## ###################### ############## Global CMT Convention Moment Tensor: R T P -7.77e+22 5.06e+20 3.13e+22 5.06e+20 4.57e+22 4.50e+22 3.13e+22 4.50e+22 3.20e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250228193324/index.html	Regional Moment Tensor (Mwr) Moment 9.887e+15 N-m Magnitude 4.60 Mwr Depth 4.0 km Percent DC 72% Half Duration - Catalog US Data Source US Contributor US Nodal Planes Plane Strike Dip Rake NP1 63 47 -70 NP2 214 47 -111 Principal Axes Axis Value Plunge Azimuth T 10.537e+15 0 139 N -1.465e+15 15 229 P -9.073e+15 75 48	W-phase Moment Tensor (Mww) Moment 1.271e+16 N-m Magnitude 4.67 Mww Depth 13.5 km Percent DC 94% Half Duration 0.50 s Catalog US Data Source US Contributor US Nodal Planes Plane Strike Dip Rake NP1 211 51 -113 NP2 65 44 -64 Principal Axes Axis Value Plunge Azimuth T 1.250e+16 4 317 N 0.040e+16 17 226 P -1.290e+16 72 59	Regional Moment Tensor (Mwr) Moment 6.533e+15 N-m Magnitude 4.48 Mwr Depth 3.0 km Percent DC 88% Half Duration - Catalog TX Data Source TX Contributor TX Nodal Planes Plane Strike Dip Rake NP1 207 60 -121 NP2 78 42 -48 Principal Axes Axis Value Plunge Azimuth T 6.726e+15 10 319 N -0.406e+15 27 224 P -6.320e+15 61 67

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

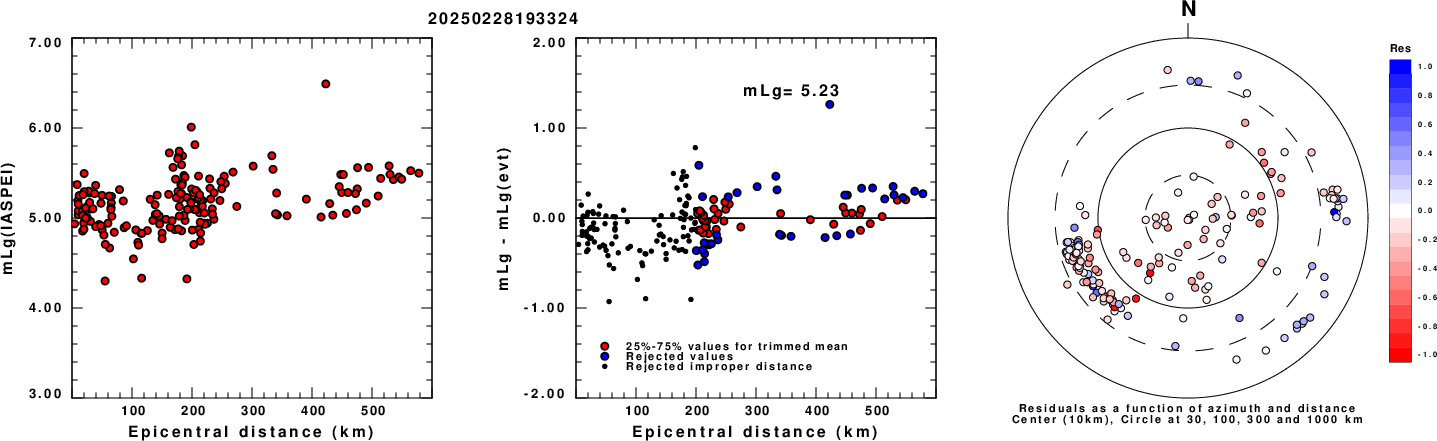

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

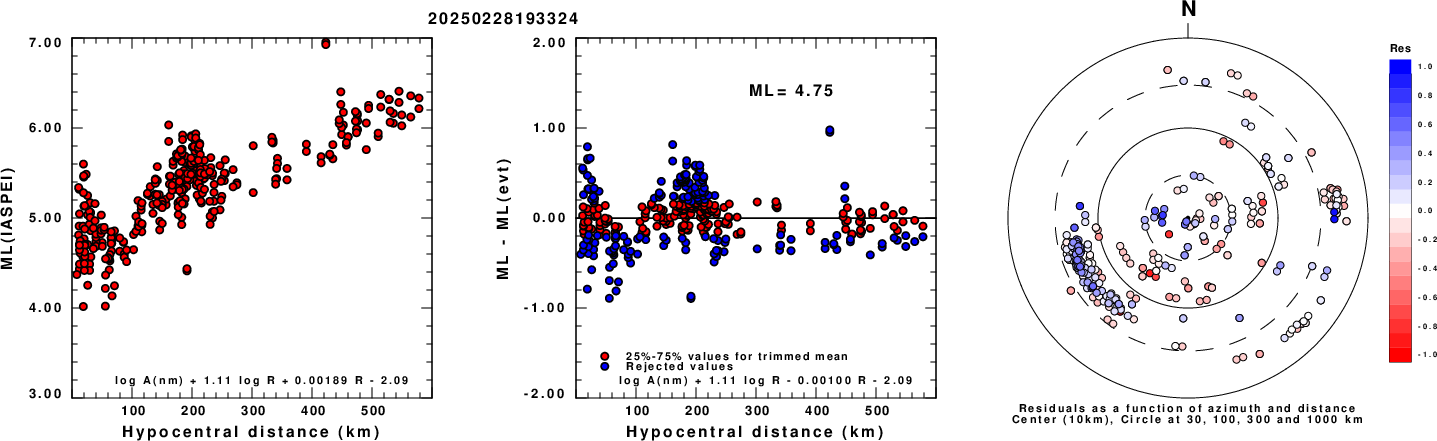

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

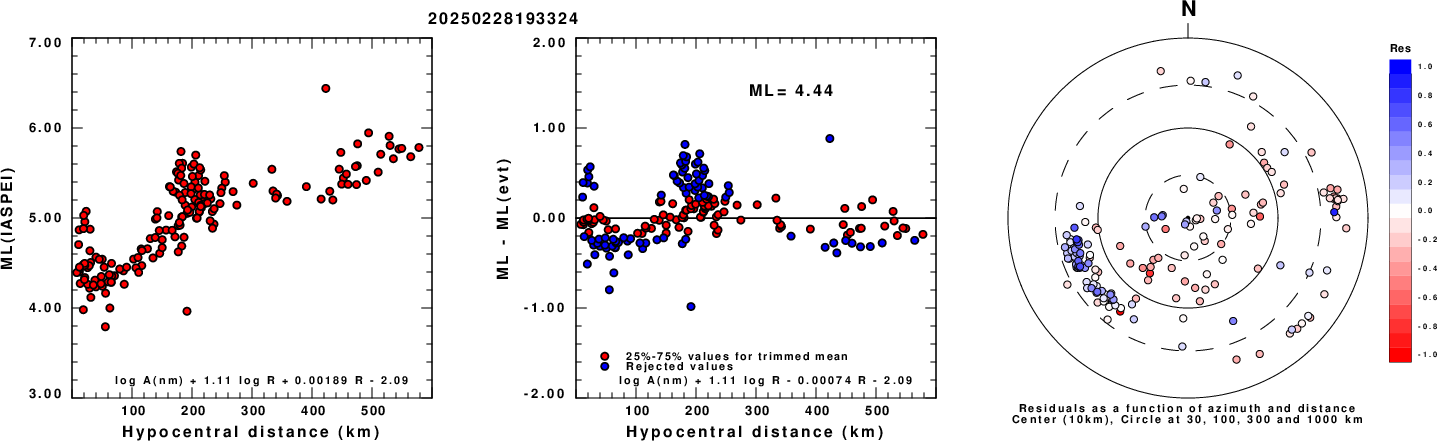

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

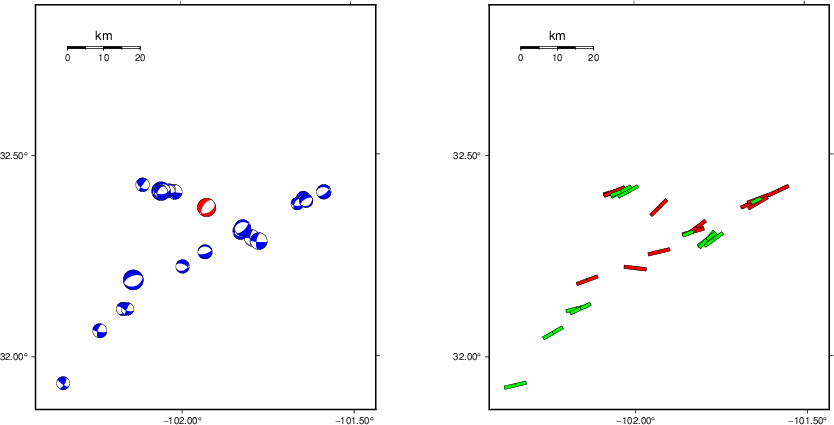

Context

Waveform Inversion using wvfgrd96

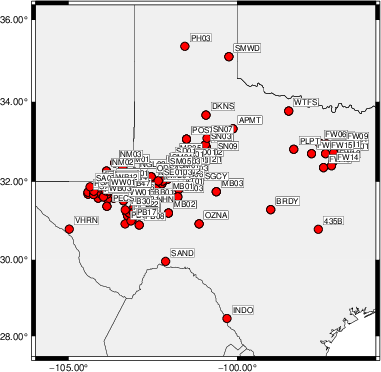

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    95    70   -10   4.12 0.2604
WVFGRD96    2.0    85    45   -30   4.33 0.3285
WVFGRD96    3.0    80    35   -35   4.42 0.4168
WVFGRD96    4.0    75    40   -50   4.45 0.4979
WVFGRD96    5.0    70    40   -60   4.48 0.5468
WVFGRD96    6.0    65    40   -65   4.49 0.5612
WVFGRD96    7.0    65    40   -65   4.50 0.5505
WVFGRD96    8.0    65    40   -65   4.56 0.5614
WVFGRD96    9.0    60    40   -75   4.57 0.5310
WVFGRD96   10.0    60    40   -75   4.56 0.4928
WVFGRD96   11.0    65    40   -65   4.53 0.4528
WVFGRD96   12.0    95    65    10   4.47 0.4289
WVFGRD96   13.0    95    65    15   4.48 0.4185
WVFGRD96   14.0    95    65    15   4.49 0.4081
WVFGRD96   15.0    95    70    10   4.50 0.3970
WVFGRD96   16.0    95    70    10   4.50 0.3865
WVFGRD96   17.0    95    70    10   4.51 0.3757
WVFGRD96   18.0    95    70    15   4.51 0.3652
WVFGRD96   19.0    95    70    15   4.52 0.3550
WVFGRD96   20.0    95    70    15   4.52 0.3452
WVFGRD96   21.0    95    70    15   4.53 0.3350
WVFGRD96   22.0   100    70    15   4.54 0.3256
WVFGRD96   23.0   100    70    15   4.55 0.3167
WVFGRD96   24.0   100    70    15   4.55 0.3080
WVFGRD96   25.0   100    70    15   4.56 0.2997
WVFGRD96   26.0   100    70    15   4.56 0.2917
WVFGRD96   27.0   100    70    15   4.56 0.2844
WVFGRD96   28.0   100    70    10   4.57 0.2776
WVFGRD96   29.0   100    70    10   4.58 0.2713

The best solution is

WVFGRD96    8.0    65    40   -65   4.56 0.5614

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

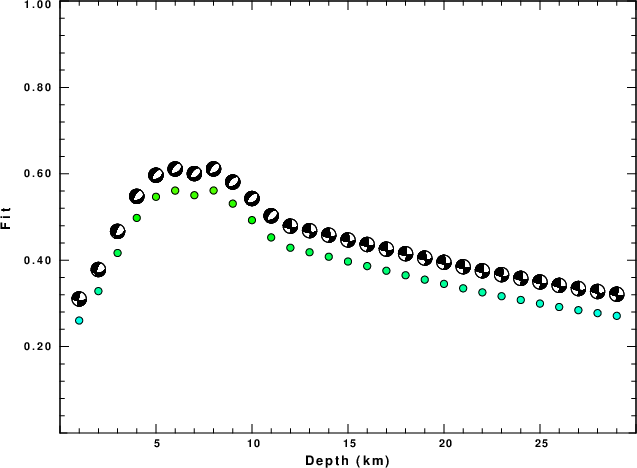

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

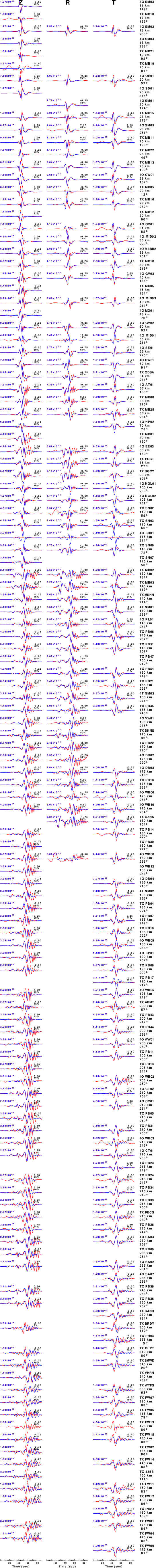

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

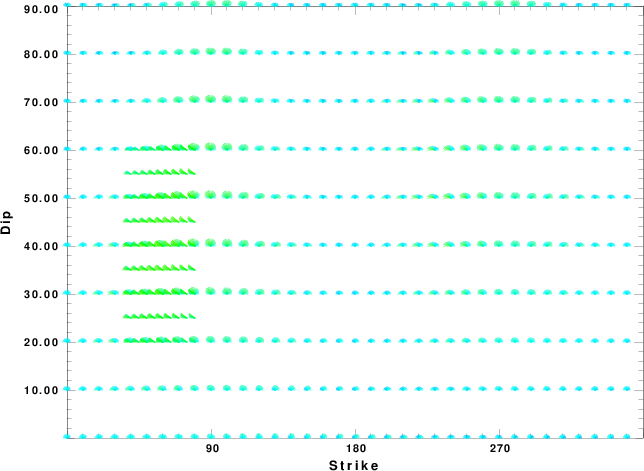

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

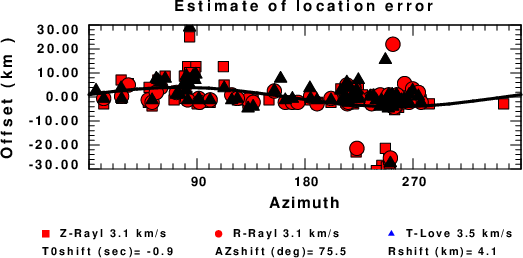

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
