Location

Location ANSS

The ANSS event ID is tx2025dkql and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/tx2025dkql/executive.

2025/02/18 12:16:28 31.722 -104.474 6.5 4.6 Texas

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2025/02/18 12:16:28:0  31.72 -104.47   6.5 4.6 Texas

 Stations used:
   4O.BP01 4O.CT01 4O.CT02 4O.CV01 4O.DB02 4O.DB03 4O.DB04
   4O.LWM1 4O.LWM2 4O.LWM3 4O.NGL01 4O.NGL02 4O.SA02 4O.SA04
   4O.SA06 4O.SA07 4O.SA09 4O.VW01 4O.WB02 4O.WB03 4O.WB04
   4O.WB05 4O.WB06 4O.WB08 4O.WB09 4O.WB10 4O.WB11 4O.WW01
   4T.NM01 4T.NM02 4T.NM03 TX.ALPN TX.MB08 TX.MB25 TX.ODSA
   TX.PB01 TX.PB03 TX.PB04 TX.PB05 TX.PB06 TX.PB07 TX.PB09
   TX.PB10 TX.PB11 TX.PB12 TX.PB13 TX.PB14 TX.PB16 TX.PB17
   TX.PB18 TX.PB19 TX.PB21 TX.PB22 TX.PB23 TX.PB24 TX.PB25
   TX.PB26 TX.PB30 TX.PB31 TX.PB33 TX.PB34 TX.PB39 TX.PB40
   TX.PB43 TX.PB44 TX.PB46 TX.PB47 TX.PB51 TX.PB54 TX.PCOS
   TX.PECS TX.VHRN

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 3.20e+22 dyne-cm
  Mw = 4.27
  Z  = 8 km
  Plane   Strike  Dip  Rake
   NP1       62    71   -107
   NP2      285    25   -50
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.20e+22     24     165
    N   0.00e+00     16      68
    P  -3.20e+22     60     308

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     2.19e+22
       Mxy    -2.83e+21
       Mxz    -2.00e+22
       Myy    -3.09e+21
       Myz     1.39e+22
       Mzz    -1.88e+22




                     ##############
                 ######################
              #########-------############
             ####-------------------#######
           ###-------------------------######
          ##-----------------------------#####
         #---------------------------------###-
        #------------   --------------------#---
        ------------- P -------------------###--
       --------------   -----------------######--
       -------------------------------#########--
       -----------------------------############-
       --------------------------###############-
        ----------------------##################
        ------------------######################
         -----------###########################
          ####################################
           ##################################
             ##################   #########
              ################# T ########
                 ##############   #####
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.88e+22  -2.00e+22  -1.39e+22
 -2.00e+22   2.19e+22   2.83e+21
 -1.39e+22   2.83e+21  -3.09e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250218121628/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 285
      DIP = 25
     RAKE = -50
       MW = 4.27
       HS = 8.0

The NDK file is 20250218121628.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMWR
 USGS/SLU Moment Tensor Solution
 ENS  2025/02/18 12:16:28:0  31.72 -104.47   6.5 4.6 Texas

 Stations used:
   4O.BP01 4O.CT01 4O.CT02 4O.CV01 4O.DB02 4O.DB03 4O.DB04
   4O.LWM1 4O.LWM2 4O.LWM3 4O.NGL01 4O.NGL02 4O.SA02 4O.SA04
   4O.SA06 4O.SA07 4O.SA09 4O.VW01 4O.WB02 4O.WB03 4O.WB04
   4O.WB05 4O.WB06 4O.WB08 4O.WB09 4O.WB10 4O.WB11 4O.WW01
   4T.NM01 4T.NM02 4T.NM03 TX.ALPN TX.MB08 TX.MB25 TX.ODSA
   TX.PB01 TX.PB03 TX.PB04 TX.PB05 TX.PB06 TX.PB07 TX.PB09
   TX.PB10 TX.PB11 TX.PB12 TX.PB13 TX.PB14 TX.PB16 TX.PB17
   TX.PB18 TX.PB19 TX.PB21 TX.PB22 TX.PB23 TX.PB24 TX.PB25
   TX.PB26 TX.PB30 TX.PB31 TX.PB33 TX.PB34 TX.PB39 TX.PB40
   TX.PB43 TX.PB44 TX.PB46 TX.PB47 TX.PB51 TX.PB54 TX.PCOS
   TX.PECS TX.VHRN

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 3.20e+22 dyne-cm
  Mw = 4.27
  Z  = 8 km
  Plane   Strike  Dip  Rake
   NP1       62    71   -107
   NP2      285    25   -50
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.20e+22     24     165
    N   0.00e+00     16      68
    P  -3.20e+22     60     308

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     2.19e+22
       Mxy    -2.83e+21
       Mxz    -2.00e+22
       Myy    -3.09e+21
       Myz     1.39e+22
       Mzz    -1.88e+22




                     ##############
                 ######################
              #########-------############
             ####-------------------#######
           ###-------------------------######
          ##-----------------------------#####
         #---------------------------------###-
        #------------   --------------------#---
        ------------- P -------------------###--
       --------------   -----------------######--
       -------------------------------#########--
       -----------------------------############-
       --------------------------###############-
        ----------------------##################
        ------------------######################
         -----------###########################
          ####################################
           ##################################
             ##################   #########
              ################# T ########
                 ##############   #####
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.88e+22  -2.00e+22  -1.39e+22
 -2.00e+22   2.19e+22   2.83e+21
 -1.39e+22   2.83e+21  -3.09e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250218121628/index.html

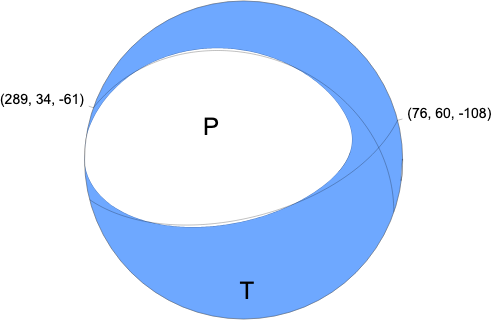

Regional Moment Tensor (Mwr)
Moment 3.190e+15 N-m
Magnitude 4.27 Mwr
Depth 8.0 km
Percent DC 83%
Half Duration
-
Catalog
US
Data Source
US
Contributor
US
Nodal Planes
Plane	Strike	Dip	Rake
NP1	76	60	-108
NP2	289	34	-61
Principal Axes
Axis	Value	Plunge	Azimuth
T	3.039e+15	14	179
N	0.282e+15	16	85
P	-3.322e+15	69	308



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

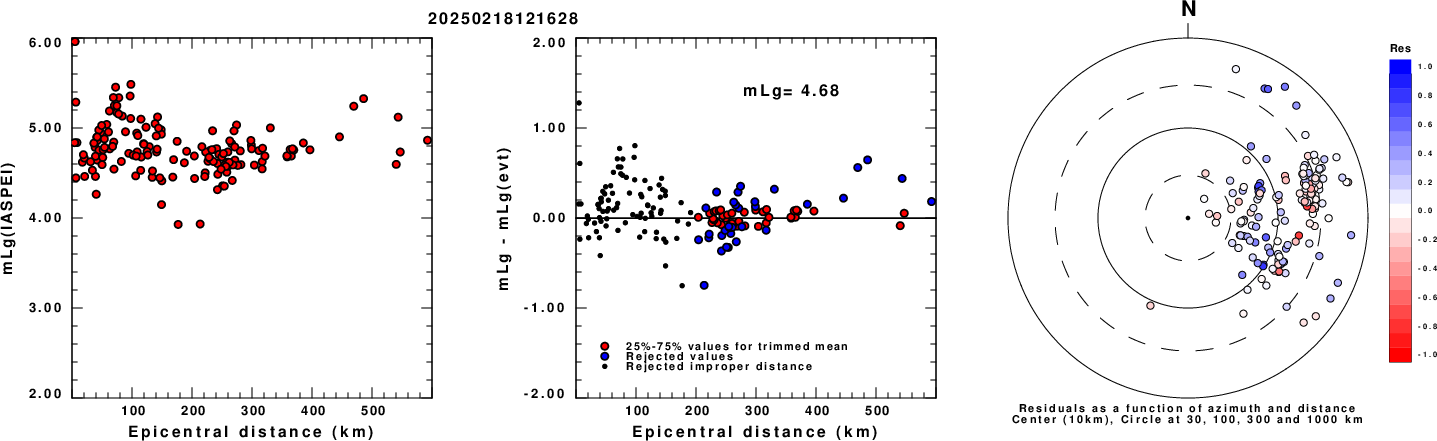

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

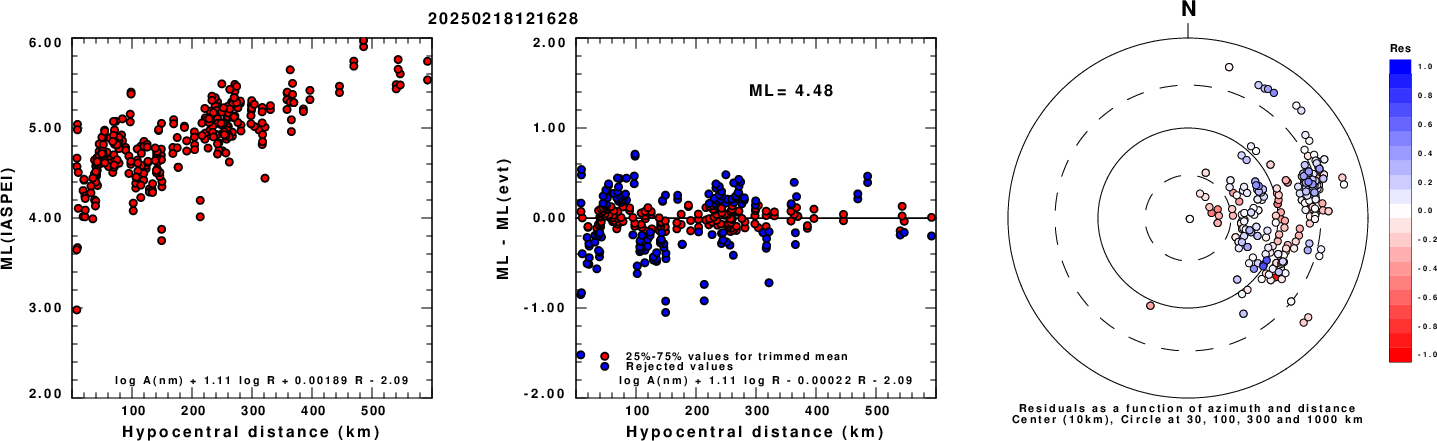

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

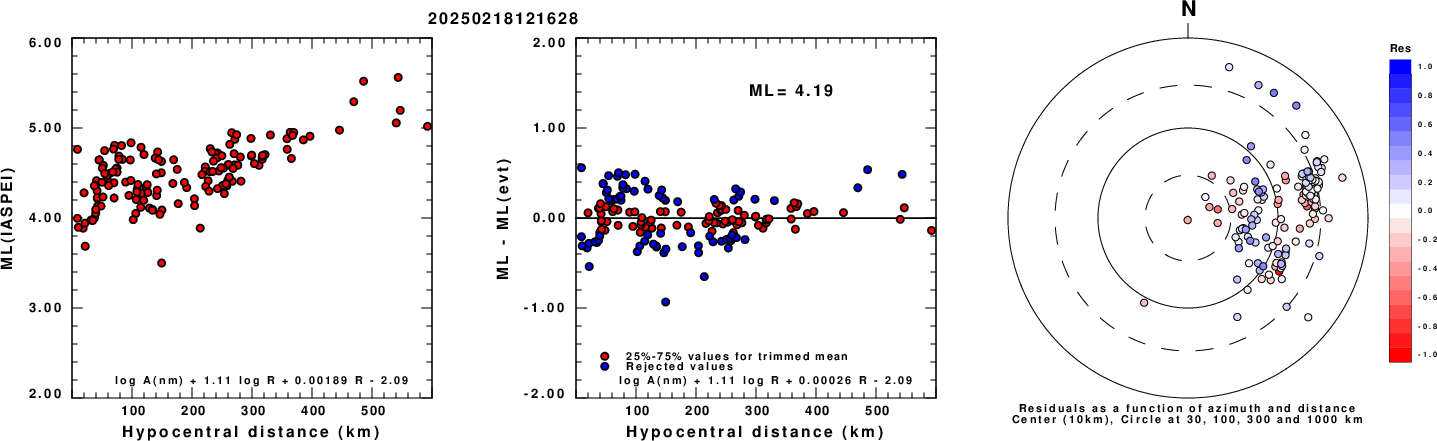

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

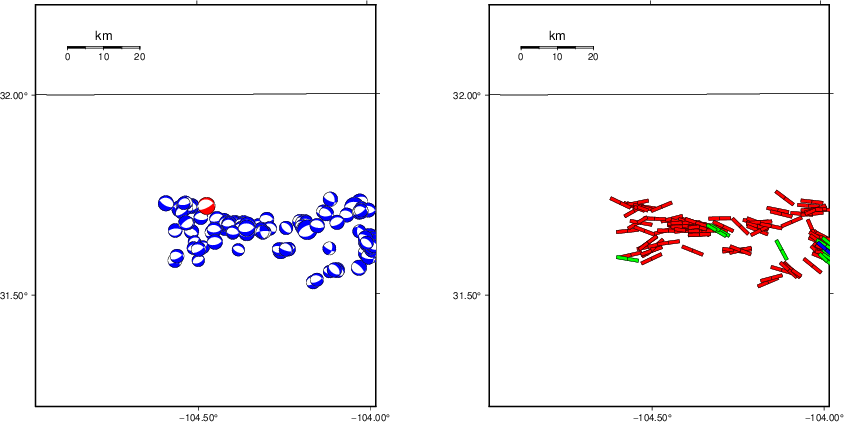

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

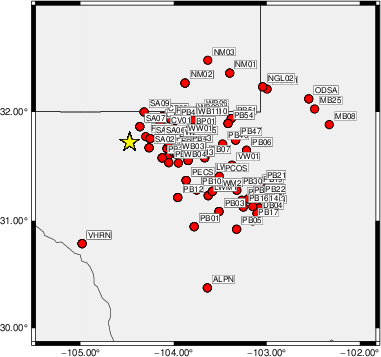

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   215    50   -50   3.83 0.2248
WVFGRD96    2.0   210    50   -60   3.97 0.2574
WVFGRD96    3.0   220    90    70   4.11 0.3179
WVFGRD96    4.0   285    20   -40   4.14 0.3948
WVFGRD96    5.0   290    25   -40   4.16 0.4424
WVFGRD96    6.0   285    25   -50   4.18 0.4688
WVFGRD96    7.0   285    30   -55   4.20 0.4794
WVFGRD96    8.0   285    25   -50   4.27 0.4825
WVFGRD96    9.0   280    25   -60   4.29 0.4792
WVFGRD96   10.0   280    25   -60   4.30 0.4676
WVFGRD96   11.0   275    25   -70   4.32 0.4506
WVFGRD96   12.0   275    25   -70   4.33 0.4315
WVFGRD96   13.0   275    25   -70   4.34 0.4097
WVFGRD96   14.0   275    25   -70   4.34 0.3866
WVFGRD96   15.0   280    25   -65   4.34 0.3633
WVFGRD96   16.0   275    20   -70   4.35 0.3419
WVFGRD96   17.0   325    45    25   4.27 0.3214
WVFGRD96   18.0   325    45    25   4.27 0.3047
WVFGRD96   19.0   325    45    25   4.27 0.2889
WVFGRD96   20.0   325    45    25   4.28 0.2744
WVFGRD96   21.0   325    45    25   4.29 0.2603
WVFGRD96   22.0   325    45    25   4.29 0.2475
WVFGRD96   23.0   240    65    60   4.39 0.2362
WVFGRD96   24.0   240    65    55   4.40 0.2288
WVFGRD96   25.0   240    65    55   4.41 0.2221
WVFGRD96   26.0   240    70    55   4.42 0.2153
WVFGRD96   27.0   135    45   -10   4.40 0.2113
WVFGRD96   28.0   135    45   -10   4.41 0.2082
WVFGRD96   29.0   135    50   -10   4.41 0.2053

The best solution is

WVFGRD96    8.0   285    25   -50   4.27 0.4825

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

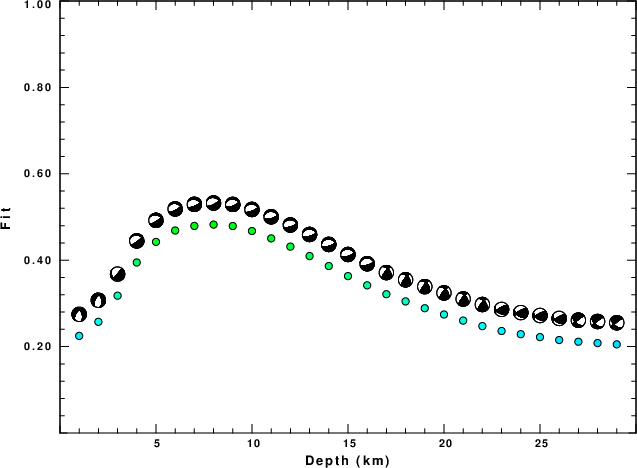

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

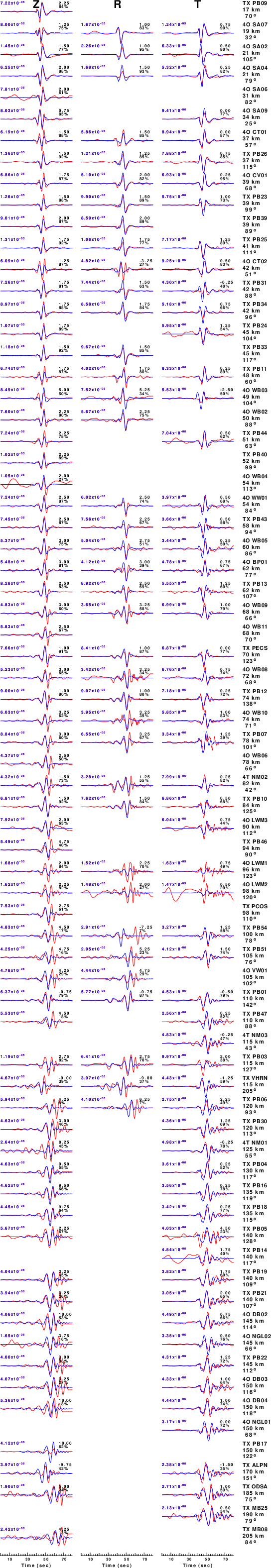

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

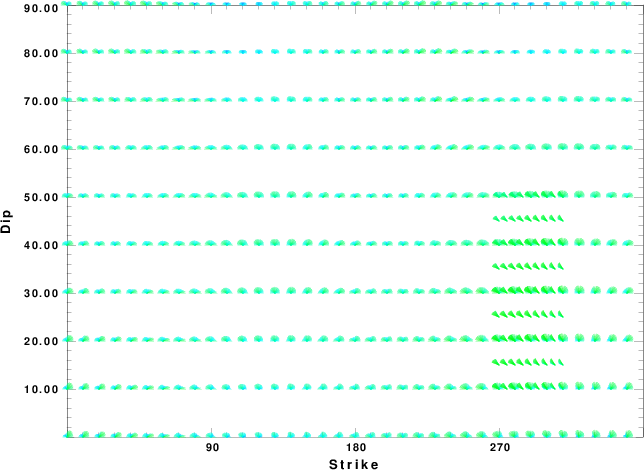

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

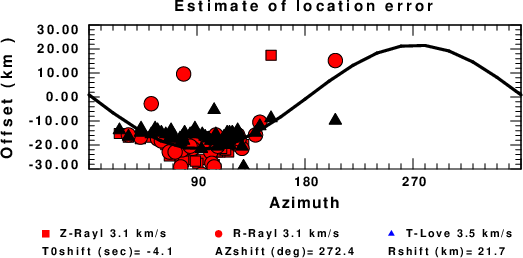

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Tue Feb 18 09:24:07 CST 2025
