The ANSS event ID is uu80100206 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/uu80100206/executive.

2025/01/29 00:59:47 44.762 -110.772 7.2 3.9 Wyoming

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2025/01/29 00:59:47:0  44.76 -110.77   7.2 3.9 Wyoming

 Stations used:
   IE.ARNI IE.BCYI IW.IMW IW.LOHW IW.MFID IW.MOOW IW.PLID
   IW.SNOW IW.TPAW MB.BCMT MB.BDMT MB.BNMT MB.ECMT MB.FCMT
   MB.GBMT MB.HRY MB.JTMT MB.LIMT MB.LRM MB.ODMT MB.SMMT
   MB.SRMT MB.SXMT US.AHID US.BOZ US.BW06 US.EGMT US.HLID
   US.HWUT US.LAO US.MSO US.RLMT UU.FPU UU.HDUT UU.MCU UU.MOUT
   UU.SPU UU.TCU WW.IRMR WY.YDD WY.YFT WY.YHB WY.YHL WY.YMP
   WY.YMR WY.YNE WY.YPP

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 1.35e+22 dyne-cm
  Mw = 4.02
  Z  = 9 km
  Plane   Strike  Dip  Rake
   NP1       97    74   -143
   NP2      355    55   -20
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.35e+22     12     222
    N   0.00e+00     50     117
    P  -1.35e+22     37     321

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.84e+21
       Mxy     1.06e+22
       Mxz    -7.11e+21
       Myy     2.50e+21
       Myz     2.21e+21
       Mzz    -4.34e+21




                     -------#######
                 -------------#########
              ------------------##########
             --------------------##########
           -------   -------------###########
          -------- P --------------###########
         ---------   --------------############
        ----------------------------############
        ----------------------------############
       ------------------------------############
       ###---------------------------############
       #######-----------------------############
       #############-----------------###########-
        #############################-----------
        #############################-----------
         ###########################-----------
          ##########################----------
           ###   ##################----------
             # T ##################--------
                 #################--------
                 ################------
                     ##########----



 Global CMT Convention Moment Tensor:
      R          T          P
 -4.34e+21  -7.11e+21  -2.21e+21
 -7.11e+21   1.84e+21  -1.06e+22
 -2.21e+21  -1.06e+22   2.50e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250129005947/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 355
      DIP = 55
     RAKE = -20
       MW = 4.02
       HS = 9.0

The NDK file is 20250129005947.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU

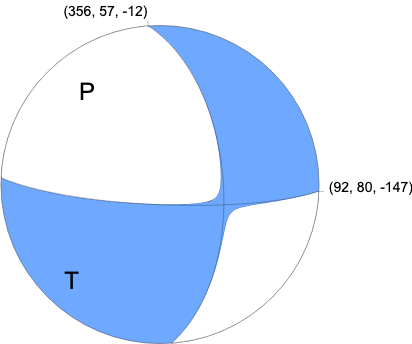

USGSMWR
 USGS/SLU Moment Tensor Solution
 ENS  2025/01/29 00:59:47:0  44.76 -110.77   7.2 3.9 Wyoming

 Stations used:
   IE.ARNI IE.BCYI IW.IMW IW.LOHW IW.MFID IW.MOOW IW.PLID
   IW.SNOW IW.TPAW MB.BCMT MB.BDMT MB.BNMT MB.ECMT MB.FCMT
   MB.GBMT MB.HRY MB.JTMT MB.LIMT MB.LRM MB.ODMT MB.SMMT
   MB.SRMT MB.SXMT US.AHID US.BOZ US.BW06 US.EGMT US.HLID
   US.HWUT US.LAO US.MSO US.RLMT UU.FPU UU.HDUT UU.MCU UU.MOUT
   UU.SPU UU.TCU WW.IRMR WY.YDD WY.YFT WY.YHB WY.YHL WY.YMP
   WY.YMR WY.YNE WY.YPP

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 1.35e+22 dyne-cm
  Mw = 4.02
  Z  = 9 km
  Plane   Strike  Dip  Rake
   NP1       97    74   -143
   NP2      355    55   -20
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.35e+22     12     222
    N   0.00e+00     50     117
    P  -1.35e+22     37     321

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.84e+21
       Mxy     1.06e+22
       Mxz    -7.11e+21
       Myy     2.50e+21
       Myz     2.21e+21
       Mzz    -4.34e+21




                     -------#######
                 -------------#########
              ------------------##########
             --------------------##########
           -------   -------------###########
          -------- P --------------###########
         ---------   --------------############
        ----------------------------############
        ----------------------------############
       ------------------------------############
       ###---------------------------############
       #######-----------------------############
       #############-----------------###########-
        #############################-----------
        #############################-----------
         ###########################-----------
          ##########################----------
           ###   ##################----------
             # T ##################--------
                 #################--------
                 ################------
                     ##########----



 Global CMT Convention Moment Tensor:
      R          T          P
 -4.34e+21  -7.11e+21  -2.21e+21
 -7.11e+21   1.84e+21  -1.06e+22
 -2.21e+21  -1.06e+22   2.50e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250129005947/index.html


Regional Moment Tensor (Mwr)
Moment
1.781e+15 N-m
Magnitude
4.10 Mwr
Depth
23.0 km
Percent DC
98%
Half Duration
-
Catalog
US
Data Source
US
Contributor
US
Nodal Planes
Plane	Strike	Dip	Rake
NP1	92	80	-147
NP2	356	57	-12
Principal Axes
Axis	Value	Plunge	Azimuth
T	1.772e+15	15	220
N	0.018e+15	55	108
P	-1.790e+15	31	319



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

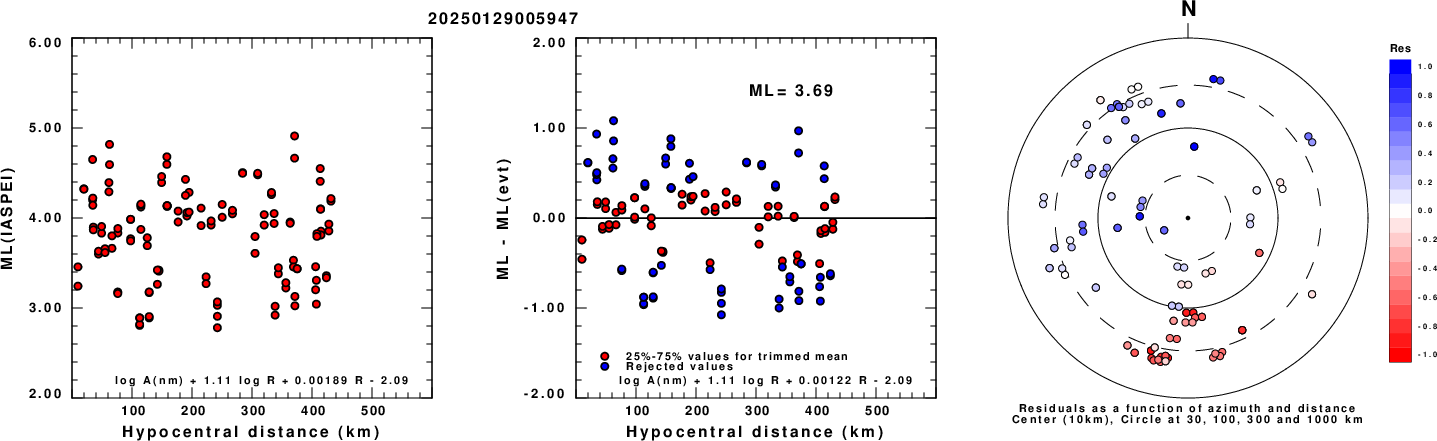

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

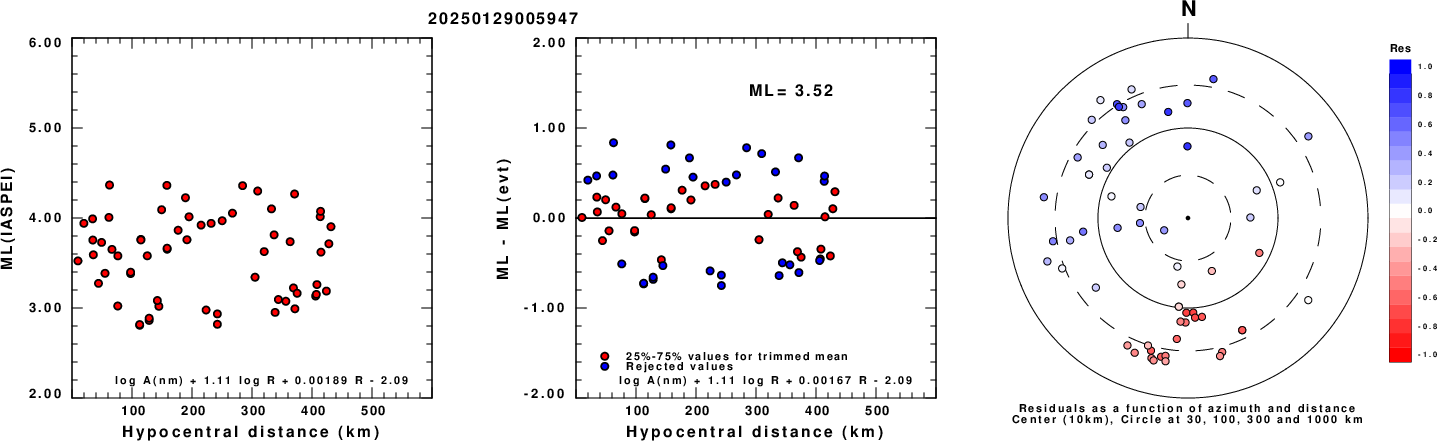

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

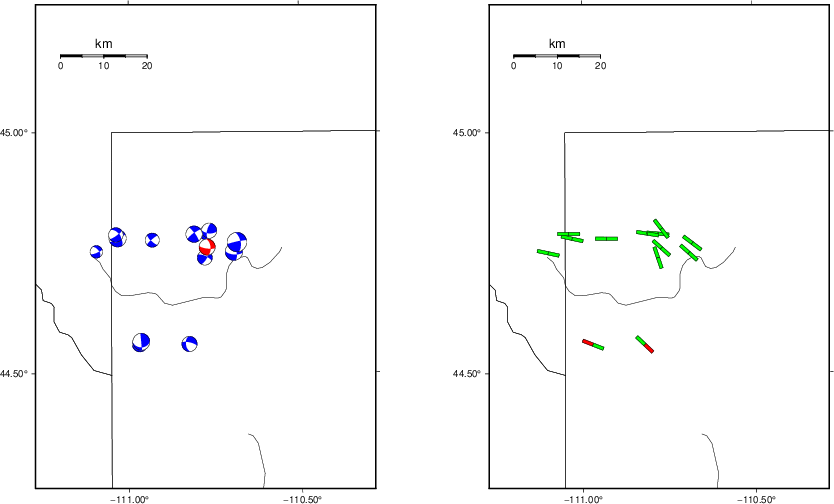

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

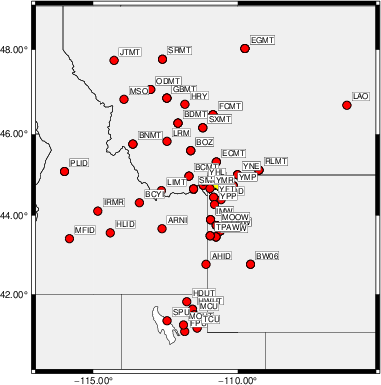

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    20    60    30   3.69 0.3185
WVFGRD96    2.0   165    60   -35   3.82 0.4214
WVFGRD96    3.0   350    55   -25   3.85 0.4454
WVFGRD96    4.0     0    55   -10   3.88 0.4780
WVFGRD96    5.0    -5    55   -15   3.91 0.5040
WVFGRD96    6.0    -5    55   -15   3.94 0.5240
WVFGRD96    7.0     0    60   -15   3.96 0.5368
WVFGRD96    8.0   355    55   -20   4.00 0.5463
WVFGRD96    9.0   355    55   -20   4.02 0.5503
WVFGRD96   10.0    -5    55   -20   4.03 0.5489
WVFGRD96   11.0    -5    60   -15   4.03 0.5444
WVFGRD96   12.0    -5    60   -15   4.05 0.5389
WVFGRD96   13.0    -5    60   -15   4.06 0.5315
WVFGRD96   14.0    -5    60   -15   4.07 0.5226
WVFGRD96   15.0    -5    60   -15   4.07 0.5133
WVFGRD96   16.0    -5    60   -10   4.08 0.5044
WVFGRD96   17.0    -5    60   -10   4.09 0.4954
WVFGRD96   18.0    -5    65   -10   4.09 0.4865
WVFGRD96   19.0    -5    65   -10   4.10 0.4786
WVFGRD96   20.0    -5    65   -10   4.11 0.4710
WVFGRD96   21.0    -5    65   -15   4.12 0.4638
WVFGRD96   22.0    -5    65   -15   4.12 0.4579
WVFGRD96   23.0    -5    65   -15   4.13 0.4523
WVFGRD96   24.0     0    65   -10   4.14 0.4475
WVFGRD96   25.0     0    65   -10   4.14 0.4437
WVFGRD96   26.0     0    65   -10   4.15 0.4399
WVFGRD96   27.0     0    65   -10   4.16 0.4373
WVFGRD96   28.0     0    65   -10   4.16 0.4346
WVFGRD96   29.0     0    65   -10   4.17 0.4325

The best solution is

WVFGRD96    9.0   355    55   -20   4.02 0.5503

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

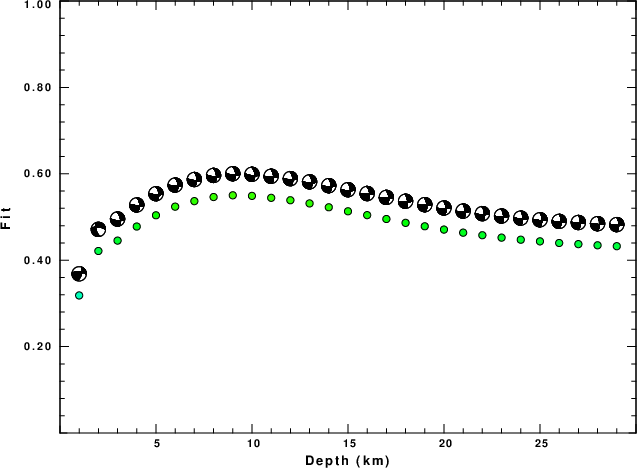

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

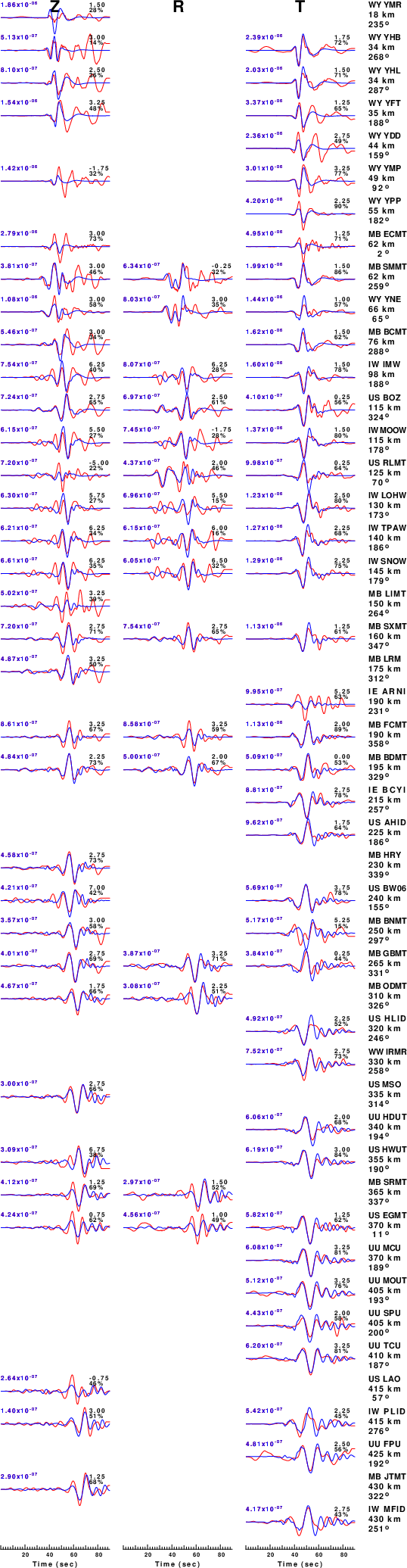

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

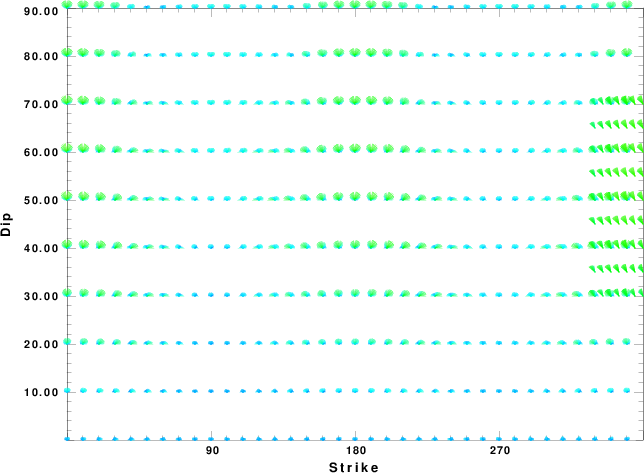

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

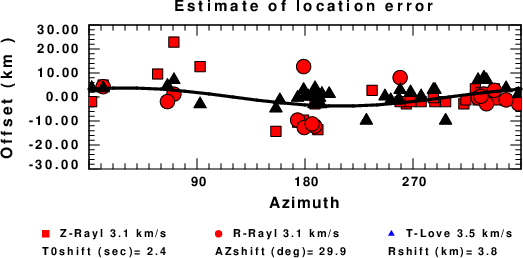

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Tue Jan 28 20:28:08 CST 2025
