Location

Location ANSS

The ANSS event ID is tx2025aoxt and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/tx2025aoxt/executive.

2025/01/09 03:52:17 31.666 -104.357 5.9 4.2 Texas

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2025/01/09 03:52:17:0  31.67 -104.36   5.9 4.2 Texas

 Stations used:
   4O.BP01 4O.CT01 4O.CT02 4O.CV01 4O.DB02 4O.DB03 4O.DB04
   4O.LWM1 4O.LWM3 4O.MID01 4O.MID02 4O.NGL01 4O.NGL02 4O.PR01
   4O.SA04 4O.SA06 4O.SA07 4O.SA09 4O.VW01 4O.WB02 4O.WB03
   4O.WB04 4O.WB05 4O.WB06 4O.WB07 4O.WB08 4O.WB09 4O.WB10
   4O.WB11 4O.WB12 4T.NM01 4T.NM03 TX.ALPN TX.MB08 TX.MB18
   TX.MB25 TX.MNHN TX.ODSA TX.PB01 TX.PB03 TX.PB04 TX.PB05
   TX.PB06 TX.PB07 TX.PB08 TX.PB09 TX.PB10 TX.PB11 TX.PB12
   TX.PB13 TX.PB14 TX.PB16 TX.PB17 TX.PB18 TX.PB19 TX.PB21
   TX.PB22 TX.PB23 TX.PB24 TX.PB25 TX.PB26 TX.PB28 TX.PB29
   TX.PB30 TX.PB31 TX.PB34 TX.PB37 TX.PB39 TX.PB40 TX.PB43
   TX.PB44 TX.PB46 TX.PB47 TX.PB51 TX.PB54 TX.PCOS TX.PECS
   TX.VHRN

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.05 n 3
   lp c 0.15 n 3

 Best Fitting Double Couple
  Mo = 1.66e+22 dyne-cm
  Mw = 4.08
  Z  = 7 km
  Plane   Strike  Dip  Rake
   NP1       76    52   -102
   NP2      275    40   -75
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.66e+22      6     174
    N   0.00e+00     10      83
    P  -1.66e+22     79     296

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.61e+22
       Mxy    -1.35e+21
       Mxz    -3.06e+21
       Myy    -3.60e+20
       Myz     3.04e+21
       Mzz    -1.58e+22




                     ##############
                 ######################
              ############################
             ##############################
           ###########----------#############
          ######---------------------#########
         ####----------------------------######
        ###--------------------------------#####
        #------------------------------------###
       #----------------   -------------------#--
       ----------------- P -------------------##-
       -----------------   ------------------###-
       ------------------------------------######
        ---------------------------------#######
        ##----------------------------##########
         ####---------------------#############
          ##########------####################
           ##################################
             ##############################
              ############################
                 ############   #######
                     ######## T ###



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.58e+22  -3.06e+21  -3.04e+21
 -3.06e+21   1.61e+22   1.35e+21
 -3.04e+21   1.35e+21  -3.60e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250109035217/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 275
      DIP = 40
     RAKE = -75
       MW = 4.08
       HS = 7.0

The NDK file is 20250109035217.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMWR
 USGS/SLU Moment Tensor Solution
 ENS  2025/01/09 03:52:17:0  31.67 -104.36   5.9 4.2 Texas

 Stations used:
   4O.BP01 4O.CT01 4O.CT02 4O.CV01 4O.DB02 4O.DB03 4O.DB04
   4O.LWM1 4O.LWM3 4O.MID01 4O.MID02 4O.NGL01 4O.NGL02 4O.PR01
   4O.SA04 4O.SA06 4O.SA07 4O.SA09 4O.VW01 4O.WB02 4O.WB03
   4O.WB04 4O.WB05 4O.WB06 4O.WB07 4O.WB08 4O.WB09 4O.WB10
   4O.WB11 4O.WB12 4T.NM01 4T.NM03 TX.ALPN TX.MB08 TX.MB18
   TX.MB25 TX.MNHN TX.ODSA TX.PB01 TX.PB03 TX.PB04 TX.PB05
   TX.PB06 TX.PB07 TX.PB08 TX.PB09 TX.PB10 TX.PB11 TX.PB12
   TX.PB13 TX.PB14 TX.PB16 TX.PB17 TX.PB18 TX.PB19 TX.PB21
   TX.PB22 TX.PB23 TX.PB24 TX.PB25 TX.PB26 TX.PB28 TX.PB29
   TX.PB30 TX.PB31 TX.PB34 TX.PB37 TX.PB39 TX.PB40 TX.PB43
   TX.PB44 TX.PB46 TX.PB47 TX.PB51 TX.PB54 TX.PCOS TX.PECS
   TX.VHRN

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.05 n 3
   lp c 0.15 n 3

 Best Fitting Double Couple
  Mo = 1.66e+22 dyne-cm
  Mw = 4.08
  Z  = 7 km
  Plane   Strike  Dip  Rake
   NP1       76    52   -102
   NP2      275    40   -75
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.66e+22      6     174
    N   0.00e+00     10      83
    P  -1.66e+22     79     296

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.61e+22
       Mxy    -1.35e+21
       Mxz    -3.06e+21
       Myy    -3.60e+20
       Myz     3.04e+21
       Mzz    -1.58e+22




                     ##############
                 ######################
              ############################
             ##############################
           ###########----------#############
          ######---------------------#########
         ####----------------------------######
        ###--------------------------------#####
        #------------------------------------###
       #----------------   -------------------#--
       ----------------- P -------------------##-
       -----------------   ------------------###-
       ------------------------------------######
        ---------------------------------#######
        ##----------------------------##########
         ####---------------------#############
          ##########------####################
           ##################################
             ##############################
              ############################
                 ############   #######
                     ######## T ###



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.58e+22  -3.06e+21  -3.04e+21
 -3.06e+21   1.61e+22   1.35e+21
 -3.04e+21   1.35e+21  -3.60e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20250109035217/index.html

aRegional Moment Tensor (Mwr)
Moment
2.297e+15 N-m
Magnitude
4.17 Mwr
Depth
8.0 km
Percent DC
95%
Half Duration
-
Catalog
US
Data Source
US 2
Contributor
US 2
Nodal Planes
Plane	Strike	Dip	Rake
NP1	270	42	-87
NP2	85	48	-93
Principal Axes
Axis	Value	Plunge	Azimuth
T	2.269e+15	3	177
N	0.055e+15	2	87
P	-2.324e+15	86	323



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

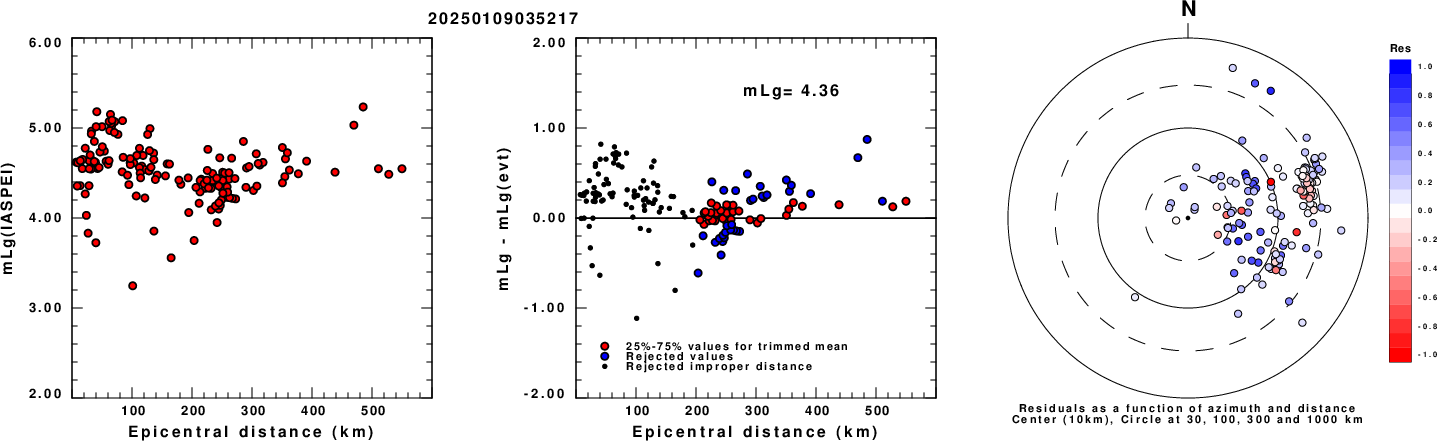

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

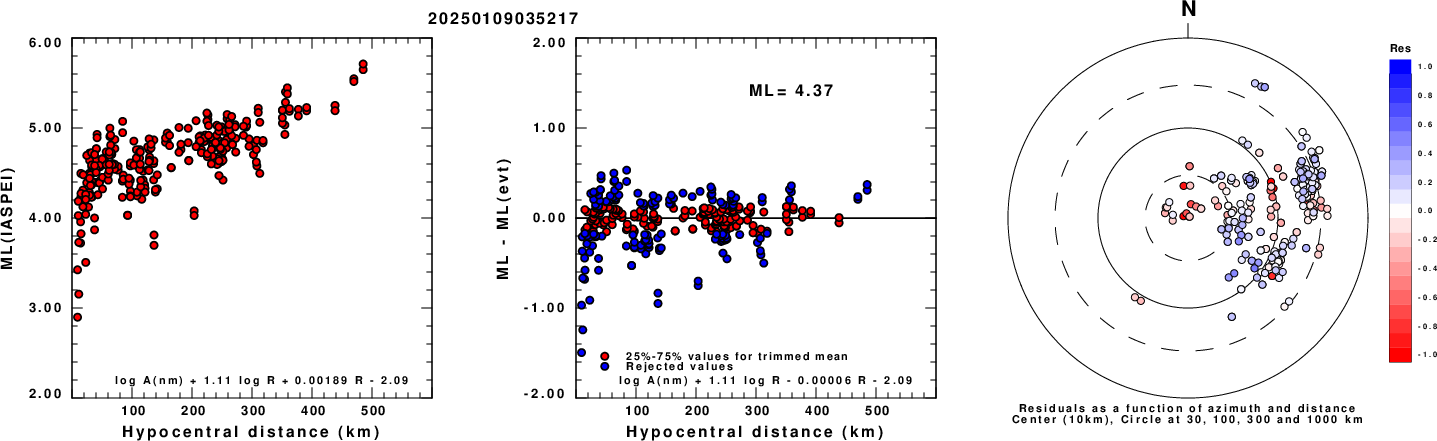

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

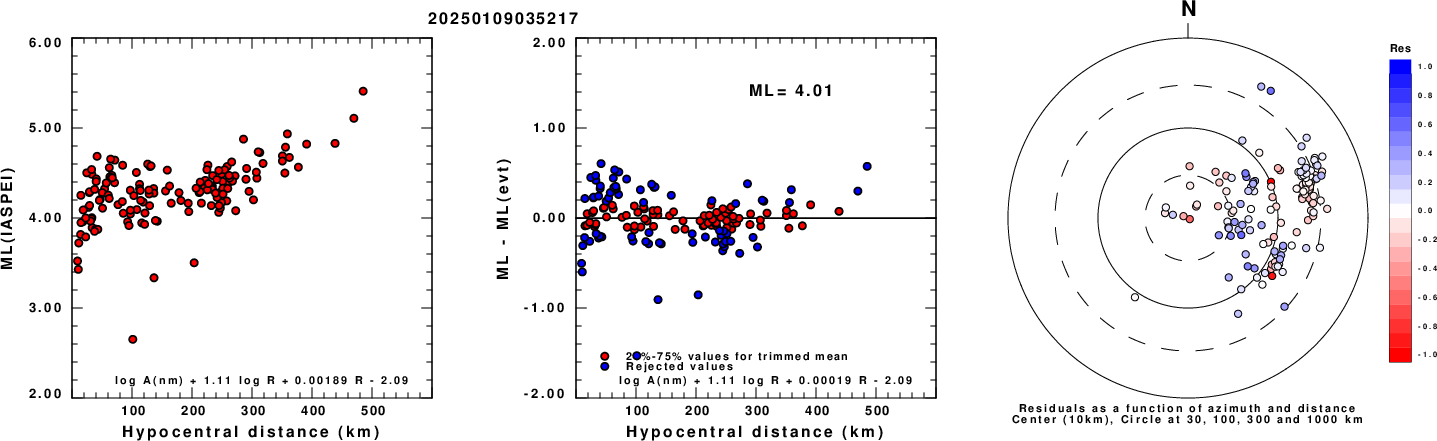

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

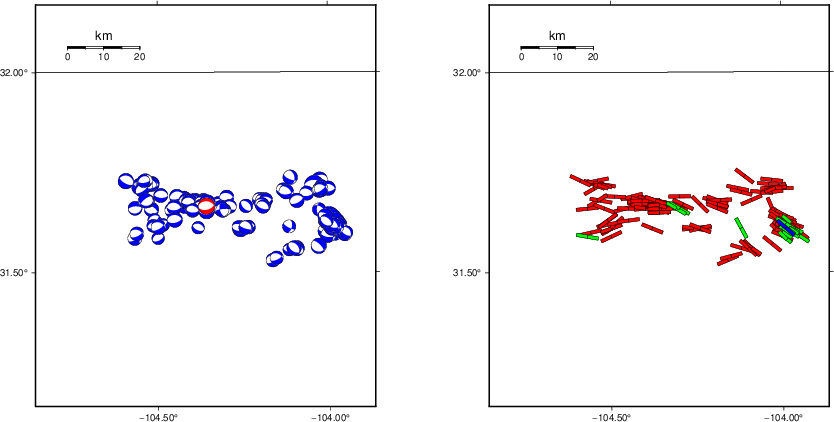

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

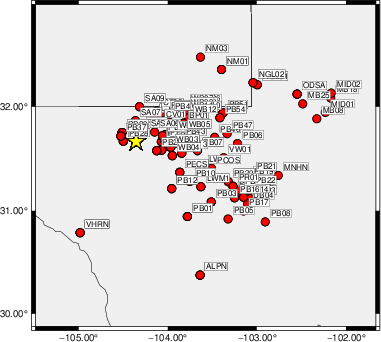

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.05 n 3
lp c 0.15 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   220    60   -20   3.54 0.2031
WVFGRD96    2.0   200    55   -55   3.77 0.2630
WVFGRD96    3.0    10    80   -70   3.87 0.3571
WVFGRD96    4.0   280    40   -65   3.97 0.4706
WVFGRD96    5.0   275    40   -75   4.01 0.5603
WVFGRD96    6.0   275    40   -75   4.04 0.6048
WVFGRD96    7.0   275    40   -75   4.08 0.6197
WVFGRD96    8.0   270    35   -80   4.17 0.6161
WVFGRD96    9.0   265    35   -90   4.19 0.6048
WVFGRD96   10.0    85    55   -90   4.21 0.5776
WVFGRD96   11.0   265    35   -90   4.22 0.5403
WVFGRD96   12.0    85    55   -90   4.24 0.4975
WVFGRD96   13.0    90    55   -80   4.24 0.4551
WVFGRD96   14.0    90    55   -80   4.25 0.4158
WVFGRD96   15.0   325    60    45   4.18 0.3807
WVFGRD96   16.0   325    60    45   4.19 0.3560
WVFGRD96   17.0   325    60    45   4.20 0.3336
WVFGRD96   18.0   325    60    45   4.20 0.3150
WVFGRD96   19.0   325    60    45   4.20 0.3002
WVFGRD96   20.0   330    65    60   4.21 0.2911
WVFGRD96   21.0   330    65    60   4.22 0.2875
WVFGRD96   22.0   330    65    60   4.22 0.2834
WVFGRD96   23.0   330    70    55   4.23 0.2805
WVFGRD96   24.0    70    45    65   4.28 0.2817
WVFGRD96   25.0    70    45    65   4.28 0.2858
WVFGRD96   26.0    65    45    60   4.28 0.2884
WVFGRD96   27.0    65    45    60   4.29 0.2894
WVFGRD96   28.0    65    50    60   4.29 0.2900
WVFGRD96   29.0    60    50    55   4.29 0.2916

The best solution is

WVFGRD96    7.0   275    40   -75   4.08 0.6197

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

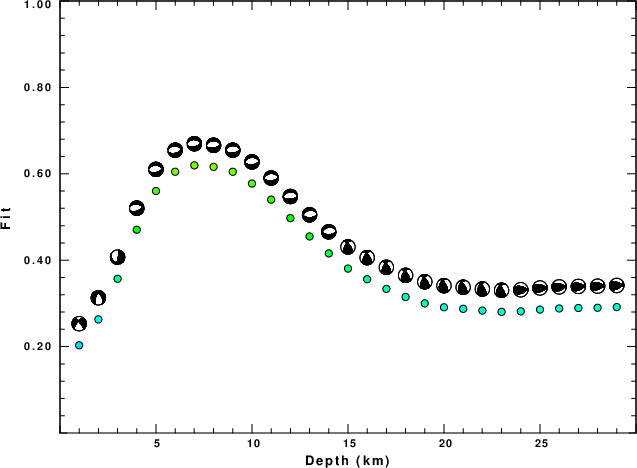

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.05 n 3
lp c 0.15 n 3

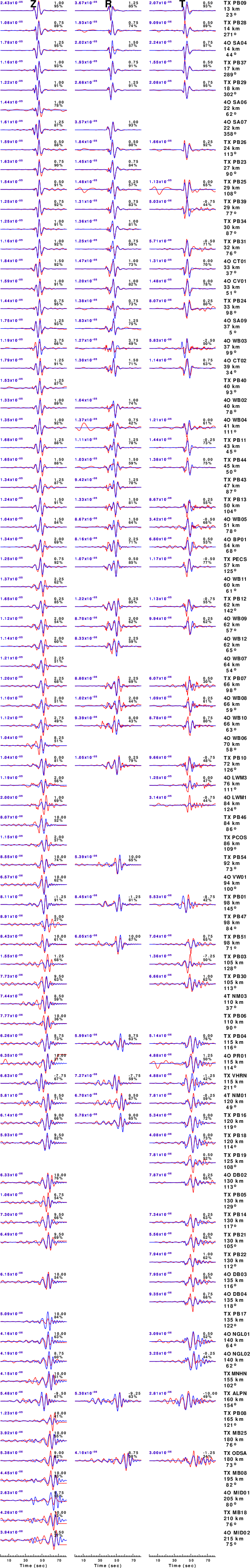

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

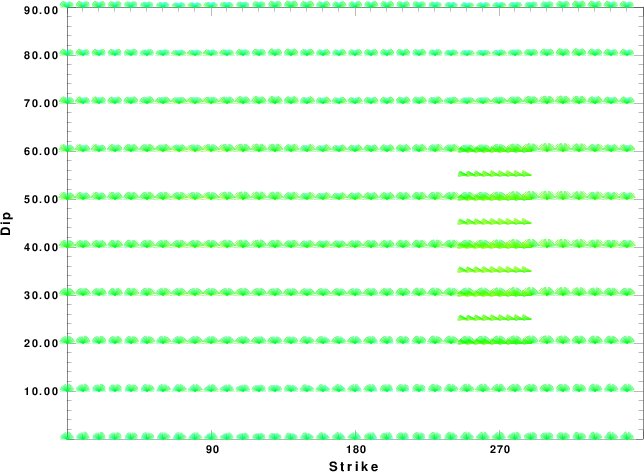

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

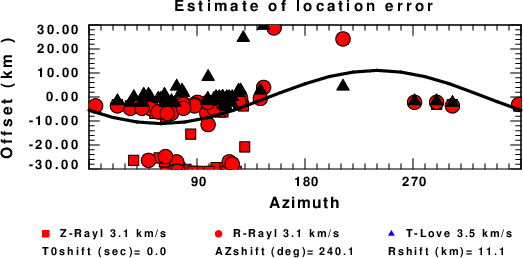

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Jan 9 06:52:54 CST 2025
