Location

Location ANSS

The ANSS event ID is ak024em2arnr and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak024em2arnr/executive.

2024/11/13 09:07:03 60.945 -147.361 16.2 4.5 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2024/11/13 09:07:03:0  60.94 -147.36  16.2 4.5 Alaska

 Stations used:
   AK.BAE AK.BAT AK.BGLC AK.BRSE AK.EYAK AK.FID AK.GHO AK.GRIN
   AK.HIN AK.KHIT AK.KIAG AK.KNK AK.L22K AK.M23K AK.M26K
   AK.MCAR AK.P23K AK.PAX AK.PS11 AK.PS12 AK.PWL AK.SAW AK.SCM
   AK.SLK AK.SWD AK.VMT AK.VRDI AT.DORN AT.NSHR AT.PMR AV.N25K
   AV.STLK

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 3.31e+22 dyne-cm
  Mw = 4.28
  Z  = 30 km
  Plane   Strike  Dip  Rake
   NP1       85    80    50
   NP2      343    41   165
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.31e+22     41     318
    N   0.00e+00     39      93
    P  -3.31e+22     24     205

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.22e+22
       Mxy    -1.99e+22
       Mxz     2.34e+22
       Myy     3.57e+21
       Myz    -5.76e+21
       Mzz     8.68e+21




                     ###-----------
                 ############----------
              ##################----------
             #####################---------
           ########################----------
          #########   ###############---------
         ########## T ################---------
        ###########   #################---------
        ###############################---------
       #################################---------
       #################################------###
       #################################-########
       -------###########----------------########
        ---------------------------------#######
        ---------------------------------#######
         -------------------------------#######
          ------------------------------######
           ---------   ----------------######
             ------- P ----------------####
              ------   ---------------####
                 -------------------###
                     -------------#



 Global CMT Convention Moment Tensor:
      R          T          P
  8.68e+21   2.34e+22   5.76e+21
  2.34e+22  -1.22e+22   1.99e+22
  5.76e+21   1.99e+22   3.57e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20241113090703/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 85
      DIP = 80
     RAKE = 50
       MW = 4.28
       HS = 30.0

The NDK file is 20241113090703.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMWR
 USGS/SLU Moment Tensor Solution
 ENS  2024/11/13 09:07:03:0  60.94 -147.36  16.2 4.5 Alaska

 Stations used:
   AK.BAE AK.BAT AK.BGLC AK.BRSE AK.EYAK AK.FID AK.GHO AK.GRIN
   AK.HIN AK.KHIT AK.KIAG AK.KNK AK.L22K AK.M23K AK.M26K
   AK.MCAR AK.P23K AK.PAX AK.PS11 AK.PS12 AK.PWL AK.SAW AK.SCM
   AK.SLK AK.SWD AK.VMT AK.VRDI AT.DORN AT.NSHR AT.PMR AV.N25K
   AV.STLK

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 3.31e+22 dyne-cm
  Mw = 4.28
  Z  = 30 km
  Plane   Strike  Dip  Rake
   NP1       85    80    50
   NP2      343    41   165
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.31e+22     41     318
    N   0.00e+00     39      93
    P  -3.31e+22     24     205

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.22e+22
       Mxy    -1.99e+22
       Mxz     2.34e+22
       Myy     3.57e+21
       Myz    -5.76e+21
       Mzz     8.68e+21




                     ###-----------
                 ############----------
              ##################----------
             #####################---------
           ########################----------
          #########   ###############---------
         ########## T ################---------
        ###########   #################---------
        ###############################---------
       #################################---------
       #################################------###
       #################################-########
       -------###########----------------########
        ---------------------------------#######
        ---------------------------------#######
         -------------------------------#######
          ------------------------------######
           ---------   ----------------######
             ------- P ----------------####
              ------   ---------------####
                 -------------------###
                     -------------#



 Global CMT Convention Moment Tensor:
      R          T          P
  8.68e+21   2.34e+22   5.76e+21
  2.34e+22  -1.22e+22   1.99e+22
  5.76e+21   1.99e+22   3.57e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20241113090703/index.html

Regional Moment Tensor (Mwr)
Moment
3.943e+15 N-m
Magnitude
4.33 Mwr
Depth
33.0 km
Percent DC
88%
Half Duration
-
Catalog
US
Data Source
US 3
Contributor
US 3
Nodal Planes
Plane	Strike	Dip	Rake
NP1	344	40	168
NP2	83	82	51
Principal Axes
Axis	Value	Plunge	Azimuth
T	4.054e+15	40	317
N	-0.234e+15	39	90
P	-3.821e+15	26	203



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

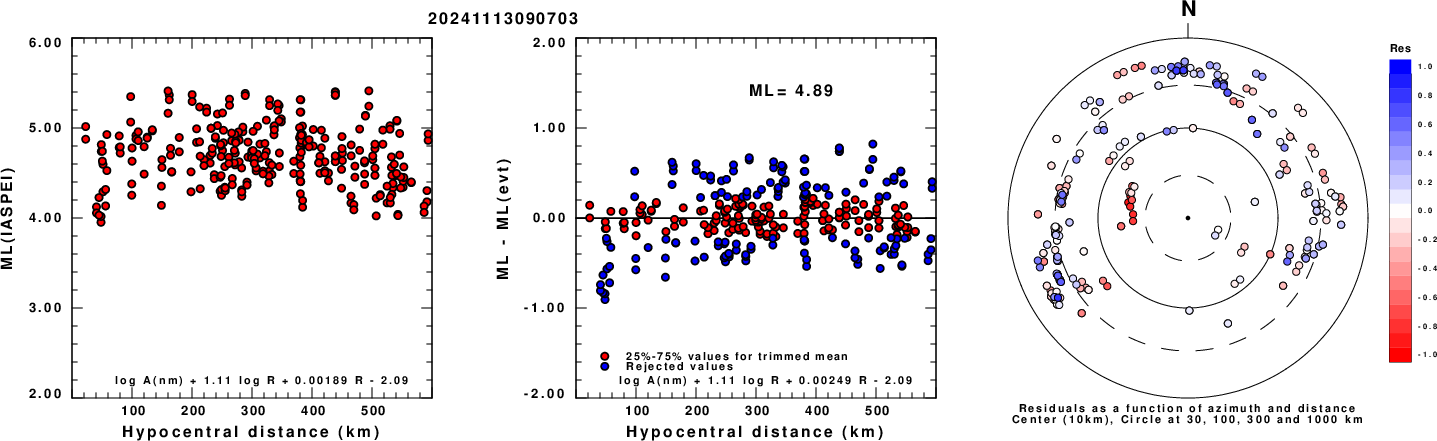

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

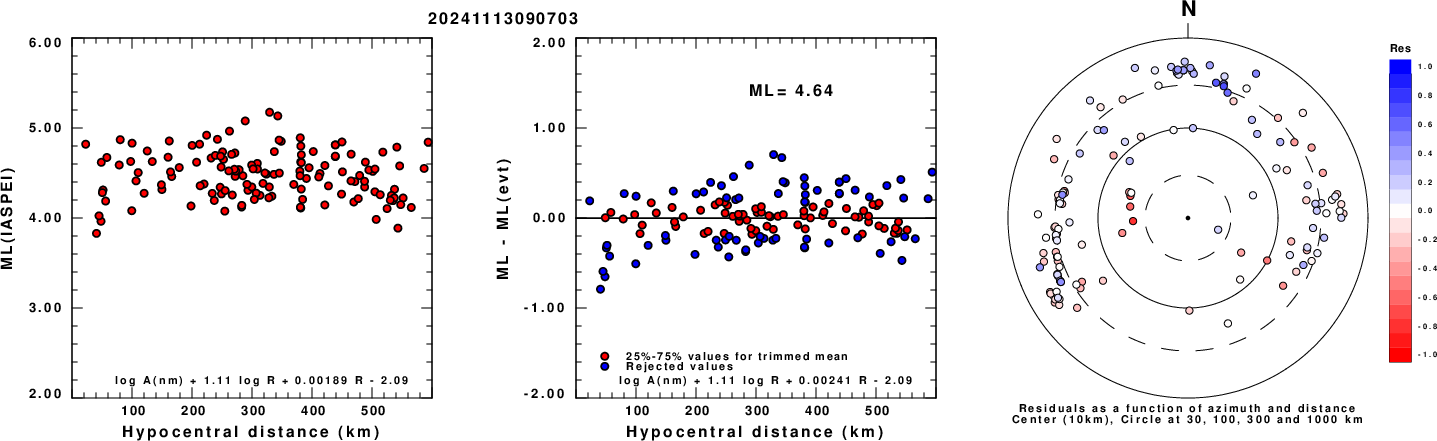

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

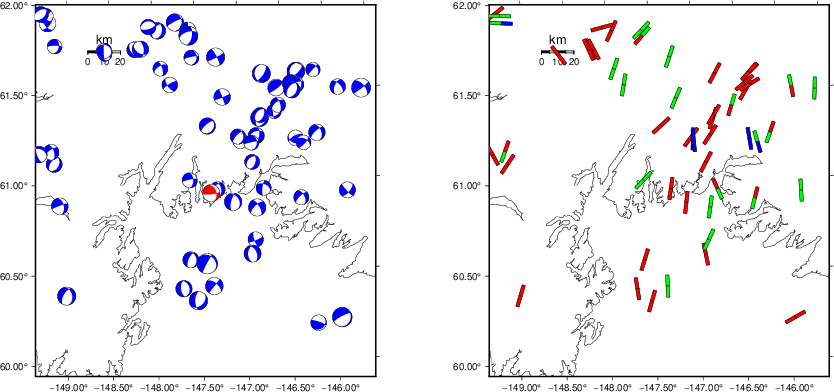

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

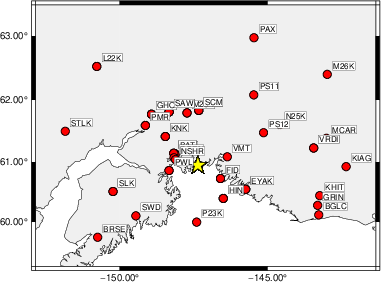

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    20    50    55   3.52 0.1762
WVFGRD96    2.0    25    50    65   3.69 0.2432
WVFGRD96    3.0    10    55    40   3.72 0.2420
WVFGRD96    4.0   340    50   -25   3.74 0.2524
WVFGRD96    5.0   345    55   -20   3.77 0.2744
WVFGRD96    6.0   345    55   -20   3.80 0.2932
WVFGRD96    7.0   345    55   -15   3.82 0.3101
WVFGRD96    8.0   345    50   -15   3.89 0.3248
WVFGRD96    9.0    90    70    45   3.92 0.3435
WVFGRD96   10.0    90    70    45   3.95 0.3670
WVFGRD96   11.0    85    75    40   3.96 0.3893
WVFGRD96   12.0    85    75    40   3.99 0.4102
WVFGRD96   13.0    85    75    40   4.01 0.4307
WVFGRD96   14.0    85    75    40   4.03 0.4506
WVFGRD96   15.0    85    75    40   4.05 0.4699
WVFGRD96   16.0    85    75    40   4.07 0.4891
WVFGRD96   17.0    85    75    40   4.09 0.5081
WVFGRD96   18.0    85    75    40   4.11 0.5270
WVFGRD96   19.0    85    75    40   4.13 0.5456
WVFGRD96   20.0    85    75    40   4.14 0.5638
WVFGRD96   21.0    85    75    45   4.17 0.5819
WVFGRD96   22.0    85    80    45   4.18 0.5989
WVFGRD96   23.0    85    80    45   4.20 0.6163
WVFGRD96   24.0    85    80    45   4.21 0.6321
WVFGRD96   25.0    85    80    50   4.23 0.6474
WVFGRD96   26.0    85    80    50   4.24 0.6609
WVFGRD96   27.0    85    80    50   4.25 0.6718
WVFGRD96   28.0    85    80    50   4.26 0.6795
WVFGRD96   29.0    85    80    50   4.27 0.6850
WVFGRD96   30.0    85    80    50   4.28 0.6862
WVFGRD96   31.0    85    80    55   4.29 0.6857
WVFGRD96   32.0    85    80    55   4.30 0.6829
WVFGRD96   33.0    85    80    55   4.30 0.6769
WVFGRD96   34.0    85    80    55   4.31 0.6705
WVFGRD96   35.0    85    80    55   4.31 0.6619
WVFGRD96   36.0    85    80    50   4.31 0.6545
WVFGRD96   37.0    85    80    50   4.31 0.6470
WVFGRD96   38.0    85    80    50   4.32 0.6399
WVFGRD96   39.0    85    80    45   4.32 0.6334
WVFGRD96   40.0    85    80    60   4.43 0.6235
WVFGRD96   41.0    85    80    55   4.42 0.6229
WVFGRD96   42.0    85    80    55   4.43 0.6198
WVFGRD96   43.0    85    80    55   4.43 0.6146
WVFGRD96   44.0    85    80    55   4.44 0.6091
WVFGRD96   45.0    85    80    50   4.43 0.6044
WVFGRD96   46.0    85    80    50   4.44 0.5984
WVFGRD96   47.0    85    75    50   4.45 0.5930
WVFGRD96   48.0    85    75    50   4.45 0.5884
WVFGRD96   49.0    85    75    45   4.45 0.5828
WVFGRD96   50.0    85    75    45   4.45 0.5791
WVFGRD96   51.0    85    75    45   4.46 0.5743
WVFGRD96   52.0    85    75    45   4.46 0.5689
WVFGRD96   53.0    85    75    45   4.46 0.5639
WVFGRD96   54.0    85    75    45   4.47 0.5579
WVFGRD96   55.0    85    75    45   4.47 0.5528
WVFGRD96   56.0    85    75    45   4.47 0.5452
WVFGRD96   57.0    85    75    45   4.47 0.5394
WVFGRD96   58.0    85    75    45   4.48 0.5324
WVFGRD96   59.0    85    75    40   4.47 0.5268

The best solution is

WVFGRD96   30.0    85    80    50   4.28 0.6862

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

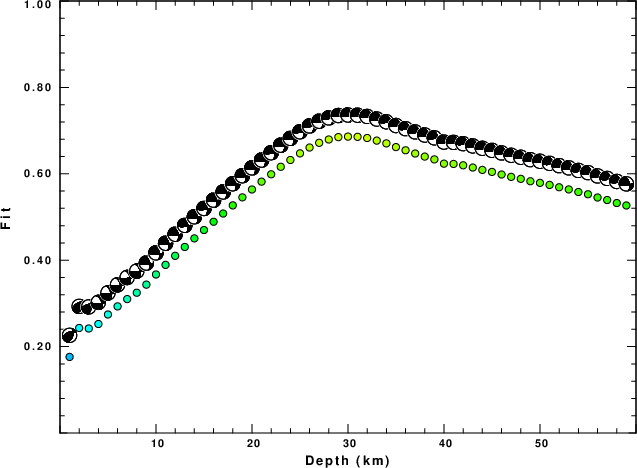

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

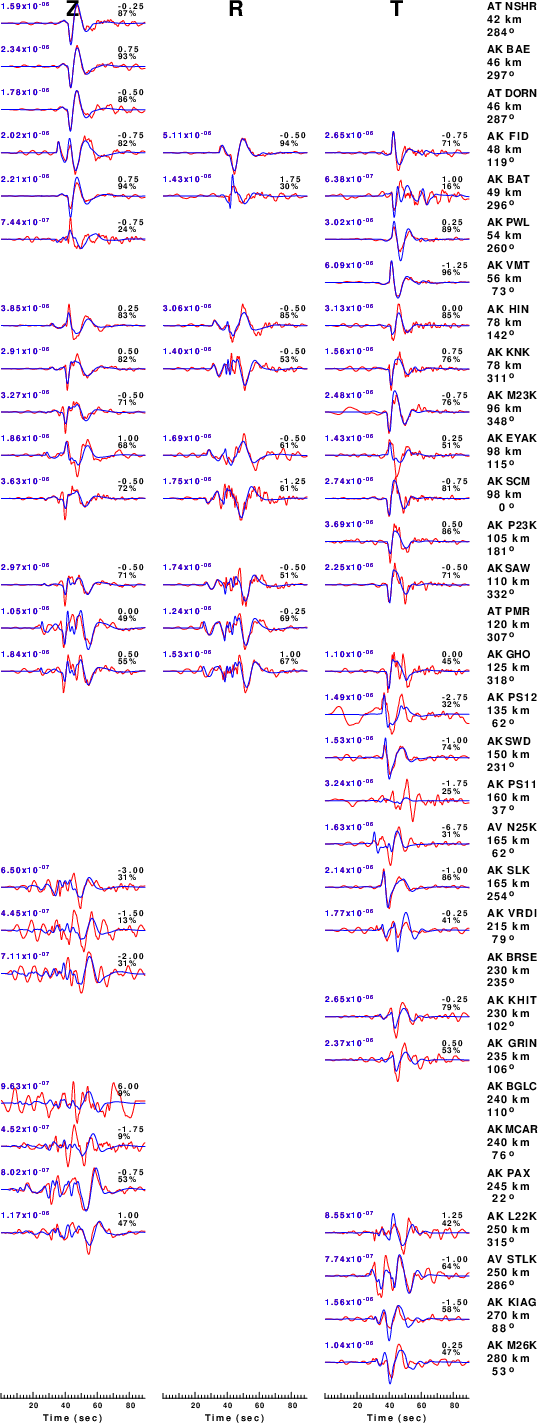

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

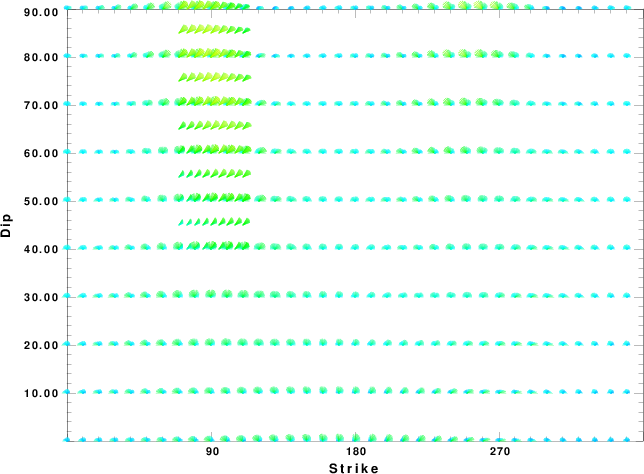

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

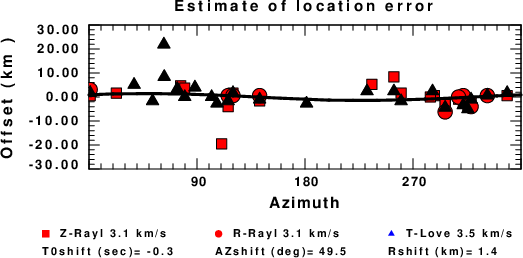

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Wed Nov 13 06:11:29 CST 2024
