2024/09/15 15:17:03 60.603 -146.917 19.8 4.3 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2024/09/15 15:17:03:0  60.60 -146.92  19.8 4.3 Alaska

 Stations used:
   AK.BAE AK.BERG AK.BMR AK.BPAW AK.BRLK AK.CAST AK.DHY AK.DIV
   AK.DOT AK.EYAK AK.GHO AK.GLB AK.HDA AK.HIN AK.K24K AK.KLU
   AK.KNK AK.L22K AK.L26K AK.LOGN AK.M26K AK.MCAR AK.MCK
   AK.MESA AK.P23K AK.PAX AK.PWL AK.RAG AK.RC01 AK.RIDG AK.RND
   AK.SAW AK.SCRK AK.SLK AK.SWD AK.VRDI AK.WAT6 AK.WRH AK.YAH
   CN.BVCY

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 2.69e+22 dyne-cm
  Mw = 4.22
  Z  = 29 km
  Plane   Strike  Dip  Rake
   NP1      338    48   -109
   NP2      185    45   -70
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.69e+22      2      81
    N   0.00e+00     14     351
    P  -2.69e+22     76     178

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -9.38e+20
       Mxy     4.21e+21
       Mxz     6.48e+21
       Myy     2.62e+22
       Myz     5.67e+20
       Mzz    -2.53e+22




                     ------########
                 ########-#############
              #########------#############
             ########----------############
           #########-------------############
          #########---------------############
         #########-----------------############
        ##########------------------############
        #########--------------------##########
       ##########---------------------######### T
       ##########----------------------########
       ##########----------------------##########
       ##########----------   ----------#########
        #########---------- P ----------########
        #########----------   ----------########
         #########----------------------#######
          ########----------------------######
           ########--------------------######
             #######-------------------####
              #######-----------------####
                 #####---------------##
                     ###-----------



 Global CMT Convention Moment Tensor:
      R          T          P
 -2.53e+22   6.48e+21  -5.67e+20
  6.48e+21  -9.38e+20  -4.21e+21
 -5.67e+20  -4.21e+21   2.62e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240915151703/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 185
      DIP = 45
     RAKE = -70
       MW = 4.22
       HS = 29.0

The NDK file is 20240915151703.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

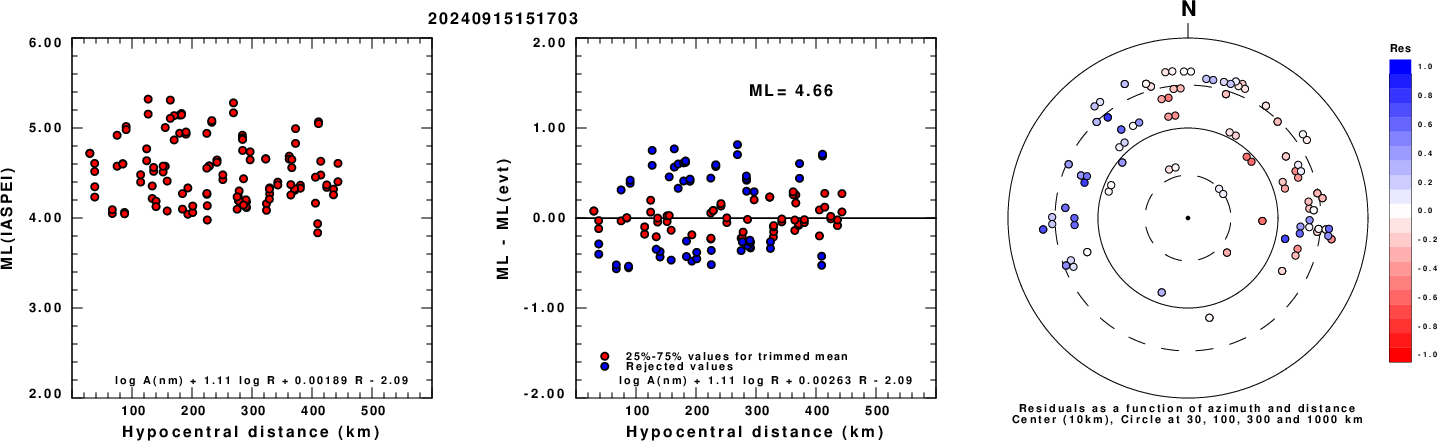

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

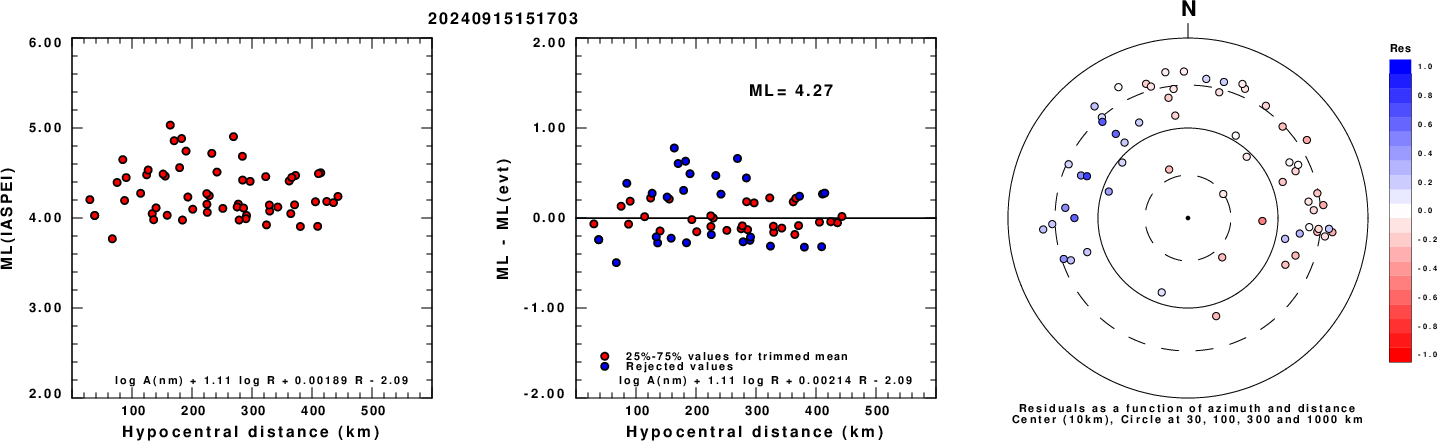

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

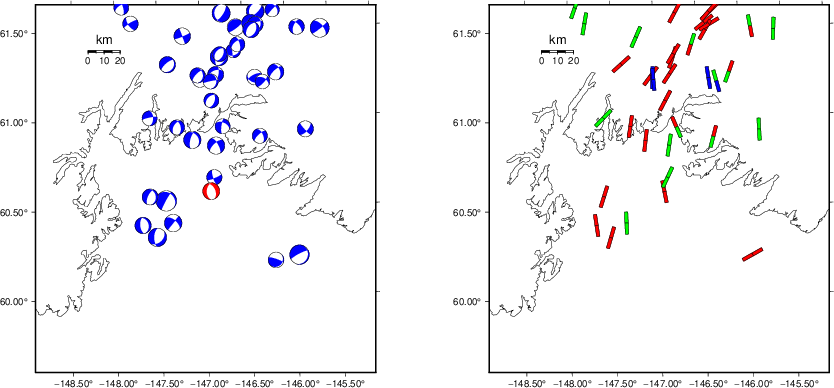

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

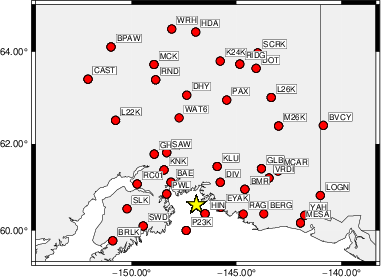

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   350    45    90   3.72 0.2865
WVFGRD96    2.0   165    45    90   3.85 0.3792
WVFGRD96    3.0   170    45    90   3.90 0.3606
WVFGRD96    4.0   165    40    80   3.89 0.2803
WVFGRD96    5.0    25    75   -40   3.82 0.2530
WVFGRD96    6.0    40    60    25   3.85 0.2731
WVFGRD96    7.0   220    70    35   3.87 0.2961
WVFGRD96    8.0   215    90    50   3.92 0.3107
WVFGRD96    9.0   220    80    45   3.94 0.3338
WVFGRD96   10.0   220    80    45   3.95 0.3562
WVFGRD96   11.0   225    60    35   3.99 0.3780
WVFGRD96   12.0   190    25   -65   4.01 0.4032
WVFGRD96   13.0   185    25   -70   4.03 0.4335
WVFGRD96   14.0   -15    65  -100   4.04 0.4610
WVFGRD96   15.0   170    30   -90   4.06 0.4877
WVFGRD96   16.0   195    40   -50   4.08 0.5148
WVFGRD96   17.0   195    45   -50   4.10 0.5443
WVFGRD96   18.0   195    45   -50   4.11 0.5719
WVFGRD96   19.0   190    45   -60   4.12 0.5976
WVFGRD96   20.0   190    45   -60   4.14 0.6207
WVFGRD96   21.0   190    45   -60   4.15 0.6384
WVFGRD96   22.0   190    45   -60   4.16 0.6561
WVFGRD96   23.0   190    45   -60   4.17 0.6709
WVFGRD96   24.0   190    45   -60   4.18 0.6829
WVFGRD96   25.0   190    45   -60   4.19 0.6926
WVFGRD96   26.0   185    45   -65   4.20 0.7008
WVFGRD96   27.0   185    45   -70   4.20 0.7084
WVFGRD96   28.0   185    45   -70   4.21 0.7140
WVFGRD96   29.0   185    45   -70   4.22 0.7167
WVFGRD96   30.0   185    45   -70   4.23 0.7163
WVFGRD96   31.0   185    45   -70   4.24 0.7123
WVFGRD96   32.0   185    45   -70   4.24 0.7045
WVFGRD96   33.0   185    45   -70   4.25 0.6930
WVFGRD96   34.0   185    45   -70   4.25 0.6782
WVFGRD96   35.0   185    45   -70   4.26 0.6608
WVFGRD96   36.0   185    45   -70   4.27 0.6413
WVFGRD96   37.0   185    45   -70   4.27 0.6218
WVFGRD96   38.0   185    50   -65   4.29 0.6040
WVFGRD96   39.0   185    50   -65   4.30 0.5879
WVFGRD96   40.0    -5    40   -85   4.37 0.5652
WVFGRD96   41.0   350    40   -90   4.38 0.5662
WVFGRD96   42.0   170    50   -90   4.39 0.5628
WVFGRD96   43.0   170    50   -90   4.40 0.5563
WVFGRD96   44.0   170    50   -90   4.41 0.5469
WVFGRD96   45.0   170    50   -90   4.41 0.5353
WVFGRD96   46.0    15    45   -60   4.40 0.5267
WVFGRD96   47.0    15    45   -60   4.41 0.5180
WVFGRD96   48.0    15    45   -60   4.41 0.5084
WVFGRD96   49.0    15    45   -60   4.42 0.4979
WVFGRD96   50.0    15    45   -60   4.42 0.4881
WVFGRD96   51.0    15    45   -60   4.42 0.4775
WVFGRD96   52.0    15    45   -55   4.43 0.4671
WVFGRD96   53.0    15    45   -55   4.43 0.4576
WVFGRD96   54.0    15    45   -55   4.43 0.4476
WVFGRD96   55.0    20    50   -50   4.43 0.4382
WVFGRD96   56.0    25    50   -45   4.43 0.4298
WVFGRD96   57.0    25    50   -45   4.43 0.4213
WVFGRD96   58.0    25    50   -45   4.44 0.4125
WVFGRD96   59.0    20    60   -55   4.43 0.4065

The best solution is

WVFGRD96   29.0   185    45   -70   4.22 0.7167

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

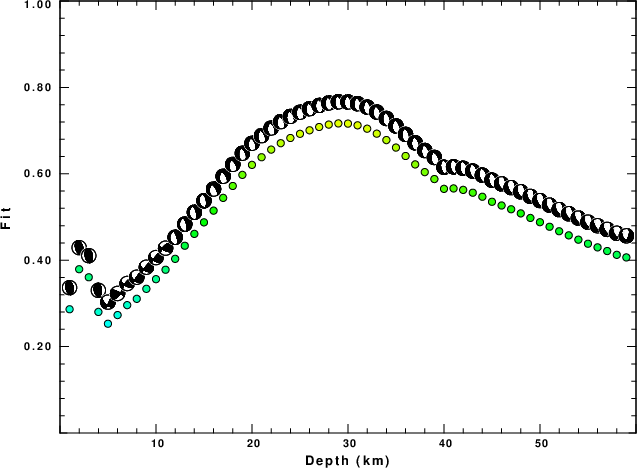

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

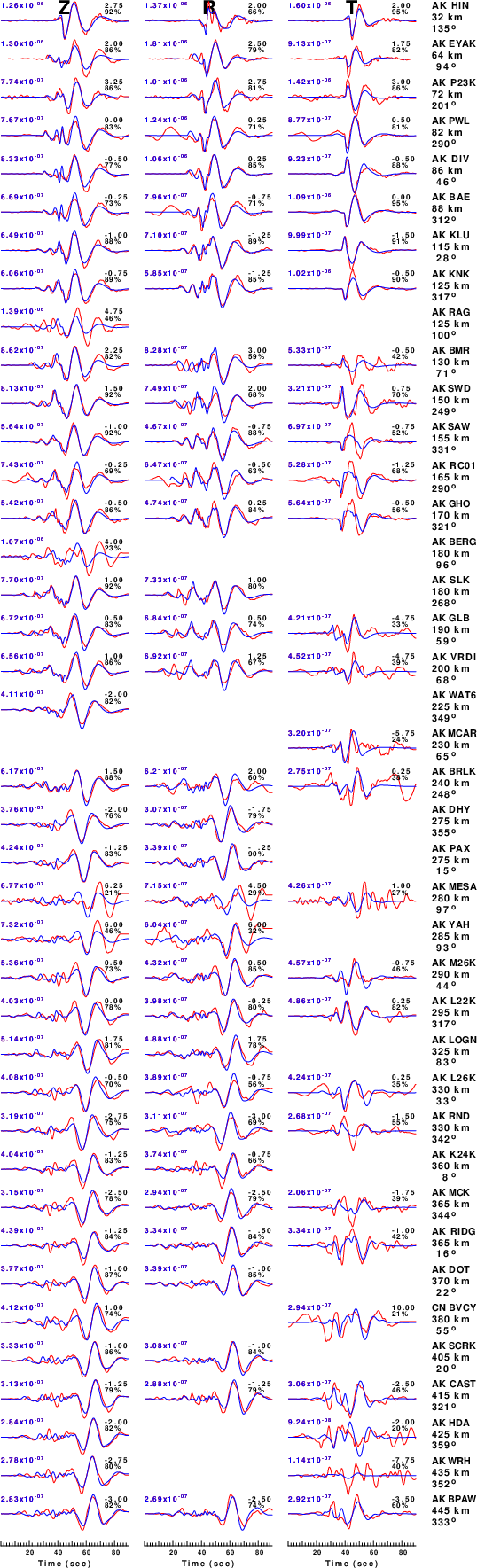

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

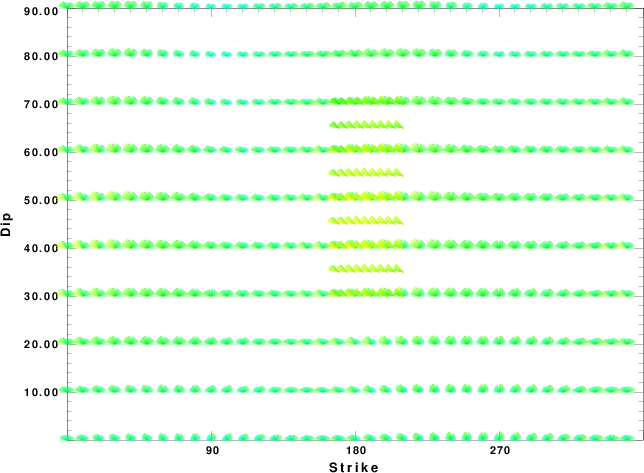

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

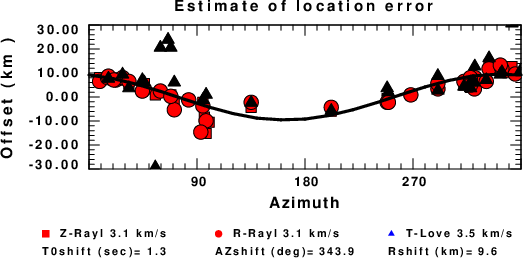

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sun Sep 15 02:37:42 PM CDT 2024
