Location

Location ANSS

The ANSS event ID is tx2024qnpx and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/tx2024qnpx/executive.

2024/08/23 03:21:38 31.656 -104.457 6.2 3.9 Texas

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2024/08/23 03:21:38:0  31.66 -104.46   6.2 3.9 Texas

 Stations used:
   4O.BP01 4O.CV01 4O.DB02 4O.DB03 4O.DB04 4O.LWM1 4O.LWM3
   4O.PL01 4O.SA04 4O.SA07 4O.SA09 4O.VW01 4O.WB02 4O.WB03
   4O.WB04 4O.WB05 4O.WB06 4O.WB07 4O.WB08 4O.WB09 4O.WB10
   4O.WB11 4O.WB12 4T.NM01 4T.NM03 TX.ALPN TX.MB25 TX.PB01
   TX.PB03 TX.PB04 TX.PB06 TX.PB07 TX.PB09 TX.PB10 TX.PB11
   TX.PB12 TX.PB13 TX.PB14 TX.PB16 TX.PB18 TX.PB21 TX.PB23
   TX.PB24 TX.PB25 TX.PB26 TX.PB30 TX.PB33 TX.PB34 TX.PB39
   TX.PB40 TX.PB43 TX.PB44 TX.PB46 TX.PB47 TX.PB51 TX.PB54
   TX.PCOS TX.PECS TX.VHRN

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.04 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 5.31e+21 dyne-cm
  Mw = 3.75
  Z  = 8 km
  Plane   Strike  Dip  Rake
   NP1       65    60   -109
   NP2      280    35   -60
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.31e+21     13     169
    N   0.00e+00     17      75
    P  -5.31e+21     69     295

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     4.71e+21
       Mxy    -6.92e+20
       Mxz    -1.93e+21
       Myy    -3.90e+20
       Myz     1.87e+21
       Mzz    -4.32e+21




                     ##############
                 ######################
              ############################
             ##############################
           ######------------------##########
          ####-------------------------#######
         ##------------------------------######
        ##---------------------------------###--
        -------------   ------------------------
       -------------- P --------------------##---
       --------------   ------------------#####--
       ---------------------------------########-
       -------------------------------##########-
        ---------------------------#############
        ------------------------################
         -------------------###################
          ####-----###########################
           ##################################
             ##############################
              ################   #########
                 ############# T ######
                     #########   ##



 Global CMT Convention Moment Tensor:
      R          T          P
 -4.32e+21  -1.93e+21  -1.87e+21
 -1.93e+21   4.71e+21   6.92e+20
 -1.87e+21   6.92e+20  -3.90e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240823032138/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 280
      DIP = 35
     RAKE = -60
       MW = 3.75
       HS = 8.0

The NDK file is 20240823032138.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMWR
 USGS/SLU Moment Tensor Solution
 ENS  2024/08/23 03:21:38:0  31.66 -104.46   6.2 3.9 Texas

 Stations used:
   4O.BP01 4O.CV01 4O.DB02 4O.DB03 4O.DB04 4O.LWM1 4O.LWM3
   4O.PL01 4O.SA04 4O.SA07 4O.SA09 4O.VW01 4O.WB02 4O.WB03
   4O.WB04 4O.WB05 4O.WB06 4O.WB07 4O.WB08 4O.WB09 4O.WB10
   4O.WB11 4O.WB12 4T.NM01 4T.NM03 TX.ALPN TX.MB25 TX.PB01
   TX.PB03 TX.PB04 TX.PB06 TX.PB07 TX.PB09 TX.PB10 TX.PB11
   TX.PB12 TX.PB13 TX.PB14 TX.PB16 TX.PB18 TX.PB21 TX.PB23
   TX.PB24 TX.PB25 TX.PB26 TX.PB30 TX.PB33 TX.PB34 TX.PB39
   TX.PB40 TX.PB43 TX.PB44 TX.PB46 TX.PB47 TX.PB51 TX.PB54
   TX.PCOS TX.PECS TX.VHRN

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.04 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 5.31e+21 dyne-cm
  Mw = 3.75
  Z  = 8 km
  Plane   Strike  Dip  Rake
   NP1       65    60   -109
   NP2      280    35   -60
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.31e+21     13     169
    N   0.00e+00     17      75
    P  -5.31e+21     69     295

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     4.71e+21
       Mxy    -6.92e+20
       Mxz    -1.93e+21
       Myy    -3.90e+20
       Myz     1.87e+21
       Mzz    -4.32e+21




                     ##############
                 ######################
              ############################
             ##############################
           ######------------------##########
          ####-------------------------#######
         ##------------------------------######
        ##---------------------------------###--
        -------------   ------------------------
       -------------- P --------------------##---
       --------------   ------------------#####--
       ---------------------------------########-
       -------------------------------##########-
        ---------------------------#############
        ------------------------################
         -------------------###################
          ####-----###########################
           ##################################
             ##############################
              ################   #########
                 ############# T ######
                     #########   ##



 Global CMT Convention Moment Tensor:
      R          T          P
 -4.32e+21  -1.93e+21  -1.87e+21
 -1.93e+21   4.71e+21   6.92e+20
 -1.87e+21   6.92e+20  -3.90e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240823032138/index.html

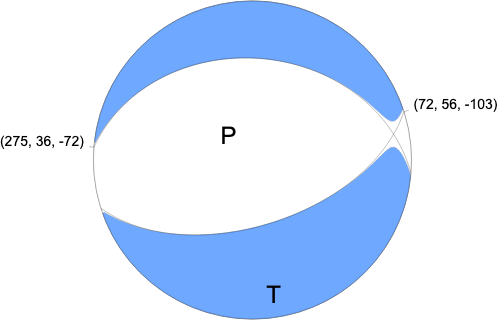

Regional Moment Tensor (Mwr)
Moment
5.069e+14 N-m
Magnitude
3.74 Mwr
Depth
8.0 km
Percent DC
98%
Half Duration
-
Catalog
US
Data Source
US 2
Contributor
US 2
Nodal Planes
Plane	Strike	Dip	Rake
NP1	275	36	-72
NP2	72	56	-103
Principal Axes
Axis	Value	Plunge	Azimuth
T	5.090e+14	10	172
N	-0.042e+14	11	80
P	-5.048e+14	75	304



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

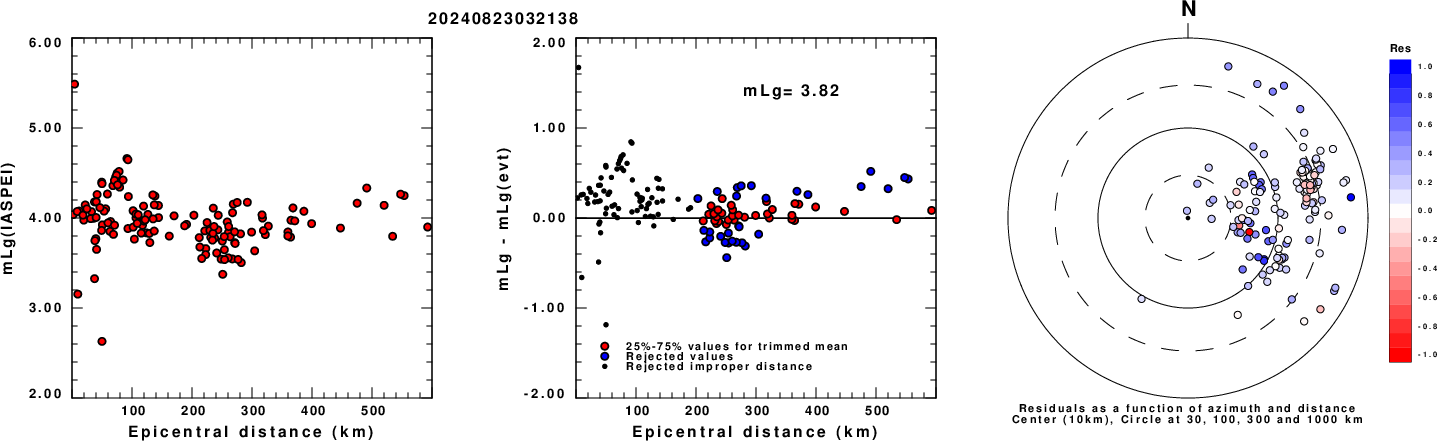

mLg Magnitude


Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

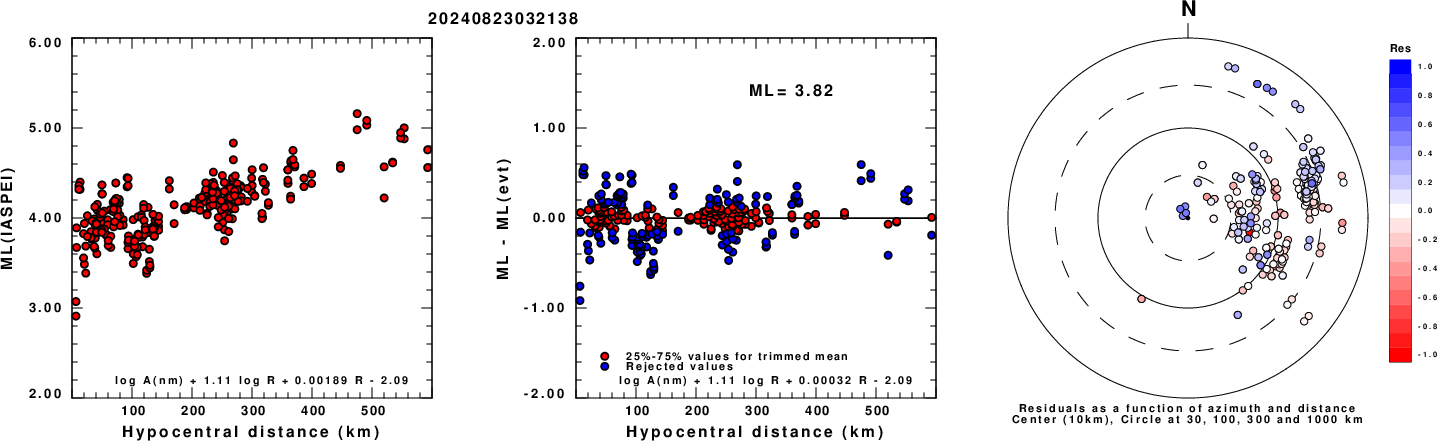

ML Magnitude


Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

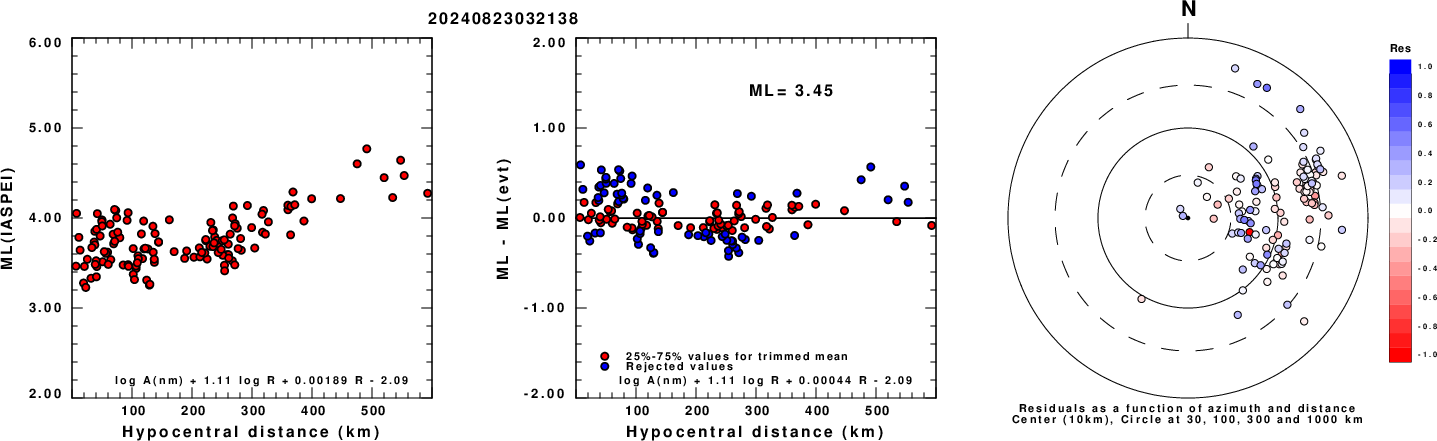

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

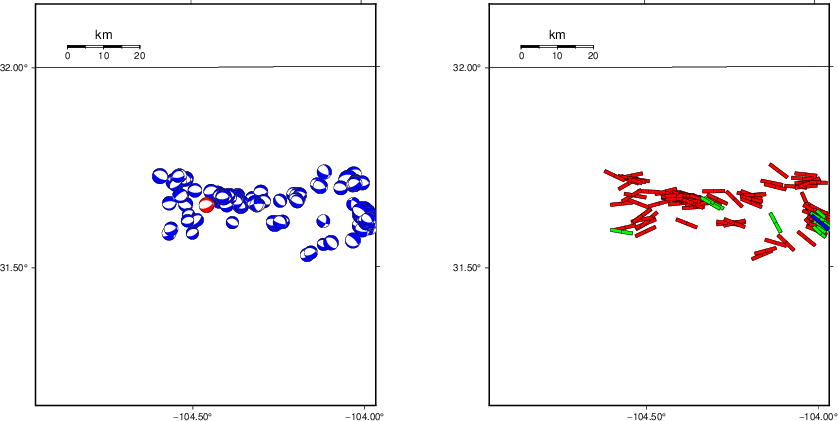

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

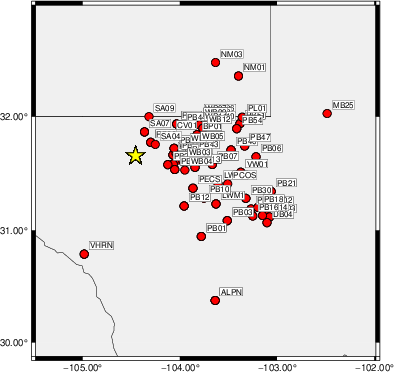

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.04 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    30    55   -45   3.27 0.1957
WVFGRD96    2.0    25    55   -50   3.41 0.2265
WVFGRD96    3.0    25    85   -70   3.56 0.2914
WVFGRD96    4.0   285    30   -40   3.60 0.3604
WVFGRD96    5.0   285    35   -50   3.63 0.4090
WVFGRD96    6.0   285    35   -50   3.65 0.4344
WVFGRD96    7.0   280    35   -60   3.67 0.4421
WVFGRD96    8.0   280    35   -60   3.75 0.4458
WVFGRD96    9.0   270    35   -75   3.78 0.4388
WVFGRD96   10.0   270    35   -75   3.78 0.4256
WVFGRD96   11.0   265    35   -85   3.80 0.4070
WVFGRD96   12.0    80    55   -90   3.80 0.3853
WVFGRD96   13.0   260    35   -90   3.81 0.3626
WVFGRD96   14.0   320    55    30   3.74 0.3430
WVFGRD96   15.0   320    55    30   3.74 0.3244
WVFGRD96   16.0   320    55    30   3.74 0.3063
WVFGRD96   17.0   320    55    30   3.74 0.2891
WVFGRD96   18.0   320    60    35   3.75 0.2747
WVFGRD96   19.0   320    60    35   3.76 0.2629
WVFGRD96   20.0   320    60    35   3.76 0.2524
WVFGRD96   21.0   120    60   -35   3.84 0.2437
WVFGRD96   22.0   120    60   -35   3.85 0.2367
WVFGRD96   23.0   120    60   -35   3.85 0.2310
WVFGRD96   24.0   120    60   -35   3.86 0.2262
WVFGRD96   25.0   120    60   -35   3.87 0.2226
WVFGRD96   26.0   120    60   -30   3.87 0.2191
WVFGRD96   27.0   120    60   -30   3.88 0.2157
WVFGRD96   28.0   125    60   -20   3.87 0.2127
WVFGRD96   29.0   125    55   -20   3.89 0.2120

The best solution is

WVFGRD96    8.0   280    35   -60   3.75 0.4458

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

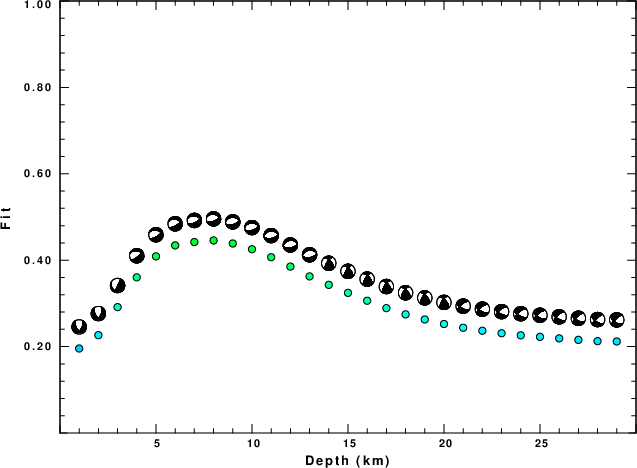

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

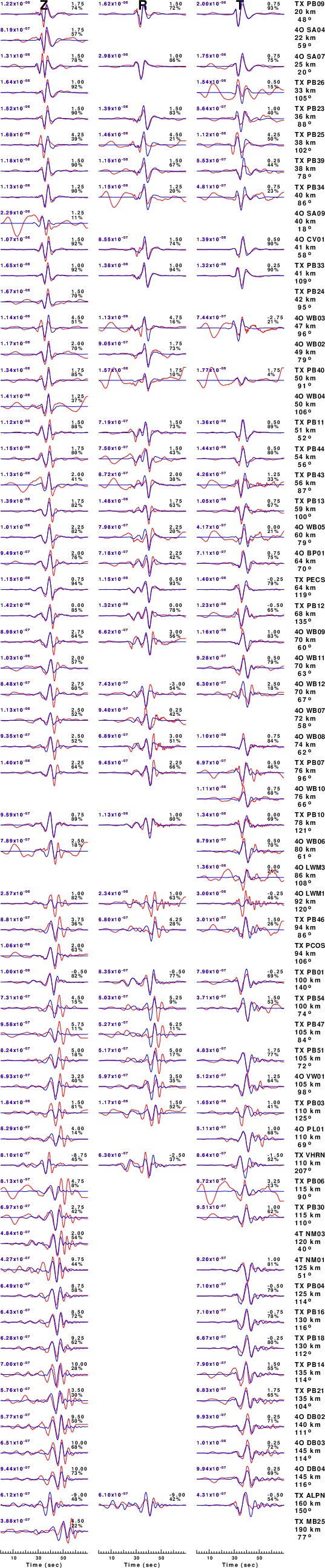

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.04 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

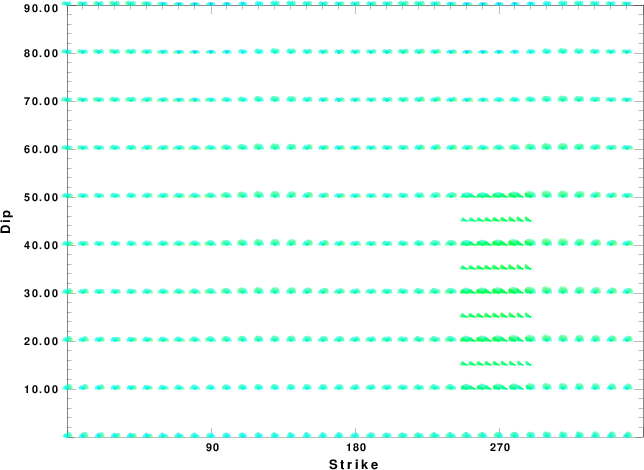

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

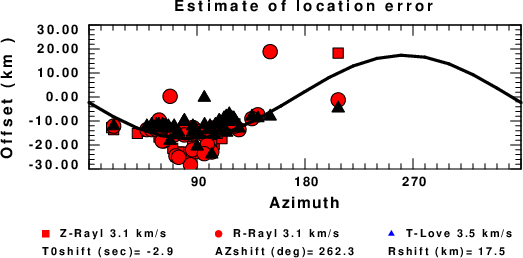

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Fri Aug 23 06:32:49 CDT 2024
