2024/08/22 02:40:21 61.253 -147.035 18.9 3.8 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2024/08/22 02:40:21:0  61.25 -147.04  18.9 3.8 Alaska

 Stations used:
   AK.BAE AK.DHY AK.DIV AK.EYAK AK.FID AK.GHO AK.GLI AK.HIN
   AK.KLU AK.KNK AK.PWL AK.RC01 AK.SAW AK.SCM

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 6.10e+21 dyne-cm
  Mw = 3.79
  Z  = 43 km
  Plane   Strike  Dip  Rake
   NP1      225    70   -70
   NP2      358    28   -133
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   6.10e+21     22     300
    N   0.00e+00     19      38
    P  -6.10e+21     60     164

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.18e+20
       Mxy    -1.84e+21
       Mxz     3.61e+21
       Myy     3.80e+21
       Myz    -2.60e+21
       Mzz    -3.68e+21




                     ##########----
                 #################-----
              #######################-----
             #########################--###
           ########################-----#####
          ##   #################---------#####
         ### T ###############-----------######
        ####   ############---------------######
        #################------------------#####
       #################-------------------######
       ###############---------------------######
       #############-----------------------######
       ############------------------------######
        ##########-------------------------#####
        ########-------------   ----------######
         ######-------------- P ----------#####
          #####--------------   ---------#####
           ###--------------------------#####
             --------------------------####
              -----------------------#####
                 ------------------####
                     -----------###



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.68e+21   3.61e+21   2.60e+21
  3.61e+21  -1.18e+20   1.84e+21
  2.60e+21   1.84e+21   3.80e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240822024021/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 225
      DIP = 70
     RAKE = -70
       MW = 3.79
       HS = 43.0

The NDK file is 20240822024021.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

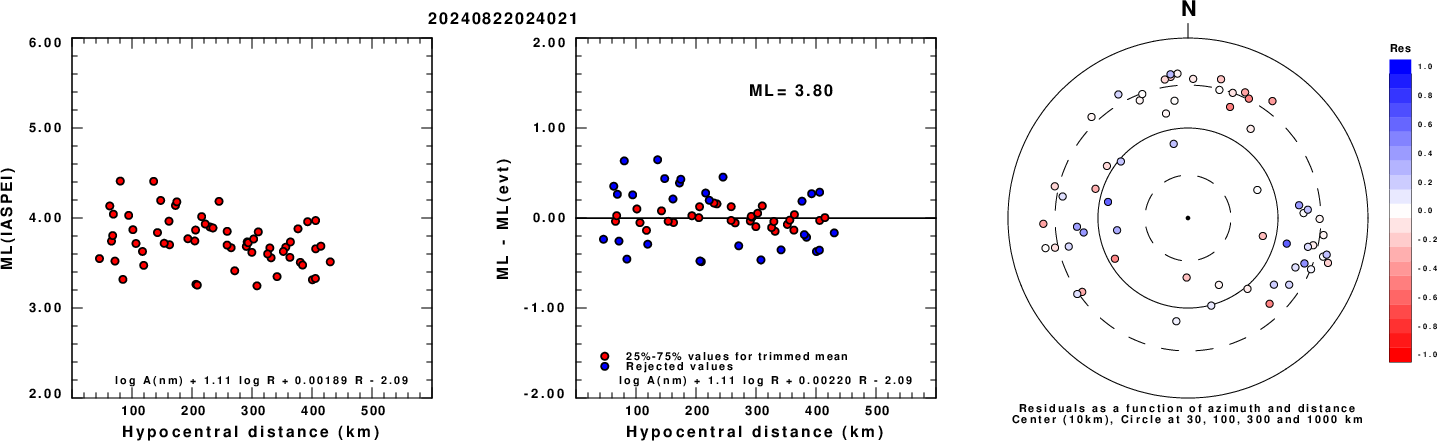

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

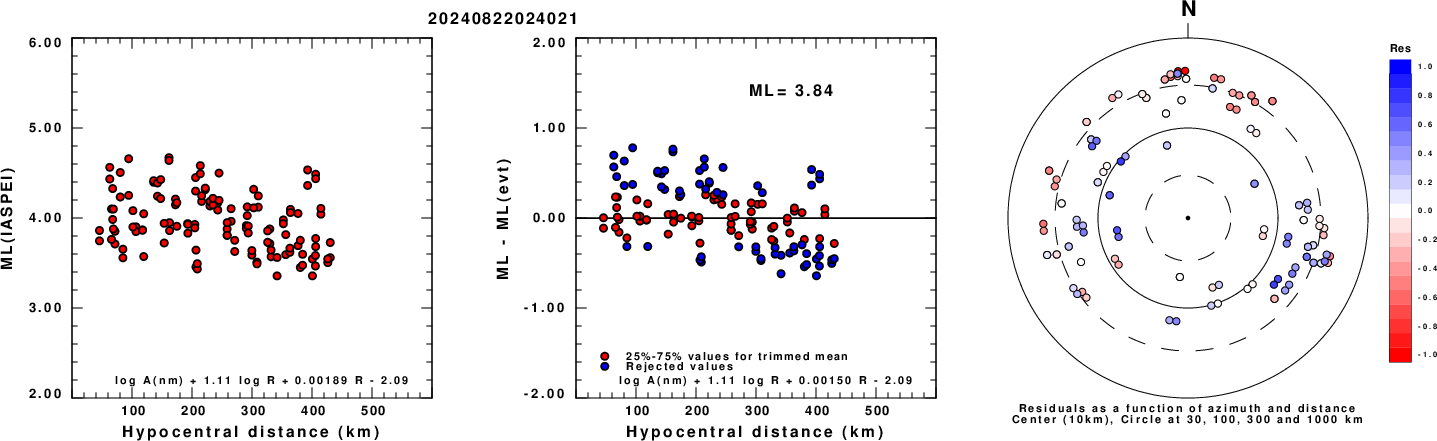

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

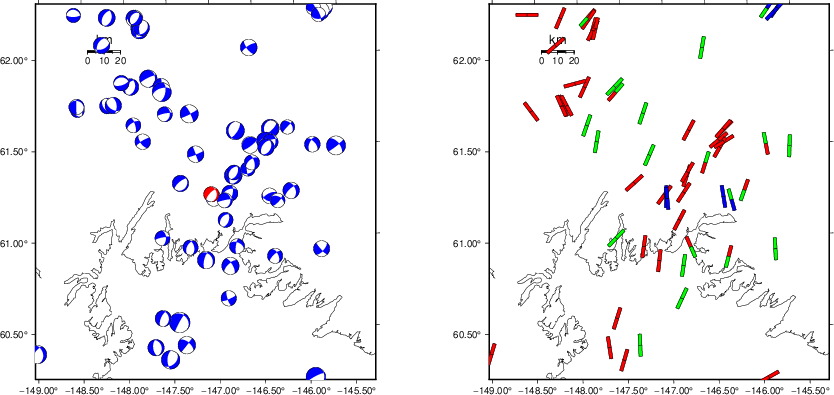

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

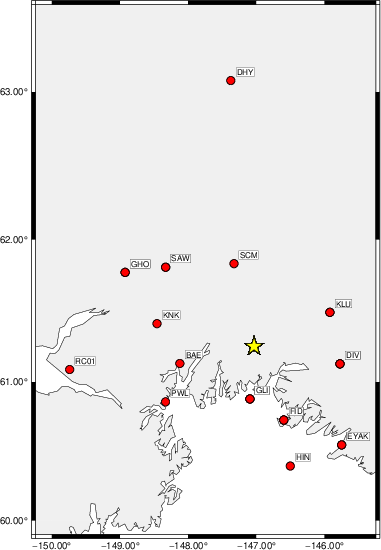

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    20    50    75   2.92 0.2085
WVFGRD96    2.0   210    45    90   3.10 0.3036
WVFGRD96    3.0    25    50    85   3.17 0.3097
WVFGRD96    4.0   335    50   -35   3.14 0.3272
WVFGRD96    5.0   335    60   -40   3.17 0.3664
WVFGRD96    6.0   335    60   -35   3.20 0.3940
WVFGRD96    7.0   335    60   -30   3.22 0.4131
WVFGRD96    8.0   335    60   -40   3.29 0.4168
WVFGRD96    9.0   335    60   -35   3.30 0.4228
WVFGRD96   10.0   265    55    35   3.33 0.4345
WVFGRD96   11.0   265    50    35   3.36 0.4461
WVFGRD96   12.0   265    50    35   3.38 0.4550
WVFGRD96   13.0   265    50    35   3.40 0.4615
WVFGRD96   14.0   265    50    35   3.41 0.4652
WVFGRD96   15.0   265    50    30   3.43 0.4676
WVFGRD96   16.0   245    65   -30   3.42 0.4675
WVFGRD96   17.0   245    65   -30   3.44 0.4805
WVFGRD96   18.0   245    65   -35   3.45 0.4928
WVFGRD96   19.0   245    65   -35   3.47 0.5052
WVFGRD96   20.0   245    65   -35   3.48 0.5176
WVFGRD96   21.0   245    65   -35   3.50 0.5283
WVFGRD96   22.0   245    70   -35   3.50 0.5371
WVFGRD96   23.0   245    70   -35   3.52 0.5501
WVFGRD96   24.0   240    65   -40   3.53 0.5623
WVFGRD96   25.0   240    65   -40   3.54 0.5725
WVFGRD96   26.0   240    65   -40   3.55 0.5804
WVFGRD96   27.0   240    75   -50   3.56 0.5926
WVFGRD96   28.0   235    75   -55   3.58 0.6154
WVFGRD96   29.0   235    75   -55   3.59 0.6379
WVFGRD96   30.0   230    75   -60   3.60 0.6567
WVFGRD96   31.0   225    70   -65   3.62 0.6735
WVFGRD96   32.0   225    70   -65   3.63 0.6874
WVFGRD96   33.0   225    70   -65   3.64 0.6989
WVFGRD96   34.0   225    70   -65   3.64 0.7043
WVFGRD96   35.0   225    70   -65   3.65 0.7062
WVFGRD96   36.0   225    70   -65   3.65 0.7091
WVFGRD96   37.0   225    70   -65   3.66 0.7087
WVFGRD96   38.0   225    70   -65   3.66 0.7077
WVFGRD96   39.0   225    70   -65   3.67 0.7076
WVFGRD96   40.0   220    70   -75   3.78 0.7160
WVFGRD96   41.0   220    70   -75   3.78 0.7203
WVFGRD96   42.0   225    70   -70   3.79 0.7230
WVFGRD96   43.0   225    70   -70   3.79 0.7240
WVFGRD96   44.0   225    70   -70   3.80 0.7220
WVFGRD96   45.0   225    70   -70   3.80 0.7187
WVFGRD96   46.0   225    70   -70   3.81 0.7142
WVFGRD96   47.0   225    70   -70   3.81 0.7096
WVFGRD96   48.0   220    70   -70   3.81 0.7042
WVFGRD96   49.0   220    70   -70   3.82 0.6981
WVFGRD96   50.0   225    70   -65   3.82 0.6920
WVFGRD96   51.0   225    70   -65   3.82 0.6851
WVFGRD96   52.0   225    75   -65   3.82 0.6783
WVFGRD96   53.0   225    75   -65   3.82 0.6727
WVFGRD96   54.0   225    75   -65   3.82 0.6658
WVFGRD96   55.0   225    75   -65   3.83 0.6599
WVFGRD96   56.0   225    70   -65   3.83 0.6523
WVFGRD96   57.0   225    70   -65   3.83 0.6457
WVFGRD96   58.0   225    70   -65   3.83 0.6399
WVFGRD96   59.0   225    70   -65   3.83 0.6323

The best solution is

WVFGRD96   43.0   225    70   -70   3.79 0.7240

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

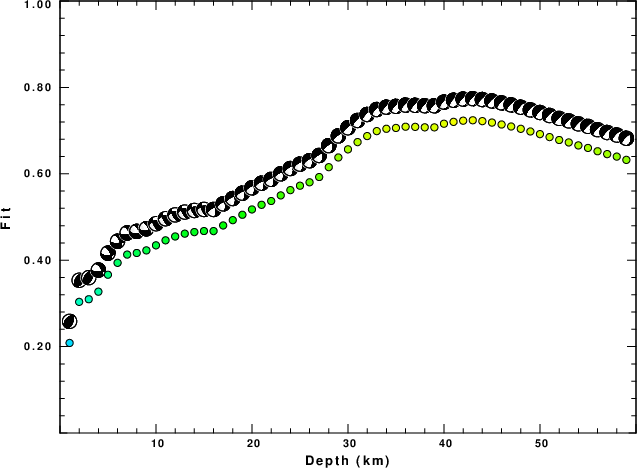

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

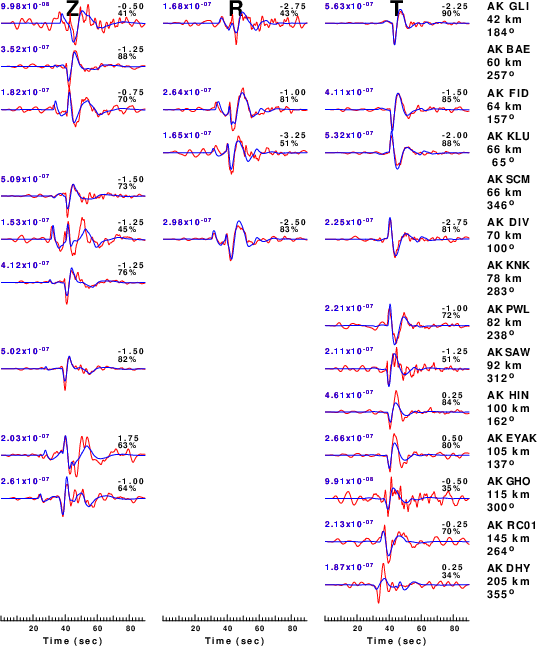

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

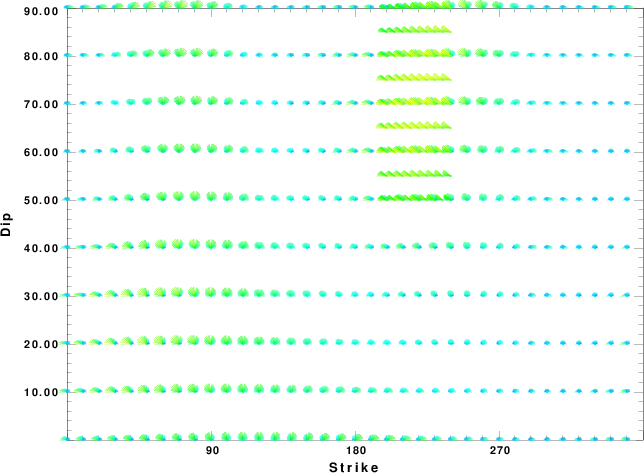

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

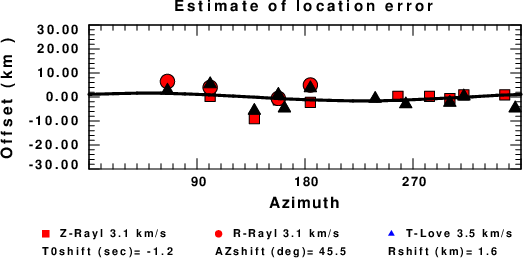

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Aug 22 03:54:01 CDT 2024
