Location

Location ANSS

The ANSS event ID is nn00882322 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00882322/executive.

2024/08/14 03:06:35 36.636 -115.727 13.2 4.4 Nevada

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2024/08/14 03:06:35:0 36.64 -115.73 13.2 4.4 Nevada Stations used: AE.BABIT AE.DOVA AE.LOGN AE.PRCT AE.U15A AE.W13A BK.HELL BK.MMI BK.WINE CI.BC3 CI.BEL CI.BLY CI.BOR CI.CCC CI.CFT CI.CKP CI.CTW CI.DAN CI.DPP CI.DTP CI.ELS2 CI.GLA CI.GRA CI.GSC CI.HAR CI.IRM CI.ISA CI.LRL CI.MSC CI.NEE2 CI.OSI CI.PALA CI.PASC CI.PDM CI.RAG CI.SHO CI.TPO CI.VES CI.WGR GS.MCA04 II.PFO LB.BMN NC.MHD NN.DIX NN.KVN NN.PRN NN.SHP NN.SPR3 US.TPNV US.WUAZ UU.CCUT UU.ECUT UU.EKU UU.FOR1 UU.FSU UU.KNB UU.LCMT UU.MTPU UU.PSUT UU.SWUT UU.SZCU UU.TCRU UU.VRUT UU.ZNPU Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3 Best Fitting Double Couple Mo = 8.04e+21 dyne-cm Mw = 3.87 Z = 13 km Plane Strike Dip Rake NP1 353 69 -148 NP2 250 60 -25 Principal Axes: Axis Value Plunge Azimuth T 8.04e+21 5 120 N 0.00e+00 52 23 P -8.04e+21 38 214 Moment Tensor: (dyne-cm) Component Value Mxx -1.46e+21 Mxy -5.78e+21 Mxz 2.84e+21 Myy 4.40e+21 Myz 2.84e+21 Mzz -2.94e+21 ######-------- ###########----------- ###############------------- #################------------- ####################-------------- #####################--------------- ####################---#############-- ################--------################ ############-------------############### ##########----------------################ #######-------------------################ ######---------------------############### ####-----------------------############### ##------------------------############## #-------------------------############## ---------- ------------########## --------- P ------------########## T -------- -----------########### --------------------########## -------------------######### ---------------####### ----------#### Global CMT Convention Moment Tensor: R T P -2.94e+21 2.84e+21 -2.84e+21 2.84e+21 -1.46e+21 5.78e+21 -2.84e+21 5.78e+21 4.40e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240814030635/index.html

Preferred Solution

      STK = 250
      DIP = 60
     RAKE = -25
       MW = 3.87
       HS = 13.0

The NDK file is 20240814030635.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU

USGSMWR

USGS/SLU Moment Tensor Solution ENS 2024/08/14 03:06:35:0 36.64 -115.73 13.2 4.4 Nevada Stations used: AE.BABIT AE.DOVA AE.LOGN AE.PRCT AE.U15A AE.W13A BK.HELL BK.MMI BK.WINE CI.BC3 CI.BEL CI.BLY CI.BOR CI.CCC CI.CFT CI.CKP CI.CTW CI.DAN CI.DPP CI.DTP CI.ELS2 CI.GLA CI.GRA CI.GSC CI.HAR CI.IRM CI.ISA CI.LRL CI.MSC CI.NEE2 CI.OSI CI.PALA CI.PASC CI.PDM CI.RAG CI.SHO CI.TPO CI.VES CI.WGR GS.MCA04 II.PFO LB.BMN NC.MHD NN.DIX NN.KVN NN.PRN NN.SHP NN.SPR3 US.TPNV US.WUAZ UU.CCUT UU.ECUT UU.EKU UU.FOR1 UU.FSU UU.KNB UU.LCMT UU.MTPU UU.PSUT UU.SWUT UU.SZCU UU.TCRU UU.VRUT UU.ZNPU Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3 Best Fitting Double Couple Mo = 8.04e+21 dyne-cm Mw = 3.87 Z = 13 km Plane Strike Dip Rake NP1 353 69 -148 NP2 250 60 -25 Principal Axes: Axis Value Plunge Azimuth T 8.04e+21 5 120 N 0.00e+00 52 23 P -8.04e+21 38 214 Moment Tensor: (dyne-cm) Component Value Mxx -1.46e+21 Mxy -5.78e+21 Mxz 2.84e+21 Myy 4.40e+21 Myz 2.84e+21 Mzz -2.94e+21 ######-------- ###########----------- ###############------------- #################------------- ####################-------------- #####################--------------- ####################---#############-- ################--------################ ############-------------############### ##########----------------################ #######-------------------################ ######---------------------############### ####-----------------------############### ##------------------------############## #-------------------------############## ---------- ------------########## --------- P ------------########## T -------- -----------########### --------------------########## -------------------######### ---------------####### ----------#### Global CMT Convention Moment Tensor: R T P -2.94e+21 2.84e+21 -2.84e+21 2.84e+21 -1.46e+21 5.78e+21 -2.84e+21 5.78e+21 4.40e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240814030635/index.html

Regional Moment Tensor (Mwr) Moment 8.804e+14 N-m Magnitude 3.90 Mwr Depth 11.0 km Percent DC 75% Half Duration - Catalog US Data Source US 2 Contributor US 2 Nodal Planes Plane Strike Dip Rake NP1 243 53 -38 NP2 358 61 -136 Principal Axes Axis Value Plunge Azimuth T 9.336e+14 4 119 N -1.183e+14 39 26 P -8.153e+14 50 215

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

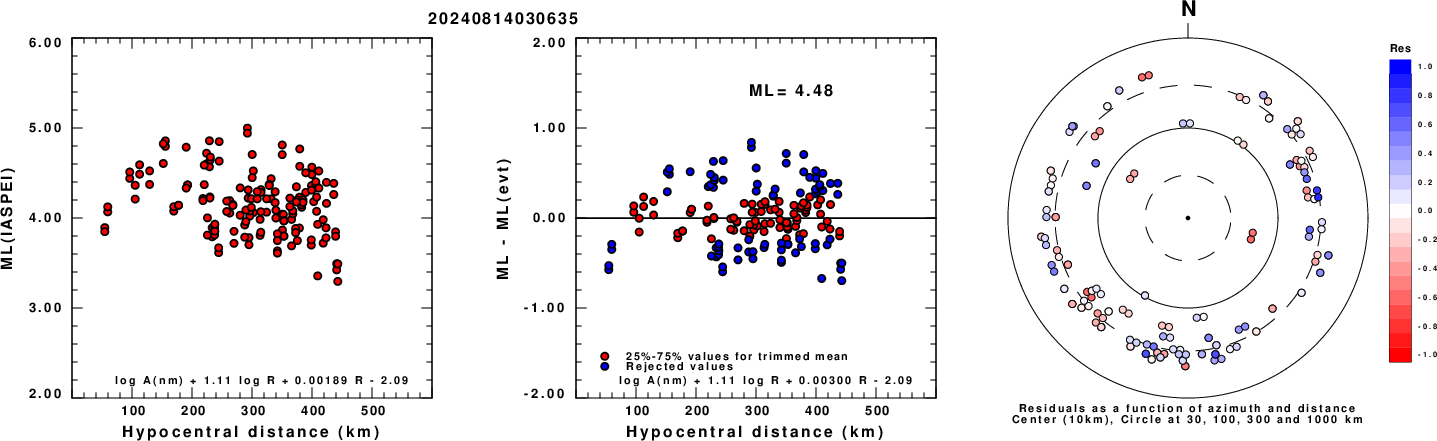

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

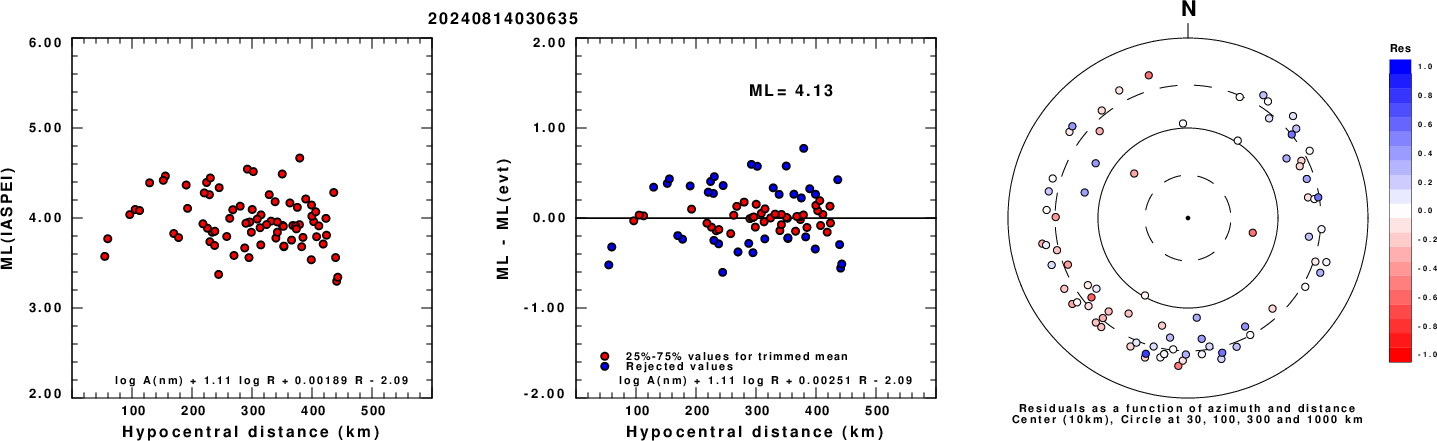

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

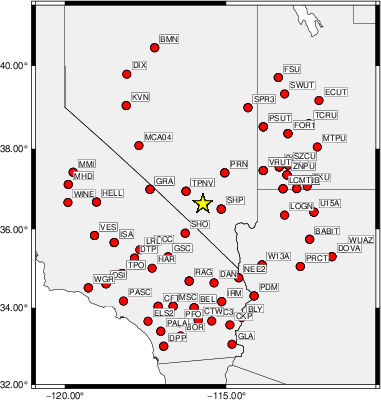

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    75    90     5   3.47 0.3376
WVFGRD96    2.0    80    75    15   3.57 0.3899
WVFGRD96    3.0   265    60    30   3.66 0.4124
WVFGRD96    4.0   265    60    25   3.68 0.4249
WVFGRD96    5.0   255    50   -10   3.70 0.4495
WVFGRD96    6.0   250    50   -25   3.73 0.4995
WVFGRD96    7.0   250    55   -25   3.75 0.5464
WVFGRD96    8.0   245    50   -35   3.82 0.5929
WVFGRD96    9.0   240    50   -45   3.85 0.6317
WVFGRD96   10.0   245    55   -35   3.85 0.6585
WVFGRD96   11.0   245    55   -35   3.86 0.6744
WVFGRD96   12.0   250    60   -30   3.87 0.6817
WVFGRD96   13.0   250    60   -25   3.87 0.6854
WVFGRD96   14.0   250    60   -25   3.88 0.6840
WVFGRD96   15.0   250    65   -25   3.89 0.6799
WVFGRD96   16.0   250    65   -25   3.89 0.6734
WVFGRD96   17.0   250    65   -20   3.90 0.6648
WVFGRD96   18.0   250    65   -20   3.91 0.6551
WVFGRD96   19.0   250    65   -20   3.91 0.6439
WVFGRD96   20.0   250    65   -20   3.92 0.6316
WVFGRD96   21.0   250    65   -20   3.93 0.6195
WVFGRD96   22.0   250    65   -20   3.93 0.6052
WVFGRD96   23.0   250    65   -20   3.94 0.5908
WVFGRD96   24.0   250    65   -20   3.94 0.5767
WVFGRD96   25.0   250    70   -20   3.95 0.5624
WVFGRD96   26.0   250    70   -20   3.96 0.5483
WVFGRD96   27.0   250    70   -20   3.96 0.5340
WVFGRD96   28.0   255    75   -15   3.97 0.5205
WVFGRD96   29.0   255    75   -15   3.98 0.5074

The best solution is

WVFGRD96   13.0   250    60   -25   3.87 0.6854

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

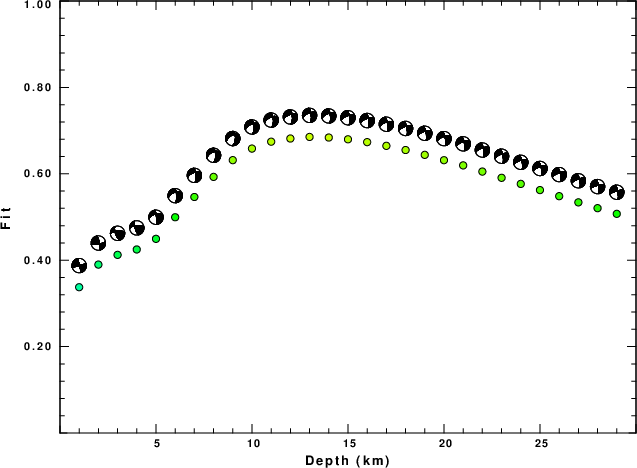

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

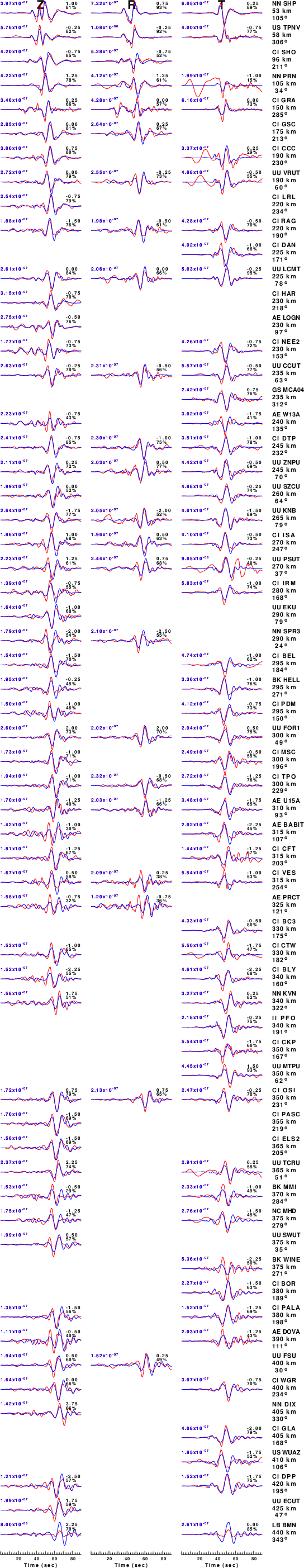

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

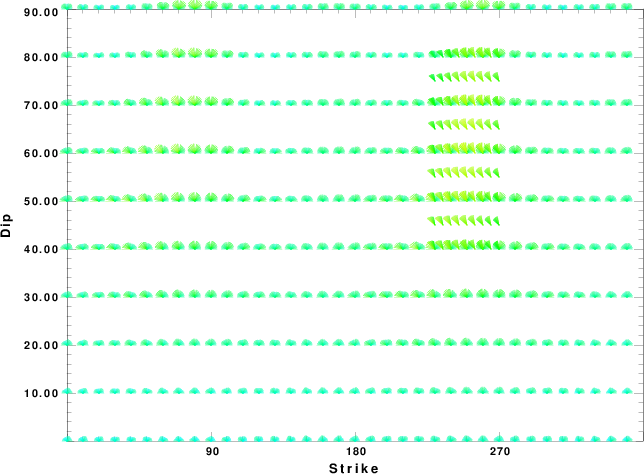

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

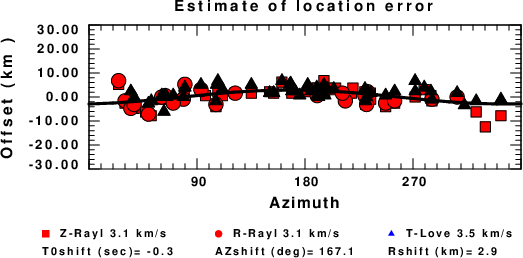

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
