Location

Location ANSS

The ANSS event ID is ak0249ly3xrw and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0249ly3xrw/executive.

2024/07/27 18:12:14 60.312 -152.300 85.8 4.3 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2024/07/27 18:12:14:0  60.31 -152.30  85.8 4.3 Alaska

 Stations used:
   AK.BRLK AK.CUT AK.FIRE AK.GHO AK.HOM AK.KNK AK.L19K AK.L22K
   AK.M20K AK.N18K AK.O18K AK.O19K AK.P23K AK.RC01 AK.SAW
   AK.SLK AK.SWD AV.PLBL II.KDAK

 Filtering commands used:
   cut o DIST/3.5 -50 o DIST/3.5 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 5.75e+22 dyne-cm
  Mw = 4.44
  Z  = 102 km
  Plane   Strike  Dip  Rake
   NP1      304    64   146
   NP2       50    60    30
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.75e+22     41     265
    N   0.00e+00     49      91
    P  -5.75e+22      3     358

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -5.71e+22
       Mxy     4.78e+21
       Mxz    -5.00e+21
       Myy     3.22e+22
       Myz    -2.83e+22
       Mzz     2.49e+22




                     ----- P ------
                 ---------   ----------
              ----------------------------
             ------------------------------
           ---------------------------------#
          ############----------------------##
         ##################----------------####
        ######################------------######
        #########################--------#######
       ############################-----#########
       #######   ####################--##########
       ####### T #####################-##########
       #######   ###################-----########
        ##########################--------######
        ########################-----------#####
         #####################--------------###
          #################------------------#
           ###########-----------------------
             ------------------------------
              ----------------------------
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  2.49e+22  -5.00e+21   2.83e+22
 -5.00e+21  -5.71e+22  -4.78e+21
  2.83e+22  -4.78e+21   3.22e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240727181214/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 50
      DIP = 60
     RAKE = 30
       MW = 4.44
       HS = 102.0

The NDK file is 20240727181214.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

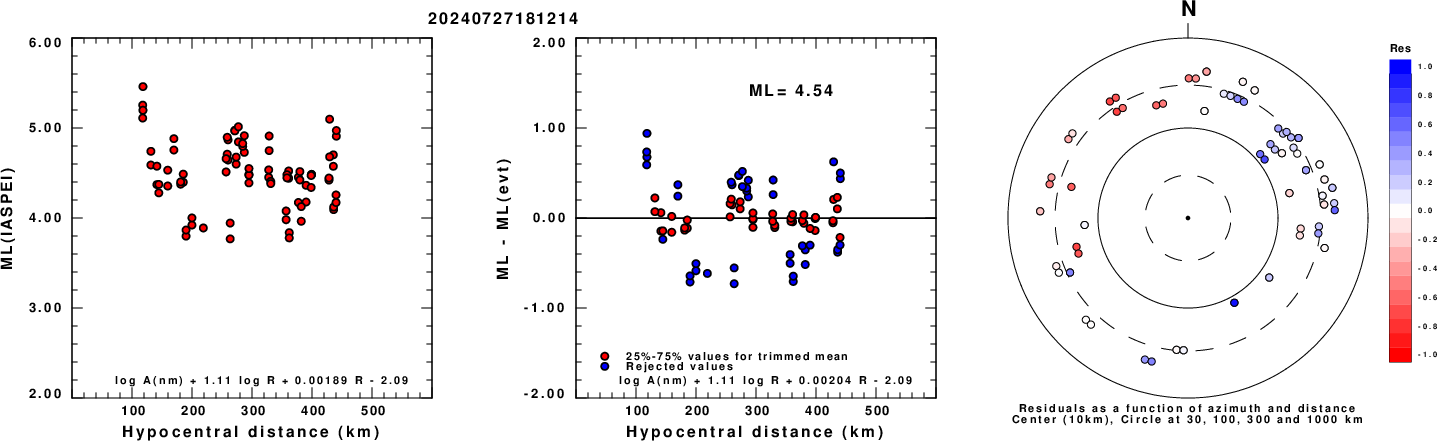

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

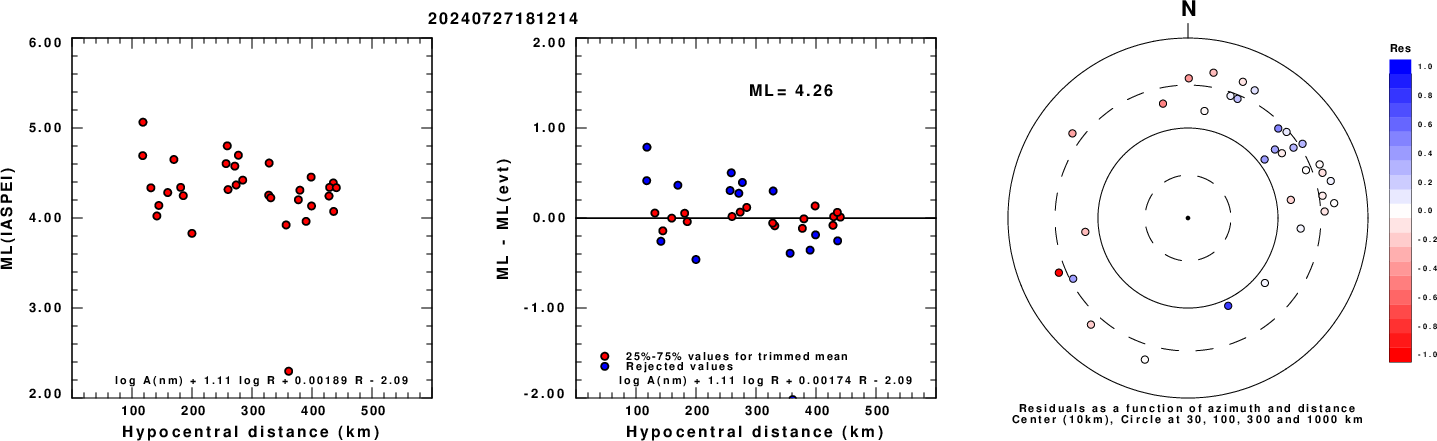

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

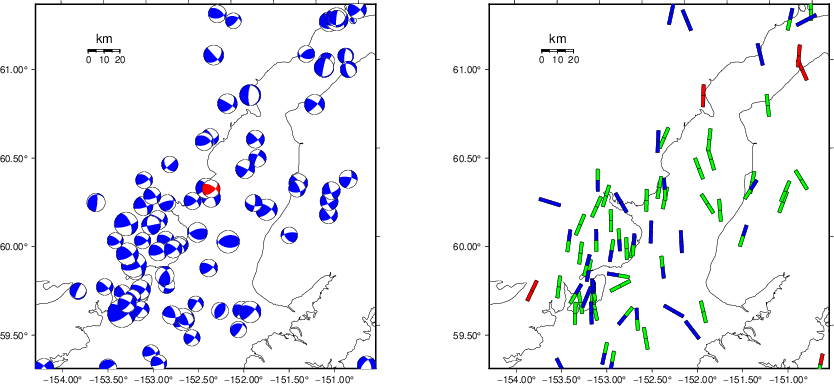

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

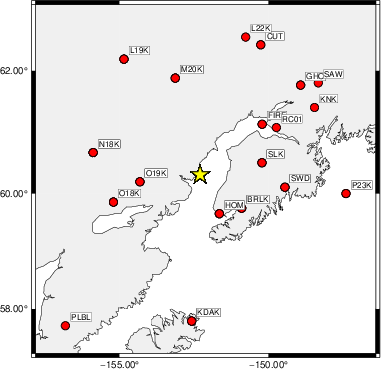

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.5 -50 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   300    60   -45   3.63 0.2457
WVFGRD96    4.0   315    65     5   3.65 0.2728
WVFGRD96    6.0   315    70     5   3.72 0.2932
WVFGRD96    8.0   315    70    10   3.80 0.2992
WVFGRD96   10.0   315    70    10   3.84 0.2978
WVFGRD96   12.0   315    70     5   3.87 0.2872
WVFGRD96   14.0   315    70     0   3.89 0.2690
WVFGRD96   16.0   315    70    -5   3.90 0.2454
WVFGRD96   18.0   225    90    20   3.92 0.2331
WVFGRD96   20.0   225    85    20   3.95 0.2347
WVFGRD96   22.0   225    85    20   3.97 0.2437
WVFGRD96   24.0   225    75    15   4.01 0.2693
WVFGRD96   26.0   225    75    15   4.04 0.2985
WVFGRD96   28.0   225    75    15   4.07 0.3272
WVFGRD96   30.0   225    75    15   4.09 0.3542
WVFGRD96   32.0   225    75    20   4.12 0.3766
WVFGRD96   34.0   225    75    20   4.14 0.3936
WVFGRD96   36.0   225    80    15   4.15 0.4021
WVFGRD96   38.0   225    85    10   4.18 0.4063
WVFGRD96   40.0   230    70    30   4.26 0.4209
WVFGRD96   42.0    45    90   -15   4.25 0.4131
WVFGRD96   44.0    45    90   -15   4.27 0.4087
WVFGRD96   46.0    45    90   -15   4.28 0.4030
WVFGRD96   48.0    45    75    15   4.30 0.4082
WVFGRD96   50.0    45    75    20   4.32 0.4139
WVFGRD96   52.0    45    75    20   4.33 0.4239
WVFGRD96   54.0    45    70    20   4.34 0.4318
WVFGRD96   56.0    45    70    25   4.35 0.4436
WVFGRD96   58.0    45    70    25   4.36 0.4515
WVFGRD96   60.0    45    70    25   4.36 0.4619
WVFGRD96   62.0    45    70    25   4.37 0.4713
WVFGRD96   64.0    45    70    25   4.37 0.4790
WVFGRD96   66.0    45    70    25   4.38 0.4842
WVFGRD96   68.0    45    70    25   4.38 0.4932
WVFGRD96   70.0    45    65    25   4.39 0.4998
WVFGRD96   72.0    45    65    25   4.39 0.5044
WVFGRD96   74.0    45    65    25   4.40 0.5102
WVFGRD96   76.0    45    65    25   4.40 0.5150
WVFGRD96   78.0    45    65    25   4.40 0.5193
WVFGRD96   80.0    45    65    25   4.41 0.5226
WVFGRD96   82.0    45    65    25   4.41 0.5254
WVFGRD96   84.0    45    65    25   4.41 0.5280
WVFGRD96   86.0    45    65    25   4.42 0.5292
WVFGRD96   88.0    45    65    25   4.42 0.5309
WVFGRD96   90.0    50    60    30   4.42 0.5341
WVFGRD96   92.0    50    60    30   4.43 0.5368
WVFGRD96   94.0    50    60    30   4.43 0.5382
WVFGRD96   96.0    50    60    30   4.43 0.5393
WVFGRD96   98.0    50    60    30   4.43 0.5386
WVFGRD96  100.0    50    60    30   4.44 0.5403
WVFGRD96  102.0    50    60    30   4.44 0.5415
WVFGRD96  104.0    50    60    30   4.44 0.5409
WVFGRD96  106.0    50    60    30   4.45 0.5381
WVFGRD96  108.0    50    60    30   4.45 0.5394
WVFGRD96  110.0    50    60    30   4.45 0.5404
WVFGRD96  112.0    50    60    30   4.46 0.5388
WVFGRD96  114.0    50    60    30   4.46 0.5389
WVFGRD96  116.0    50    60    30   4.46 0.5382
WVFGRD96  118.0    50    60    30   4.47 0.5349
WVFGRD96  120.0    50    60    30   4.47 0.5360
WVFGRD96  122.0    50    55    30   4.47 0.5353
WVFGRD96  124.0    50    55    30   4.47 0.5319
WVFGRD96  126.0    50    55    30   4.47 0.5323
WVFGRD96  128.0    50    55    30   4.48 0.5304
WVFGRD96  130.0    50    55    30   4.48 0.5286
WVFGRD96  132.0    50    55    30   4.48 0.5269
WVFGRD96  134.0    50    55    30   4.48 0.5247
WVFGRD96  136.0    50    55    30   4.49 0.5246
WVFGRD96  138.0    50    55    30   4.49 0.5207
WVFGRD96  140.0    50    55    30   4.49 0.5222
WVFGRD96  142.0    50    55    30   4.50 0.5193
WVFGRD96  144.0    50    55    30   4.50 0.5186
WVFGRD96  146.0    50    55    30   4.50 0.5177
WVFGRD96  148.0    50    55    30   4.50 0.5148

The best solution is

WVFGRD96  102.0    50    60    30   4.44 0.5415

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

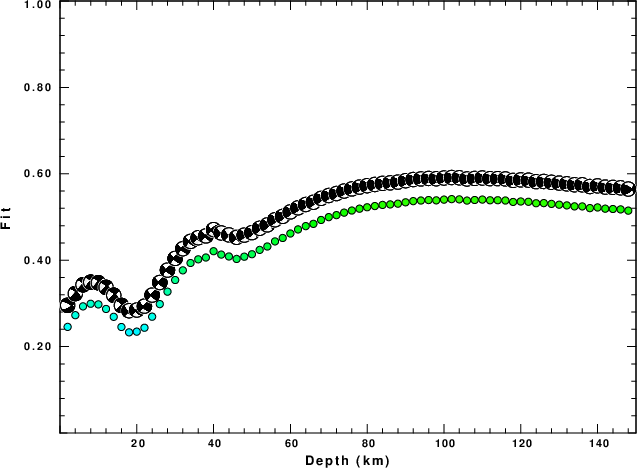

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

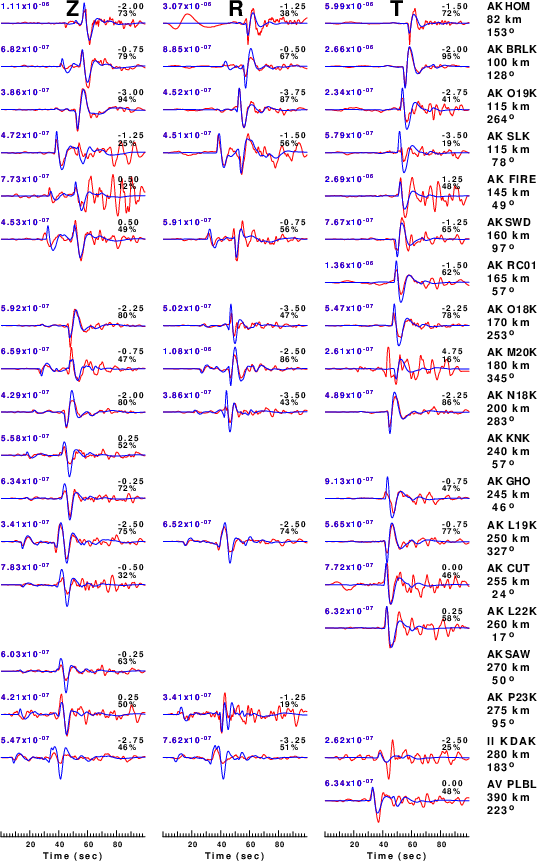

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.5 -50 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

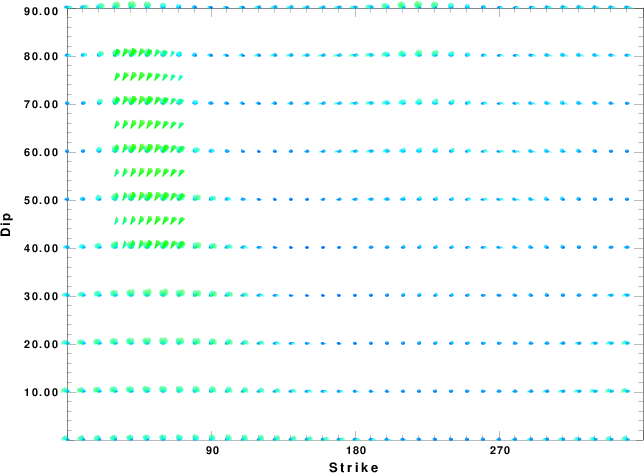

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

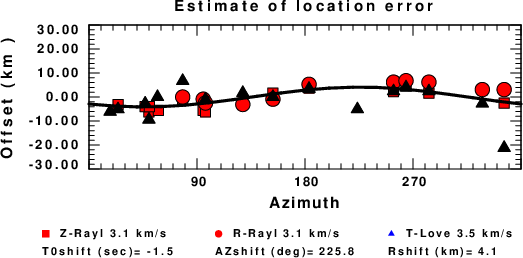

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sat Jul 27 19:51:55 CDT 2024
