Location

SLU Location

To check the ANSS location or to compare the observed P-wave first motions to the moment tensor solution, P- and S-wave first arrival times were manually read together with the P-wave first motions. The subsequent output of the program elocate is given in the file elocate.txt. The first motion plot is shown below.

Location ANSS

The ANSS event ID is tx2024oizv and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/tx2024oizv/executive.

2024/07/23 03:38:42 32.753 -100.638 7.7 4.9 Texas

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2024/07/23 03:38:42:0  32.75 -100.64   7.7 4.9 Texas

 Stations used:
   4O.AT01 4O.BP01 4O.CW01 4O.DB02 4O.DB03 4O.DB04 4O.EE01
   4O.GV02 4O.LWM1 4O.LWM3 4O.MBBB2 4O.MID02 4O.MID03 4O.OE01
   4O.SD01 4O.SM01 4O.SM03 4O.SM04 4O.VW01 4O.WB03 4T.NM02
   TX.APMT TX.BRDY TX.DKNS TX.FW01 TX.FW02 TX.FW04 TX.FW07
   TX.FW09 TX.FW11 TX.FW12 TX.MB02 TX.MB03 TX.MB05 TX.MB06
   TX.MB07 TX.MB08 TX.MB10 TX.MB11 TX.MB12 TX.MB13 TX.MB15
   TX.MB18 TX.MB19 TX.MB21 TX.MB22 TX.MB23 TX.MB25 TX.ODSA
   TX.OZNA TX.PB04 TX.PB06 TX.PB07 TX.PB08 TX.PB10 TX.PB11
   TX.PB16 TX.PB18 TX.PB21 TX.PB22 TX.PB24 TX.PB30 TX.PB39
   TX.PB40 TX.PB46 TX.PB47 TX.PB51 TX.PB54 TX.PH03 TX.PLPT
   TX.POST TX.SAND TX.SGCY TX.SMWD TX.WTFS

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.20 n 3

 Best Fitting Double Couple
  Mo = 6.17e+22 dyne-cm
  Mw = 4.46
  Z  = 4 km
  Plane   Strike  Dip  Rake
   NP1       45    55   -70
   NP2      193    40   -116
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   6.17e+22      8     121
    N   0.00e+00     16     213
    P  -6.17e+22     72       6

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     9.95e+21
       Mxy    -2.72e+22
       Mxz    -2.26e+22
       Myy     4.45e+22
       Myz     5.46e+21
       Mzz    -5.44e+22




                     ########------
                 #########-------------
              #########-------------------
             ########----------------------
           #########-----------------------##
          #########------------------------###
         #########-------------------------####
        #########----------   ------------######
        ########----------- P -----------#######
       #########-----------   -----------########
       ########-------------------------#########
       ########------------------------##########
       ########----------------------############
        #######---------------------############
        #######-------------------##############
         #######----------------###########   #
          ######--------------############# T
           ######----------################
             #####----#####################
              -----#######################
                 ---###################
                     -#############



 Global CMT Convention Moment Tensor:
      R          T          P
 -5.44e+22  -2.26e+22  -5.46e+21
 -2.26e+22   9.95e+21   2.72e+22
 -5.46e+21   2.72e+22   4.45e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240723033842/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 45
      DIP = 55
     RAKE = -70
       MW = 4.46
       HS = 4.0

The NDK file is 20240723033842.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMWR

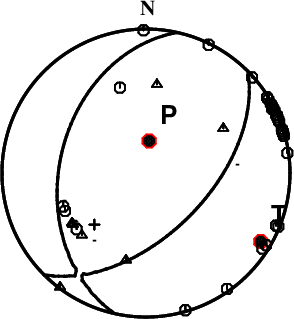

SLUFM
TX
 USGS/SLU Moment Tensor Solution
 ENS  2024/07/23 03:38:42:0  32.75 -100.64   7.7 4.9 Texas

 Stations used:
   4O.AT01 4O.BP01 4O.CW01 4O.DB02 4O.DB03 4O.DB04 4O.EE01
   4O.GV02 4O.LWM1 4O.LWM3 4O.MBBB2 4O.MID02 4O.MID03 4O.OE01
   4O.SD01 4O.SM01 4O.SM03 4O.SM04 4O.VW01 4O.WB03 4T.NM02
   TX.APMT TX.BRDY TX.DKNS TX.FW01 TX.FW02 TX.FW04 TX.FW07
   TX.FW09 TX.FW11 TX.FW12 TX.MB02 TX.MB03 TX.MB05 TX.MB06
   TX.MB07 TX.MB08 TX.MB10 TX.MB11 TX.MB12 TX.MB13 TX.MB15
   TX.MB18 TX.MB19 TX.MB21 TX.MB22 TX.MB23 TX.MB25 TX.ODSA
   TX.OZNA TX.PB04 TX.PB06 TX.PB07 TX.PB08 TX.PB10 TX.PB11
   TX.PB16 TX.PB18 TX.PB21 TX.PB22 TX.PB24 TX.PB30 TX.PB39
   TX.PB40 TX.PB46 TX.PB47 TX.PB51 TX.PB54 TX.PH03 TX.PLPT
   TX.POST TX.SAND TX.SGCY TX.SMWD TX.WTFS

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.20 n 3

 Best Fitting Double Couple
  Mo = 6.17e+22 dyne-cm
  Mw = 4.46
  Z  = 4 km
  Plane   Strike  Dip  Rake
   NP1       45    55   -70
   NP2      193    40   -116
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   6.17e+22      8     121
    N   0.00e+00     16     213
    P  -6.17e+22     72       6

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     9.95e+21
       Mxy    -2.72e+22
       Mxz    -2.26e+22
       Myy     4.45e+22
       Myz     5.46e+21
       Mzz    -5.44e+22




                     ########------
                 #########-------------
              #########-------------------
             ########----------------------
           #########-----------------------##
          #########------------------------###
         #########-------------------------####
        #########----------   ------------######
        ########----------- P -----------#######
       #########-----------   -----------########
       ########-------------------------#########
       ########------------------------##########
       ########----------------------############
        #######---------------------############
        #######-------------------##############
         #######----------------###########   #
          ######--------------############# T
           ######----------################
             #####----#####################
              -----#######################
                 ---###################
                     -#############



 Global CMT Convention Moment Tensor:
      R          T          P
 -5.44e+22  -2.26e+22  -5.46e+21
 -2.26e+22   9.95e+21   2.72e+22
 -5.46e+21   2.72e+22   4.45e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240723033842/index.html

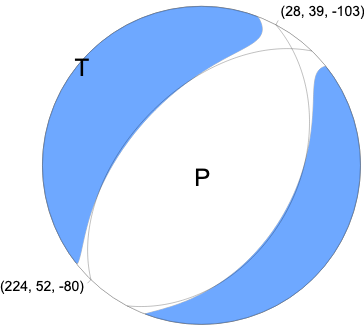

√Regional Moment Tensor (Mwr)
Moment
1.173e+16 N-m
Magnitude
4.65 Mwr
Depth
3.0 km
Percent DC
89%
Half Duration
-
Catalog
US
Data Source
US 2
Contributor
US 2
Nodal Planes
Plane	Strike	Dip	Rake
NP1	28	39	-103
NP2	224	52	-80
Principal Axes
Axis	Value	Plunge	Azimuth
T	1.205e+16	7	307
N	-0.067e+16	8	38
P	-1.138e+16	80	178




First motions and takeoff angles from an elocate run.
EOF
Regional Moment Tensor (Mwr)
Moment
8.516e+15 N-m
Magnitude
4.55 Mwr
Depth
3.0 km
Percent DC
92%
Half Duration
-
Catalog
TX
Data Source
TX 1
Contributor
TX 1
Nodal Planes
Plane	Strike	Dip	Rake
NP1	29	42	-101
NP2	223	49	-80
Principal Axes
Axis	Value	Plunge	Azimuth
T	8.682e+15	4	306
N	-0.343e+15	7	37
P	-8.340e+15	82	190



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

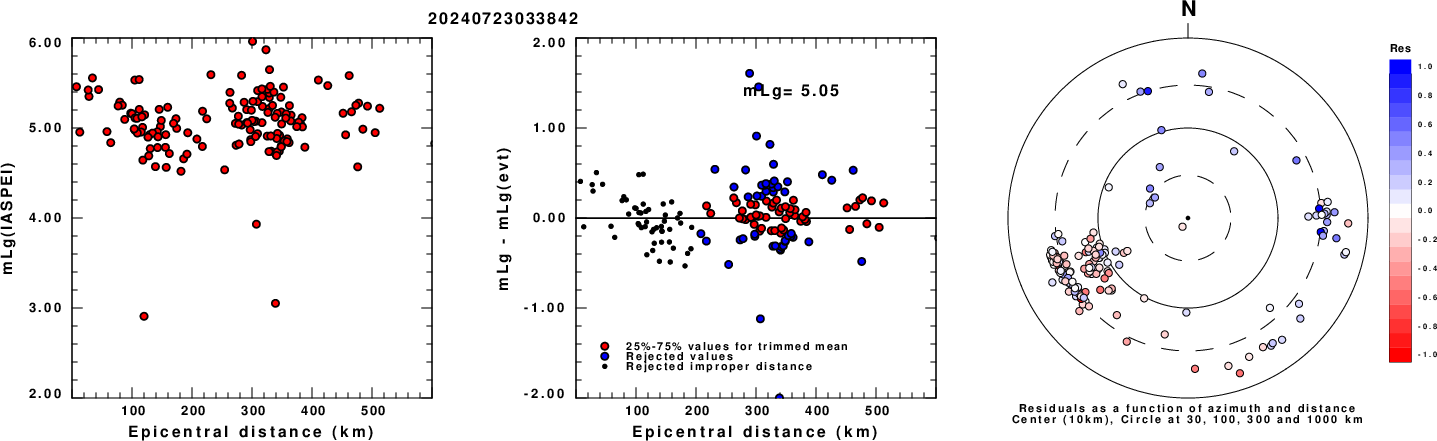

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

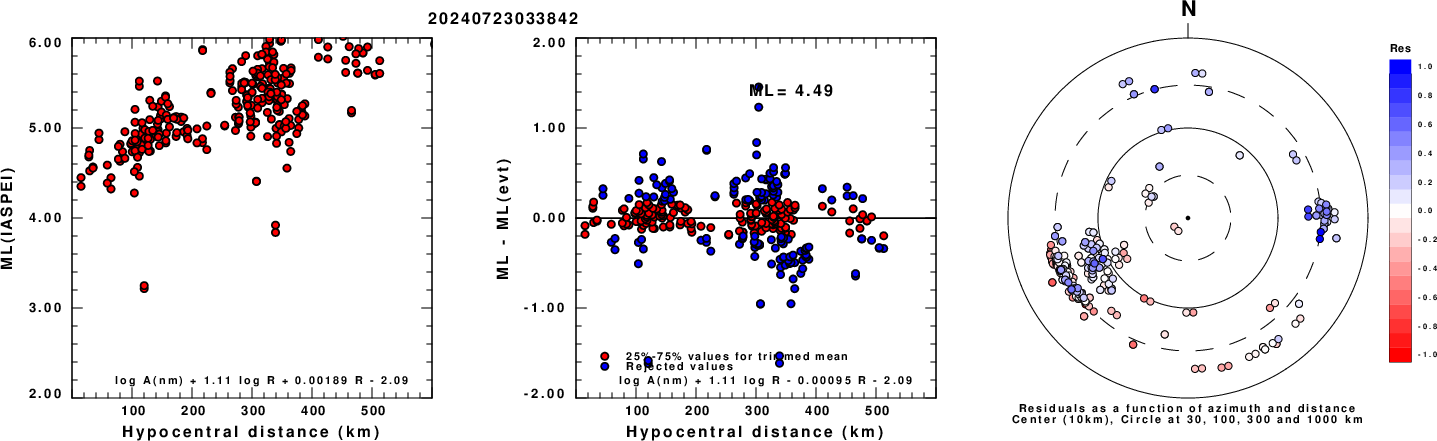

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

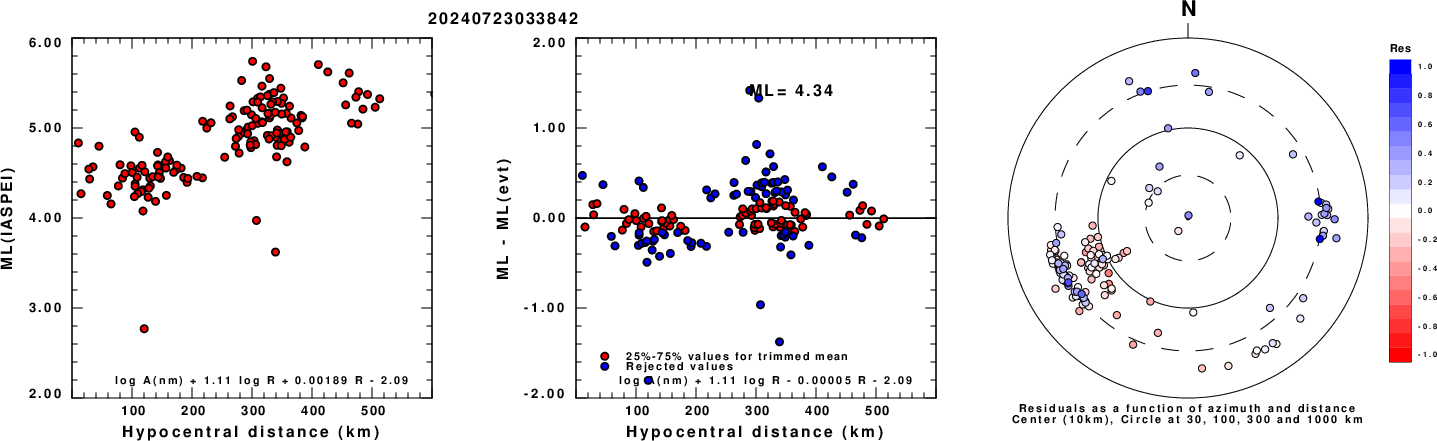

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

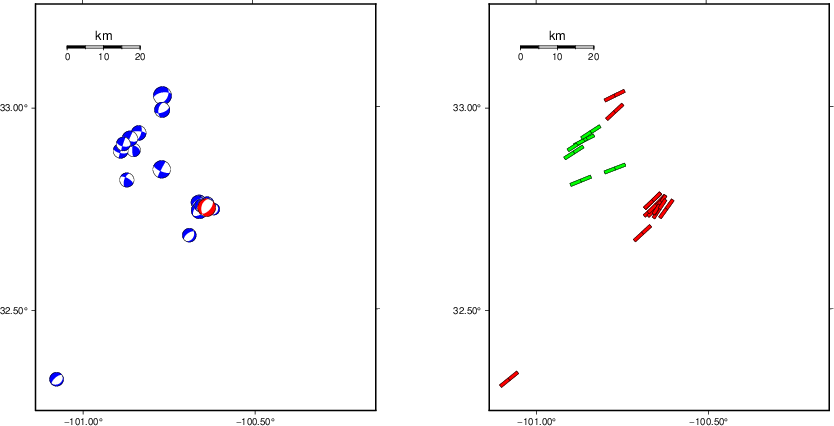

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

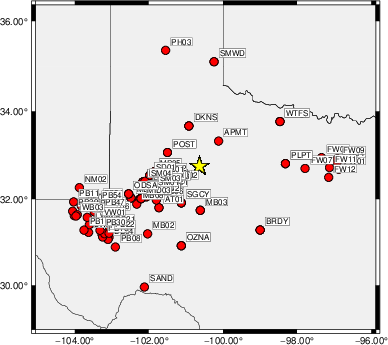

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.20 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   100    90   -70   4.19 0.3350
WVFGRD96    2.0    90    10    70   4.42 0.3788
WVFGRD96    3.0    40    70   -90   4.46 0.4500
WVFGRD96    4.0    45    55   -70   4.46 0.4631
WVFGRD96    5.0    45    55   -65   4.48 0.4369
WVFGRD96    6.0    45    60   -60   4.49 0.4002
WVFGRD96    7.0    45    65   -55   4.52 0.3584
WVFGRD96    8.0    45    70   -65   4.60 0.3166
WVFGRD96    9.0    45    70   -60   4.62 0.2740
WVFGRD96   10.0    45    70   -60   4.63 0.2340
WVFGRD96   11.0   165    30    35   4.65 0.2015
WVFGRD96   12.0   160    30    30   4.66 0.1750
WVFGRD96   13.0   160    30    30   4.67 0.1499
WVFGRD96   14.0   155    30    20   4.69 0.1274
WVFGRD96   15.0   150    30    15   4.69 0.1080
WVFGRD96   16.0   350    75    35   4.62 0.0941
WVFGRD96   17.0    60    70   -45   4.67 0.0889
WVFGRD96   18.0    60    75   -50   4.70 0.0877
WVFGRD96   19.0    55    75   -60   4.74 0.0896

The best solution is

WVFGRD96    4.0    45    55   -70   4.46 0.4631

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

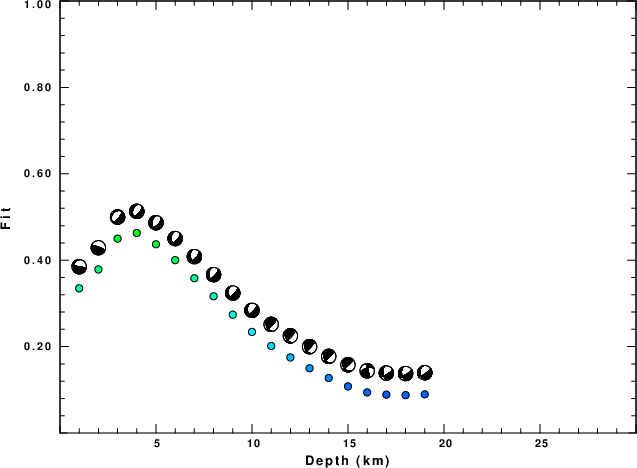

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.20 n 3

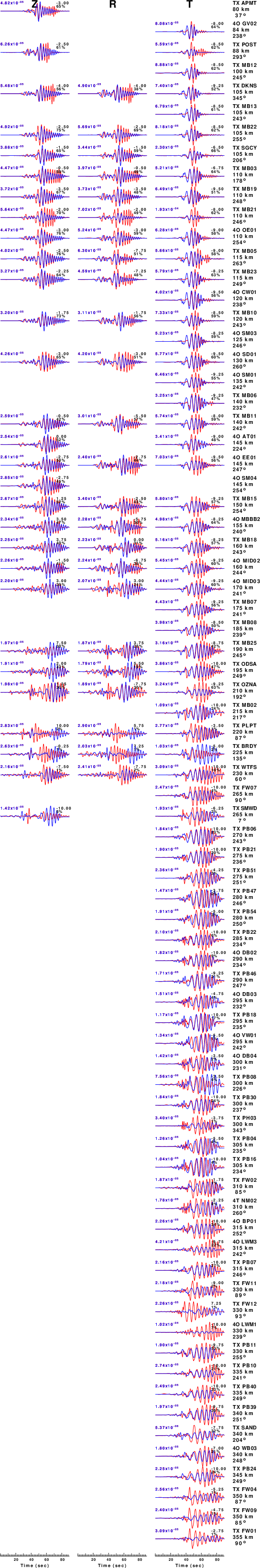

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

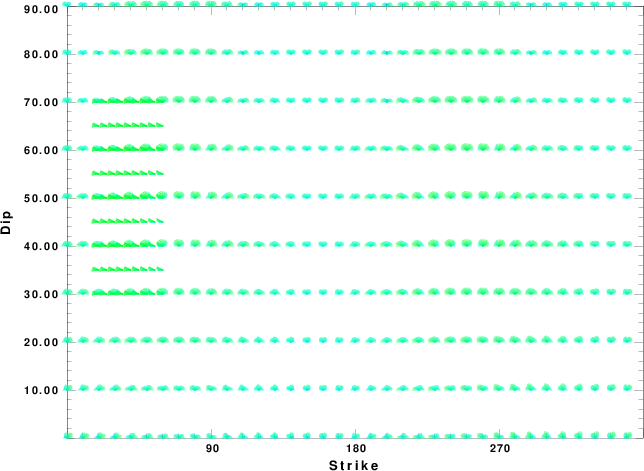

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

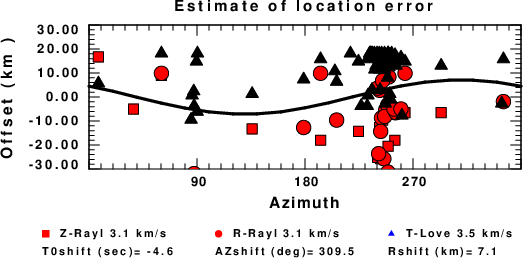

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Wed Jul 24 15:19:24 CDT 2024
