The ANSS event ID is nn00880145 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00880145/executive.

2024/06/30 05:17:44 39.391 -116.699 7.4 3.4 Nevada

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2024/06/30 05:17:44:0 39.39 -116.70 7.4 3.4 Nevada Stations used: BK.RAVE BK.WELL BK.YUBA CI.ISA IM.NV31 LB.BMN LB.TPH NC.AFD NN.DIX NN.GMN NN.KVN NN.LHV NN.MPK NN.PAH NN.PNT NN.PRN NN.REDF NN.SHP US.DUG US.ELK UU.ECUT UU.FOR1 UU.HVU UU.KNB UU.MPU UU.MTPU UU.NOQ UU.PSUT UU.SWUT UU.TCRU UU.VRUT Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.04 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 1.12e+21 dyne-cm Mw = 3.30 Z = 12 km Plane Strike Dip Rake NP1 30 55 -120 NP2 255 45 -55 Principal Axes: Axis Value Plunge Azimuth T 1.12e+21 5 141 N 0.00e+00 24 49 P -1.12e+21 65 242 Moment Tensor: (dyne-cm) Component Value Mxx 6.30e+20 Mxy -6.24e+20 Mxz 1.18e+20 Myy 2.89e+20 Myz 4.40e+20 Mzz -9.19e+20 ############## ###################### #########################--- ###########################--- #############################----- #############-----------------#----- ##########---------------------#####-- ########------------------------#######- ######-------------------------######### #####---------------------------########## ####---------------------------########### ###----------- --------------########### ##------------ P -------------############ ------------- ------------############ --------------------------############## ------------------------############## ----------------------############## -------------------############### --------------############ # -----------############## T ---################### ############## Global CMT Convention Moment Tensor: R T P -9.19e+20 1.18e+20 -4.40e+20 1.18e+20 6.30e+20 6.24e+20 -4.40e+20 6.24e+20 2.89e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240630051744/index.html

Preferred Solution

      STK = 255
      DIP = 45
     RAKE = -55
       MW = 3.30
       HS = 12.0

The NDK file is 20240630051744.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

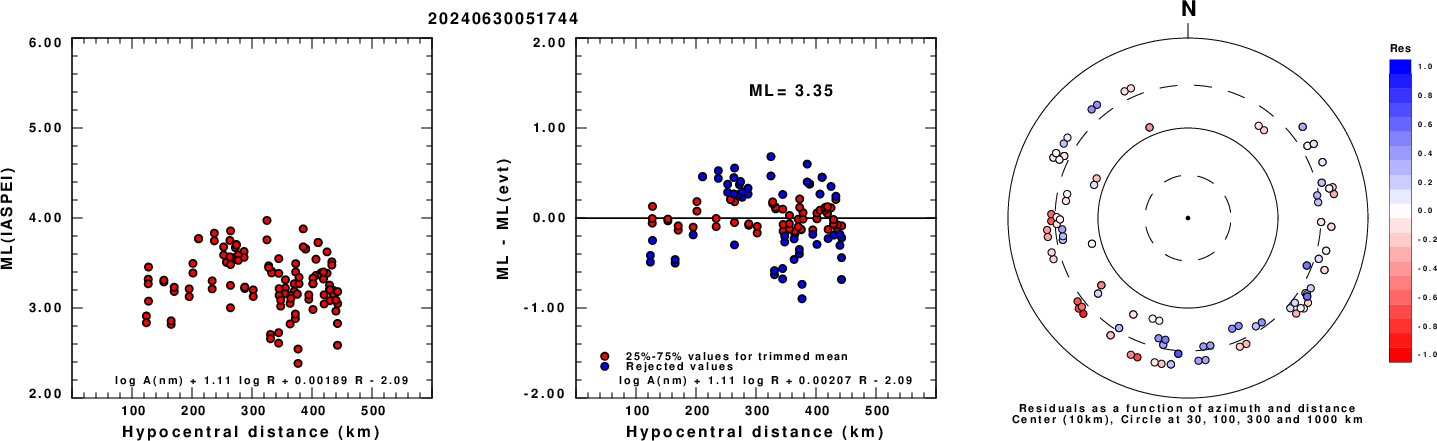

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

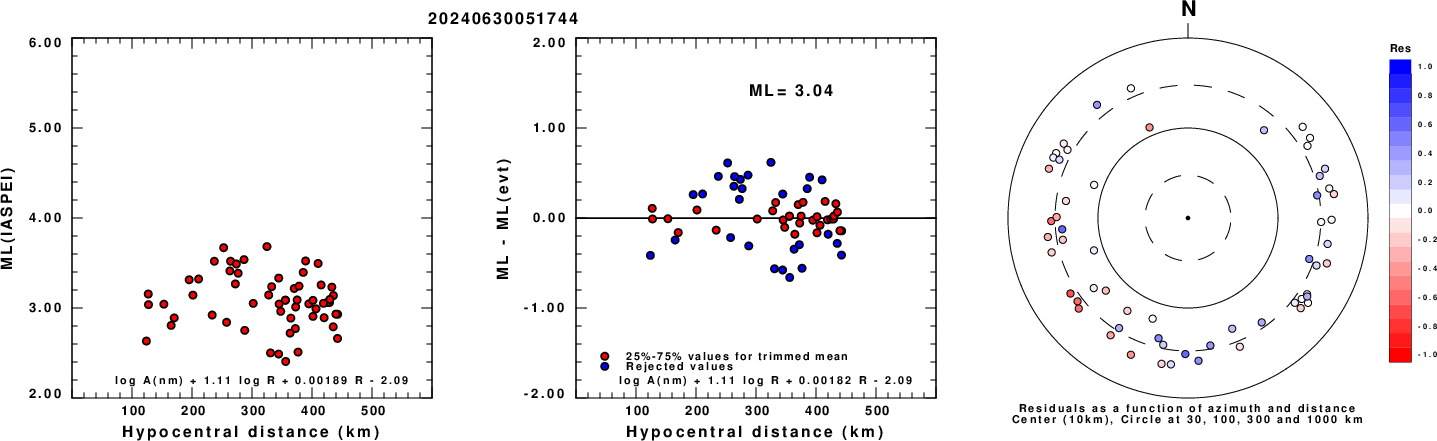

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

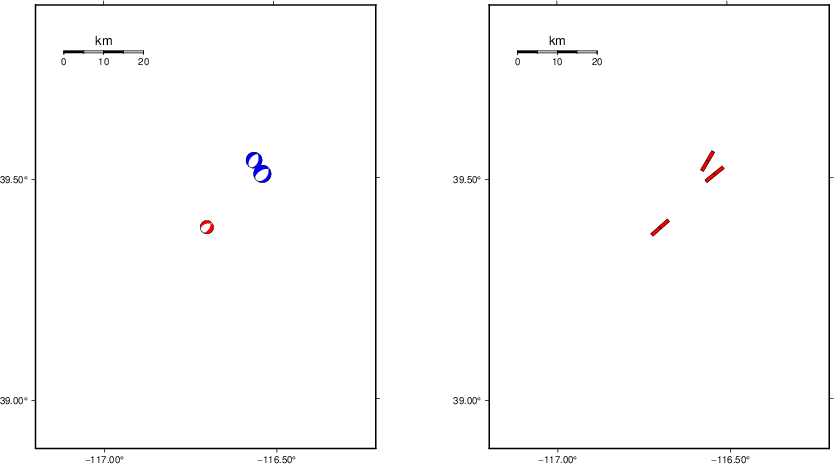

Waveform Inversion using wvfgrd96

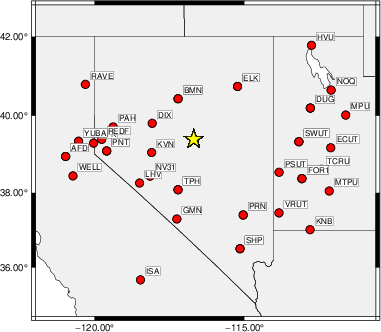

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.04 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   145    45    90   2.97 0.3145
WVFGRD96    2.0   145    45    95   3.09 0.4080
WVFGRD96    3.0   100    65    30   3.07 0.3701
WVFGRD96    4.0   275    40     5   3.13 0.3791
WVFGRD96    5.0   270    35     0   3.16 0.4196
WVFGRD96    6.0   265    40   -20   3.17 0.4482
WVFGRD96    7.0   225    30  -105   3.26 0.4749
WVFGRD96    8.0   230    30   -95   3.32 0.4876
WVFGRD96    9.0    60    60   -85   3.33 0.5143
WVFGRD96   10.0   230    35   -95   3.33 0.5300
WVFGRD96   11.0   255    45   -60   3.31 0.5360
WVFGRD96   12.0   255    45   -55   3.30 0.5376
WVFGRD96   13.0   260    50   -50   3.30 0.5368
WVFGRD96   14.0    90    60   -50   3.31 0.5332
WVFGRD96   15.0    90    60   -45   3.31 0.5297
WVFGRD96   16.0    90    60   -45   3.32 0.5248
WVFGRD96   17.0    90    60   -45   3.32 0.5184
WVFGRD96   18.0    90    60   -45   3.33 0.5106
WVFGRD96   19.0    95    65   -40   3.34 0.5021
WVFGRD96   20.0    90    65   -45   3.35 0.4934
WVFGRD96   21.0    90    65   -45   3.36 0.4835
WVFGRD96   22.0    90    65   -45   3.37 0.4725
WVFGRD96   23.0   295    65    40   3.38 0.4591
WVFGRD96   24.0   295    65    35   3.39 0.4480
WVFGRD96   25.0    85    65   -50   3.38 0.4366
WVFGRD96   26.0   170    65   -45   3.38 0.4254
WVFGRD96   27.0   170    65   -45   3.38 0.4181
WVFGRD96   28.0   170    70   -45   3.39 0.4104
WVFGRD96   29.0    15    45   -25   3.43 0.4040

The best solution is

WVFGRD96   12.0   255    45   -55   3.30 0.5376

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

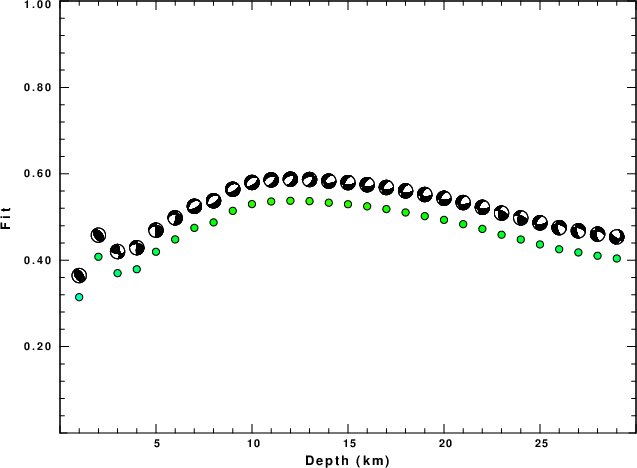

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

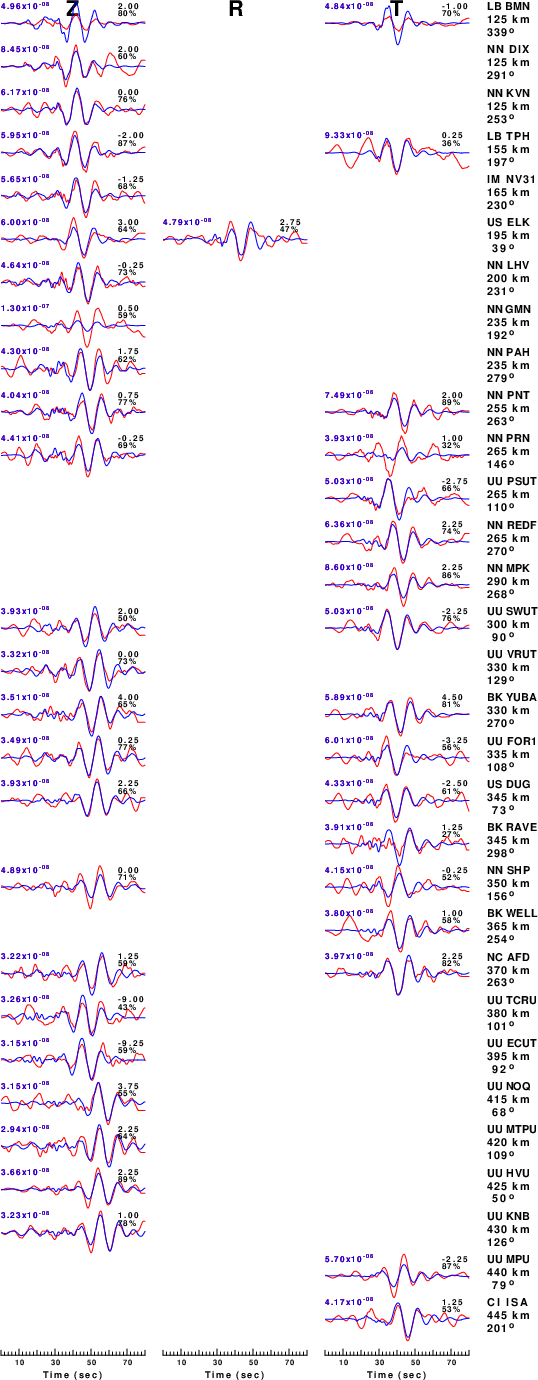

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.04 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

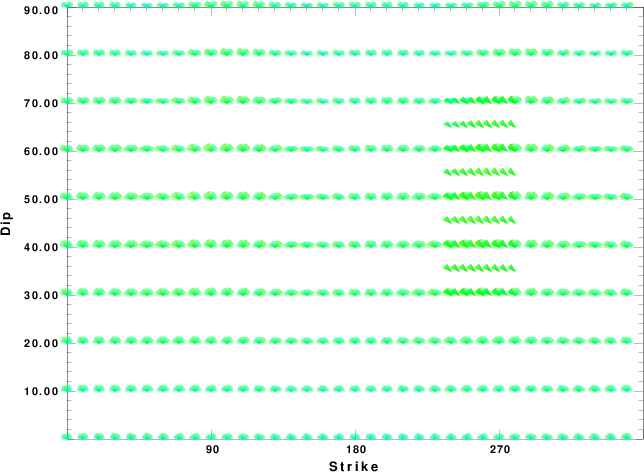

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

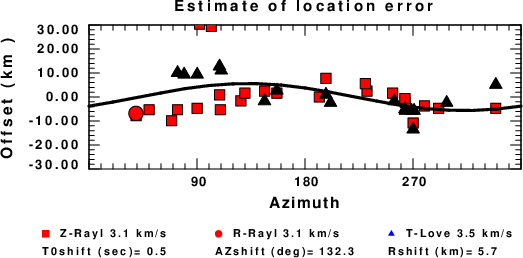

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
