2024/06/22 13:39:28 63.131 -150.424 107.4 4.0 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2024/06/22 13:39:28:0  63.13 -150.42 107.4 4.0 Alaska

 Stations used:
   AK.BPAW AK.CAST AK.CCB AK.CUT AK.DOT AK.GHO AK.H21K AK.H24K
   AK.HDA AK.I23K AK.J19K AK.J20K AK.K20K AK.K24K AK.KNK
   AK.L19K AK.L20K AK.L22K AK.MCK AK.MLY AK.PAX AK.RC01
   AK.RIDG AK.RND AK.SAW AK.SCM AK.WRH AT.PMR AT.TTA IM.IL31
   IU.COLA

 Filtering commands used:
   cut o DIST/3.5 -40 o DIST/3.5 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.45e+22 dyne-cm
  Mw = 4.04
  Z  = 110 km
  Plane   Strike  Dip  Rake
   NP1      326    64   134
   NP2       80    50    35
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.45e+22     50     286
    N   0.00e+00     39     123
    P  -1.45e+22      8      26

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.10e+22
       Mxy    -7.13e+21
       Mxz     9.62e+19
       Myy     2.86e+21
       Myz    -7.75e+21
       Mzz     8.16e+21




                     --------------
                 ------------------ P -
              ######---------------   ----
             ###########-------------------
           ###############-------------------
          ##################------------------
         #####################-----------------
        #######################-----------------
        #########   #############---------------
       ########## T ##############--------------#
       ##########   ###############------------##
       #############################----------###
       ##############################-------#####
        -#############################----######
        ---#####################################
         -----#####################----########
          -----------#######------------######
           -----------------------------#####
             ---------------------------###
              --------------------------##
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  8.16e+21   9.62e+19   7.75e+21
  9.62e+19  -1.10e+22   7.13e+21
  7.75e+21   7.13e+21   2.86e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240622133928/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 80
      DIP = 50
     RAKE = 35
       MW = 4.04
       HS = 110.0

The NDK file is 20240622133928.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

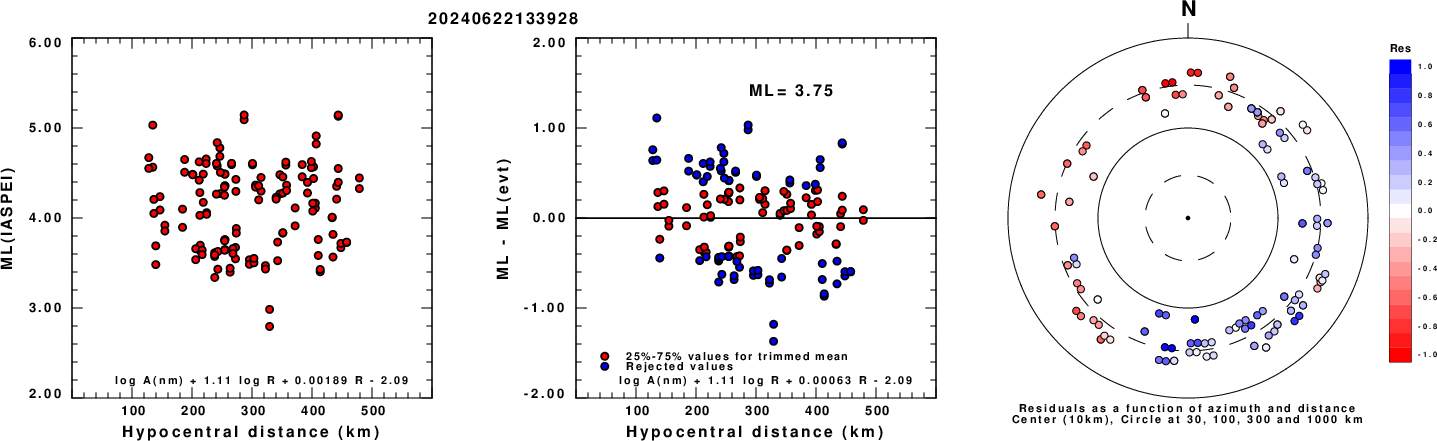

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

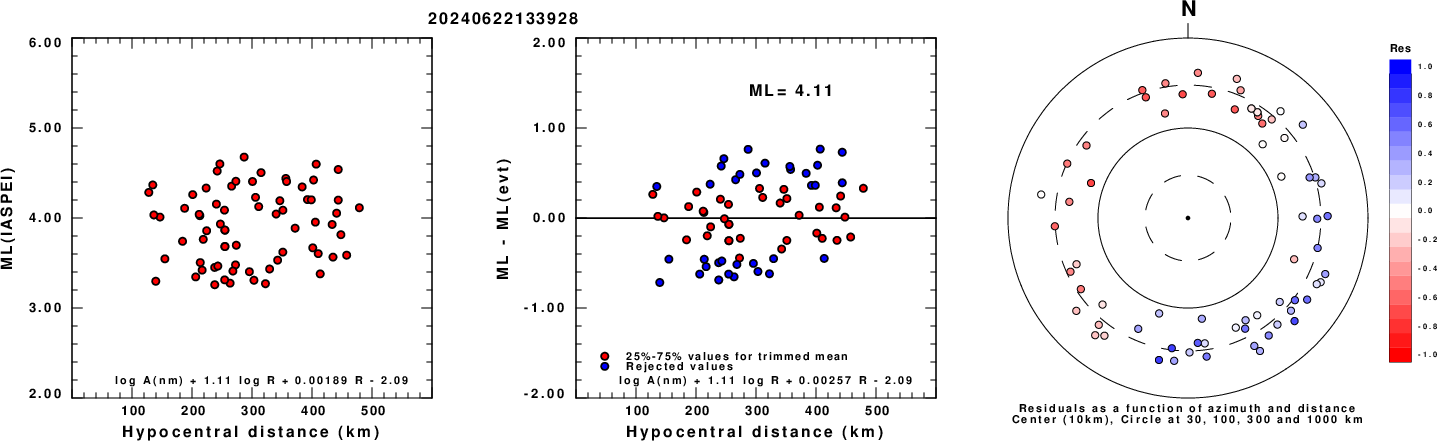

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   120    40   -80   3.21 0.1863
WVFGRD96    4.0   340    45   -10   3.22 0.1844
WVFGRD96    6.0   165    60    25   3.27 0.2097
WVFGRD96    8.0   165    60    25   3.35 0.2310
WVFGRD96   10.0   165    60    25   3.40 0.2441
WVFGRD96   12.0   165    60    25   3.43 0.2490
WVFGRD96   14.0   155    60   -20   3.46 0.2501
WVFGRD96   16.0   155    60   -20   3.49 0.2502
WVFGRD96   18.0   155    60   -20   3.51 0.2456
WVFGRD96   20.0   155    55   -20   3.53 0.2387
WVFGRD96   22.0   260    60    30   3.56 0.2324
WVFGRD96   24.0   260    65    30   3.58 0.2400
WVFGRD96   26.0    80    70    35   3.61 0.2508
WVFGRD96   28.0   250    80   -30   3.64 0.2628
WVFGRD96   30.0   250    85   -30   3.66 0.2809
WVFGRD96   32.0   255    90   -30   3.68 0.2976
WVFGRD96   34.0    75    85    35   3.70 0.3129
WVFGRD96   36.0    75    85    30   3.71 0.3224
WVFGRD96   38.0    75    80    30   3.74 0.3289
WVFGRD96   40.0    75    80    40   3.81 0.3365
WVFGRD96   42.0    75    75    40   3.84 0.3431
WVFGRD96   44.0    75    75    40   3.86 0.3506
WVFGRD96   46.0    75    75    40   3.87 0.3589
WVFGRD96   48.0    80    70    45   3.89 0.3681
WVFGRD96   50.0    80    70    45   3.90 0.3781
WVFGRD96   52.0    75    70    40   3.91 0.3853
WVFGRD96   54.0    75    65    40   3.92 0.3941
WVFGRD96   56.0    75    65    40   3.93 0.4072
WVFGRD96   58.0    80    60    45   3.94 0.4197
WVFGRD96   60.0    80    60    45   3.95 0.4325
WVFGRD96   62.0    75    60    40   3.96 0.4463
WVFGRD96   64.0    75    60    40   3.96 0.4591
WVFGRD96   66.0    75    60    40   3.97 0.4717
WVFGRD96   68.0    75    55    40   3.97 0.4854
WVFGRD96   70.0    75    55    35   3.98 0.4983
WVFGRD96   72.0    75    55    35   3.98 0.5101
WVFGRD96   74.0    75    55    35   3.99 0.5213
WVFGRD96   76.0    75    55    35   3.99 0.5327
WVFGRD96   78.0    75    55    35   3.99 0.5430
WVFGRD96   80.0    75    50    35   4.00 0.5523
WVFGRD96   82.0    75    50    35   4.00 0.5603
WVFGRD96   84.0    75    55    35   4.00 0.5678
WVFGRD96   86.0    75    50    35   4.01 0.5746
WVFGRD96   88.0    75    50    35   4.01 0.5799
WVFGRD96   90.0    75    50    35   4.02 0.5863
WVFGRD96   92.0    75    50    35   4.02 0.5922
WVFGRD96   94.0    75    50    35   4.02 0.5962
WVFGRD96   96.0    75    50    35   4.02 0.5996
WVFGRD96   98.0    75    50    35   4.03 0.6022
WVFGRD96  100.0    75    50    35   4.03 0.6053
WVFGRD96  102.0    75    50    35   4.03 0.6079
WVFGRD96  104.0    75    50    35   4.04 0.6089
WVFGRD96  106.0    80    50    35   4.04 0.6094
WVFGRD96  108.0    80    50    35   4.04 0.6113
WVFGRD96  110.0    80    50    35   4.04 0.6124
WVFGRD96  112.0    80    50    35   4.04 0.6119
WVFGRD96  114.0    80    50    35   4.05 0.6113
WVFGRD96  116.0    80    50    35   4.05 0.6104
WVFGRD96  118.0    80    50    35   4.05 0.6086
WVFGRD96  120.0    80    50    35   4.05 0.6085
WVFGRD96  122.0    80    50    35   4.06 0.6065
WVFGRD96  124.0    80    50    35   4.06 0.6034
WVFGRD96  126.0    80    50    35   4.06 0.6029
WVFGRD96  128.0    80    50    35   4.06 0.5998
WVFGRD96  130.0    80    50    35   4.07 0.5981
WVFGRD96  132.0    80    50    35   4.07 0.5957
WVFGRD96  134.0    80    50    35   4.07 0.5939
WVFGRD96  136.0    80    50    35   4.07 0.5908
WVFGRD96  138.0    80    50    35   4.07 0.5883
WVFGRD96  140.0    80    50    35   4.08 0.5866
WVFGRD96  142.0    80    50    35   4.08 0.5829
WVFGRD96  144.0    80    50    35   4.08 0.5817
WVFGRD96  146.0    80    50    35   4.08 0.5790
WVFGRD96  148.0    80    50    35   4.09 0.5767

The best solution is

WVFGRD96  110.0    80    50    35   4.04 0.6124

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

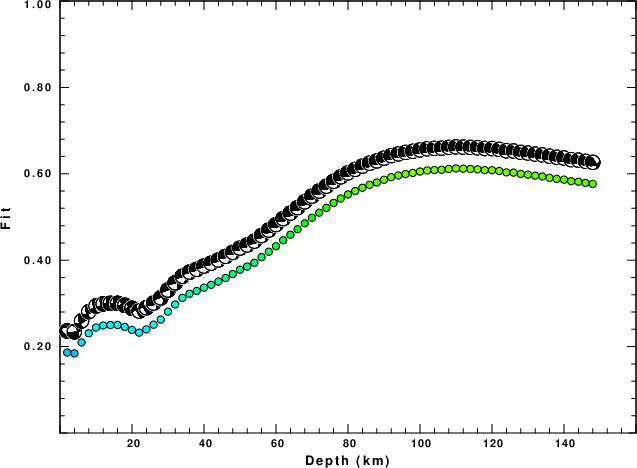

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

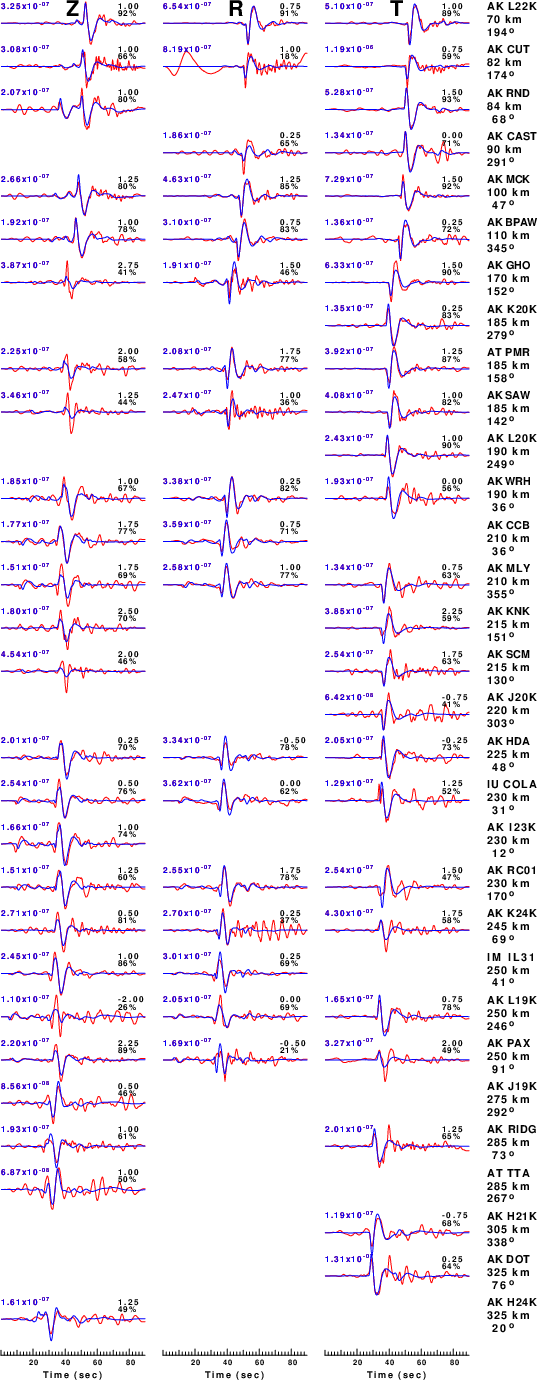

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

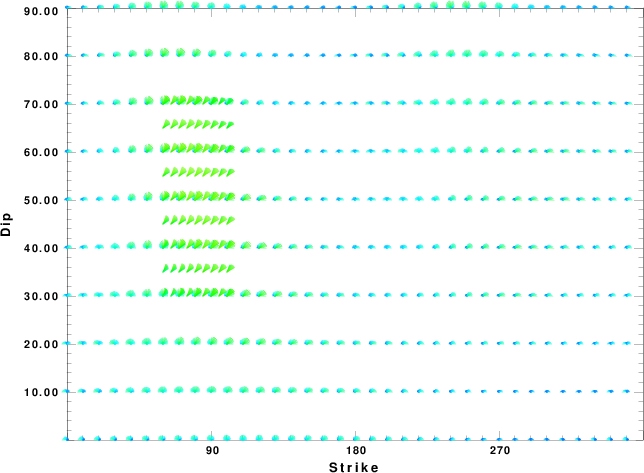

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

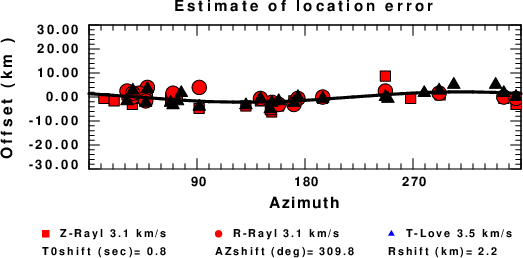

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sat Jun 22 09:00:01 MDT 2024
