Location

Location ANSS

The ANSS event ID is ak0247ocufye and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0247ocufye/executive.

2024/06/15 10:24:03 63.317 -148.847 81.4 3.7 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2024/06/15 10:24:03:0  63.32 -148.85  81.4 3.7 Alaska

 Stations used:
   AK.CCB AK.CUT AK.GHO AK.H22K AK.HDA AK.I23K AK.J19K AK.K24K
   AK.L22K AK.MCK AK.NEA2 AK.PAX AK.RIDG AK.SAW AK.SCM AK.WRH
   AT.PMR IU.COLA

 Filtering commands used:
   cut o DIST/3.5 -40 o DIST/3.5 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 4.47e+21 dyne-cm
  Mw = 3.70
  Z  = 88 km
  Plane   Strike  Dip  Rake
   NP1       90    60    50
   NP2      329    48   138
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.47e+21     55     307
    N   0.00e+00     34     113
    P  -4.47e+21      7     207

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -2.96e+21
       Mxy    -2.49e+21
       Mxz     1.71e+21
       Myy    -2.17e+14
       Myz    -1.44e+21
       Mzz     2.96e+21




                     --------------
                 ####------------------
              ############----------------
             ################--------------
           ####################--------------
          #######################-------------
         ##########################------------
        ############   #############------------
        ############ T ##############-----------
       #############   ###############-----------
       ################################----------
       -################################--------#
       ---##############################------###
        ------###########################-######
        -----------##################----#######
         --------------------------------######
          -------------------------------#####
           ------------------------------####
             ---------------------------###
              ----   -------------------##
                 - P ------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  2.96e+21   1.71e+21   1.44e+21
  1.71e+21  -2.96e+21   2.49e+21
  1.44e+21   2.49e+21  -2.17e+14


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240615102403/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 90
      DIP = 60
     RAKE = 50
       MW = 3.70
       HS = 88.0

The NDK file is 20240615102403.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

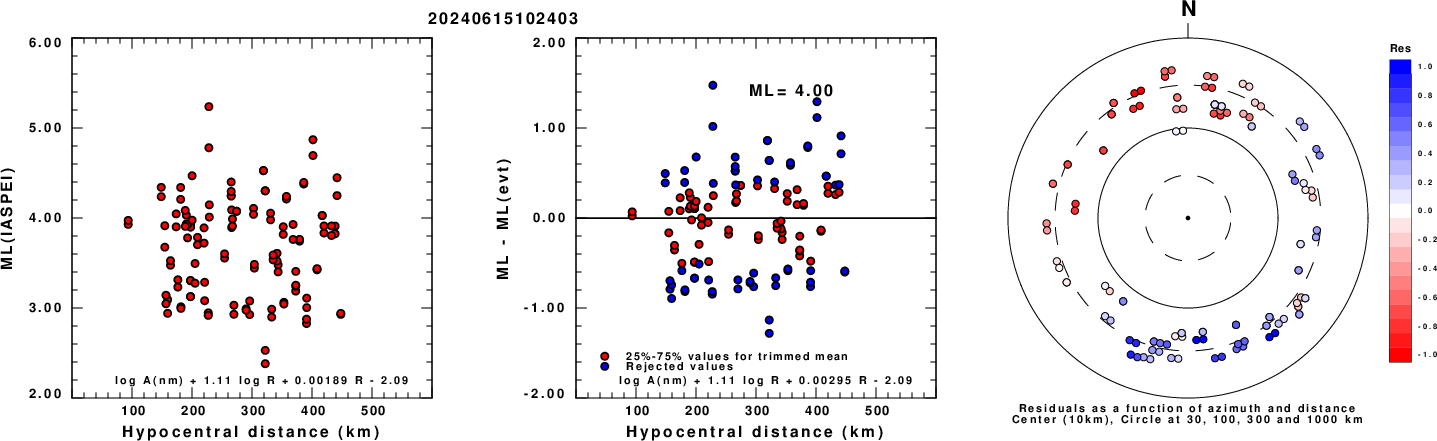

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

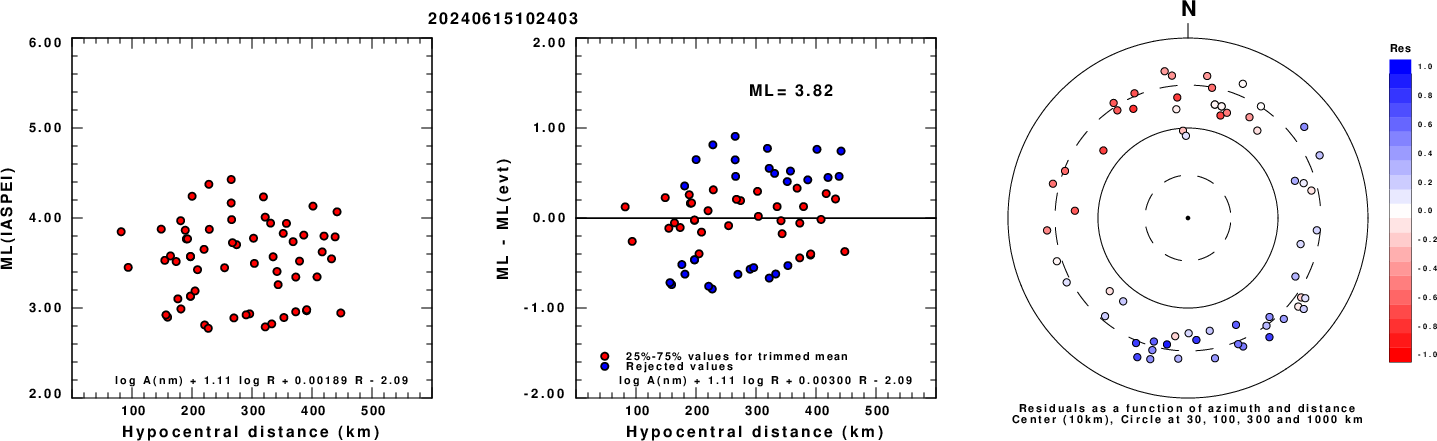

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

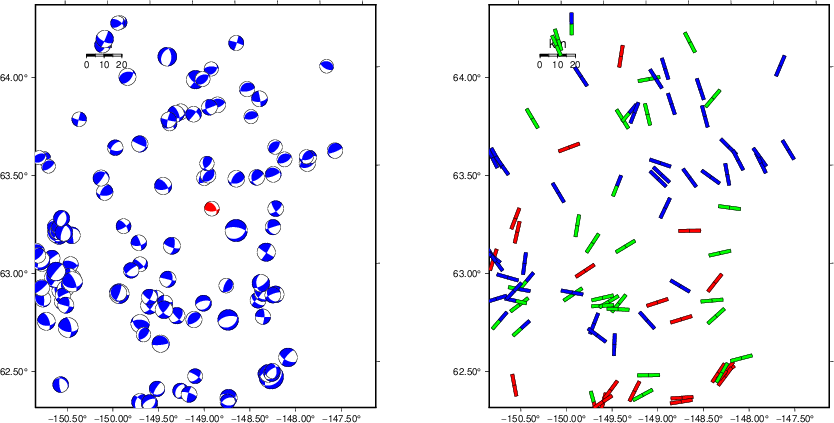

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

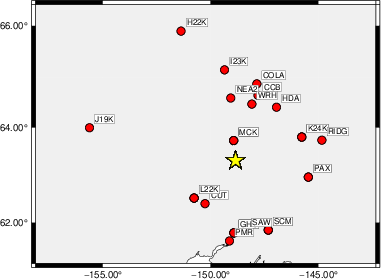

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   125    40   -85   2.86 0.1635
WVFGRD96    4.0   340    25   -25   2.92 0.1467
WVFGRD96    6.0   350    30   -10   2.93 0.1847
WVFGRD96    8.0   350    30   -10   3.01 0.2116
WVFGRD96   10.0   345    35   -20   3.04 0.2330
WVFGRD96   12.0   340    35   -25   3.06 0.2498
WVFGRD96   14.0   340    40   -30   3.10 0.2601
WVFGRD96   16.0   340    40   -25   3.11 0.2654
WVFGRD96   18.0   340    40   -25   3.13 0.2655
WVFGRD96   20.0   340    40   -25   3.15 0.2616
WVFGRD96   22.0   130    75   -45   3.21 0.2569
WVFGRD96   24.0   125    75   -50   3.21 0.2564
WVFGRD96   26.0   125    80   -45   3.24 0.2537
WVFGRD96   28.0   100    70   -45   3.27 0.2499
WVFGRD96   30.0    95    70   -45   3.29 0.2471
WVFGRD96   32.0   100    70   -40   3.32 0.2408
WVFGRD96   34.0   100    70   -40   3.34 0.2337
WVFGRD96   36.0   100    70   -35   3.37 0.2273
WVFGRD96   38.0   100    70   -35   3.39 0.2203
WVFGRD96   40.0   295    50    85   3.41 0.2346
WVFGRD96   42.0   115    40    85   3.45 0.2464
WVFGRD96   44.0   115    40    85   3.47 0.2555
WVFGRD96   46.0   100    45    55   3.53 0.2705
WVFGRD96   48.0   100    45    55   3.55 0.2885
WVFGRD96   50.0   100    45    55   3.57 0.3051
WVFGRD96   52.0   100    45    55   3.59 0.3215
WVFGRD96   54.0    95    55    55   3.60 0.3393
WVFGRD96   56.0    95    55    55   3.61 0.3620
WVFGRD96   58.0    95    55    55   3.63 0.3838
WVFGRD96   60.0    95    55    55   3.64 0.4038
WVFGRD96   62.0    90    60    50   3.65 0.4211
WVFGRD96   64.0    90    60    50   3.66 0.4373
WVFGRD96   66.0    90    60    50   3.67 0.4502
WVFGRD96   68.0    90    60    50   3.67 0.4626
WVFGRD96   70.0    95    60    50   3.68 0.4713
WVFGRD96   72.0    90    60    50   3.68 0.4797
WVFGRD96   74.0    90    60    50   3.69 0.4874
WVFGRD96   76.0    90    60    50   3.69 0.4919
WVFGRD96   78.0    90    60    45   3.70 0.4972
WVFGRD96   80.0    90    60    50   3.70 0.5005
WVFGRD96   82.0    90    60    45   3.71 0.5030
WVFGRD96   84.0    90    60    50   3.70 0.5052
WVFGRD96   86.0    90    60    50   3.70 0.5054
WVFGRD96   88.0    90    60    50   3.70 0.5070
WVFGRD96   90.0    90    60    50   3.70 0.5062
WVFGRD96   92.0    90    60    50   3.71 0.5067
WVFGRD96   94.0    90    60    50   3.71 0.5056
WVFGRD96   96.0    90    60    50   3.71 0.5046
WVFGRD96   98.0    90    60    50   3.71 0.5037
WVFGRD96  100.0    90    60    50   3.71 0.5027
WVFGRD96  102.0    90    60    50   3.71 0.4997
WVFGRD96  104.0    90    60    50   3.71 0.4990
WVFGRD96  106.0    90    60    50   3.71 0.4961
WVFGRD96  108.0    90    60    50   3.71 0.4947
WVFGRD96  110.0   100    60    50   3.72 0.4920
WVFGRD96  112.0   100    60    50   3.72 0.4903
WVFGRD96  114.0   100    60    50   3.72 0.4882
WVFGRD96  116.0   100    60    50   3.72 0.4860
WVFGRD96  118.0   100    60    50   3.72 0.4842

The best solution is

WVFGRD96   88.0    90    60    50   3.70 0.5070

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

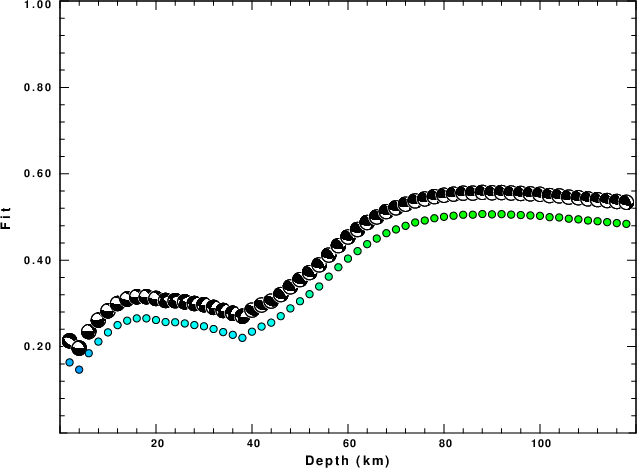

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

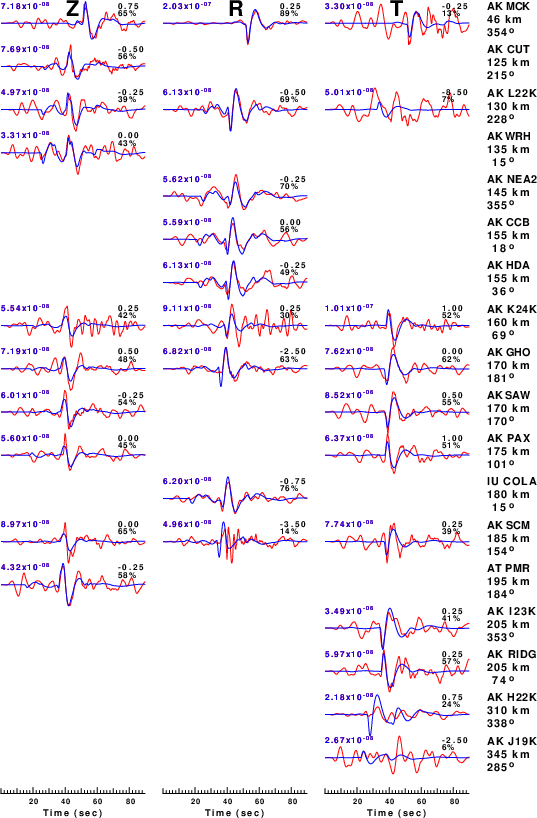

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

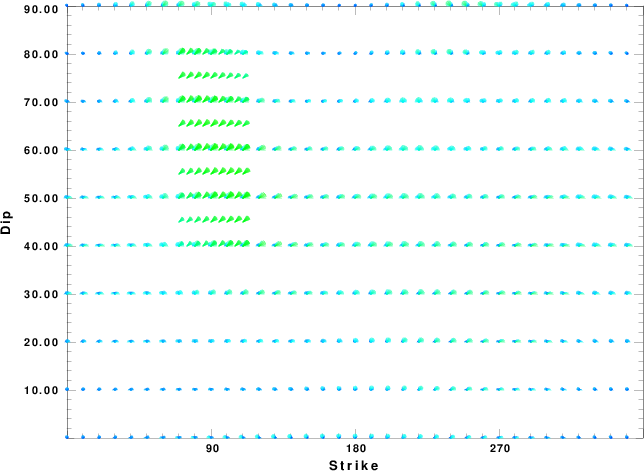

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

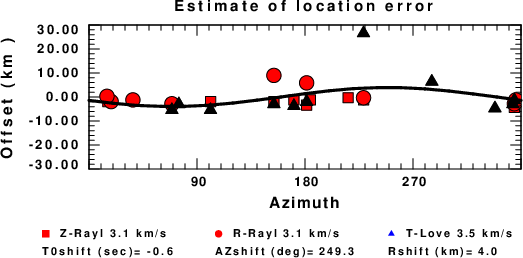

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sat Jun 15 08:56:58 CDT 2024
