The ANSS event ID is ak024718lx5k and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak024718lx5k/executive.

2024/06/01 12:40:23 59.865 -152.355 84.3 4.2 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2024/06/01 12:40:23:0  59.87 -152.35  84.3 4.2 Alaska

 Stations used:
   AK.BRLK AK.CAPN AK.GHO AK.HOM AK.L19K AK.N18K AK.O18K
   AK.O19K AK.RC01 AK.SLK AT.PMR AV.ACH AV.STLK

 Filtering commands used:
   cut o DIST/3.5 -40 o DIST/3.5 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 5.19e+22 dyne-cm
  Mw = 4.41
  Z  = 90 km
  Plane   Strike  Dip  Rake
   NP1       50    65    35
   NP2      304    59   150
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.19e+22     42     269
    N   0.00e+00     48      81
    P  -5.19e+22      4     175

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -5.13e+22
       Mxy     4.54e+21
       Mxz     3.11e+21
       Myy     2.85e+22
       Myz    -2.61e+22
       Mzz     2.28e+22




                     --------------
                 ----------------------
              ----------------------------
             ------------------------------
           --#####--------------------------#
          ################-----------------###
         #####################------------#####
        #########################---------######
        ###########################------#######
       ##############################--##########
       ########   ####################-##########
       ######## T ##################-----########
       ########   ################--------#######
        ########################-----------#####
        ######################--------------####
         ##################------------------##
          ##############---------------------#
           #########-------------------------
             ------------------------------
              ----------------------------
                 -----------   --------
                     ------- P ----



 Global CMT Convention Moment Tensor:
      R          T          P
  2.28e+22   3.11e+21   2.61e+22
  3.11e+21  -5.13e+22  -4.54e+21
  2.61e+22  -4.54e+21   2.85e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240601124023/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 50
      DIP = 65
     RAKE = 35
       MW = 4.41
       HS = 90.0

The NDK file is 20240601124023.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

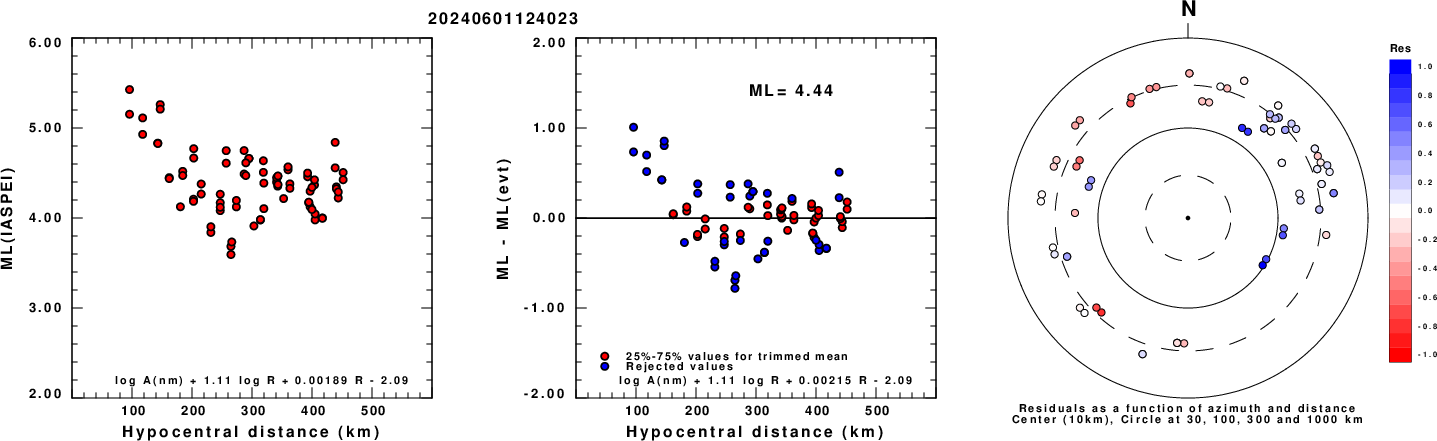

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

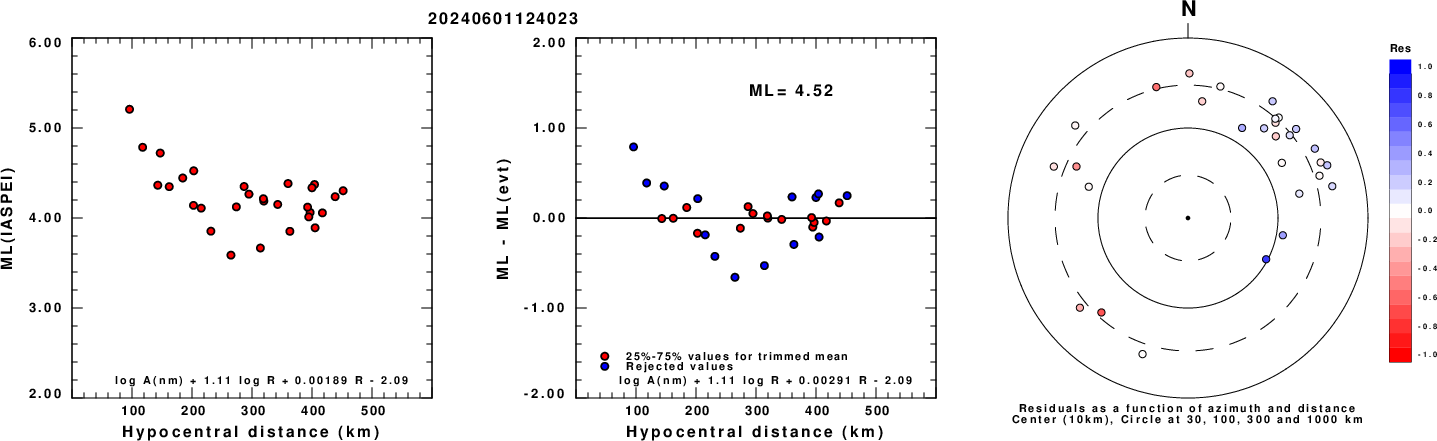

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

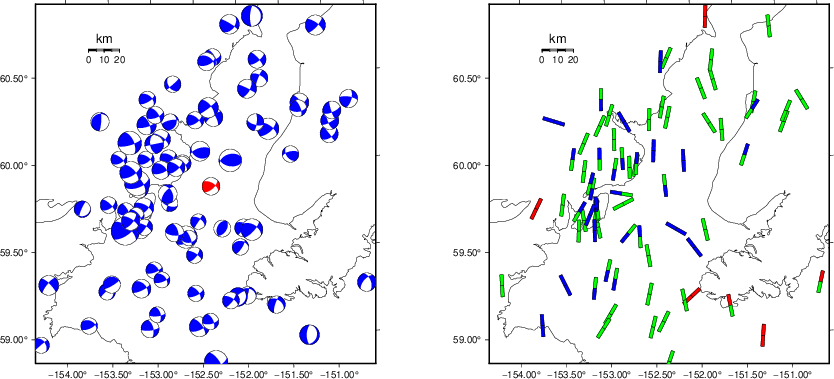

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

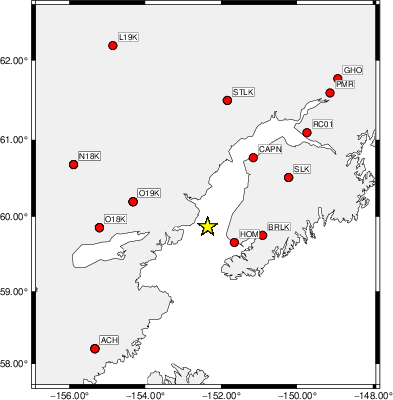

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   130    90     0   3.41 0.2295
WVFGRD96    4.0   130    90    -5   3.51 0.2584
WVFGRD96    6.0    40    85   -10   3.59 0.2638
WVFGRD96    8.0   220    80    10   3.67 0.2928
WVFGRD96   10.0   220    80    10   3.73 0.3102
WVFGRD96   12.0   220    80    10   3.78 0.3195
WVFGRD96   14.0   220    80    10   3.81 0.3243
WVFGRD96   16.0   220    80    10   3.84 0.3259
WVFGRD96   18.0   220    85    15   3.87 0.3282
WVFGRD96   20.0   220    85    15   3.90 0.3355
WVFGRD96   22.0    35    85   -20   3.91 0.3502
WVFGRD96   24.0   220    80    30   3.95 0.3685
WVFGRD96   26.0   220    80    30   3.98 0.3927
WVFGRD96   28.0   220    80    30   4.00 0.4158
WVFGRD96   30.0   220    75    30   4.02 0.4322
WVFGRD96   32.0   220    80    25   4.02 0.4463
WVFGRD96   34.0   220    80    25   4.04 0.4563
WVFGRD96   36.0   220    80    20   4.06 0.4648
WVFGRD96   38.0   220    80    20   4.10 0.4697
WVFGRD96   40.0   225    75    25   4.18 0.4793
WVFGRD96   42.0   225    75    20   4.20 0.4766
WVFGRD96   44.0   220    80    10   4.19 0.4761
WVFGRD96   46.0   220    75     5   4.23 0.4771
WVFGRD96   48.0   220    75     5   4.25 0.4800
WVFGRD96   50.0   220    80     5   4.25 0.4849
WVFGRD96   52.0   220    80     0   4.27 0.4912
WVFGRD96   54.0   220    80     0   4.28 0.4979
WVFGRD96   56.0    40    90    10   4.28 0.5053
WVFGRD96   58.0    40    90    10   4.29 0.5159
WVFGRD96   60.0    45    75    25   4.31 0.5262
WVFGRD96   62.0    45    75    25   4.32 0.5369
WVFGRD96   64.0    45    75    25   4.32 0.5484
WVFGRD96   66.0    45    75    30   4.34 0.5575
WVFGRD96   68.0    45    75    30   4.35 0.5641
WVFGRD96   70.0    45    70    35   4.36 0.5730
WVFGRD96   72.0    45    70    35   4.36 0.5810
WVFGRD96   74.0    50    65    40   4.39 0.5827
WVFGRD96   76.0    50    65    40   4.39 0.5919
WVFGRD96   78.0    50    65    40   4.40 0.5962
WVFGRD96   80.0    50    65    40   4.40 0.5979
WVFGRD96   82.0    50    65    40   4.41 0.6007
WVFGRD96   84.0    50    65    35   4.40 0.6031
WVFGRD96   86.0    50    65    35   4.41 0.6068
WVFGRD96   88.0    50    65    35   4.41 0.6056
WVFGRD96   90.0    50    65    35   4.41 0.6069
WVFGRD96   92.0    50    65    35   4.41 0.6048
WVFGRD96   94.0    45    65    30   4.40 0.6047
WVFGRD96   96.0    45    65    30   4.40 0.6045
WVFGRD96   98.0    45    65    30   4.40 0.6057

The best solution is

WVFGRD96   90.0    50    65    35   4.41 0.6069

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

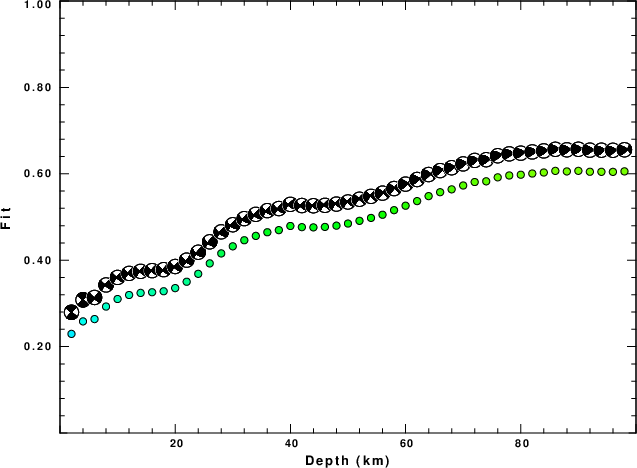

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

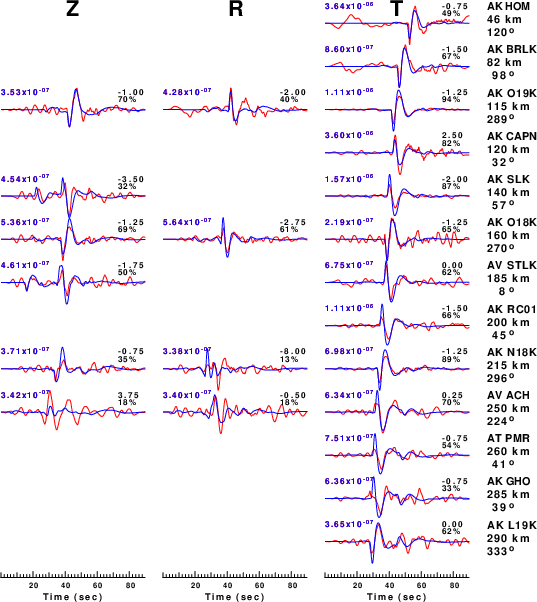

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

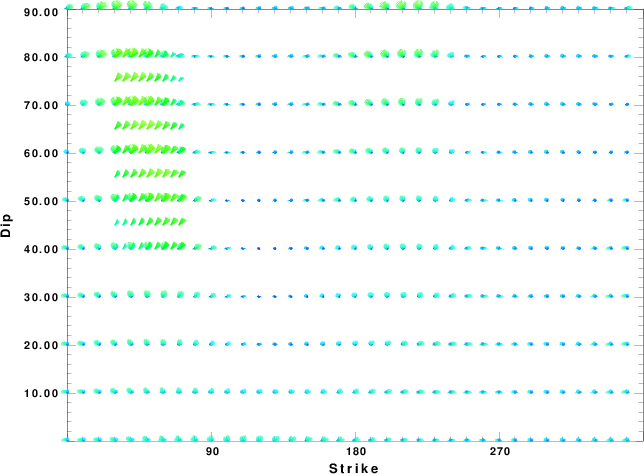

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

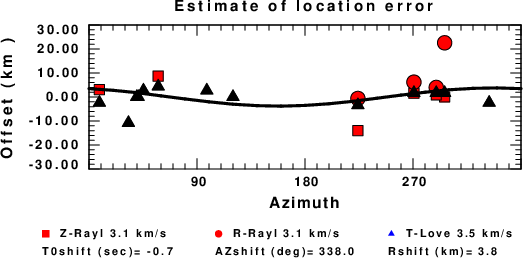

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
