Location

Location ANSS

The ANSS event ID is us7000mp2d and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us7000mp2d/executive.

2024/05/30 19:39:51 44.680 -100.602 10.5 4.0 South Dakota

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2024/05/30 19:39:51:0 44.68 -100.60 10.5 4.0 South Dakota Stations used: IU.RSSD N4.BGNE N4.E28B N4.F33B N4.I37B N4.K22A N4.K30B N4.MDND N4.SPMN N4.SUSD US.AGMN US.CBKS US.ECSD US.ISCO US.OGNE Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.04 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 4.32e+21 dyne-cm Mw = 3.69 Z = 14 km Plane Strike Dip Rake NP1 300 80 -25 NP2 35 65 -169 Principal Axes: Axis Value Plunge Azimuth T 4.32e+21 10 349 N 0.00e+00 63 100 P -4.32e+21 25 255 Moment Tensor: (dyne-cm) Component Value Mxx 3.80e+21 Mxy -1.66e+21 Mxz 1.14e+21 Myy -3.18e+21 Myz 1.44e+21 Mzz -6.24e+20 ## T ######### ###### ############# ##########################-- ###########################--- #############################----- -############################------- --------######################-------- -------------#################---------- -----------------#############---------- ---------------------#########------------ ------------------------#####------------- ---------------------------#-------------- ---- --------------------###------------ --- P ------------------########-------- --- -----------------###########------ --------------------###############--- ------------------################## ---------------################### ----------#################### ------###################### ###################### ############## Global CMT Convention Moment Tensor: R T P -6.24e+20 1.14e+21 -1.44e+21 1.14e+21 3.80e+21 1.66e+21 -1.44e+21 1.66e+21 -3.18e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240530193951/index.html

Preferred Solution

      STK = 300
      DIP = 80
     RAKE = -25
       MW = 3.69
       HS = 14.0

The NDK file is 20240530193951.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU

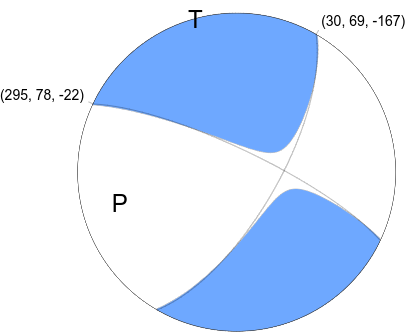

USGSMWR

USGS/SLU Moment Tensor Solution ENS 2024/05/30 19:39:51:0 44.68 -100.60 10.5 4.0 South Dakota Stations used: IU.RSSD N4.BGNE N4.E28B N4.F33B N4.I37B N4.K22A N4.K30B N4.MDND N4.SPMN N4.SUSD US.AGMN US.CBKS US.ECSD US.ISCO US.OGNE Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.04 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 4.32e+21 dyne-cm Mw = 3.69 Z = 14 km Plane Strike Dip Rake NP1 300 80 -25 NP2 35 65 -169 Principal Axes: Axis Value Plunge Azimuth T 4.32e+21 10 349 N 0.00e+00 63 100 P -4.32e+21 25 255 Moment Tensor: (dyne-cm) Component Value Mxx 3.80e+21 Mxy -1.66e+21 Mxz 1.14e+21 Myy -3.18e+21 Myz 1.44e+21 Mzz -6.24e+20 ## T ######### ###### ############# ##########################-- ###########################--- #############################----- -############################------- --------######################-------- -------------#################---------- -----------------#############---------- ---------------------#########------------ ------------------------#####------------- ---------------------------#-------------- ---- --------------------###------------ --- P ------------------########-------- --- -----------------###########------ --------------------###############--- ------------------################## ---------------################### ----------#################### ------###################### ###################### ############## Global CMT Convention Moment Tensor: R T P -6.24e+20 1.14e+21 -1.44e+21 1.14e+21 3.80e+21 1.66e+21 -1.44e+21 1.66e+21 -3.18e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240530193951/index.html

Regional Moment Tensor (Mwr) Moment 4.034e+14 N-m Magnitude 3.67 Mwr Depth 16.0 km Percent DC 94% Half Duration - Catalog US Data Source US 1 Contributor US 1 Nodal Planes Plane Strike Dip Rake NP1 30° 69° -167° NP2 295° 78° -22° Principal Axes Axis Value Plunge Azimuth T 4.097e+14 6° 344° N -0.129e+14 66° 88° P -3.968e+14 23° 251°

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

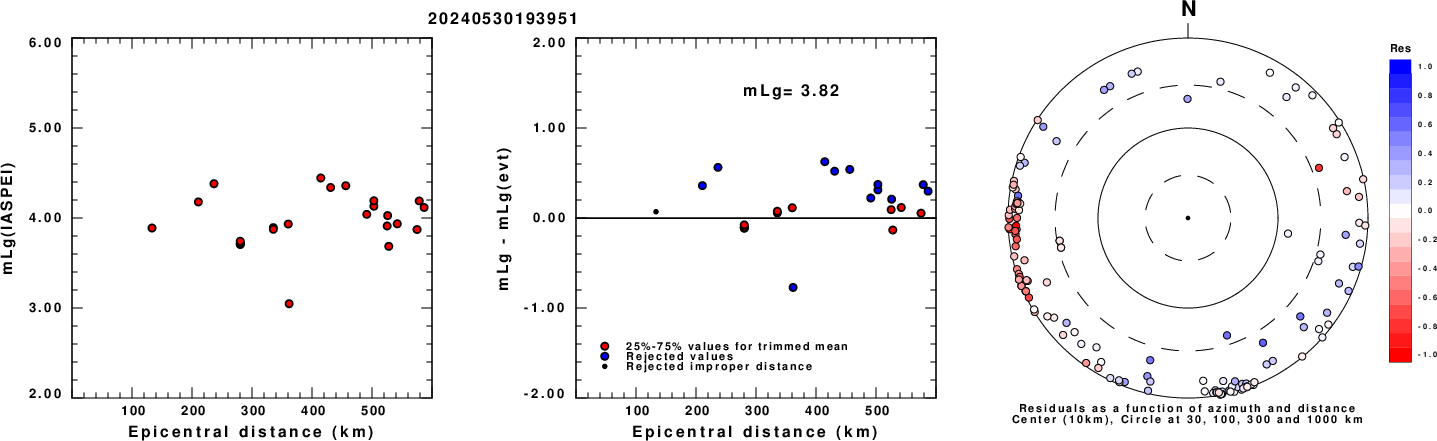

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

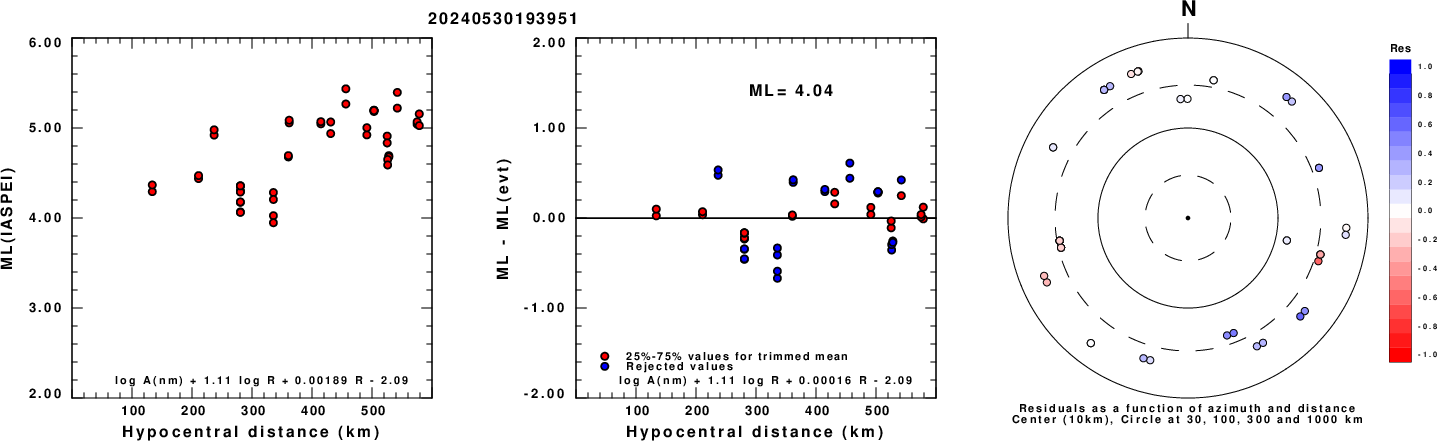

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

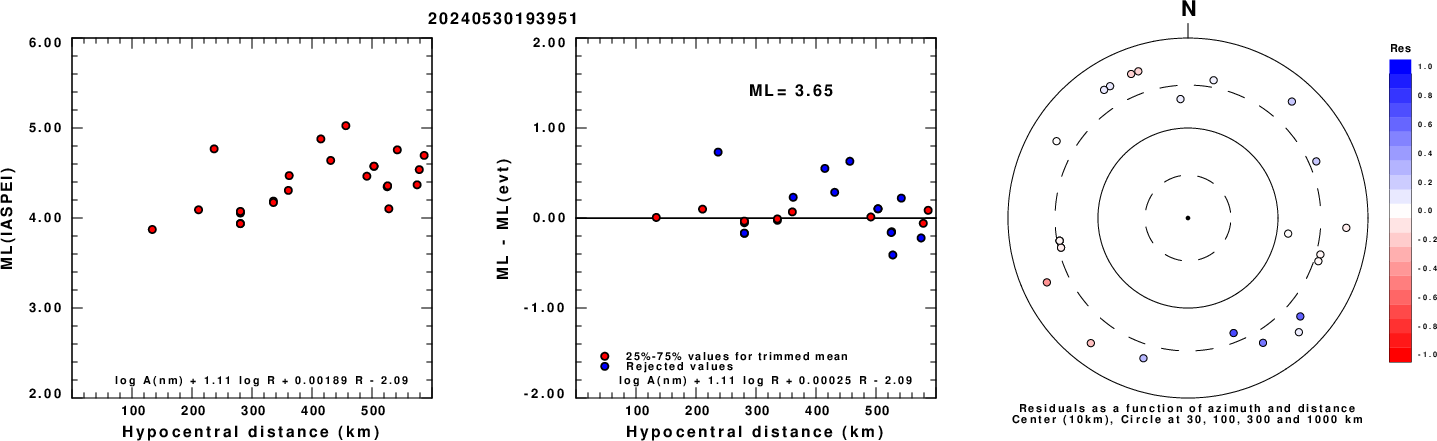

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

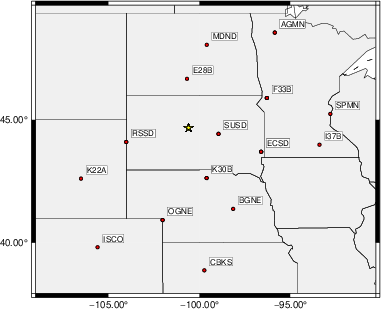

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.04 n 3
lp c 0.10 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   300    85    15   3.44 0.4750
WVFGRD96    2.0   300    90    -5   3.49 0.4965
WVFGRD96    3.0   305    80    35   3.55 0.4954
WVFGRD96    4.0   300    90    35   3.56 0.5032
WVFGRD96    5.0   120    90   -35   3.56 0.5144
WVFGRD96    6.0   120    90   -35   3.57 0.5273
WVFGRD96    7.0   115    85   -35   3.56 0.5399
WVFGRD96    8.0   295    80   -30   3.59 0.5617
WVFGRD96    9.0   295    80   -30   3.61 0.5789
WVFGRD96   10.0   295    80   -30   3.63 0.5944
WVFGRD96   11.0   295    80   -30   3.64 0.6069
WVFGRD96   12.0   300    80   -25   3.67 0.6169
WVFGRD96   13.0   300    80   -25   3.68 0.6237
WVFGRD96   14.0   300    80   -25   3.69 0.6267
WVFGRD96   15.0   295    80   -25   3.69 0.6264
WVFGRD96   16.0   295    80   -25   3.70 0.6233
WVFGRD96   17.0   295    80   -25   3.71 0.6169
WVFGRD96   18.0   290    75   -30   3.71 0.6075
WVFGRD96   19.0   290    75   -30   3.72 0.5955
WVFGRD96   20.0   295    75   -30   3.75 0.5827
WVFGRD96   21.0   295    75   -30   3.75 0.5682
WVFGRD96   22.0   295    75   -30   3.76 0.5513
WVFGRD96   23.0   295    75   -30   3.76 0.5326
WVFGRD96   24.0   290    70   -30   3.75 0.5126
WVFGRD96   25.0   290    70   -30   3.75 0.4926
WVFGRD96   26.0   280    65   -30   3.74 0.4740
WVFGRD96   27.0   280    65   -30   3.74 0.4555
WVFGRD96   28.0   280    65   -30   3.74 0.4367
WVFGRD96   29.0   280    65   -30   3.75 0.4194

The best solution is

WVFGRD96   14.0   300    80   -25   3.69 0.6267

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

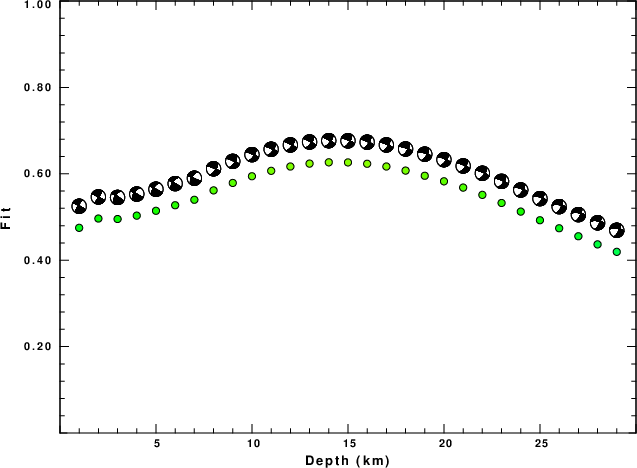

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.04 n 3
lp c 0.10 n 3

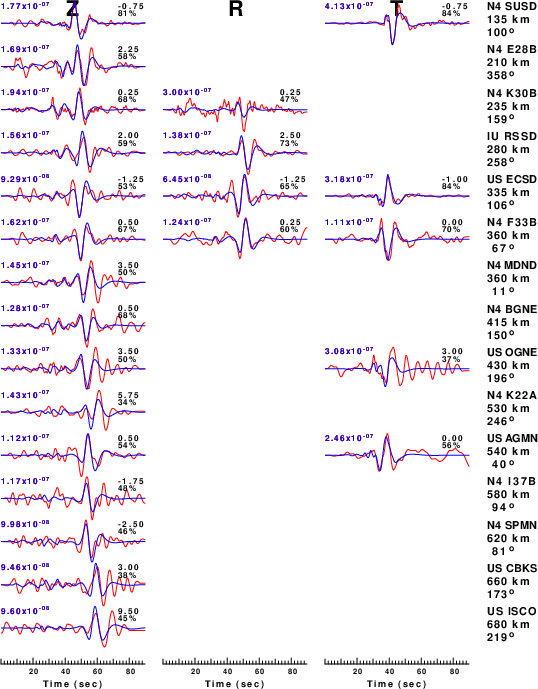

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

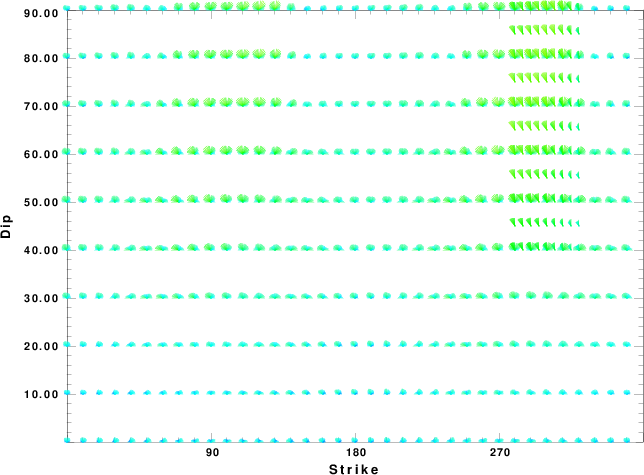

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

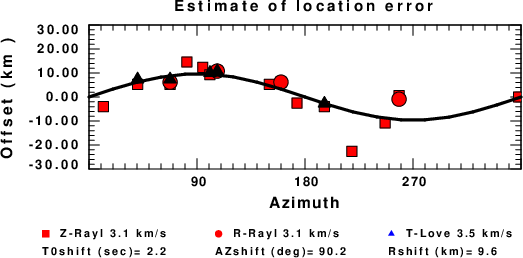

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
