Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.
The ANSS event ID is tx2024izoa and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/tx2024izoa/executive.

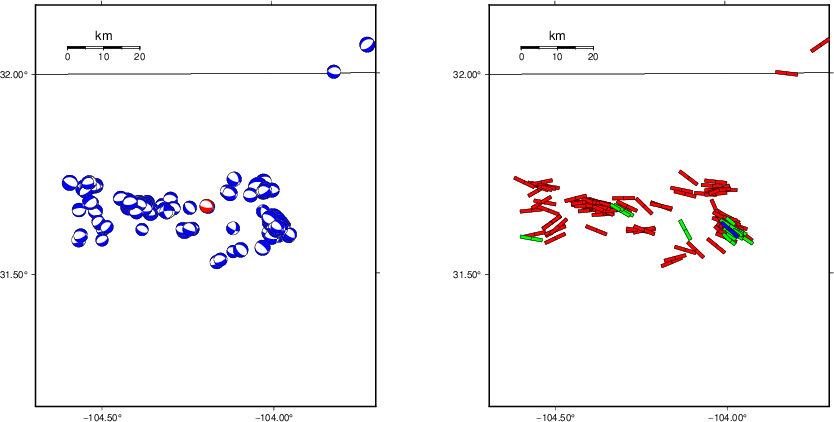

2024/05/07 19:46:11 31.670 -104.193 6.6 3.5 Texas
USGS/SLU Moment Tensor Solution
ENS 2024/05/07 19:46:11:0 31.67 -104.19 6.6 3.5 Texas
Stations used:
4O.CV01 4O.LWM1 4O.LWM2 4O.SA04 4O.SA06 4O.SA07 4O.SA09
4O.WB04 4O.WB08 TX.PB07 TX.PB09 TX.PB10 TX.PB11 TX.PB12
TX.PB13 TX.PB23 TX.PB24 TX.PB25 TX.PB26 TX.PB28 TX.PB29
TX.PB31 TX.PB33 TX.PB34 TX.PB35 TX.PB37 TX.PB38 TX.PB43
TX.PB44 TX.PB46 TX.PECS
Filtering commands used:
cut o DIST/3.3 -30 o DIST/3.3 +30
rtr
taper w 0.1
hp c 0.05 n 3
lp c 0.20 n 3
Best Fitting Double Couple
Mo = 1.64e+21 dyne-cm
Mw = 3.41
Z = 7 km
Plane Strike Dip Rake
NP1 97 69 -103
NP2 310 25 -60
Principal Axes:
Axis Value Plunge Azimuth
T 1.64e+21 22 197
N 0.00e+00 12 102
P -1.64e+21 64 346
Moment Tensor: (dyne-cm)
Component Value
Mxx 9.80e+20
Mxy 4.76e+20
Mxz -1.18e+21
Myy 1.08e+20
Myz -1.75e+19
Mzz -1.09e+21
##############
######################
##----------------##########
-----------------------#######
---------------------------#######
------------------------------######
---------------- --------------#####
----------------- P ---------------#####
----------------- ----------------####
--------------------------------------####
##------------------------------------####
#####----------------------------------###
#########------------------------------##-
###############---------------------##--
######################################--
#####################################-
###################################-
##################################
######### ##################
######## T #################
##### ##############
##############
Global CMT Convention Moment Tensor:
R T P
-1.09e+21 -1.18e+21 1.75e+19
-1.18e+21 9.80e+20 -4.76e+20
1.75e+19 -4.76e+20 1.08e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240507194611/index.html
|
STK = 310
DIP = 25
RAKE = -60
MW = 3.41
HS = 7.0
The NDK file is 20240507194611.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

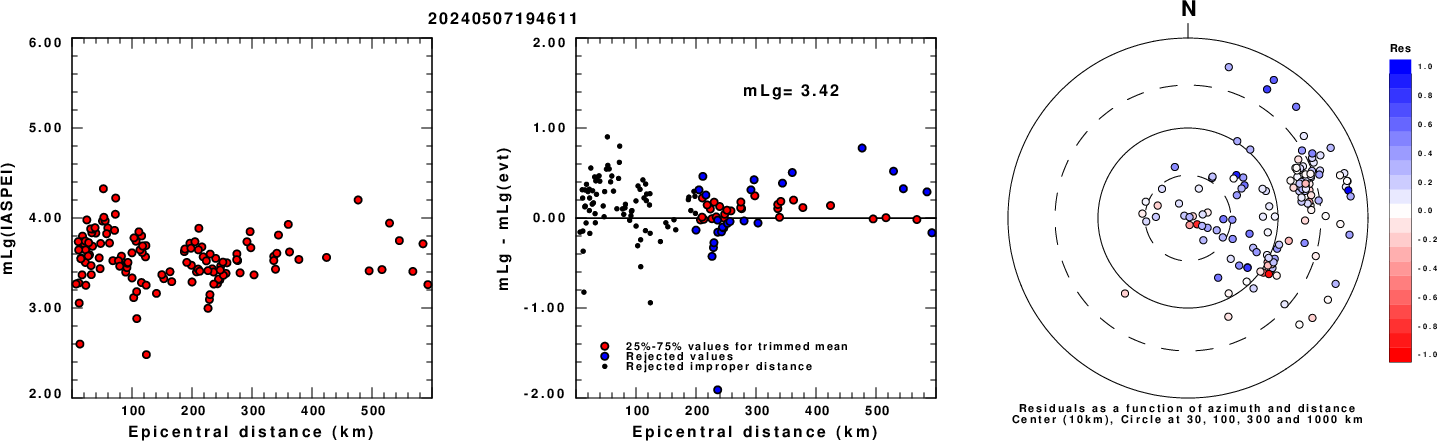

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated.
Right: residuals as a function of distance and azimuth.

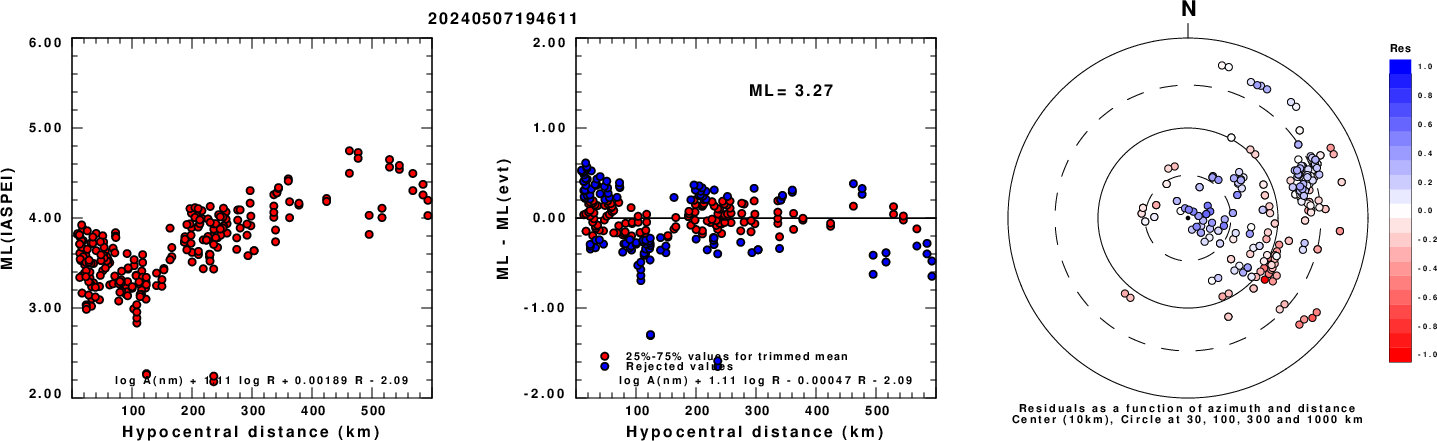

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

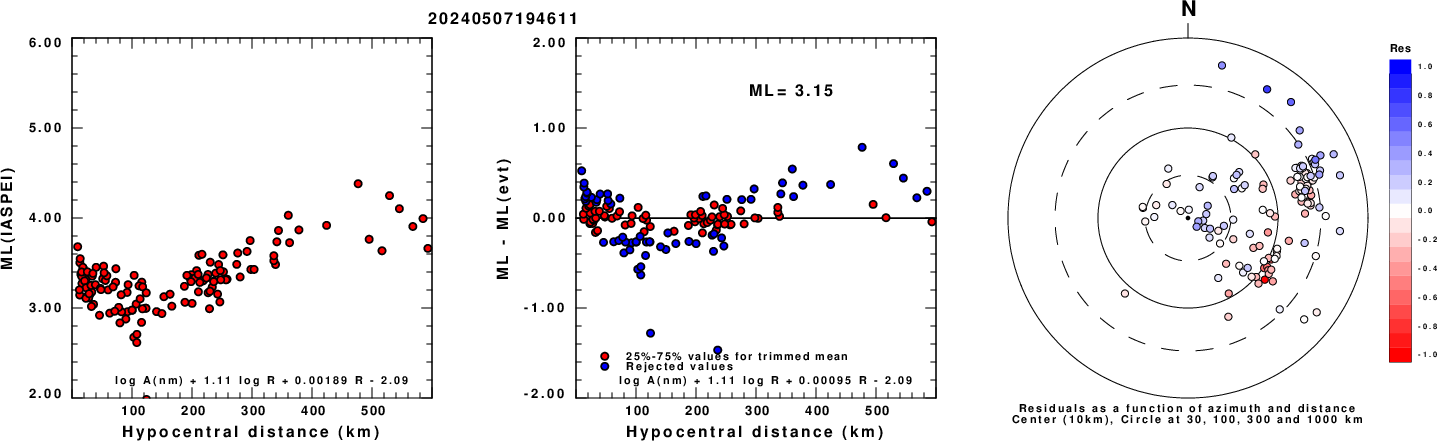

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

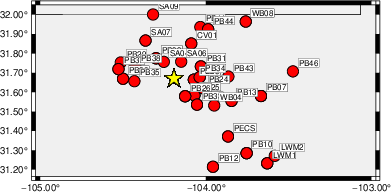

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +30 rtr taper w 0.1 hp c 0.05 n 3 lp c 0.20 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 75 90 10 2.82 0.1825
WVFGRD96 2.0 255 80 -15 3.03 0.2316
WVFGRD96 3.0 260 85 75 3.19 0.2974
WVFGRD96 4.0 325 25 -35 3.26 0.3942
WVFGRD96 5.0 315 25 -50 3.32 0.4676
WVFGRD96 6.0 310 25 -60 3.37 0.5097
WVFGRD96 7.0 310 25 -60 3.41 0.5265
WVFGRD96 8.0 310 25 -60 3.50 0.5208
WVFGRD96 9.0 300 25 -70 3.54 0.5057
WVFGRD96 10.0 295 25 -75 3.56 0.4808
WVFGRD96 11.0 290 25 -80 3.57 0.4469
WVFGRD96 12.0 285 25 -85 3.58 0.4101
WVFGRD96 13.0 285 25 -85 3.59 0.3762
WVFGRD96 14.0 100 70 -85 3.60 0.3446
WVFGRD96 15.0 350 35 15 3.54 0.3224
WVFGRD96 16.0 95 70 -85 3.60 0.3051
WVFGRD96 17.0 95 70 -85 3.60 0.2930
WVFGRD96 18.0 95 70 -85 3.60 0.2812
WVFGRD96 19.0 95 70 -85 3.61 0.2731
WVFGRD96 20.0 300 45 -80 3.63 0.2760
WVFGRD96 21.0 300 45 -80 3.64 0.2825
WVFGRD96 22.0 305 45 -75 3.65 0.2903
WVFGRD96 23.0 305 45 -75 3.66 0.2986
WVFGRD96 24.0 300 45 -80 3.67 0.3075
WVFGRD96 25.0 300 45 -80 3.68 0.3131
WVFGRD96 26.0 305 45 -75 3.69 0.3146
WVFGRD96 27.0 305 45 -75 3.70 0.3152
WVFGRD96 28.0 305 45 -75 3.71 0.3139
WVFGRD96 29.0 305 45 -75 3.71 0.3089
The best solution is
WVFGRD96 7.0 310 25 -60 3.41 0.5265
The mechanism corresponding to the best fit is
|
|
|

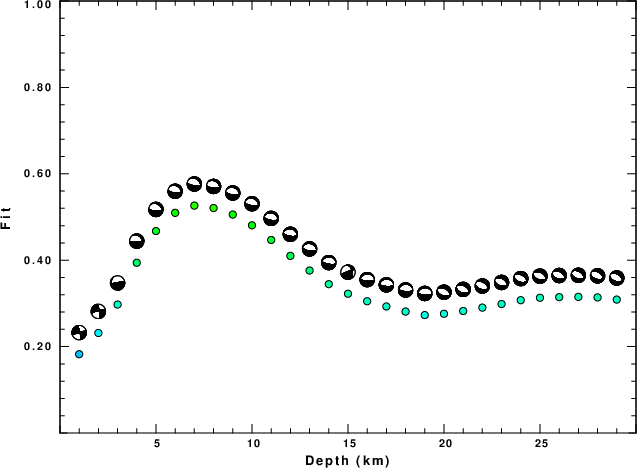

The best fit as a function of depth is given in the following figure:
|
|
|

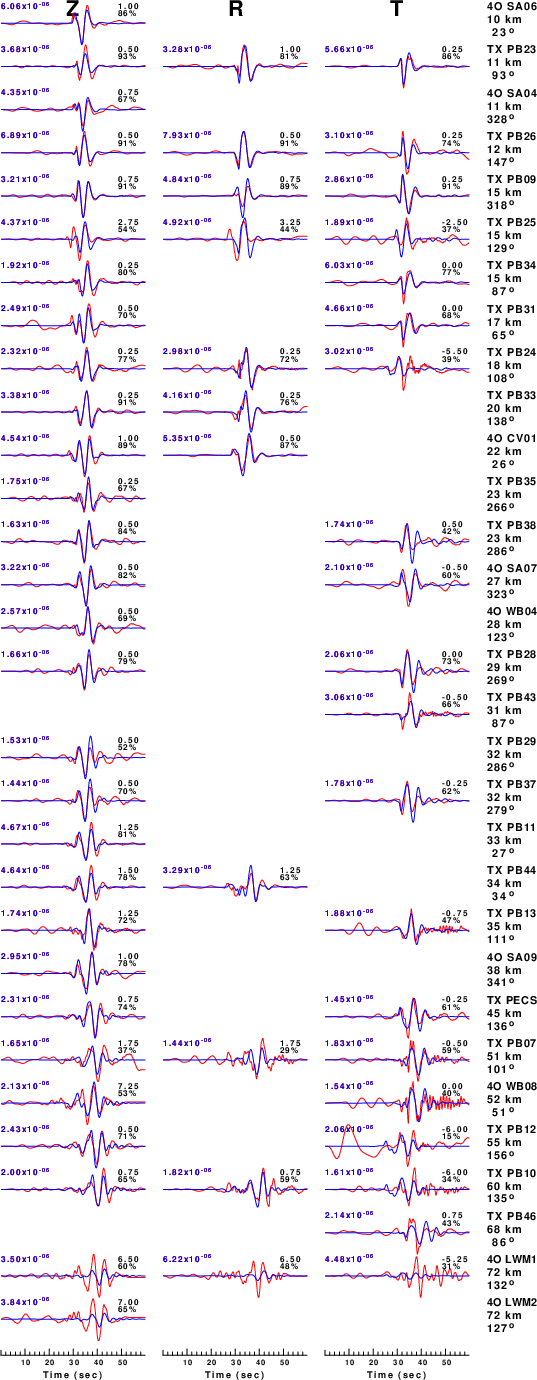

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +30 rtr taper w 0.1 hp c 0.05 n 3 lp c 0.20 n 3
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

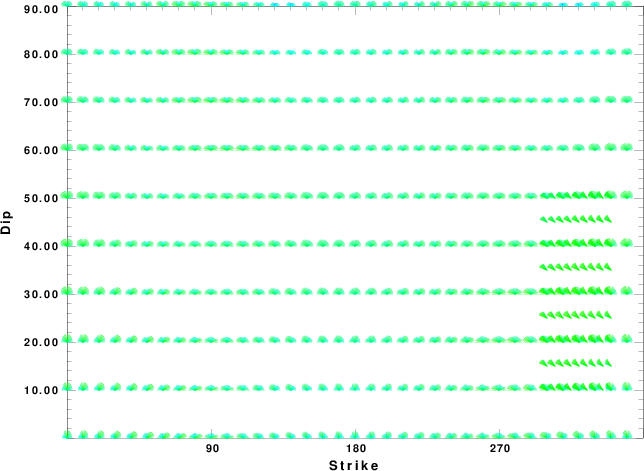

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

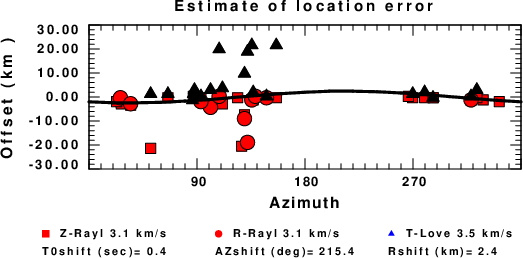

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
