Location

Location ANSS

The ANSS event ID is ak0242hlzvp5 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0242hlzvp5/executive.

2024/02/23 18:43:56 62.808 -149.415 67.5 4.6 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2024/02/23 18:43:56:0  62.81 -149.41  67.5 4.6 Alaska

 Stations used:
   AK.BPAW AK.CAST AK.CCB AK.CUT AK.DOT AK.FID AK.GHO AK.GLI
   AK.HDA AK.HIN AK.K24K AK.KLU AK.KNK AK.L22K AK.MCAR AK.MCK
   AK.NEA2 AK.PAX AK.PPD AK.PWL AK.RC01 AK.RIDG AK.RND AK.SAW
   AK.SCM AK.SLK AK.TGL AK.TRF AK.WRH AT.PMR

 Filtering commands used:
   cut o DIST/3.5 -40 o DIST/3.5 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 5.37e+22 dyne-cm
  Mw = 4.42
  Z  = 76 km
  Plane   Strike  Dip  Rake
   NP1       44    76   154
   NP2      140    65    15
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.37e+22     28     360
    N   0.00e+00     61     198
    P  -5.37e+22      8      94

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     4.19e+22
       Mxy     2.92e+21
       Mxz     2.25e+22
       Myy    -5.25e+22
       Myz    -7.25e+21
       Mzz     1.06e+22




                     ##############
                 #########   ##########
              -########### T #############
             --###########   #############-
           ----##########################----
          -----#########################------
         -------#######################--------
        ---------#####################----------
        ---------###################------------
       -----------#################--------------
       ------------##############-------------
       --------------###########-------------- P
       ---------------########----------------
        ----------------####--------------------
        -----------------#----------------------
         ---------------###--------------------
          ------------#######-----------------
           --------#############-------------
             ---###################--------
              ##########################--
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
  1.06e+22   2.25e+22   7.25e+21
  2.25e+22   4.19e+22  -2.92e+21
  7.25e+21  -2.92e+21  -5.25e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240223184356/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 140
      DIP = 65
     RAKE = 15
       MW = 4.42
       HS = 76.0

The NDK file is 20240223184356.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

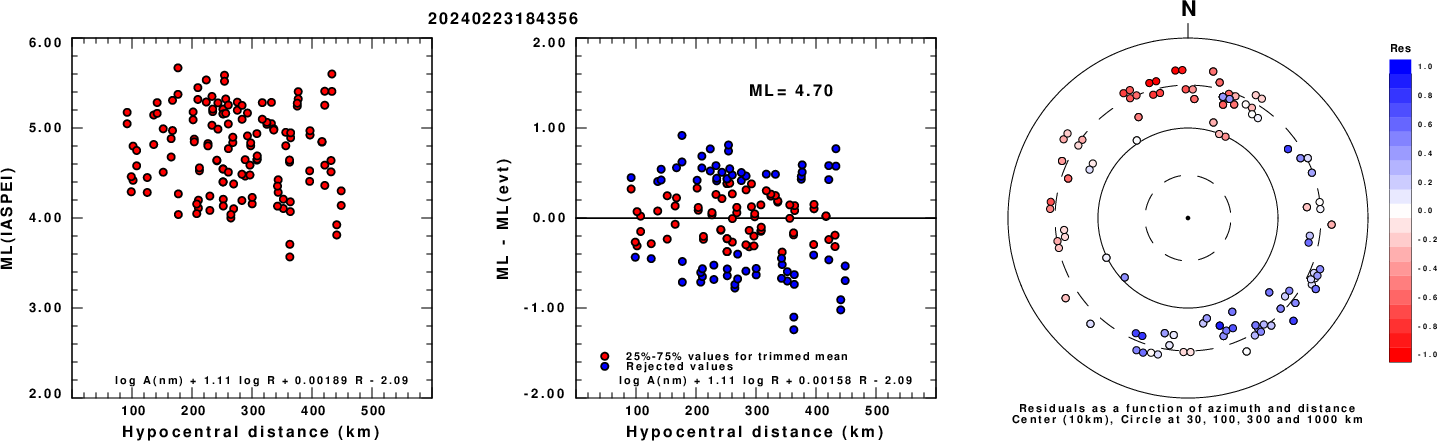

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

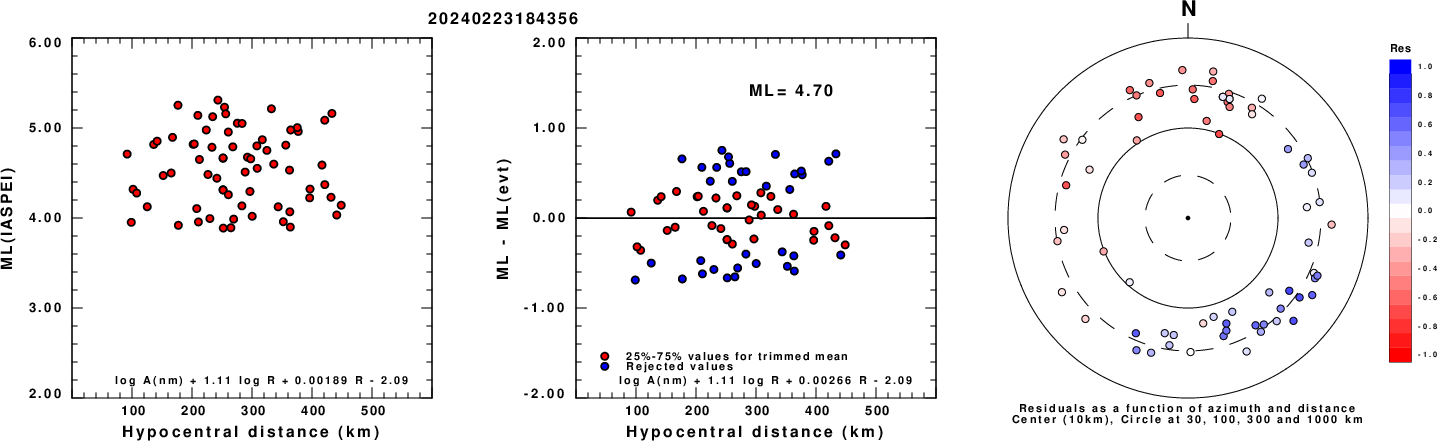

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

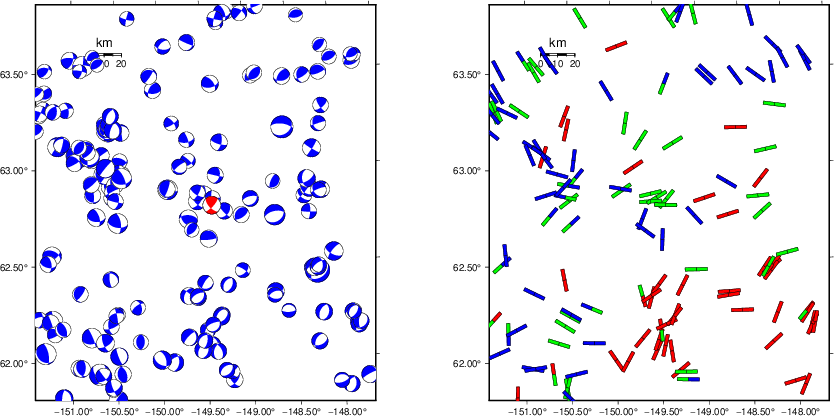

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

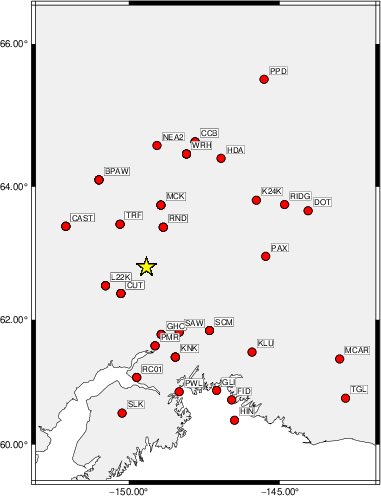

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0    50    80   -10   3.54 0.2686
WVFGRD96    4.0   230    90    15   3.63 0.3085
WVFGRD96    6.0    50    75   -15   3.70 0.3244
WVFGRD96    8.0   325    70    15   3.77 0.3620
WVFGRD96   10.0   140    80   -10   3.82 0.3844
WVFGRD96   12.0   140    80   -10   3.85 0.4057
WVFGRD96   14.0   140    90    10   3.89 0.4223
WVFGRD96   16.0   320    85   -10   3.92 0.4399
WVFGRD96   18.0   140    90     5   3.95 0.4564
WVFGRD96   20.0   140    85    -5   3.97 0.4732
WVFGRD96   22.0   140    80    -5   3.99 0.4903
WVFGRD96   24.0   140    80    -5   4.01 0.5062
WVFGRD96   26.0   140    75     5   4.04 0.5226
WVFGRD96   28.0   140    75    10   4.06 0.5398
WVFGRD96   30.0   140    75    10   4.08 0.5569
WVFGRD96   32.0   140    75    10   4.10 0.5681
WVFGRD96   34.0   140    75     5   4.11 0.5806
WVFGRD96   36.0   140    75    10   4.14 0.5977
WVFGRD96   38.0   140    75    10   4.17 0.6122
WVFGRD96   40.0   140    70    15   4.22 0.6295
WVFGRD96   42.0   140    70    15   4.25 0.6376
WVFGRD96   44.0   140    70    15   4.26 0.6467
WVFGRD96   46.0   140    70    15   4.28 0.6554
WVFGRD96   48.0   140    70    15   4.30 0.6650
WVFGRD96   50.0   140    70    15   4.31 0.6738
WVFGRD96   52.0   140    70    15   4.32 0.6831
WVFGRD96   54.0   140    70    15   4.33 0.6910
WVFGRD96   56.0   140    70    15   4.34 0.6999
WVFGRD96   58.0   140    70    15   4.35 0.7071
WVFGRD96   60.0   140    70    15   4.36 0.7140
WVFGRD96   62.0   140    70    15   4.37 0.7202
WVFGRD96   64.0   140    70    15   4.38 0.7249
WVFGRD96   66.0   140    65    15   4.39 0.7277
WVFGRD96   68.0   140    65    15   4.39 0.7299
WVFGRD96   70.0   140    65    15   4.40 0.7323
WVFGRD96   72.0   140    65    15   4.41 0.7340
WVFGRD96   74.0   140    65    15   4.41 0.7345
WVFGRD96   76.0   140    65    15   4.42 0.7345
WVFGRD96   78.0   140    65    15   4.42 0.7329
WVFGRD96   80.0   140    65    15   4.43 0.7311
WVFGRD96   82.0   140    65    15   4.43 0.7300
WVFGRD96   84.0   140    65    15   4.44 0.7282
WVFGRD96   86.0   140    65    15   4.44 0.7246
WVFGRD96   88.0   140    65    15   4.44 0.7214
WVFGRD96   90.0   140    65    15   4.45 0.7196
WVFGRD96   92.0   140    65    15   4.45 0.7156
WVFGRD96   94.0   140    65    15   4.46 0.7126
WVFGRD96   96.0   140    65    15   4.46 0.7093
WVFGRD96   98.0   140    65    15   4.47 0.7047

The best solution is

WVFGRD96   76.0   140    65    15   4.42 0.7345

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

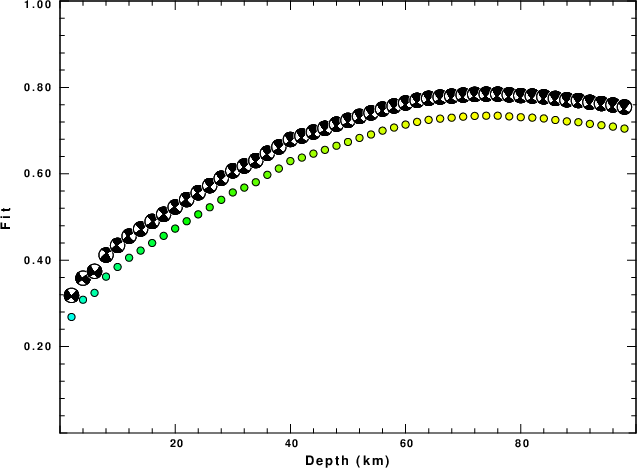

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

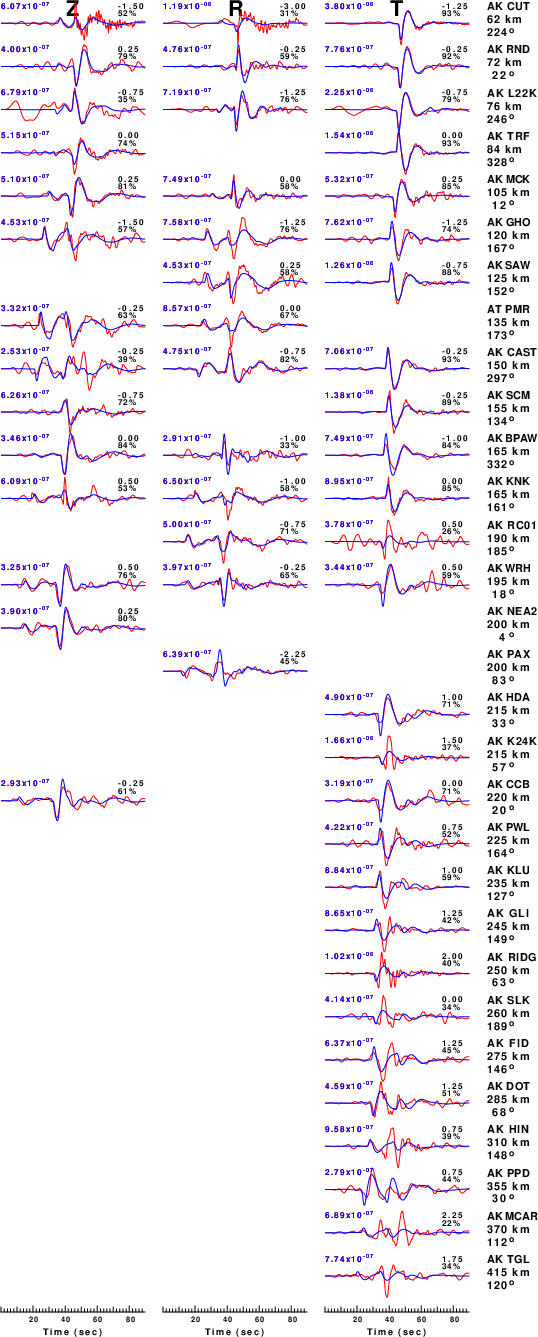

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

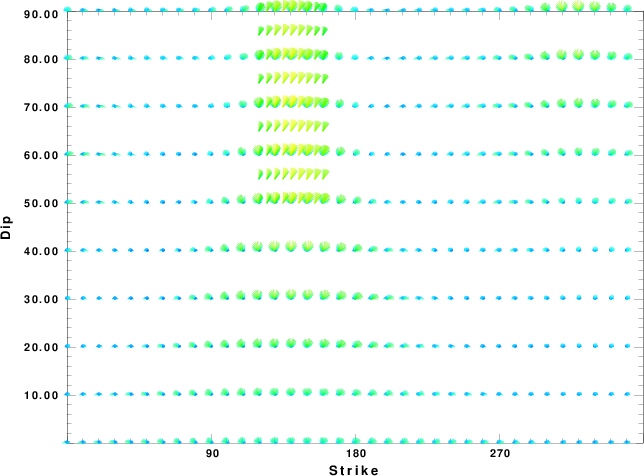

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

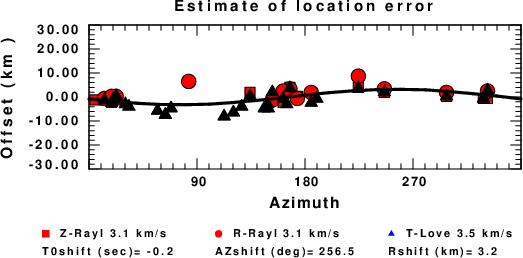

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
