The ANSS event ID is ak0242e66il5 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0242e66il5/executive.

2024/02/21 10:47:30 60.370 -153.061 137.9 4.0 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2024/02/21 10:47:30:0  60.37 -153.06 137.9 4.0 Alaska

 Stations used:
   AK.CAST AK.FIRE AK.J19K AK.L17K AK.L19K AK.L20K AK.N18K
   AK.O19K AK.P17K AK.PWL AK.RC01 AK.SAW AK.SLK AT.PMR

 Filtering commands used:
   cut o DIST/3.4 -40 o DIST/3.4 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 2.60e+22 dyne-cm
  Mw = 4.21
  Z  = 114 km
  Plane   Strike  Dip  Rake
   NP1       60    70    45
   NP2      311    48   153
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.60e+22     45     285
    N   0.00e+00     42      79
    P  -2.60e+22     13     181

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -2.38e+22
       Mxy    -3.52e+21
       Mxz     9.05e+21
       Myy     1.20e+22
       Myz    -1.25e+22
       Mzz     1.18e+22




                     --------------
                 ----------------------
              ----------------------------
             ###########-------------------
           ##################----------------
          ######################--------------
         #########################-----------##
        ############################--------####
        ########   ###################----######
       ######### T ####################-#########
       #########   ###################---########
       #############################------#######
       ##########################----------######
        ######################-------------#####
        ###################-----------------####
         #############----------------------###
          #####-----------------------------##
           ---------------------------------#
             ------------------------------
              ------------   -------------
                 --------- P ----------
                     -----   ------



 Global CMT Convention Moment Tensor:
      R          T          P
  1.18e+22   9.05e+21   1.25e+22
  9.05e+21  -2.38e+22   3.52e+21
  1.25e+22   3.52e+21   1.20e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240221104730/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 60
      DIP = 70
     RAKE = 45
       MW = 4.21
       HS = 114.0

The NDK file is 20240221104730.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

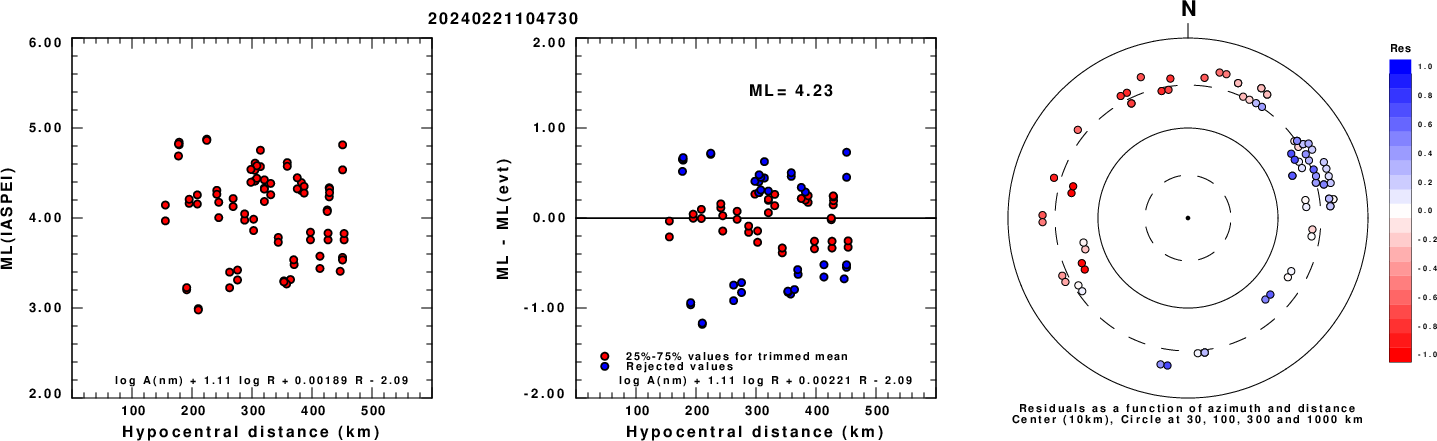

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

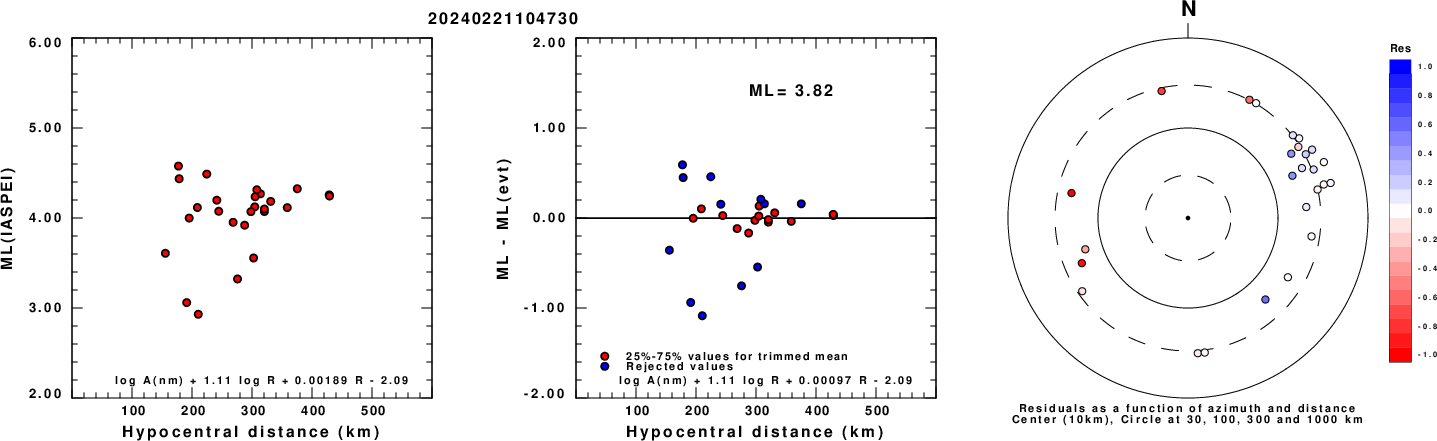

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

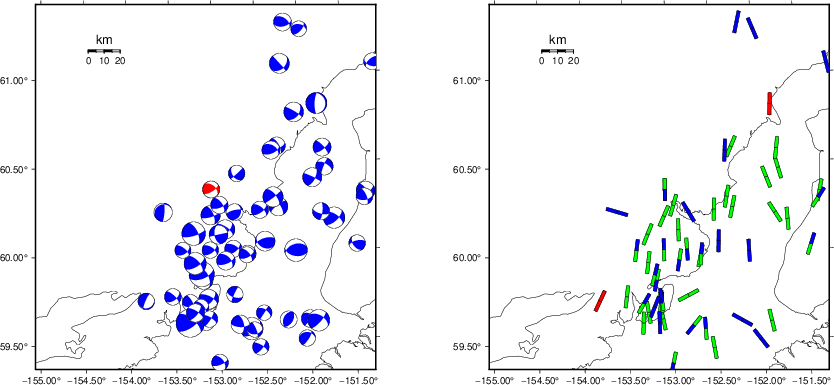

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

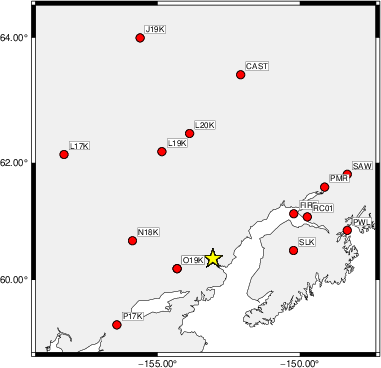

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.4 -40 o DIST/3.4 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   330    50   -30   3.42 0.3588
WVFGRD96    4.0   330    75   -25   3.40 0.3764
WVFGRD96    6.0   335    85   -25   3.43 0.3927
WVFGRD96    8.0   340    30    15   3.59 0.4031
WVFGRD96   10.0   335    35     5   3.59 0.4078
WVFGRD96   12.0   335    35     5   3.62 0.4092
WVFGRD96   14.0   335    90   -20   3.54 0.4098
WVFGRD96   16.0   340    35    10   3.66 0.4068
WVFGRD96   18.0   340    35    10   3.69 0.4007
WVFGRD96   20.0   345    30    10   3.73 0.3924
WVFGRD96   22.0   175    -5     0   3.84 0.3932
WVFGRD96   24.0   265    90   -85   3.86 0.3958
WVFGRD96   26.0    85    90    85   3.89 0.3953
WVFGRD96   28.0    85    90    85   3.91 0.3889
WVFGRD96   30.0   235     0    60   3.91 0.3707
WVFGRD96   32.0   220    -5    50   3.93 0.3511
WVFGRD96   34.0   155     0   -20   3.93 0.3239
WVFGRD96   36.0   125    10   -50   3.91 0.2992
WVFGRD96   38.0   260    75    60   3.87 0.2889
WVFGRD96   40.0   265    70    70   4.00 0.2947
WVFGRD96   42.0   265    70    70   4.03 0.3047
WVFGRD96   44.0   265    75    65   4.05 0.3122
WVFGRD96   46.0    60    80   -30   3.96 0.3207
WVFGRD96   48.0    60    80   -40   4.00 0.3351
WVFGRD96   50.0    60    80   -35   4.01 0.3476
WVFGRD96   52.0    60    80   -35   4.03 0.3588
WVFGRD96   54.0    60    85   -25   4.03 0.3693
WVFGRD96   56.0    60    85   -10   4.03 0.3814
WVFGRD96   58.0   240    90     0   4.04 0.3936
WVFGRD96   60.0   240    90   -15   4.06 0.4079
WVFGRD96   62.0    60    90    15   4.07 0.4224
WVFGRD96   64.0    70    65    45   4.17 0.4374
WVFGRD96   66.0    70    65    45   4.18 0.4500
WVFGRD96   68.0    65    65    45   4.20 0.4621
WVFGRD96   70.0    65    65    45   4.21 0.4723
WVFGRD96   72.0    65    65    40   4.19 0.4806
WVFGRD96   74.0    70    70    55   4.22 0.4952
WVFGRD96   76.0    70    70    55   4.22 0.5084
WVFGRD96   78.0    65    70    55   4.24 0.5205
WVFGRD96   80.0    65    70    55   4.24 0.5299
WVFGRD96   82.0    65    70    55   4.24 0.5365
WVFGRD96   84.0    65    70    55   4.24 0.5426
WVFGRD96   86.0    65    70    55   4.23 0.5471
WVFGRD96   88.0    65    70    55   4.23 0.5508
WVFGRD96   90.0    65    70    50   4.21 0.5537
WVFGRD96   92.0    65    70    50   4.21 0.5569
WVFGRD96   94.0    60    70    50   4.24 0.5601
WVFGRD96   96.0    60    70    50   4.24 0.5623
WVFGRD96   98.0    60    70    50   4.23 0.5655
WVFGRD96  100.0    60    70    50   4.23 0.5664
WVFGRD96  102.0    60    70    50   4.23 0.5678
WVFGRD96  104.0    60    70    50   4.23 0.5691
WVFGRD96  106.0    60    70    50   4.23 0.5697
WVFGRD96  108.0    60    70    45   4.21 0.5690
WVFGRD96  110.0    60    70    45   4.21 0.5698
WVFGRD96  112.0    60    70    45   4.21 0.5707
WVFGRD96  114.0    60    70    45   4.21 0.5707
WVFGRD96  116.0    60    70    45   4.21 0.5699
WVFGRD96  118.0    60    70    45   4.21 0.5688
WVFGRD96  120.0    60    70    45   4.21 0.5685
WVFGRD96  122.0    60    70    45   4.21 0.5682
WVFGRD96  124.0    60    70    45   4.21 0.5673
WVFGRD96  126.0    60    70    45   4.21 0.5663
WVFGRD96  128.0    60    70    40   4.20 0.5655
WVFGRD96  130.0    60    70    40   4.20 0.5644
WVFGRD96  132.0    60    70    40   4.20 0.5634
WVFGRD96  134.0    60    70    40   4.20 0.5619
WVFGRD96  136.0    60    70    40   4.20 0.5605
WVFGRD96  138.0    60    70    40   4.20 0.5591
WVFGRD96  140.0    60    70    40   4.20 0.5580
WVFGRD96  142.0    60    70    40   4.20 0.5564
WVFGRD96  144.0    60    70    40   4.20 0.5549
WVFGRD96  146.0    60    70    40   4.20 0.5533
WVFGRD96  148.0    60    70    40   4.20 0.5519

The best solution is

WVFGRD96  114.0    60    70    45   4.21 0.5707

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

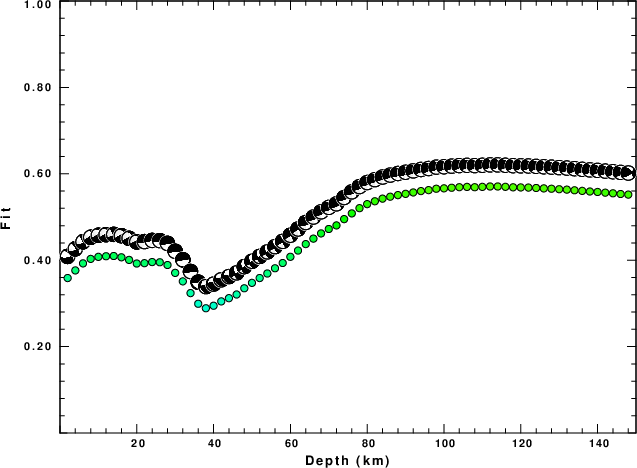

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

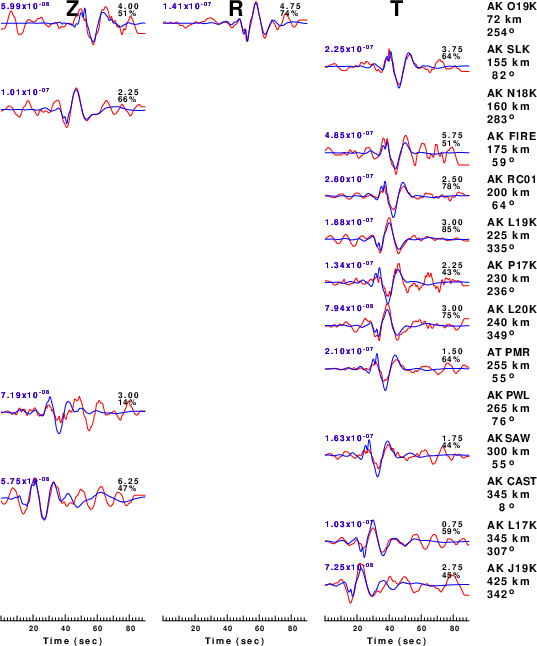

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.4 -40 o DIST/3.4 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

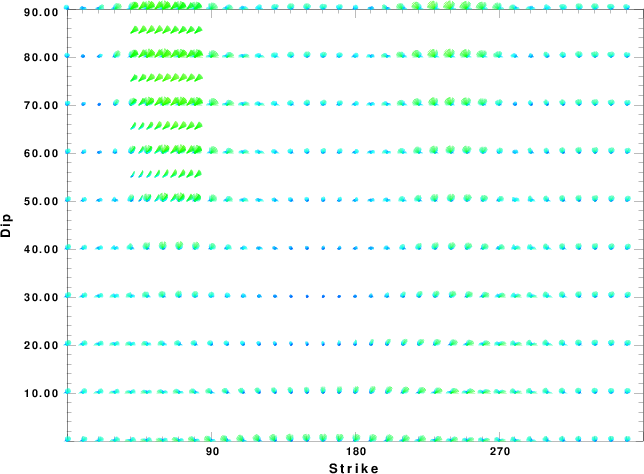

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

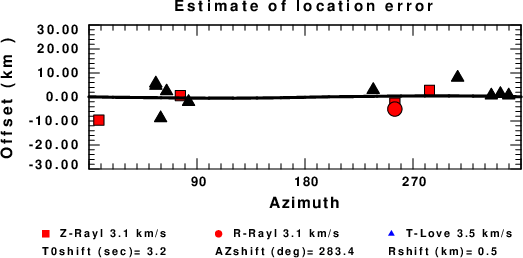

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sun Apr 28 08:18:34 PM CDT 2024
