Location

Location ANSS

The ANSS event ID is ak02422ry0ln and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak02422ry0ln/executive.

2024/02/14 21:43:37 63.010 -150.616 109.3 4.7 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2024/02/14 21:43:37:0  63.01 -150.62 109.3 4.7 Alaska

 Stations used:
   AK.BAE AK.BPAW AK.CAST AK.CCB AK.CUT AK.DOT AK.GCSA AK.GHO
   AK.GLI AK.H21K AK.H24K AK.HARP AK.HDA AK.I21K AK.I23K
   AK.J19K AK.J20K AK.K20K AK.K24K AK.KLU AK.KNK AK.L20K
   AK.M20K AK.MCK AK.MLY AK.NEA2 AK.PAX AK.PWL AK.RC01 AK.RIDG
   AK.RND AK.SAW AK.SCM AK.SCRK AK.WRH AT.MENT AT.PMR AT.TTA
   IM.IL31 IU.COLA

 Filtering commands used:
   cut o DIST/3.5 -40 o DIST/3.5 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 1.23e+23 dyne-cm
  Mw = 4.66
  Z  = 116 km
  Plane   Strike  Dip  Rake
   NP1      220    85   -92
   NP2       60     5   -70
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.23e+23     40     312
    N   0.00e+00      2     220
    P  -1.23e+23     50     128

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.19e+22
       Mxy    -1.05e+22
       Mxz     7.76e+22
       Myy     8.19e+21
       Myz    -9.32e+22
       Mzz    -2.01e+22




                     ##############
                 ######################
              ###########################-
             ##########################----
           ##########################--------
          #######   ###############-----------
         ######## T ##############-------------
        #########   ############----------------
        ######################------------------
       ######################-------------------#
       ####################---------------------#
       ###################----------------------#
       #################------------------------#
        ###############------------   ----------
        #############-------------- P ---------#
         ###########---------------   --------#
          ########---------------------------#
           ######---------------------------#
             ###--------------------------#
              --------------------------##
                 #-------------------##
                     ##---------###



 Global CMT Convention Moment Tensor:
      R          T          P
 -2.01e+22   7.76e+22   9.32e+22
  7.76e+22   1.19e+22   1.05e+22
  9.32e+22   1.05e+22   8.19e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240214214337/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 60
      DIP = 5
     RAKE = -70
       MW = 4.66
       HS = 116.0

The NDK file is 20240214214337.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

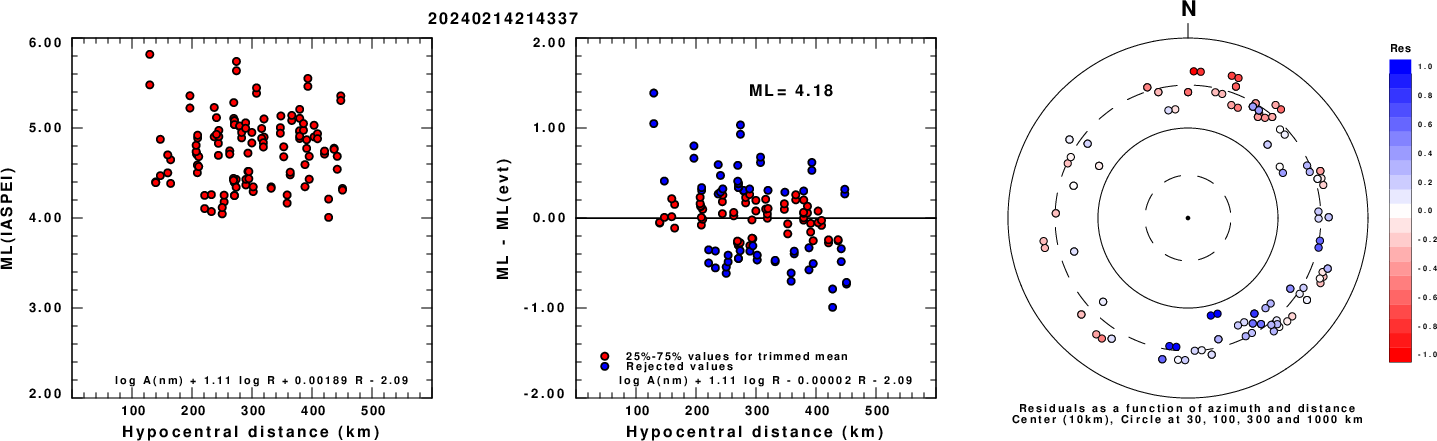

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

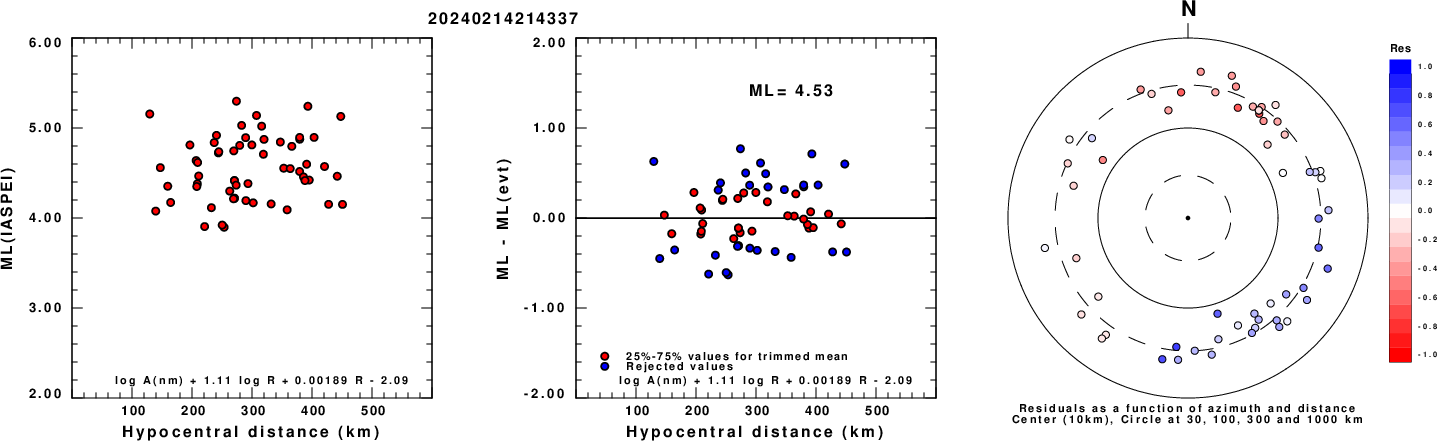

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

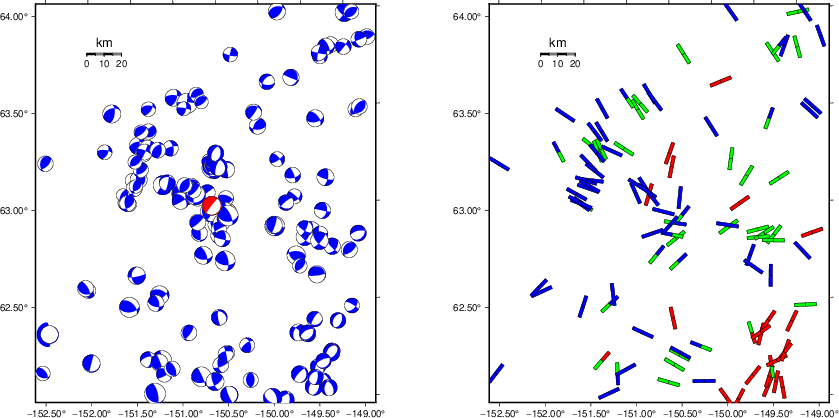

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

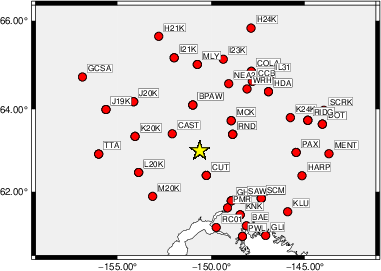

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   120    50   -65   3.77 0.2004
WVFGRD96    4.0   145    65   -10   3.75 0.2073
WVFGRD96    6.0   155    65    15   3.81 0.2266
WVFGRD96    8.0    60    75   -30   3.88 0.2438
WVFGRD96   10.0   240    75   -30   3.93 0.2641
WVFGRD96   12.0   240    75   -25   3.96 0.2806
WVFGRD96   14.0   240    75   -25   4.00 0.2935
WVFGRD96   16.0   240    75   -25   4.03 0.3032
WVFGRD96   18.0   240    75   -20   4.05 0.3112
WVFGRD96   20.0   240    75   -20   4.08 0.3183
WVFGRD96   22.0   240    80   -20   4.10 0.3245
WVFGRD96   24.0   240    80   -20   4.12 0.3312
WVFGRD96   26.0   240    80   -20   4.14 0.3371
WVFGRD96   28.0    65    80    25   4.16 0.3473
WVFGRD96   30.0    65    75    25   4.18 0.3546
WVFGRD96   32.0    65    75    25   4.20 0.3610
WVFGRD96   34.0    60    80    20   4.22 0.3676
WVFGRD96   36.0    60    80    20   4.24 0.3736
WVFGRD96   38.0    60    80    20   4.27 0.3816
WVFGRD96   40.0    60    75    25   4.33 0.3877
WVFGRD96   42.0    55    80    20   4.36 0.3932
WVFGRD96   44.0    55    80    20   4.37 0.3971
WVFGRD96   46.0    55    80    20   4.39 0.3987
WVFGRD96   48.0    55    80    20   4.40 0.4013
WVFGRD96   50.0    55    80    20   4.41 0.4027
WVFGRD96   52.0    55    85    25   4.43 0.4072
WVFGRD96   54.0    55    85    25   4.43 0.4105
WVFGRD96   56.0    55    80    30   4.44 0.4130
WVFGRD96   58.0    55    80    30   4.45 0.4216
WVFGRD96   60.0   235    85   -45   4.47 0.4387
WVFGRD96   62.0   235    85   -50   4.49 0.4559
WVFGRD96   64.0    60    90    50   4.49 0.4708
WVFGRD96   66.0    60    90    50   4.50 0.4842
WVFGRD96   68.0   240    90   -50   4.51 0.4953
WVFGRD96   70.0    55    90    55   4.52 0.5048
WVFGRD96   72.0    55    90    55   4.53 0.5140
WVFGRD96   74.0   235    85   -55   4.53 0.5230
WVFGRD96   76.0    60    90    55   4.54 0.5280
WVFGRD96   78.0   235    85   -60   4.55 0.5366
WVFGRD96   80.0    60    90    60   4.56 0.5382
WVFGRD96   82.0    60    90    60   4.56 0.5432
WVFGRD96   84.0   230    80   -70   4.57 0.5514
WVFGRD96   86.0   220    80   -80   4.59 0.5610
WVFGRD96   88.0   220    80   -85   4.60 0.5746
WVFGRD96   90.0   220    80   -85   4.60 0.5877
WVFGRD96   92.0    20    10  -110   4.61 0.5999
WVFGRD96   94.0    20    10  -110   4.62 0.6107
WVFGRD96   96.0    20    10  -110   4.62 0.6196
WVFGRD96   98.0    20    10  -110   4.62 0.6295
WVFGRD96  100.0   220    85   -90   4.64 0.6386
WVFGRD96  102.0    35     5   -95   4.65 0.6462
WVFGRD96  104.0   220    85   -90   4.65 0.6538
WVFGRD96  106.0    40     5   -90   4.65 0.6599
WVFGRD96  108.0    40     5   -90   4.65 0.6636
WVFGRD96  110.0    50     5   -80   4.66 0.6676
WVFGRD96  112.0    50     5   -80   4.66 0.6699
WVFGRD96  114.0    60     5   -70   4.66 0.6717
WVFGRD96  116.0    60     5   -70   4.66 0.6723
WVFGRD96  118.0    60     5   -70   4.66 0.6714
WVFGRD96  120.0    60     5   -70   4.66 0.6710
WVFGRD96  122.0    60     5   -70   4.66 0.6702
WVFGRD96  124.0    60     5   -70   4.66 0.6685
WVFGRD96  126.0    60     5   -70   4.66 0.6651
WVFGRD96  128.0    70     5   -60   4.67 0.6614
WVFGRD96  130.0    70     5   -60   4.67 0.6589
WVFGRD96  132.0    70     5   -60   4.67 0.6550
WVFGRD96  134.0    70     5   -60   4.67 0.6516
WVFGRD96  136.0    90    10   -35   4.67 0.6474
WVFGRD96  138.0    90    10   -35   4.67 0.6425
WVFGRD96  140.0    90    10   -35   4.67 0.6382
WVFGRD96  142.0    90    10   -35   4.67 0.6329
WVFGRD96  144.0    90    10   -35   4.67 0.6258
WVFGRD96  146.0    90    10   -35   4.67 0.6204
WVFGRD96  148.0    90    10   -35   4.67 0.6145

The best solution is

WVFGRD96  116.0    60     5   -70   4.66 0.6723

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

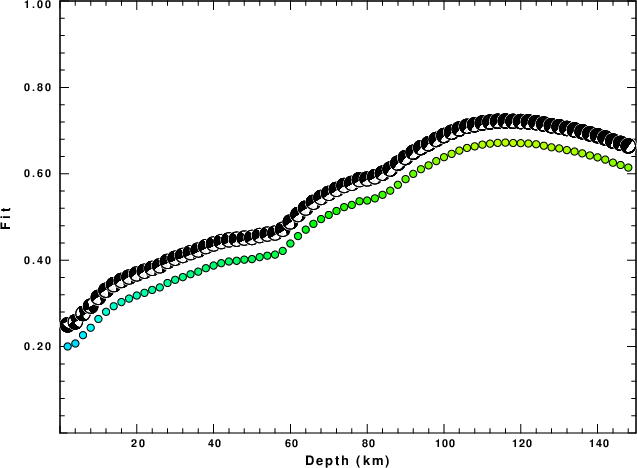

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

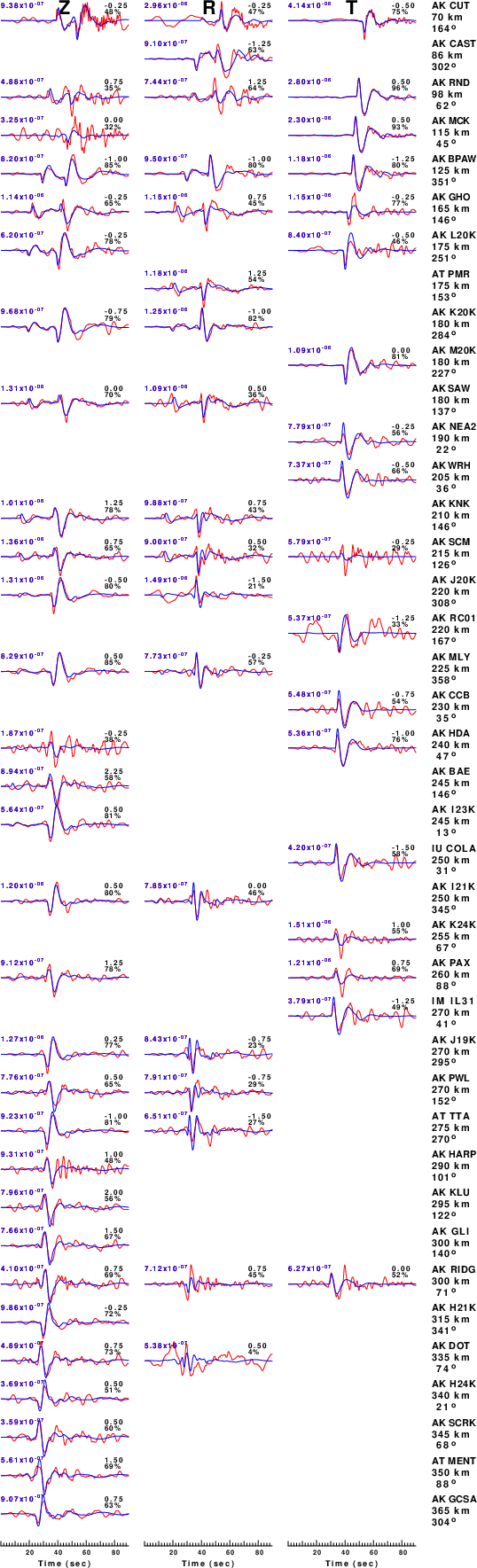

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

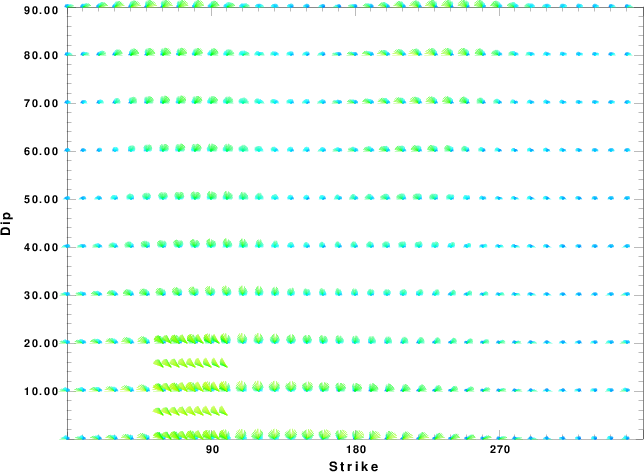

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

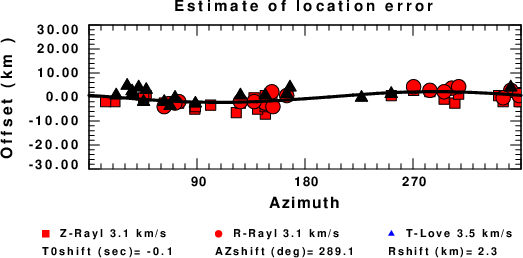

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
