The ANSS event ID is ok2024cish and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ok2024cish/executive.

2024/02/03 05:24:28 35.534 -96.764 3.0 5.1 Oklahoma

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2024/02/03 05:24:28:0  35.53  -96.76   3.0 5.1 Oklahoma

 Stations used:
   AG.FCAR AG.HHAR AG.U40A AG.WHAR AG.X40A GM.IWM01 GS.ADOK
   GS.KS28 GS.KS29 GS.OK051 GS.OK052 N4.ABTX N4.R32B N4.S39B
   N4.T35B N4.TUL3 N4.U38B NM.MGMO O2.ARC2 O2.CALT O2.CRES
   O2.DOVR O2.DRIP O2.DUST O2.ERNS O2.GORE O2.POCA O2.PW05
   O2.PW18 O2.SC04 O2.SC06 O2.SC07 O2.SC13 O2.SC16 O2.SMNL
   O2.STIG O2.YUKO OK.BLOK OK.CROK OK.FNO OK.HTCH OK.MOOR
   OK.QUOK OK.TISH OK.W35A OK.X34A TX.APMT TX.DRZT TX.PLPT
   TX.TREL US.KSU1 US.MIAR US.WMOK

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 2.72e+23 dyne-cm
  Mw = 4.89
  Z  = 3 km
  Plane   Strike  Dip  Rake
   NP1      215    90   -175
   NP2      125    85     0
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.72e+23      4     350
    N   0.00e+00     85     215
    P  -2.72e+23      4      80

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     2.55e+23
       Mxy    -9.28e+22
       Mxz     1.36e+22
       Myy    -2.55e+23
       Myz    -1.94e+22
       Mzz     0.00e+00




                     ## T #########
                 ######   #############
              #########################---
             #########################-----
           #########################---------
          ---######################-----------
         ------###################-------------
        ---------################-------------
        ------------###########--------------- P
       ---------------########----------------
       -----------------#####--------------------
       ------------------------------------------
       -------------------####-------------------
        -----------------########---------------
        ---------------############-------------
         -------------################---------
          -----------#####################----
           ---------#########################
             -----#########################
              ---#########################
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
  0.00e+00   1.36e+22   1.94e+22
  1.36e+22   2.55e+23   9.28e+22
  1.94e+22   9.28e+22  -2.55e+23


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20240203052428/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 125
      DIP = 85
     RAKE = 0
       MW = 4.89
       HS = 3.0

The NDK file is 20240203052428.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

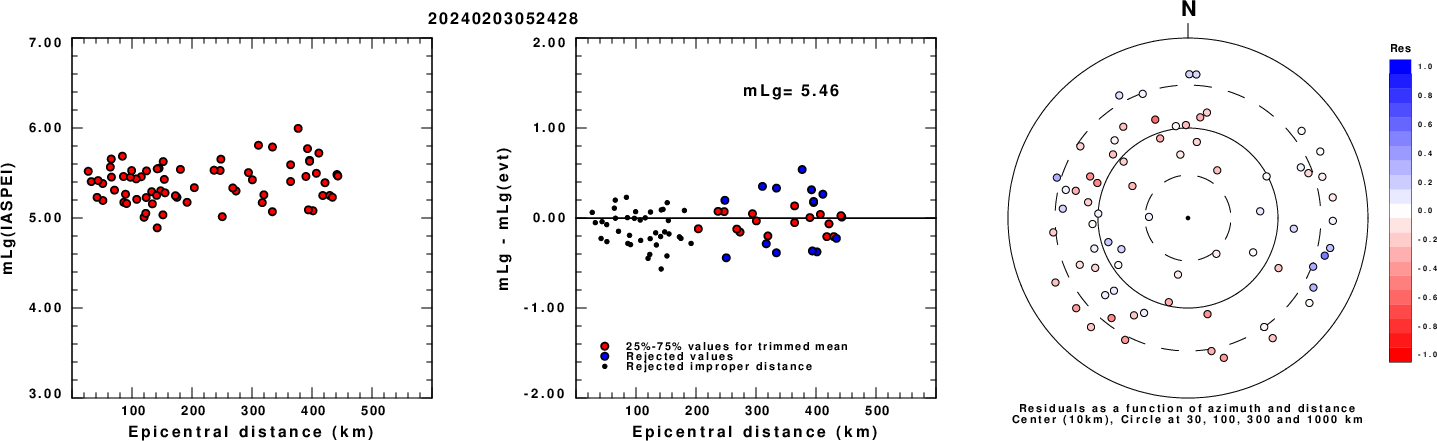

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

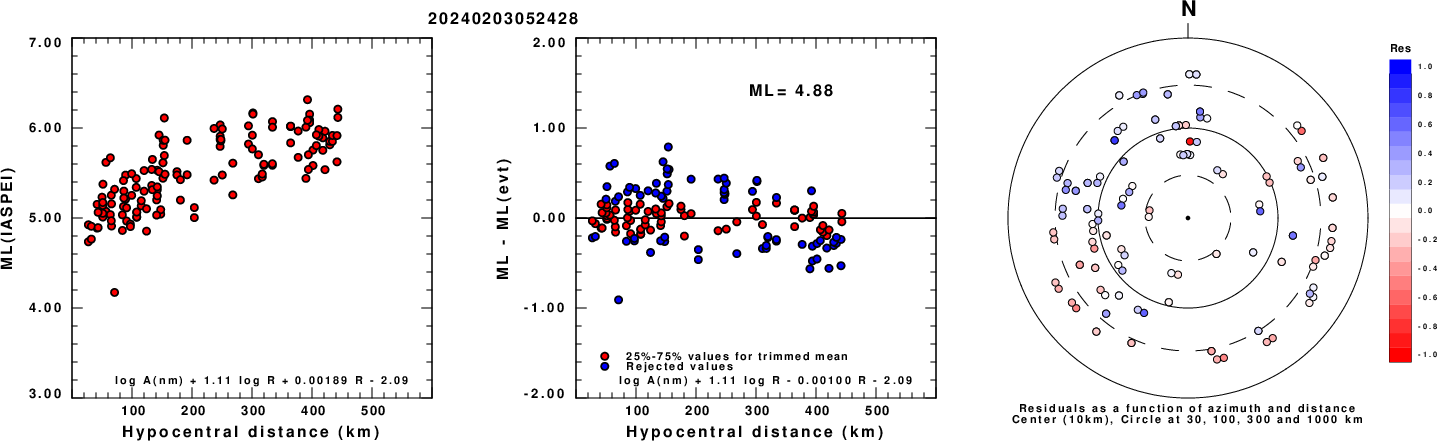

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

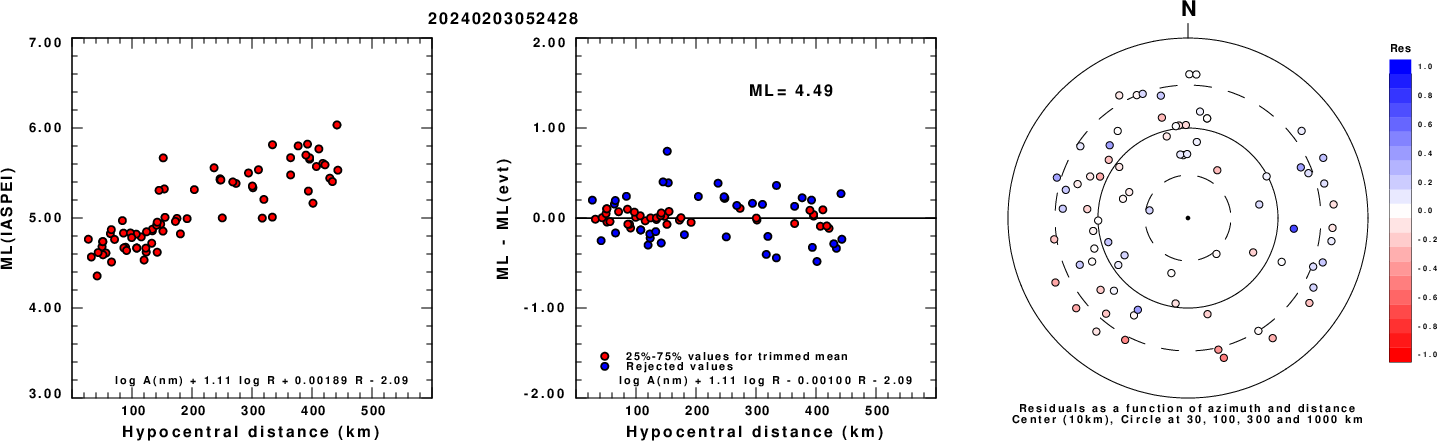

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

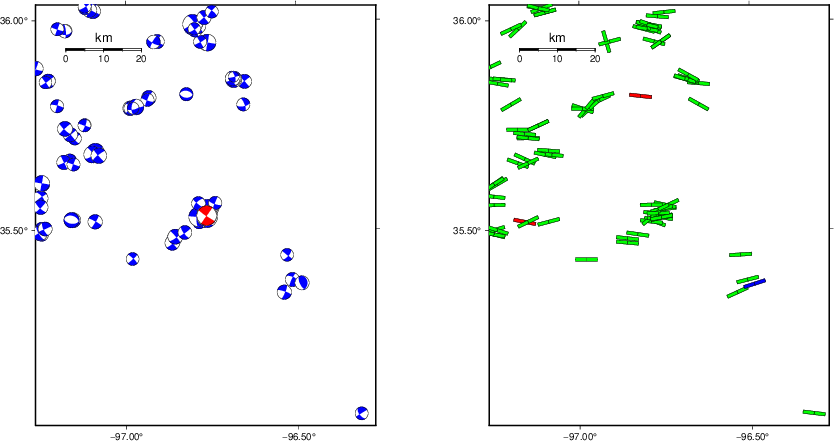

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

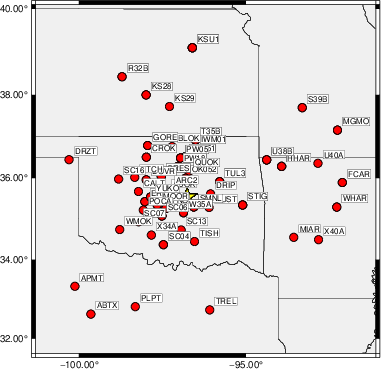

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   300    90     0   4.67 0.3805
WVFGRD96    2.0   120    80    -5   4.81 0.4798
WVFGRD96    3.0   125    85     0   4.89 0.5237
WVFGRD96    4.0   125    85     5   4.93 0.5156
WVFGRD96    5.0   125    85    10   4.96 0.4872
WVFGRD96    6.0   125    85    15   4.98 0.4668
WVFGRD96    7.0   125    85    15   5.00 0.4561
WVFGRD96    8.0   305    90   -20   5.04 0.4470
WVFGRD96    9.0   125    85    20   5.05 0.4290
WVFGRD96   10.0   305    90   -20   5.06 0.4075
WVFGRD96   11.0   125    85    15   5.08 0.3916
WVFGRD96   12.0   125    85    15   5.09 0.3738
WVFGRD96   13.0   125    85    15   5.09 0.3562
WVFGRD96   14.0   125    85    15   5.10 0.3392
WVFGRD96   15.0   300    85   -15   5.10 0.3225
WVFGRD96   16.0   300    85   -15   5.11 0.3082
WVFGRD96   17.0   120    90    15   5.11 0.2928
WVFGRD96   18.0   300    85   -20   5.11 0.2808
WVFGRD96   19.0   300    85   -15   5.12 0.2681
WVFGRD96   20.0   300    80   -15   5.13 0.2566
WVFGRD96   21.0   300    80   -15   5.13 0.2466
WVFGRD96   22.0   300    80   -15   5.14 0.2376
WVFGRD96   23.0   210    80   -10   5.14 0.2298
WVFGRD96   24.0   210    80   -10   5.15 0.2340
WVFGRD96   25.0   210    80   -10   5.16 0.2376
WVFGRD96   26.0   210    80   -10   5.17 0.2407
WVFGRD96   27.0   210    90     0   5.18 0.2435
WVFGRD96   28.0   210    90     0   5.18 0.2476
WVFGRD96   29.0    30    75     5   5.19 0.2516

The best solution is

WVFGRD96    3.0   125    85     0   4.89 0.5237

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

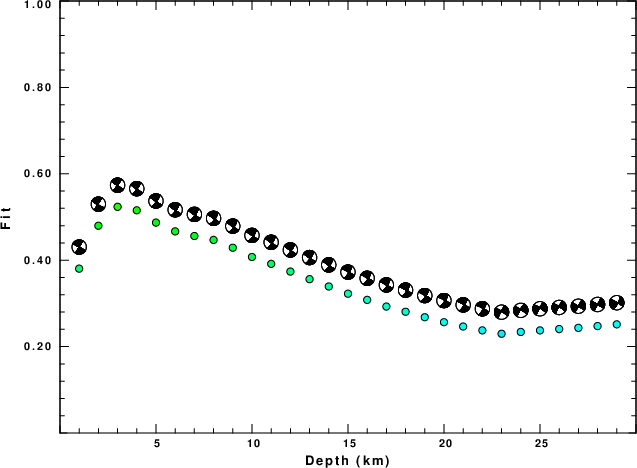

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

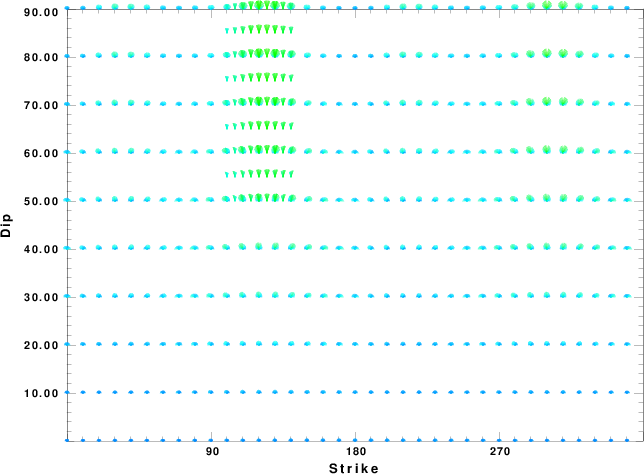

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

The time shifts for this inversion lead to the next figure:

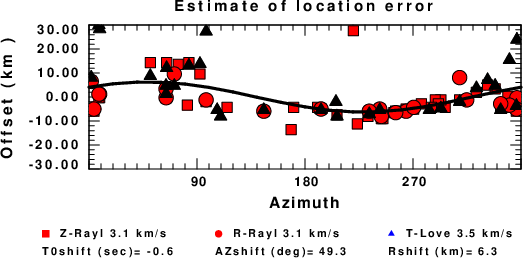

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
