Location

Location ANSS

The ANSS event ID is ak023e0o5q4j and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak023e0o5q4j/executive.

2023/11/01 15:53:07 61.873 -148.040 8.9 3.7 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2023/11/01 15:53:07:0  61.87 -148.04   8.9 3.7 Alaska

 Stations used:
   AK.BAE AK.CUT AK.DHY AK.DIV AK.EYAK AK.FID AK.GHO AK.GLI
   AK.KLU AK.KNK AK.PAX AK.PWL AK.RC01 AK.SAW AK.SCM AK.WAT6
   AT.PMR

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 6.76e+21 dyne-cm
  Mw = 3.82
  Z  = 42 km
  Plane   Strike  Dip  Rake
   NP1       74    65   -95
   NP2      265    25   -80
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   6.76e+21     20     167
    N   0.00e+00      4      76
    P  -6.76e+21     69     335

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     4.98e+21
       Mxy    -9.31e+20
       Mxz    -4.17e+21
       Myy     1.25e+20
       Myz     1.43e+21
       Mzz    -5.10e+21




                     ##############
                 ######################
              #############---############
             ######-------------------#####
           #####-------------------------####
          ####-----------------------------###
         ###---------------------------------##
        ###-------------   -------------------##
        #--------------- P --------------------#
       ##---------------   -------------------##-
       #------------------------------------#####
       ----------------------------------########
       -------------------------------###########
        --------------------------##############
        ##------------------####################
         ######################################
          ####################################
           ##################################
             #################   ##########
              ################ T #########
                 #############   ######
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -5.10e+21  -4.17e+21  -1.43e+21
 -4.17e+21   4.98e+21   9.31e+20
 -1.43e+21   9.31e+20   1.25e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20231101155307/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 265
      DIP = 25
     RAKE = -80
       MW = 3.82
       HS = 42.0

The NDK file is 20231101155307.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

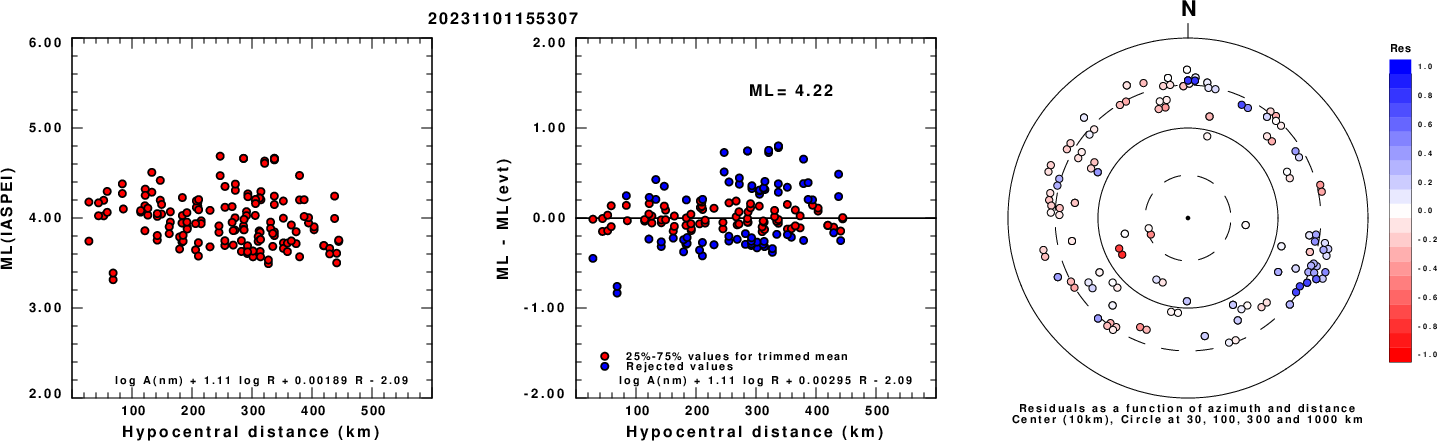

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

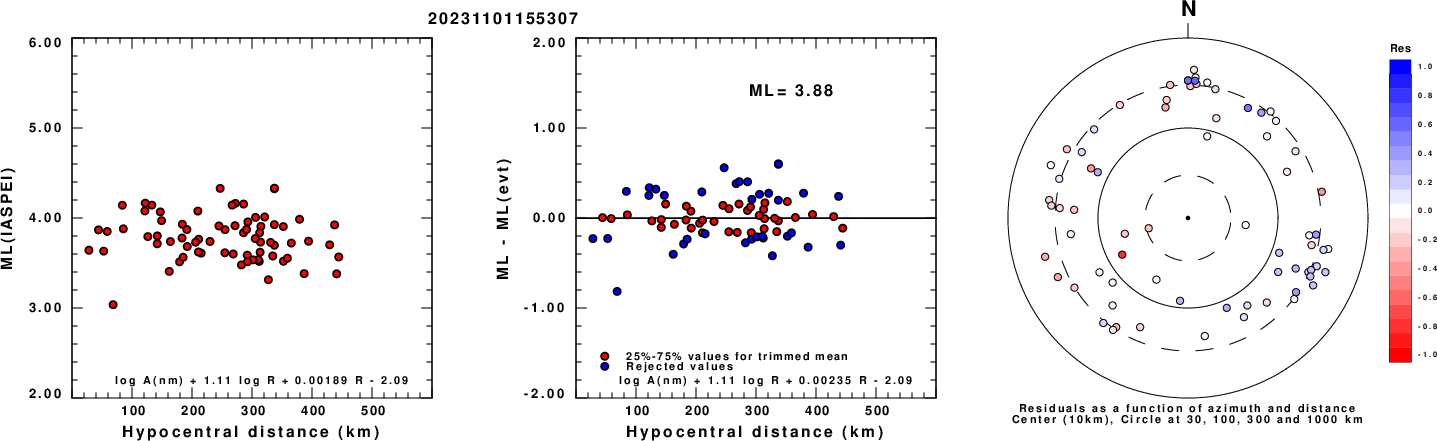

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

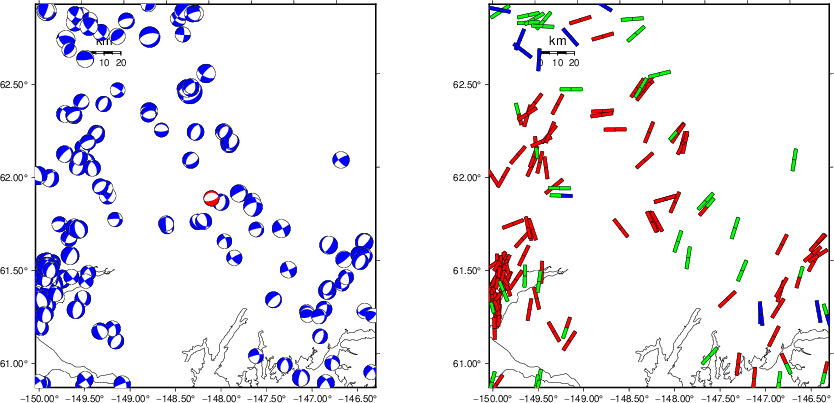

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

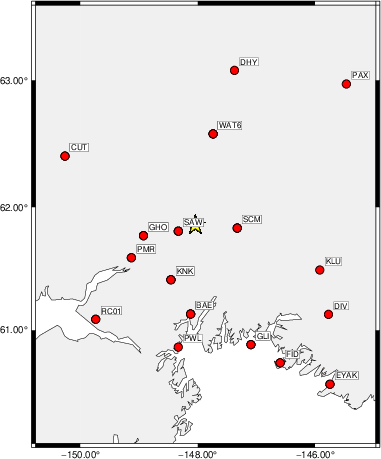

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   105    40    85   3.00 0.1820
WVFGRD96    2.0   105    40    85   3.15 0.2410
WVFGRD96    3.0    85    40   -85   3.21 0.2065
WVFGRD96    4.0   225    65   -55   3.17 0.1951
WVFGRD96    5.0   235    80    80   3.24 0.2182
WVFGRD96    6.0   235    85    75   3.24 0.2409
WVFGRD96    7.0   235    85    75   3.24 0.2598
WVFGRD96    8.0   235    85    80   3.33 0.2763
WVFGRD96    9.0   235    85    80   3.34 0.2940
WVFGRD96   10.0    55    90   -75   3.35 0.3108
WVFGRD96   11.0    55    90   -75   3.37 0.3267
WVFGRD96   12.0    65    70   -75   3.39 0.3470
WVFGRD96   13.0    65    70   -75   3.41 0.3652
WVFGRD96   14.0    65    70   -75   3.42 0.3812
WVFGRD96   15.0    65    70   -75   3.43 0.3945
WVFGRD96   16.0    65    70   -75   3.45 0.4058
WVFGRD96   17.0    65    70   -80   3.46 0.4156
WVFGRD96   18.0    70    75   -80   3.47 0.4266
WVFGRD96   19.0    70    75   -80   3.48 0.4373
WVFGRD96   20.0    70    75   -80   3.49 0.4472
WVFGRD96   21.0    70    75   -85   3.52 0.4566
WVFGRD96   22.0   230    15  -110   3.53 0.4663
WVFGRD96   23.0    70    75   -85   3.54 0.4756
WVFGRD96   24.0    70    75   -90   3.55 0.4850
WVFGRD96   25.0   250    15   -90   3.57 0.4958
WVFGRD96   26.0   255    15   -85   3.58 0.5068
WVFGRD96   27.0   255    15   -85   3.59 0.5170
WVFGRD96   28.0   255    15   -85   3.60 0.5269
WVFGRD96   29.0   260    20   -75   3.61 0.5377
WVFGRD96   30.0   260    20   -80   3.62 0.5488
WVFGRD96   31.0   260    20   -80   3.63 0.5597
WVFGRD96   32.0   255    20   -90   3.63 0.5707
WVFGRD96   33.0   260    20   -85   3.64 0.5826
WVFGRD96   34.0   260    20   -85   3.65 0.5921
WVFGRD96   35.0   260    20   -85   3.65 0.5973
WVFGRD96   36.0   260    25   -85   3.66 0.6061
WVFGRD96   37.0   265    25   -80   3.67 0.6120
WVFGRD96   38.0   260    25   -85   3.67 0.6147
WVFGRD96   39.0   260    25   -85   3.68 0.6142
WVFGRD96   40.0   265    25   -80   3.80 0.6106
WVFGRD96   41.0   265    25   -80   3.81 0.6145
WVFGRD96   42.0   265    25   -80   3.82 0.6151
WVFGRD96   43.0   265    25   -80   3.82 0.6127
WVFGRD96   44.0   265    25   -80   3.83 0.6093
WVFGRD96   45.0   265    25   -80   3.83 0.6032
WVFGRD96   46.0   265    25   -80   3.84 0.5971
WVFGRD96   47.0   265    25   -80   3.84 0.5903
WVFGRD96   48.0   270    30   -75   3.85 0.5839
WVFGRD96   49.0   270    30   -75   3.85 0.5774
WVFGRD96   50.0   270    30   -75   3.85 0.5698
WVFGRD96   51.0   270    30   -70   3.86 0.5622
WVFGRD96   52.0   270    30   -70   3.86 0.5536
WVFGRD96   53.0   270    30   -70   3.86 0.5449
WVFGRD96   54.0   270    30   -70   3.86 0.5362
WVFGRD96   55.0   265    30   -75   3.86 0.5271
WVFGRD96   56.0   270    30   -70   3.86 0.5189
WVFGRD96   57.0   265    30   -75   3.86 0.5100
WVFGRD96   58.0   265    30   -75   3.86 0.5025
WVFGRD96   59.0   265    30   -75   3.86 0.4944

The best solution is

WVFGRD96   42.0   265    25   -80   3.82 0.6151

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

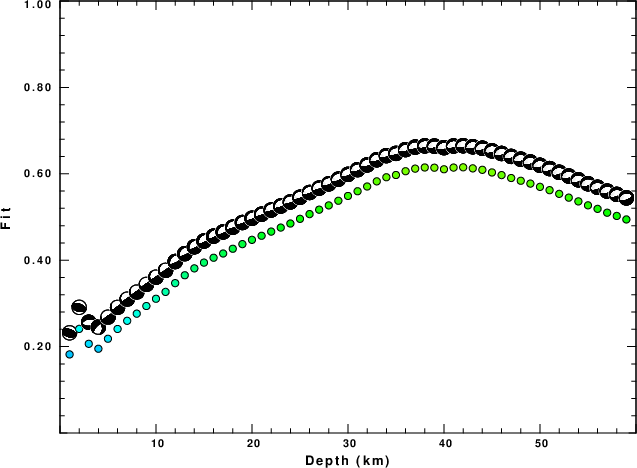

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

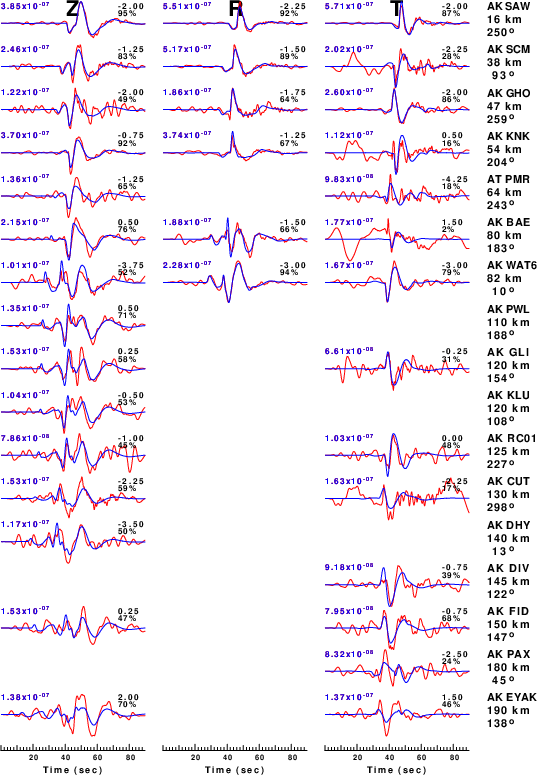

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

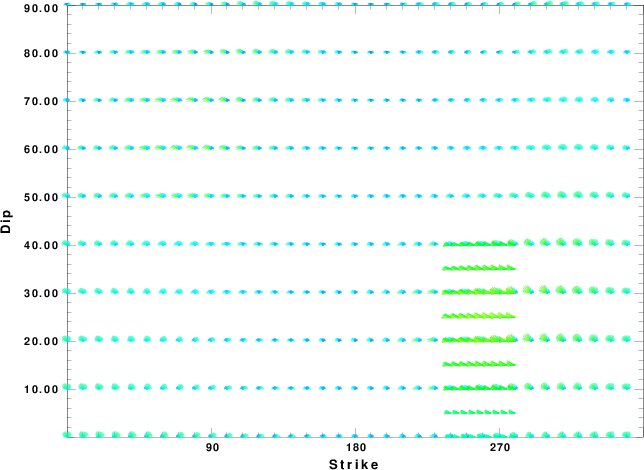

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

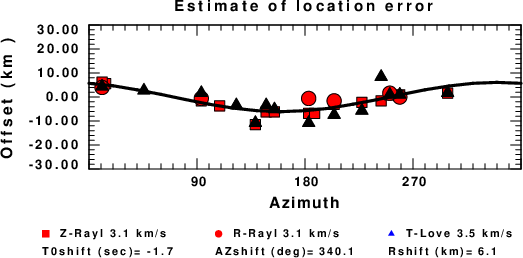

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Tue Apr 23 05:00:46 AM CDT 2024
