Location

Location ANSS

The ANSS event ID is ak023cq3wvg8 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak023cq3wvg8/executive.

2023/10/04 00:08:11 61.949 -149.303 43.4 3.9 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2023/10/04 00:08:11:0  61.95 -149.30  43.4 3.9 Alaska

 Stations used:
   AK.FID AK.GHO AK.GLI AK.KLU AK.KNK AK.L22K AK.PWL AK.RND
   AK.SAW AK.SCM AK.SKN AT.PMR

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 9.23e+21 dyne-cm
  Mw = 3.91
  Z  = 51 km
  Plane   Strike  Dip  Rake
   NP1       48    45   -95
   NP2      235    45   -85
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   9.23e+21      0     141
    N   0.00e+00      4      51
    P  -9.23e+21     86     233

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     5.63e+21
       Mxy    -4.51e+21
       Mxz     3.26e+20
       Myy     3.56e+21
       Myz     4.66e+20
       Mzz    -9.19e+21




                     ##############
                 ######################
              ############################
             ####################------####
           ################-----------------#
          #############---------------------##
         ###########------------------------###
        ##########--------------------------####
        ########---------------------------#####
       ########----------------------------######
       #######-----------   --------------#######
       ######------------ P -------------########
       #####-------------   ------------#########
        ###----------------------------#########
        ###--------------------------###########
         ##------------------------############
          #----------------------#############
           -------------------###############
             -------------##############
              ########################## T
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -9.19e+21   3.26e+20  -4.66e+20
  3.26e+20   5.63e+21   4.51e+21
 -4.66e+20   4.51e+21   3.56e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20231004000811/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 235
      DIP = 45
     RAKE = -85
       MW = 3.91
       HS = 51.0

The NDK file is 20231004000811.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

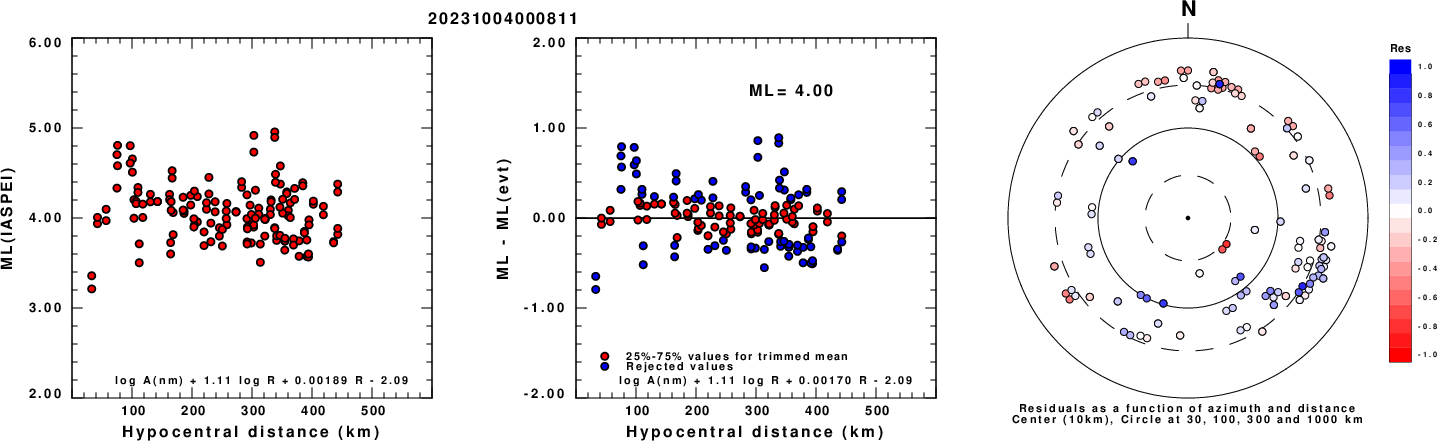

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

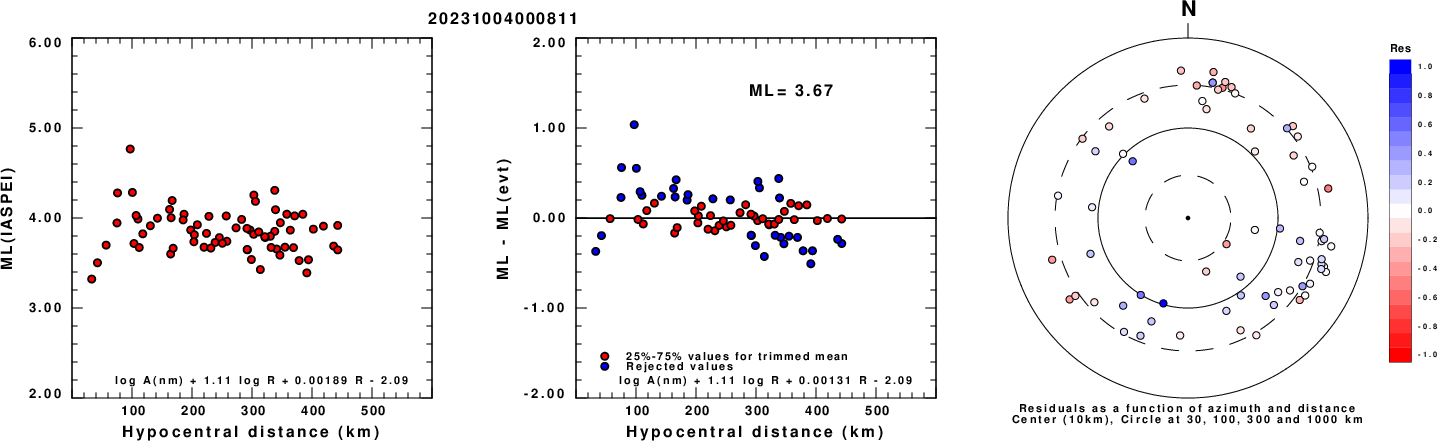

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

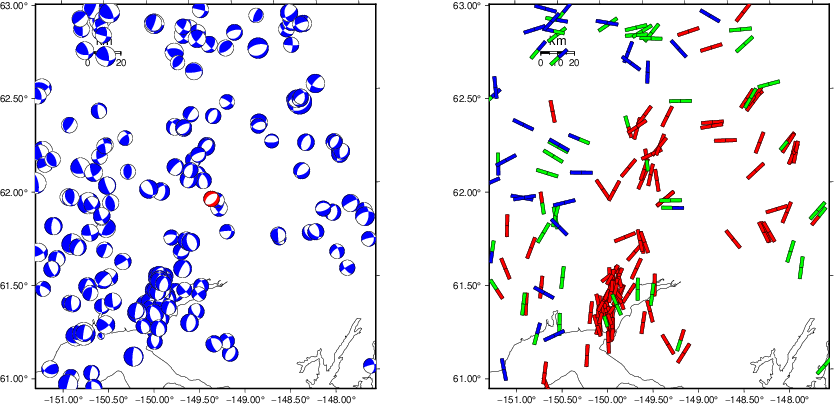

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

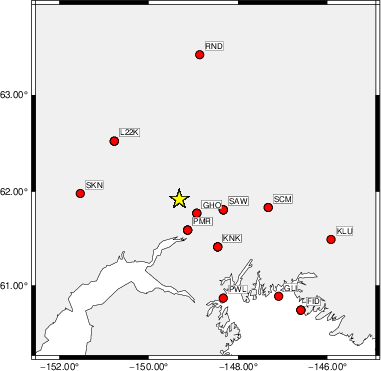

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   235    45    90   3.10 0.2775
WVFGRD96    2.0   235    45    90   3.23 0.3459
WVFGRD96    3.0    50    40   -85   3.29 0.3314
WVFGRD96    4.0   215    80    75   3.32 0.3754
WVFGRD96    5.0   220    80    75   3.32 0.4270
WVFGRD96    6.0   225    80    75   3.32 0.4649
WVFGRD96    7.0   225    80    75   3.31 0.4896
WVFGRD96    8.0   225    80    75   3.39 0.5068
WVFGRD96    9.0   225    80    75   3.39 0.5205
WVFGRD96   10.0   225    80    75   3.39 0.5290
WVFGRD96   11.0   340    15     5   3.41 0.5343
WVFGRD96   12.0   335    20     0   3.42 0.5364
WVFGRD96   13.0   335    20     0   3.42 0.5358
WVFGRD96   14.0   345    20    15   3.42 0.5331
WVFGRD96   15.0   335    20     0   3.44 0.5299
WVFGRD96   16.0   310    20   -10   3.44 0.5257
WVFGRD96   17.0   305    20   -15   3.45 0.5218
WVFGRD96   18.0   310    20   -10   3.46 0.5178
WVFGRD96   19.0   330    15     5   3.46 0.5135
WVFGRD96   20.0   310    20    -5   3.47 0.5094
WVFGRD96   21.0   305    20   -10   3.49 0.5062
WVFGRD96   22.0   300    20   -10   3.50 0.5025
WVFGRD96   23.0   280    20   -30   3.52 0.5002
WVFGRD96   24.0   275    20   -35   3.53 0.5015
WVFGRD96   25.0   270    20   -40   3.54 0.5029
WVFGRD96   26.0   270    20   -40   3.55 0.5034
WVFGRD96   27.0   275    25   -35   3.57 0.5047
WVFGRD96   28.0   270    25   -40   3.58 0.5077
WVFGRD96   29.0   265    25   -45   3.59 0.5100
WVFGRD96   30.0   265    30   -45   3.61 0.5130
WVFGRD96   31.0   250    30   -65   3.62 0.5218
WVFGRD96   32.0   245    35   -75   3.63 0.5379
WVFGRD96   33.0    55    55   -90   3.65 0.5575
WVFGRD96   34.0   240    35   -80   3.66 0.5844
WVFGRD96   35.0   240    35   -80   3.67 0.6094
WVFGRD96   36.0   245    40   -75   3.69 0.6356
WVFGRD96   37.0   240    40   -80   3.70 0.6582
WVFGRD96   38.0   240    40   -80   3.71 0.6764
WVFGRD96   39.0   240    40   -80   3.73 0.6929
WVFGRD96   40.0   240    40   -80   3.82 0.7132
WVFGRD96   41.0   240    40   -80   3.83 0.7235
WVFGRD96   42.0   240    40   -80   3.84 0.7315
WVFGRD96   43.0   240    40   -80   3.85 0.7370
WVFGRD96   44.0   240    40   -80   3.86 0.7417
WVFGRD96   45.0   240    45   -80   3.87 0.7419
WVFGRD96   46.0   240    45   -80   3.88 0.7494
WVFGRD96   47.0   240    45   -80   3.89 0.7548
WVFGRD96   48.0   240    45   -80   3.89 0.7582
WVFGRD96   49.0    50    45   -95   3.90 0.7621
WVFGRD96   50.0   235    45   -85   3.91 0.7614
WVFGRD96   51.0   235    45   -85   3.91 0.7622
WVFGRD96   52.0   235    45   -85   3.91 0.7600
WVFGRD96   53.0   235    45   -85   3.92 0.7582
WVFGRD96   54.0   235    45   -90   3.92 0.7523
WVFGRD96   55.0   235    45   -90   3.92 0.7506
WVFGRD96   56.0   235    45   -90   3.93 0.7444
WVFGRD96   57.0   235    50   -85   3.93 0.7409
WVFGRD96   58.0   235    50   -90   3.93 0.7366
WVFGRD96   59.0   235    50   -90   3.94 0.7317

The best solution is

WVFGRD96   51.0   235    45   -85   3.91 0.7622

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

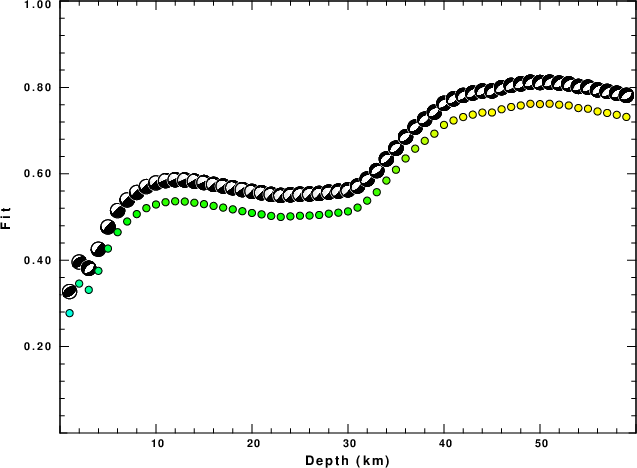

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

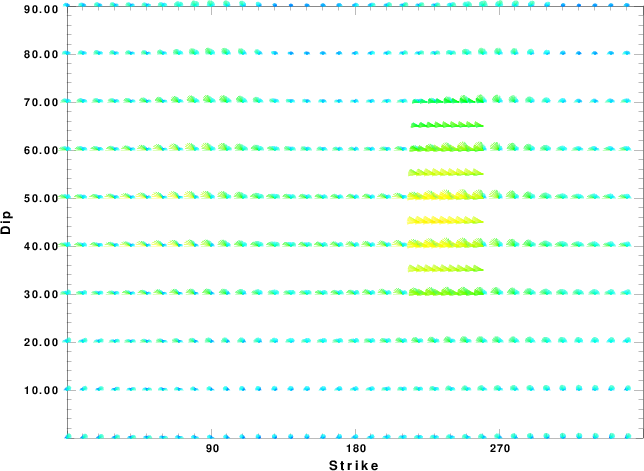

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

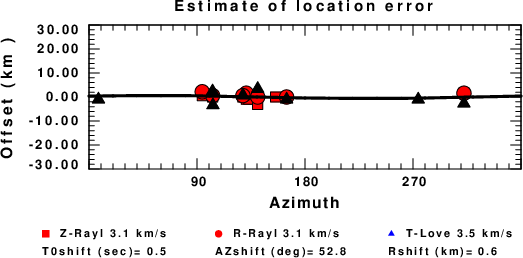

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Tue Apr 23 04:01:39 AM CDT 2024
