Location

Location ANSS

The ANSS event ID is ak023btef8mo and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak023btef8mo/executive.

2023/09/14 22:35:05 59.314 -153.501 103.7 4.4 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2023/09/14 22:35:05:0  59.31 -153.50 103.7 4.4 Alaska

 Stations used:
   AK.BRLK AK.CNP AK.HOM AK.M19K AK.M20K AK.N18K AK.N19K
   AK.O18K AK.P17K AK.Q19K AK.SLK AV.ACH AV.PLK3 AV.SPCP
   II.KDAK

 Filtering commands used:
   cut o DIST/3.5 -40 o DIST/3.5 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 3.55e+22 dyne-cm
  Mw = 4.30
  Z  = 106 km
  Plane   Strike  Dip  Rake
   NP1       60    80    85
   NP2      267    11   116
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.55e+22     55     324
    N   0.00e+00      5      61
    P  -3.55e+22     35     154

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.17e+22
       Mxy     3.71e+21
       Mxz     2.85e+22
       Myy    -3.85e+20
       Myz    -1.71e+22
       Mzz     1.21e+22




                     --------------
                 ----##############----
              ---######################---
             --##########################--
           --##############################--
          -##################################-
         -############   ###################--#
        -############# T #################-----#
        ##############   ###############--------
       -#############################-----------#
       ###########################---------------
       ########################------------------
       #####################---------------------
        #################-----------------------
        #############---------------------------
         ########------------------------------
          #---------------------   -----------
           --------------------- P ----------
             -------------------   --------
              ----------------------------
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  1.21e+22   2.85e+22   1.71e+22
  2.85e+22  -1.17e+22  -3.71e+21
  1.71e+22  -3.71e+21  -3.85e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20230914223505/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 60
      DIP = 80
     RAKE = 85
       MW = 4.30
       HS = 106.0

The NDK file is 20230914223505.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

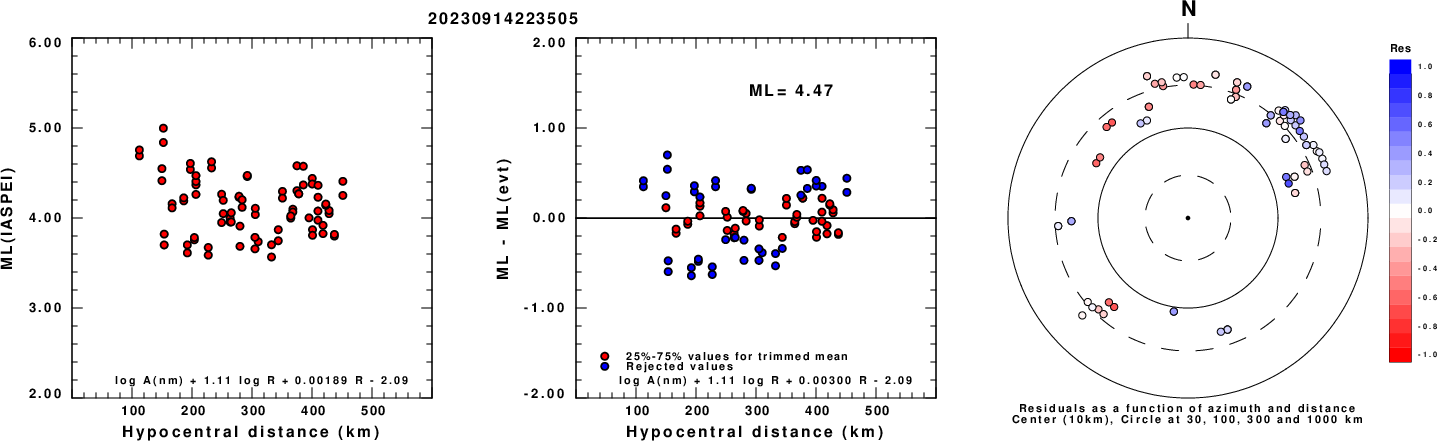

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

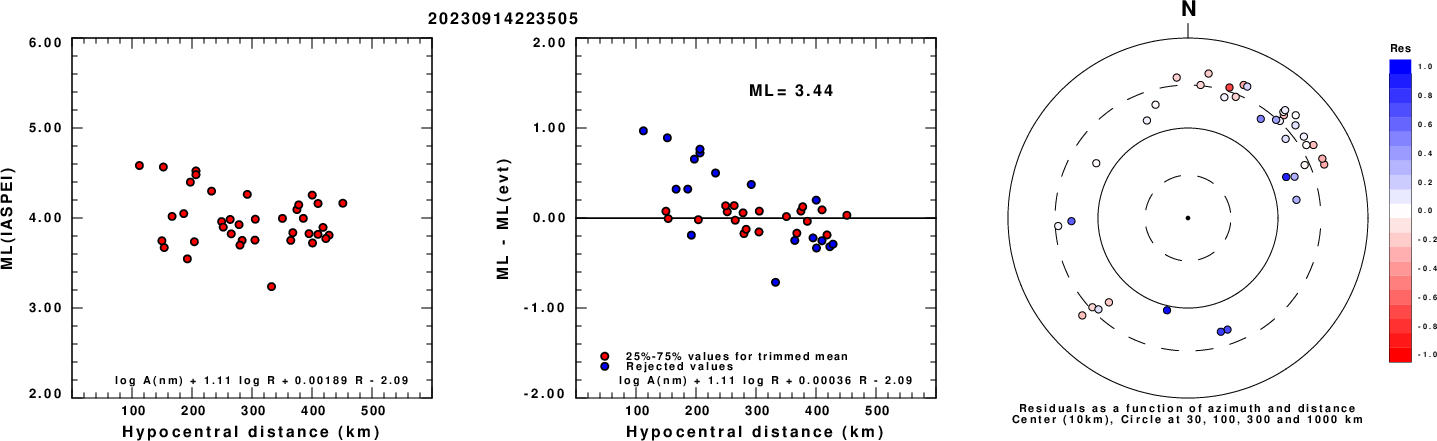

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

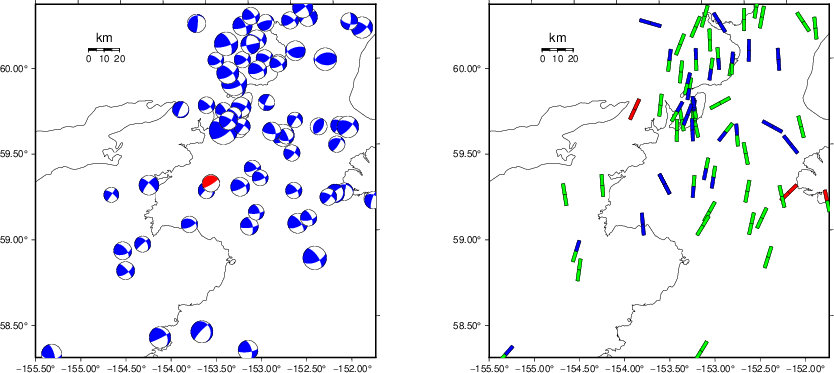

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

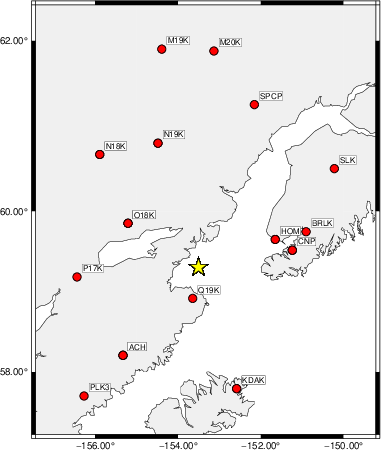

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   150    90     0   3.27 0.2391
WVFGRD96    4.0   155    75    20   3.38 0.2658
WVFGRD96    6.0   150    70   -15   3.44 0.2874
WVFGRD96    8.0   150    65   -15   3.51 0.3087
WVFGRD96   10.0   160    60    25   3.56 0.3197
WVFGRD96   12.0   155    65    20   3.59 0.3297
WVFGRD96   14.0   155    65    20   3.62 0.3344
WVFGRD96   16.0    60    75   -15   3.65 0.3475
WVFGRD96   18.0    60    75   -10   3.68 0.3606
WVFGRD96   20.0    60    75   -10   3.71 0.3735
WVFGRD96   22.0    60    75   -15   3.74 0.3863
WVFGRD96   24.0    60    75   -15   3.76 0.3977
WVFGRD96   26.0    60    75   -15   3.78 0.4073
WVFGRD96   28.0    60    75   -15   3.80 0.4183
WVFGRD96   30.0    60    80   -15   3.82 0.4276
WVFGRD96   32.0    60    80   -15   3.84 0.4357
WVFGRD96   34.0    60    80   -15   3.86 0.4404
WVFGRD96   36.0    60    80   -15   3.89 0.4470
WVFGRD96   38.0    60    85   -10   3.92 0.4523
WVFGRD96   40.0   245    75    20   3.98 0.4648
WVFGRD96   42.0   245    75    20   4.00 0.4700
WVFGRD96   44.0   245    75    20   4.02 0.4724
WVFGRD96   46.0   245    75    20   4.03 0.4729
WVFGRD96   48.0   245    75    15   4.05 0.4734
WVFGRD96   50.0    65    85    35   4.08 0.4854
WVFGRD96   52.0    65    85    35   4.09 0.4958
WVFGRD96   54.0    65    85    35   4.10 0.5061
WVFGRD96   56.0    65    85    40   4.11 0.5174
WVFGRD96   58.0    65    85    40   4.12 0.5266
WVFGRD96   60.0    65    80    45   4.13 0.5359
WVFGRD96   62.0    65    80    45   4.14 0.5475
WVFGRD96   64.0    70    80    50   4.15 0.5547
WVFGRD96   66.0    75    75    60   4.17 0.5685
WVFGRD96   68.0    75    75    60   4.18 0.5790
WVFGRD96   70.0    75    75    60   4.18 0.5908
WVFGRD96   72.0    75    75    65   4.19 0.5985
WVFGRD96   74.0    75    75    65   4.20 0.6056
WVFGRD96   76.0    75    75    65   4.20 0.6128
WVFGRD96   78.0    75    75    65   4.20 0.6183
WVFGRD96   80.0    70    75    70   4.22 0.6219
WVFGRD96   82.0    70    75    75   4.24 0.6283
WVFGRD96   84.0    70    75    75   4.24 0.6354
WVFGRD96   86.0    70    75    75   4.24 0.6407
WVFGRD96   88.0    65    80    80   4.26 0.6481
WVFGRD96   90.0    65    80    80   4.26 0.6563
WVFGRD96   92.0    65    80    80   4.26 0.6631
WVFGRD96   94.0    65    80    85   4.28 0.6690
WVFGRD96   96.0    65    80    85   4.28 0.6743
WVFGRD96   98.0    65    80    85   4.28 0.6792
WVFGRD96  100.0    60    80    85   4.30 0.6838
WVFGRD96  102.0    60    80    85   4.30 0.6871
WVFGRD96  104.0    60    80    85   4.30 0.6894
WVFGRD96  106.0    60    80    85   4.30 0.6900
WVFGRD96  108.0    60    80    85   4.30 0.6897
WVFGRD96  110.0    60    85    90   4.30 0.6898
WVFGRD96  112.0    60    85    90   4.30 0.6896
WVFGRD96  114.0    60    85    90   4.30 0.6884
WVFGRD96  116.0    60    85    90   4.30 0.6879
WVFGRD96  118.0    60    85    90   4.30 0.6864
WVFGRD96  120.0    60    85    90   4.30 0.6836
WVFGRD96  122.0   130    -5   -20   4.28 0.6695
WVFGRD96  124.0    60    85    90   4.30 0.6739
WVFGRD96  126.0    80    -5   -70   4.29 0.6716
WVFGRD96  128.0    80    -5   -70   4.29 0.6681
WVFGRD96  130.0    90    -5   -60   4.29 0.6627
WVFGRD96  132.0    80    -5   -70   4.29 0.6561
WVFGRD96  134.0    90    -5   -60   4.28 0.6517
WVFGRD96  136.0    95    -5   -60   4.27 0.6478
WVFGRD96  138.0    80    -5   -75   4.28 0.6422
WVFGRD96  140.0    90    -5   -65   4.27 0.6367
WVFGRD96  142.0   235     5    80   4.28 0.6320
WVFGRD96  144.0    85    -5   -70   4.27 0.6284
WVFGRD96  146.0    85    -5   -70   4.27 0.6211
WVFGRD96  148.0   245     5    90   4.27 0.6159

The best solution is

WVFGRD96  106.0    60    80    85   4.30 0.6900

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

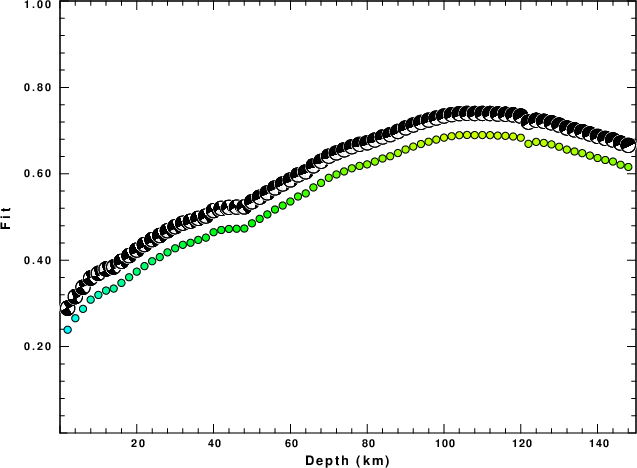

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

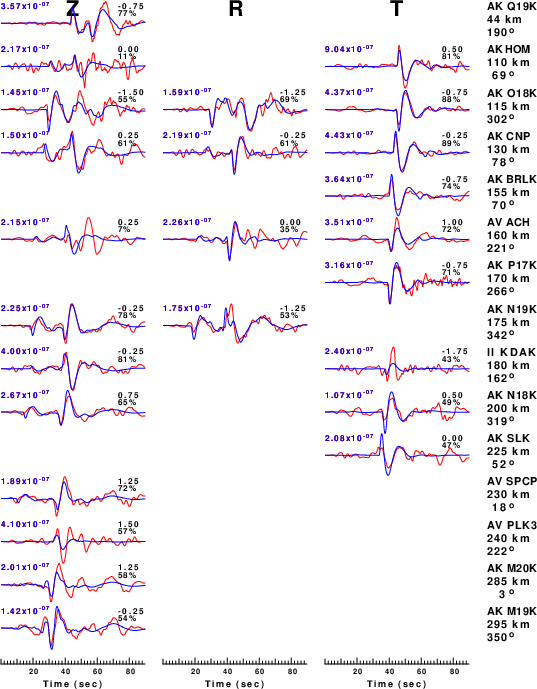

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

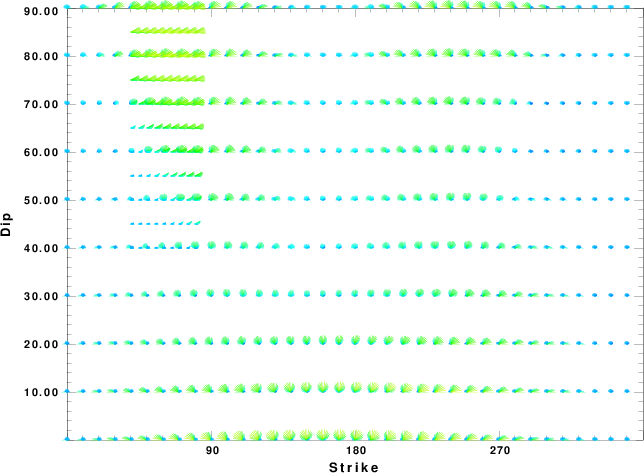

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

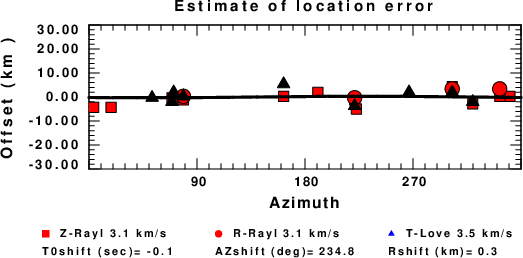

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Tue Apr 23 03:47:15 AM CDT 2024
