Location

Location ANSS

The ANSS event ID is tx2023qstx and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/tx2023qstx/executive.

2023/08/26 23:05:23 31.612 -104.497 6.9 3.1 Texas

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2023/08/26 23:05:23:0  31.61 -104.50   6.9 3.1 Texas

 Stations used:
   4O.WB01 4O.WB03 4O.WB08 TX.PB09 TX.PB10 TX.PB12 TX.PB13
   TX.PB25 TX.PB29 TX.PB33 TX.PB34 TX.PB35 TX.PB36 TX.PB37
   TX.PB38 TX.PB43 TX.PB44 TX.PECS

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.05 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 4.73e+20 dyne-cm
  Mw = 3.05
  Z  = 6 km
  Plane   Strike  Dip  Rake
   NP1       62    73   -108
   NP2      290    25   -45
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.73e+20     25     166
    N   0.00e+00     17      68
    P  -4.73e+20     58     307

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     3.17e+20
       Mxy    -2.59e+19
       Mxz    -3.06e+20
       Myy    -6.09e+19
       Myz     2.11e+20
       Mzz    -2.56e+20




                     ##############
                 ######################
              #######---------############
             ###--------------------#######
           ##--------------------------######
          #------------------------------#####
         ----------------------------------##--
        ------------   -------------------------
        ------------ P -------------------###---
       -------------   -----------------######---
       -------------------------------#########--
       ----------------------------############--
       -------------------------################-
        ---------------------###################
        -----------------#######################
         ----------############################
          ####################################
           ##################################
             #################   ##########
              ################ T #########
                 #############   ######
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -2.56e+20  -3.06e+20  -2.11e+20
 -3.06e+20   3.17e+20   2.59e+19
 -2.11e+20   2.59e+19  -6.09e+19


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20230826230523/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 290
      DIP = 25
     RAKE = -45
       MW = 3.05
       HS = 6.0

The NDK file is 20230826230523.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

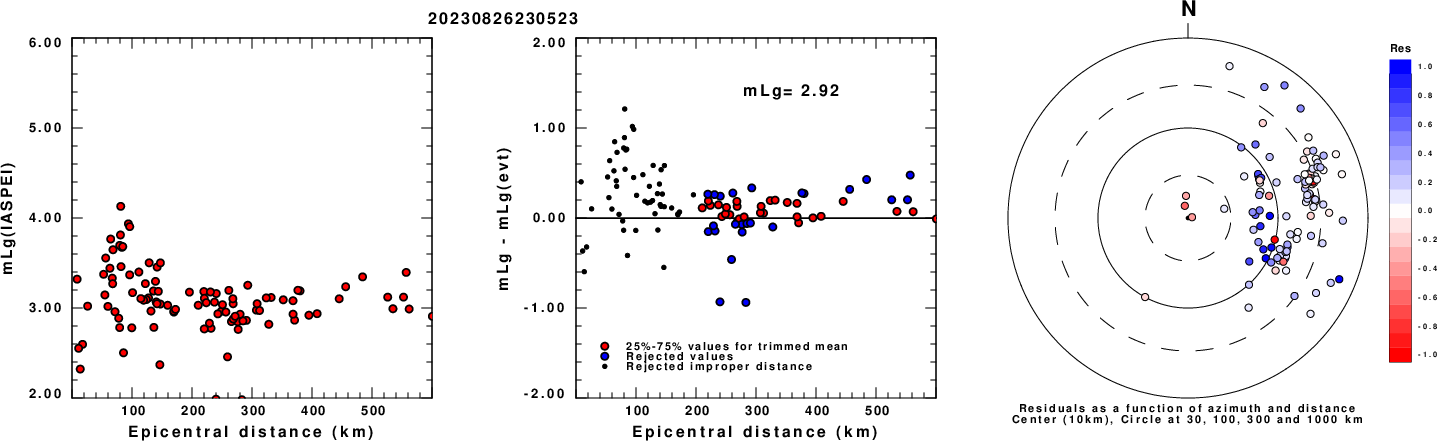

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

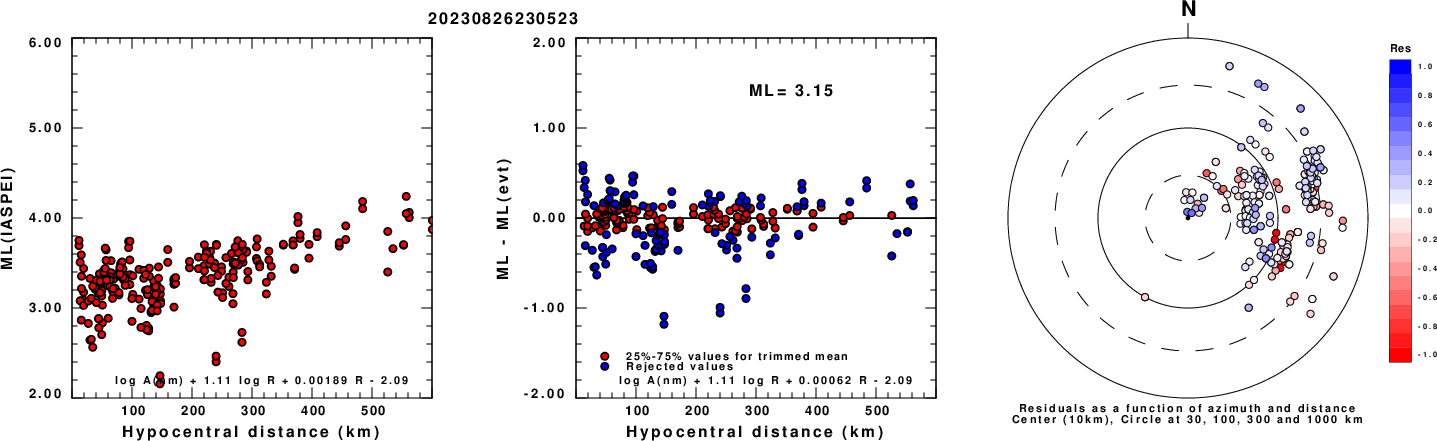

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

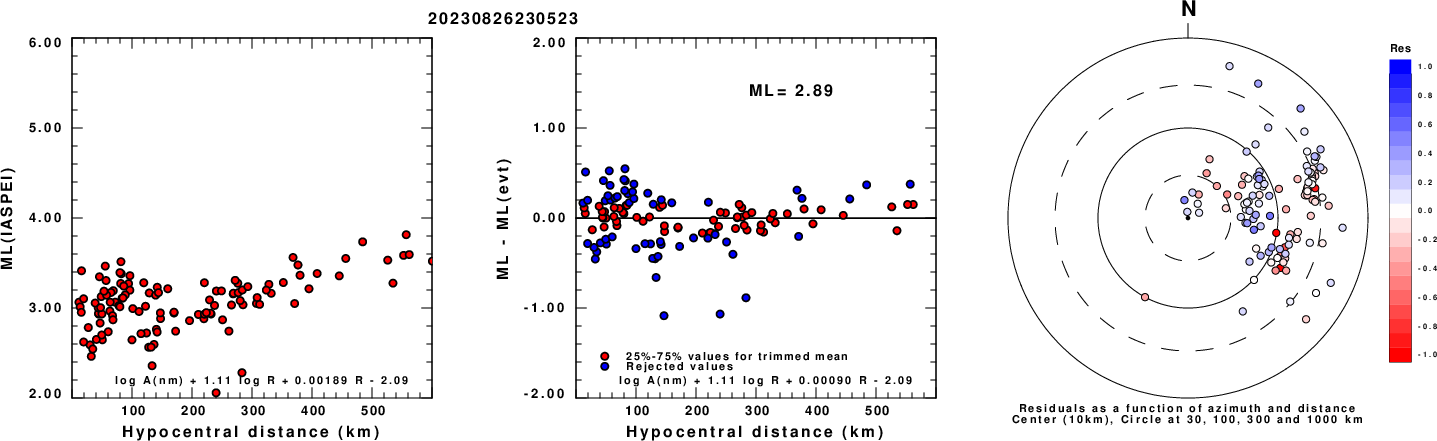

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

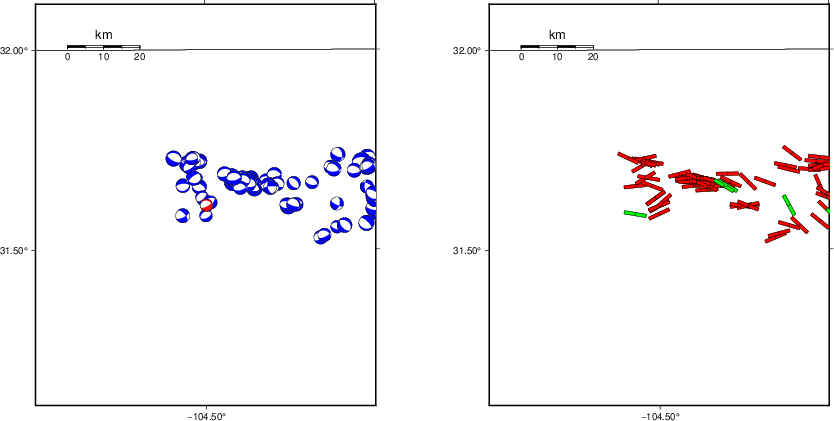

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

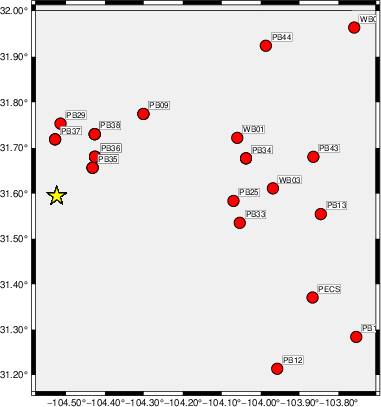

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.05 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   330    70    25   2.68 0.1904
WVFGRD96    2.0   320    85    50   2.91 0.2515
WVFGRD96    3.0   290    20   -40   3.02 0.3140
WVFGRD96    4.0   285    20   -45   3.05 0.3752
WVFGRD96    5.0   285    20   -45   3.05 0.3994
WVFGRD96    6.0   290    25   -45   3.05 0.4064
WVFGRD96    7.0   290    25   -45   3.06 0.4050
WVFGRD96    8.0   275    20   -60   3.15 0.4009
WVFGRD96    9.0   275    20   -60   3.16 0.3901
WVFGRD96   10.0   285    20   -50   3.16 0.3780
WVFGRD96   11.0   290    20   -45   3.17 0.3647
WVFGRD96   12.0   325    45    25   3.12 0.3556
WVFGRD96   13.0   325    45    25   3.13 0.3445
WVFGRD96   14.0   325    45    25   3.14 0.3354
WVFGRD96   15.0   325    45    25   3.15 0.3245
WVFGRD96   16.0   325    45    30   3.16 0.3147
WVFGRD96   17.0   330    40    30   3.17 0.3055
WVFGRD96   18.0   335    40    40   3.18 0.2981
WVFGRD96   19.0   340    35    45   3.19 0.2903
WVFGRD96   20.0   345    35    50   3.20 0.2844
WVFGRD96   21.0   -15    35    55   3.22 0.2773
WVFGRD96   22.0     0    30    65   3.23 0.2717
WVFGRD96   23.0     5    30    70   3.25 0.2650
WVFGRD96   24.0    10    30    75   3.26 0.2586
WVFGRD96   25.0   245    70    60   3.35 0.2568
WVFGRD96   26.0   245    70    60   3.36 0.2548
WVFGRD96   27.0   245    70    55   3.38 0.2530
WVFGRD96   28.0   240    70    55   3.39 0.2514
WVFGRD96   29.0   240    70    55   3.40 0.2498

The best solution is

WVFGRD96    6.0   290    25   -45   3.05 0.4064

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

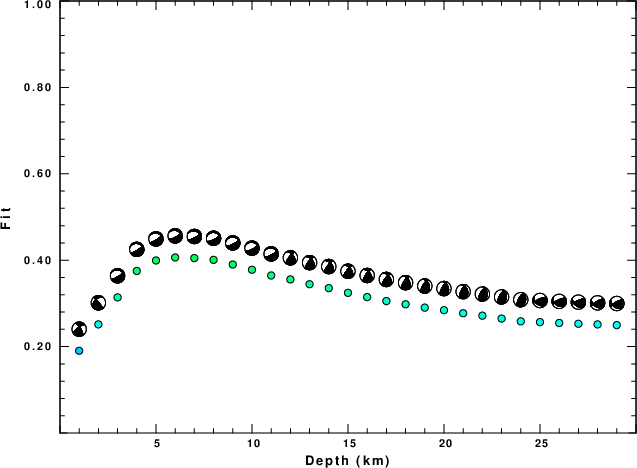

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.05 n 3
lp c 0.10 n 3

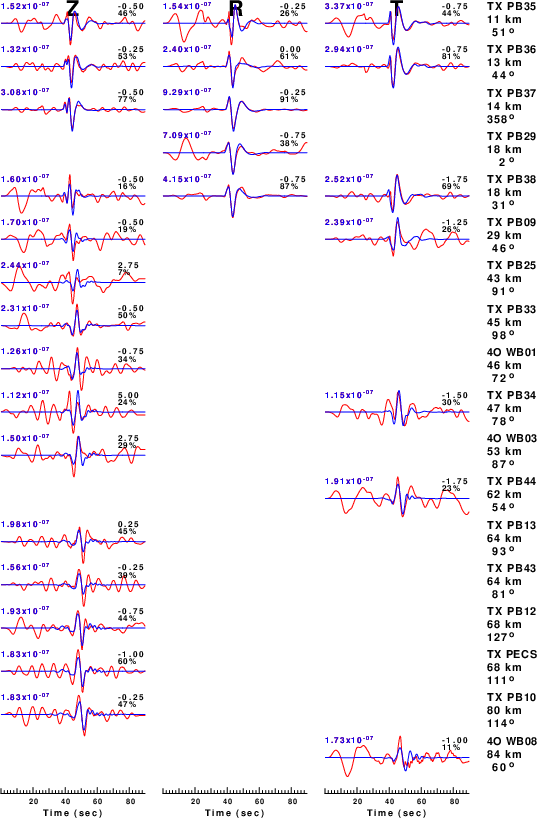

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

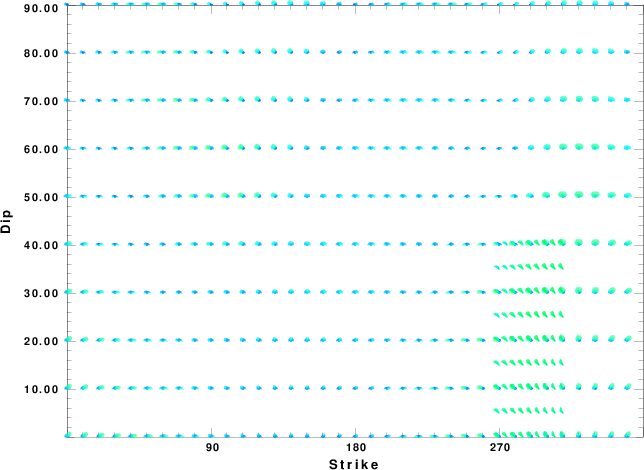

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

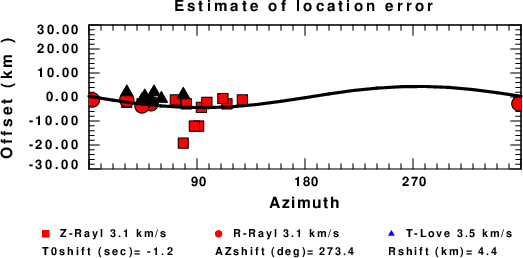

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Tue Apr 23 03:10:04 AM CDT 2024
