The ANSS event ID is tx2023qekg and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/tx2023qekg/executive.

2023/08/19 02:17:52 31.678 -104.384 5.9 3.5 Texas

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2023/08/19 02:17:52:0  31.68 -104.38   5.9 3.5 Texas

 Stations used:
   4O.BP01 4O.CV01 4O.SA04 4O.WB01 4O.WB02 4O.WB03 4O.WB08
   4O.WB09 TX.PB09 TX.PB11 TX.PB12 TX.PB13 TX.PB28 TX.PB33
   TX.PB34 TX.PB37 TX.PB42 TX.PB43 TX.PB44 TX.PECS TX.VHRN

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.43e+21 dyne-cm
  Mw = 3.37
  Z  = 6 km
  Plane   Strike  Dip  Rake
   NP1      125    55   -65
   NP2      266    42   -121
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.43e+21      7     197
    N   0.00e+00     20     290
    P  -1.43e+21     69      90

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.28e+21
       Mxy     4.03e+20
       Mxz    -1.64e+20
       Myy    -6.45e+19
       Myz    -5.38e+20
       Mzz    -1.22e+21




                     ##############
                 ######################
              ############################
             ##############################
           ##################################
          -########--------------------#######
         --#####--------------------------#####
        ----#--------------------------------###
        ---##----------------------------------#
       ---####------------------   -------------#
       -#######----------------- P --------------
       -########----------------   --------------
       ###########-------------------------------
        ############----------------------------
        ##############--------------------------
         ################----------------------
          ##################------------------
           ######################------------
             ##############################
              ############################
                 ####   ###############
                      T ###########



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.22e+21  -1.64e+20   5.38e+20
 -1.64e+20   1.28e+21  -4.03e+20
  5.38e+20  -4.03e+20  -6.45e+19


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20230819021752/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 125
      DIP = 55
     RAKE = -65
       MW = 3.37
       HS = 6.0

The NDK file is 20230819021752.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

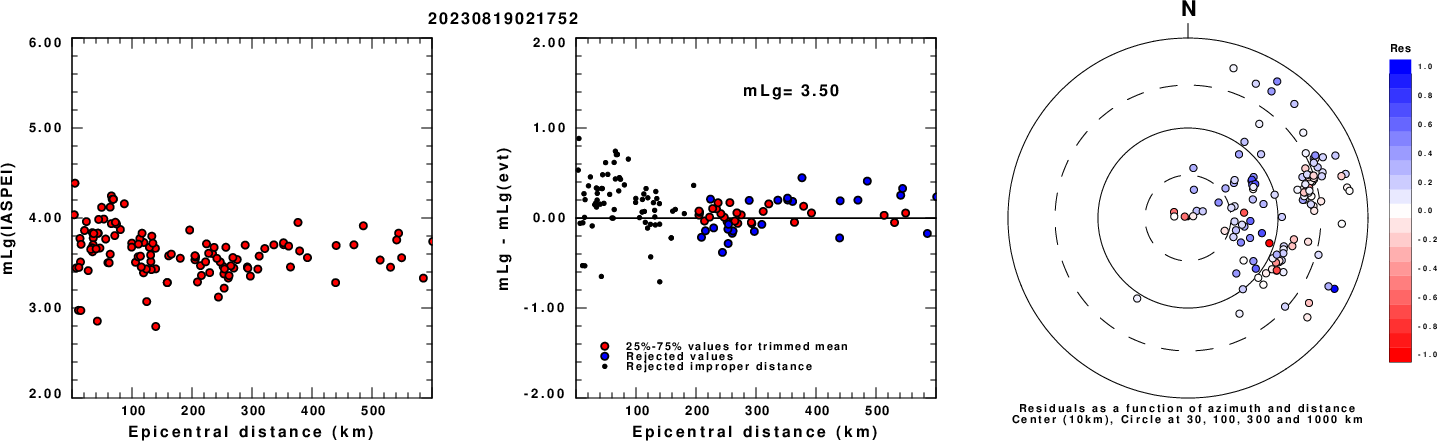

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

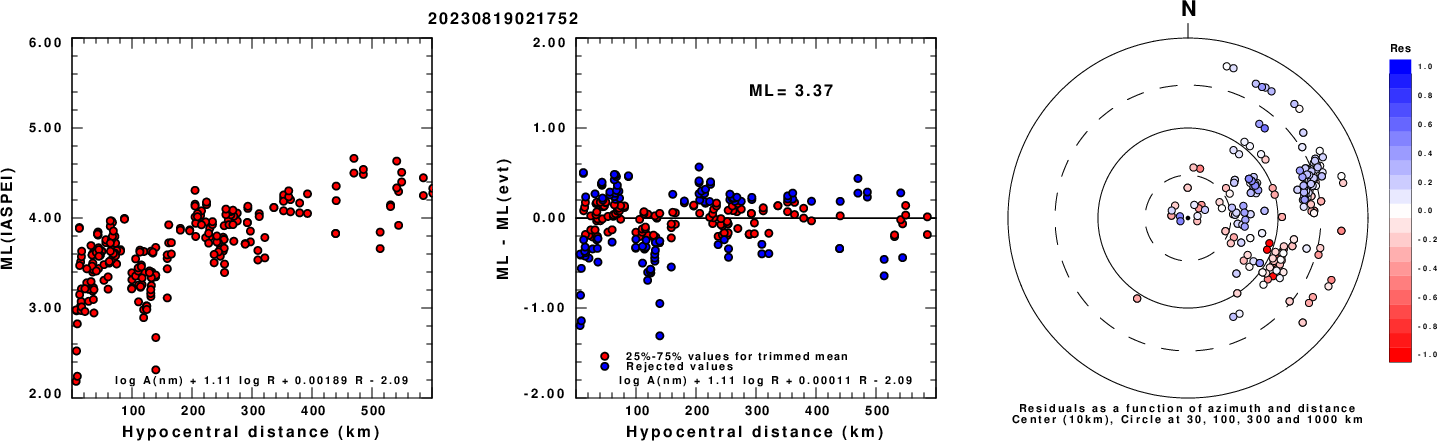

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

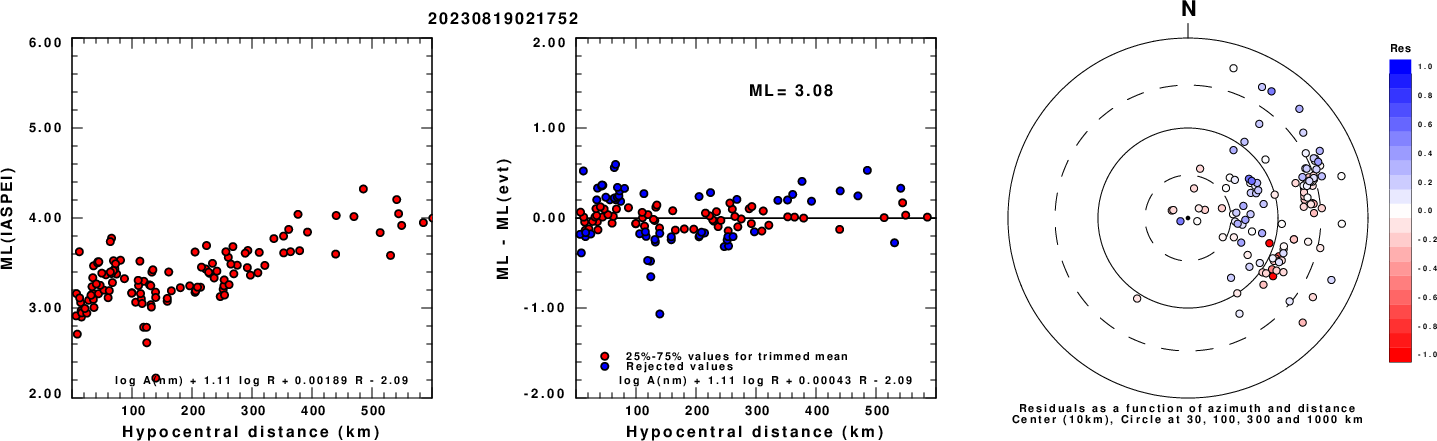

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

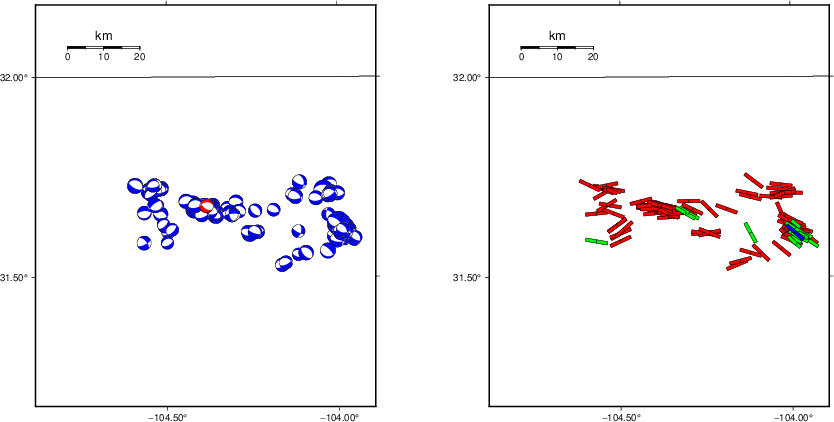

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   155    85   -35   2.96 0.2407
WVFGRD96    2.0   150    80   -45   3.15 0.3322
WVFGRD96    3.0   145    80   -60   3.27 0.4308
WVFGRD96    4.0   145    75   -55   3.28 0.4851
WVFGRD96    5.0   130    60   -60   3.34 0.5138
WVFGRD96    6.0   125    55   -65   3.37 0.5253
WVFGRD96    7.0   135    60   -55   3.37 0.5174
WVFGRD96    8.0   280    35  -100   3.48 0.5130
WVFGRD96    9.0   290    30   -80   3.51 0.4888
WVFGRD96   10.0   145    70   -45   3.42 0.4634
WVFGRD96   11.0   150    75   -40   3.42 0.4405
WVFGRD96   12.0   150    80   -35   3.43 0.4193
WVFGRD96   13.0   335    90    35   3.42 0.3992
WVFGRD96   14.0   335    85    35   3.43 0.3821
WVFGRD96   15.0   335    85    30   3.45 0.3661
WVFGRD96   16.0   335    80    35   3.45 0.3533
WVFGRD96   17.0   335    80    35   3.46 0.3416
WVFGRD96   18.0   335    80    35   3.47 0.3312
WVFGRD96   19.0   335    80    35   3.47 0.3225
WVFGRD96   20.0   335    80    35   3.48 0.3153
WVFGRD96   21.0   335    75    40   3.49 0.3090
WVFGRD96   22.0   335    75    40   3.50 0.3042
WVFGRD96   23.0   335    75    40   3.50 0.2997
WVFGRD96   24.0   145    70   -35   3.55 0.3000
WVFGRD96   25.0   145    70   -35   3.56 0.3019
WVFGRD96   26.0   140    65   -40   3.59 0.3043
WVFGRD96   27.0   145    70   -35   3.58 0.3075
WVFGRD96   28.0   145    70   -35   3.59 0.3107
WVFGRD96   29.0   140    65   -35   3.62 0.3141

The best solution is

WVFGRD96    6.0   125    55   -65   3.37 0.5253

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

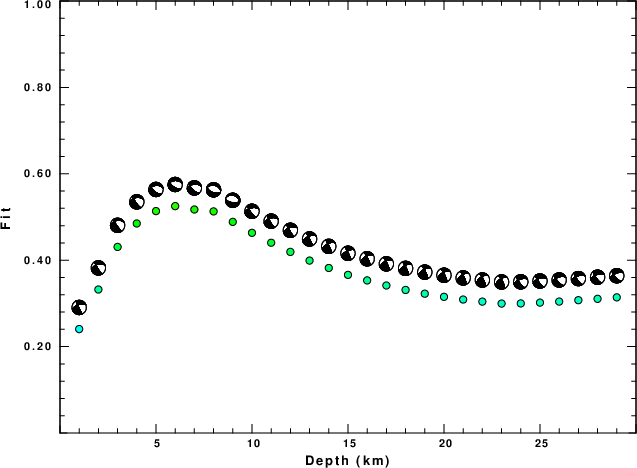

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

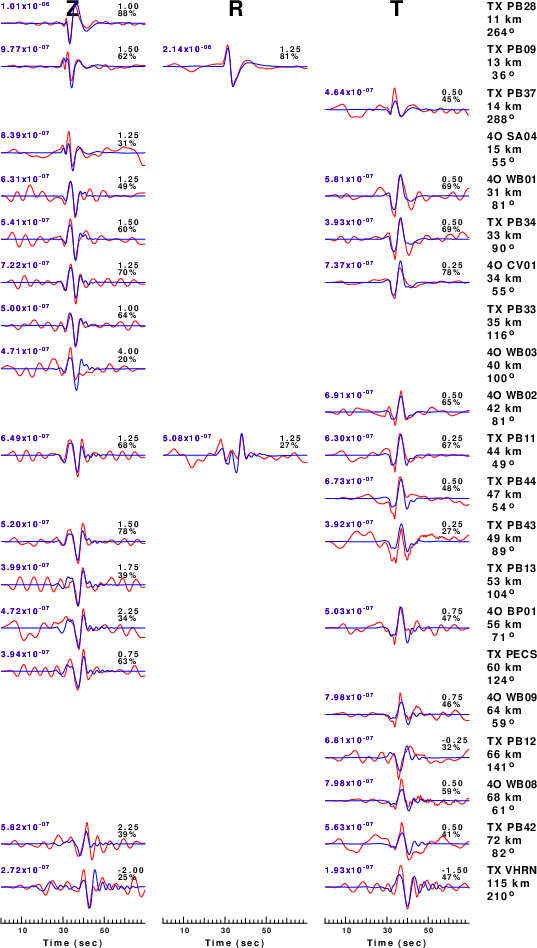

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

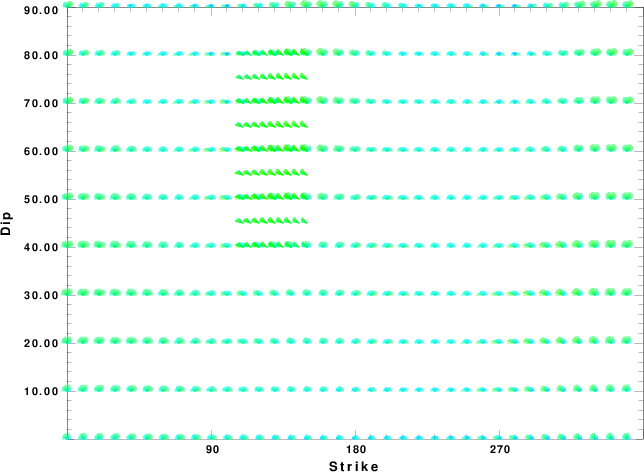

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

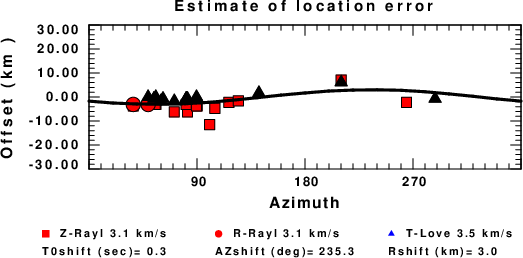

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
