Location

Location ANSS

The ANSS event ID is ak0239nmd2xz and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0239nmd2xz/executive.

2023/07/29 19:32:48 68.620 -148.583 1.3 4 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2023/07/29 19:32:48:0  68.62 -148.58   1.3 4.0 Alaska

 Stations used:
   AK.C27K AK.D25K AK.E19K AK.E24K AK.E25K AK.E27K AK.F20K
   AK.F21K AK.FYU AK.G24K AK.H21K AK.H22K AK.H24K AK.I21K
   AK.I23K AK.MLY AK.POKR AK.PPD AK.TOLK IM.IL31 IU.COLA

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 1.55e+22 dyne-cm
  Mw = 4.06
  Z  = 13 km
  Plane   Strike  Dip  Rake
   NP1      215    80   -30
   NP2      311    61   -168
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.55e+22     13     266
    N   0.00e+00     59      18
    P  -1.55e+22     28     169

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.15e+22
       Mxy     3.27e+21
       Mxz     6.08e+21
       Myy     1.42e+22
       Myz    -4.63e+21
       Mzz    -2.65e+21




                     --------------
                 ----------------------
              ------------------------####
             -----------------------#######
           ############-----------###########
          ################-------#############
         ####################--################
        ######################--################
        ####################------##############
       ####################---------#############
       #   ###############------------###########
       # T #############---------------##########
       #   ############-----------------#########
        ##############-------------------#######
        #############---------------------######
         ###########-----------------------####
          #########------------------------###
           #######-----------   ------------#
             ####------------ P -----------
              ##-------------   ----------
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -2.65e+21   6.08e+21   4.63e+21
  6.08e+21  -1.15e+22  -3.27e+21
  4.63e+21  -3.27e+21   1.42e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20230729193248/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 215
      DIP = 80
     RAKE = -30
       MW = 4.06
       HS = 13.0

The NDK file is 20230729193248.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

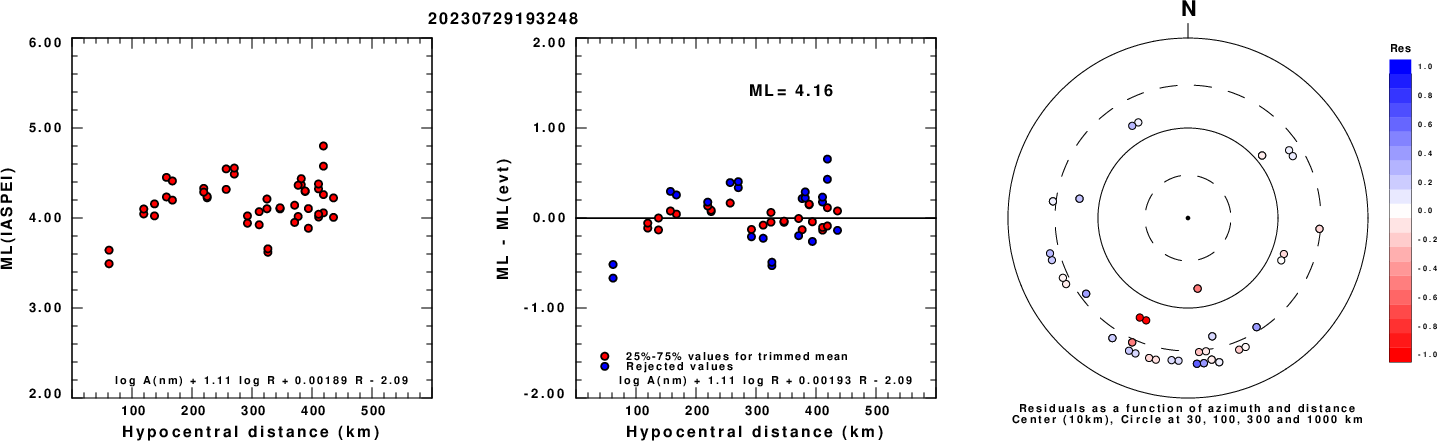

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

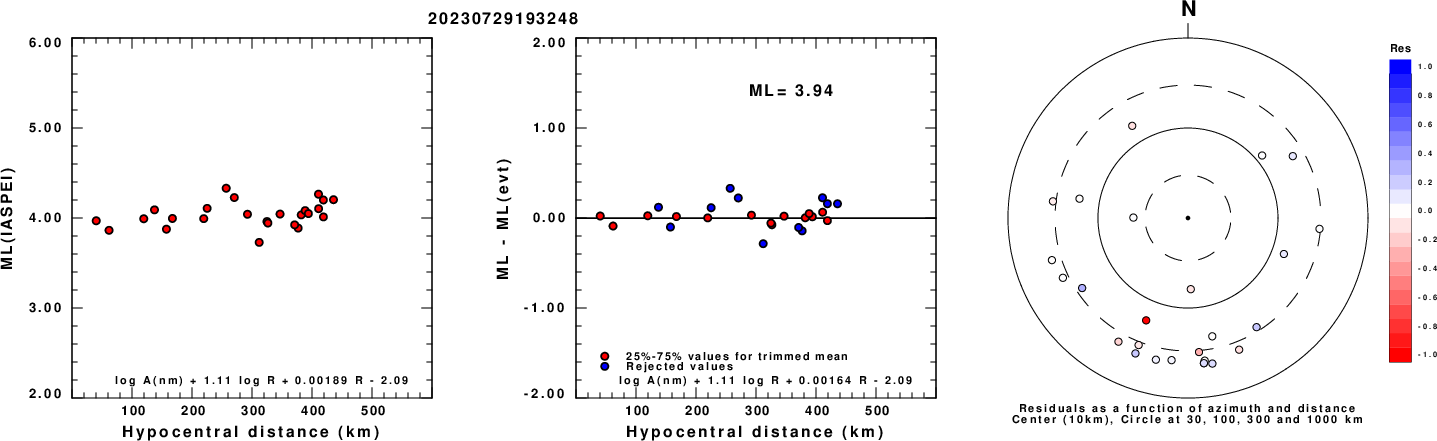

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

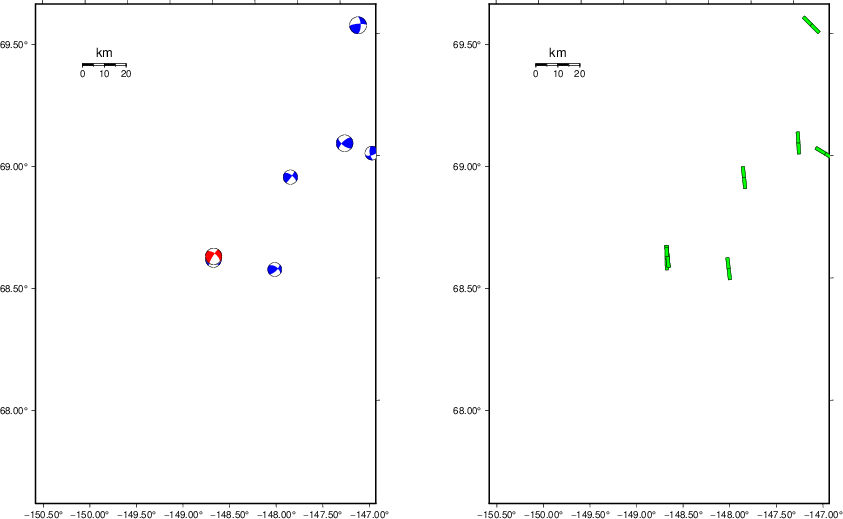

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

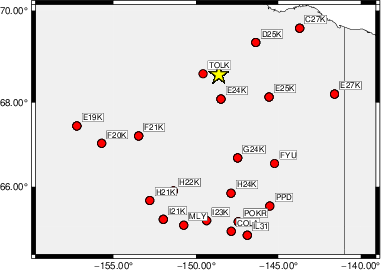

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    40    75   -20   3.67 0.3804
WVFGRD96    2.0    40    75   -20   3.78 0.4810
WVFGRD96    3.0    40    90   -15   3.82 0.5182
WVFGRD96    4.0   220    80    15   3.86 0.5402
WVFGRD96    5.0   220    80    20   3.90 0.5551
WVFGRD96    6.0   220    80    20   3.92 0.5661
WVFGRD96    7.0   220    80    20   3.94 0.5764
WVFGRD96    8.0   220    85    25   3.98 0.5864
WVFGRD96    9.0    40    90    30   4.00 0.5838
WVFGRD96   10.0   215    85   -30   4.02 0.5968
WVFGRD96   11.0    40    90    30   4.03 0.5986
WVFGRD96   12.0   215    80   -30   4.05 0.6120
WVFGRD96   13.0   215    80   -30   4.06 0.6131
WVFGRD96   14.0   215    80   -30   4.07 0.6121
WVFGRD96   15.0   215    80   -30   4.07 0.6079
WVFGRD96   16.0   215    80   -30   4.08 0.6007
WVFGRD96   17.0   215    80   -30   4.09 0.5930
WVFGRD96   18.0   215    80   -30   4.09 0.5845
WVFGRD96   19.0   215    80   -30   4.10 0.5744
WVFGRD96   20.0   215    80   -25   4.11 0.5648
WVFGRD96   21.0   215    80   -30   4.12 0.5552
WVFGRD96   22.0   220    80   -25   4.12 0.5448
WVFGRD96   23.0   220    80   -25   4.13 0.5357
WVFGRD96   24.0   220    85   -30   4.13 0.5268
WVFGRD96   25.0   315    65    10   4.14 0.5250
WVFGRD96   26.0   315    65    10   4.15 0.5287
WVFGRD96   27.0   310    65    10   4.16 0.5312
WVFGRD96   28.0   310    65    10   4.17 0.5318
WVFGRD96   29.0   310    65     5   4.18 0.5317
WVFGRD96   30.0   310    65     5   4.19 0.5310
WVFGRD96   31.0   310    65     5   4.20 0.5279
WVFGRD96   32.0   310    70     5   4.20 0.5246
WVFGRD96   33.0   310    70     5   4.21 0.5199
WVFGRD96   34.0   310    70     5   4.22 0.5149
WVFGRD96   35.0   310    70     5   4.23 0.5090
WVFGRD96   36.0   310    75     5   4.24 0.5042
WVFGRD96   37.0   310    75     5   4.26 0.4984
WVFGRD96   38.0   310    80    10   4.27 0.4928
WVFGRD96   39.0   310    80     5   4.29 0.4883
WVFGRD96   40.0   310    75    15   4.32 0.4852
WVFGRD96   41.0   310    80    15   4.33 0.4870
WVFGRD96   42.0   310    80    15   4.34 0.4890
WVFGRD96   43.0   310    80    15   4.35 0.4895
WVFGRD96   44.0   310    80    15   4.36 0.4886
WVFGRD96   45.0   310    80    10   4.37 0.4866
WVFGRD96   46.0   310    80    10   4.37 0.4842
WVFGRD96   47.0   310    80    10   4.38 0.4806
WVFGRD96   48.0   310    85    10   4.38 0.4766
WVFGRD96   49.0   310    85    10   4.39 0.4718
WVFGRD96   50.0   310    85    10   4.39 0.4663
WVFGRD96   51.0   310    85    10   4.40 0.4601
WVFGRD96   52.0   130    90   -10   4.40 0.4516
WVFGRD96   53.0   310    80    15   4.41 0.4474
WVFGRD96   54.0   310    80    15   4.41 0.4418
WVFGRD96   55.0   310    80    15   4.42 0.4367
WVFGRD96   56.0   310    85    10   4.41 0.4316
WVFGRD96   57.0   310    85    10   4.42 0.4265
WVFGRD96   58.0   310    85    10   4.42 0.4215
WVFGRD96   59.0   130    90   -10   4.42 0.4146

The best solution is

WVFGRD96   13.0   215    80   -30   4.06 0.6131

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

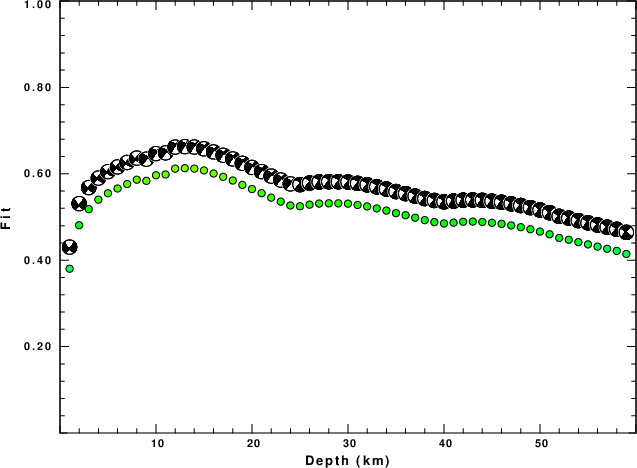

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

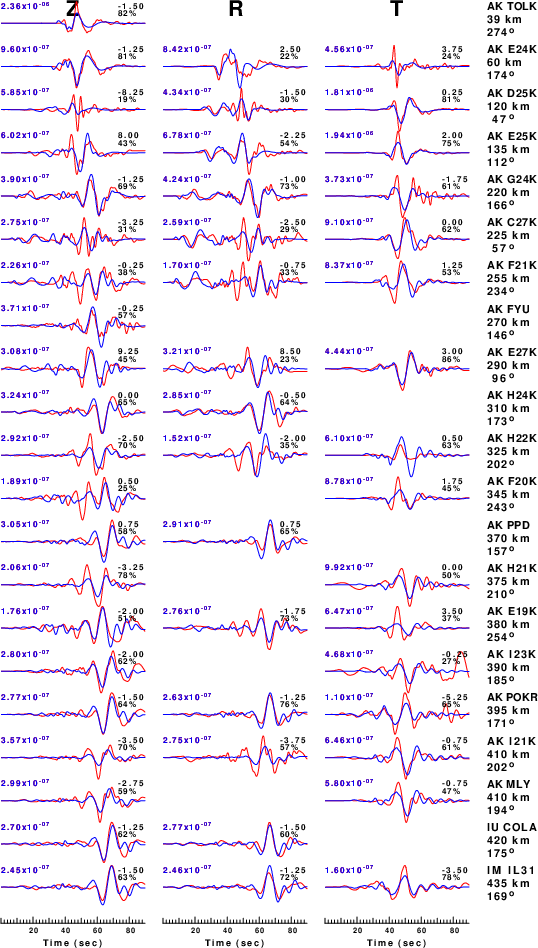

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

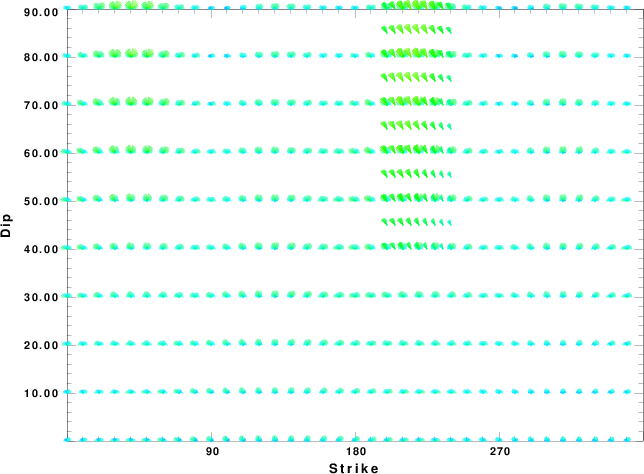

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

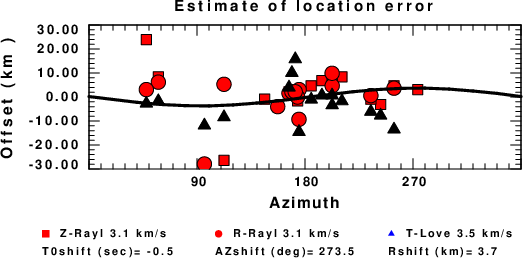

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Tue Apr 23 01:51:18 AM CDT 2024
