Location

Location ANSS

The ANSS event ID is ak02386hegbs and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak02386hegbs/executive.

2023/06/27 06:28:36 62.174 -151.108 72.9 3.7 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2023/06/27 06:28:36:0  62.17 -151.11  72.9 3.7 Alaska

 Stations used:
   AK.BPAW AK.CUT AK.GHO AK.KNK AK.KTH AK.L20K AK.RC01 AK.RND
   AK.SKN AT.PMR AV.STLK

 Filtering commands used:
   cut o DIST/3.5 -40 o DIST/3.5 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 8.91e+21 dyne-cm
  Mw = 3.90
  Z  = 76 km
  Plane   Strike  Dip  Rake
   NP1      337    61    96
   NP2      145    30    80
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   8.91e+21     74     261
    N   0.00e+00      5     154
    P  -8.91e+21     15      62

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.77e+21
       Mxy    -3.31e+21
       Mxz    -1.42e+21
       Myy    -5.83e+21
       Myz    -4.36e+21
       Mzz     7.60e+21




                     --------------
                 ######----------------
              -###########----------------
             -##############---------------
           --################----------------
          ---##################-----------   -
         ---####################---------- P --
        ----#####################---------   ---
        ----######################--------------
       -----#######################--------------
       -----##########   ###########-------------
       ------######### T ###########-------------
       ------#########   ############------------
        ------#######################-----------
        -------#######################----------
         -------######################---------
          -------#####################--------
           --------###################-------
             --------#################-----
              ----------#############-----
                 ------------########-#
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  7.60e+21  -1.42e+21   4.36e+21
 -1.42e+21  -1.77e+21   3.31e+21
  4.36e+21   3.31e+21  -5.83e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20230627062836/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 145
      DIP = 30
     RAKE = 80
       MW = 3.90
       HS = 76.0

The NDK file is 20230627062836.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

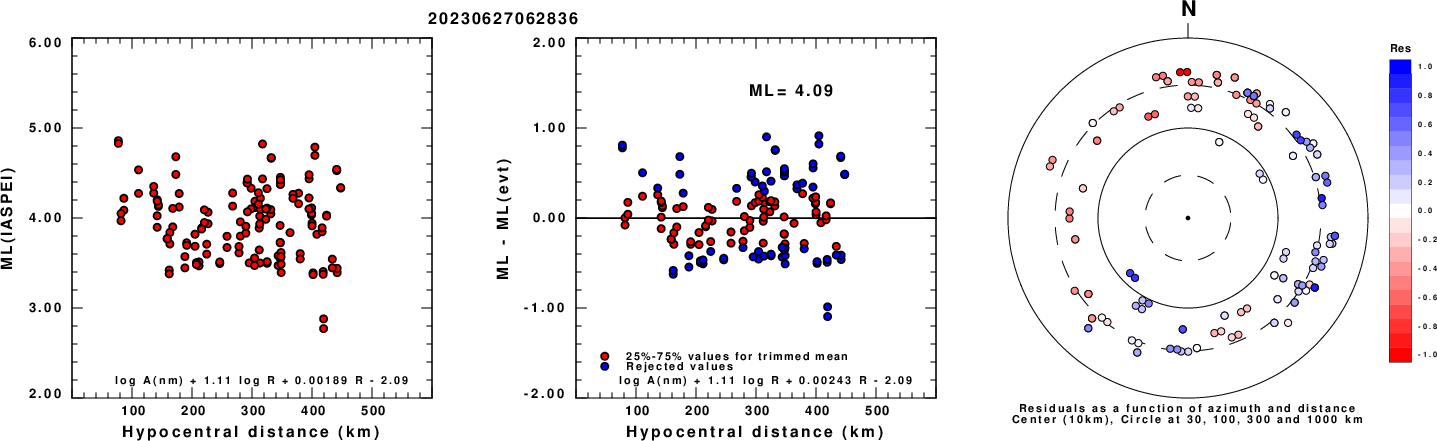

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

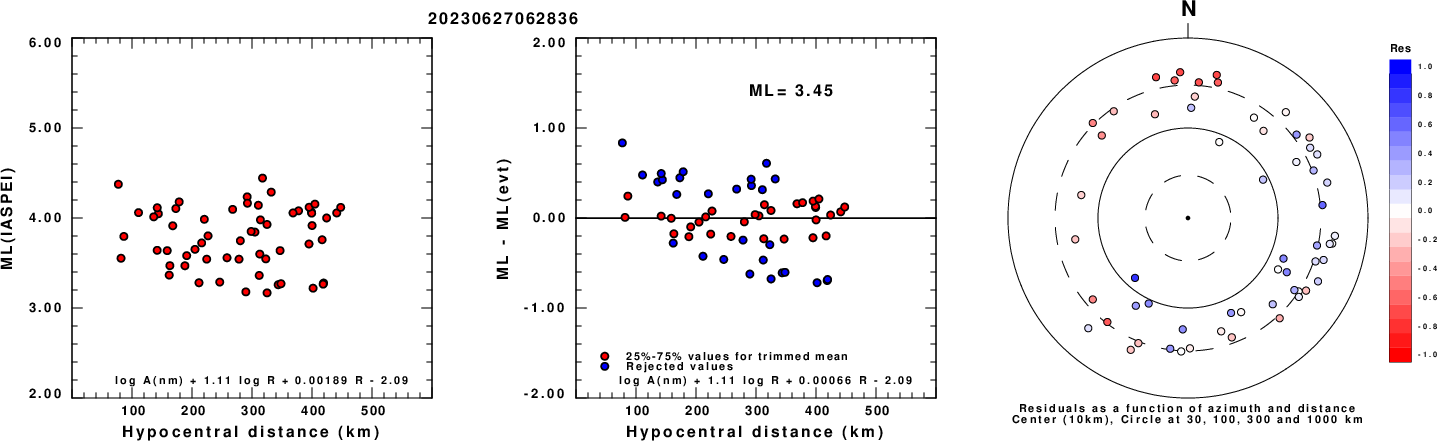

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

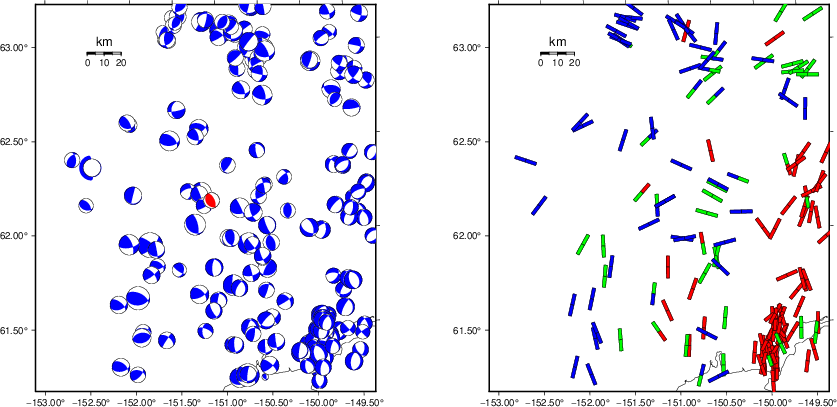

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

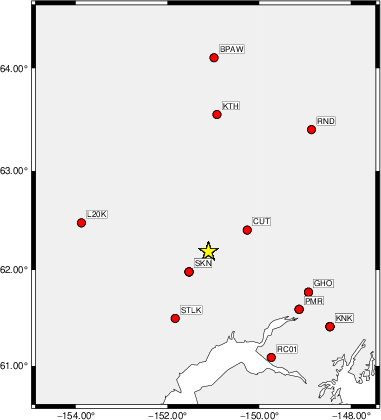

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   145    45   -90   3.13 0.2288
WVFGRD96    4.0   170    80    25   3.27 0.2938
WVFGRD96    6.0   170    75    20   3.32 0.3500
WVFGRD96    8.0   170    70    20   3.38 0.3825
WVFGRD96   10.0   170    80    30   3.38 0.4080
WVFGRD96   12.0   165    80    35   3.38 0.4232
WVFGRD96   14.0   165    80    35   3.39 0.4290
WVFGRD96   16.0   165    80    35   3.41 0.4290
WVFGRD96   18.0   160    80    35   3.42 0.4251
WVFGRD96   20.0   160    80    35   3.44 0.4214
WVFGRD96   22.0   165    70    30   3.47 0.4176
WVFGRD96   24.0   165    70    20   3.51 0.4163
WVFGRD96   26.0   165    70    25   3.52 0.4151
WVFGRD96   28.0   165    70    25   3.54 0.4141
WVFGRD96   30.0   165    70    25   3.56 0.4126
WVFGRD96   32.0   170    65    25   3.57 0.4108
WVFGRD96   34.0   170    65    30   3.58 0.4078
WVFGRD96   36.0   165    70    30   3.61 0.4020
WVFGRD96   38.0   150    50    70   3.57 0.4013
WVFGRD96   40.0   130    55    70   3.69 0.4164
WVFGRD96   42.0   140    50    75   3.71 0.4323
WVFGRD96   44.0   140    50    75   3.72 0.4419
WVFGRD96   46.0   115    50    60   3.76 0.4531
WVFGRD96   48.0   115    50    60   3.77 0.4706
WVFGRD96   50.0   110    50    55   3.80 0.4888
WVFGRD96   52.0   115    45    55   3.80 0.5031
WVFGRD96   54.0   120    45    60   3.81 0.5166
WVFGRD96   56.0   120    40    60   3.82 0.5292
WVFGRD96   58.0   120    40    60   3.83 0.5410
WVFGRD96   60.0   135    35    70   3.84 0.5494
WVFGRD96   62.0   135    35    70   3.85 0.5615
WVFGRD96   64.0   135    35    70   3.86 0.5686
WVFGRD96   66.0   135    35    70   3.86 0.5757
WVFGRD96   68.0   135    35    70   3.87 0.5811
WVFGRD96   70.0   135    35    70   3.88 0.5839
WVFGRD96   72.0   145    30    80   3.89 0.5885
WVFGRD96   74.0   145    30    80   3.90 0.5885
WVFGRD96   76.0   145    30    80   3.90 0.5912
WVFGRD96   78.0   340    60    95   3.91 0.5896
WVFGRD96   80.0   340    60    95   3.91 0.5900
WVFGRD96   82.0   340    60    95   3.92 0.5872
WVFGRD96   84.0   145    30    80   3.93 0.5863
WVFGRD96   86.0   145    30    80   3.93 0.5821
WVFGRD96   88.0   340    60    95   3.93 0.5796
WVFGRD96   90.0   145    30    80   3.94 0.5746
WVFGRD96   92.0   145    30    80   3.94 0.5710
WVFGRD96   94.0   145    30    80   3.95 0.5656
WVFGRD96   96.0   150    30    85   3.95 0.5603
WVFGRD96   98.0   155    30    85   3.95 0.5552

The best solution is

WVFGRD96   76.0   145    30    80   3.90 0.5912

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

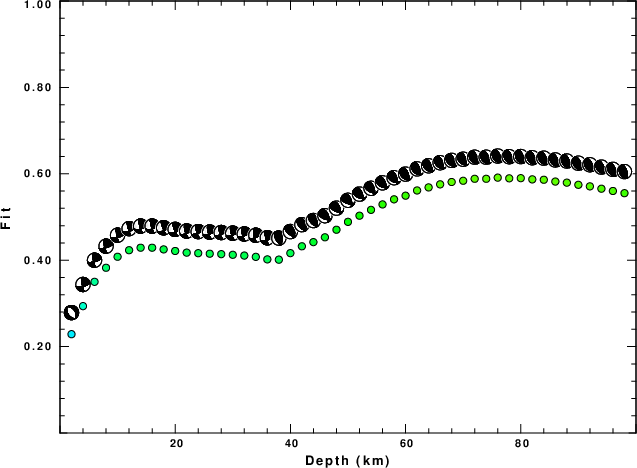

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.5 -40 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

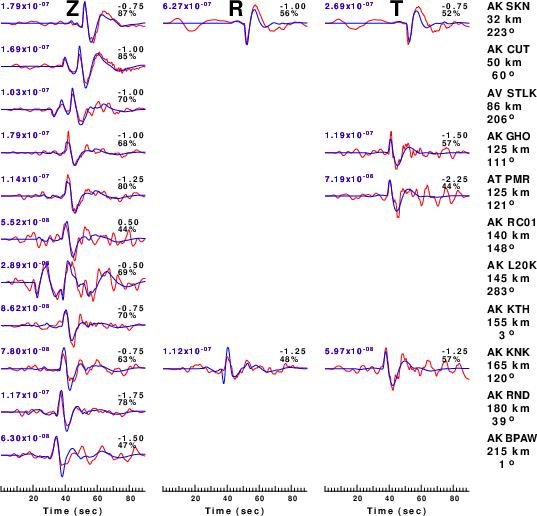

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

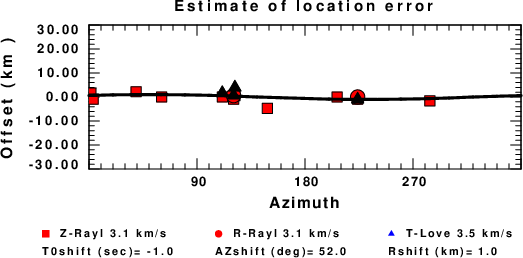

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Tue Apr 23 12:38:21 AM CDT 2024
