Location

Location ANSS

The ANSS event ID is ak02381rp2xn and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak02381rp2xn/executive.

2023/06/24 21:24:47 61.277 -150.103 38.7 3.6 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2023/06/24 21:24:47:0  61.28 -150.10  38.7 3.6 Alaska

 Stations used:
   AK.CNP AK.FIRE AK.GHO AK.GLI AK.HOM AK.KNK AK.M20K AK.MCK
   AK.PWL AK.RC01 AK.SKN AT.PMR AV.P19K AV.SPCP

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 5.50e+21 dyne-cm
  Mw = 3.76
  Z  = 47 km
  Plane   Strike  Dip  Rake
   NP1      180    60   -60
   NP2      311    41   -131
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.50e+21     10     249
    N   0.00e+00     26     344
    P  -5.50e+21     62     139

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -4.16e+14
       Mxy     2.38e+21
       Mxz     1.37e+21
       Myy     4.12e+21
       Myz    -2.38e+21
       Mzz    -4.12e+21




                     ------########
                 --------##############
              ----------##################
             ##########-----###############
           ###########----------#############
          ############-------------###########
         ############----------------##########
        #############------------------#########
        #############-------------------########
       #############---------------------########
       #############----------------------#######
       #############-----------------------######
       #############-----------   ----------#####
        #   #########---------- P ----------####
        # T #########----------   ----------####
            #########-----------------------###
          ############----------------------##
           ###########----------------------#
             ##########--------------------
              ##########------------------
                 ########--------------
                     ######--------



 Global CMT Convention Moment Tensor:
      R          T          P
 -4.12e+21   1.37e+21   2.38e+21
  1.37e+21  -4.16e+14  -2.38e+21
  2.38e+21  -2.38e+21   4.12e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20230624212447/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 180
      DIP = 60
     RAKE = -60
       MW = 3.76
       HS = 47.0

The NDK file is 20230624212447.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

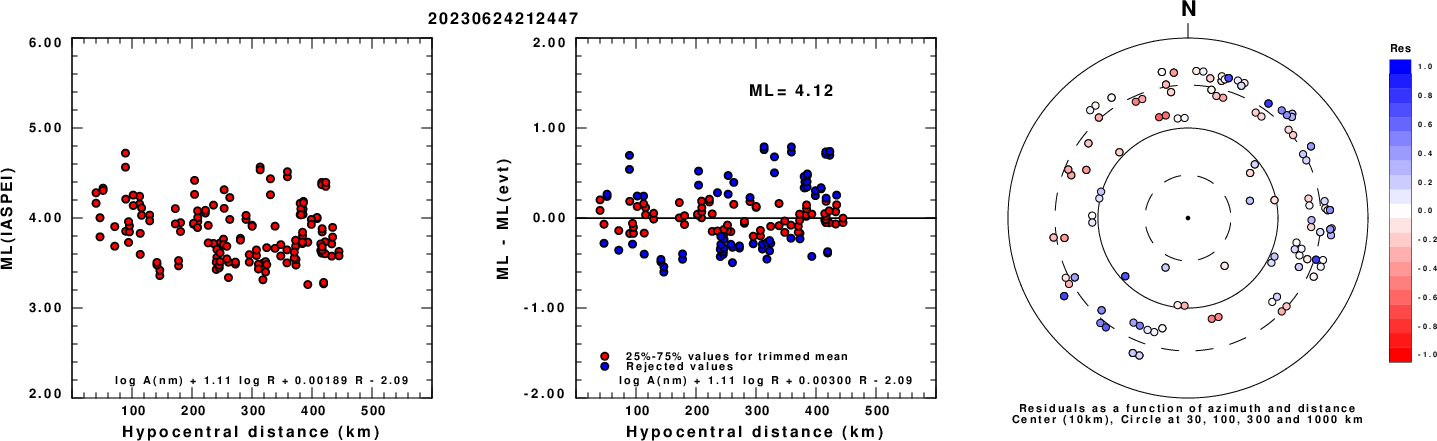

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

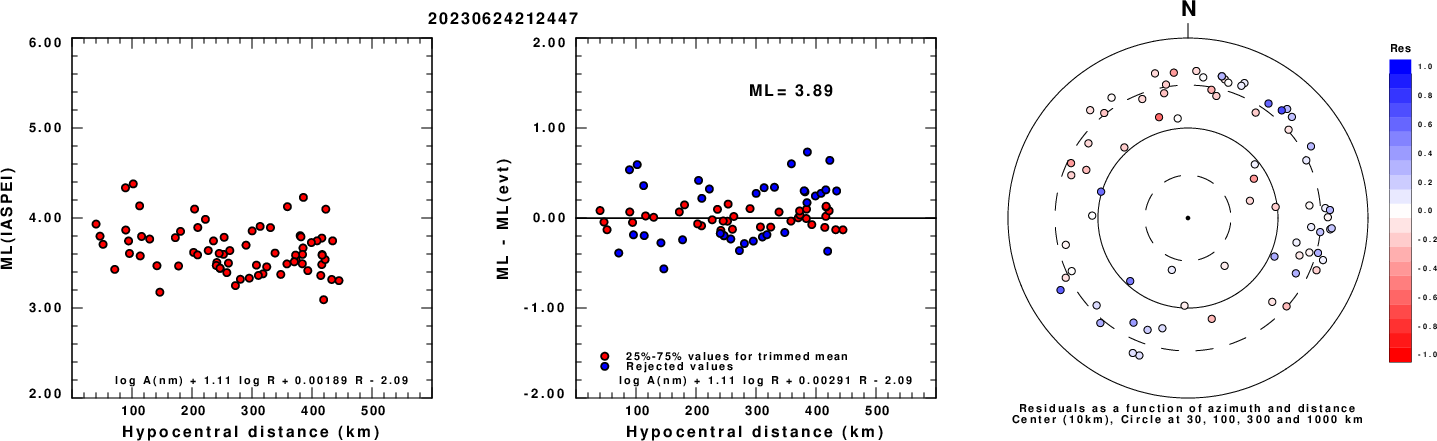

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

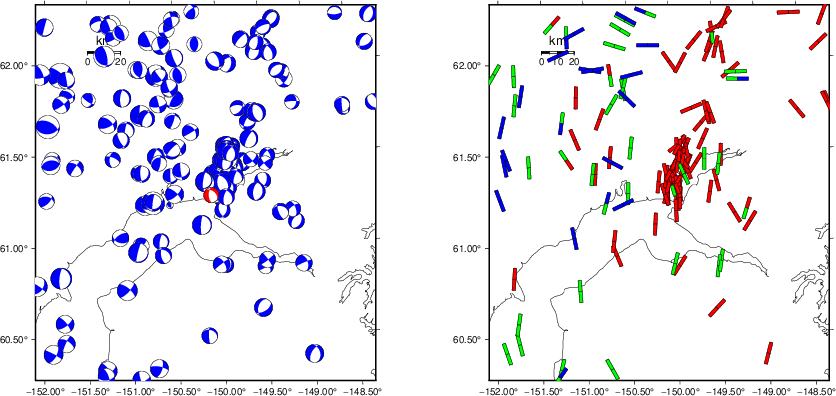

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

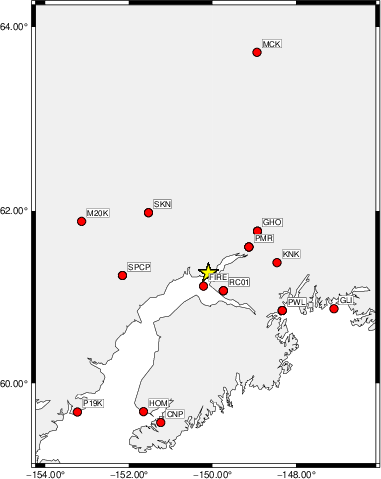

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   290    55   -85   2.96 0.1802
WVFGRD96    2.0   290    60   -85   3.10 0.2384
WVFGRD96    3.0   290    60   -80   3.12 0.2343
WVFGRD96    4.0    50    45   -35   3.11 0.2588
WVFGRD96    5.0    50    50   -35   3.12 0.2856
WVFGRD96    6.0    25    45   -30   3.15 0.3048
WVFGRD96    7.0    25    45   -30   3.17 0.3239
WVFGRD96    8.0   100    80   -85   3.28 0.3335
WVFGRD96    9.0    95    75   -85   3.30 0.3455
WVFGRD96   10.0    25    45   -30   3.24 0.3488
WVFGRD96   11.0    30    50   -35   3.25 0.3544
WVFGRD96   12.0    25    45   -35   3.27 0.3596
WVFGRD96   13.0    25    45   -35   3.28 0.3643
WVFGRD96   14.0    30    45   -30   3.28 0.3671
WVFGRD96   15.0    30    45   -30   3.29 0.3701
WVFGRD96   16.0    30    45   -30   3.30 0.3723
WVFGRD96   17.0    35    50   -30   3.31 0.3740
WVFGRD96   18.0    30    45   -30   3.33 0.3748
WVFGRD96   19.0    40    50   -30   3.34 0.3765
WVFGRD96   20.0    40    50   -30   3.35 0.3766
WVFGRD96   21.0    35    45   -25   3.36 0.3762
WVFGRD96   22.0    35    45   -25   3.38 0.3753
WVFGRD96   23.0    40    50   -30   3.39 0.3745
WVFGRD96   24.0    30    45   -30   3.39 0.3735
WVFGRD96   25.0    30    50   -35   3.40 0.3738
WVFGRD96   26.0    35    50   -40   3.42 0.3758
WVFGRD96   27.0    30    50   -45   3.43 0.3795
WVFGRD96   28.0    35    50   -45   3.44 0.3836
WVFGRD96   29.0    20    45   -50   3.45 0.3881
WVFGRD96   30.0    20    45   -50   3.46 0.3923
WVFGRD96   31.0   175    50   -75   3.51 0.4082
WVFGRD96   32.0   175    50   -70   3.53 0.4251
WVFGRD96   33.0   175    50   -70   3.54 0.4407
WVFGRD96   34.0   185    55   -55   3.57 0.4560
WVFGRD96   35.0   180    55   -60   3.57 0.4683
WVFGRD96   36.0   180    55   -60   3.59 0.4763
WVFGRD96   37.0   180    55   -60   3.60 0.4826
WVFGRD96   38.0   180    55   -60   3.61 0.4861
WVFGRD96   39.0   180    55   -55   3.63 0.4878
WVFGRD96   40.0   180    60   -60   3.70 0.4768
WVFGRD96   41.0   180    60   -60   3.71 0.4870
WVFGRD96   42.0   180    60   -60   3.72 0.4947
WVFGRD96   43.0   180    60   -60   3.73 0.5010
WVFGRD96   44.0   180    60   -60   3.74 0.5059
WVFGRD96   45.0   180    60   -60   3.75 0.5093
WVFGRD96   46.0   180    60   -60   3.76 0.5102
WVFGRD96   47.0   180    60   -60   3.76 0.5105
WVFGRD96   48.0   180    60   -60   3.77 0.5101
WVFGRD96   49.0   180    60   -60   3.77 0.5076
WVFGRD96   50.0   175    60   -65   3.78 0.5046
WVFGRD96   51.0   180    60   -60   3.78 0.5009
WVFGRD96   52.0   175    60   -65   3.79 0.4967
WVFGRD96   53.0   175    60   -65   3.79 0.4917
WVFGRD96   54.0   175    60   -65   3.79 0.4860
WVFGRD96   55.0   175    60   -60   3.80 0.4794
WVFGRD96   56.0   175    60   -60   3.80 0.4737
WVFGRD96   57.0   180    65   -60   3.79 0.4671
WVFGRD96   58.0   180    65   -60   3.80 0.4611
WVFGRD96   59.0   180    65   -60   3.80 0.4548

The best solution is

WVFGRD96   47.0   180    60   -60   3.76 0.5105

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

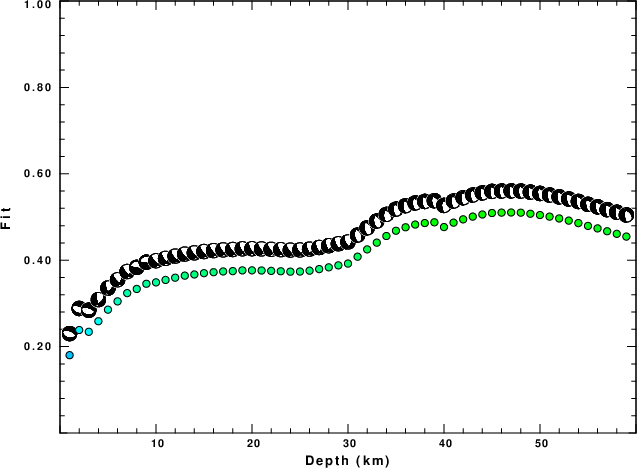

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

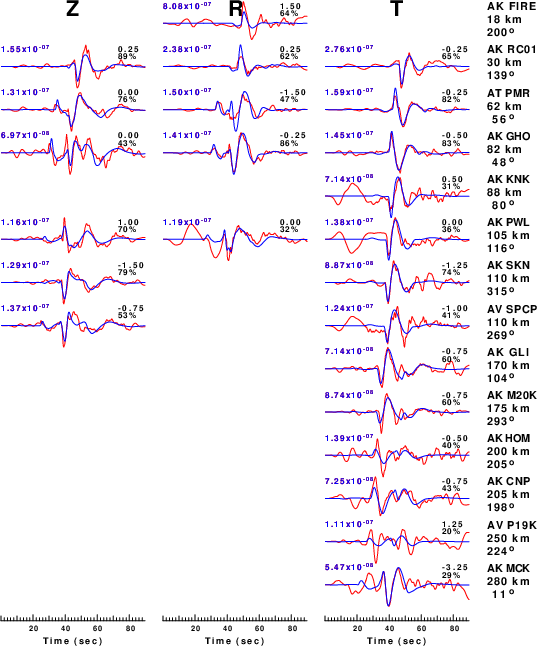

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

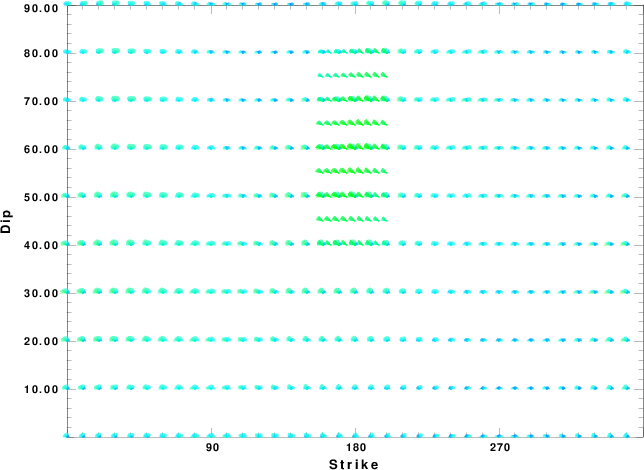

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

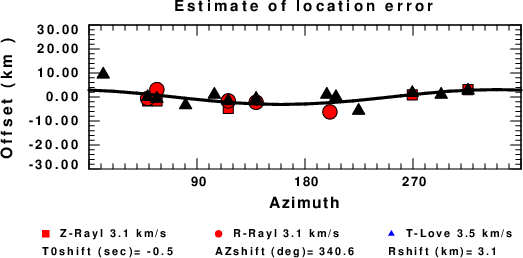

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Tue Apr 23 12:32:45 AM CDT 2024
