Location

Location ANSS

The ANSS event ID is ak0237yfl15l and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0237yfl15l/executive.

2023/06/22 19:50:19 62.187 -149.438 31.1 3.7 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2023/06/22 19:50:19:0  62.19 -149.44  31.1 3.7 Alaska

 Stations used:
   AK.CUT AK.DIV AK.GHO AK.GLI AK.KLU AK.L22K AK.PWL AK.RC01
   AK.RND AK.SKN AK.SLK AK.SWD AT.PMR

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 7.00e+21 dyne-cm
  Mw = 3.83
  Z  = 60 km
  Plane   Strike  Dip  Rake
   NP1      250    70   -80
   NP2       43    22   -116
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   7.00e+21     24     332
    N   0.00e+00      9      67
    P  -7.00e+21     64     176

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     3.18e+21
       Mxy    -2.30e+21
       Mxz     5.10e+21
       Myy     1.25e+21
       Myz    -1.42e+21
       Mzz    -4.43e+21




                     ##############
                 ######################
              #####   ####################
             ###### T #####################
           ########   ######################-
          ###################################-
         ####################################--
        ########################--------------##
        ##################--------------------##
       ##############-------------------------###
       ###########----------------------------###
       ########------------------------------####
       ######--------------------------------####
        ###----------------   --------------####
        #------------------ P -------------#####
         ------------------   ------------#####
          -------------------------------#####
           ----------------------------######
             ------------------------######
              #-------------------########
                 ###---------##########
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -4.43e+21   5.10e+21   1.42e+21
  5.10e+21   3.18e+21   2.30e+21
  1.42e+21   2.30e+21   1.25e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20230622195019/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 250
      DIP = 70
     RAKE = -80
       MW = 3.83
       HS = 60.0

The NDK file is 20230622195019.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

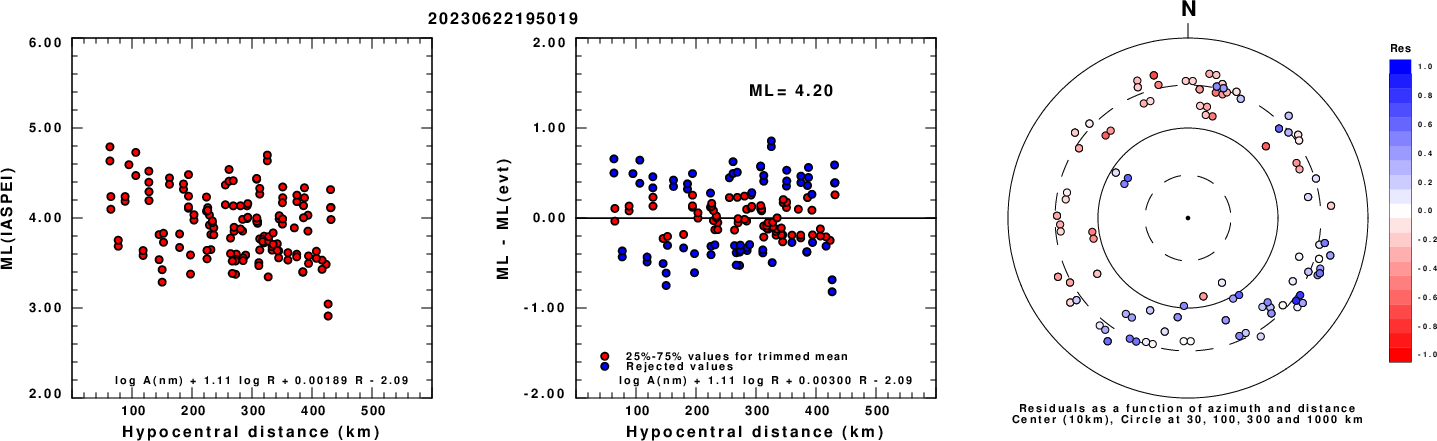

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

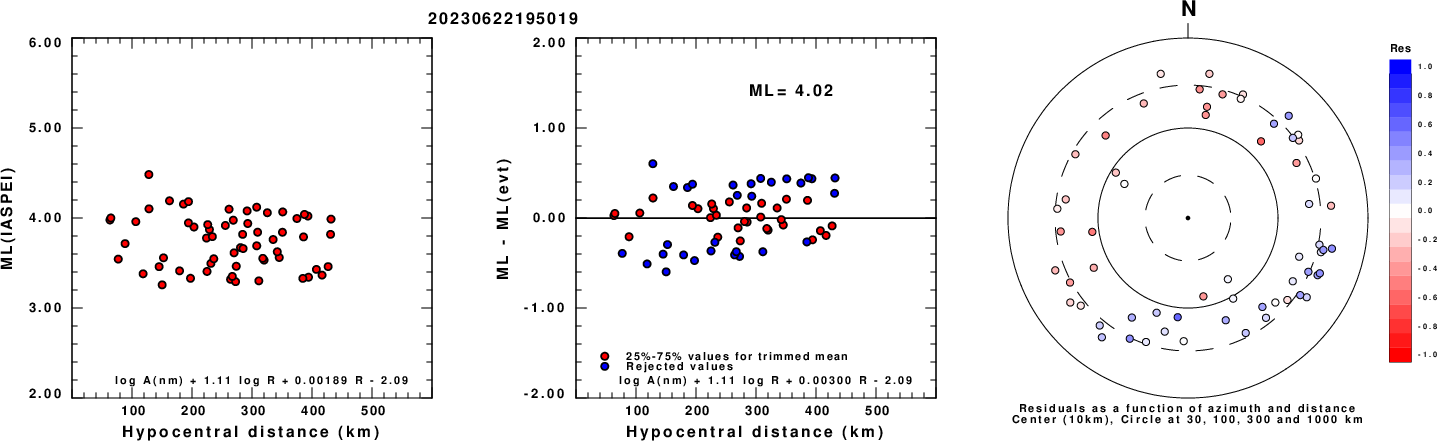

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

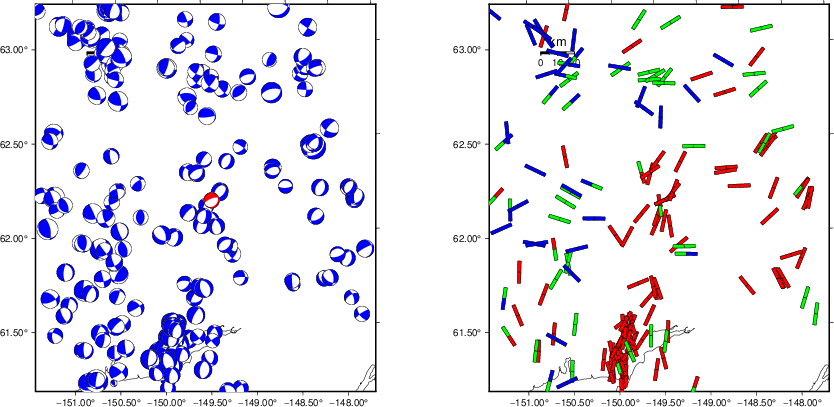

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

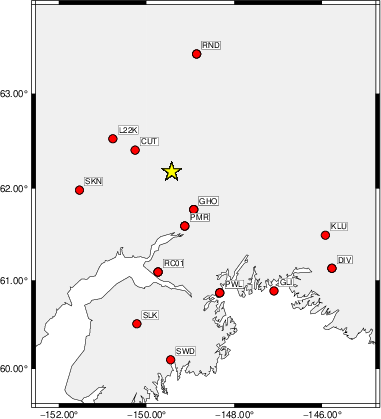

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0    45    45    85   3.06 0.2863
WVFGRD96    4.0   270    60   -55   3.12 0.1944
WVFGRD96    6.0   135    35    25   3.14 0.2415
WVFGRD96    8.0   145    20    25   3.19 0.2792
WVFGRD96   10.0   145    20    25   3.21 0.3138
WVFGRD96   12.0   145    20    25   3.23 0.3383
WVFGRD96   14.0   130    40    35   3.31 0.3600
WVFGRD96   16.0   130    40    40   3.34 0.3776
WVFGRD96   18.0   130    40    40   3.37 0.3920
WVFGRD96   20.0   130    40    45   3.40 0.4013
WVFGRD96   22.0   120    35   -10   3.35 0.4112
WVFGRD96   24.0   125    35    -5   3.38 0.4230
WVFGRD96   26.0   125    35   -10   3.39 0.4334
WVFGRD96   28.0   120    30   -20   3.41 0.4438
WVFGRD96   30.0   110    30   -25   3.44 0.4577
WVFGRD96   32.0   105    30   -35   3.46 0.4771
WVFGRD96   34.0   105    35   -35   3.49 0.4992
WVFGRD96   36.0   100    35   -45   3.52 0.5201
WVFGRD96   38.0   100    40   -45   3.56 0.5476
WVFGRD96   40.0    90    35   -60   3.67 0.5827
WVFGRD96   42.0    90    35   -60   3.70 0.6044
WVFGRD96   44.0    80    30   -70   3.71 0.6179
WVFGRD96   46.0   245    60   -90   3.73 0.6356
WVFGRD96   48.0   250    65   -80   3.75 0.6532
WVFGRD96   50.0   250    65   -80   3.77 0.6727
WVFGRD96   52.0   250    65   -80   3.78 0.6880
WVFGRD96   54.0   250    65   -80   3.80 0.6987
WVFGRD96   56.0   250    65   -80   3.81 0.7038
WVFGRD96   58.0   250    70   -80   3.82 0.7092
WVFGRD96   60.0   250    70   -80   3.83 0.7131
WVFGRD96   62.0   250    70   -80   3.84 0.7127
WVFGRD96   64.0   250    70   -80   3.84 0.7083
WVFGRD96   66.0   255    75   -75   3.86 0.7000
WVFGRD96   68.0   255    75   -75   3.87 0.6958
WVFGRD96   70.0   255    75   -75   3.87 0.6887
WVFGRD96   72.0   250    75   -80   3.87 0.6786
WVFGRD96   74.0   250    75   -80   3.88 0.6649
WVFGRD96   76.0   250    75   -80   3.88 0.6513
WVFGRD96   78.0   255    80   -75   3.90 0.6392
WVFGRD96   80.0   255    80   -75   3.90 0.6272
WVFGRD96   82.0   255    80   -75   3.90 0.6144
WVFGRD96   84.0   255    80   -75   3.90 0.5987
WVFGRD96   86.0   255    80   -70   3.90 0.5837
WVFGRD96   88.0   255    80   -70   3.90 0.5664
WVFGRD96   90.0   255    80   -70   3.90 0.5505
WVFGRD96   92.0   255    85   -75   3.92 0.5373
WVFGRD96   94.0   255    85   -75   3.92 0.5246
WVFGRD96   96.0   255    85   -75   3.92 0.5120
WVFGRD96   98.0   255    85   -75   3.91 0.4984

The best solution is

WVFGRD96   60.0   250    70   -80   3.83 0.7131

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

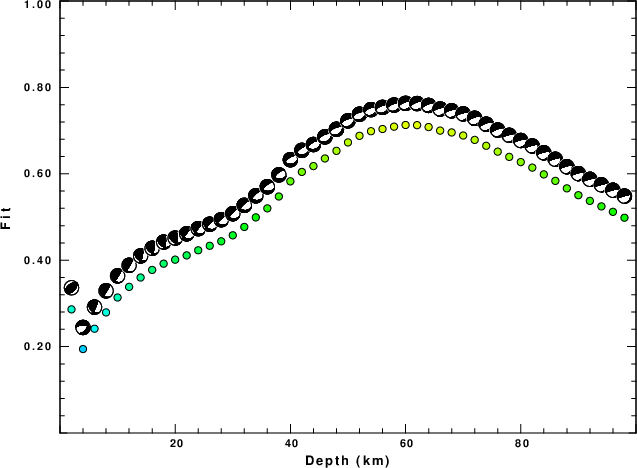

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

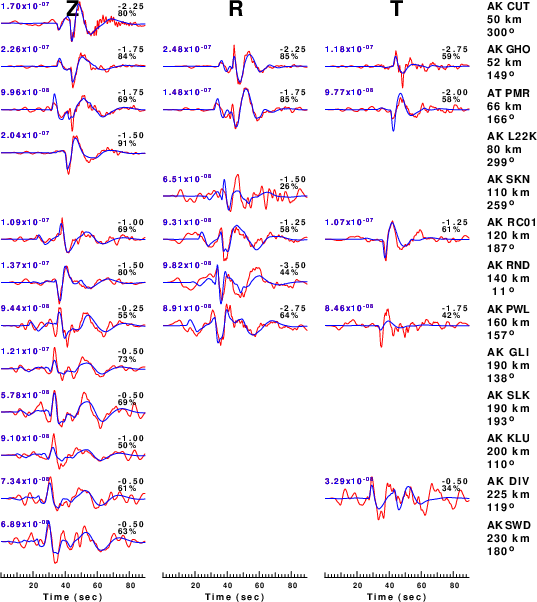

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

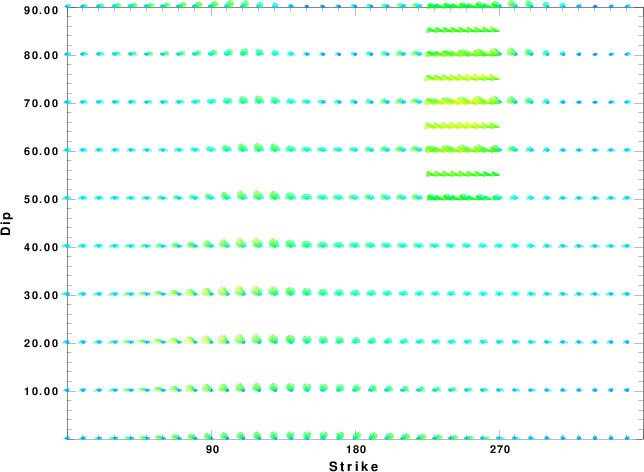

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

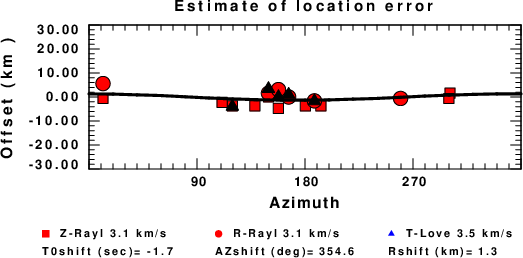

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
