The ANSS event ID is ak0236sy9ooj and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0236sy9ooj/executive.

2023/05/28 11:30:58 63.012 -149.774 77.0 3.7 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2023/05/28 11:30:58:0  63.01 -149.77  77.0 3.7 Alaska

 Stations used:
   AK.BPAW AK.CAST AK.CUT AK.DHY AK.GHO AK.L22K AK.MCK AK.MLY
   AK.NEA2 AK.RND AK.SAW AK.SCM AK.WAT6 IU.COLA

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 8.32e+21 dyne-cm
  Mw = 3.88
  Z  = 86 km
  Plane   Strike  Dip  Rake
   NP1      233    78   -112
   NP2      115    25   -30
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   8.32e+21     29     340
    N   0.00e+00     21     237
    P  -8.32e+21     52     117

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     4.95e+21
       Mxy    -7.37e+20
       Mxz     5.18e+21
       Myy    -1.76e+21
       Myz    -4.79e+21
       Mzz    -3.19e+21




                     ##############
                 ######################
              #######   ##################
             ######## T ###################
           ##########   ###################--
          ############################--------
         ##########################------------
        -#######################----------------
        -####################-------------------
       --#################-----------------------
       --###############-------------------------
       ---############---------------------------
       ---##########---------------   -----------
        ---#######----------------- P ----------
        ----####-------------------   ----------
         -----#--------------------------------
          ---##-------------------------------
           -#####---------------------------#
             #######---------------------##
              ###########-----------######
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.19e+21   5.18e+21   4.79e+21
  5.18e+21   4.95e+21   7.37e+20
  4.79e+21   7.37e+20  -1.76e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20230528113058/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 115
      DIP = 25
     RAKE = -30
       MW = 3.88
       HS = 86.0

The NDK file is 20230528113058.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

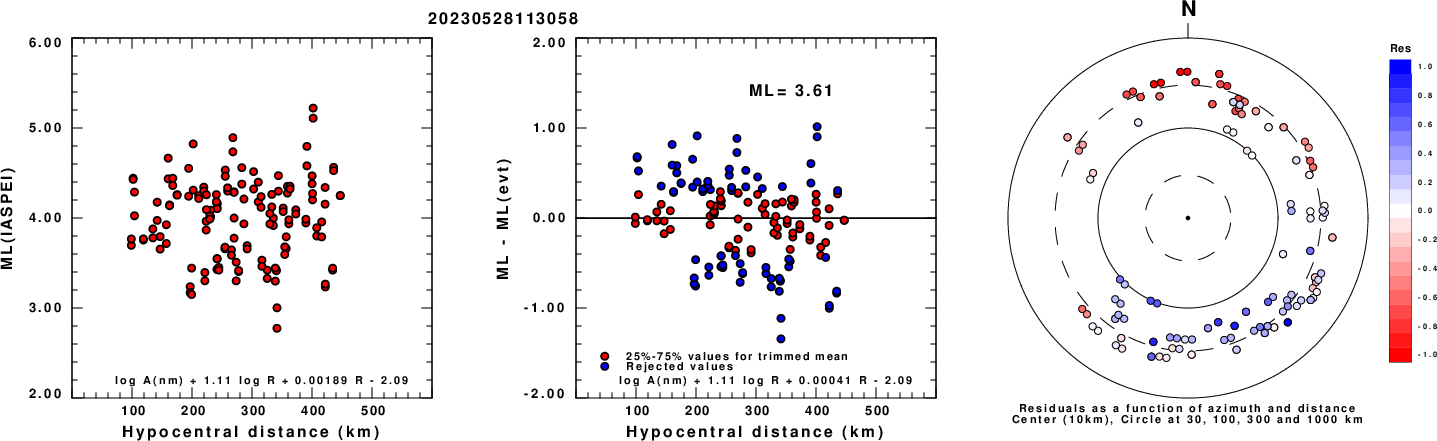

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

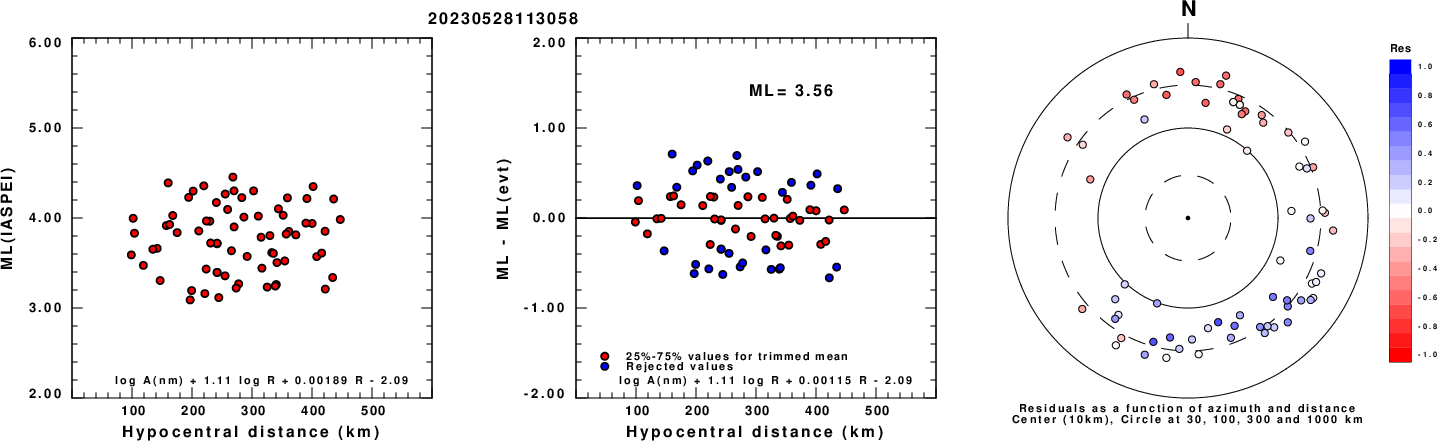

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

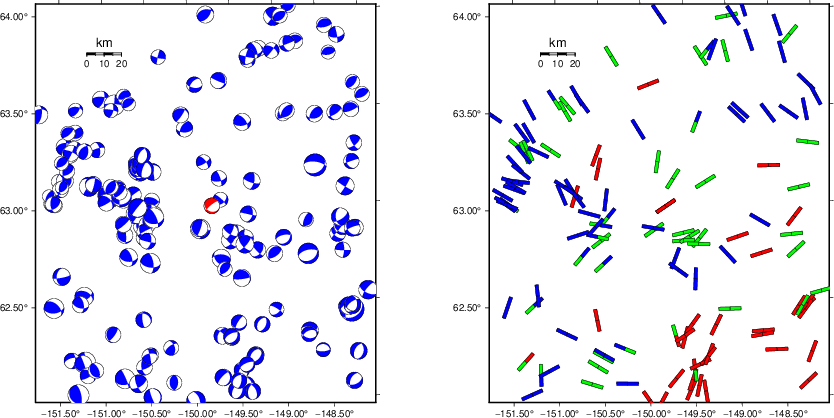

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

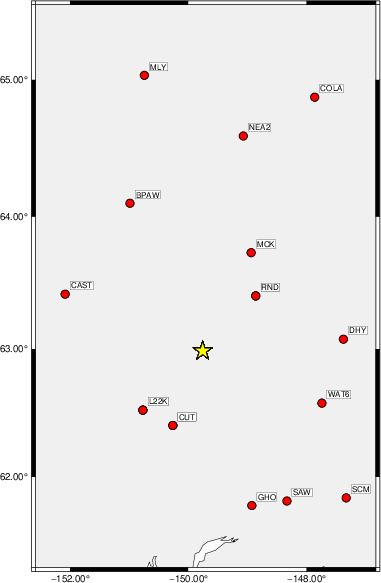

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   235    50    55   3.12 0.2317
WVFGRD96    4.0   225    55    30   3.17 0.2658
WVFGRD96    6.0   220    65    20   3.21 0.2927
WVFGRD96    8.0   220    70    30   3.29 0.3105
WVFGRD96   10.0    30    70   -25   3.31 0.3161
WVFGRD96   12.0   300    60   -20   3.36 0.3250
WVFGRD96   14.0   300    60   -20   3.39 0.3431
WVFGRD96   16.0   300    65   -20   3.41 0.3574
WVFGRD96   18.0   120    60   -20   3.44 0.3700
WVFGRD96   20.0   120    60   -15   3.46 0.3848
WVFGRD96   22.0   120    55   -15   3.49 0.3979
WVFGRD96   24.0   125    55   -20   3.52 0.4104
WVFGRD96   26.0   125    55   -20   3.53 0.4218
WVFGRD96   28.0   120    50   -20   3.55 0.4314
WVFGRD96   30.0   125    50   -20   3.57 0.4384
WVFGRD96   32.0   120    50   -15   3.58 0.4444
WVFGRD96   34.0   135    45    20   3.61 0.4535
WVFGRD96   36.0   135    45    20   3.63 0.4606
WVFGRD96   38.0   130    50    15   3.63 0.4678
WVFGRD96   40.0   140    35    25   3.75 0.4735
WVFGRD96   42.0   135    35    15   3.76 0.4727
WVFGRD96   44.0   140    35    25   3.78 0.4782
WVFGRD96   46.0   135    35    15   3.78 0.4881
WVFGRD96   48.0   135    35    15   3.79 0.4980
WVFGRD96   50.0   130    40    10   3.78 0.5063
WVFGRD96   52.0   130    40    10   3.79 0.5150
WVFGRD96   54.0   125    40   -20   3.81 0.5234
WVFGRD96   56.0   125    40   -20   3.82 0.5320
WVFGRD96   58.0   125    40   -20   3.82 0.5398
WVFGRD96   60.0   105    20   -35   3.85 0.5495
WVFGRD96   62.0   105    20   -35   3.86 0.5611
WVFGRD96   64.0   105    20   -35   3.86 0.5703
WVFGRD96   66.0   105    20   -35   3.86 0.5778
WVFGRD96   68.0   105    20   -35   3.86 0.5837
WVFGRD96   70.0   115    25   -30   3.86 0.5886
WVFGRD96   72.0   115    25   -30   3.87 0.5935
WVFGRD96   74.0   115    25   -30   3.87 0.5967
WVFGRD96   76.0   115    25   -30   3.87 0.5994
WVFGRD96   78.0   115    25   -30   3.87 0.6012
WVFGRD96   80.0   115    25   -30   3.87 0.6015
WVFGRD96   82.0   115    25   -30   3.88 0.6005
WVFGRD96   84.0   115    25   -30   3.88 0.6015
WVFGRD96   86.0   115    25   -30   3.88 0.6022
WVFGRD96   88.0   120    25   -30   3.89 0.6013
WVFGRD96   90.0   120    25   -30   3.89 0.5988
WVFGRD96   92.0   120    25   -30   3.89 0.5955
WVFGRD96   94.0   120    25   -30   3.89 0.5954
WVFGRD96   96.0   125    25   -25   3.90 0.5927
WVFGRD96   98.0   125    30   -25   3.90 0.5882

The best solution is

WVFGRD96   86.0   115    25   -30   3.88 0.6022

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

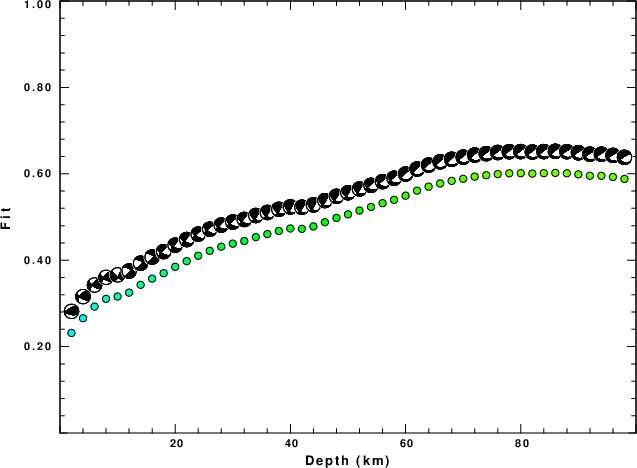

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

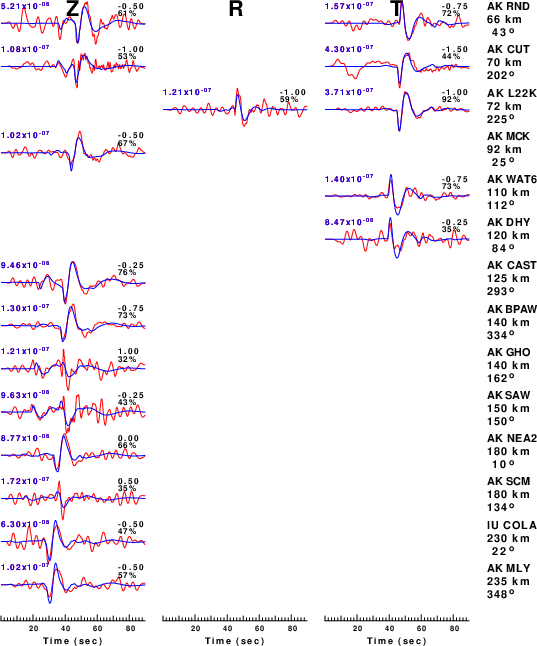

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

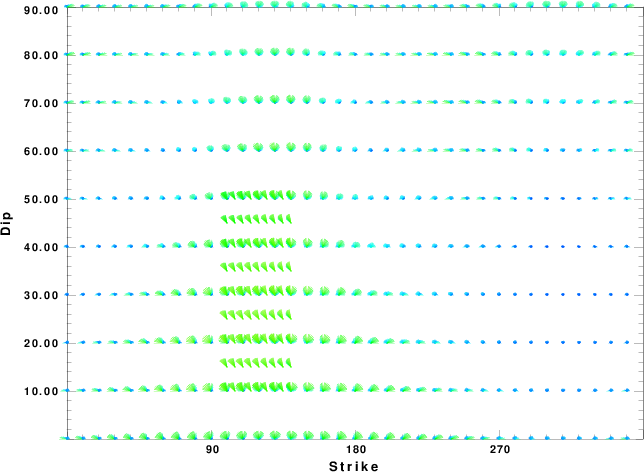

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

The time shifts for this inversion lead to the next figure:

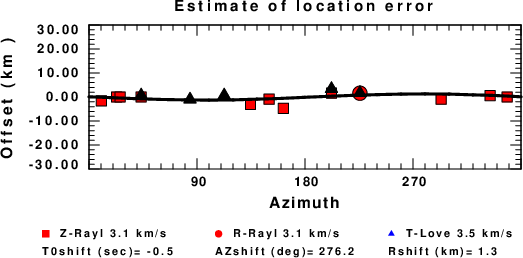

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Mon Apr 22 11:56:28 PM CDT 2024
